AGAiT Eclean User manual

Robotic Vacuum Cleaner
Fully Automated Intelligent
Dust Buster
User’s Manual
Easy-Clean Life Style
15G 22G 0110 0 0

Table of Contents
Safety Notice....................................................................................................1
Package Content ............................................................................................5
Main Body .........................................................................................................6
Battery Installation ...........................................................................................8
Charging the Battery ....................................................................................10
Operating Panel Introduction.................................................................12
Using the Recharging Dock.....................................................................20
Scheduling Eclean's Cleaning Time (EC 01 Enhanced) ........................24
Remote Control............................................................................................32
Install Solid Freshener................................................................................35

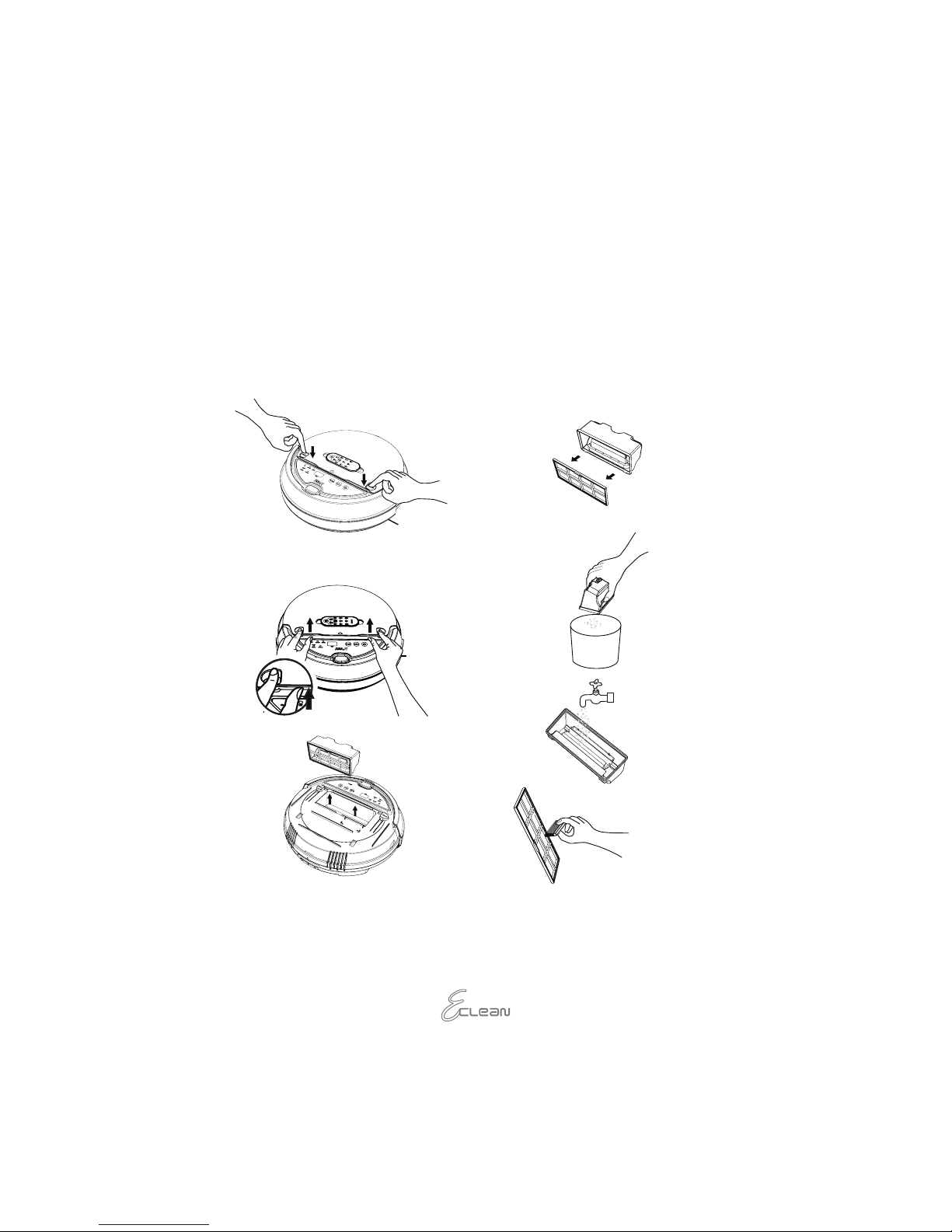

Maintenance - Dust bin & lter............................................................................. 37
Maintenance - Side brush & Roll brush .......................................................39
Maintenance - Cleaning the back wheels .................................................40
Operating Scenarios
.....................................................................................41
Troubleshooting ..............................................................................................44
Product Warranty Card ................................................................................49
Customer Copy.............................................................................................52

1
Forbidden
Do not disassemble the product. The high voltage inside may cause
severe harm.
Do not place any object and do not sit on the product during
operation or non - operation. Take extra caution around children or
pets.
Keep away from fire or any volatile flammable liquid when using the
product.
Do not cleanse the product with water, or use it on moist surfaces (e.g.
bathroom) to avoid malfunction of any electrical wire or component.
Do not expose the product to direct sunlight, otherwise machine
operation may be interfered.
To avoid eye damage, do not look straight into the Ultraviolet light
when it’s on.
Notice
To avoid malfunction, please ensure the air outlet is not blocked by
foreign objects while using the product.
Before use, remove any clothing, wire, plastic bag and any other
objects that may become entangled with the product.
Roll up - reaching blinds, curtains, bed sheets or carpet tassels to
avoid hazards.
The product is for domestic use only and not intended for factory or
any business-related use. If the product is damaged due to misuse,
the warranty shall be void. If the product is sent for repair, the fees for
labor and parts shall be assessed at our discretion.
The ideal operating temperature range is -10°C to 45°C. Subject
the product to temperatures outside of this range may cause
malfunction.
Ensure the battery is fully charged when using the product for the
first time.
Depending on the floor textures, the product can clean up to approx.
10 m² area in 10 minutes.
While using the product for the first time, please observe its
operation to avoid issues such as being blocked by obstacles or stuck
by objects.
Safety Notice
Before using Eclean, please read the Safety Notice carefully and follow the
instructions below:

2
Package Content
1. Eclean Main Body 2. Remote Control 3. Filter Cotton x 2
4. Rechargeable Battery 5. Adapter 6. Recharging Dock
7Cleaning Brush 8. Dust Bin 9. User’s Manual
8
5
2
7
4
1
9
6
3

3
3
5
6
1
4
7
2
EC01
1
2
3
4
6
5
EC01 Enhanced

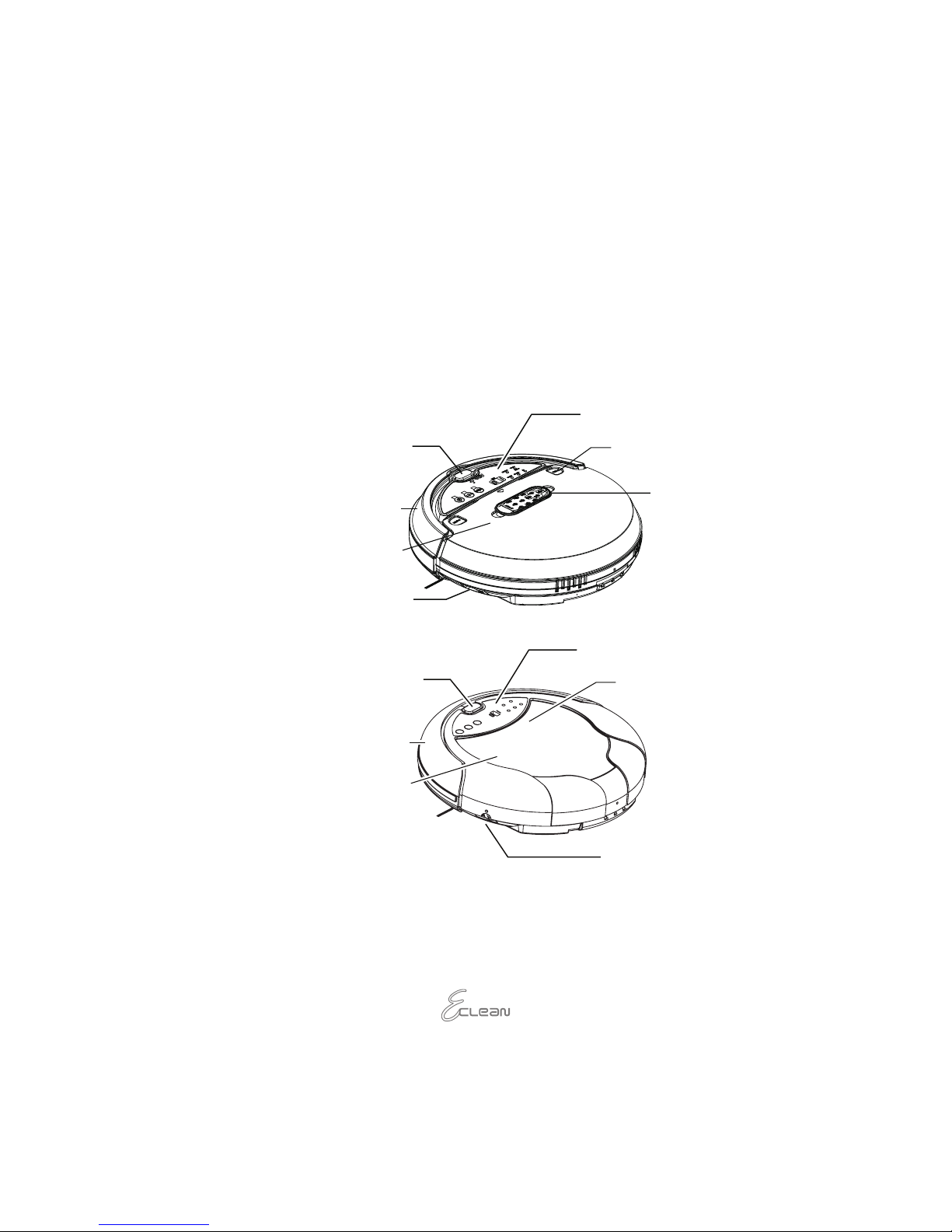

Main Body
1 Remote control receiving port
2 Collision pane
3 Dust bin and Freshener /odor buster
4 Socket for adapter s
5 Operation Panel
6 Button for removing dust bin
7 Remote control

4
8
9
10
11
12
13
14
15
16
8 Ultraviolet light
9 Air outlet
10 Battery cove
11 Recharging dock connection
point
12 Front wheel
13 Roll brush
14 Side brush
15 Dust suction entrance
16 Back wheel set

5

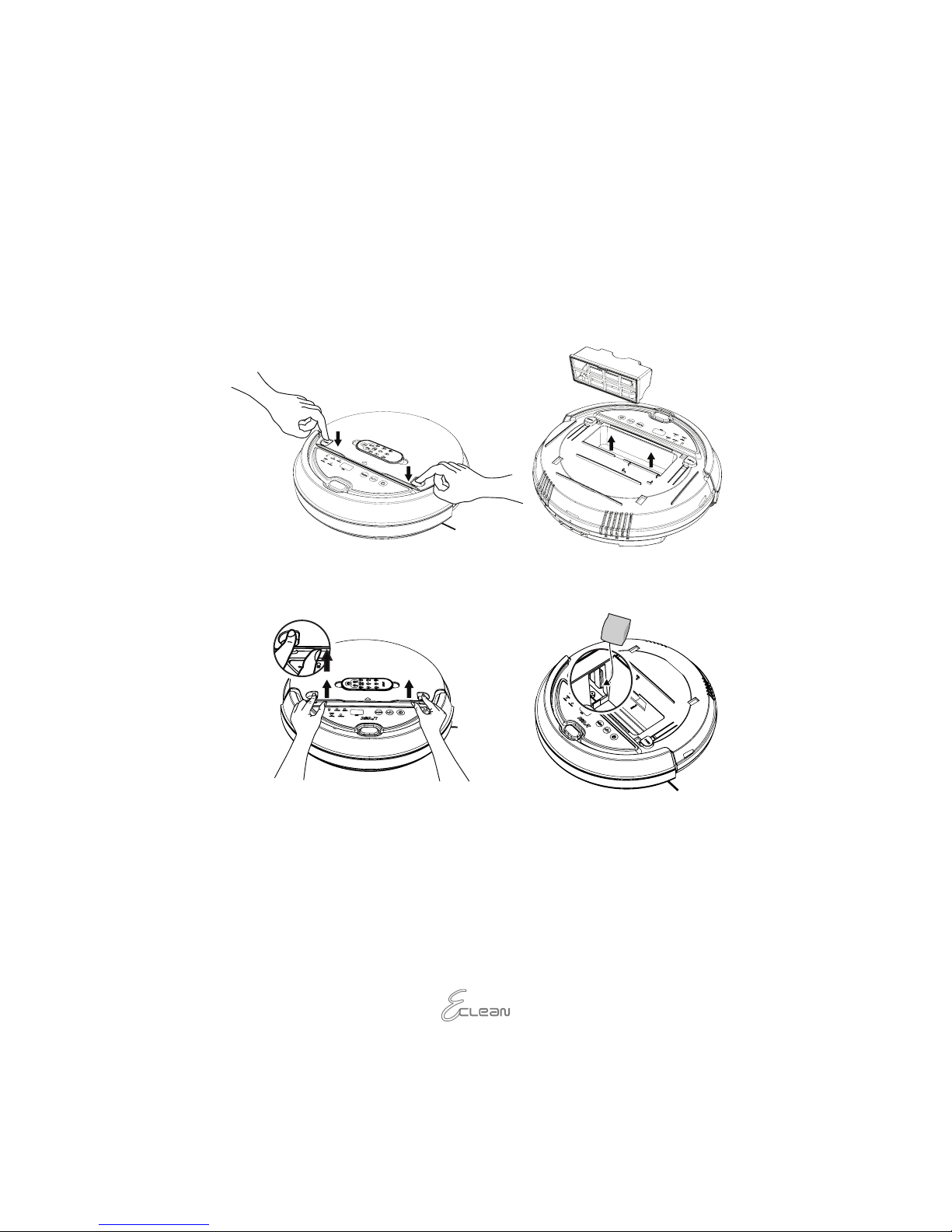

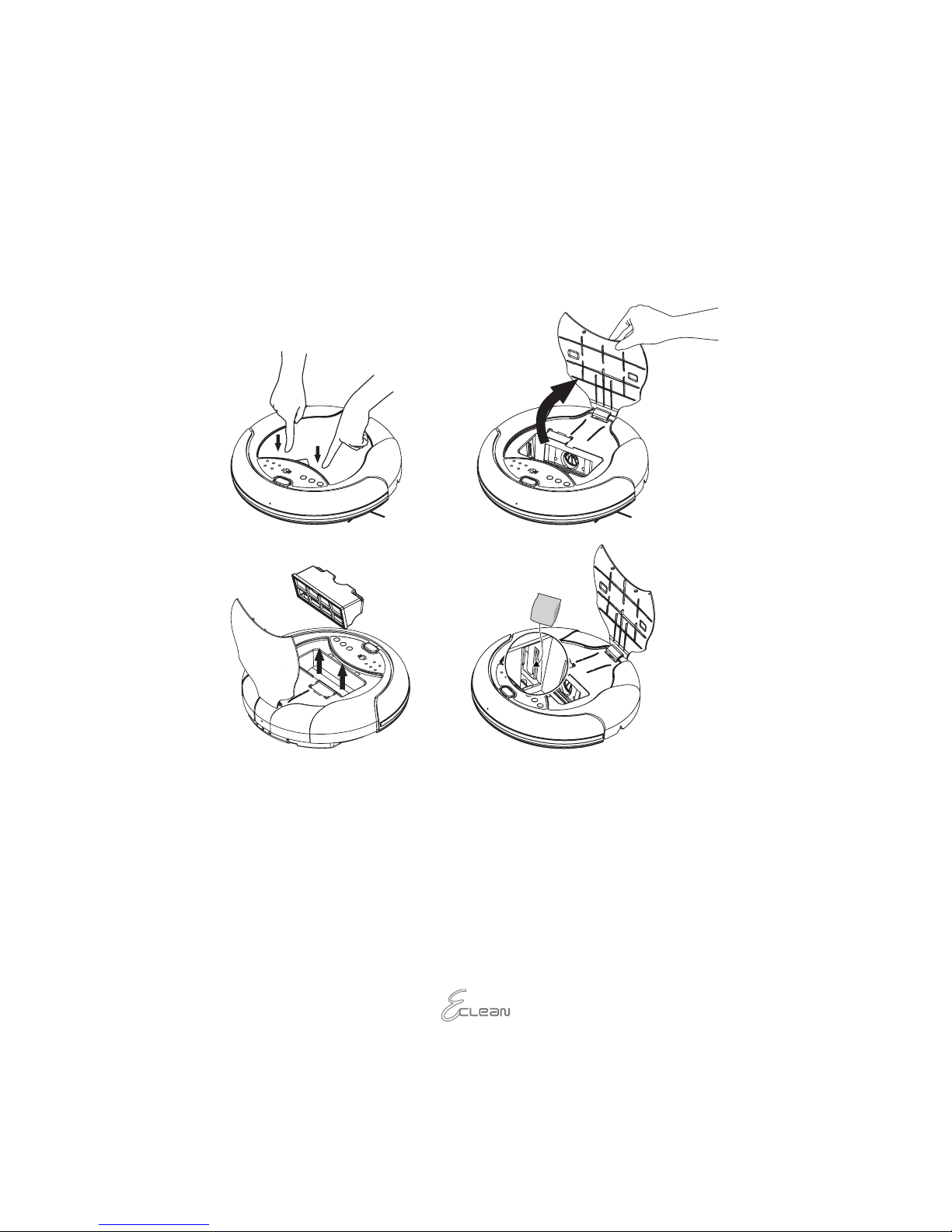

Battery Installation
2
1
1
2
Step 1
Push down
Pull Up ①Affix
②Put back the cover
Step 2
Step 3 Step 4
Notice
Only use factory-installed battery and adapter.
Do not touch the battery, the adapter and/or the plug with wet
hands.
Ensure the adapter is firmly plugged in and do not exposure the
plug.
Before recharging, ensure the voltage and ampere specification
matches the specification in your home.
To avoid hazard, stop recharging and remove the battery before
cleaning this product.

6
Charging the Battery
If the Low-Battery Indicator (LOW.BATT) is flashing red (i.e. low power),
please use recharging dock or adapter included with Eclean for recharging.
Recharging the battery takes about 3 hours.
a. Auto-return Charging: when the battery is low or the cleaning time
is up, Eclean will automactically return to the recharging dock.If
Eclean cannot locate the recharging dock in 20 minutes, it will stop
searching and enter “Battery saving” mode.
b. Manual Charging: insert one end of adapter cord into adapter slot on
the main unit, then plug the other end of adapter cord onto a wall
outlet for recharging.
Notice
When using Eclean for the first time, please charge the battery for 8 full
hours. Please make sure that the power indicator on Eclean flashes blue
while charging. After the battery is fully charged, the power indicator
should remain on continuously.
b. Manual Charginga. Auto-return Charging

7
1
8
9
6
2
3
4
5
7
EC01
EC 01 Enhanced
1
8
9
6
2
3
4
5
7

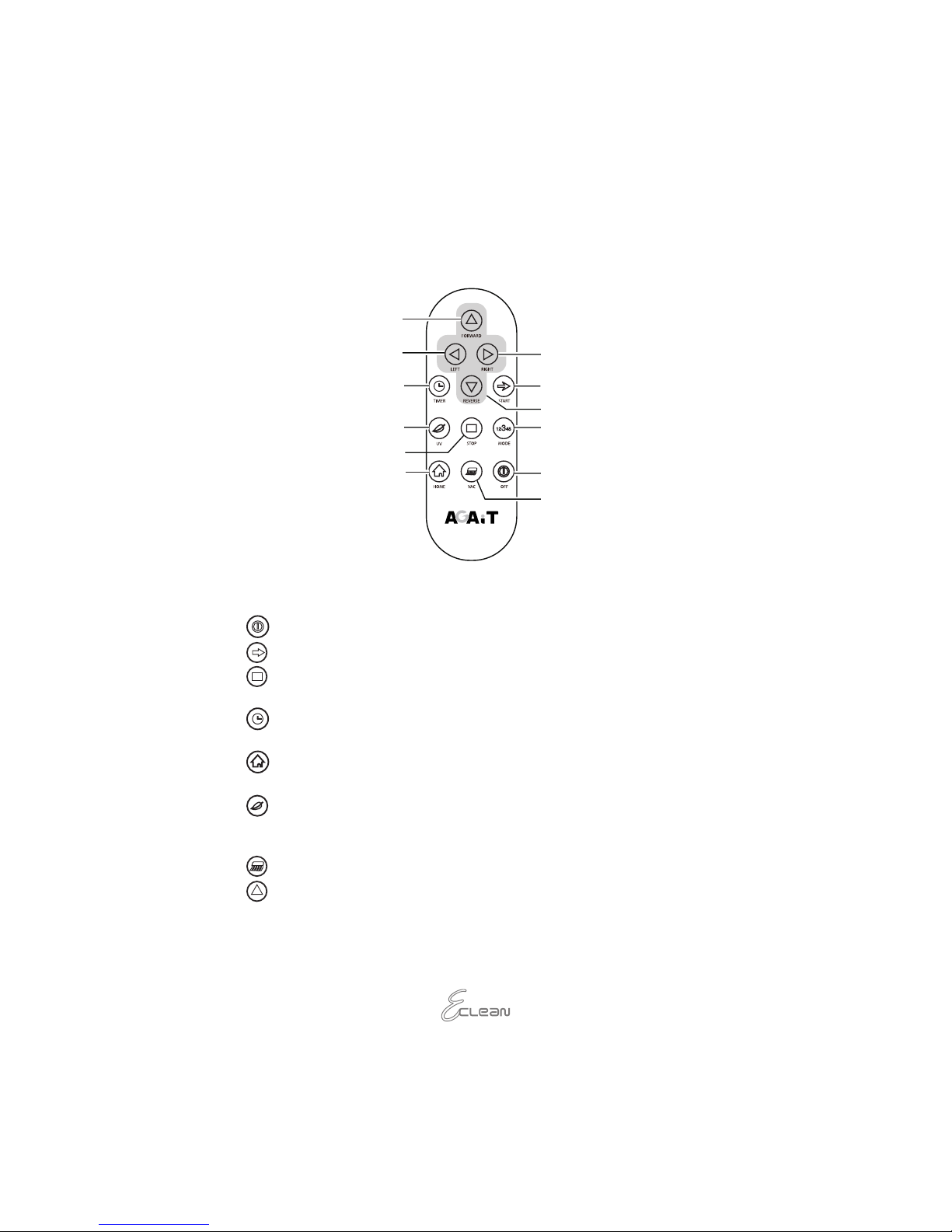

Operating Panel Introduction
1 Malfunction indicator
2
Vacuum on/off indicator
3 UV light indicator
4 Battery/Charge indicator
5 Low-battery indicator
6 Display operation time/mode
7
Timer (* Unit: 10 minutes)
8 Start/Stop button
9 Power switch

8

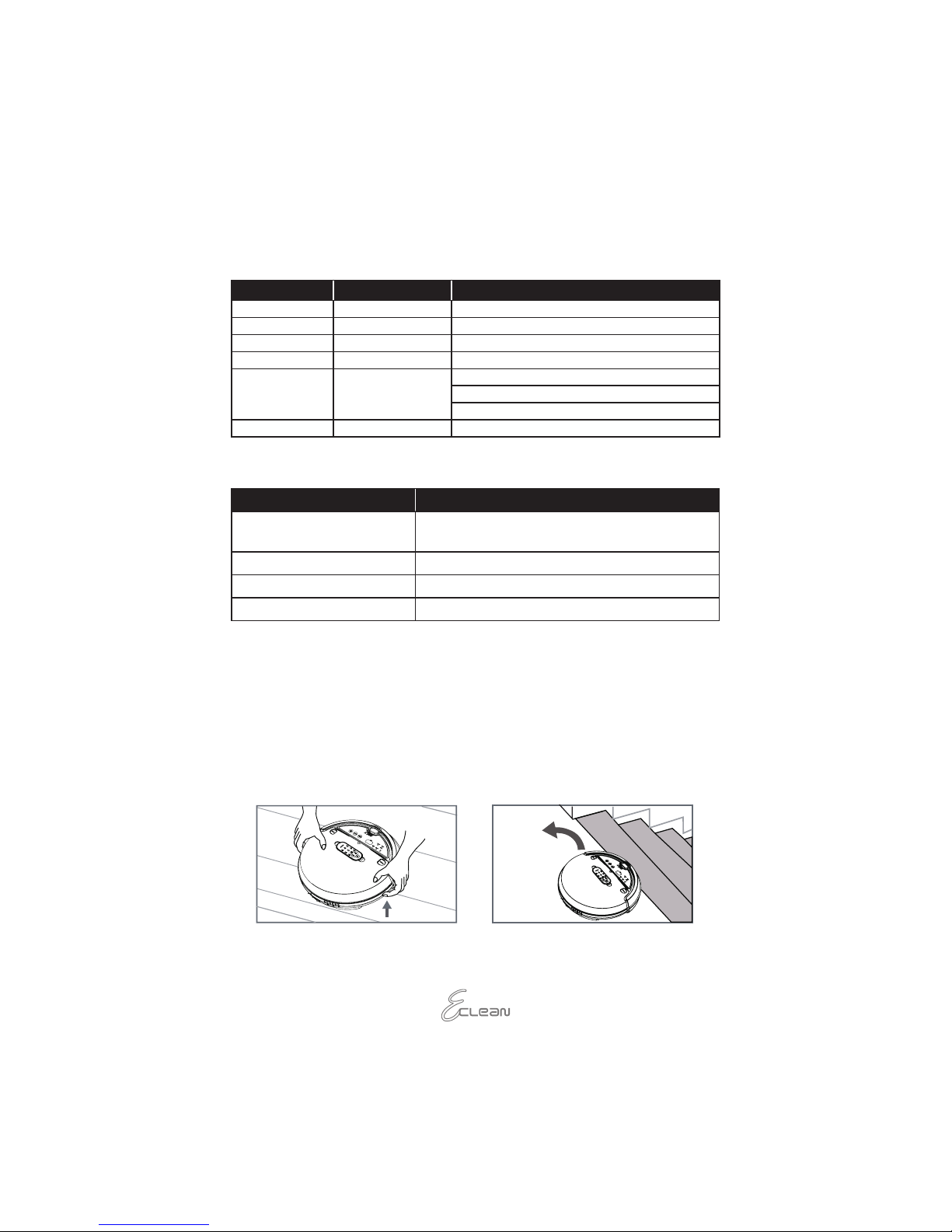

Indicator Function Note
Blue POWER ON, CHARGE Turn on battery (On); battery is fully recharged
Flashing Blue CHARGE Recharging
Yellow UV UV light is on
Green VAC OFF Vacuum is o
Red ERROR Collision panel is stuck with foreign object for over 3 seconds
Wheel (s) is stuck for over 10 seconds
Eclean is lifted for over 3 seconds
Flashing Red LOW BATT Low-battery indicator
Indicator Note
Alarm Note
Alarm Note
1 short beep, 1 long beep Vacuum timer is up; low-battery indicator is on;
vacuum is o
1 long beep Indicator is on
3 short beep Fully charged
3 short beep, 1 long beep Fully charged, starts clean again
1. When Eclean is lifted or when
a foreign object is entangled,
Eclean sounds the alarm and the
warning light is on. Eclean will stop
operation.
2. Eclean is designed with cliff sensor.
Eclean can detect the edge of a stairway
and avoid falling over (avoid operation
near stairway when runnung simple
Spiral and“S”shape modes).
Safety Detection
Beep ~~

9
Numerical
display Mode Suitable space Note
A Intelligent Mode (default) Irregular space When Eclean is
operating, press
the MODE button
(select a cleaning
mode) to display
the cleaning mode
on the time display
screen. At the same
time, Eclean will
run the cleaning
mode indicated in
the screen. (Time
display will resume
automatically in 10
seconds.)
1Spiral Open space or
empty space
2Random Wander Irregular space
3Along Wall Dirtier space near
the wall
4"S" shape Open space or
empty space
5Polygonal Open space or
empty space
Cleaning Mode
Notice
In Spiral mode, Eclean will stop moving if comes in contact with
any object.
A
Ramdom Wander Spiral SpiralAlong Wall
PolygonalSpiral“S” shape Spiral

10
Function Indicator Note
POWER (power indica-
tor) Blue Recharging.
Start Auto Vacuuming
(press“GO” to turn on
or turn o and indicator
will display status)
Green
When pressing the GO button before or
during recharging (green indicator will light
up), Eclean will enter the quick charge mode
and begin cleaning automatically when the
battery is 80% full.
O
After Eclean is fully recharged, the alarm will
sound 3 short beeps and Eclean will be on
standby.
Auto vacuuming set indicator (green)
Start auto vacuuming (GO)
Battery indicator (blue)
Using the Recharging Dock (EC 01 / EC 01 Enhanced )
Before use
1. Find a suitable wall outlet. Do not place anything near the recharging dock.
2. Lay the mobile base of the recharging dock against the wall. Connect to
adapter power, use the other end and plug into the power input hole. Tie
up wires to prevent obstructing Eclean’s movement.
“Home”Test
Place Eclean near the recharging dock. Turn on Eclean and press Start. After
making sure it is operating normally, press “HOME”on the remote
control and Eclean will start“Auto-return”function. You can check if the
location for the recharge dock is appropriate. If Eclean cannot successfully
reach the recharging dock, then adjust the location of the dock. Please refer
to P. 43 for optimal charger placement.

11
Notice
After connecting the power, the alarm will sound 1 long beep and
the battery indicator will be on (Blue). That indicates electricity is
connected and the recharging dock is ready.
Do not place objects near the recharging dock to avoid obstructing
Eclean returning to the recharging dock.
To ensure longer battery life, please fully discharge Eclean and charge it
for 8 hours once a month.

12
Scheduling Eclean's Cleaning Time (EC 01 Enhanced)
You can only schedule cleaning time and enable auto cleaning function
while Eclean is connected to the recharging dock.

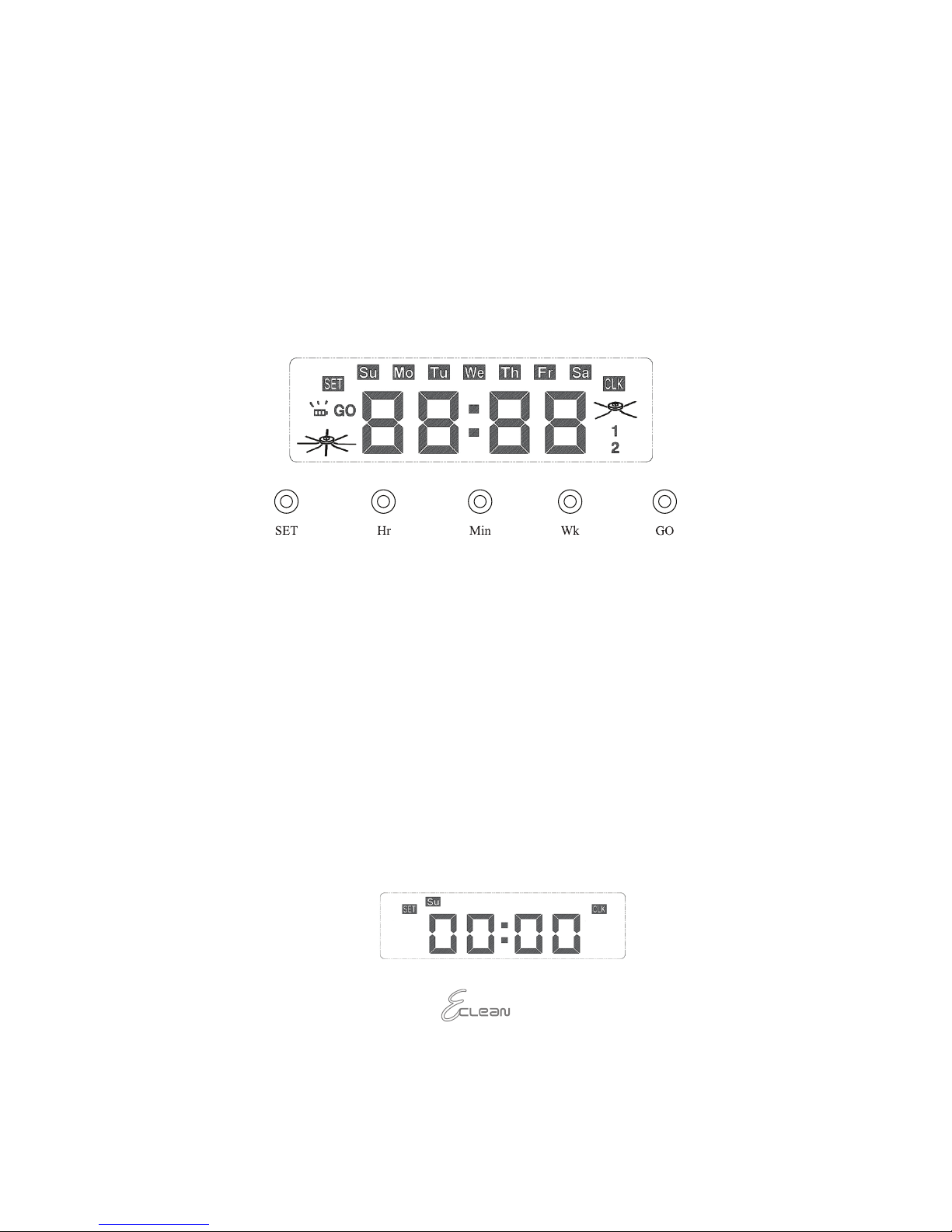

1. LCD Display Diagram (EC 01 Enhanced)
• SET (left): press once to set the clock; press twice to schedule cleaning.
• GO (left): if battery and brush icons both appear, this icon indicates
Eclean will start cleaning when the battery is fully charged.
• Day display (top) ”Su”, “Mo”, ”Tu”, “We”, “Th”, “Fr”, and “Sa” indicate each
day in a week.
• CLK (right) indicates time-setting mode.
• Brush icon (right): indicates Eclean will start cleaning at scheduled time.
2. Managing schedule
Setting the clock (EC 01 Enhanced)
2.1. Eclean will automatically enter clock display mode upon your first
use.Default time is Sunday, 00:00 (24-hour mode).
2.2. Press “SET” button to set time (the display shows SET and CLK
icons).The time screen starts flashing.Press “Hr”, “Min” and “Wk”
buttons to set the correct time and date.You can speed up the
selection by holding the button.Eclean will apply the current clock
setting when no operation is performed over 1 minute (SET and
CLK icons disappear).

13
Scheduling cleaning (EC 01 Enhanced)
Eclean can be scheduled to clean on daily basis or on specific
days.
2.3. Press “SET” button to enter scheduling mode.Time and date
screen will start flashing. The setting scheme is the same as step
2.2, but the default setting for “Wk” button is “to clean everyday”.
If the cleaning time isn’t set properly, the time display will show “-”
(see below).
If you want to set Eclean to clean on a specific day in a week, press
“Wk” button again. “Su” (Sunday) icon will start to flash.If you
want to set Eclean to clean on Sunday, press “Wk” button again
within 5 seconds to stop “Su” from flashing. This indicates that
Eclean has confirmed the Sunday cleaning schedule.You can apply
the above procedures to schedule for other days after 5 seconds.
If you want to skip one day, just wait 5 seconds without pressing
the “WK” button.
After scheduling the cleaning time, press “SET” button to return to
Clock Mode.If Eclean has been scheduled a cleaning time, the LCD
will display as below:

14
3. To view the scheduled cleaning time
Press “SET” button twice to enter “Schedule Cleaning Mode” and view
the scheduled cleaning tasks.
4. To cancel scheduled cleaning time
Press “SET” button twice, then set the hour and minute until “-” is
shown (see below).
5. To set Eclean to start cleaning after fully charged
Press and hold “GO” button on the recharging dock about 1 second,
the battery, brush and GO icons will display as below.Press “GO” button
again to cancel this setting.Note: Eclean will only clean once after this
function is enabled.
6. To start cleaning right away
Press and hold “GO” button over 5 seconds to instruct Eclean to leave
the recharging dock, and it will start cleaning regardless of its charging
status.The “START” button on the remote control has the same
function.
7. To use the remote control to start cleaning
You can also press “START” button to set Eclean to start cleaning tasks
while it is charging at the dock.

15
Turn on the power first, and then use the remote control to set and control the
Eclean. When done with the remote control, put back onto the upper cover.
1. OFF: Turn off Eclean.
2. START: Start Intelligent Mode and vacuum.
3. STOP: Press STOP to stop Eclean. It will sound one long beep as
reminder.
4. TIMER: Set vacuum time. 10 minutes per unit and the range is 10 - 80
minutes.
5. HOME: Press the button to Start “Auto-return“ function, Eclean will
search for recharging dock.
6. UV light: When Eclean is vacuuming, press the button to turn on/off
UV.During operation, the UV light will automatically shut off if Eclean is
picked up.
7. VAC: When Eclean is on, press the button to start/stop vacuum.
8. FORWARD: press forward to make Eclean go forward and Start vacuum
motor. It will not stop until hitting an obstacle or when “STOP“ button
is pressed.
9. REVERSE, LEFT, RIGHT: Press any of these buttons to go reverse, go left, or go
right. Release button to stop.
Home (Auto-return)
Cleaning Mode
UV light
Timer
Power switch
Vacuum
Stop
Left Right
Start
Reverse
Forward
Remote Control

16
Install Solid Freshener (Solid Freshener is not included)
EC01
STEP 1 STEP 3
STEP 4STEP 2
PUS H
PR ES S

17
STEP 1
STEP 3
STEP 2
STEP 4
EC 01 Enhanced

18
Maintenance
To ensure optimal performance during every operation, clean the vacuum
dust bin and filter thoroughly after use.
Dust bin & lter
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
STEP 7
EC01
PR ES S
PUS H
