Agri-Fab 45-0325 User manual

• Assembly
• Operation
• Maintenance
• Repair Parts
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
OWNERS
MANUAL
45 GALLON ATV SPRAYER
Model No.
45-03252
PRINTED IN USA
FORM NO. 40216 (2/06)
the fastest way to purchase parts
www.speedepart.com
™
IMPORTANT!
The wheel bearings are not prelubricated.
The wheel hubs must be fi lled with grease after the wheels
are assembled to the axle.

2
RULES FOR SAFE OPERATION
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment.
Exercise caution at all times when operating equipment.
1. Read this owners manual carefully before attempting to assemble or operate this sprayer.
2. Read your vehicle owners manual for operating and safety rules before using this equipment.
3. Never allow children to operate this sprayer, and do not allow adults to operate without proper instructions.
4. Do not allow anyone to ride on or sit on this sprayer. Do not allow passengers on the towing vehicle.
5. Keep the area of operation clear of all persons, particularly small children. Also keep area clear of pets.
6. Read the chemical label carefully for instructions and caution notes on handling and mixing of chemicals.
7. Wear eye and hand protection and wear protective clothing when handling and applying lawn chemicals.
8. Do not spray on windy days.
9. Attachment of this sprayer may affect your vehicle’s braking and stability. Be aware of your vehicle’s capabilities. Refer
to the safety rules in the vehicle owner’s manual concerning safe operation on slopes. Be aware of changing conditions
on slopes.
STAY OFF OF STEEP SLOPES.
10. Operate at reduced speed on rough terrain, along ditches and on hillsides to prevent loss of control.
11. Follow maintenance and lubrication instructions as outlined in this manual.
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT
SAFETY PRECAUTIONS. IT MEANS — ATTENTION!
BECOME ALERT! YOUR SAFETY IS INVOLVED.
CARTON CONTENTS
LOOSE PARTS IN CARTON
Your sprayer carton contains parts as shown in the diagram below. The hardware package contains parts as shown
in the Full Size Hardware Chart on page 3. Identify all parts and lay out as shown.
1. Spray Gun
2. Side Angles (2)
3. Tongue
4. Hose Hooks (2)
5. Transport Bracket
6. Wheels (2)
7. Hitch Bracket
8. Boom Mount Brackets (2)
9. Return (Bypass) Hose
10. Boom Hose Assembly
11. Tank
12. Rear Frame Angle
13. Frame Strap
14. Front Frame Angle
15. Boom Mount Assembly, L.H.
16. Boom Mount Assembly, R.H.
17. Boom Arm Assembly, R.H.
18. Boom Arm Assembly, L.H.
19. Axle
2
11
12
13
14
15
16
17
18
19
3
4
8
6
10
7
5
9
1

3
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
FULL SIZE HARDWARE CHART
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
KEY QTY. DESCRIPTION
A 2 Hex Bolt, 3/8" x 4-1/4"
A 2 Hex Bolt, 3/8" x 4-1/4"
A 2 Hex Bolt, 3/8" x 4-1/4"
B 2 Hex Bolt, 3/8" x 2-1/2"
B 2 Hex Bolt, 3/8" x 2-1/2"
B 2 Hex Bolt, 3/8" x 2-1/2"
B 2 Hex Bolt, 3/8" x 2-1/2"
C 8 Hex Bolt, 3/8" x 1-1/4"
C 8 Hex Bolt, 3/8" x 1-1/4"
C 8 Hex Bolt, 3/8" x 1-1/4"
C 8 Hex Bolt, 3/8" x 1-1/4"
D 1 Hex Bolt, 3/8" x 1"
D 1 Hex Bolt, 3/8" x 1"
D 1 Hex Bolt, 3/8" x 1"
D 1 Hex Bolt, 3/8" x 1"
E 2 Hex Bolt, 3/8" x 3/4"
E 2 Hex Bolt, 3/8" x 3/4"
E 2 Hex Bolt, 3/8" x 3/4"
E 2 Hex Bolt, 3/8" x 3/4"
F 6 Hex Bolt, 5/16" x 1"
F 6 Hex Bolt, 5/16" x 1"
F 6 Hex Bolt, 5/16" x 1"
F 6 Hex Bolt, 5/16" x 1"
G 10 Hex Bolt, 5/16" x 3/4"
G 10 Hex Bolt, 5/16" x 3/4"
G 10 Hex Bolt, 5/16" x 3/4"
G 10 Hex Bolt, 5/16" x 3/4"
H 2 Hex Bolt, 1/4" x 2"
H 2 Hex Bolt, 1/4" x 2"
H 2 Hex Bolt, 1/4" x 2"
H 2 Hex Bolt, 1/4" x 2"
I 2 Screw, #10-24 x 1/2"
I 2 Screw, #10-24 x 1/2"
I 2 Screw, #10-24 x 1/2"
I 2 Screw, #10-24 x 1/2"
J 4 Carriage Bolt, 3/8" x 1"
J 4 Carriage Bolt, 3/8" x 1"
J 4 Carriage Bolt, 3/8" x 1"
J 4 Carriage Bolt, 3/8" x 1"
K 2 Nylock Nut, 1/4"
K 2 Nylock Nut, 1/4"
K 2 Nylock Nut, 1/4"
K 2 Nylock Nut, 1/4"
L 16 Nylock Nut, 5/16"
L 16 Nylock Nut, 5/16"
L 16 Nylock Nut, 5/16"
L 16 Nylock Nut, 5/16"
M 4 Hex Nut, 3/8" Plain
M 4 Hex Nut, 3/8" Plain
M 4 Hex Nut, 3/8" Plain
M 4 Hex Nut, 3/8" Plain
N 13 Nylock Nut, 3/8"
N 13 Nylock Nut, 3/8"
N 13 Nylock Nut, 3/8"
O 4 Flat Washer, 1"
O 4 Flat Washer, 1"
O 4 Flat Washer, 1"
O 4 Flat Washer, 1"
P 12 Flat Washer, 3/8"
P 12 Flat Washer, 3/8"
P 12 Flat Washer, 3/8"
P 12 Flat Washer, 3/8"
Q 2 Lock Washer, 3/16"
Q 2 Lock Washer, 3/16"
Q 2 Lock Washer, 3/16"
Q 2 Lock Washer, 3/16"
R 6 Lock Washer, 3/8"
R 6 Lock Washer, 3/8"
R 6 Lock Washer, 3/8"
R 6 Lock Washer, 3/8"
S 2 Cotter Pin, 1/8" x 1-1/2"
S 2 Cotter Pin, 1/8" x 1-1/2"
S 2 Cotter Pin, 1/8" x 1-1/2"
S 2 Cotter Pin, 1/8" x 1-1/2"
T 2 Hair Cotter Pin, 3/32"
T 2 Hair Cotter Pin, 3/32"
T 2 Hair Cotter Pin, 3/32"
T 2 Hair Cotter Pin, 3/32"
U 1 Hair Cotter Pin, 1/8"
U 1 Hair Cotter Pin, 1/8"
U 1 Hair Cotter Pin, 1/8"
U 1 Hair Cotter Pin, 1/8"
V 1 Hitch Pin
V 1 Hitch Pin
V 1 Hitch Pin
V 1 Hitch Pin
W 2 Wheel Spacer
W 2 Wheel Spacer
W 2 Wheel Spacer
W 2 Wheel Spacer
X 2 Flanged Spacer
X 2 Flanged Spacer
X 2 Flanged Spacer
X 2 Flanged Spacer
Y 6 1/2" Spacer,
Y 6 1/2" Spacer,
Y 6 1/2" Spacer,
Y 6 1/2" Spacer,
Z 2 Spring
Z 2 Spring
Z 2 Spring
Z 2 Spring
AA 1 Coiled Hose Clamp
AA 1 Coiled Hose Clamp
AA 1 Coiled Hose Clamp
BB 8 Nylon Tie
BB 8 Nylon Tie
BB 8 Nylon Tie
BB 8 Nylon Tie
CC 1 "Y" Valve Fitting
CC 1 "Y" Valve Fitting
CC 1 "Y" Valve Fitting
CC 1 "Y" Valve Fitting
DD 1 Pressure Gauge
DD 1 Pressure Gauge
DD 1 Pressure Gauge
DD 1 Pressure Gauge
EE 1 Drain Body
EE 1 Drain Body
EE 1 Drain Body
EE 1 Drain Body
FF 1 Nylon Cap
FF 1 Nylon Cap
FF 1 Nylon Cap
FF 1 Nylon Cap
GG 1 O-Ring
GG 1 O-Ring
GG 1 O-Ring
GG 1 O-Ring
HH 1 Nylon Washer
HH 1 Nylon Washer
HH 1 Nylon Washer
HH 1 Nylon Washer
II 1 Nylon Nut
II 1 Nylon Nut
II 1 Nylon Nut
II 1 Nylon Nut
JJ 3 Hose Gasket
JJ 3 Hose Gasket
JJ 3 Hose Gasket
JJ 3 Hose Gasket
A B D E F GH
I
J
20
40 60
80
100
0
NOT SHOWN FULL SIZE
CC
FF GG HH
K
M
N
Q
R
P
O
S
T
L
II
AA BB
EE JJ
ZDD
C
U
VWY
X

4
ASSEMBLY INSTRUCTIONS
FIGURE 3
4. Assemble the tongue to the bottom of the front frame
angle and the frame strap using four 3/8" x 1" carriage
bolts and 3/8" nylock nuts as shown in fi gure 3.
Do not
tighten yet.
3. Assemble the rear frame angle to the bottom and the
two boom mount brackets to the top of the side angles
as shown in fi gure 2. Use four 5/16" x 1" hex bolts and
5/16" nylock nuts.
Do not tighten yet.
FIGURE 2
TOOLS REQUIRED FOR ASSEMBLY
(2) 7/16" Wrenches
(2) 1/2" Wrenches
(2) 9/16" Wrenches
(1) Adjustable Wrench
(1) Screwdriver
(1) Pliers
(1) Grease Gun
1. Remove all items from the carton and lay them out as
shown on pages 2 and 3.

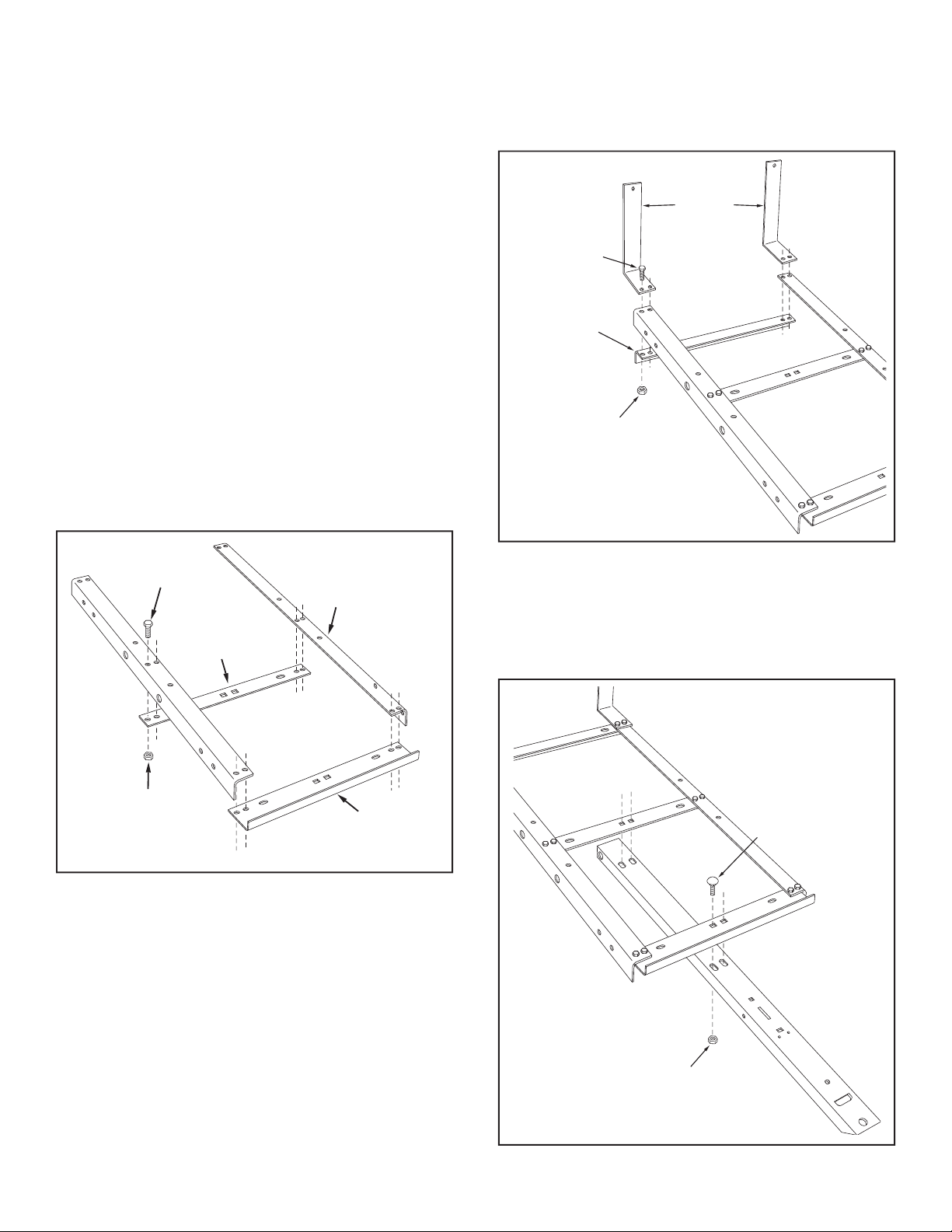

2. Assemble the frame strap and the front frame angle to
the bottom of the two side angles as shown in fi gure 1.
Use eight 5/16" x 3/4" hex bolts and 5/16" nylock nuts.
Do not tighten yet.
FIGURE 1
3/8" x 1"
CARRIAGE
BOLT
3/8" NYLOCK NUT
5/16" x 3/4"
HEX BOLT
FRAME
STRAP
SIDE
ANGLE
FRONT
FRAME
ANGLE
5/16" NYLOCK NUT
5/16" x 1"
HEX BOLT
BOOM
MOUNT
BRACKET
REAR
FRAME
ANGLE
5/16" NYLOCK NUT

5
FIGURE 5
6. Assemble a wheel spacer, a 1" fl at washer, a wheel
(valve stem facing out) and another 1" fl at washer onto
the axle as shown in fi gure 5. Place a 1/8" x 1-1/2" cotter
pin through the hole at the end of the axle, spreading
the ends of the pin to secure it. Repeat on other end of
axle.
7. Fill wheel hubs with general purpose grease using a
grease gun.
FIGURE 7
FIGURE 6
10. Install the drain in the tank as shown in fi gure 7. Place a
3/4" garden hose gasket onto the drain body and insert
the drain body through the bottom of the tank from the
inside. Beneath the tank, assemble the nylon washer
and then the nylon nut onto the drain body. Tighten the
nut securely enough to prevent leaking, being careful
not to damage the plastic parts. Place the O-ring inside
the nylon cap and screw the cap onto the end of the
drain body.
FIGURE 4
WHEEL
1/8" x 1-1/2"
COTTER PIN
SPACER
1" FLAT
WASHER
HITCH PIN
3/8" x 1"
HEX BOLT
1/8" HAIRPIN COTTER
HITCH
BRACKET
3/8" NYLOCK NUT
DRAIN BODY
HOSE GASKET
NYLON WASHER NYLON NUT
O-RING
NYLON CAP
5. Assemble the axle through the side angles and the
tongue. Fasten the axle to the side angles using two
1/4" x 2" hex bolts and two 1/4" nylock nuts.
Do not
tighten yet.
See fi gure 4.
8. Assemble the hitch bracket down through the slot in the
tongue and fasten it to the tongue using a 3/8" x 1" hex
bolt and a 3/8" nylock nut.
Tighten.
See fi gure 6.
9. Assemble the hitch pin and 1/8" hairpin cotter to the
hitch bracket and tongue. See fi gure 6.
1/4" x 2"
HEX BOLT
1/4" NYLOCK NUT
AXLE

6

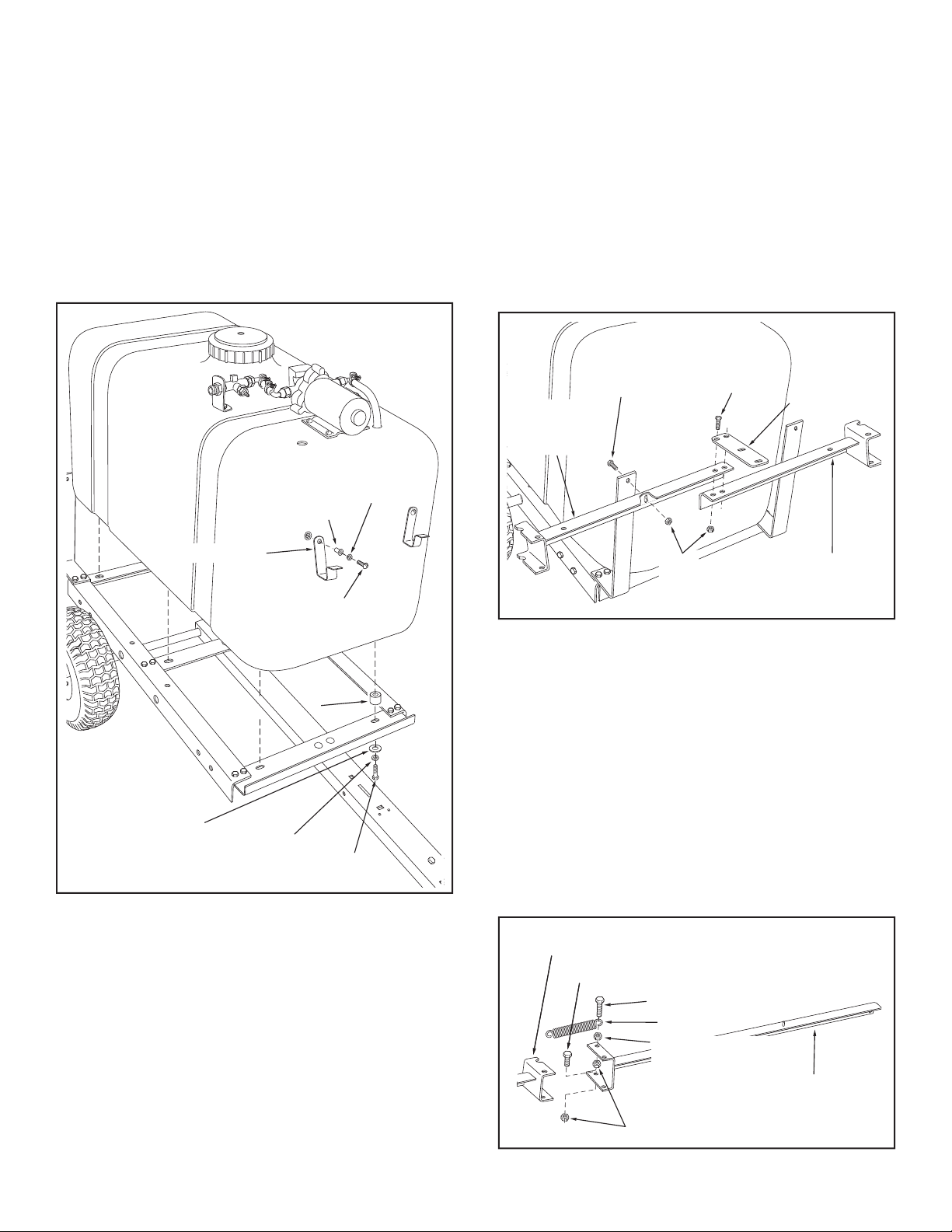

11. Attach the tank to the frame using six 1/2" spacers with
six 3/8" x 1-1/4" hex bolts, 3/8" lock washers and 3/8"
fl at washers. Place the spacers between the tank and
the frame.
Tighten
the six bolts until the lock washers
are fl attened. See fi gure 8.
12. Assemble the hose hooks to the front of the tank using
two #10-24 x 1/2" screws, two 3/16" lock washers and
two fl anged spacers.
Tighten
the screws until the lock
washers are fl attened. See fi gure 8.
IMPORTANT:
Do not overtighten
bolts fastening to tank.
Tighten until lock washers are snug and fl attened.
FIGURE 10
13.
Tighten
securely the 12 bolts and nuts fastening the
frame strap and the front and rear angles to the side
angles. (Figures 1 and 2)
Tighten
only until snug the 2 bolts and nuts fastening
the axle to the frame. (Figure 4)
Tighten
securely the 4 nuts fastening the tongue to the
frame. (Figure 3)
FIGURE 8
14. Assemble the (RH) and (LH) boom mount assemblies
to the boom mount brackets using two 5/16" x 3/4" hex
bolts and 5/16" nylock nuts. Fasten through the slotted
hole in each boom mount assembly.
Do not tighten
yet. See fi gure 9.
15. Align the holes in the boom transport bracket with the
holes in the ends of the boom mount assemblies as
shown in fi gure 9. Fasten them together using two 5/16"
x 1" hex bolts and 5/16" nylock nuts.
Tighten
the bolts
assembled in this step and in step 14.
NOTE:
If the holes in the boom mount assemblies won’t
line up, temporarily loosen the bolts which fasten the boom
mount brackets to the frame.
16. Assemble a 3/8" x 3/4" hex bolt and 3/8" nylock nut to
the hole shown in the bottom of the welded bracket
on the (RH) boom arm assembly.
Tighten.
See fi gure
10.
17. Assemble a spring and a 3/8" plain hex nut onto a 3/8"
x 1-1/4" hex bolt. Fasten the bolt to the hole shown in
the top of the welded bracket using a 3/8" nylock nut.
Tighten
so that the nylock nut is even with the end of
the bolt. See fi gure 10.
18. Repeat steps 16 and 17 for the (LH) boom arm
assembly.
FIGURE 9
VIEWED FROM REAR
(RH) SIDE VIEWED FROM REAR
1/2" SPACER
3/8" FLAT
WASHER 3/8" LOCK
WASHER 3/8" x 1-1/4"
HEX BOLT
HOSE HOOK
FLANGED
SPACER
3/16" LOCK
WASHER
#10-24 x 1/2"
SCREW
5/16" x 3/4"
HEX BOLT
5/16" x 1"
HEX BOLT
5/16"
NYLOCK
NUTS
(LH) BOOM
MOUNT
ASSEMBLY
BOOM
TRANSPORT
BRACKET
(RH) BOOM
MOUNT
ASSEMBLY
3/8" x 1-1/4" HEX BOLT
3/8" NYLOCK NUT
3/8" x 3/4" HEX BOLT
3/8" PLAIN HEX NUT
SPRING
(RH) BOOM
ARM ASSEMBLY
(RH) BOOM
MOUNT ASSEMBLY

7

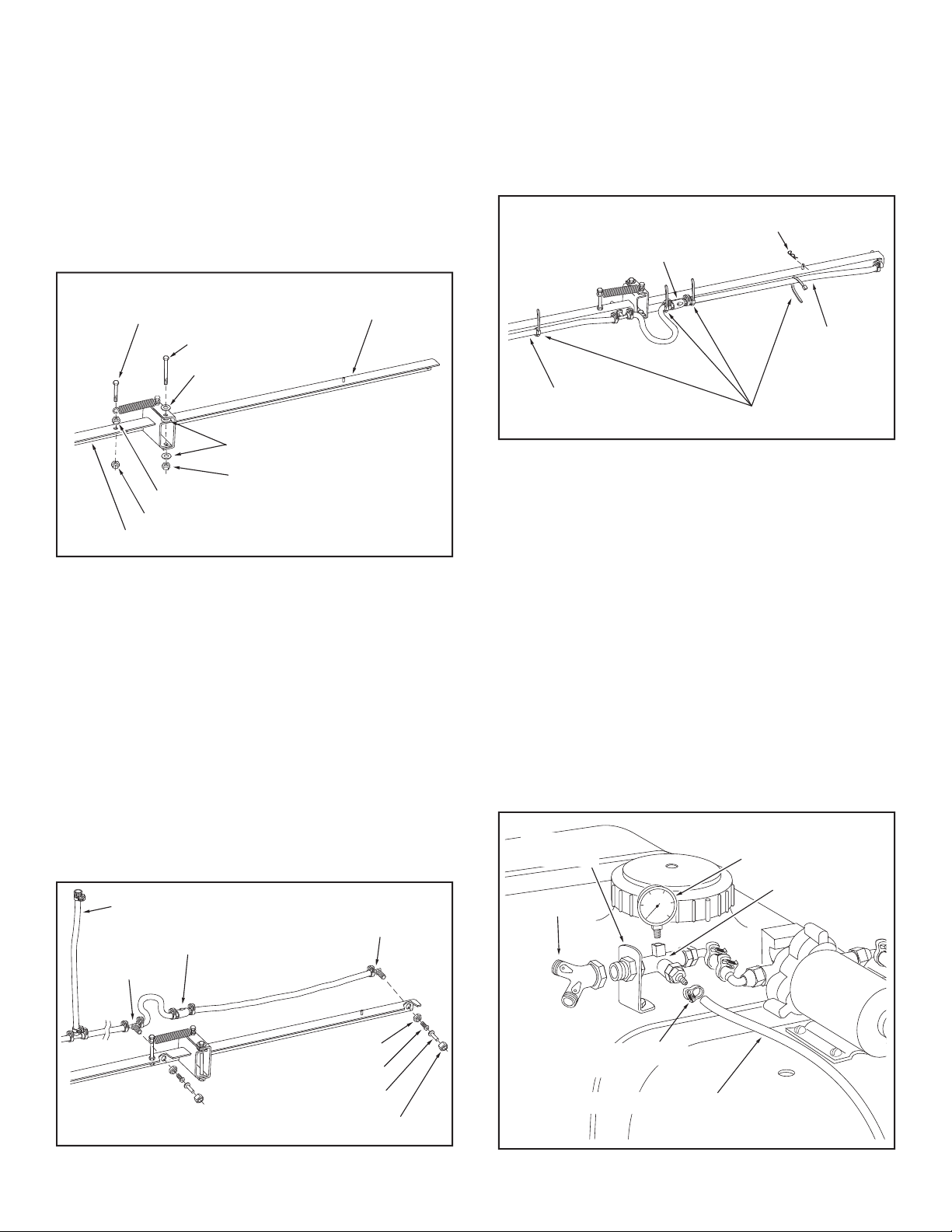

FIGURE 12
24. Tie the hoses to the
front
of the boom using four nylon
ties per side as shown in the
front view
in fi gure 13.
After tightening, cut excess length off ends of ties .
25. Insert a 3/32" hair cotter pin into the welded pin at each
end of the boom. These pins will be used to lock the
boom arm to the transport bracket when the arm is in
the folded position. See fi gure 13.
19. Attach the (RH) boom arm assembly to the (RH) boom
mount assembly as shown in fi gure 11, using a 3/8" x
4-1/4" hex bolt, three 3/8" fl at washers, and one 3/8"
nylock nut. Do not overtighten.
20. Place a 3/8" x 2-1/2" hex bolt through the loose end of
the spring and then assemble a 3/8" plain hex nut onto
the bolt. Fasten the hex bolt to the boom mount assembly
using a 3/8" nylock nut.
Tighten
the nuts, exposing one
or two threads on the end of the bolt. See fi gure 11.
21. Repeat steps 19 and 20 for the (LH) boom arm
assembly.
22. Attach the hose assembly to the
front
of the boom, with
the nozzles pointing to the rear. Remove the nozzle nut,
nozzle, strainer screen and elbow nut, from the elbow
fi ttings and place the elbow through the hole at the end
of the boom arm. Secure it using the plastic elbow nut.
Insert the strainer screen and then assemble the spray
nozzle and the nozzle nut, keeping the nozzle opening
facing down while tightening. See fi gure 12.
23. Attach the hose assembly tee fi ttings to the boom using
the same procedure as was used for the elbows. See
fi gure 12.
(RH) SIDE VIEWED FROM REAR
(RH) SIDE VIEWED FROM REAR
FIGURE 11
FIGURE 13
VIEWED FROM FRONT
FIGURE 14
NOTE:
To help prevent leaking, use thread tape when
assembling the "Y" valve fi tting and the pressure gauge in
the following paragraphs.
26. Carefully screw the "Y" valve fi tting onto the fi tting
attached to the tee support bracket. The valve levers
should face up. See fi gure 14.
27. Carefully screw the pressure gauge into the top of the
tee fi tting as shown in fi gure 14.
28. Place the 1/4" hose clamp over the end of the spray gun
hose. Push the hose onto the hose barb on the front
of the tee fi tting. Secure the hose to the barb with the
hose clamp. See fi gure 14.
NOZZLE NUT
SPRAY NOZZLE
STRAINER SCREEN
ELBOW NUT
ELBOW
ON-OFF VALVE
TEE
BOOM CONNECTING HOSE
NYLON TIES
3/32" HAIR COTTER PIN
ON-OFF VALVE
TIE TO FRONT
OF BOOM
TIE TO
FRONT OF
BOOM
COILED HOSE
CLAMP
SPRAY GUN HOSE
20
40 60
80
100
0
PRESSURE
GAUGE
TEE FITTING
"Y" VALVE
TEE SUPPORT
BRACKET
(RH) BOOM
ARM ASSEMBLY
3/8" FLAT WASHER
3/8" NYLOCK NUT
3/8" x 4-1/4" HEX BOLT
3/8" FLAT WASHER
3/8" x 2-1/2"
HEX BOLT
(RH) BOOM MOUNT ASSEMBLY
3/8" NYLOCK NUT
3/8" PLAIN HEX NUT

8

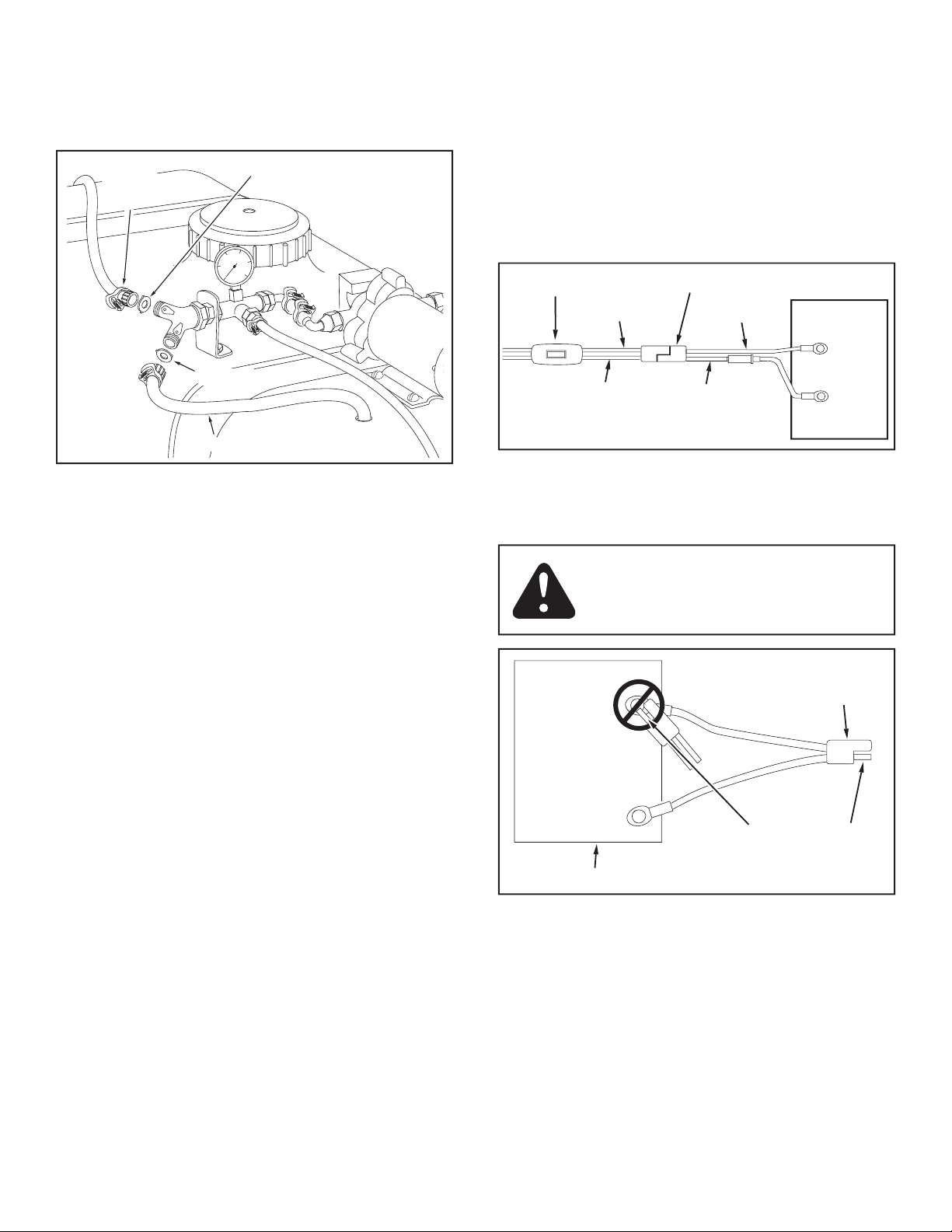

FIGURE 17
FIGURE 16
29. Connect the boom connecting hose and the return
(bypass) hose to the "Y" valve fi tting, placing a hose
gasket in the swivel nut on each hose. Insert the return
hose into the top of tank. See fi gure 15.
FIGURE 15
CAUTION:
Never allow negative pin on plug
to come in contact with positive "hot" post
on battery. Fire or explosion may result!
30. Hook up the wiring to the vehicle battery. Connect the
red wire on the fused wire harness to the positive post on
the battery or the "HOT" connection on a vehicle switch
or the ammeter. The brown wire may be grounded or
connected to the negative battery post. See fi gures 16
and 17.
IMPORTANT:
Keep wiring away from hot engine parts,
rotating parts and pinch points.
IMPORTANT:
Connect sprayer to 12 volt batteries only!
RETURN (BYPASS) HOSE
20
40 60
80
100
0
HOSE GASKET
BOOM
CONNECTING
HOSE
HOSE GASKET
BROWN
RED
QUICK COUPLER
BATTERY
_
+
RED
BROWN
IN LINE SWITCH
PLUG
NEGATIVE PIN
12 VOLT TRACTOR BATTERY
POSITIVE
"HOT"
POST
+
_
NEGATIVE
POST

9
USING THE SPRAYER
1. Determine the application rate (gallons per 1,000
sq. feet or gallons per acre) based on the chemical
manufacturers recommendations. Use this rate to help
select the pressure setting and tractor speed in the
following instructions.
2. Determine the approximate square footage of the area to
be sprayed and estimate the number of gallons required.
Do not fi ll tank with more solution than needed.
3. Decide how wide a swath you wish to spray with each
pass. Use just the two inside nozzles, or the two inside
nozzles plus one outside nozzle, or use all four nozzles.
The number of square feet covered with each pass will
vary depending on the number of nozzles used, but
the amount of solution applied per square foot will not
vary as long as the same system pressure and speed
of travel are used. Refer to fi gure 18.
FIGURE 18
WIDTH OF SPRAY PATTERN USING 2, 3 OR 4 NOZZLES
CAUTION:
Wear eye protection, gloves
and protective clothing when handling and
working with lawn chemicals.
80"
160"
120"
OPERATION
BEFORE STARTING
It is important
to test the boom and spray gun with plain
water fi rst to check the sprayer for leaks and to set the spray
pattern and nozzle pressure. If a leak should occur, thread
tape may be used to better seal the fi tting.
PUMP PRESSURE SWITCH
The pump is equipped with a pressure switch. The pressure
switch senses outlet pressure of the pump and will turn off
the electrical power to the pump at a predetermined high
pressure point (45 PSI). If the fl ow demand is very low, the
pump may reach this high pressure point and the switch will
cause "cycling" (the pump cycles on and off rapidly). This is
not a problem unless the pump continuously cycles within
one second intervals for long periods of time.
ADJUSTING OPERATING PRESSURE
The sprayer is equipped with a "Y" fi tting containing two
valves. The bypass valve controls the fl ow to the return
(bypass) hose. The amount of fl ow through the return hose
determines the operating pressure of the boom or the spray
gun. Adjust the bypass valve while either the boom or the
spray gun is in use to obtain the desired pressure, indicated
by the pressure gauge. The tip chart on page 11 shows how
different pressure settings affect boom application rates.
ON-OFF ADJUSTMENT OF BOOM NOZZLES
The boom valve on the "Y" fi tting controls the fl ow to all
the boom nozzles. It should be either completely open or
completely closed. The two valves located on the boom
will turn the fl ow on or off to each outside nozzle. Each
valve should be set either completely open or completely
closed.
ADJUSTING SPRAY GUN NOZZLE
Turn the nozzle on the spray gun to adjust the spray from a
cone shaped fi ne mist to a straight stream. The spray gun
operating pressure should be controlled using the bypass
valve on the "Y" fi tting. Maximum spray gun pressure can
be attained when the boom is shut off.

10
MAINTENANCE
1. Do not store sprayer with any solution left in tank.
2. Periodically clean the strainer in the end of the intake
hose at the bottom of the tank. Remove the nylon swivel
nut from the hose, pull out the screen and fl ush it with
clear water.
AFTER EACH USE
3. After use, fi ll the sprayer part way with water, start the
sprayer and allow clear water to be pumped through the
plumbing system and out through the boom assembly
and the handgun. Use the handgun to thoroughly wash
all internal parts of the tank, the outside of the tank and
the boom.
4. Refi ll the tank about half full with plain water and a
chemical neutralizer and repeat the cleaning instructions
above. Flush the entire sprayer with the neutralizing
agent. Follow the chemical manufacturers instructions
for disposal of all wash or rinsing water.
ATTENTION!
Do not
allow chemicals to sit in pump for extended
times of idleness. Some chemicals will damage the
pump valve if allowed to soak untreated for a length
of time. Always fl ush the pump with water after each
use. Follow the procedures in the AFTER EACH USE
instructions for fl ushing and disposal.
WINTER STORAGE
5. Drain all water out of the sprayer, paying special
attention to the pump and handgun. These items are
especially prone to damage from chemicals and freezing
weather.
6. The sprayer should be winterized before storage by
pumping a 50-50 solution of water and R. V. antifreeze
through the entire plumbing. Proper care and
maintenance will prolong the life of the sprayer.
4. Set the desired boom pressure, spraying with plain water
while making pressure adjustments. For best results stay
in the 20 to 30 PSI range. (At 10 PSI the spray pattern
begins to break up, and at 40 PSI some drift develops.)
Refer to the tip chart on page 11.
5. Determine the appropriate speed at which to travel, based
on the chosen pressure setting and the recommended
application rate. Use the tip chart on page 11.
6. To determine the throttle setting for attaining the
appropriate speed, mark off 100, 200 and 300 feet
intervals. The speed chart at the bottom of page 11
indicates the number of seconds it takes to travel these
distances. Set the throttle and, with a running start, travel
the distances in the number of seconds indicated by
the speed chart. Once you have determined the throttle
and gear settings needed, mark the throttle location
so that you can easily resume the same speed after
stopping.
7. Add the chemical solution to the tank and drive to the
starting place for spraying.
8. Set the throttle at the position determined in step 6 to
attain the proper ground speed. Reach back and fl ip
the pump/motor switch to the "ON" position to start the
solution spraying from the nozzles.
9. When not being used, the outer boom arm assemblies
may be folded in and attached to the boom transport
bracket at the center of the boom.
10. Stay clear of fl owers, shrubs and evergreen trees when
spraying weed control solutions to prevent contact of
the solution with these sensitive plants.

11
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
(2032 mm)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(4064 mm)
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
(1.4) (1.59) (238.5) (119.2) (79.1) (59.4) (47.7) (31.8) (23.8)
30 .433 64.0 32.0 21.5 16.1 12.8 8.6 6.4
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
IMPERIAL GALLONS (Liters) PER 1000 SQ. FT. (BASED ON WATER)
IMPERIAL GALLONS (Liters) PER ACRE (BASED ON WATER)
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
Tip Spray Pressure Tip Capacity GALLONS PER 1000 SQ. FT. (BASED ON WATER)
No. Width PSI US Gallons
Not affected by spray width
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
0.10
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
Not affected by spray width
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
Tip Spray Pressure Tip Capacity GALLONS PER 1000 SQ. FT. (BASED ON WATER)
No. Width PSI US Gallons
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
Tip Spray Pressure Tip Capacity GALLONS PER 1000 SQ. FT. (BASED ON WATER)
No. Width PSI US Gallons
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
Tip Spray Pressure Tip Capacity GALLONS PER 1000 SQ. FT. (BASED ON WATER)
No. Width PSI US Gallons
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
Tip Spray Pressure Tip Capacity GALLONS PER 1000 SQ. FT. (BASED ON WATER)
No. Width PSI US Gallons
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
Tip Spray Pressure Tip Capacity GALLONS PER 1000 SQ. FT. (BASED ON WATER)
No. Width PSI US Gallons
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
10 .30 44.2 22.1 14.8 11.1 8.9 5.9 4.4
#3 80"-160" 20 .42 63 31.5 20.9 15.7 12.6 8.4 6.3
30 .52 76.8 38.4 25.8 19.3 15.4 10.3 7.7
Tip Spray Pressure Tip Capacity GALLONS PER 1000 SQ. FT. (BASED ON WATER)
No. Width PSI US Gallons
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
10 .30 1.0 0.50 0.34 0.26 0.20 0.14
#3 80"-160" 20 .42 1.4 0.72 0.48 0.35 0.29 0.19 0.14
30 .52 1.8 0.88 0.59 0.44 0.35 0.24 0.18
IMPERIAL GALLON (LITER) TIP CHART
U.S. GALLON TIP CHART
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
(2032 mm)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(1.4) (1.59) (5.48) (2.74) (1.82) (1.37) (1.10) (0.73) (0.55)
(4064 mm)
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
30 .433 1.47 0.74 0.49 0.37 0.29 0.20 0.15
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
10 .25 36.8 18.4 12.3 9.2 7.4 4.9 3.7
(0.7) (1.135) (167.3) (83.6) (56.0) (42.0) (33.7) (22.3) (16.7)
#3 80"-160" 20 .35 52.5 26.2 17.4 13.1 10.5 7.0 5.2
(2.1) (1.97) (290.7) (145.3) (97.7) (73.1) (58.3) (39.0) (29.1)
10 .25 0.85 0.42 0.28 0.21 0.17 0.11 0.08
(0.7) (1.135) (3.85) (1.92) (1.29) (0.97) (0.77) (0.51) (0.38)
#3 80"-160" 20 .35 1.21 0.60 0.40 0.30 0.24 0.16 0.12
(2.1) (1.97) (6.68) (3.34) (2.24) (1.68) (1.34) (0.90) (0.67)
M.P.H. (K/H) Time Required in Seconds to
M.P.H. (K/H) Time Required in Seconds to
M.P.H. (K/H) Time Required in Seconds to
Travel a Distance of:
Travel a Distance of:
Travel a Distance of:
100 ft (30.5 M) 200 ft (61 M) 300 ft (91.5 M)
100 ft (30.5 M) 200 ft (61 M) 300 ft (91.5 M)
100 ft (30.5 M) 200 ft (61 M) 300 ft (91.5 M)
1.0 (1.6) 68 136 205
1.0 (1.6) 68 136 205
1.0 (1.6) 68 136 205
1.0 (1.6) 68 136 205
1.0 (1.6) 68 136 205
2.0 (3.2) 34 68 102
2.0 (3.2) 34 68 102
2.0 (3.2) 34 68 102
2.0 (3.2) 34 68 102
2.0 (3.2) 34 68 102
3.0 (4.8) 23 45 68
3.0 (4.8) 23 45 68
3.0 (4.8) 23 45 68
3.0 (4.8) 23 45 68
3.0 (4.8) 23 45 68
4.0 (6.4) 17 34 51
4.0 (6.4) 17 34 51
4.0 (6.4) 17 34 51
4.0 (6.4) 17 34 51
4.0 (6.4) 17 34 51
5.0 (8.0) 14 27 41
5.0 (8.0) 14 27 41
5.0 (8.0) 14 27 41
5.0 (8.0) 14 27 41
5.0 (8.0) 14 27 41
6.0 (9.7) 11 23 34
6.0 (9.7) 11 23 34
6.0 (9.7) 11 23 34
6.0 (9.7) 11 23 34
6.0 (9.7) 11 23 34
7.0 (11.3) 9.7 19 29
7.0 (11.3) 9.7 19 29
7.0 (11.3) 9.7 19 29
7.0 (11.3) 9.7 19 29
7.0 (11.3) 9.7 19 29
8.0 (12.9) 8.5 17 26
8.0 (12.9) 8.5 17 26
8.0 (12.9) 8.5 17 26
8.0 (12.9) 8.5 17 26
8.0 (12.9) 8.5 17 26
9.0 (14.5) 7.6 15 23
9.0 (14.5) 7.6 15 23
9.0 (14.5) 7.6 15 23
9.0 (14.5) 7.6 15 23
9.0 (14.5) 7.6 15 23
10.0 (16.1) 6.8 14 20
10.0 (16.1) 6.8 14 20
10.0 (16.1) 6.8 14 20
10.0 (16.1) 6.8 14 20
10.0 (16.1) 6.8 14 20
GROUND SPEED CHART
Tip Spray Pressure Tip Capacity GALLONS PER ACRE (BASED ON WATER)
Tip Spray Pressure Tip Capacity GALLONS PER ACRE (BASED ON WATER)
Tip Spray Pressure Tip Capacity GALLONS PER ACRE (BASED ON WATER)
Tip Spray Pressure Tip Capacity GALLONS PER ACRE (BASED ON WATER)
Tip Spray Pressure Tip Capacity GALLONS PER ACRE (BASED ON WATER)
Tip Spray Pressure Tip Capacity GALLONS PER ACRE (BASED ON WATER)
Tip Spray Pressure Tip Capacity GALLONS PER ACRE (BASED ON WATER)
No. Width PSI US Gallons
No. Width PSI US Gallons
No. Width PSI US Gallons
No. Width PSI US Gallons
No. Width PSI US Gallons
No. Width PSI US Gallons
No. Width PSI US Gallons
Not affected by spray width
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches Per Minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Not affected by spray width
Not affected by spray width
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Jet Spray Pressure Tip Capacity
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Size Width PSI Imperial Gallons
Not affected by spray width
Not affected by spray width
Not affected by spray width
Not affected by spray width
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
Inches (Bar) per minute 1 MPH 2 MPH 3 MPH 4 MPH 5 MPH 7.5 MPH 10 MPH
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H
(mm) (liters per minute) 1.6 K/H 3.2 K/H 4.8 K/H 6.4 K/H 8 K/H 12 K/H 16 K/H

12
REPAIR PARTS FOR 45 GALLON SPRAYER MODEL 45-03252
A
A
1
2
3
44
5
66
11
12
13
14
15
16
18
19
20
20
19
21
21
22 23
23
23
23 23
23
24
25
26
26
27
28
29
30 30
31
23
23
31
32
33
33
33 33
34
35
36
37
38
39
40
41
42
43
45
47
48
49
49
50
51
59
59
60
61
61
61
62
63
64
64
65
65
65
65
66
66
69 70
70
71
75
76
75
73
77
74
72
74
74 79
81
82
83
84
84
85 88
87
86
57
56
55
54
53
52
52
81
31
B
B
80 80
80
80
25
C
C
11
60
60
73
73
73
60
60
9
7
10
73
73
67
78
846
58
44
89
90

13
REF. PART QTY. DESCRIPTION
REF. PART QTY. DESCRIPTION
REF. PART QTY. DESCRIPTION
REF. PART QTY. DESCRIPTION
NO. NO.
NO. NO.
45 49761 1 Hose, 1/4" ID x 15’ Lg.
45 49761 1 Hose, 1/4" ID x 15’ Lg.
45 49761 1 Hose, 1/4" ID x 15’ Lg.
45 49761 1 Hose, 1/4" ID x 15’ Lg.
46 47623 1 Hitch Pin
46 47623 1 Hitch Pin
46 47623 1 Hitch Pin
46 47623 1 Hitch Pin
47 47406 1 Spray Gun
47 47406 1 Spray Gun
47 47406 1 Spray Gun
47 47406 1 Spray Gun
48 47427 1 Pump and Motor
48 47427 1 Pump and Motor
48 47427 1 Pump and Motor
48 47427 1 Pump and Motor
49 47475 2 Elbow, Swivel
49 47475 2 Elbow, Swivel
49 47475 2 Elbow, Swivel
49 47475 2 Elbow, Swivel
50 45069 4 Screw, Pan Head #10-24 x 1" Lg
50 45069 4 Screw, Pan Head #10-24 x 1" Lg
50 45069 4 Screw, Pan Head #10-24 x 1" Lg
50 45069 4 Screw, Pan Head #10-24 x 1" Lg
51 43910 4 Washer, Flat #10 SAE
51 43910 4 Washer, Flat #10 SAE
51 43910 4 Washer, Flat #10 SAE
51 43910 4 Washer, Flat #10 SAE
52 49779 2 Coiled Hose Clamp
52 49779 2 Coiled Hose Clamp
52 49779 2 Coiled Hose Clamp
52 49779 2 Coiled Hose Clamp
53 47403 1 Cap, Nylon 11/16" Thread
53 47403 1 Cap, Nylon 11/16" Thread
53 47403 1 Cap, Nylon 11/16" Thread
53 47403 1 Cap, Nylon 11/16" Thread
53 47403 1 Cap, Nylon 11/16" Thread
54 47402 1 Nut, Nylon 11/16" Thread
54 47402 1 Nut, Nylon 11/16" Thread
54 47402 1 Nut, Nylon 11/16" Thread
54 47402 1 Nut, Nylon 11/16" Thread
54 47402 1 Nut, Nylon 11/16" Thread
55 47206 1 O-Ring 5/8" OD
55 47206 1 O-Ring 5/8" OD
55 47206 1 O-Ring 5/8" OD
55 47206 1 O-Ring 5/8" OD
55 47206 1 O-Ring 5/8" OD
56 47399 1 Drain Body
56 47399 1 Drain Body
56 47399 1 Drain Body
56 47399 1 Drain Body
56 47399 1 Drain Body
57 47398 1 Washer, Nylon
57 47398 1 Washer, Nylon
57 47398 1 Washer, Nylon
57 47398 1 Washer, Nylon
57 47398 1 Washer, Nylon
58 49754 1 Switch and Wire Assembly
58 49754 1 Switch and Wire Assembly
58 49754 1 Switch and Wire Assembly
58 49754 1 Switch and Wire Assembly
58 49754 1 Switch and Wire Assembly
59 43063 6 Bolt, 5/16-18 x 1" Lg.
59 43063 6 Bolt, 5/16-18 x 1" Lg.
59 43063 6 Bolt, 5/16-18 x 1" Lg.
59 43063 6 Bolt, 5/16-18 x 1" Lg.
59 43063 6 Bolt, 5/16-18 x 1" Lg.
60 47810 16 Nut, Hex 5/16-18 Nylock
60 47810 16 Nut, Hex 5/16-18 Nylock
60 47810 16 Nut, Hex 5/16-18 Nylock
60 47810 16 Nut, Hex 5/16-18 Nylock
60 47810 16 Nut, Hex 5/16-18 Nylock
61 43182 10 Bolt, Hex 5/16-18 x 3/4" Lg.
61 43182 10 Bolt, Hex 5/16-18 x 3/4" Lg.
61 43182 10 Bolt, Hex 5/16-18 x 3/4" Lg.
61 43182 10 Bolt, Hex 5/16-18 x 3/4" Lg.
61 43182 10 Bolt, Hex 5/16-18 x 3/4" Lg.
62 46699 2 Bolt, Hex 1/4-20 x 2" Lg.
62 46699 2 Bolt, Hex 1/4-20 x 2" Lg.
62 46699 2 Bolt, Hex 1/4-20 x 2" Lg.
62 46699 2 Bolt, Hex 1/4-20 x 2" Lg.
62 46699 2 Bolt, Hex 1/4-20 x 2" Lg.
63 47189 2 Nut, Hex 1/4-20 Nylock
63 47189 2 Nut, Hex 1/4-20 Nylock
63 47189 2 Nut, Hex 1/4-20 Nylock
63 47189 2 Nut, Hex 1/4-20 Nylock
63 47189 2 Nut, Hex 1/4-20 Nylock
64 46088 2 Spacer, Wheel
64 46088 2 Spacer, Wheel
64 46088 2 Spacer, Wheel
64 46088 2 Spacer, Wheel
64 46088 2 Spacer, Wheel
65 43601 4 Washer, 1.59" x 1.032" x .06"
65 43601 4 Washer, 1.59" x 1.032" x .06"
65 43601 4 Washer, 1.59" x 1.032" x .06"
65 43601 4 Washer, 1.59" x 1.032" x .06"
65 43601 4 Washer, 1.59" x 1.032" x .06"
66 43093 2 Cotter Pin, 1/8" x 1-1/2"
66 43093 2 Cotter Pin, 1/8" x 1-1/2"
66 43093 2 Cotter Pin, 1/8" x 1-1/2"
66 43093 2 Cotter Pin, 1/8" x 1-1/2"
66 43093 2 Cotter Pin, 1/8" x 1-1/2"
67 43001 1 Bolt, Hex 3/8-16 x 1" Lg.
67 43001 1 Bolt, Hex 3/8-16 x 1" Lg.
67 43001 1 Bolt, Hex 3/8-16 x 1" Lg.
67 43001 1 Bolt, Hex 3/8-16 x 1" Lg.
67 43001 1 Bolt, Hex 3/8-16 x 1" Lg.
68 43350 4 Bolt, Carriage 3/8-16 x 1" Lg.
68 43350 4 Bolt, Carriage 3/8-16 x 1" Lg.
68 43350 4 Bolt, Carriage 3/8-16 x 1" Lg.
68 43350 4 Bolt, Carriage 3/8-16 x 1" Lg.
68 43350 4 Bolt, Carriage 3/8-16 x 1" Lg.
69 43432 2 Bolt, Hex 3/8-16 x 2-1/2" Lg.
69 43432 2 Bolt, Hex 3/8-16 x 2-1/2" Lg.
69 43432 2 Bolt, Hex 3/8-16 x 2-1/2" Lg.
69 43432 2 Bolt, Hex 3/8-16 x 2-1/2" Lg.
69 43432 2 Bolt, Hex 3/8-16 x 2-1/2" Lg.
70 43087 8 Bolt, Hex 3/8-16 x 1-1/4" Lg.
70 43087 8 Bolt, Hex 3/8-16 x 1-1/4" Lg.
70 43087 8 Bolt, Hex 3/8-16 x 1-1/4" Lg.
70 43087 8 Bolt, Hex 3/8-16 x 1-1/4" Lg.
70 43087 8 Bolt, Hex 3/8-16 x 1-1/4" Lg.
71 43407 2 Bolt, Hex 3/8-16 x 3/4" Lg.
71 43407 2 Bolt, Hex 3/8-16 x 3/4" Lg.
71 43407 2 Bolt, Hex 3/8-16 x 3/4" Lg.
71 43407 2 Bolt, Hex 3/8-16 x 3/4" Lg.
71 43407 2 Bolt, Hex 3/8-16 x 3/4" Lg.
72 43003 6 Lock washer, 3/8"
72 43003 6 Lock washer, 3/8"
72 43003 6 Lock washer, 3/8"
72 43003 6 Lock washer, 3/8"
72 43003 6 Lock washer, 3/8"
73 HA21362 13 Nut, Hex 3/8-16 Nylock
73 HA21362 13 Nut, Hex 3/8-16 Nylock
73 HA21362 13 Nut, Hex 3/8-16 Nylock
73 HA21362 13 Nut, Hex 3/8-16 Nylock
73 HA21362 13 Nut, Hex 3/8-16 Nylock
74 43070 12 Washer, Flat 3/8" Std. Wrt.
74 43070 12 Washer, Flat 3/8" Std. Wrt.
74 43070 12 Washer, Flat 3/8" Std. Wrt.
74 43070 12 Washer, Flat 3/8" Std. Wrt.
74 43070 12 Washer, Flat 3/8" Std. Wrt.
75 43015 4 Nut, Hex 3/8-16 Thread
75 43015 4 Nut, Hex 3/8-16 Thread
75 43015 4 Nut, Hex 3/8-16 Thread
75 43015 4 Nut, Hex 3/8-16 Thread
75 43015 4 Nut, Hex 3/8-16 Thread
76 49428 2 Bolt, Hex 3/8-16 x 4-1/4" Lg.
76 49428 2 Bolt, Hex 3/8-16 x 4-1/4" Lg.
76 49428 2 Bolt, Hex 3/8-16 x 4-1/4" Lg.
76 49428 2 Bolt, Hex 3/8-16 x 4-1/4" Lg.
76 49428 2 Bolt, Hex 3/8-16 x 4-1/4" Lg.
77 46959 2 Spring
77 46959 2 Spring
77 46959 2 Spring
77 46959 2 Spring
77 46959 2 Spring
78 43343 1 Pin, Hair Cotter 1/8" #4
78 43343 1 Pin, Hair Cotter 1/8" #4
78 43343 1 Pin, Hair Cotter 1/8" #4
78 43343 1 Pin, Hair Cotter 1/8" #4
78 43343 1 Pin, Hair Cotter 1/8" #4
79 43055 2 Pin, Hair Cotter 3/32" #3
79 43055 2 Pin, Hair Cotter 3/32" #3
79 43055 2 Pin, Hair Cotter 3/32" #3
79 43055 2 Pin, Hair Cotter 3/32" #3
79 43055 2 Pin, Hair Cotter 3/32" #3
80 726-0178 8 Tie, Nylon
80 726-0178 8 Tie, Nylon
80 726-0178 8 Tie, Nylon
80 726-0178 8 Tie, Nylon
80 726-0178 8 Tie, Nylon
81 45072 3 Gasket, 3/4" Garden Hose
81 45072 3 Gasket, 3/4" Garden Hose
81 45072 3 Gasket, 3/4" Garden Hose
81 45072 3 Gasket, 3/4" Garden Hose
81 45072 3 Gasket, 3/4" Garden Hose
82 45017 1 Hose "Y" with Valves 3/4"
82 45017 1 Hose "Y" with Valves 3/4"
82 45017 1 Hose "Y" with Valves 3/4"
82 45017 1 Hose "Y" with Valves 3/4"
82 45017 1 Hose "Y" with Valves 3/4"
83 45071 1 Gauge, 2" Pressure
83 45071 1 Gauge, 2" Pressure
83 45071 1 Gauge, 2" Pressure
83 45071 1 Gauge, 2" Pressure
83 45071 1 Gauge, 2" Pressure
84 23884 2 Hook, Hose
84 23884 2 Hook, Hose
84 23884 2 Hook, Hose
84 23884 2 Hook, Hose
84 23884 2 Hook, Hose
85 45041 2 Spacer, Flanged 3/16" ID x 1/4" Lg.
85 45041 2 Spacer, Flanged 3/16" ID x 1/4" Lg.
85 45041 2 Spacer, Flanged 3/16" ID x 1/4" Lg.
85 45041 2 Spacer, Flanged 3/16" ID x 1/4" Lg.
85 45041 2 Spacer, Flanged 3/16" ID x 1/4" Lg.
86 44911 6 Spacer, .39" ID x 1-1/4" OD x 1/2" Lg.
86 44911 6 Spacer, .39" ID x 1-1/4" OD x 1/2" Lg.
86 44911 6 Spacer, .39" ID x 1-1/4" OD x 1/2" Lg.
86 44911 6 Spacer, .39" ID x 1-1/4" OD x 1/2" Lg.
86 44911 6 Spacer, .39" ID x 1-1/4" OD x 1/2" Lg.
87 736-0722 2 Lock washer, 3/16"
87 736-0722 2 Lock washer, 3/16"
87 736-0722 2 Lock washer, 3/16"
87 736-0722 2 Lock washer, 3/16"
87 736-0722 2 Lock washer, 3/16"
88 45040 2 Screw, Rnd. Hd. #10-24 x 1/2" Lg.
88 45040 2 Screw, Rnd. Hd. #10-24 x 1/2" Lg.
88 45040 2 Screw, Rnd. Hd. #10-24 x 1/2" Lg.
88 45040 2 Screw, Rnd. Hd. #10-24 x 1/2" Lg.
88 45040 2 Screw, Rnd. Hd. #10-24 x 1/2" Lg.
89 43086 1 Lock Washer, 5/16"
89 43086 1 Lock Washer, 5/16"
89 43086 1 Lock Washer, 5/16"
89 43086 1 Lock Washer, 5/16"
89 43086 1 Lock Washer, 5/16"
90 45085 2 Terminal, Male
90 45085 2 Terminal, Male
90 45085 2 Terminal, Male
90 45085 2 Terminal, Male
90 45085 2 Terminal, Male
40216 1 Owners Manual
40216 1 Owners Manual
40216 1 Owners Manual
40216 1 Owners Manual
40216 1 Owners Manual
REF. PART QTY. DESCRIPTION
NO. NO.
45 49761 1 Hose, 1/4" ID x 15’ Lg.
46 47623 1 Hitch Pin
47 47406 1 Spray Gun
48 47427 1 Pump and Motor
49 47475 2 Elbow, Swivel
50 45069 4 Screw, Pan Head #10-24 x 1" Lg
51 43910 4 Washer, Flat #10 SAE
52 49779 2 Coiled Hose Clamp
53 47403 1 Cap, Nylon 11/16" Thread
54 47402 1 Nut, Nylon 11/16" Thread
55 47206 1 O-Ring 5/8" OD
56 47399 1 Drain Body
57 47398 1 Washer, Nylon
58 49754 1 Switch and Wire Assembly
59 43063 6 Bolt, 5/16-18 x 1" Lg.
60 47810 16 Nut, Hex 5/16-18 Nylock
61 43182 10 Bolt, Hex 5/16-18 x 3/4" Lg.
62 46699 2 Bolt, Hex 1/4-20 x 2" Lg.
63 47189 2 Nut, Hex 1/4-20 Nylock
64 46088 2 Spacer, Wheel
65 43601 4 Washer, 1.59" x 1.032" x .06"
66 43093 2 Cotter Pin, 1/8" x 1-1/2"
67 43001 1 Bolt, Hex 3/8-16 x 1" Lg.
68 43350 4 Bolt, Carriage 3/8-16 x 1" Lg.
69 43432 2 Bolt, Hex 3/8-16 x 2-1/2" Lg.
70 43087 8 Bolt, Hex 3/8-16 x 1-1/4" Lg.
71 43407 2 Bolt, Hex 3/8-16 x 3/4" Lg.
72 43003 6 Lock washer, 3/8"
73 HA21362 13 Nut, Hex 3/8-16 Nylock
74 43070 12 Washer, Flat 3/8" Std. Wrt.
75 43015 4 Nut, Hex 3/8-16 Thread
76 49428 2 Bolt, Hex 3/8-16 x 4-1/4" Lg.
77 46959 2 Spring
78 43343 1 Pin, Hair Cotter 1/8" #4
79 43055 2 Pin, Hair Cotter 3/32" #3
80 726-0178 8 Tie, Nylon
81 45072 3 Gasket, 3/4" Garden Hose
82 45017 1 Hose "Y" with Valves 3/4"
83 45071 1 Gauge, 2" Pressure
84 23884 2 Hook, Hose
85 45041 2 Spacer, Flanged 3/16" ID x 1/4" Lg.
86 44911 6 Spacer, .39" ID x 1-1/4" OD x 1/2" Lg.
87 736-0722 2 Lock washer, 3/16"
88 45040 2 Screw, Rnd. Hd. #10-24 x 1/2" Lg.
89 43086 1 Lock Washer, 5/16"
90 45085 2 Terminal, Male
40216 1 Owners Manual
REF. PART QTY. DESCRIPTION
REF. PART QTY. DESCRIPTION
REF. PART QTY. DESCRIPTION
REF. PART QTY. DESCRIPTION
REF. PART QTY. DESCRIPTION
REF. PART QTY. DESCRIPTION
NO. NO.
NO. NO.
NO. NO.
1 47419 1 Tank (45 Gallon)
1 47419 1 Tank (45 Gallon)
1 47419 1 Tank (45 Gallon)
1 47419 1 Tank (45 Gallon)
1 47419 1 Tank (45 Gallon)
1 47419 1 Tank (45 Gallon)
2 46700 1 Lid
2 46700 1 Lid
2 46700 1 Lid
2 46700 1 Lid
2 46700 1 Lid
2 46700 1 Lid
2 46700 1 Lid
3 24506 1 Angle, Frame (Rear)
3 24506 1 Angle, Frame (Rear)
3 24506 1 Angle, Frame (Rear)
3 24506 1 Angle, Frame (Rear)
3 24506 1 Angle, Frame (Rear)
3 24506 1 Angle, Frame (Rear)
4 24507 2 Angle, Frame (Side)
4 24507 2 Angle, Frame (Side)
4 24507 2 Angle, Frame (Side)
4 24507 2 Angle, Frame (Side)
4 24507 2 Angle, Frame (Side)
4 24507 2 Angle, Frame (Side)
5 24508 1 Axle
5 24508 1 Axle
5 24508 1 Axle
5 24508 1 Axle
5 24508 1 Axle
5 24508 1 Axle
6 48906 2 Wheel
6 48906 2 Wheel
6 48906 2 Wheel
6 48906 2 Wheel
6 48906 2 Wheel
7 24952 1 Angle, Frame (Front)
7 24952 1 Angle, Frame (Front)
7 24952 1 Angle, Frame (Front)
7 24952 1 Angle, Frame (Front)
7 24952 1 Angle, Frame (Front)
8 23014 1 Hitch Bracket
8 23014 1 Hitch Bracket
8 23014 1 Hitch Bracket
8 23014 1 Hitch Bracket
8 23014 1 Hitch Bracket
9 24931 1 Strap, Frame
9 24931 1 Strap, Frame
9 24931 1 Strap, Frame
9 24931 1 Strap, Frame
9 24931 1 Strap, Frame
10 25210 1 Tongue
10 25210 1 Tongue
10 25210 1 Tongue
10 25210 1 Tongue
10 25210 1 Tongue
11 24509 2 Bracket, Boom Mount
11 24509 2 Bracket, Boom Mount
11 24509 2 Bracket, Boom Mount
11 24509 2 Bracket, Boom Mount
11 24509 2 Bracket, Boom Mount
12 24517 1 Bracket, Boom Transport
12 24517 1 Bracket, Boom Transport
12 24517 1 Bracket, Boom Transport
12 24517 1 Bracket, Boom Transport
12 24517 1 Bracket, Boom Transport
13 63834 1 Assembly, Boom Mount (R.H.)
13 63834 1 Assembly, Boom Mount (R.H.)
13 63834 1 Assembly, Boom Mount (R.H.)
13 63834 1 Assembly, Boom Mount (R.H.)
13 63834 1 Assembly, Boom Mount (R.H.)
14 63797 1 Assembly, Boom Mount (L.H.)
14 63797 1 Assembly, Boom Mount (L.H.)
14 63797 1 Assembly, Boom Mount (L.H.)
14 63797 1 Assembly, Boom Mount (L.H.)
14 63797 1 Assembly, Boom Mount (L.H.)
15 63798 1 Assembly, Boom Arm (R.H.)
15 63798 1 Assembly, Boom Arm (R.H.)
15 63798 1 Assembly, Boom Arm (R.H.)
15 63798 1 Assembly, Boom Arm (R.H.)
15 63798 1 Assembly, Boom Arm (R.H.)
16 63799 1 Assembly, Boom Arm (L.H.)
16 63799 1 Assembly, Boom Arm (L.H.)
16 63799 1 Assembly, Boom Arm (L.H.)
16 63799 1 Assembly, Boom Arm (L.H.)
16 63799 1 Assembly, Boom Arm (L.H.)
17 63800 1 Assembly, Boom Hose (Not Shown)
17 63800 1 Assembly, Boom Hose (Not Shown)
17 63800 1 Assembly, Boom Hose (Not Shown)
17 63800 1 Assembly, Boom Hose (Not Shown)
17 63800 1 Assembly, Boom Hose (Not Shown)
Contains items 18 through 31
18 47396 2 Elbow with Nut
18 47396 2 Elbow with Nut
18 47396 2 Elbow with Nut
18 47396 2 Elbow with Nut
18 47396 2 Elbow with Nut
19 45029 4 Strainer, Screen Type
19 45029 4 Strainer, Screen Type
19 45029 4 Strainer, Screen Type
19 45029 4 Strainer, Screen Type
19 45029 4 Strainer, Screen Type
20 45028 4 Nozzle, Spray #3
20 45028 4 Nozzle, Spray #3
20 45028 4 Nozzle, Spray #3
20 45028 4 Nozzle, Spray #3
20 45028 4 Nozzle, Spray #3
21 45037 4 Nut, Screen Body (Nozzle Nut)
21 45037 4 Nut, Screen Body (Nozzle Nut)
21 45037 4 Nut, Screen Body (Nozzle Nut)
21 45037 4 Nut, Screen Body (Nozzle Nut)
21 45037 4 Nut, Screen Body (Nozzle Nut)
22 47420 2 Tee, Plastic 11/16" Thd. x 3/8" Barb
22 47420 2 Tee, Plastic 11/16" Thd. x 3/8" Barb
22 47420 2 Tee, Plastic 11/16" Thd. x 3/8" Barb
22 47420 2 Tee, Plastic 11/16" Thd. x 3/8" Barb
22 47420 2 Tee, Plastic 11/16" Thd. x 3/8" Barb
with nut
with nut
with nut
with nut
with nut
23 45026 14 Clamp, 3/8" (For Black Hose)
23 45026 14 Clamp, 3/8" (For Black Hose)
23 45026 14 Clamp, 3/8" (For Black Hose)
23 45026 14 Clamp, 3/8" (For Black Hose)
23 45026 14 Clamp, 3/8" (For Black Hose)
47405 14 Clamp, 1/4" (For Clear Hose)
47405 14 Clamp, 1/4" (For Clear Hose)
47405 14 Clamp, 1/4" (For Clear Hose)
47405 14 Clamp, 1/4" (For Clear Hose)
47405 14 Clamp, 1/4" (For Clear Hose)
24 47421 2 Hose, 3/8" ID x 28" Lg.
24 47421 2 Hose, 3/8" ID x 28" Lg.
24 47421 2 Hose, 3/8" ID x 28" Lg.
24 47421 2 Hose, 3/8" ID x 28" Lg.
24 47421 2 Hose, 3/8" ID x 28" Lg.
25 47422 1 Hose, 3/8" ID x 35" Lg.
25 47422 1 Hose, 3/8" ID x 35" Lg.
25 47422 1 Hose, 3/8" ID x 35" Lg.
25 47422 1 Hose, 3/8" ID x 35" Lg.
25 47422 1 Hose, 3/8" ID x 35" Lg.
26 47423 4 Hose, 3/8" ID x 19" Lg.
26 47423 4 Hose, 3/8" ID x 19" Lg.
26 47423 4 Hose, 3/8" ID x 19" Lg.
26 47423 4 Hose, 3/8" ID x 19" Lg.
26 47423 4 Hose, 3/8" ID x 19" Lg.
27 47416 2 Valve, Nylon 1/4"
27 47416 2 Valve, Nylon 1/4"
27 47416 2 Valve, Nylon 1/4"
27 47416 2 Valve, Nylon 1/4"
27 47416 2 Valve, Nylon 1/4"
27 47416 2 Valve, Nylon 1/4"
28 47394 1 Tee, Plastic - 3/8" Hose Barbs
28 47394 1 Tee, Plastic - 3/8" Hose Barbs
28 47394 1 Tee, Plastic - 3/8" Hose Barbs
28 47394 1 Tee, Plastic - 3/8" Hose Barbs
28 47394 1 Tee, Plastic - 3/8" Hose Barbs
29 45034 1 Hose Barb, 3/8"
29 45034 1 Hose Barb, 3/8"
29 45034 1 Hose Barb, 3/8"
29 45034 1 Hose Barb, 3/8"
29 45034 1 Hose Barb, 3/8"
30 47412 4 Adapter, Nylon 1/4 NPT x 3/8" Barb
30 47412 4 Adapter, Nylon 1/4 NPT x 3/8" Barb
30 47412 4 Adapter, Nylon 1/4 NPT x 3/8" Barb
30 47412 4 Adapter, Nylon 1/4 NPT x 3/8" Barb
30 47412 4 Adapter, Nylon 1/4 NPT x 3/8" Barb
31 45032 3 Nut, Swivel 3/4" Garden Hose
31 45032 3 Nut, Swivel 3/4" Garden Hose
31 45032 3 Nut, Swivel 3/4" Garden Hose
31 45032 3 Nut, Swivel 3/4" Garden Hose
31 45032 3 Nut, Swivel 3/4" Garden Hose
32 45033 1 Hose Barb, 1/2"
32 45033 1 Hose Barb, 1/2"
32 45033 1 Hose Barb, 1/2"
32 45033 1 Hose Barb, 1/2"
32 45033 1 Hose Barb, 1/2"
33 45025 4 Clamp, 1/2" (For Black Hose)
33 45025 4 Clamp, 1/2" (For Black Hose)
33 45025 4 Clamp, 1/2" (For Black Hose)
33 45025 4 Clamp, 1/2" (For Black Hose)
33 45025 4 Clamp, 1/2" (For Black Hose)
45026 4 Clamp, 3/8" (For Clear Hose)
45026 4 Clamp, 3/8" (For Clear Hose)
45026 4 Clamp, 3/8" (For Clear Hose)
45026 4 Clamp, 3/8" (For Clear Hose)
45026 4 Clamp, 3/8" (For Clear Hose)
34 45022 1 Hose, 1/2" ID x 14" Lg.
34 45022 1 Hose, 1/2" ID x 14" Lg.
34 45022 1 Hose, 1/2" ID x 14" Lg.
34 45022 1 Hose, 1/2" ID x 14" Lg.
34 45022 1 Hose, 1/2" ID x 14" Lg.
35 47424 1 Hose, 1/2" ID x 23" Lg.
35 47424 1 Hose, 1/2" ID x 23" Lg.
35 47424 1 Hose, 1/2" ID x 23" Lg.
35 47424 1 Hose, 1/2" ID x 23" Lg.
35 47424 1 Hose, 1/2" ID x 23" Lg.
36 47425 1 Hose, 1/2" ID x 2-1/2" Lg.
36 47425 1 Hose, 1/2" ID x 2-1/2" Lg.
36 47425 1 Hose, 1/2" ID x 2-1/2" Lg.
36 47425 1 Hose, 1/2" ID x 2-1/2" Lg.
36 47425 1 Hose, 1/2" ID x 2-1/2" Lg.
37 45024 1 Strainer, Cap Type 1"
37 45024 1 Strainer, Cap Type 1"
37 45024 1 Strainer, Cap Type 1"
37 45024 1 Strainer, Cap Type 1"
37 45024 1 Strainer, Cap Type 1"
38 46276 1 Adapter, 3/4" GH x 1/2" Barb
38 46276 1 Adapter, 3/4" GH x 1/2" Barb
38 46276 1 Adapter, 3/4" GH x 1/2" Barb
38 46276 1 Adapter, 3/4" GH x 1/2" Barb
38 46276 1 Adapter, 3/4" GH x 1/2" Barb
39 45031 1 Adapter, 1/2" NPT x 3/4" GH
39 45031 1 Adapter, 1/2" NPT x 3/4" GH
39 45031 1 Adapter, 1/2" NPT x 3/4" GH
39 45031 1 Adapter, 1/2" NPT x 3/4" GH
39 45031 1 Adapter, 1/2" NPT x 3/4" GH
40 47426 1 Elbow, Nylon 1/2" NPT x 1/2" Barb
40 47426 1 Elbow, Nylon 1/2" NPT x 1/2" Barb
40 47426 1 Elbow, Nylon 1/2" NPT x 1/2" Barb
40 47426 1 Elbow, Nylon 1/2" NPT x 1/2" Barb
40 47426 1 Elbow, Nylon 1/2" NPT x 1/2" Barb
41 24547 1 Bracket, Tee Support
41 24547 1 Bracket, Tee Support
41 24547 1 Bracket, Tee Support
41 24547 1 Bracket, Tee Support
41 24547 1 Bracket, Tee Support
42 45050 1 Tee, 1/2" x 1/2" x 1/2" x 1/4" Port
42 45050 1 Tee, 1/2" x 1/2" x 1/2" x 1/4" Port
42 45050 1 Tee, 1/2" x 1/2" x 1/2" x 1/4" Port
42 45050 1 Tee, 1/2" x 1/2" x 1/2" x 1/4" Port
42 45050 1 Tee, 1/2" x 1/2" x 1/2" x 1/4" Port
43 47390 1 Adapter, 1/2" NPT x 1/4" Barb
43 47390 1 Adapter, 1/2" NPT x 1/4" Barb
43 47390 1 Adapter, 1/2" NPT x 1/4" Barb
43 47390 1 Adapter, 1/2" NPT x 1/4" Barb
43 47390 1 Adapter, 1/2" NPT x 1/4" Barb
44 44692 1 Bolt, 5/16-18 x 1/2"
44 44692 1 Bolt, 5/16-18 x 1/2"
44 44692 1 Bolt, 5/16-18 x 1/2"
44 44692 1 Bolt, 5/16-18 x 1/2"
44 44692 1 Bolt, 5/16-18 x 1/2"
REPAIR PARTS FOR 45 GALLON SPRAYER MODEL 45-03252
the fastest way to purchase parts
www.speedepart.com

14
NOTES

NOTES

16
REPAIR PARTS
Agri-Fab, Inc.
303 West Raymond
Sullivan, IL. 61951
217-728-8388
www.agri-fab.com
the fastest way to purchase parts
www.speedepart.com
© 2004 Agri-Fab, Inc.
