Agrimate AM-MT-320M-WT User manual

USER MANUAL
WHEEL TROLLY / TRANSPORTER
AM-MT-320M-WT
TRANSMISSION PART LIST

WHEEL TROLLY/TRANSPORTER
MODEL AM-MT-320M-WT
ENGINE AM-170FP
POWER 7HP/212CC
NO. OF GEARS 3FORWARD, 1 REVERSE
LOADING CAPACITY UPTO 350KG
TECHNICAL SPECIFICATIONS

Operation Instructions
Warnings
Forbid to operate, maintain and check the machine before read and mater the instructions Please safe-keep the instructions in order to operate, maintain
and check the machine in time.
About the instructions
In order that you can operate our machine more safe, the instructions contains method for operating ,maintain and checking.Correctly operating method is
on basis of reading and grasping.
Warnings
Forbid to operate, maintain and check the machine before read and mater the instructions.Please safe-keep the instructions in order to operate, maintain
and check the machine in time.
About the machine
Warnings
is machine exists potential dangers, you should operate maintain and check based on the instructions.is machine is for elds convey, not for other
ways. Forbid to operate on such roads, national highways. If any accidents in such road ,our factory will not burden any responsibility.
Fobid to change the machine, in order to avoid any accidents, forbid to take o the proof cover.
About the warnings items in this instructions
e instructions dene warnings to below parts based on danger level(or accidents level) Please get understood for below warning items, and then operate
the machine.
item meaning
dangers Very dangerous warning, without notice, may cause fatal acci-
dents
warnings potential dangerous warning, without notice, may cause fatal
accidents
cautions potential dangerous warning, without notice, may cause acci-
dents or injury. Even will harm the machine.
suggestions Attract one attention, or feedback your advice

1. Safety aairs
Safety driving, safety operating
General safety precautions must comply with this record of driving, operation. Driving operation must be in accordance with the provisions of the articles
of association of security matters, always remember to safe driving, safety operation.
1.1 Before driving instructions
e right to wear safety clothing, and wear the safety guard Do not wear the leisure clothes like vests, shorts and sandals when operating.
Check before operation
Check carefully before start,any fault,need remove timely. Fire forbidden Fire away from fuel. Futuremore,add the fuel aer engine o.
Fire away from fuel.
Futuremore,add the fuel aer engine o.
Fire Forbidden

Loading cauons
forbid over loading
Forbid to load over the max capacityfor this machine
correct to load the goods
In order to avoid placing uneven,let the machine roll over,please place them even and fasten with rope,moreover,should avoid the height to ensure the sight
view
cauons for quanyity restricons
When crossing the wood bridge,please make sure the total quantity of machine,goods and operator lower than max bearing quantity.And cross within limited
speed.
cauons for loading capacity at the bevelled level
At the degree 15-20 bevelled level,loading capacity should control within 150KG.when at 20-25,should bear nothing to drive.Fobid to drive while the level
over 25 degrees..Fobid to shi while overloading or at bevelled level
forbid to operate the bucket while at bevelled level
Forbid to operate the bucket while at bevelled level,which will let the machine roll over.Lay the machine at the horizontal position if must take the step.
Parking instrucons
Forbid to park in danger area
Park at the stable roads,forbidden in danger area
Fasten the wheels when parking at bevelled level
Forbid to park in bevelled level,fasten the wheels if must

Ignion method
warnings
Start the engine at ventilation area to avoid get poisoned
start the engine after confirm safety background
Make sure the clutch at the stop position before start the engine to
avoid the machine running to cause any accidents
cautions
At winter or dry and cold environment, please warm up before driving, if
not ,will reduce the service for the machine
1. Make sure the clutch in stop position
2. Make sure the gearshi at neutral position
3. Turn the fuel tap to the ON position
4. Turn the throttle valve to the OFF position Suggestions: no need this step when the engine is hot
5. Turn the accelerating lever to the high position a little
6. Turn the main switch to the ON position
7. Pull the cable, start the engine
8. Turn the accelerating lever to the lower position aer running the engine
9. Turn the throttle valve to the staring position
10. 1-2 minutes working without any burden to warm up the machine suggestions Aer you have the machine, the rst week(about 40-50H)just for
running, avoid any overloading

Driving method
1. Makesurethesafetyaairsaroundthemachine
2. Makesuretheclutchatthestopposion
3. Turnthegearleverandsub-gearlevertotheneutralposionsuggesonsAboutthewalkingspeedforeachgearlever,please
referthetechnicaldata.Turntheclutchforwardtowalkingsideslightlyifgearlevercannotmove,thenyoucanturnitagain
4. TurntheaccelerangleverforwardtoHIGHposion,canspeeduptheoutputrotaryspeed.
5. turntheclutchtostartposiontostartthemachine
6. Turningle,operatetheleclutchhandle
7. Turningright,operatetherightclutchhandle

MACHINE WHOLE PARTS-A
SL NO PART NO DESCIPTION
1 AM-MT-320M-WT-TA01 Container comp
2 AM-MT-320M-WT-TA02 Handle bar compo-
nents
3 AM-MT-320M-WT-TA03 Chassis comp
4 AM-MT-320M-WT-TA04 Wheels assy

HANDLE BAR COMPONENTS - B

SL NO PART NO DESCIPTION
1 AM-MT-320M-WT-TB01 Nut
2 AM-MT-320M-WT-TB02 Clutchhandle
3 AM-MT-320M-WT-TB03 Φ25grip
4 AM-MT-320M-WT-TB04 weldingassemblyforlelever
5 AM-MT-320M-WT-TB05 Bolt
6 AM-MT-320M-WT-TB06 Turningcable
7 AM-MT-320M-WT-TB07 line-card
8 AM-MT-320M-WT-TB08 connecngpanel
9 AM-MT-320M-WT-TB09 Throlecable
10 AM-MT-320M-WT-TB10 welding assembly for right lever
11 AM-MT-320M-WT-TB11 shutdownswitch
12 AM-MT-320M-WT-TB12 welding assembly
13 AM-MT-320M-WT-TB13 welding assembly

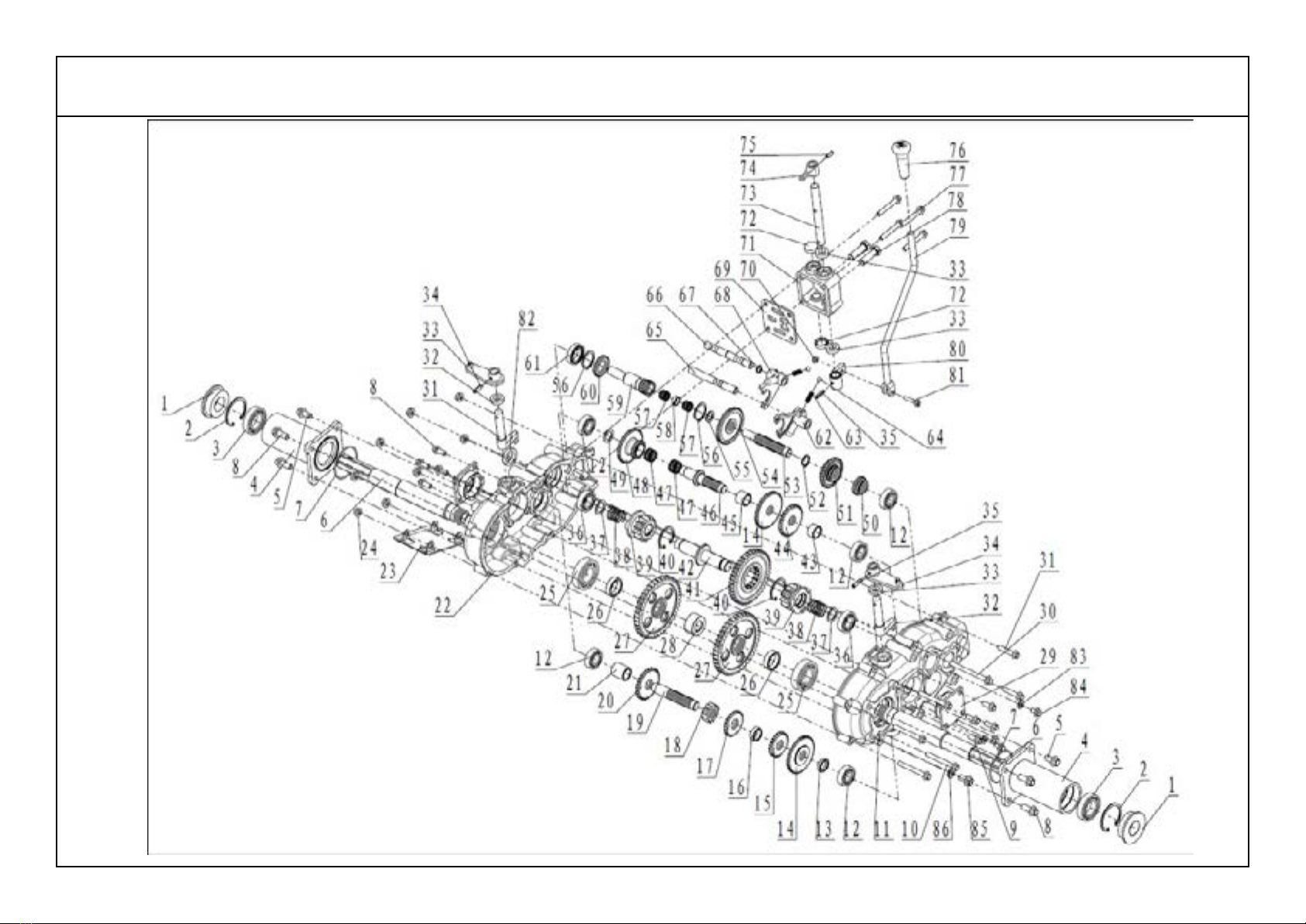

CHASSIS COMP 1 - C

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MT-320M-WT-TC01 Oil seal 17 AM-MT-320M-WT-TC17 Three-speed driven gear
2 AM-MT-320M-WT-TC02 Circlipsforholes 18 AM-MT-320M-WT-TC18 Three-speed driving gear
3 AM-MT-320M-WT-TC03 Deep groove ball bearings 19 AM-MT-320M-WT-TC19 III axis
4 AM-MT-320M-WT-TC04 Support seat weldment 20 AM-MT-320M-WT-TC20 Secondgeardrivengear
5 AM-MT-320M-WT-TC05 Hexagonangebolt 21 AM-MT-320M-WT-TC21 IIIshalongsleeve
6 AM-MT-320M-WT-TC06 V axis 22 AM-MT-320M-WT-TC22 Shell (right)
7 AM-MT-320M-WT-TC07 O-ring 23 AM-MT-320M-WT-TC23 Gearbox guard plate
8 AM-MT-320M-WT-TC08 Hexagonangebolt 24 AM-MT-320M-WT-TC24 Hexangenut
9 AM-MT-320M-WT-TC09 Hexagonangebolt 25 AM-MT-320M-WT-TC25 Deep groove ball bearing
10 AM-MT-320M-WT-TC10 Hexagonangebolt 26 AM-MT-320M-WT-TC26 Vshasleeve
11 AM-MT-320M-WT-TC11 Shell(le) 27 AM-MT-320M-WT-TC27 V-axis driven gear
12 AM-MT-320M-WT-TC12 Deep groove ball bearings 28 AM-MT-320M-WT-TC28 V-axisconneconsleeve
13 AM-MT-320M-WT-TC13 IIIshashortsleeve 29 AM-MT-320M-WT-TC29 Stop seat
14 AM-MT-320M-WT-TC14 1Rblockdrivengear 30 AM-MT-320M-WT-TC30 Hexagonangebolt
15 AM-MT-320M-WT-TC15 III-axis driven gear 31 AM-MT-320M-WT-TC31 Hexagonangebolt
16 AM-MT-320M-WT-TC16 IIIshasleeve 32 AM-MT-320M-WT-TC32 Steeringseparaonfork

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-MT-320M-WT-TC33 Oil seal 49 AM-MT-320M-WT-TC49 IIshagasket
34 AM-MT-320M-WT-TC34 Steeringseparaonarmas-
sembly 50 AM-MT-320M-WT-TC50 1Rblockslipgear
35 AM-MT-320M-WT-TC35 Elasccylindricalpinrolled
standard type 51 AM-MT-320M-WT-TC51 Secondandthirdgearslipgear
36 AM-MT-320M-WT-TC36 Deep groove ball bearing 52 AM-MT-320M-WT-TC52 Circlipforsha
37 AM-MT-320M-WT-TC37 IVshagasket 53 AM-MT-320M-WT-TC53 I axis
38 AM-MT-320M-WT-TC38 Tension loop spring 54 AM-MT-320M-WT-TC54 Auxiliary transmission driven
gear
39 AM-MT-320M-WT-TC39 Steering gear 55 AM-MT-320M-WT-TC55 InputshaandIshagasket
40 AM-MT-320M-WT-TC40 Circlipforhole 56 AM-MT-320M-WT-TC56 Circlipforsha
41 AM-MT-320M-WT-TC41 IV axis driven gear 57 AM-MT-320M-WT-TC57 Needle bearing
42 AM-MT-320M-WT-TC42 IV axis 58 AM-MT-320M-WT-TC58 Inputsharetainingring
43 AM-MT-320M-WT-TC43 Bushing 59 AM-MT-320M-WT-TC59 Inputsha
44 AM-MT-320M-WT-TC44 II axis driving gear 60 AM-MT-320M-WT-TC60 Auxiliarygearshiinggear
45 AM-MT-320M-WT-TC45 IIshasleeve 61 AM-MT-320M-WT-TC61 Deep groove ball bearings
46 AM-MT-320M-WT-TC46 axis 62 AM-MT-320M-WT-TC62 Secondandthirdgearshifork
47 AM-MT-320M-WT-TC47 Needle bearing 63 AM-MT-320M-WT-TC63 Gearcompressionspring
48 AM-MT-320M-WT-TC48 Auxiliary transmission double
gear 64 AM-MT-320M-WT-TC64 Steel ball

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
65 AM-MT-320M-WT-TC65 Lowerforksha 78 AM-MT-320M-WT-TC78 Vent plug
66 AM-MT-320M-WT-TC66 Upperforksha 79 AM-MT-320M-WT-TC79 Shilever
67 AM-MT-320M-WT-TC67 Circlipforsha 80 AM-MT-320M-WT-TC80 Gear lever set
68 AM-MT-320M-WT-TC68 Reverse gear fork 81 AM-MT-320M-WT-TC81 Hexagonangebolt
69 AM-MT-320M-WT-TC69 Lever limit plate 82 AM-MT-320M-WT-TC82 Oil seal
70 AM-MT-320M-WT-TC70 Type 1 hexagon nut 83 AM-MT-320M-WT-TC83 Combinaongasket
71 AM-MT-320M-WT-TC71 Fork lever box 84 AM-MT-320M-WT-TC84 Hexagonangebolt
72 AM-MT-320M-WT-TC72 Oil plug 85 AM-MT-320M-WT-TC85 Hexangebolt
73 AM-MT-320M-WT-TC73 Leversha 86 AM-MT-320M-WT-TC86 Combinaongasket
74 AM-MT-320M-WT-TC74 Lever
75 AM-MT-320M-WT-TC75 Elasc cylindrical pin rolled
standard type
76 AM-MT-320M-WT-TC76 Damping grip (with gear mark)
77 AM-MT-320M-WT-TC77 Hexagonangebolt

CHASSIS ASSY - 2 - D

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MT-320M-WT-TD 01 Wire retaining ring for sha
2 AM-MT-320M-WT-TD 02 Drive sprocket
3 AM-MT-320M-WT-TD 03 Key
4 AM-MT-320M-WT-TD 04 Oil seal
5 AM-MT-320M-WT-TD 05 Brake box
6 AM-MT-320M-WT-TD 06 Hexagon ange bolt small series
7 AM-MT-320M-WT-TD 07 Circlip for sha
8 AM-MT-320M-WT-TD 08 Brake drum
9 AM-MT-320M-WT-TD 09 Brake pads
10 AM-MT-320M-WT-TD 10 Circlip for sha
11 AM-MT-320M-WT-TD 11 Brake cover weldment
12 AM-MT-320M-WT-TD 12 O-ring
13 AM-MT-320M-WT-TD 13 Brake box cam arm welding parts

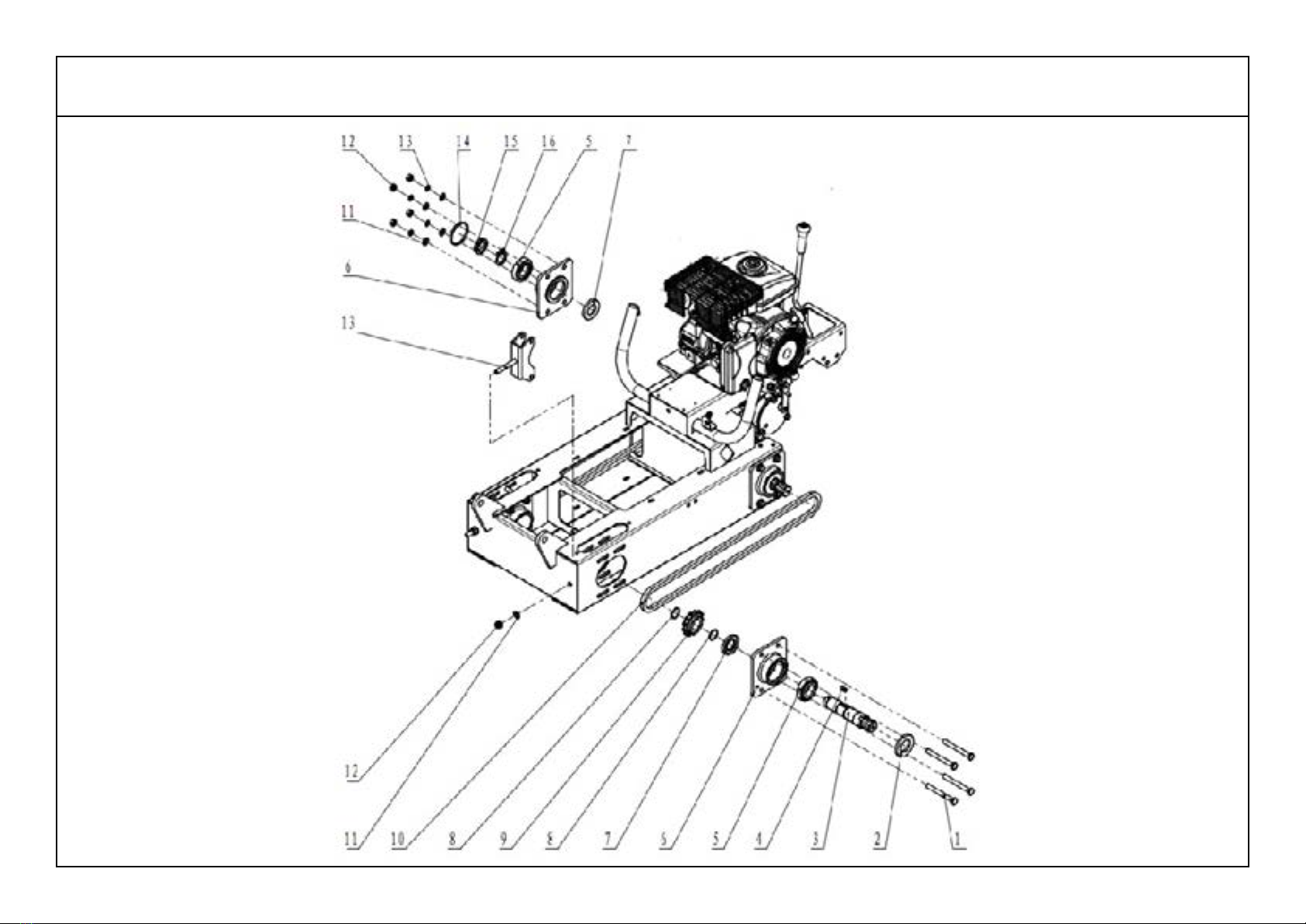

CHASSIS ASSY (3) -E

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MT-320M-WT-TE01 Hexagonangeboltsmallseries 10 AM-MT-320M-WT-TE10 Extra large washer C grade
2 AM-MT-320M-WT-TE02 Wireretainingringforsha 11 AM-MT-320M-WT-TE11 Big pulley
3 AM-MT-320M-WT-TE03 Oil seal 12 AM-MT-320M-WT-TE12 Key
4 AM-MT-320M-WT-TE04 Circlipforhole 13 AM-MT-320M-WT-TE13 Outputshapressureplate
5 AM-MT-320M-WT-TE05 Deep groove ball bearing 14 AM-MT-320M-WT-TE14 Flat washer A grade
6 AM-MT-320M-WT-TE06 Bearing seat 15 AM-MT-320M-WT-TE15 Standard spring washer
7 AM-MT-320M-WT-TE07 Oil seal 16 AM-MT-320M-WT-TE16 Hexagonangeboltsmall
series
8 AM-MT-320M-WT-TE08 Brakesha 17 AM-MT-320M-WT-TE17 Brake arm
9 AM-MT-320M-WT-TE09 HexagonangeboltsBgrade 18 AM-MT-320M-WT-TE18 Type1hexagonlocknut

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
19 AM-MT-320M-WT-TE19 Hexagonangeboltsmall
series 29 AM-MT-320M-WT-TE29 Underframe assembly
20 AM-MT-320M-WT-TE20 Tensionpulleycomp 30 AM-MT-320M-WT-TE30 Rightbracket
21 AM-MT-320M-WT-TE21 Bushing 31 AM-MT-320M-WT-TE31 Hexagonangeboltsmallseries
22 AM-MT-320M-WT-TE22 Hexagonangeboltsmall
series 32 AM-MT-320M-WT-TE32 Type 1 hex nut
23 AM-MT-320M-WT-TE23 nut 33 AM-MT-320M-WT-TE33 Hexagon head bolt
24 AM-MT-320M-WT-TE24 NA 34 AM-MT-320M-WT-TE34 Large Washer A
25 AM-MT-320M-WT-TE25 Engine 35 AM-MT-320M-WT-TE35 Type2hexagonangenut
26 AM-MT-320M-WT-TE26 small pulley 36 AM-MT-320M-WT-TE36 Engine mount weldment
27 AM-MT-320M-WT-TE27 Pulleyboomplate
28 AM-MT-320M-WT-TE28 Belt pressure lever

CHASSIS ASSY (4) - F
