Agrimate AM-RTD-5D-CHAMPION NEW User manual

USER MANUAL

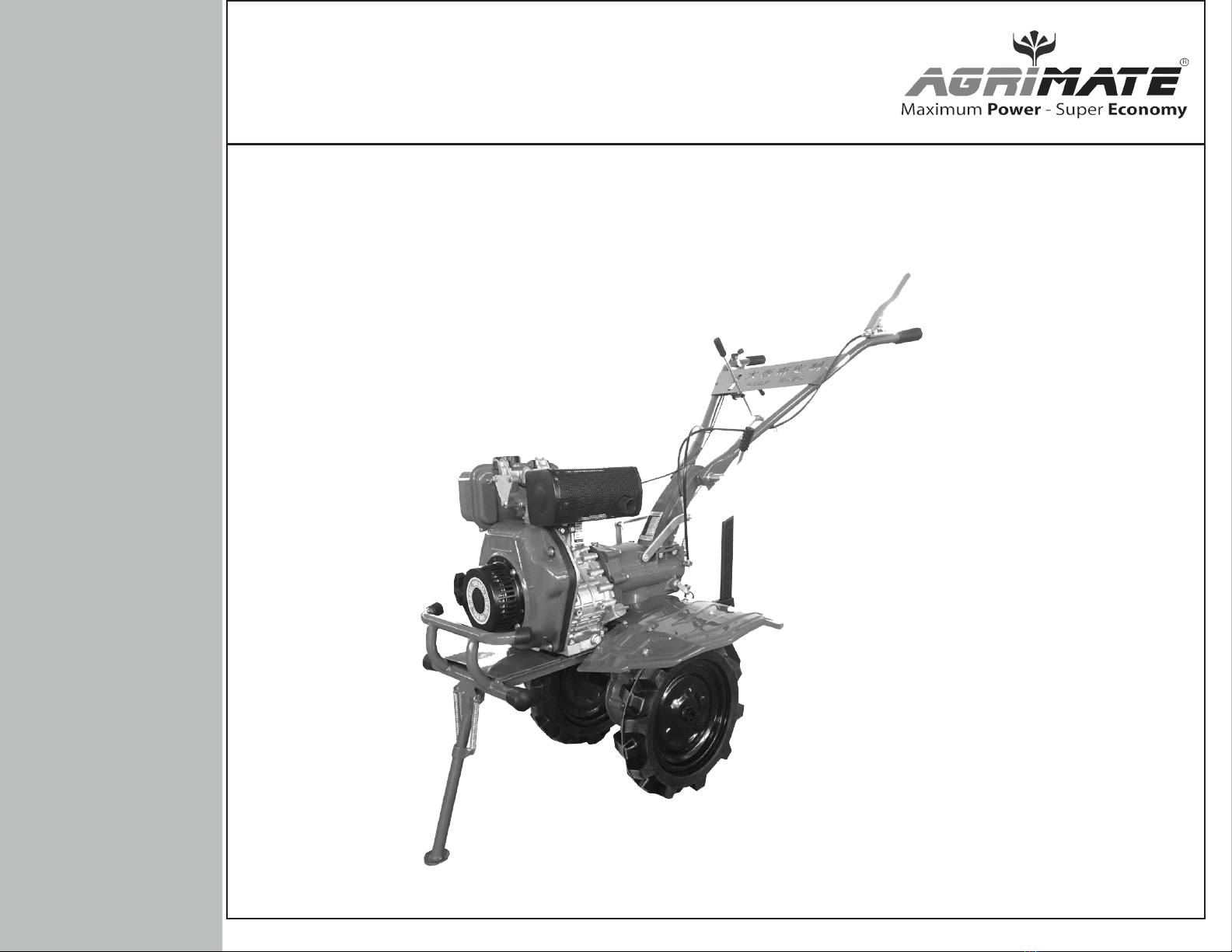

INTERCULTIVATOR/POWER WEEDER
AM-RTD-5D-CHAMPION NEW MANUAL START
ENGINE PART DIAGRAM

INTRODUCTION
Please persue the contents in the insucons manual prio to us this machine, correctly carried out installaon and debugging,
as well as used it strictly
cording to the working specicaons in the instrucon manual. The user should be familiar with the safety noces, machine
perfotmance and maintaonance, etc. The instrucon manual will be used in the later use, repair, accessories replacement, ad
accesories procurement, so please keep it carefully.
OPERATING INSTRUCTION
1. Securely mount the machine on the frame, ensured the two belt pulleys be parrellel and on the same plane, and the
tension of belt be moderate.
2. Add 30~ 40# machine oil upto 1/2 of oil guage plug
3. The connectors of each rubber pipe and high pressure pipe must be locked ghtly.
4. Before start the motor, open the jet gun and ball cock and loosen the adjusng screw
5. Start the motor , keeping it at appropriate velocity, waing there is water ejecng from the jet gun, close the jet gun or
ball cock, and adjust screw to let the pressure reach the working pressure.
6. Turn on the ball cock and jet gun, beginning spraying. During the process may properly adjust the adjusng screw to
maintain the required pressure
and lock ghtly the y nut at any moment.
7. Aer spraying, operate the sprayer with clean water for 2`3 minutes to clean the residual interior chemicals.
8. Firstly dismantle the sucon hose, waing there is no water owing out from the jet gun or the overow hose, stop the
machine and dismantle overow hose, high pressure pipe and loosen the adjusng screw.

TECHNICAL SPECIFICATIONS
Model AM-RTD-5D CHAMPION NEW
Engine AM-173FD
Starng MANUAL
Displacement 247CC
Fuel Tank Capacity 2.5LTR
Driving Model GEAR TRANSMISSION
Oil Capacity in Gear box 1.8LTR
Gears 2 FORWARD,1 REVERSE
Tilling Width 600-1000MM
Tilling Depth ≥150MM
Net Weight 110

Cylinder Block Assy - A

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-178FDM-A01 Drain Plug Screw 17 AM-178FDM-A17 Gasket
2AM-178FDM-A02 Washer unit of Drain plug 18 AM-178FDM-A18 Nut
3 AM-178FDM-A03 Oil seal 19 AM-178FDM-A19 Needle Bearing
4 AM-178FDM-A04 Cylinder Block 20 AM-178FDM-A20 Thrust Plate
5AM-178FDM-A05 Needle Bearing 21 AM-178FDM-A21 Bolt
6AM-178FDM-A06 O- Ring 22 AM-178FDM-A22 Ball Bearing
7AM-178FDM-A07 Oil Dipsck 23 AM-178FDM-A23 Air Cover
8AM-178FDM-A08 Fuel Controller Assy 24 AM-178FDM-A24 Bolt
9AM-178FDM-A09 Nut 25 AM-178FDM-A25 Sheet Gasket
10 AM-178FDM-A10 Forcing Stud of Fuel Injecon Pump ( Short ) 26 AM-178FDM-A26 Cylinder Head stud Bolt (Short )
11 AM-178FDM-A11 Forcing Stud of Fuel Injecon Pump ( Long ) 27 AM-178FDM-A27 Cylinder Head stud Bolt (Long)
12 AM-178FDM-A12 Fuel Injecon Pump Washer 28 AM-178FDM-A28 Cylinder Head Shim
13 AM-178FDM-A13 Joint Washer 29 AM-178FDM-A29 Cylinder Head Nut Gasket
14 AM-178FDM-A14 Seal plate 30 AM-178FDM-A30 Cyinder Head Nut (Thin)
15 AM-178FDM-A15 Nut 31 AM-178FDM-A31 Cyinder Head Nut (Thick)
16 AM-178FDM-A16 Gasket 32 AM-178FDM-A32 Crankcase Cover Washer

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-178FDM-A33 Ball Bearing
34 AM-178FDM-A34 Main Bearing
35 AM-178FDM-A35 Crankcase Cover
36 AM-178FDM-A36 Oil Seal
37 AM-178FDM-A37 Bolt
38 AM-178FDM-A38 Hexagon Internal Scew Plug
39 AM-178FDM-A39 Bolt
40 AM-178FDM-A40 Plunger
41 AM-178FDM-A41 Pin

Cylinder Head Assy - B

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-178FDM-B01 Intake Pipe Shim 17 AM-178FDM-B17 Valve clearance adjusng screw
2AM-178FDM-B02 Cylinder Head 18 AM-178FDM-B18 Valve clearance adjustment locking nut
3 AM-178FDM-B03 Intake Valve 19 AM-178FDM-B19 Exhaust valve Rocker Arm
4 AM-178FDM-B04 Exhaust Valve 20 AM-178FDM-B20 Set Bolt of Rocker arm seat
5AM-178FDM-B05 Inlet Valve Seat 21 AM-178FDM-B21 Rocker Arm Seat Assy
6AM-178FDM-B06 Exhaust vakve Seat 22 AM-178FDM-B22 Intake Valve Rocker Arm
7AM-178FDM-B07 Stud 23 AM-178FDM-B23 Nut
8AM-178FDM-B08 Muer shim 24 AM-178FDM-B24 Fuel Injecon Vlave Retainer
9AM-178FDM-B09 Valve Conduit 25 AM-178FDM-B25 Heat insulator Gasket
10 AM-178FDM-B10 Pin 26 AM-178FDM-B26 Heat insulator
11 AM-178FDM-B11 Valve Spring gasket 27 AM-178FDM-B27 Stud
12 AM-178FDM-B12 Valve Conduit Oil Seal 28 AM-178FDM-B28 Stud
13 AM-178FDM-B13 Valve Spring 29 AM-178FDM-B29 Stud
14 AM-178FDM-B14 Valve Spring Seat
15 AM-178FDM-B15 Valve Retaining Clip
16 AM-178FDM-B16 Valve adjusng Cushion

SL NO PART NO DESCRIPTION
1AM-178FDM-C01 Steel Ball
2AM-178FDM-C02 Rolling Pin
3 AM-178FDM-C03 Cylinder Head Cover
4 AM-178FDM-C04 Breather seat
5AM-178FDM-C05 O- Ring
6AM-178FDM-C06 Cylinder Head Cover Assy
7AM-178FDM-C07 Plunger
8AM-178FDM-C08 Decompressing Spring
9AM-178FDM-C09 Decompression Sha Assy
10 AM-178FDM-C10 Bolt
11 AM-178FDM-C11 Filter Screw
Cylinder Head Cover Assy - C

Piston & Connecng Rod Assy - D
SL NO PART NO DESCRIPTION
1AM-178FDM-D01 First Air Ring
2AM-178FDM-D02 Second Air Ring
3 AM-178FDM-D03 Oil Ring assy
4 AM-178FDM-D04 Piston
5AM-178FDM-D05 Piston Pin
6AM-178FDM-D06 Retainer Ring
7AM-178FDM-D07 Connceng Rod Bolt
8AM-178FDM-D08 Connecng Rod Block
9AM-178FDM-D09 Connecng Rod Sha Blocking
10 AM-178FDM-D10 Pin
11 AM-178FDM-D11 Connecng Rod Cover
12 AM-178FDM-D12 Connecng Rod Bolt gasket
13 AM-178FDM-D13 Connecng Rod Nut

Crank Sha & Fly Wheel Assy- E

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-178FDM-E01 Ball Bearing 17 AM-178FDM-E17 Starng Ratchet Reel
2AM-178FDM-E02 Balance Sha 18 AM-178FDM-E18 Bolt
3 AM-178FDM-E03 Key
4 AM-178FDM-E04 Drive Gear of Balance Sha
5AM-178FDM-E05 Output Enf set Bolt
6AM-178FDM-E06 Gasket
7AM-178FDM-E07 Output End Gasket
8AM-178FDM-E08 Cranksha Timing Gear
9AM-178FDM-E09 Key
10 AM-178FDM-E10 Cranksha
11 AM-178FDM-E11 Steel ball
12 AM-178FDM-E12 Key
13 AM-178FDM-E13 Flywheel Tooth
14 AM-178FDM-E14 Flywheel
15 AM-178FDM-E15 Flywheel Nut Gasket
16 AM-178FDM-E16 Flywheel Nut

Camsha Assy - F
SL NO PART NO DESCRIPTION
1AM-178FDM-F01 Valve Push Rod Assy
2AM-178FDM-F02 Valve Tappet
3 AM-178FDM-F03 Camsha Timing Gear
4 AM-178FDM-F04 Key
5AM-178FDM-F05 Camshat

Air Intake System - G

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-178FDM-G01 Inlet Pipe
2AM-178FDM-G02 Tightening Bolt of Air Cleaner
3 AM-178FDM-G03 Air Cleaner Washer
4 AM-178FDM-G04 Air Cleaner Boom base Assy
5AM-178FDM-G05 Nut
6AM-178FDM-G06 Shockproot sheet Gasket
7AM-178FDM-G07 Air Cleaner Elelment Assy
8AM-178FDM-G08 Shock proof Unit
9AM-178FDM-G09 Shock proof sheet Gasket
10 AM-178FDM-G10 Sheet gasket
11 AM-178FDM-G11 Air Cleaner
12 AM-178FDM-G12 Shock Proof Assy
13 AM-178FDM-G13 Nut

SL NO PART NO DESCRIPTION
1AM-178FDM-H01 Fule Injecon Valve Block
2AM-178FDM-H02 Washer
3 AM-178FDM-H03 Volt Adjustment Gasket
4 AM-178FDM-H04 Mandril
5AM-178FDM-H05 Intermediate Block
6AM-178FDM-H06 Locang Pin
7AM-178FDM-H07 Nozzel
8AM-178FDM-H08 Nozzel orcing Nut
Fuel Injecon Valve Assy - H

Muer Assy - J
SL NO PART NO DESCRIPTION
1AM-178FDM-J01 Muer Case weldment assy
2AM-178FDM-J02 Bolt
3 AM-178FDM-J03 Nut
4 AM-178FDM-J04 Spring gasket
5AM-178FDM-J05 Gasket
6AM-178FDM-J06 Muer weldment Gasket
7AM-178FDM-J07 Bolt

Lubricang System -K

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-178FDM-K01 Bolt
2AM-178FDM-K02 Lube oil Pump Cover
3 AM-178FDM-K03 O Ring
4 AM-178FDM-K04 Engine oil Pump Unit
5AM-178FDM-K05 Pin
6AM-178FDM-K06 Drive Gear of Lube oil Pump
7AM-178FDM-K07 Flying weight
8AM-178FDM-K08 Flying weight pin
9AM-178FDM-K09 Lube oil cleaner cover
10 AM-178FDM-K10 Lube oil Cleaner Cover Washer
11 AM-178FDM-K11 O- Ring
12 AM-178FDM-K12 Lube oil Fliter Assy

Fuel System -L
