USER MANUAL
INTERCULTIVATOR/POWER WEEDER
AM-MPT-1100-9D/6D-CHAMPION NEW
MANUAL START ELECTRIC START
TRANSMISSION PART DIAGRAM

INTRODUCTION
Please persue the contents in the insucons manual prio to us this machine, correctly carried out installaon and debugging,
as well as used it strictly
cording to the working specicaons in the instrucon manual. The user should be familiar with the safety noces, machine
perfotmance and maintaonance, etc. The instrucon manual will be used in the later use, repair, accessories replacement, ad
accesories procurement, so please keep it carefully.
OPERATING INSTRUCTION
1. Securely mount the machine on the frame, ensured the two belt pulleys be parrellel and on the same plane, and the
tension of belt be moderate.
2. Add 30~ 40# machine oil upto 1/2 of oil guage plug
3. The connectors of each rubber pipe and high pressure pipe must be locked ghtly.
4. Before start the motor, open the jet gun and ball cock and loosen the adjusng screw
5. Start the motor , keeping it at appropriate velocity, waing there is water ejecng from the jet gun, close the jet gun or
ball cock, and adjust screw to let the pressure reach the working pressure.
6. Turn on the ball cock and jet gun, beginning spraying. During the process may properly adjust the adjusng screw to
maintain the required pressure
and lock ghtly the y nut at any moment.
7. Aer spraying, operate the sprayer with clean water for 2`3 minutes to clean the residual interior chemicals.
8. Firstly dismantle the sucon hose, waing there is no water owing out from the jet gun or the overow hose, stop the
machine and dismantle overow hose, high pressure pipe and loosen the adjusng screw.

TECHNICAL SPECIFICATIONS
Model AM-MPTC-1100-9D/6D-CHAMPION NEW
Engine AM-186FA DIESEL/178F
Starng MANUAL
Displacement 418CC/296CC
Fuel Tank Capacity 5.5LTR./3.5LTR
Driving Model GEAR TRANSMISSION
Oil Capacity in Gear box 2.2LTR./
Gears 2 FORWARD,1 REVERSE2.2LTR
Tilling Width 1350MM/1050MM
Tilling Depth ≥150MM
Net Weight 162 KG/128KG

ARMREST ASSY - A
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-MPT-1100-9DM-TA01 Handle Seat 17 AM-MPT-1100-9DM-TA17 Screw
2AM-MPT-1100-9DM-TA02 Gear Shifting Level 18 AM-MPT-1100-9DM-TA18 Nut
3 AM-MPT-1100-9DM-TA03 Handle Middle Part 19 AM-MPT-1100-9DM-TA19 Shut Down Bar
4 AM-MPT-1100-9DM-TA04 Locking Bar 20 AM-MPT-1100-9DM-TA20 Clutch Handle
5AM-MPT-1100-9DM-TA05 Locking Bar Cover 21 AM-MPT-1100-9DM-TA21 Clutch Cable
6AM-MPT-1100-9DM-TA06 Locking Bar 22 AM-MPT-1100-9DM-TA22 Shut Down Cable
7AM-MPT-1100-9DM-TA07 Bolt 23 AM-MPT-1100-9DM-TA23 Reverse Cable
8AM-MPT-1100-9DM-TA08 Cable Holder 24 AM-MPT-1100-9DM-TA24 Fuel Cable
9 AM-MPT-1100-9DM-TA09 Hex Bolt 25
10 AM-MPT-1100-9DM-TA10 Tool Box 26
11 AM-MPT-1100-9DM-TA11 Handle Bar 27
12 AM-MPT-1100-9DM-TA12 Grip 28
13 AM-MPT-1100-9DM-TA13 Fuel Switch 29
14 AM-MPT-1100-9DM-TA14 Split Pin 30
15 AM-MPT-1100-9DM-TA15 Calble Connector 31
16 AM-MPT-1100-9DM-TA16 Pin 32
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

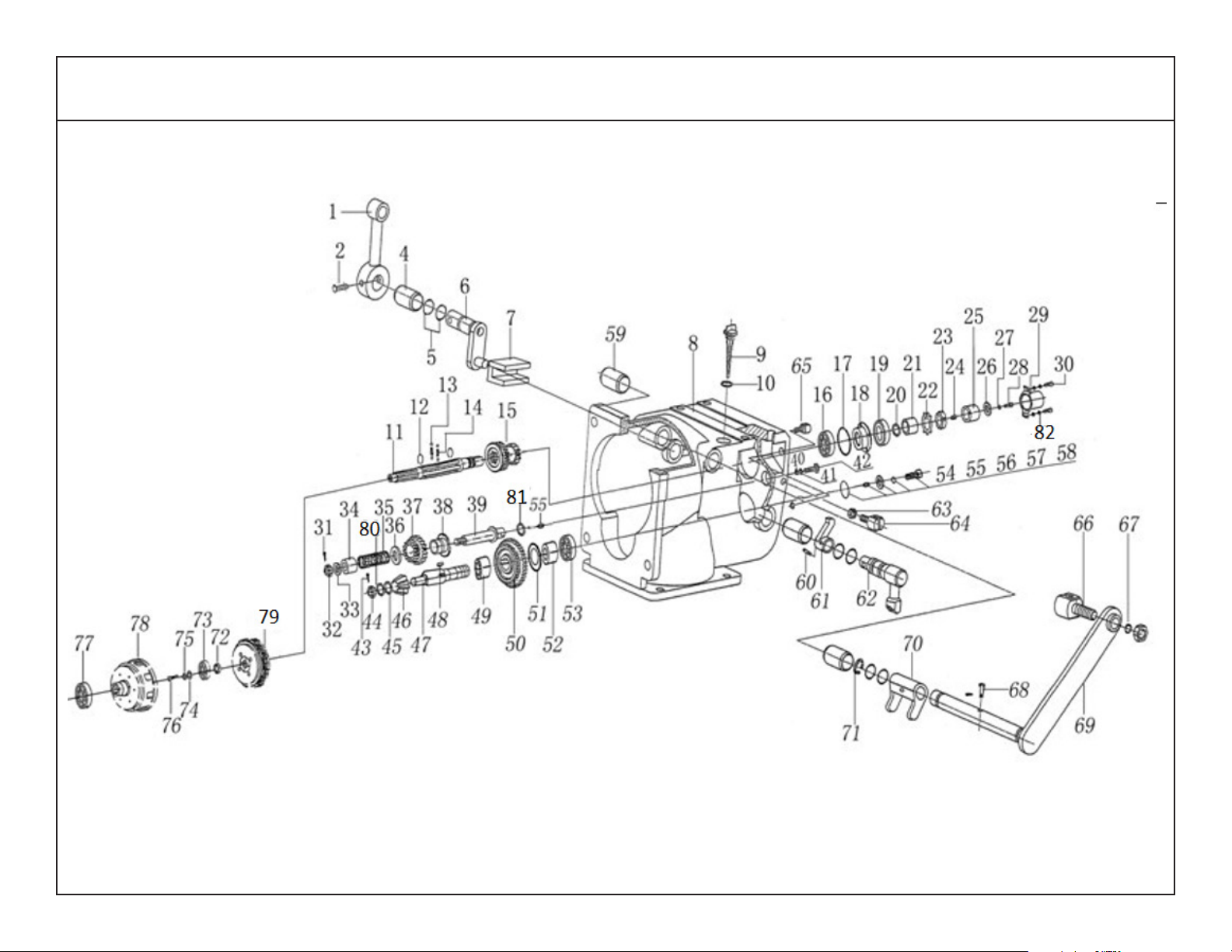

TRANSMISSION PARTS - B
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-MPT-1100-9DM-TB01 Shift Arm 17 AM-MPT-1100-9DM-TB17 Mainshaft Gland
2AM-MPT-1100-9DM-TB02 Hexagon Bolt 18 AM-MPT-1100-9DM-TB18 Oil Seal
3 AM-MPT-1100-9DM-TB03 Shift Bush 19 AM-MPT-1100-9DM-TB19 O Ring
4 AM-MPT-1100-9DM-TB04 O Ring Seals 20 AM-MPT-1100-9DM-TB20 Spindle Bush
5AM-MPT-1100-9DM-TB05 Shifting Fork 21 AM-MPT-1100-9DM-TB21 Washer
6AM-MPT-1100-9DM-TB06 Shifting Fork Block 22 AM-MPT-1100-9DM-TB22 Round Nut
7AM-MPT-1100-9DM-TB07 Gear Box 23 AM-MPT-1100-9DM-TB23 Flat Key
8AM-MPT-1100-9DM-TB08 Oil Dipstick 24 AM-MPT-1100-9DM-TB24 Spindle Flat Key
9 AM-MPT-1100-9DM-TB09 Oil Dipstick O Ring 25 AM-MPT-1100-9DM-TB25 Flat Washer
10 AM-MPT-1100-9DM-TB10 Spindle 26 AM-MPT-1100-9DM-TB26 Spring Washer
11 AM-MPT-1100-9DM-TB11 Steel Ring 27 AM-MPT-1100-9DM-TB27 Hexagon Bolt
12 AM-MPT-1100-9DM-TB12 Steel Ball 28 AM-MPT-1100-9DM-TB28 Spindle Protective Cover
13 AM-MPT-1100-9DM-TB13 Locating Spring 29 AM-MPT-1100-9DM-TB29 Hexagonal Bolt
14 AM-MPT-1100-9DM-TB14 Spindle Double Gear 30 AM-MPT-1100-9DM-TB30 Split Pin
15 AM-MPT-1100-9DM-TB15 Bearing 31 AM-MPT-1100-9DM-TB31 Hexagon Slotted Nut
16 AM-MPT-1100-9DM-TB16 O Ring 32 AM-MPT-1100-9DM-TB32 Flat Washer
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-MPT-1100-9DM-TB33 Reverse Gear Limit Bush 49 AM-MPT-1100-9DM-TB49 Countershaft Adjustable Washer
34 AM-MPT-1100-9DM-TB34 Reverse Spring 50 AM-MPT-1100-9DM-TB50 Countershaft Adjustable Washer
35 AM-MPT-1100-9DM-TB35 Reverse Spring 51 AM-MPT-1100-9DM-TB51 Countershaft Adjustable Washer
36 AM-MPT-1100-9DM-TB36 Reverse Gear Dual Gear 52 AM-MPT-1100-9DM-TB52 Countershaft Sleeve
37 AM-MPT-1100-9DM-TB37 Reverse Gear Plate 53 AM-MPT-1100-9DM-TB53 Bearing
38 AM-MPT-1100-9DM-TB38 Reverse Gear Shaft 54 AM-MPT-1100-9DM-TB54 O Ring
39 AM-MPT-1100-9DM-TB39 Flat Washer 55 AM-MPT-1100-9DM-TB55 Round Pin
40 AM-MPT-1100-9DM-TB40 Spring Washer 56 AM-MPT-1100-9DM-TB56 Flat Washer
41 AM-MPT-1100-9DM-TB41 Bolt 57 AM-MPT-1100-9DM-TB57 Spring Washer
42 AM-MPT-1100-9DM-TB42 Cotter Pin 58 AM-MPT-1100-9DM-TB58 Hexagonal Bolt
43 AM-MPT-1100-9DM-TB43 Hexagon Slotted Nuts 59 AM-MPT-1100-9DM-TB59 Reverse Gear Shaft Bushing
44 AM-MPT-1100-9DM-TB44 Axle Drive Bevel Pinion 60 AM-MPT-1100-9DM-TB60 Threaded Pin
45 AM-MPT-1100-9DM-TB45 Countershaft Assy 61 AM-MPT-1100-9DM-TB61 Reverse Gear Shifting Fork
46 AM-MPT-1100-9DM-TB46 Key 62 AM-MPT-1100-9DM-TB62 Reverse Gear Shifting Fork Shaft
47 AM-MPT-1100-9DM-TB47 Bearing 63 AM-MPT-1100-9DM-TB63 Bolt
48 AM-MPT-1100-9DM-TB48 Countershaft Gear Dual Gear 64 AM-MPT-1100-9DM-TB64 Reverse Cable Seat
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
65 AM-MPT-1100-9DM-TB65 Clutch Cable Seat 81 AM-MPT-1100-9DM-TB81 O Ring
66 AM-MPT-1100-9DM-TB66 Clutch Cable Seat 82 AM-MPT-1100-9DM-TB82 Flat Washer
67 AM-MPT-1100-9DM-TB67 Spring Washer
68 AM-MPT-1100-9DM-TB68 Clutch Fork Pin
69 AM-MPT-1100-9DM-TB69 Clutch Fork Shaft
70 AM-MPT-1100-9DM-TB70 Clutch Fork
71 AM-MPT-1100-9DM-TB71 Washer
72 AM-MPT-1100-9DM-TB72 Clutch Flat Washer
73 AM-MPT-1100-9DM-TB73 Deep Groove Ball Bearing
74 AM-MPT-1100-9DM-TB74 Washer
75 AM-MPT-1100-9DM-TB75 Locking Washer
76 AM-MPT-1100-9DM-TB76 Hexagonal Bolt
77 AM-MPT-1100-9DM-TB77 Deep Groove Ball Bearing
78 AM-MPT-1100-9DM-TB78 Clutch Cover Assy
79 AM-MPT-1100-9DM-TB79 Clutch Core Assy
80 AM-MPT-1100-9DM-TB80 Driving Bevel Gear Washer
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

WALKING BOX- C
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-MPT-1100-9DM-TC01 Nut 17 AM-MPT-1100-9DM-TC17 adjusng washer
2AM-MPT-1100-9DM-TC02 Split pin 18 AM-MPT-1100-9DM-TC18 Tapered Roller Bearing
3 AM-MPT-1100-9DM-TC03 Spring washer 19 AM-MPT-1100-9DM-TC19 walking case paper pad
4 AM-MPT-1100-9DM-TC04 Driven umbrella gear 20 AM-MPT-1100-9DM-TC20 walking case end cover
5AM-MPT-1100-9DM-TC05 Tapered Roller Bearing 21 AM-MPT-1100-9DM-TC21 at washer
6AM-MPT-1100-9DM-TC06 walking case 22 AM-MPT-1100-9DM-TC22 spring washer
7AM-MPT-1100-9DM-TC07 Tapered Roller Bearing 23 AM-MPT-1100-9DM-TC23 Bolt
8AM-MPT-1100-9DM-TC08 umbrella gear sha
9 AM-MPT-1100-9DM-TC09 O ring
10 AM-MPT-1100-9DM-TC10 drain bolt
11 AM-MPT-1100-9DM-TC11 oil seal
12 AM-MPT-1100-9DM-TC12 deep groove ball bearing
13 AM-MPT-1100-9DM-TC13 output sha bush
14 AM-MPT-1100-9DM-TC14 adjusng washer
15 AM-MPT-1100-9DM-TC15 Inner hex output sha bush
16 AM-MPT-1100-9DM-TC16 walking umbrella gear
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

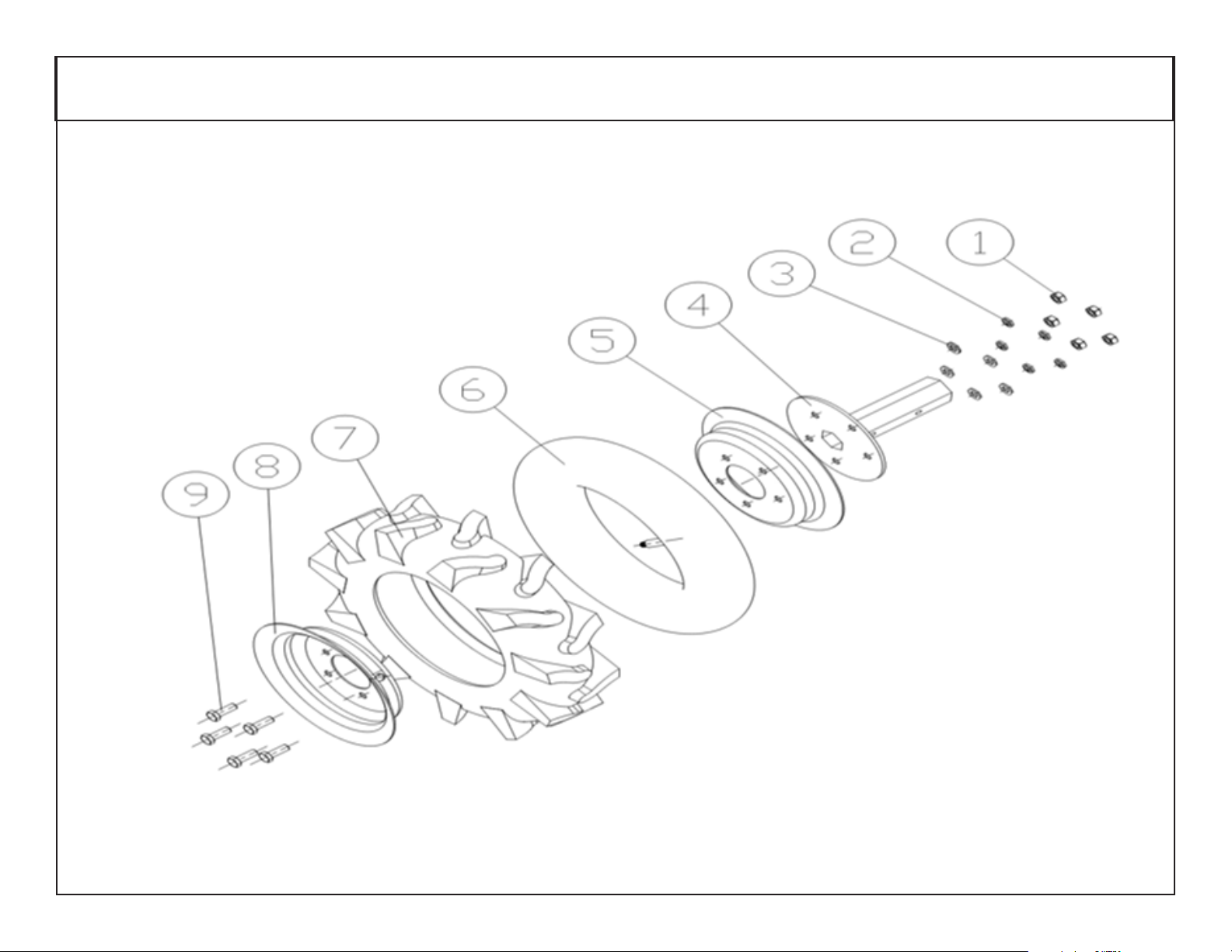

WHEEL ASSY - D
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-MPT-1100-9DM-TD01 Hexagon nut
2AM-MPT-1100-9DM-TD02 spring washer
3 AM-MPT-1100-9DM-TD03 at washer
4 AM-MPT-1100-9DM-TD04 wheel sha
5AM-MPT-1100-9DM-TD05 4.0-8 inside wheel hub
6AM-MPT-1100-9DM-TD06 4.0-8 inner tube
7AM-MPT-1100-9DM-TD07 4.0-8 outer tube
8AM-MPT-1100-9DM-TD08 4.0-8 outside wheel hub
9 AM-MPT-1100-9DM-TD09 Hexagon bolt
10 AM-MPT-1100-9DM-TD10 Hexagon bolt
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

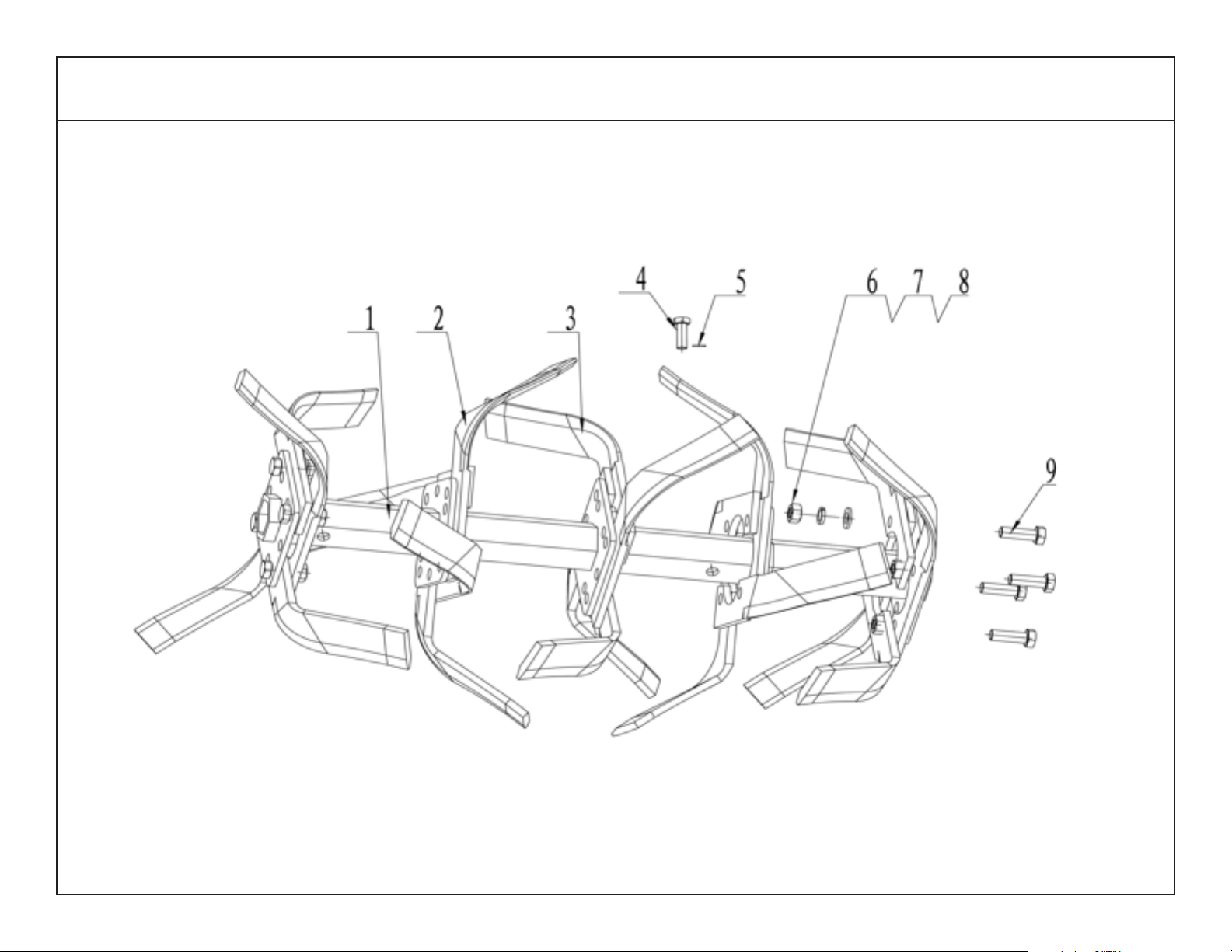

BLADE ASYY - E
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-MPT-1100-9DM-TE01 40 pcs dryland baldes assy
2AM-MPT-1100-9DM-TE02 blades(R)
3 AM-MPT-1100-9DM-TE03 Blades(L)
4 AM-MPT-1100-9DM-TE04 B pin
5AM-MPT-1100-9DM-TE05 R pin
6AM-MPT-1100-9DM-TE06 nut
7AM-MPT-1100-9DM-TE07 Spring washer
8AM-MPT-1100-9DM-TE08 Flat washer
9 AM-MPT-1100-9DM-TE09 Bolt
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

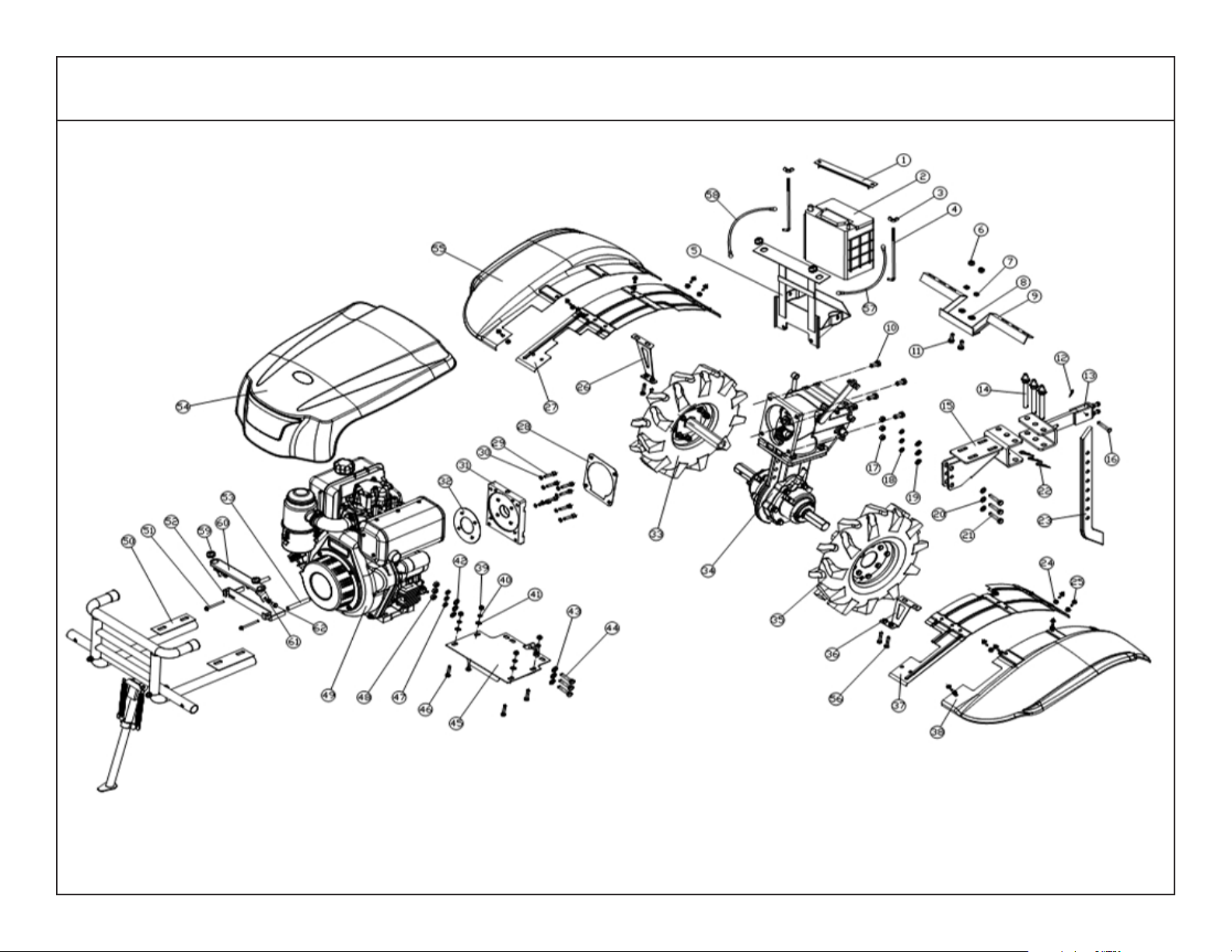

FENDER - F
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1AM-MPT-1100-9DM-TF01 Baery strip assy 17 AM-MPT-1100-9DM-TF17 B type pin
2AM-MPT-1100-9DM-TF02 Baery 18 AM-MPT-1100-9DM-TF18 Hexagon nut
3 AM-MPT-1100-9DM-TF03 white zinc 19 AM-MPT-1100-9DM-TF19 spring washer
4 AM-MPT-1100-9DM-TF04 Threaded rod 20 AM-MPT-1100-9DM-TF20 Flat washer
5AM-MPT-1100-9DM-TF05 Baery box assy 21 AM-MPT-1100-9DM-TF21 Flat washer
6AM-MPT-1100-9DM-TF06 Hexagon nut 22 AM-MPT-1100-9DM-TF22 Hexagon bolt
7AM-MPT-1100-9DM-TF07 spring washer 23 AM-MPT-1100-9DM-TF23 R type split pin
8AM-MPT-1100-9DM-TF08 Flat washer 24 AM-MPT-1100-9DM-TF24 Plow knife
9 AM-MPT-1100-9DM-TF09 Fender rear holder 25 AM-MPT-1100-9DM-TF25 Hexagon ange lock nut
10 AM-MPT-1100-9DM-TF10 Hexagon ange bolt 26 AM-MPT-1100-9DM-TF26 Hexagon ange bolt
11 AM-MPT-1100-9DM-TF11 Hexagon ange bolt 27 AM-MPT-1100-9DM-TF27 Fender front holder(right)
12 AM-MPT-1100-9DM-TF12 threaded hexagon bolt 28 AM-MPT-1100-9DM-TF28 Right fender
13 AM-MPT-1100-9DM-TF13 R type split pin 29 AM-MPT-1100-9DM-TF29 Gearbox paper pad
14 AM-MPT-1100-9DM-TF14 connecng frame 30 AM-MPT-1100-9DM-TF30 Hexagon screw
15 AM-MPT-1100-9DM-TF15 Pin 31 AM-MPT-1100-9DM-TF31 spring washer
16 AM-MPT-1100-9DM-TF16 Towed body 32 AM-MPT-1100-9DM-TF32 Flange plate
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-MPT-1100-9DM-TF33 Flange plate paper pad 49 AM-MPT-1100-9DM-TF49 Hexagon nut
34 AM-MPT-1100-9DM-TF34 Right wheel assy 50 AM-MPT-1100-9DM-TF50 186FE diesel(as per order
requirement）
35 AM-MPT-1100-9DM-TF35 186F diesel engine 51 AM-MPT-1100-9DM-TF51 Bumper assy
36 AM-MPT-1100-9DM-TF36 Le wheel assy 52 AM-MPT-1100-9DM-TF52 Hexagon ange bolt
37 AM-MPT-1100-9DM-TF37 Fender front holder(le) 53 AM-MPT-1100-9DM-TF53 Lamp cover front holder A block
38 AM-MPT-1100-9DM-TF38 Le fender 54 AM-MPT-1100-9DM-TF54 Lamp cover front holder B block
39 AM-MPT-1100-9DM-TF39 Le deputy fender 55 AM-MPT-1100-9DM-TF55 H glue
40 AM-MPT-1100-9DM-TF40 Hexagon nut 56 AM-MPT-1100-9DM-TF56 lamp cover holder
41 AM-MPT-1100-9DM-TF41 spring washer 57 AM-MPT-1100-9DM-TF57 cover assy
42 AM-MPT-1100-9DM-TF42 Flat washer 58 AM-MPT-1100-9DM-TF58 right deputy fender
43 AM-MPT-1100-9DM-TF43 Flat washer 59 AM-MPT-1100-9DM-TF59 hexagon bolt
44 AM-MPT-1100-9DM-TF44 Flat washer 60 AM-MPT-1100-9DM-TF60 cable
45 AM-MPT-1100-9DM-TF45 Hexagon bolt 61 AM-MPT-1100-9DM-TF61 cable
46 AM-MPT-1100-9DM-TF46 Engine holder
47 AM-MPT-1100-9DM-TF47 Hexagon bolt
48 AM-MPT-1100-9DM-TF48 spring washer
TRANSMISSION DIAGRAM & PART LIST OF 6D & 9D INTERCULTIVATOR/POWER WEEDER

WARRANTY CARD
DATE
PURCHASERS NAME & ADDRESS
DATE OF DELIVERY DEALERS OFFICIAL SEAL
PRODUCT NAME PRODUCT SERIAL NO.
DEALERS SIGN
CUSTOMER SIGN
CUSTOMER COPY
DEALERS COPY
INVOICE/DN NO.
DATE
PURCHASERS NAME & ADDRESS
DATE OF DELIVERY DEALERS OFFICIAL SEAL
PRODUCT NAME PRODUCT SERIAL NO.
DEALERS SIGN
CUSTOMER SIGN
INVOICE/DN NO.
DATE
PURCHASERS NAME & ADDRESS
DATE OF DELIVERY DEALERS OFFICIAL SEAL
PRODUCT NAME PRODUCT SERIAL NO.
DEALERS SIGN
CUSTOMER SIGN
INVOICE/DN NO.
COMPANY COPY
I/Will accept the terms and conditions of warranty as in the warranty card
I/Will accept the terms and conditions of warranty as in the warranty card
I/Will accept the terms and conditions of warranty as in the warranty card

1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defecve part(s) by authorized
dealer are free of charges. If found defecve by reasons of defecve material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims
under warranty will be accepted on submission of Warranty Card duly lled and stamped by authorized dealer together with the original purchase document. : b. Shipping / transportaon / Incidental charges
incurred in replacing defecve parts under warranty shall be borne by the purchaser
WARRANTY null & void if
(i) Lack of maintenance, (ii) Incorrect use of the machine or tampering, (iii) Use of non-genuine spare parts, (iv) Usage of acids, solvents, or any ammable materials, (v) Non-usage of lter water / clear water / so water & using water
above 40°C temperature, (vi) While using the pressure washers to draw water which is contaminated with dust & solvents (eg. paint thinners, gasoline, oil, etc.), (vii) Repair done by unauthorized service people, (viii) Those parts subject
to wear & tear due to normal operaons and plasc parts, rubber items etc, (ix) Loose connecons, faulty electrical xtures & uctuaons in power supply.
4. Should any failure occur during or aer the warranty period, customer does not have the right to interrupt payment / price discount.
5. Incidental or consequenal damages like inconvenience commercial loss, loss of e, mental agony etc.
6. Loss of any nature due to operaon or non-operaon is not covered under warranty.
7. All free service are at Dealer’s service point only.
8. Warranty ceases if service is not done periodically.
9. The aached card should be completed and returned to Ratnagiri Impex Pvt. Ltd. for registraon immediately aer sale / delivery.
10. The warranty is void unless you register the warranty card with Ratnagiri Impex Pvt. Ltd.
11. The decision of Ratnagiri Impex Pvt. Ltd., in seling the warranty is nal in all respects.
12. All disputes are subject to Bangalore Courts Jurisdicon
1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defecve part(s) by authorized dealer are free of charges.
If found defecve by reasons of defecve material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty
Card duly lled and stamped by authorized dealer together with the original purchase document. : b. Shipping / transportaon / Incidental charges incurred in replacing defecve parts under warranty shall be borne by the purchaser.
WARRANTY null & void if
(i) Lack of maintenance, (ii) Incorrect use of the machine or tampering, (iii) Use of non-genuine spare parts, (iv) Usage of acids, solvents, or any ammable materials, (v) Non-usage of lter water / clear water / so water & using water
above 40°C temperature, (vi) While using the pressure washers to draw water which is contaminated with dust & solvents (eg. paint thinners, gasoline, oil, etc.), (vii) Repair done by unauthorized service people, (viii) Those parts subject
to wear & tear due to normal operaons and plasc parts, rubber items etc, (ix) Loose connecons, faulty electrical xtures & uctuaons in power supply.
4. Should any failure occur during or aer the warranty period, customer does not have the right to interrupt payment / price discount.
5. Incidental or consequenal damages like inconvenience commercial loss, loss of e, mental agony etc.
6. Loss of any nature due to operaon or non-operaon is not covered under warranty.
7. All free service are at Dealer’s service point only.
8. Warranty ceases if service is not done periodically.
9. The aached card should be completed and returned to Ratnagiri Impex Pvt. Ltd. for registraon immediately aer sale / delivery.
10. The warranty is void unless you register the warranty card with Ratnagiri Impex Pvt. Ltd.
11. The decision of Ratnagiri Impex Pvt. Ltd., in seling the warranty is nal in all respects.
12. All disputes are subject to Bangalore Courts Jurisdicon
1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defecve part(s) by authorized dealer are free of charges.
If found defecve by reasons of defecve material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty
Card duly lled and stamped by authorized dealer together with the original purchase document. : b. Shipping / transportaon / Incidental charges incurred in replacing defecve parts under warranty shall be borne by the purchaser.
WARRANTY null & void if
(i) Lack of maintenance, (ii) Incorrect use of the machine or tampering, (iii) Use of non-genuine spare parts, (iv) Usage of acids, solvents, or any ammable materials, (v) Non-usage of lter water / clear water / so water & using water
above 40°C temperature, (vi) While using the pressure washers to draw water which is contaminated with dust & solvents (eg. paint thinners, gasoline, oil, etc.), (vii) Repair done by unauthorized service people, (viii) Those parts subject
to wear & tear due to normal operaons and plasc parts, rubber items etc, (ix) Loose connecons, faulty electrical xtures & uctuaons in power supply.
4. Should any failure occur during or aer the warranty period, customer does not have the right to interrupt payment / price discount.
5. Incidental or consequenal damages like inconvenience commercial loss, loss of e, mental agony etc.
6. Loss of any nature due to operaon or non-operaon is not covered under warranty.
7. All free service are at Dealer’s service point only.
8. Warranty ceases if service is not done periodically.
9. The aached card should be completed and returned to Ratnagiri Impex Pvt. Ltd. for registraon immediately aer sale / delivery.
10. The warranty is void unless you register the warranty card with Ratnagiri Impex Pvt. Ltd.
11. The decision of Ratnagiri Impex Pvt. Ltd., in seling the warranty is nal in all respects.
12. All disputes are subject to Bangalore Courts Jurisdicon
