Agrimate AMH-P888-WITH GX-35-FF User manual

User Manual
BEFORE OPERATING THIS MACHINE,
PLEASE READ THESE INSTRUCTIONS CAREFULLY
DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE
SUBJECT TO CHANGE WITHOUT NOTICE
AMH-P888-WITH GX-35-FF
Portable MotorisedSprayer

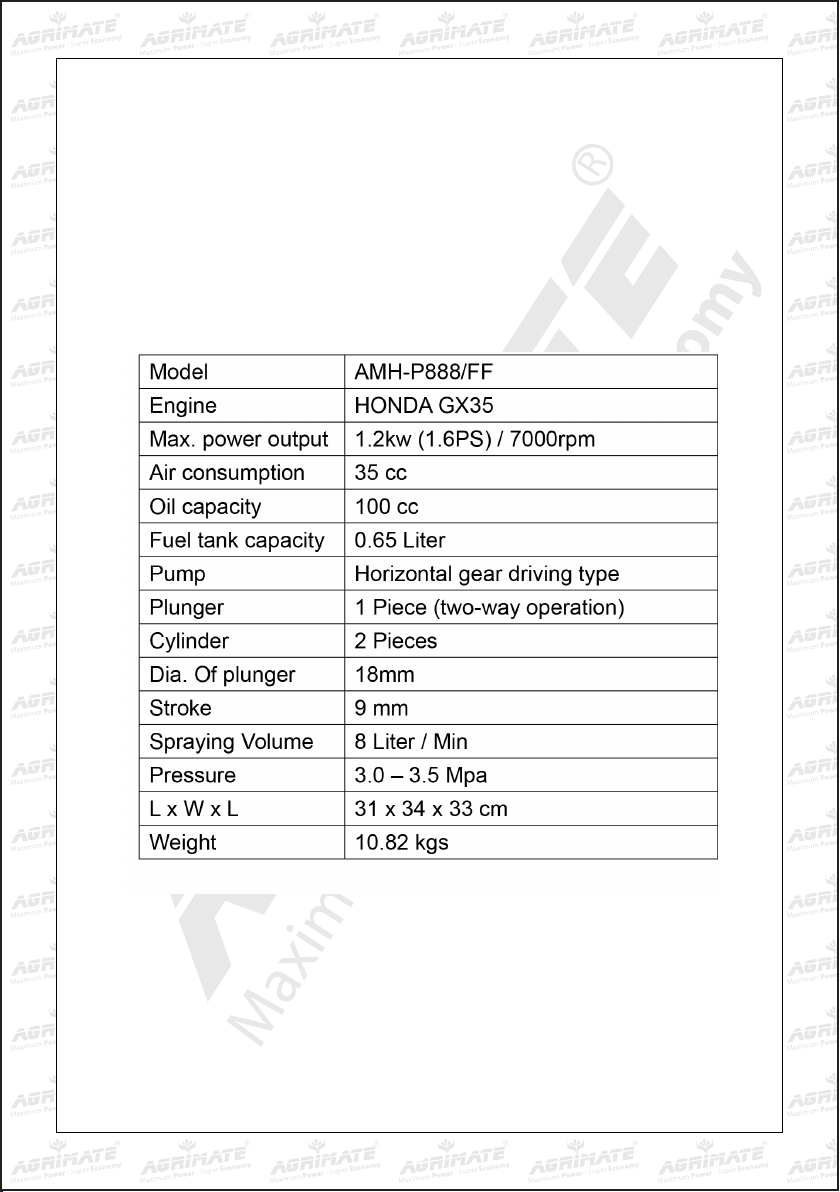

2
OPERATION PROCEDURE
1. Check the power source.
2. Fasten a high pressure outlet pipe.
3. Turn on the power of motor and switch on a sprayer immediately to release the residual
air from inside the pump, make sure that the water fluid from an outlet is normal (if it is
abnormal, then remove the high pressure outlet pipe so as to accelerate the air releasing
from the pump).
4. Adjust the pressure by turning a pressure releasing valve clockwise to obtain a normal
pressure.
The lubrication of the Pump:
1. Originally change the oil after the machine running about 30-50hours and subsequently, in
an interval of about 70-100hours (made sute whether or not the oil is deteriorated)
2. Unfasten an outlet screw and release the discarded oil.
3. Fasten the outlet screw and unfasten an inlet cover then replenish 30#-40# clean oil. The
right amount of the oil indicates at a two third portion in an oil glass
4. Always fill the grease cups with grease, screw on the grease cups 2-3cycles every 2 hours
of spraying.
5. Be sure to clear the interior of pump by pouring clear water into the tank and restarting the
motor immediately after finishing the application of chemical
The Precaution During Pump Application:
A. Regard to the Valve:
1. Disassemble the valve plug from the valve and clean it if they are stuck up
2. Clean the residues accumulated over the Valve Plug
3. Change the valve spring if it is broken or worn out
B. Regard to an Unloaded Valve
1. Change a new one if the pressure gate or the valve seat is found worn out
2. Clean the residues on the valve seat
3. Change new ones if the oil ring is worn out.
C. Regard to the Crank Case:
1. If the oil inside the crankcase is insufficient, the connecting rod, the crank and the
bearings will be worn cut, then remove the back cover from the crankcase and change the
components.
2. If the oil inside the crankcase is deteriorated. Make Sure the reason why it is deteriorated
and then change the oil or the piston oil seal.
3. If the plunger can not operate, make sure that the bearing is broken in crankcase and
change the bearing.

3
D. Regard To The Piston
1. Change a new one if the V-packing is worn out
2. Change a new piston if it is worn out (a crack occurred along the axis of the piston is the
one of the consequences causing a pressure decreasing or a water leakage)
E. Other
1. Change a new nozzle if it is broken causing a pressure decreasing.
2. Change a new high pressure pipe or a new connecting packing if they are found broken.

4

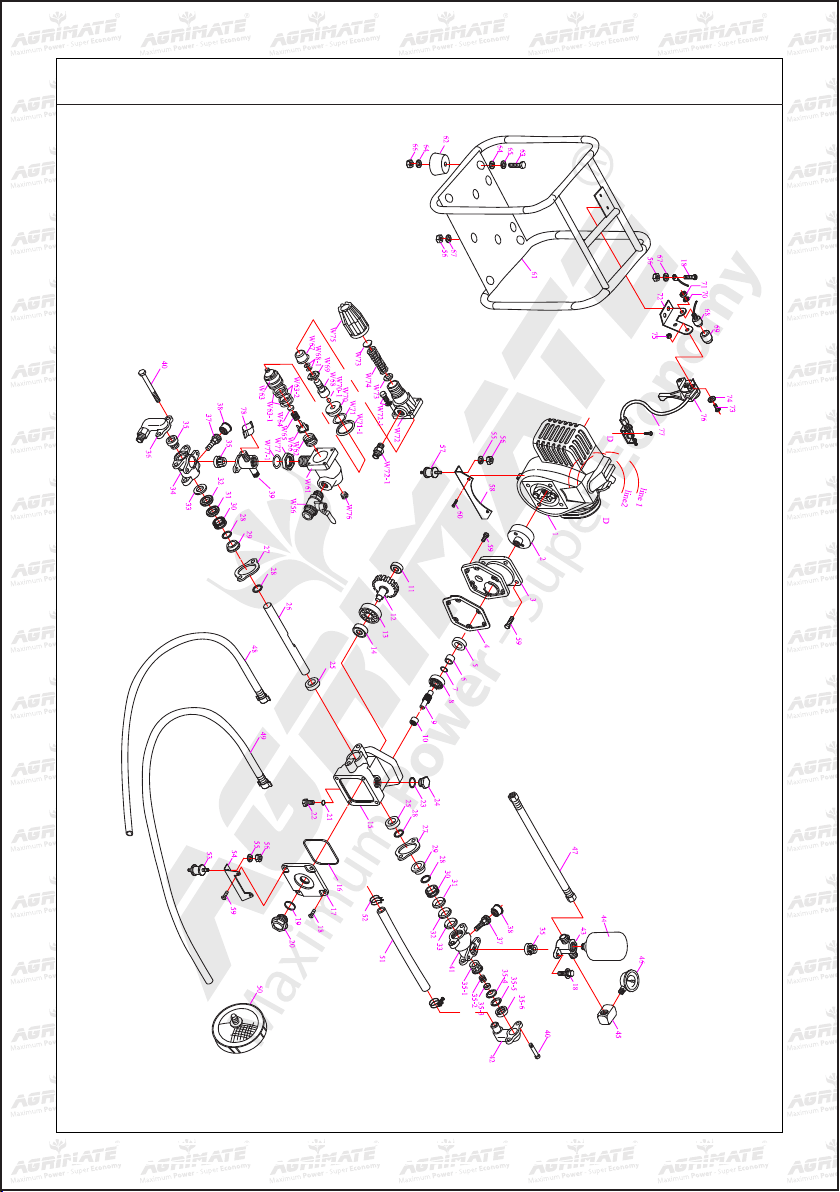

PUMP DIAGRAM OF PORTABLE MOTORISED SPRAYER AMH-P888 /FF

5
PUMP PART LISTS OF PORTABLE MOTORISED SPRAYER AMH-P888/FF
For Engine Spare Parts Refer GX35 Engine Manual
Part No. Part name
AMH-P888-01 Engine
AMH-P888-02 Drum clutch
AMH-P888-03 Drum case
AMH-P888-04 Gasket
AMH-P888-05 Oil seal
AMH-P888-06 Steel pipe
AMH-P888-07 O-ring
AMH-P888-08 Bearing
AMH-P888-09 Shaft
AMH-P888-10 Bearing
AMH-P888- 11 Bearing
AMH-P888- 12 Gear shaft
AMH-P888- 13 Bearing
AMH-P888- 14 Bearing
AMH-P888- 15 Crank case
AMH-P888- 16 O-ring
AMH-P888- 17 Crank case cover
AMH-P888- 18 Screw
AMH-P888- 19 O-ring
AMH-P888- 20 Oil glass
AMH-P888- 21 O-ring
AMH-P888- 22 Drain plug
AMH-P888- 23 O-ring
AMH-P888- 24 Oil inlet cup
AMH-P888- 25 Oil seal
AMH-P888- 26 Plunger
AMH-P888- 27 Fixed plate
AMH-P888- 28 O-ring
AMH-P888- 29 Adjusting ring
AMH-P888- 30 V-packing upper seal
AMH-P888- 31 V-packing
AMH-P888- 32 V-packing (Viton)
AMH-P888- 33 Packing seat
AMH-P888- 34 Cylinder
AMH-P888- 35 Valve Ass’y
AMH-P888- 36 Suction chamber
AMH-P888- 37 Grease cup seat
AMH-P888- 38 Grease cup cover
AMH-P888- 39 Outlet chamber
AMH-P888- 40 Screw
AMH-P888- 41 Cylinder
AMH-P888- 42 Suction chamber
AMH-P888- 43 Outlet chamber
AMH-P888- 44 Air chamber
AMH-P888- 45 Connector
AMH-P888- 46 Pressure gauge
AMH-P888- 47 High pressure hose
AMH-P888- 48 Overflow hose
AMH-P888- 49 Suction hose
AMH-P888- 50 filter
AMH-P888- 51 Suction hose
AMH-P888- 52 Clip
AMH-P888- 53 Joint
AMH-P888- 54 Pump stand
Part No. Part name
AMH-P888- 55 Spring washer
AMH-P888- 56 Nut
AMH-P888- 57 Joint
AMH-P888- 58 Engine stand
AMH-P888- 59 Screw
AMH-P888- 60 Tapping screw
AMH-P888- 61 Frame
AMH-P888- 62 Rubber stand
AMH-P888- 63 Screw
AMH-P888- 64 Washer
AMH-P888- 65 Spring washer
AMH-P888- 66 Nut
AMH-P888- 67 Washer
AMH-P888- 68 Stop switch (INCL.79 – 82)
AMH-P888- 69 Rubber sheath
AMH-P888- 70 Nut
AMH-P888- 71 Washer
AMH-P888- 72 Fixed plate
AMH-P888- 73 Screw
Washer
AMH-P888- 74
AMH-P888- 75 Nut
AMH-P888- 76 Throttle lever
AMH-P888- 77 Cable comp
AMH-P888- 78 Pipe cover
Auto pressure relief
AMH-P888- W56 Ball cock
AMH-P888- W61 Unloading cylinder body
AMH-P888- W62 Spring
AMH-P888- W63 Piston valve body
AMH-P888- W63-1 O-ring
AMH-P888- W63-2 Backup ring
AMH-P888- W64 Valve seat
AMH-P888- W65 Ball valve spring
AMH-P888- W66 Ball valve case
AMH-P888- W67 Sleeve
AMH-P888- W68 Valve rod
AMH-P888- W68-1 O-ring
AMH-P888- W69 Damper plate
AMH-P888- W70 Valve sheath
AMH-P888- W70-1 Ball valve
AMH-P888- W71 O-ring
AMH-P888- W71-1 Square ring
AMH-P888- W72 Regulating spring case
AMH-P888- W72-1 Screw
AMH-P888- W73 Spring bottom seal
AMH-P888- W74 Regulating spring
AMH-P888- W75 Regulating nut
AMH-P888- W76 plug
AMH-P888- W77 Set nut
AMH-P888- W77-1 O-ring
AMH-P888- W78 Nut

6
For safety use, make sure the machine is cleaned every three-months. Before working, make sure
to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there
is no water in the pump and the hose.
If the machine needs to be repaired in the guarantee period, please return the machine to the
shop. You need to provide the certificate of purchase in order to repair or get the substitute.
Before Packing, the machine should be cleaned, then use closed packaging, packaging should be
firm. Store the machine in dry place.
For transportation safety. The machine should comply with ISTA.
Meaning of crossed - out wheeled dustbin:
Do not dispose of electrical machines as unsorted municipal waste, use separate collection
facilities.
If electrical machines are disposed of in landfills or dumps, hazardous substances can leak into
the groundwater and get into the food chain, damaging your health and well-being.
When replacing old machines with new ones, the retailer is legally obligated to take back your
old machine for disposals at least free of charge.
INSPECTION & MAINTENANCE

7


Purchaser’s Name & Address
Product Name
Product Serial No.
Invoice / DN No.
Date of Delivery
Dealer’s Office Seal
Dealer Sign
Customer Sign.
I/We accept the terms and conditions of Warranty
as in the Warranty Card.
CUSTOMER COPY
Warranty Card
Purchaser’s Name & Address
Product Name
Product Serial No.
Invoice / DN No.
Date of Delivery
Dealer’s Office Seal
Dealer Sign
Customer Sign.
I/We accept the terms and conditions of Warranty
as in the Warranty Card.
DEALER’S COPY
Warranty Card
Purchaser’s Name & Address
Product Name
Product Serial No.
Invoice / DN No.
Date of Delivery
Dealer’s Office Seal
Dealer Sign
Customer Sign.
I/We accept the terms and conditions of Warranty
as in the Warranty Card.
COMPANY COPY
Warranty Card
AMH-P888- WITH GX-35-FF Portable MotorisedSprayer
