Agrimate AM-RT-212-7P User manual

INTERCULTIVATOR / POWER WEEDER
AM-RT-212-7P
TRANSMISSION DIAGRAM WITH PART LIST
AM-RT-212-7P-WL
USER MANUAL

Precautions
Ÿ When starting the machine, set shifting bar to the neutralposition.
Ÿ When the machine is working, pay attention to the safety!
Ÿ Be careful not to be hurt by the rotary blades!
Ÿ When grasp the reverse handle, the shifting bar must be set to the neutral position.
Ÿ Fuel and lubricant must be clean.
Ÿ Clutch must be broken o when changing the shift.
Ÿ Please read the contents of nameplate on the handle bar carefully before using the machine.
Ÿ Must install the safety protecting board on the machine before using machine or after maintenance.

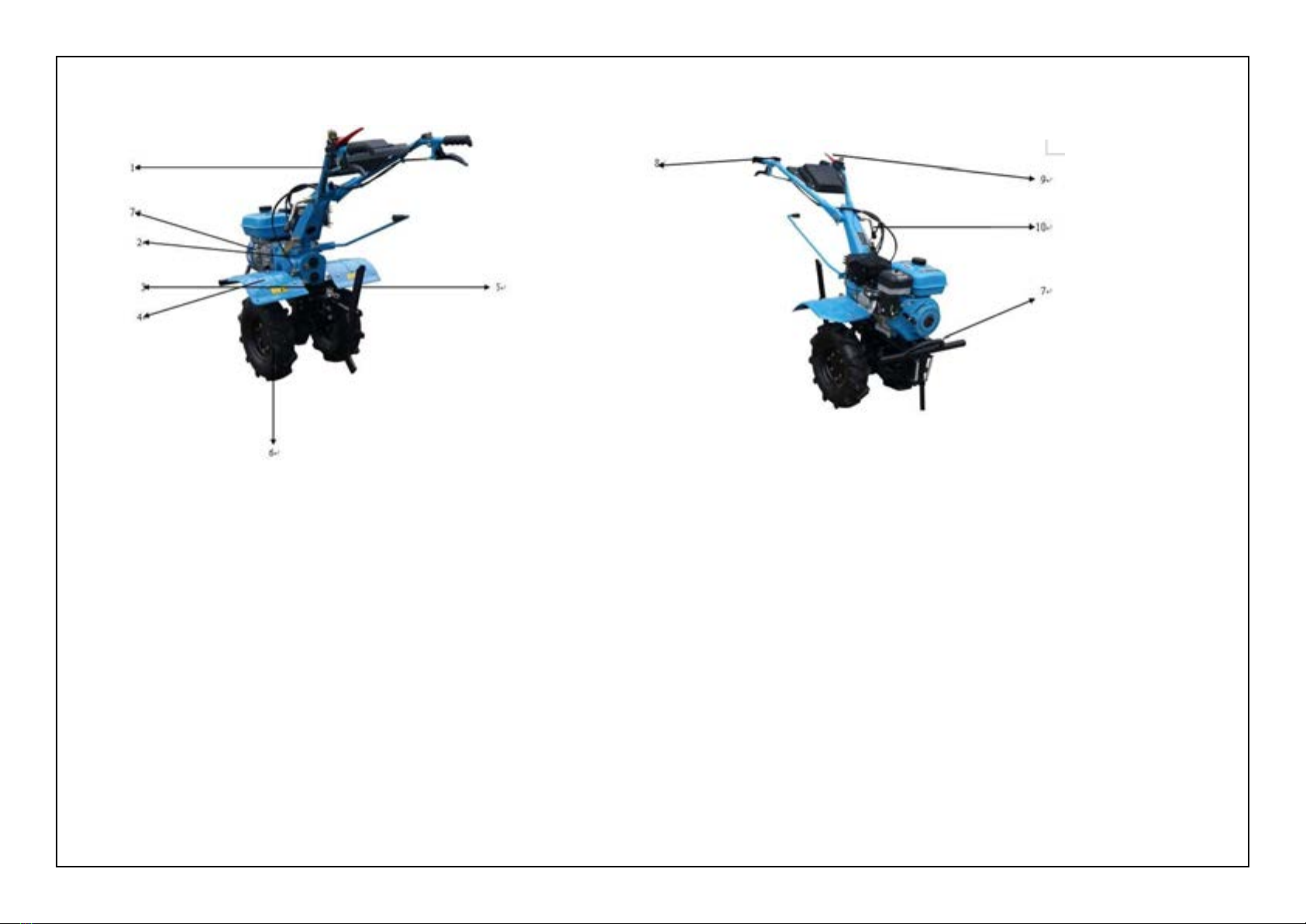

1. Handle Bar
2. Gear-box Assy.
3. Adjustment Screw
4. Fender
5. Deep Furrowing Resistance Stick
6. Stepped Box Assy.
7. Diesel Engine
8. Bumper
9. rottle Switch
10. Shiing Bar

Cultivating
Fix the cultivating device onto the left and right side of the transmission shaft of the running part of the power tiller, then use two M8×55 screw
bolts for axial positioning. After that, the machine can start cultivating nally.
Form of cultivating
devices
Four groups
3 blades 4 blades
No. of rotary blades 3×8 4×8
Width of cultivating
(mm) 1000 1000
Applicable earth
Paddy led without
enough water and with
Earth of high viscosity Hard earth
Ditching & Ridging
Knock down the adjustment screw before the ditcher is xed. Subject to the adjustment of the width and height for ditcher, then the ditching can be
conducted.
Short Distance Transport
when xing the forearm of the wagon box on the trailer and wheels on the transmission shaft of the running part, the machine can do a transportation .
The rated load is 250kg, under normal rotated speed of the diesel engine, speed of the fast shift is about 10km/h and that of the slow shift is about 5 km/h.

Multi-Functional Working
Dismount protection cover of the gear-box (No.2 in Figure 1), unscrew the bolts away from the rear part of the main shaft, take the cover for keys out
of shaft, fasten the self-contained belt pulley or coupling onto the gear-box’s main shaft’s rear part with screws. Type A of common V belt is adopted for
belt pulley’s cross section. Rated rpm of the belt pulley is 3000 rpm. When the corresponding devices are equipped, pumping water, spraying, threshing,
reaping, generating electricity, etc are realized. (Above additional implements are in exploration process. Please contact with the local distributor if you
need above implements.)
Operation & Use Method of Power tiller
Assembly After Unpacking
1. Fix the main machine, insert the hexagonal output shaft into stepped box’s output casing’s hexagonal hole.
2. Fix the hexagonal stop casing onto the hexagonal output shaft with M6×6 socket head screws, and make the hexagonal shaft not move
axially.
3 .Wheel xing: x the wheels at the two sides of the Hexagonal output shaft, and x them with two M8×55 bolts and M8 nuts.
4. Trailer xing: Fix the link group onto the trailer, use the link shaft assembly for connection, insert the split pin ￠3×26 and insert the velocity adjustment
screw into square groove of the link group, and x it with M8×55 bolts and nuts.
5. Handle bar xing: Two gear discs of the handle bar support aim at the discs of the
handle bar support base, and adjust the positions. Fix them with M16×140 bolts, at gasket 16 and spring gasket16.
6. Shifting bar assembly: Get the shifting bar through the groove of shift support in the
handle bar support base, and insert it into the hole of the shift casing, then x it with split pin ￠3.2 ×16. set the shifting bar in neutral position.
7. Assembly drawing of safety protection guard install.

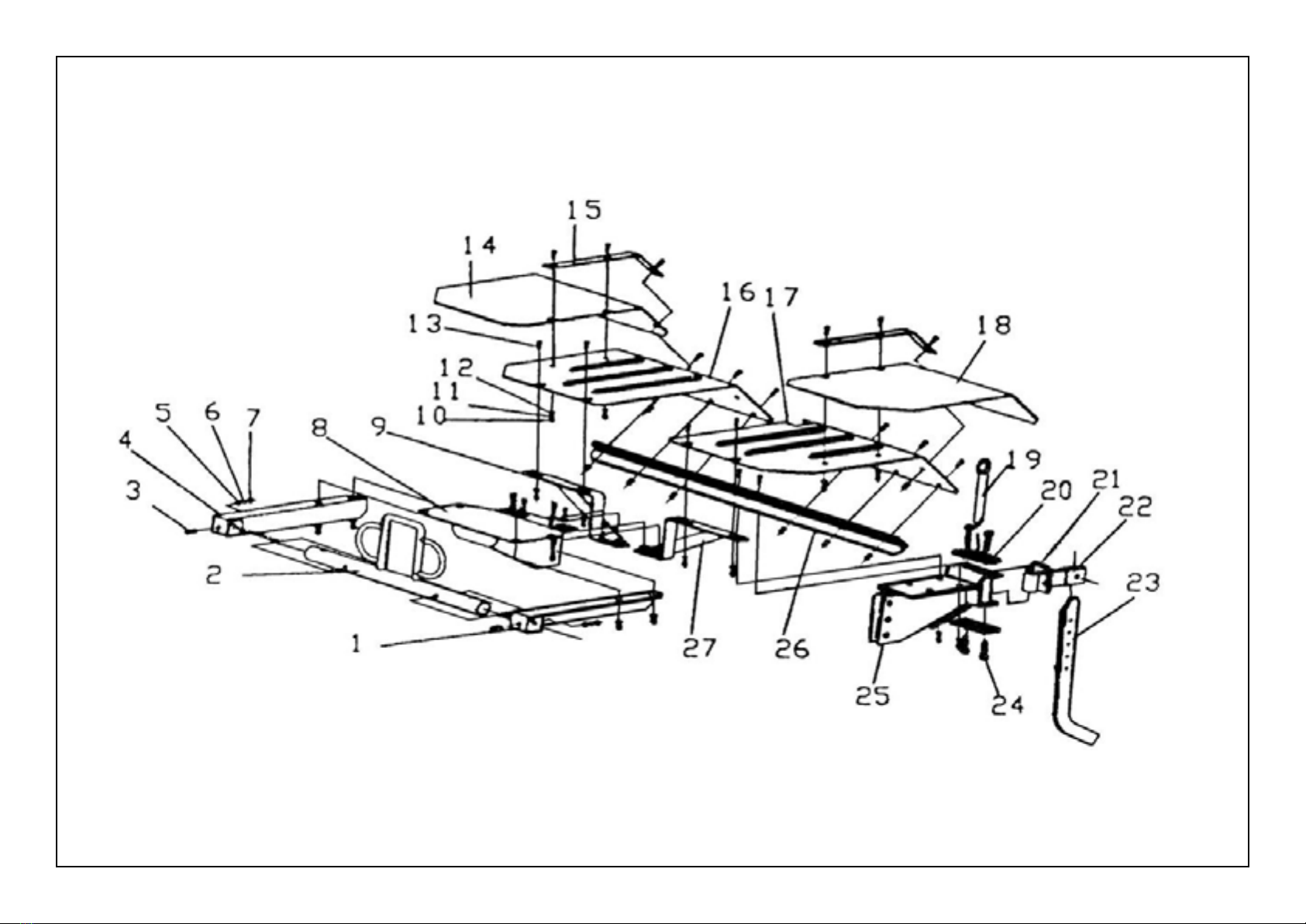

1. BRACKET OF COLLISION BUMPER(LEFT)
2. BRACKET OF COLLISTION BUMPER(FRONT)
3. BOLT
4. BRACKER OF COLLISION BUMPER(RIGHT
5. NUT
6. SPRING WASHER
7. WASHER
8. STAND (DIESEL)
9. BRACKET(RIGHT)
10.NUT
11. SPRING WASHER
12. WASHER
13. BOLT
14. FENDER FOR PADDY FIELD (RIGHT
15. FIXTY OF SAFETY PROTECTIONGUARD
16. SAFETY PROTECTION GUARD(RIGHT)
17. SAFETY PROTECTION GUARD(LEFT)
18. FENDER FOR PADDY FIELD(LEFT)
19. DOWEL
20. CONNECTING PLATE
21. BOLT
22. CONNECTOR JOINTING ASSEMBLY
23. DEEP FURROWING RESISTANCESTICK
24. BOLT
25. BULLING SET
26. BRCRET OF FENDER COMP
27. BRACKET (LEFT)

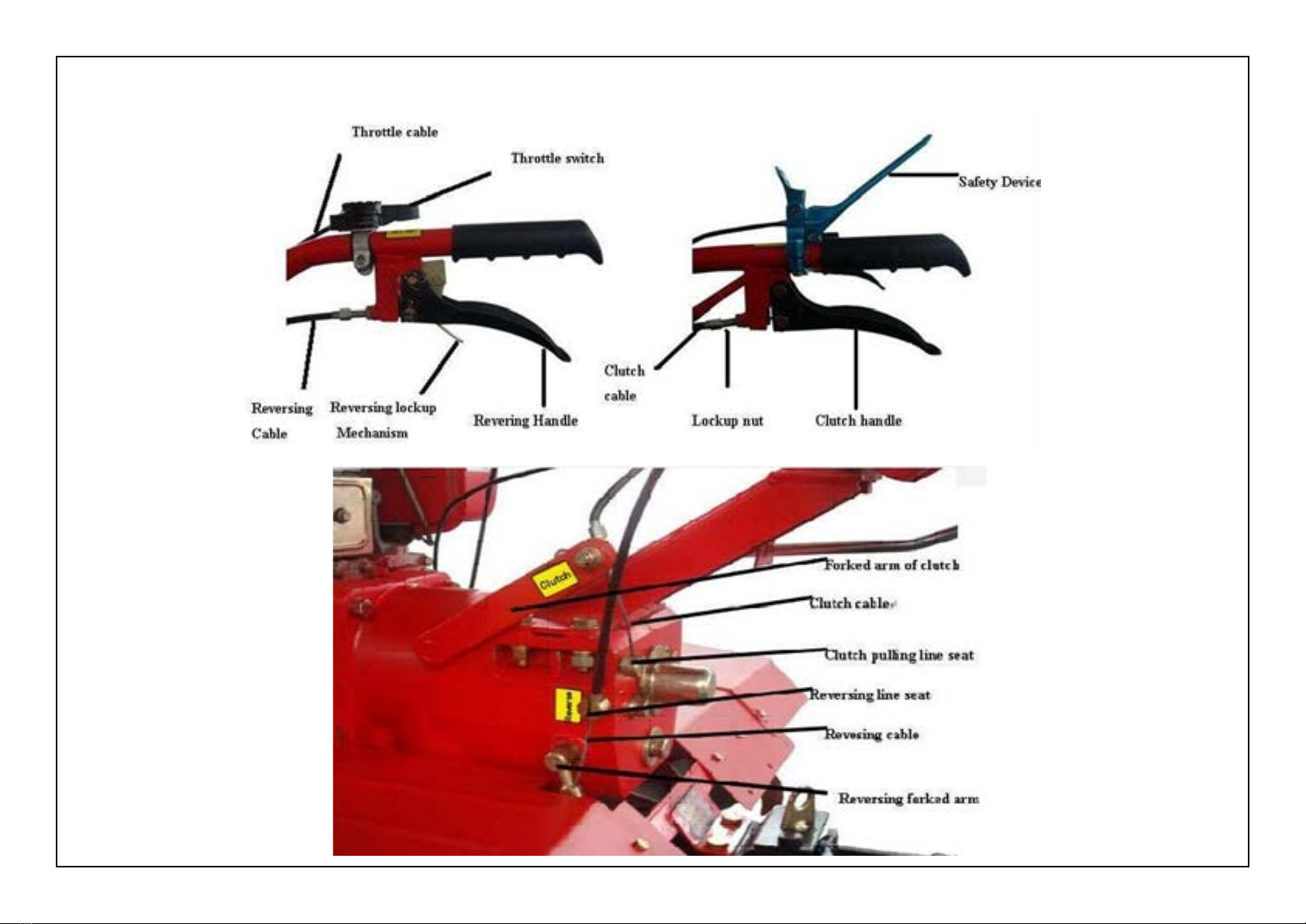

Adjustment of the reversing gear cable
Unscrew the locknut of the tie rod.
⁒ Spin the tie rod clockwise until the bare handle support is the shortest.
⁓ Get the cable into the reversing fork shaft besides the gear-box, and ensure the joint of cable goes into the hole of the fork shaft.
⁔ Properly pull the reversing fork shaft counterclockwise, get the cable into the narrow gap of the reversing wire socket besides the gear-box, and ensure
the pipe head goes into the hole of the wire socket.
⁕ Unscrew the tie rod, grasp and loosen the clutch handle until the spring force in the clutch can reset the handle, then screw the locknut.
1. Detailed information for the installation and adjustment of cable, refer to the disk attached.
Check and Refueling
Check whether all the connection bolts are loose or not, and x the connection bolts according to the moment of force listed in table 3. (Refer to the
instruction manual for diesel engine for the screwing moment of force bolt and nut respectively)

MODEL AM-RT-212-7P-WL
ENGINE MODEL 170F
ENGINE TYPE Air cooled ,4 stroke ,OHV gasoline ,single cylinder
POWER 7hp
DISPLACEMENT 208CC
FUEL TANK CAPACITY 3.6L
GEAR 2 FORWARD 1 REVERSE
TILLING DEPTH 100-250mm
TILLING WIDTH 1000mm
WEIGHT 100kg
TECHNICAL SPECIFICATIONS

HANDLE CONTROL - A

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RT-212-7P-WL-TA01 Handle Grip 17 AM-RT-212-7P-WL-TA17 Handle bar assy
2 AM-RT-212-7P-WL-TA02 Shut Down Switch Comp AM-RT-212-7P-WL-TA17.1 Handle bar assy(Electric start)
3 AM-RT-212-7P-WL-TA03 Bolt 18 AM-RT-212-7P-WL-TA18 T Figure Lock Comp
4 AM-RT-212-7P-WL-TA04 Nut 19 AM-RT-212-7P-WL-TA19 Spring Washer
5 AM-RT-212-7P-WL-TA05 Throttle Cable Comp 20 AM-RT-212-7P-WL-TA20 Grip
6 AM-RT-212-7P-WL-TA06 Flameout switch 21 AM-RT-212-7P-WL-TA21 Bolt
7 AM-RT-212-7P-WL-TA07 Clip 22 AM-RT-212-7P-WL-TA22 Tray，Gear
8 AM-RT-212-7P-WL-TA08 Pin 23 AM-RT-212-7P-WL-TA23 High And Low Lock Comp
9 AM-RT-212-7P-WL-TA09 Flameout switch Seat 24 AM-RT-212-7P-WL-TA24 Shift Lever
10 AM-RT-212-7P-WL-TA10 Bolt 25 AM-RT-212-7P-WL-TA25 Handle Seat Comp
11 AM-RT-212-7P-WL-TA11 Flameout switch Cable Comp 26 AM-RT-212-7P-WL-TA26 Bolt
12 AM-RT-212-7P-WL-TA12 Reverse Gear Or Clucth Grip 27 AM-RT-212-7P-WL-TA27 Washer
13 AM-RT-212-7P-WL-TA13 Pin 28 AM-RT-212-7P-WL-TA28 Spring Washer
14 AM-RT-212-7P-WL-TA14 Pin 29 AM-RT-212-7P-WL-TA29 Nut
15 AM-RT-212-7P-WL-TA15 Clucth Cable 30 AM-RT-212-7P-WL-TA30 Nameplate
16 AM-RT-212-7P-WL-TA16 Reverse Gear Cable 31 AM-RT-212-7P-WL-TA31 Startup Electric assy

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
32 AM-RT-212-7P-WL-TA32 Key
33 AM-RT-212-7P-WL-TA33 Startup Lock
34 AM-RT-212-7P-WL-TA34 Startup Control Cord
35 AM-RT-212-7P-WL-TA35 Connecting Bolt
36 AM-RT-212-7P-WL-TA36 Accumulator Fixation Board
37 AM-RT-212-7P-WL-TA37 Accumulator Assy
38 AM-RT-212-7P-WL-TA38 Accumulator Connecting Cord A
39 AM-RT-212-7P-WL-TA39 Accumulator Connecting Cord B
40 AM-RT-212-7P-WL-TA40 Base，Accumulator Assy
41 AM-RT-212-7P-WL-TA41 Screw
42 AM-RT-212-7P-WL-TA42 Cruciform slot screw
43 AM-RT-212-7P-WL-TA43 Clip
44 AM-RT-212-7P-WL-TA44 Washer
45 AM-RT-212-7P-WL-TA45 Flange bolt

SHIFT GEAR PARTS - B

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RT-212-7P-WL-TB01 Sheath, Shift rod 17 AM-RT-212-7P-WL-TB17 O-ring
2 AM-RT-212-7P-WL-TB02 Pin , Shift rod 18 AM-RT-212-7P-WL-TB18 Pushing panel
3 AM-RT-212-7P-WL-TB03 Splitpin 19 AM-RT-212-7P-WL-TB19 Oil seal B
4 AM-RT-212-7P-WL-TB04 Bush Shift axes 20 AM-RT-212-7P-WL-TB20 O-ring
5 AM-RT-212-7P-WL-TB05 O-ring 21 AM-RT-212-7P-WL-TB21 Sheath, principal axes
6 AM-RT-212-7P-WL-TB06 Shift axes 22 AM-RT-212-7P-WL-TB22 Gasket
7 AM-RT-212-7P-WL-TB07 Shift fork 23 AM-RT-212-7P-WL-TB23 Nut
8 AM-RT-212-7P-WL-TB08 Shift gear box 24 AM-RT-212-7P-WL-TB24 Key
9 AM-RT-212-7P-WL-TB09 Oil stick 25 AM-RT-212-7P-WL-TB25 Sheath, Key
10 AM-RT-212-7P-WL-TB10 O-ring, oil stick 26 AM-RT-212-7P-WL-TB26 Gasket
11 AM-RT-212-7P-WL-TB11 Principal axes 27 AM-RT-212-7P-WL-TB27 Spring washer
12 AM-RT-212-7P-WL-TB12 Ring GB/T 28 AM-RT-212-7P-WL-TB28 Hex bolts
13 AM-RT-212-7P-WL-TB13 Steel ball GB/T 29 AM-RT-212-7P-WL-TB29 Protec cover, principal axes
14 AM-RT-212-7P-WL-TB14 Spring, Principal axes 30 AM-RT-212-7P-WL-TB30 Screw
15 AM-RT-212-7P-WL-TB15 Iniative gear 31 AM-RT-212-7P-WL-TB31 Splitpin
16 AM-RT-212-7P-WL-TB16 Axletree 32 AM-RT-212-7P-WL-TB32 Nut

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-RT-212-7P-WL-TB33 Washer 49 AM-RT-212-7P-WL-TB49 Ball bearing
34 AM-RT-212-7P-WL-TB34 Restrict cover, reverse gear 50 AM-RT-212-7P-WL-TB50 Double gear, countershaft
35 AM-RT-212-7P-WL-TB35 Spring 51 AM-RT-212-7P-WL-TB51 Gasket, countershaft
36 AM-RT-212-7P-WL-TB36 Spring seat, reverse gear 52 AM-RT-212-7P-WL-TB52 Sheath, countershaft
37 AM-RT-212-7P-WL-TB37 Double gear, reverse gear 53 AM-RT-212-7P-WL-TB53 Thrust ball bearing
38 AM-RT-212-7P-WL-TB38 Pushing plate, reverse gear 54 AM-RT-212-7P-WL-TB54 O-ring
39 AM-RT-212-7P-WL-TB39 Axes, reverse gear 55 AM-RT-212-7P-WL-TB55 Column pin
40 AM-RT-212-7P-WL-TB40 Washer 56 AM-RT-212-7P-WL-TB56 Gasket
41 AM-RT-212-7P-WL-TB41 Spring washer 57 AM-RT-212-7P-WL-TB57 Spring washer
42 AM-RT-212-7P-WL-TB42 Bolt 58 AM-RT-212-7P-WL-TB58 Bolt
43 AM-RT-212-7P-WL-TB43 Splitpin GB/T 59 AM-RT-212-7P-WL-TB59 Sheath
44 AM-RT-212-7P-WL-TB44 Nut GB/T 60 AM-RT-212-7P-WL-TB60 Worm column pin
45 AM-RT-212-7P-WL-TB45 Gasket 61 AM-RT-212-7P-WL-TB61 Reverse gear fork
46 AM-RT-212-7P-WL-TB46 Iniative umbrella gear 62 AM-RT-212-7P-WL-TB62 Axes, reverse gear fork
47 AM-RT-212-7P-WL-TB47 Countershaft 63 AM-RT-212-7P-WL-TB63 Nut
48 AM-RT-212-7P-WL-TB48 Key 64 AM-RT-212-7P-WL-TB64 Seat, reverse gear cable

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
65 AM-RT-212-7P-WL-TB65 Seat, clutch cable 82 AM-RT-212-7P-WL-TB82 Cushion
66 AM-RT-212-7P-WL-TB66 Seat, clutch cable 83 AM-RT-212-7P-WL-TB83 Cover, clutch
67 AM-RT-212-7P-WL-TB67 Spring washer 84 AM-RT-212-7P-WL-TB84 Core comp, clutch
68 AM-RT-212-7P-WL-TB68 Pin ,clutch fork 85 AM-RT-212-7P-WL-TB85 Platen
69 AM-RT-212-7P-WL-TB69 Axes, clutch fork 86 AM-RT-212-7P-WL-TB86 Friction piece
70 AM-RT-212-7P-WL-TB70 Clutch fork 87 AM-RT-212-7P-WL-TB87 Driven piece
71 AM-RT-212-7P-WL-TB71 Ring 88 AM-RT-212-7P-WL-TB88 Driven plate assy
72 AM-RT-212-7P-WL-TB72 Clutch washer 89 AM-RT-212-7P-WL-TB89 Spring
73 AM-RT-212-7P-WL-TB73 Axletree 90 AM-RT-212-7P-WL-TB90 Lift slab assy
74 AM-RT-212-7P-WL-TB74 Gasket 91 AM-RT-212-7P-WL-TB91 Screw
75 AM-RT-212-7P-WL-TB75 Sawtooth locked gasket 92 AM-RT-212-7P-WL-TB92 Steel ring
76 AM-RT-212-7P-WL-TB76 Flange bolt 93 AM-RT-212-7P-WL-TB93 Fixed sheath
77 AM-RT-212-7P-WL-TB77 Axletree 94 AM-RT-212-7P-WL-TB94 Ball bearing
78 AM-RT-212-7P-WL-TB78 Core comp, clutch 95 AM-RT-212-7P-WL-TB95 Active Pushing cover
79 AM-RT-212-7P-WL-TB79 Screw 96 AM-RT-212-7P-WL-TB96 Gasket
80 AM-RT-212-7P-WL-TB80 Cover, cushion 97 AM-RT-212-7P-WL-TB97 O-ring
81 AM-RT-212-7P-WL-TB81 Spline plate, clutch 98 AM-RT-212-7P-WL-TB98 Washer

TRANSMISSION PART LIST - C

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RT-212-7P-WL-TC01 Nut 17 AM-RT-212-7P-WL-TC17 Gasket
2 AM-RT-212-7P-WL-TC02 Splitpin 18 AM-RT-212-7P-WL-TC18 Taper ball bearing
3 AM-RT-212-7P-WL-TC03 Spring washer 19 AM-RT-212-7P-WL-TC19 Gasket
4 AM-RT-212-7P-WL-TC04 Driven umbrella gear 20 AM-RT-212-7P-WL-TC20 Side cover, walking case
5 AM-RT-212-7P-WL-TC05 Taper ball bearing 21 AM-RT-212-7P-WL-TC21 Washer
6 AM-RT-212-7P-WL-TC06 Walking case 22 AM-RT-212-7P-WL-TC22 Spring washer
7 AM-RT-212-7P-WL-TC07 Taper ball bearing 23 AM-RT-212-7P-WL-TC23 Hex bolt
8 AM-RT-212-7P-WL-TC08 Umbrella gear axes
9 AM-RT-212-7P-WL-TC09 O-ring
10 AM-RT-212-7P-WL-TC10 Drain bolt
11 AM-RT-212-7P-WL-TC11 Oil seal
12 AM-RT-212-7P-WL-TC12 Ball bearing
13 AM-RT-212-7P-WL-TC13 Cover, output axes
14 AM-RT-212-7P-WL-TC14 Gasket
15 AM-RT-212-7P-WL-TC15 Cover, ange axes
16 AM-RT-212-7P-WL-TC16 Walking umbrella gear

BLADES - D
SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-RT-212-7P-WL-TD01 Round plate(optional) 7 AM-RT-212-7P-WL-TD07 Blade(L)
2 AM-RT-212-7P-WL-TD02 Counter tube 8 AM-RT-212-7P-WL-TD08 Blade( R )
3 AM-RT-212-7P-WL-TD03 Bolt 9 AM-RT-212-7P-WL-TD09 Hex bolt
4 AM-RT-212-7P-WL-TD04 Spring washer 10 AM-RT-212-7P-WL-TD10 Nut
5 AM-RT-212-7P-WL-TD05 Nut 11 AM-RT-212-7P-WL-TD11 Washer
6 AM-RT-212-7P-WL-TD06 Main tube 12 AM-RT-212-7P-WL-TD12 Spring washer
