Agrimate AM-MPT-9D User manual

USER MANUAL
INTERCULTIVATOR / POWER WEEDER
AM-MPT- 9D/6D
MANUAL ELECTRIC DGB

Transmission Case Comp-A
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9D-TA-01 Bolt 13 AM-MPT-1100-9D-TA-13 Bush
2 AM-MPT-1100-9D-TA-02 Locked washer 14 AM-MPT-1100-9D-TA-14 Spring washer
3 AM-MPT-1100-9D-TA-03 Big washer 15 AM-MPT-1100-9D-TA-15 Circlip F
4 AM-MPT-1100-9D-TA-04 Ball bearing 16 AM-MPT-1100-9D-TA-16 Shi gear rocker
5 AM-MPT-1100-9D-TA-05 Clutch comp 17 AM-MPT-1100-9D-TA-17 Vice speed handle
5.1 AM-MPT-1100-9D-TA-5.1 Clutch cover assembly (spheroidal iron) 18 AM-MPT-1100-9D-TA-18 O-ring
5.2 AM-MPT-1100-9D-TA-5.2 Clutch core assembly (normally open) 19 AM-MPT-1100-9D-TA-19 Pin
5.3 AM-MPT-1100-9D-TA-5.3 Clutch gasket 20 AM-MPT-1100-9D-TA-20 Main sha gear A
5.4 AM-MPT-1100-9D-TA-5.4 Deep groove ball bearings 21 AM-MPT-1100-9D-TA-21 steel ball
6 AM-MPT-1100-9D-TA-06 T09 Sheath 22 AM-MPT-1100-9D-TA-22 Shi gear spring
7 AM-MPT-1100-9D-TA-07 T09 fricon tray 23 AM-MPT-1100-9D-TA-23 Vice speed fork
8 AM-MPT-1100-9D-TA-08 Input sha 24 AM-MPT-1100-9D-TA-24 Wear washer
9 AM-MPT-1100-9D-TA-09 Split pin 25 AM-MPT-1100-9D-TA-25 Needle bearing
10 AM-MPT-1100-9D-TA-10 Bolt 26 AM-MPT-1100-9D-TA-26 Ball bearing
11 AM-MPT-1100-9D-TA-11 Vice speed striker 27 AM-MPT-1100-9D-TA-27 Thin nut
12 AM-MPT-1100-9D-TA-12 Transmission case 28 AM-MPT-1100-9D-TA-28 Pointless set screw
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
29 AM-MPT-1100-9D-TA-29 Clutch cable seat
30 AM-MPT-1100-9D-TA-30 II Oil ruler
31 AM-MPT-1100-9D-TA-31 Locked nut
32 AM-MPT-1100-9D-TA-32 Washer
33 AM-MPT-1100-9D-TA-33 Clutch
34 AM-MPT-1100-9D-TA-34 Pin
35 AM-MPT-1100-9D-TA-35 Clutch fork
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

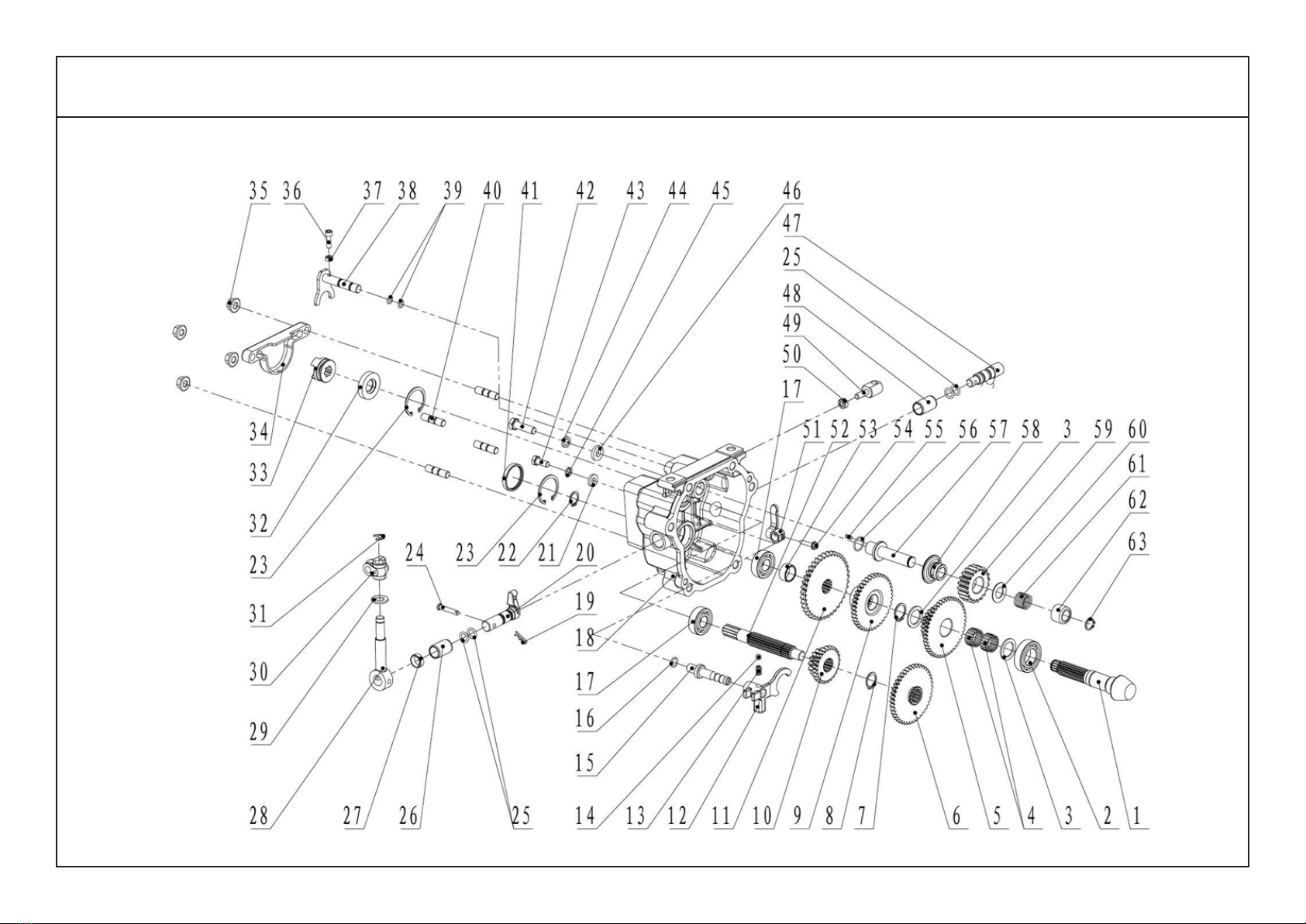

Transmission Back Case Comp- B
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9D-TB-01 Vice sha 17 AM-MPT-1100-9D-TB-17 Ball bearing
2 AM-MPT-1100-9D-TB-02 Ball bearing 18 AM-MPT-1100-9D-TB-18 Back case cover
3 AM-MPT-1100-9D-TB-03 Adjustment washer 19 AM-MPT-1100-9D-TB-19 Circlip F
4 AM-MPT-1100-9D-TB-04 Needle bearing 20 AM-MPT-1100-9D-TB-20 Shif gear rocker
5 AM-MPT-1100-9D-TB-05 Vice sha double teeth gear A 21 AM-MPT-1100-9D-TB-21 Gasket
6 AM-MPT-1100-9D-TB-06 Main sha gear B 22 AM-MPT-1100-9D-TB-22 Spring washer
7 AM-MPT-1100-9D-TB-07 Spring washer 23 AM-MPT-1100-9D-TB-23 Ring for hole
8 AM-MPT-1100-9D-TB-08 Spring washer 24 AM-MPT-1100-9D-TB-24 Pin
9 AM-MPT-1100-9D-TB-09 Vice sha fast gear 25 AM-MPT-1100-9D-TB-25 O-ring
10 AM-MPT-1100-9D-TB-10 Main sha double teeth gear 26 AM-MPT-1100-9D-TB-26 Bush
11 AM-MPT-1100-9D-TB-11 Vice sha slow gear 27 AM-MPT-1100-9D-TB-27 Restrict sheath
12 AM-MPT-1100-9D-TB-12 Shi gear fork 28 AM-MPT-1100-9D-TB-28 Shi gear sheath
13 AM-MPT-1100-9D-TB-13 Shi gear spring 29 AM-MPT-1100-9D-TB-29 Gasket
14 AM-MPT-1100-9D-TB-14 steel ball 30 AM-MPT-1100-9D-TB-30 PTO gemel B
15 AM-MPT-1100-9D-TB-15 Shi gear fork sha 31 AM-MPT-1100-9D-TB-31 Split washer
16 AM-MPT-1100-9D-TB-16 O-ring 32 AM-MPT-1100-9D-TB-32 Lip seal
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
33 AM-MPT-1100-9D-TB-33 Output slutch push dog 49 AM-MPT-1100-9D-TB-49 Reverse cable seat
34 AM-MPT-1100-9D-TB-34 Plasc clutch cover 50 AM-MPT-1100-9D-TB-50 Bolt
35 AM-MPT-1100-9D-TB-35 Nut 51 AM-MPT-1100-9D-TB-51 Reverse fork
36 AM-MPT-1100-9D-TB-36 Bolt 52 AM-MPT-1100-9D-TB-52 Main sha
37 AM-MPT-1100-9D-TB-37 Nut 53 AM-MPT-1100-9D-TB-53 Sheath
38 AM-MPT-1100-9D-TB-38 Output fork 54 AM-MPT-1100-9D-TB-54 Bolt
39 AM-MPT-1100-9D-TB-39 O-rng 55 AM-MPT-1100-9D-TB-55 Cylindrical pin
40 AM-MPT-1100-9D-TB-40 Stud bolt 56 AM-MPT-1100-9D-TB-56 O-ring
41 AM-MPT-1100-9D-TB-41 Oil plug 57 AM-MPT-1100-9D-TB-57 Reverse sha
42 AM-MPT-1100-9D-TB-42 Bolt 58 AM-MPT-1100-9D-TB-58 Reverse push plate
43 AM-MPT-1100-9D-TB-43 Bolt 59 AM-MPT-1100-9D-TB-59 Reverse gear
44 AM-MPT-1100-9D-TB-44 Spring washer 60 AM-MPT-1100-9D-TB-60 Wear washer
45 AM-MPT-1100-9D-TB-45 Spring washer 61 AM-MPT-1100-9D-TB-61 Reverse spring
46 AM-MPT-1100-9D-TB-46 Reverse gear sha washer 62 AM-MPT-1100-9D-TB-62 Reverse restrict sheath
47 AM-MPT-1100-9D-TB-47 Reverse gear fork sha 63 AM-MPT-1100-9D-TB-63 Spring washer
48 AM-MPT-1100-9D-TB-48 Fork sheath
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

Transmission Back Case Comp- BN (Improved)

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9D-TBN-01 Transmission case back cover 17 AM-MPT-1100-9D-TBN-17 Pin
2 AM-MPT-1100-9D-TBN-02 Sha circlip 18 AM-MPT-1100-9D-TBN-18 output clutch handle
3 AM-MPT-1100-9D-TBN-03 Coupling sleeve 19 AM-MPT-1100-9D-TBN-19 circlip A
4 AM-MPT-1100-9D-TBN-04 Spindle 20 AM-MPT-1100-9D-TBN-20 Deep groove ball bearing
5 AM-MPT-1100-9D-TBN-05 Wear washer 21 AM-MPT-1100-9D-TBN-21 Circlips for holes
6 AM-MPT-1100-9D-TBN-06 Needle bearing 22 AM-MPT-1100-9D-TBN-22 Oil seal
7 AM-MPT-1100-9D-TBN-07 Output clutch fork 23 AM-MPT-1100-9D-TBN-23 PTO sha
8 AM-MPT-1100-9D-TBN-08 Hexagon head bolt 24 AM-MPT-1100-9D-TBN-24 Circlips for holes
9 AM-MPT-1100-9D-TBN-09 Hex Nut 25 AM-MPT-1100-9D-TBN-25 Oil plug
10 AM-MPT-1100-9D-TBN-10 clutch cable seat 26 AM-MPT-1100-9D-TBN-26 Circlips for holes
11 AM-MPT-1100-9D-TBN-11 Hex Nut 27 AM-MPT-1100-9D-TBN-27 Deep groove ball bearing
12 AM-MPT-1100-9D-TBN-12 Steel ball
13 AM-MPT-1100-9D-TBN-13 Gear spring
14 AM-MPT-1100-9D-TBN-14 Gasket
15 AM-MPT-1100-9D-TBN-15 Non-standard oil seal
16 AM-MPT-1100-9D-TBN-16 support rod

Transmission Back case comp- C
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9D-TC-01 Combinaon gasket
2 AM-MPT-1100-9D-TC-02 Stud bolt
3 AM-MPT-1100-9D-TC-03 Dowel pin
4 AM-MPT-1100-9D-TC-04 Output clutch srping
5 AM-MPT-1100-9D-TC-05 Washer
6 AM-MPT-1100-9D-TC-06 Split pin
7 AM-MPT-1100-9D-TC-07 Washer
8 AM-MPT-1100-9D-TC-08 Spring washer
9 AM-MPT-1100-9D-TC-09 Nut
10 AM-MPT-1100-9D-TC-10 Handle rubber
11 AM-MPT-1100-9D-TC-11 Output clutch grip
12 AM-MPT-1100-9D-TC-12 Output clutch frame
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

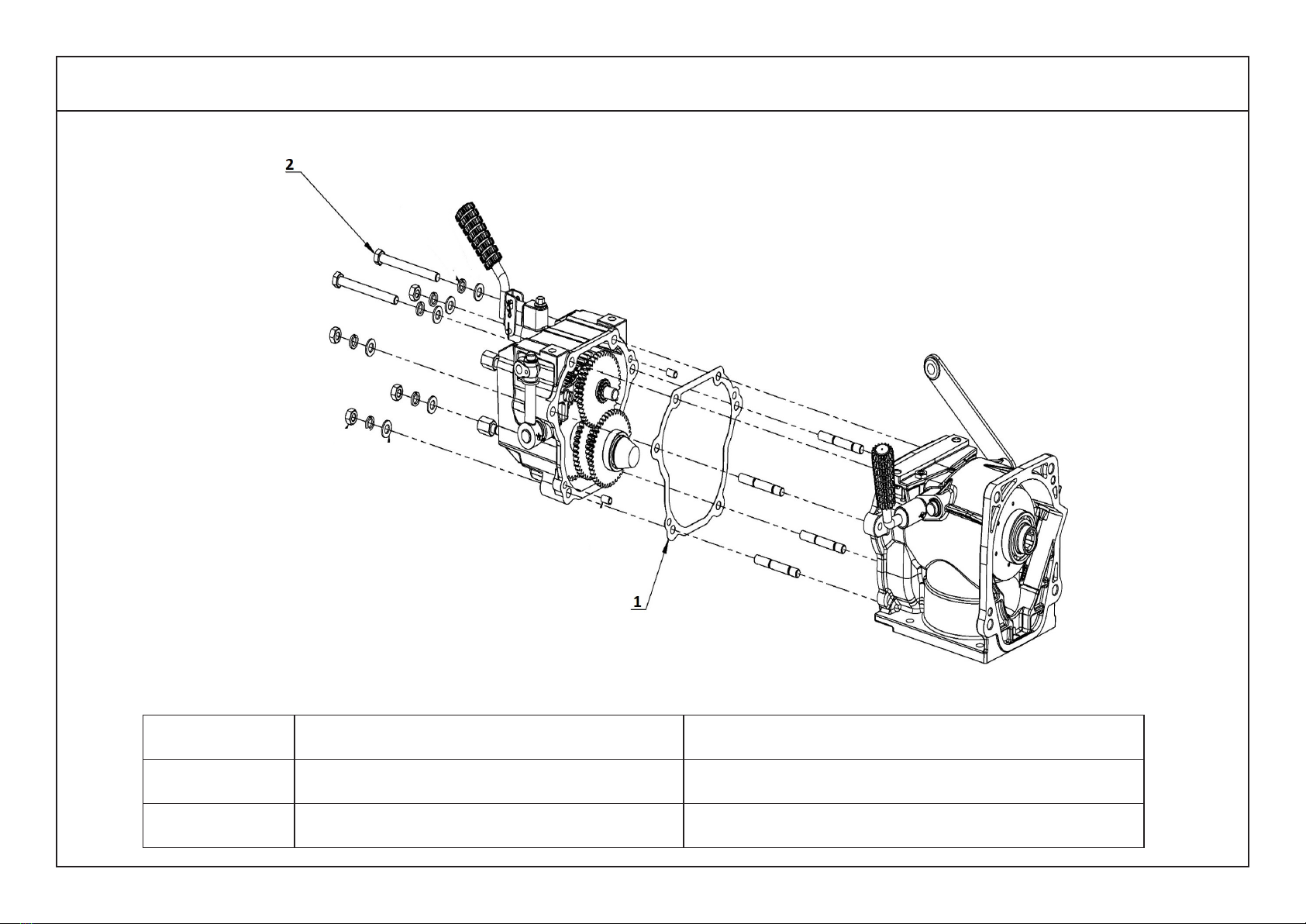

Transmission combination parts- C N
SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9D-TCN-01 Back cover closing paper pad
2 AM-MPT-1100-9D-TCN-02 Hexagon head bolt

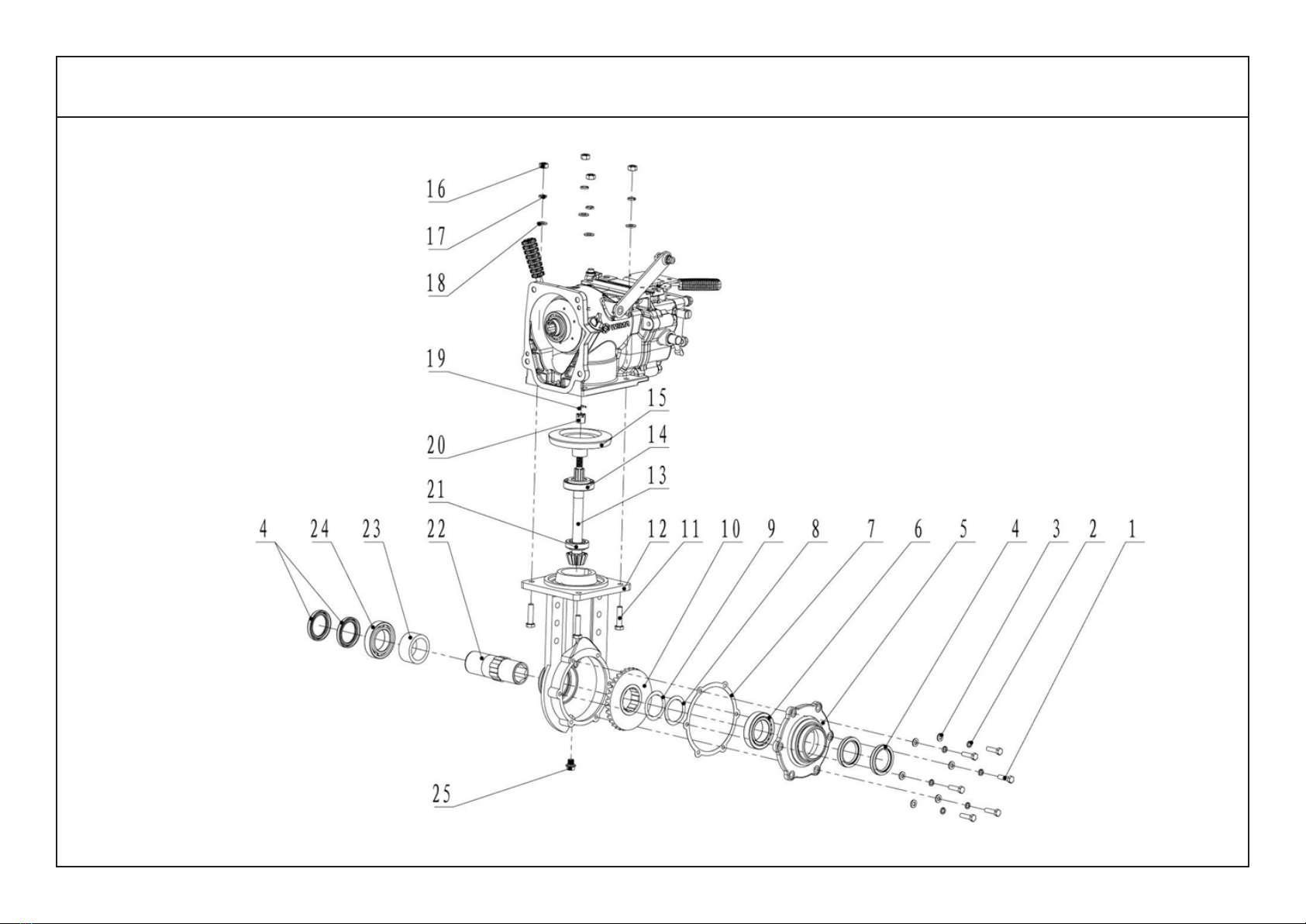

Walking case comp - D
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9D-TD-01 Bolt 17 AM-MPT-1100-9D-TD-17 Spring washer
2 AM-MPT-1100-9D-TD-02 Spring washer 18 AM-MPT-1100-9D-TD-18 Gasket
3 AM-MPT-1100-9D-TD-03 Gasket 19 AM-MPT-1100-9D-TD-19 Split pin
4 AM-MPT-1100-9D-TD-04 Lip seal 20 AM-MPT-1100-9D-TD-20 Sloed nut
5 AM-MPT-1100-9D-TD-05 Walking case end cover 21 AM-MPT-1100-9D-TD-21 Tappered roller bearing
6 AM-MPT-1100-9D-TD-06 Tappered roller bearing 22 AM-MPT-1100-9D-TD-22 Inner haxed output sheath
7 AM-MPT-1100-9D-TD-07 End cover gasket 23 AM-MPT-1100-9D-TD-23 Output sha sheath
8 AM-MPT-1100-9D-TD-08 Adjustment gasket 24 AM-MPT-1100-9D-TD-24 Ball bearing
9 AM-MPT-1100-9D-TD-09 Adjustment gasket 25 AM-MPT-1100-9D-TD-25 Drain bolt
10 AM-MPT-1100-9D-TD-10 Walking umbrella gear
11 AM-MPT-1100-9D-TAD-11 Bolt
12 AM-MPT-1100-9D-TD-12 Walking case
13 AM-MPT-1100-9D-TD-13 Umbrella gear sha
14 AM-MPT-1100-9D-TD-14 Tappered roller bearing
15 AM-MPT-1100-9D-TD-15 Driven umbrella gear
16 AM-MPT-1100-9D-TD-16 Bolt
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

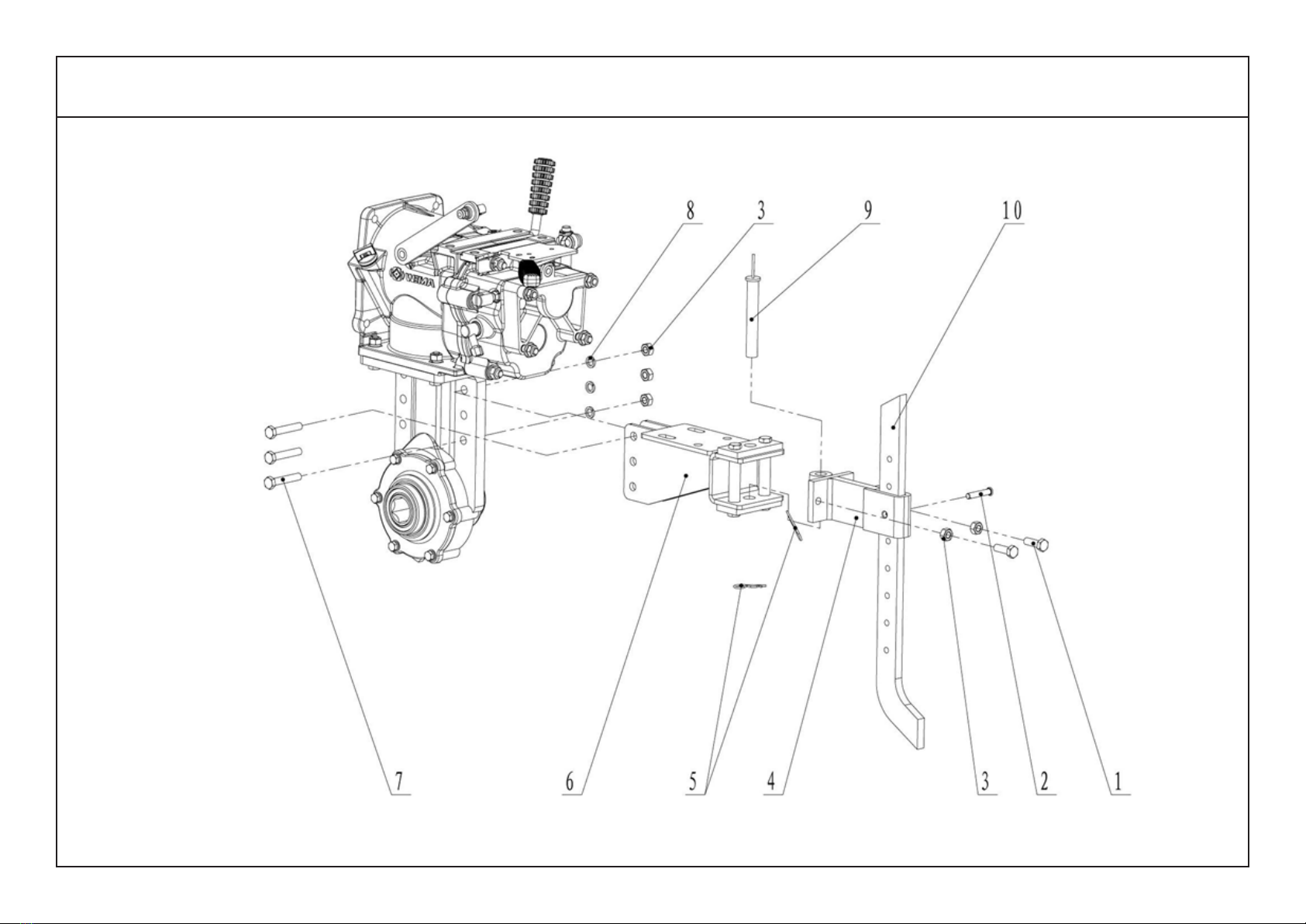

Tow Bar Comp -E
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9D-TE-01 Bolt
2 AM-MPT-1100-9D-TE-02 Pin
3 AM-MPT-1100-9D-TE-03 Nut
4 AM-MPT-1100-9D-TE-04 Connecon frame
5 AM-MPT-1100-9D-TE-05 Clip B
6 AM-MPT-1100-9D-TE-06 Tow bar
7 AM-MPT-1100-9D-TE-07 Bolt
8 AM-MPT-1100-9D-TE-08 Spring washer
9 AM-MPT-1100-9D-TE-09 Pin with ring
10 AM-MPT-1100-9D-TE-10 Resistance rod
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

KM handle Bar Comp(Usually open clutch) -F
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9D-TF-01 handle rubber 17 AM-MPT-1100-9D-TF-17 Nut
2 AM-MPT-1100-9D-TF-02 Handle frame 18 AM-MPT-1100-9D-TAF-18 Shi gear rod
3 AM-MPT-1100-9D-TF-03 III usually open clutch cable 19 AM-MPT-1100-9D-TF-19 Clip B
4 AM-MPT-1100-9D-TF-04 Cable clip 20 AM-MPT-1100-9D-TF-20 Plug
5 AM-MPT-1100-9D-TF-05 Handle fram connecon piece 21 AM-MPT-1100-9D-TF-21 handle seat
6 AM-MPT-1100-9D-TF-06 Nut 22 AM-MPT-1100-9D-TF-22 Locked grip
7 AM-MPT-1100-9D-TF-07 Bolt 23 AM-MPT-1100-9D-TF-23 Spring washer
8 AM-MPT-1100-9D-TF-08 reverse cable 24 AM-MPT-1100-9D-TF-24 Locked turning handel
9 AM-MPT-1100-9D-TF-09 Bolt 25 AM-MPT-1100-9D-TF-25 Oil cable
10 AM-MPT-1100-9D-TF-10 Sleeve 26 AM-MPT-1100-9D-TF-26 Pin
11 AM-MPT-1100-9D-TF-11 Shi gear rod limit block 27 AM-MPT-1100-9D-TF-27 Reverse locked grip
12 AM-MPT-1100-9D-TF-12 Locked nut 28 AM-MPT-1100-9D-TF-28 Reverse grip
13 AM-MPT-1100-9D-TF-13 Cable circle 29 AM-MPT-1100-9D-TF-29 Tool box
14 AM-MPT-1100-9D-TF-14 Bolt 30 AM-MPT-1100-9D-TF-30 Bolt
15 AM-MPT-1100-9D-TF-15 buom seat 31 AM-MPT-1100-9D-TF-31 Oil switch
16 AM-MPT-1100-9D-TF-16 Spring washer 32 AM-MPT-1100-9D-TF-32 Split
33 AM-MPT-1100-9D-TF-33 CLUTCH LEVER
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

Engine and connecons- G
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB

SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION
1 AM-MPT-1100-9D-TG-01 Nut
2 AM-MPT-1100-9D-TG-02 Spring Washer
3 AM-MPT-1100-9D-TG-03 Gasket
4 AM-MPT-1100-9D-TG-04
AM- 178F diesel engine for 6D
AM-186FB diesel engine for 9D
5 AM-MPT-1100-9D-TG-05
Engine frame for 6D
Engine frame for 9D
6 AM-MPT-1100-9D-TG-06
Bumper for 6D
Bumper for 9D
7 AM-MPT-1100-9D-TG-07 Bumper stud
8 AM-MPT-1100-9D-TG-08 Pin
9 AM-MPT-1100-9D-TG-09 Bumper supporter drawing spring
10 AM-MPT-1100-9D-TG-10 Clip B
11 AM-MPT-1100-9D-TG-11 Bolt
12 AM-MPT-1100-9D-TG-12 Small shake handle
13 AM-MPT-1100-9D-TG-13 II ange gasket
TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-MPT-1100-9D/6D / DGB
