eBox Gold/Extreme
User Manual
Release 1.03
2
www.aim-sportline.com
INDEX
Chapter 1 – eBox Gold/Extreme kit and part number.....................................................4
Chapter 2 – How to install and connect eBox .................................................................5
2.1 – Installing eBox Gold/Extreme on the kart............................................................................................. 5
2.2 – Connecting eBox to MyChron4............................................................................................................ 5
2.3 – How to calibrate eBox Gold/Extreme internal accelerometer .............................................................. 6
2.4 – Where to plug eBox additional sensors................................................................................................ 7

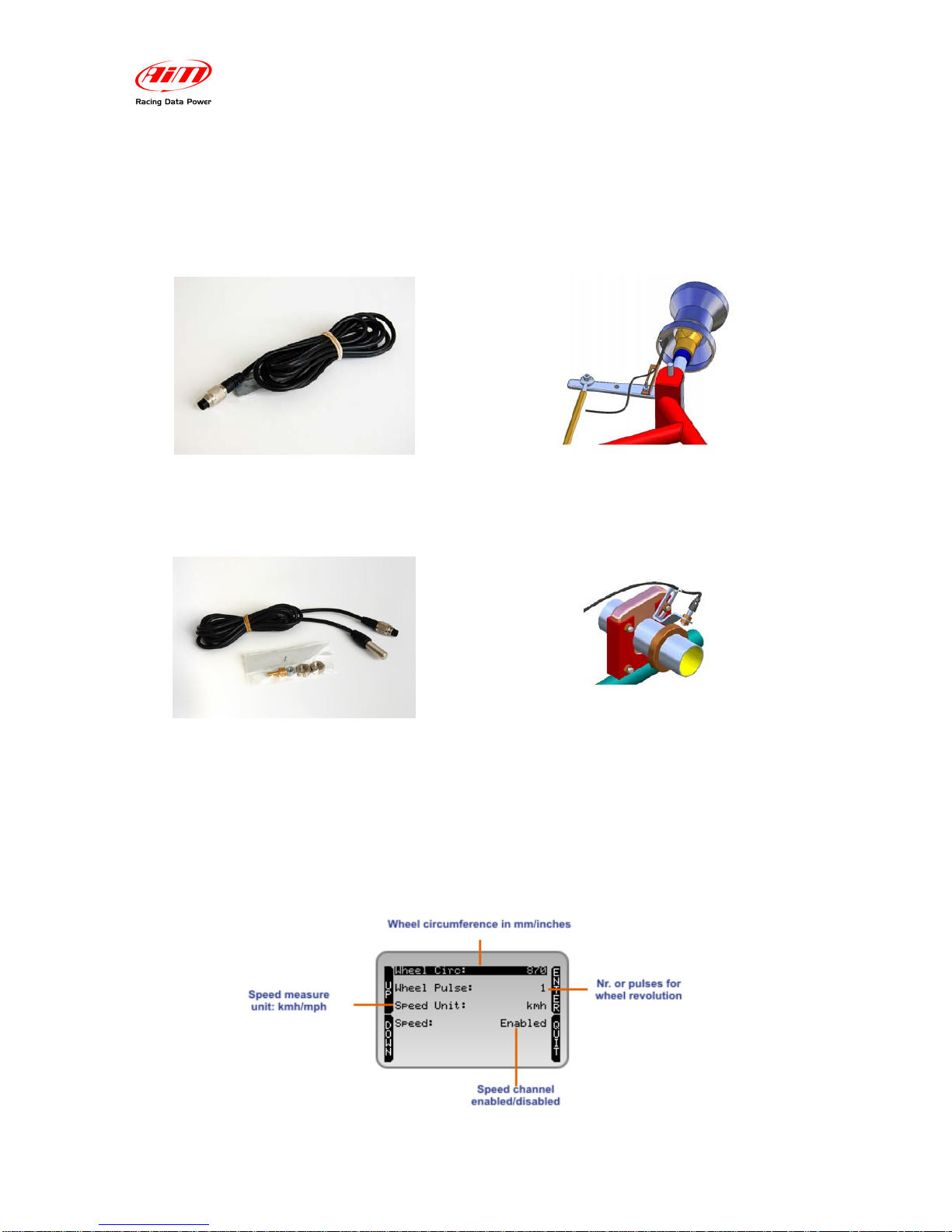

Chapter 3 – How to install and configure the speed sensors........................................8
3.1 – Installing the front wheel speed sensor................................................................................................ 8
3.2 – Installing the rear axle seed sensor ..................................................................................................... 8
3.3 – Configuring the speed sensor.............................................................................................................. 8
Chapter 4 – How to configure eBox Gold/Extreme.........................................................9
4.1 – Temperature Setup (Menu<Control panel<Temperature Setup).................................................... 11
4.2 – Speed setup (Menu<Control Panel<Speed setup)......................................................................... 11

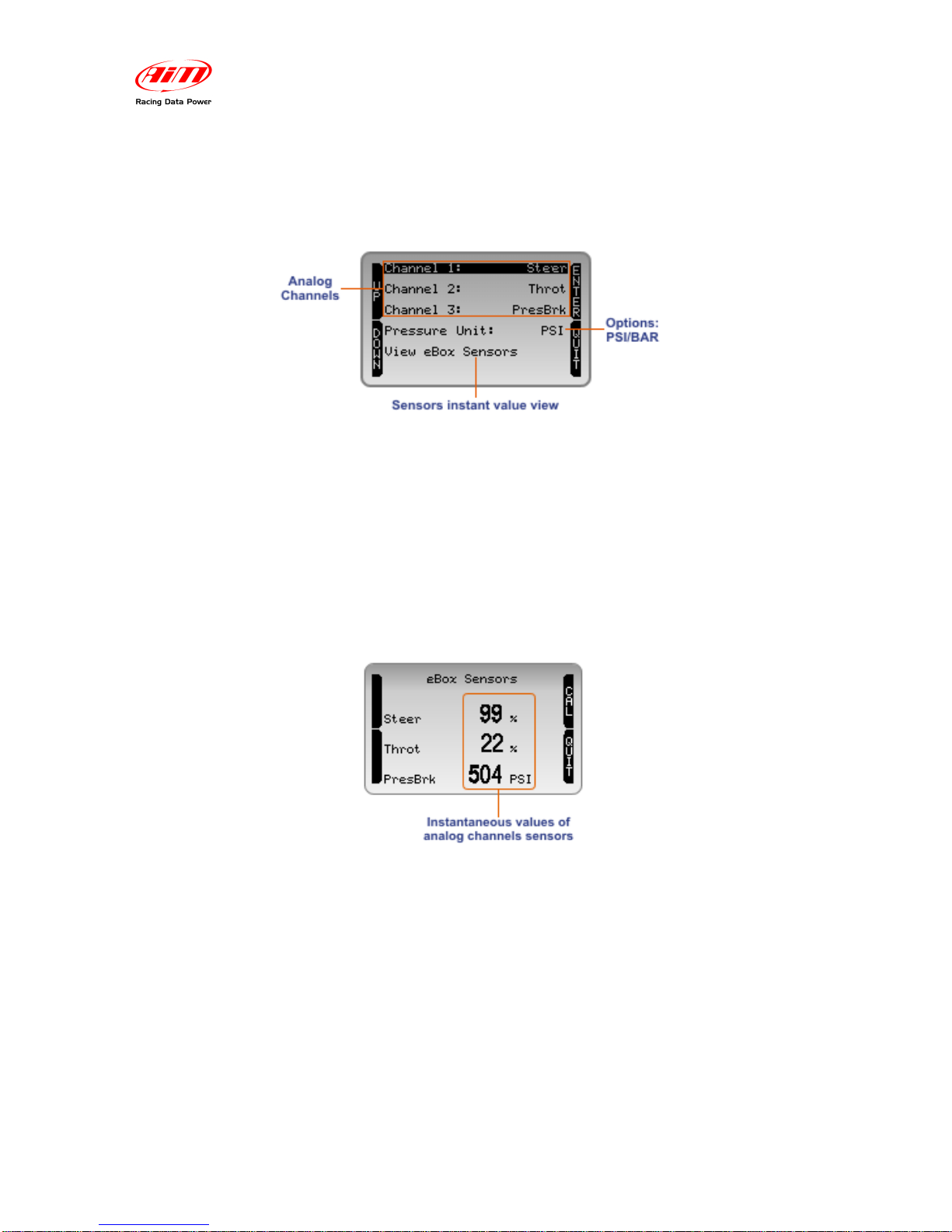

4.3 – eBox sensors Setup (Menu<Control Panel<eBox sensors setup).................................................. 12
4.4 – System setup (Menu<Control Panel<System setup)...................................................................... 13

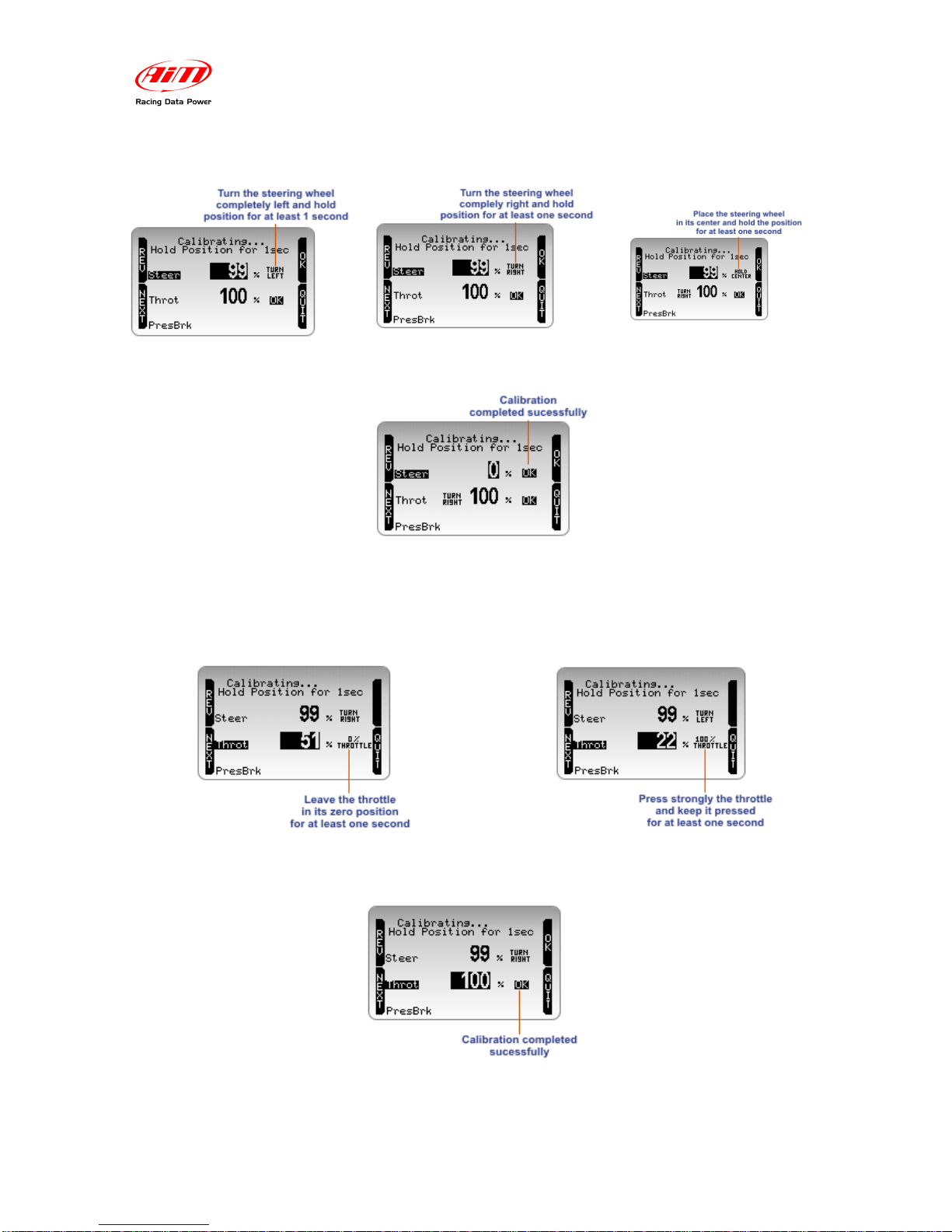

4.5 – Calibrating potentiometers................................................................................................................. 13
4.5.1 – Calibrating the steering potentiometer........................................................................................ 14
4.5.2 – Calibrating the throttle and brake potentiometer ........................................................................ 14
4.6 – Setting 0-100 generic sensors (expert users only) ............................................................................ 15
4.6.1 – Analog channels connectors pinout............................................................................................ 15
Chapter 5 – View data on track.......................................................................................16

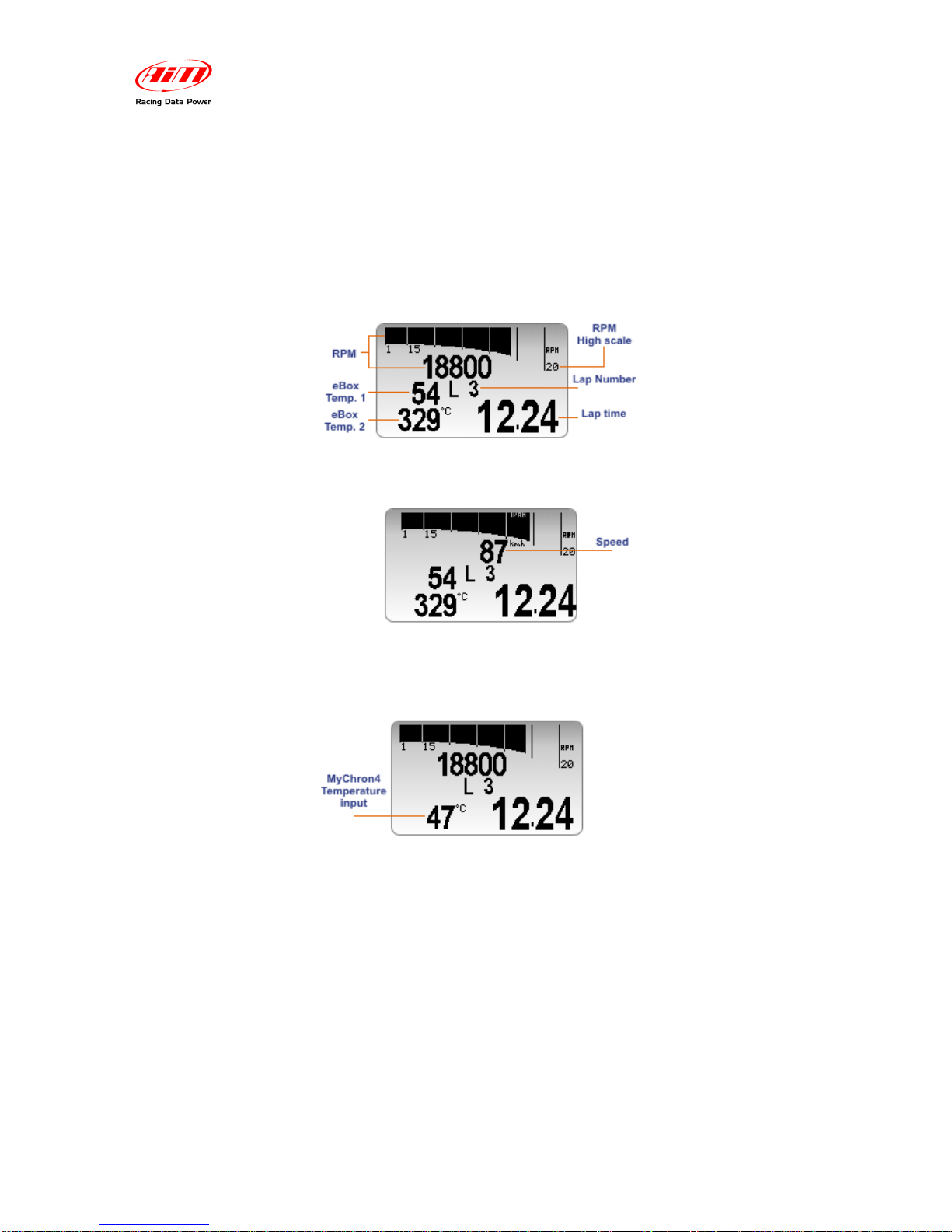

5.1 – View data on track with a kart without gearbox.................................................................................. 16
5.2 – View data on track with a kart with gearbox....................................................................................... 17
Chapter 6 – Data recall and analysis..............................................................................18
Chapter 7 – Notes about MyChron4 and Data key........................................................20
