AirLive AirMax5X II User manual

User’s
Manual
www.AirLive.com.tw
Wi-Fi 5Ghz N300
Outdoor CPE
AirMax5x II

User Manual of AirMax5X II
Chapter 1. Product Introduction

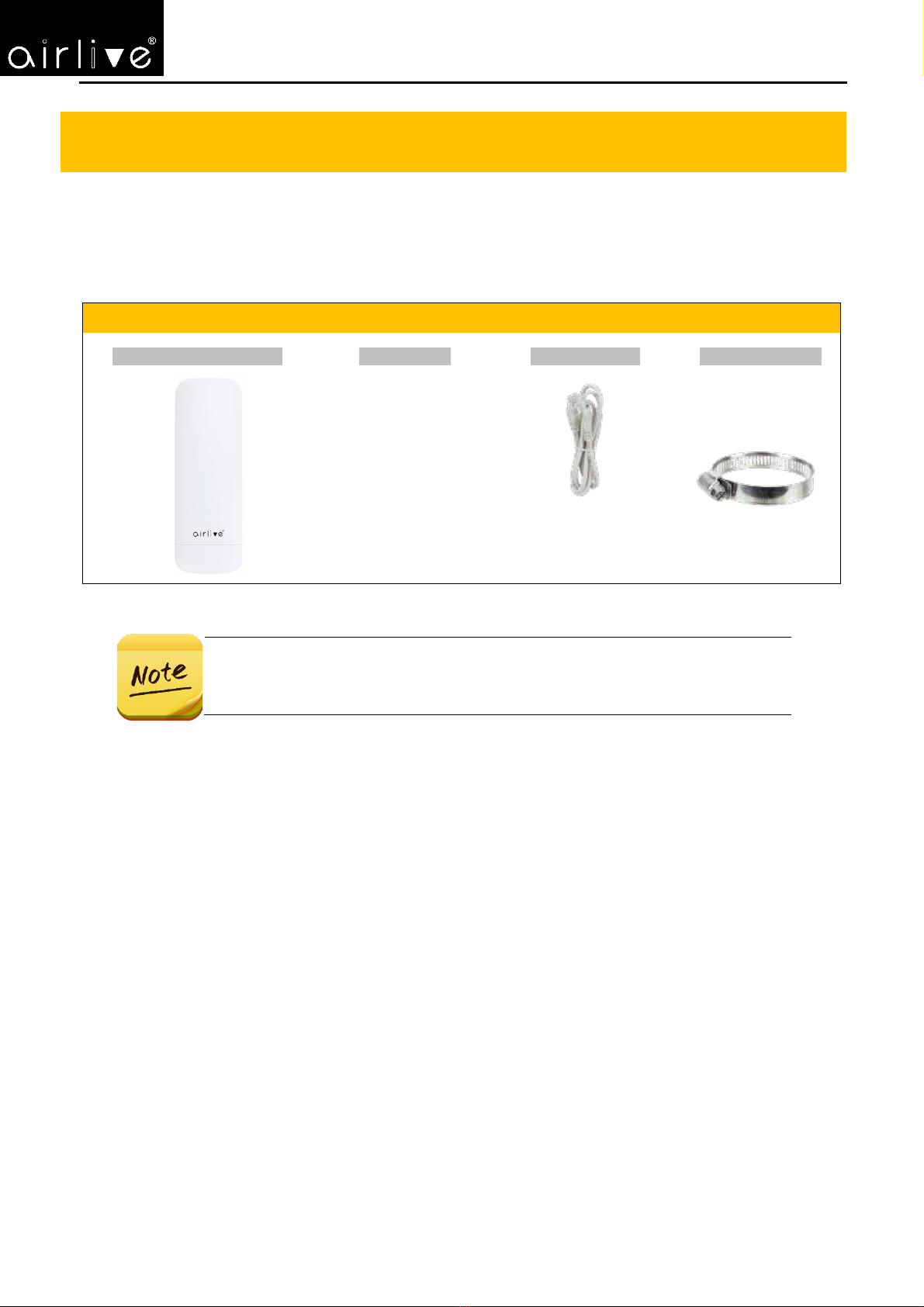

1.1 Package Contents
Thank you for choosing AirLive AirMax5x II Wireless AP.Please verify the contents inside the packagebox.
Package Contents of AirMax5X II
AirMax 5X II
QuickGuide
EthernetCable
Mounting
Strap
If there is any item missing or damaged, please contact the seller immediately.
-1-

User Manual of AirMax5X II
1.2 Product Description
Flexible and Reliable Outdoor Characteristics
With the passive PoE design, the AirMax5X II(outdoor wireless CPE) can be easily installed in the areas where
power outlets are not available. The outdoor wireless CPE is definitely suitable for wireless IP surveillance, and
br idge link of building to building and backbone of public service. Additionally, the self-healing capability keeps
connection alive all the time. With the IP65-rated outdoor enclosure, the outdoor wireless CPE can perform
normally under rigorous weather conditions, meaning it can be installed in any harsh, outdoor environments
Designed for Various Requirements
The outdoor wireless CPE is specially designed for long-distance outdoor surveillance and wireless backhaul
solutions that are capable of establishing stable bridge connection through the embedded antenna. To provide
maximum performance, the outdoor wireless CPE can implement up to AP/Repeater operation modes where a
multitude of applications in communities, warehouses, campuses, harbors, etc. can be made.
-2-

User Manual of AirMax5X II
Multiple SSIDs with VLAN Tagging
The outdoor wireless CPE supports WPA/WPA2, and the 802.1X RADIUS authentication to secure the wireless
connection. Besides, the supported IEEE 802.1Q VLAN allows multiple VLAN tags to be mapped to multiple
SSIDs to distinguish the wireless access. This makes it possible for the outdoor wireless CPE to work with
managed Ethernet switches to have VLANs assigned to a different access level and authority.

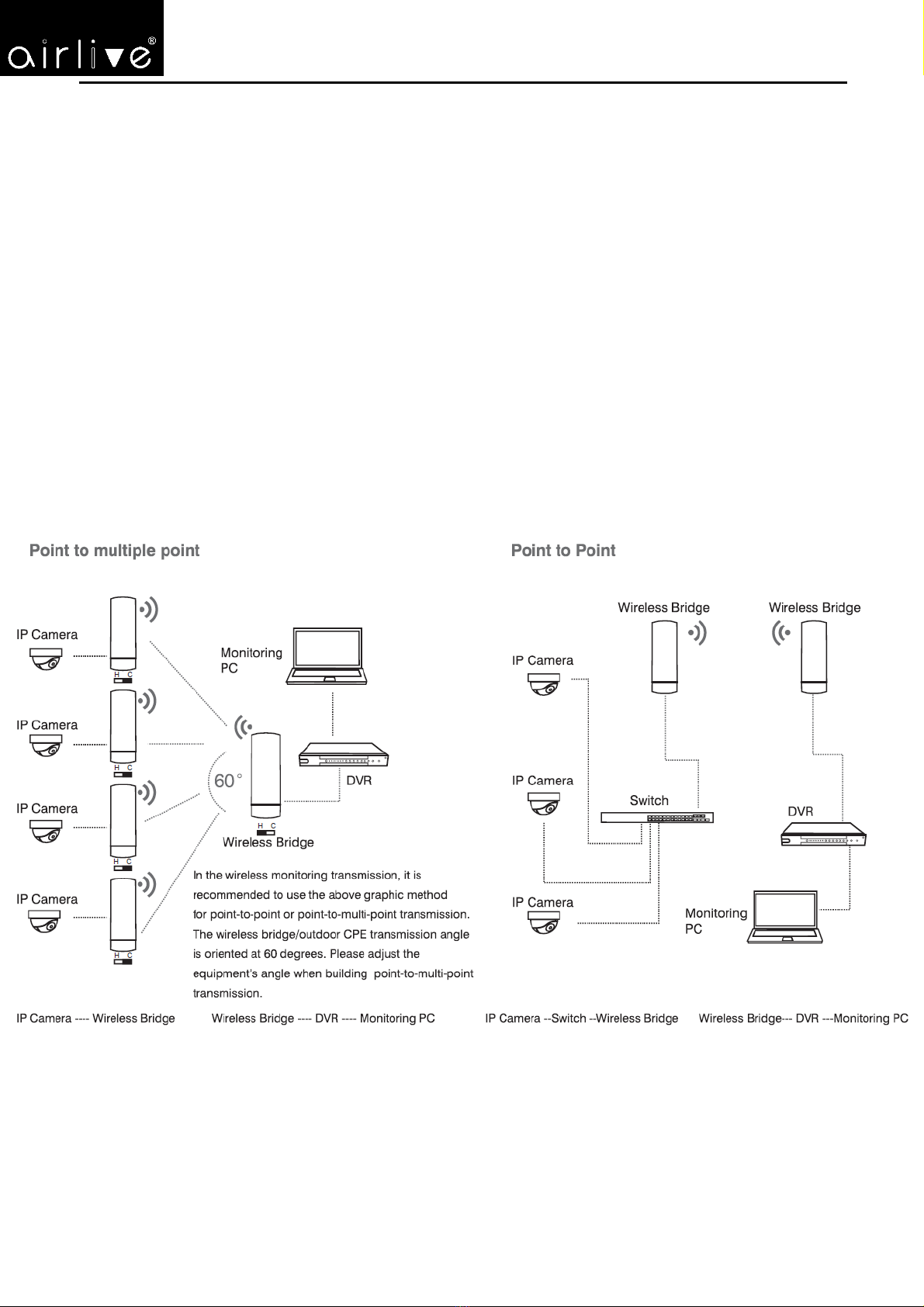

3 Simple Steps to Set Up Point to Point/Point to Multi-Point
Without needing to enter the Web interface for configuration, the outdoor wireless CPE needs three simplesteps
to establishthe PtP/PtMP connection without any difficulty. By just clicking the Pair button on the AirMax5X II and
within 2 minutes,you can connect two AirMax5X IIs without complicated configuration.

User Manual of AirMax5X II
Optimized Efficiency in AP Management
The brand-new GUI configuration wizard helps the system administrator easily set up the outdoor wireless CPE
step by step. Besides, the built-in Wi-Fi analyzer provides real-time channel utilization to prevent channel
overlapping to assure greater performance. With the automatic transmission power mechanism, distance control
and scheduling reboot setting, the outdoor wireless CPE is easier for the administrator to deploy and manage
without on-site maintenance. Moreover, you can simply use AirLive AP Controller, to deliver wireless profiles to
multiple APs simultaneously, thus making the central management simple.
-4-

User Manual of AirMax5X II
1.3 Product Features
➢Industrial Compliant Wireless LAN and LAN
◼Compliant with the IEEE 802.11b/g/n and IEEE 802.11a/n wireless technology
◼2T2R architecture with data rate of up to 300Mbps
◼Equippedwith two 10/100Mbps RJ45 ports with auto MDI/MDI-X supported
➢Fixed Network Broadband Router
◼Supported WAN connection types: DHCP, Static IP, PPPoE
◼Supports Port Forwarding and DMZ for various networking applications
◼Supports DHCP server
➢RF InterfaceCharacteristics
◼Built-in 14dBi dual-polarization antenna (AirMax5X II)
◼Built-in 10dBi dual-polarization antenna (AirMax2X II)
➢Outdoor Environmental Characteristics
◼IP65rating
◼Passive PoE 48VDC inject
◼Operating temperature: -20~70 degrees C
➢Multiple Operation Modes and WirelessFeatures
◼Multiple operation modes: AP, Repeater
◼WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
◼Coverage threshold to limit the weak signal of clients occupying session
◼Real-time Wi-Fi channel analysis chart and client limit control for better performance
➢Secure Network Connection
◼Full encryption supported:WPA/WPA2, WPA-PSK/WPA2-PSK and 802.1X RADIUS authentication
◼Supports 802.1Q VLAN and SSID-to-VLAN mapping
◼Supports IP/Port/MAC address/URL filtering, DoS, SPI Firewall
◼Supports DMZ and Port Forwarding
◼Bandwidth control per IP address to increase network stability
➢Easy Installation and Management
◼3 simple steps to establish WDS connection easily
◼Supports AirLive AP Controllers in APmode
◼Self-healing mechanism through system auto reboot setting
◼System status monitoring through remote Syslog Server

User Manual of AirMax5X II
1.4 Product Specifications
ModelName AirMax2 II AirMax5X II
Description AirMax5X II: 5.8GHz 802.11n 300Mbps Outdoor Wireless CPE
AirMax2N: 2.4GHz 802.11n300Mbps Outdoor Wireless CPE
Hardware Features
Interfaces
Wireless IEEE802.11 a/n, 2T2R Wireless IEEE 802.11a/b/n, 2T2R
PoE: 1 x 10/100BASE-TX, auto-MDI/MDIX, Passive PoE PD
LAN: 1x 10/100BASE-TX, auto-MDI/MDIX
Antennas Built-in 8dBi directional antenna with
dualpolarization
Built-in 14dBi directional antenna with
dual
polarization
Button Reset/Pair button, WiFi ModeSwitch
Dimensions 87 x 38 x 260mm
Weight 405g
Power Requirements 48V Passive PoE
PowerConsumption <13W
Wireless Interface Specifications
Standard
IEEE802.11b/g/n
IEEE802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u100BASE-TX
IEEE 802.3x flow control
IEEE802.11a/n
IEEE802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u100BASE-TX
IEEE 802.3x flow control
Media Access Control CSMA/CA
Modulation
802.11b/g/n: OFDM (BPSK/QPSK/
16QAM/64QAM)
802.11b: DSSS (DBPSK/ DQPSK/
CCK)
802.11a/n: OFDM (BPSK/ QPSK/
16QAM/
64QAM)
FrequencyBand FCC: 2.412~2.462GHz
ETSI:2.412~2.472GHz
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI:5.180~5.700GHz
OperatingChannels FCC: 1~11 Channels
ETSI: 1~13Channels
FCC:
36, 40, 44, 48, 149, 153, 157,
161,
165
(9channels)
ETSI: 36, 40,
44, 48, 100, 104, 108,
112,
116,
132, 136, 140 (16 channels)
5GHz channel list will v
ery in different
countries according to their
regulations.
Max. TransmitPower
(dBm)
FCC: up to
20 dBm
ETSI: < 20dBm
(EIRP)
FCC: up to
26dBm
ETSI: < 20dBm
(EIRP)
N
etwork
Mode
Data
Rate
Receive
Se
nsitivit
y
(dBm)
N
etwork
Mode
Data
Rate
Receive
Se
nsitivit
y
(dBm)
802.11b
1Mbps
-95

User Manual of AirMax5X II
11Mbps
-
90
802.11g
6Mbps
-
90
802.11a
6Mbps
-
92
54Mbps
-
72
54Mbps
-
75
802
.11n
HT20
MCS0/MCS
8
-
90
802
.11n
HT20
MCS0/MC
S8
-
91
MCS7/MCS
15
-
72/-68
MCS7/MC
S15
-
72
802
.11n
HT40
MCS0/MCS
8
-
90
802
.11n
HT40
MCS0/MC
S8
-
88
MCS7/MCS
15
-
72/-68
MCS7/MC
S15
-
70
Environment & Certification
OperatingTemperature -20 ~ 70 degreesC
OperatingHumidity 5 ~ 90% (non-condensing)
IPLevel IP65
ESD Protection ±8kV air-gapdischarge
±4kV contactdischarge
SurgeProtection ±4kV
Regulatory CE,RoHS
Software
LAN StaticIP
Supports IP-MAC binding
WAN Type (GW/WIS
P
mode)
◼StaticIP
◼DynamicIP
◼PPPoE
WirelessModes
◼AccessPoint
◼Repeater
ChannelWidth 20MHz,40MHz
EncryptionType WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
WirelessSecurity
Enable/Disable SSID Broadcast
Wireless MAC address filtering
UserIsolation
Max.SSIDs 4
Max. Wireless Clients 64 per radio
Max. WDS Peers 4 (Up to 3 peers)

User Manual of AirMax5X II
Wireless QoS Supports Wi-Fi Multimedia(WMM)
WirelessAdvanced
Auto Channel Selection
WLAN Partition
Client Limit Control, Coverage Threshold
Distance control (Auto AckTimeout)
Wi-Fi channel analysischart
FastRoaming
Status Monitoring
Device status, wireless client List
AirLive Smart Discovery
DHCP clienttable
System Log supports remote syslog server
VLAN
IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs
Self-healing Supports auto reboot settings per day/hour
Management
Remote management through WEB/Cloud/Telnet
Configuration backup and restore
SupportsUPnP
Supports IGMPProxy
Supports PPTP/L2TP/IPSec VPN Pass-through
Central Management Applicable controllers: WLAN-128GM Smart AP Control

User Manual of AirMax5X II
Chapter 2. Hardware Installation
2.1 Product Outlook
AirMax5X II/2X II
◼Dimensions: 87 x 38 x 260mm
FrontSide
Figure 2-1 AirMax5X II/2X II Front Side
RearSide
Figure 2-2 AirMax5X II/2XII Rear Side

User Manual of AirMax5X II
RightSide
Figure 2-3 AirMax5X II RightSide Figure 2-4 AirMax2X II RightSide
LEDDefinition
LED
State Meaning
Power
On The device is poweredon
Off The device is poweredoff
WAN
Port
On Portlinked
Blinking Data is transmitting or receiving data
Off Nolink
LAN
Port
On Portlinked
Blinking Data is transmitting or receiving data
Off Nolink
WLAN
On The wireless radio is on
Blinking Data is transmitting or receiving over wireless
Off The wireless radio is off

User Manual of AirMax5X II

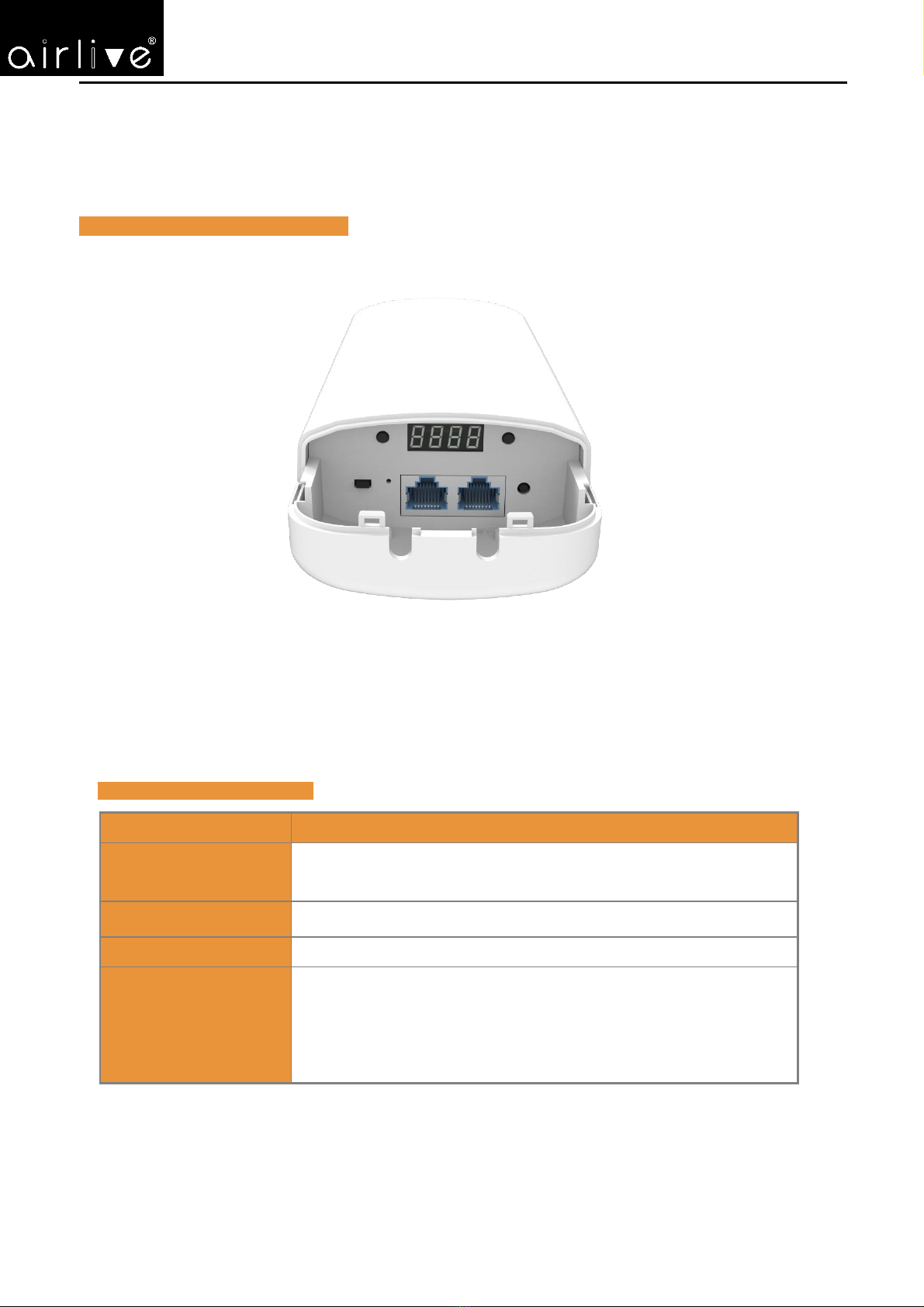

Port and Button
interface monitoring the AP. Figure 2-5 shows the hardware interface of the
It provides a simple
AirMax5X II/2XII.
AirMax5X II/2XII Hardware Interface:
Figure 2-5 AirMax5X II Interface
HardwareDescription
Hardware Interface Definition
Object
Description
PoE LAN
Port
10/100Mbps RJ45 port, auto
MDI/MDI-X
LAN
Port
10/100Mbps RJ45 port, auto
MDI/MDI-X
PtP
Switch
Position "
Master" to "Slave" on the AP.
Reset/Pair
Button
Press
and hold the Reset button on the device for over 15 seconds to
return to
the factory defaultsetting.
Press
the "Reset/Pair" button on both APs to be connected in 2
minutes.
The connection has been successfully established.

User Manual of AirMax5X II
Chapter 3. Connecting to theCPE
1. System Requirements
◼Broadband Internet Access Service (Cable/xDSL/Ethernet connection)
◼Passive PoE 48V(supply power to the AirMax5X II/2XII)
◼PCs with a working Ethernet adapter and an Ethernet cable with RJ45 connectors
◼PCs running Windows 98/ME, NT4.0, 2000/XP, Windows Vista / Win 7, MAC OS 9 or later, Linux,
UNIX or other platforms compatible with TCP/IP protocols
1. The CPE in the following instructions refers to AirLive AirMax5X II.
2. It is recommended to use Internet Explorer 11, Firefox or Chrome to access the CPE.
3.2 Installing the CPE
Before installing the CPE, make sure your PoE switch is connected to the Internet through the broadband service
successfully at this moment. If there is any problem, please contactyour local ISP.
Please install the AP according to the following steps. Don't forget to pull out the power plug and k eep your
hands dry.

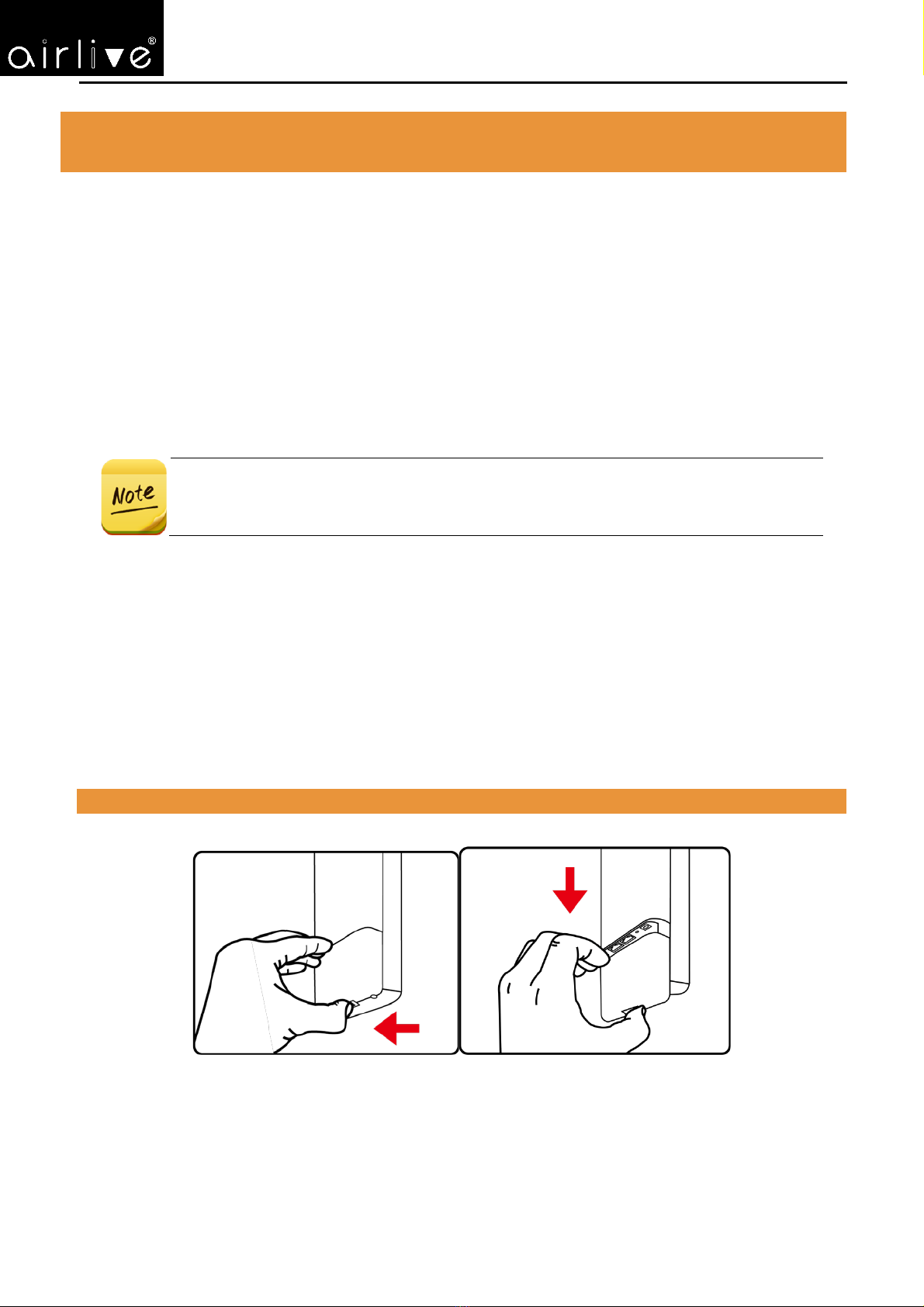

Step 1. Push the latch on the bottom of the Outdoor Wireless CPE to remove the sliding cover.
Figure 3-1 Connecting theAntenna

User Manual of AirMax5X II
Step 2. Plug the RJ45 Ethernetcable into the PoE port of the Outdoor Wireless CPE. Then, slide back the
cover to finish the installation.
Figure 3-2 Connecting the Ethernet cable
Step 3. Place the mounting strap through the slot on the back of the Outdoor Wireless CPE and then around
the pole. Tighten the mounting strap to secure the Outdoor Wireless CPE.
Figure 3-3 Connecting the PoE injector

User Manual of AirMax5X II
Chapter 4. Quick Installation Guide
This chapter will show you how to configure the basic functions of your CPE within minutes.
A computer with wired Ethernet connectionto the Wireless CPE is required for the first-time
configuration.
4.1 Manual Network Setup -- TCP/IP Configuration
The default IP address of the AirMax5X II is 192.168.1.253. And the default Subnet Mask is 255.255.255.0.
These values can be changed as you want. In this guide, we use all the default values for description.
Connect the AirMax5X II with your PC by an Ethernet cable plugging in LAN port on one side and in LAN port of
PC on the other side. Please power on the AirMax5X II by PoE switch throughthe PoE port.
In the following sections, we’ll introduce how to install and configure the TCP/IP correctly in Windows 10. And
the procedures in other operating systems are similar. First, make sure your Ethernet Adapter is working, and
refer to the Ethernet adapter manual if needed.

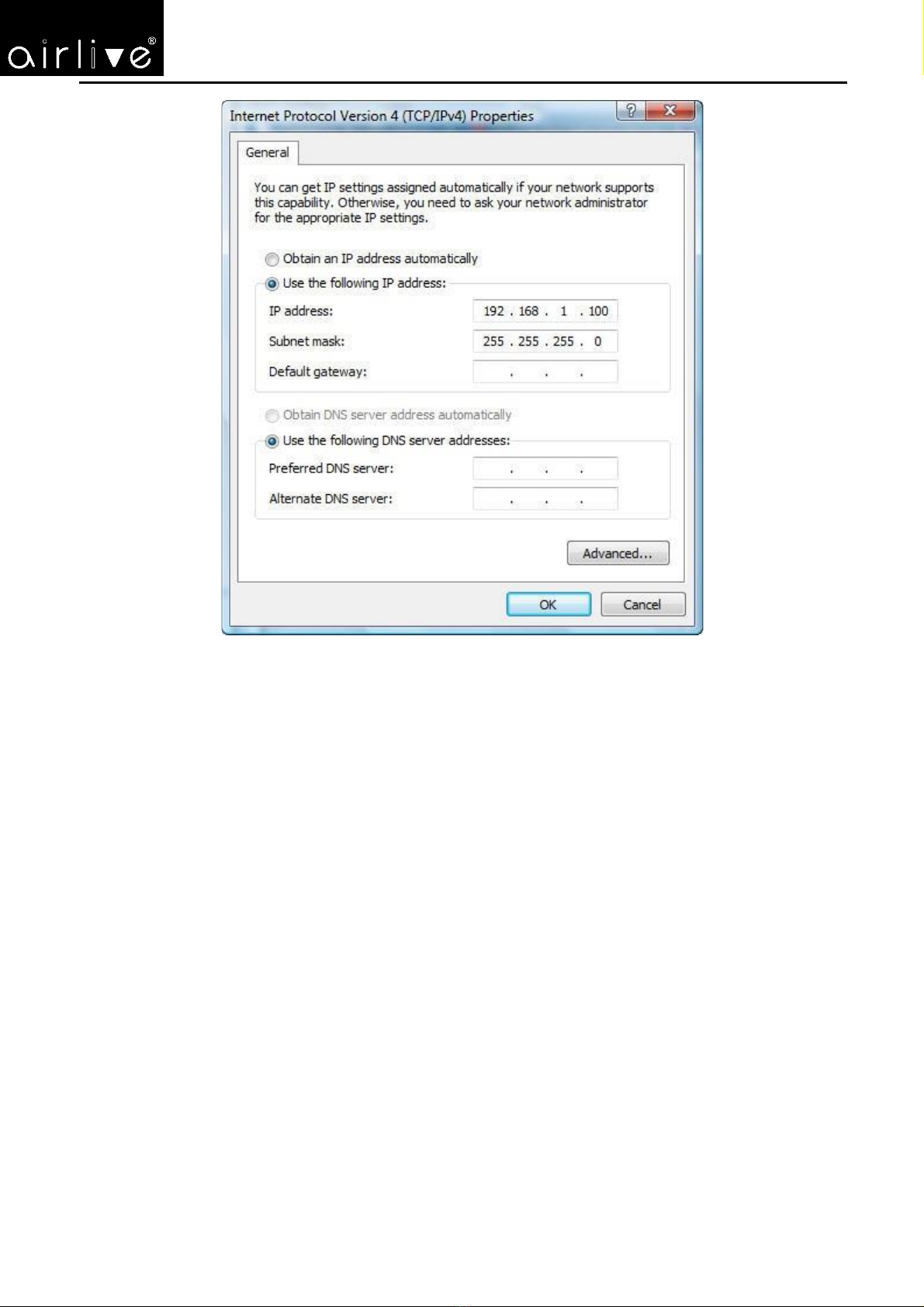

Configuring the IP Address Manually
Summary:
◼Set up the TCP/IP Protocol for your PC.
◼Configure the network parameters. The IP address is 192.168.1.xxx (If the default IP address of the
AirMax5X II is 192.168.1.253,and the DSL router is 192.168.1.254, the "xxx" can be configured to any
number from 1 to 252.) and subnet mask is 255.255.255.0.
1Select Use the following IP address, and then configure the IP address of the PC.
2For example,as the default IP address of the AirMax5X II is 192.168.1.253and the DSL router is
192.168.1.254, you may choose from 192.168.1.1 to 192.168.1.252.

User Manual of AirMax5X II
Figure 4-1 TCP/IPSetting
Now click OK to save your settings.
Now, you can run the ping command in the command prompt to verify the network connection between your
PC and the AP.The following example is in Windows 10 OS. Please follow the steps below:
1. Click on Start > Run.
2. Type “cmd” in the Searchbox.

User Manual of AirMax5X II

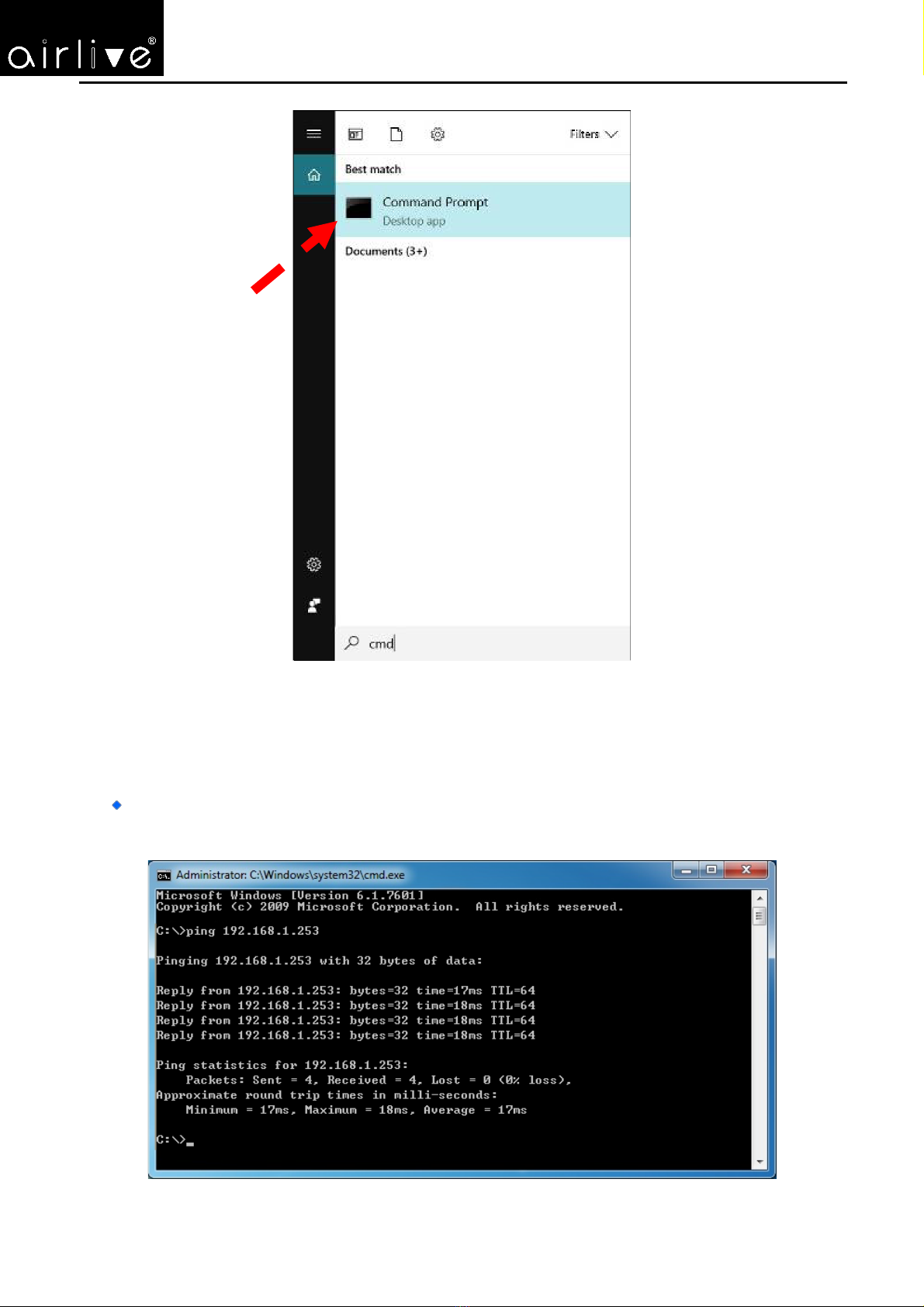

Figure 4-2 Windows StartMenu
3. Open a command prompt, type ping 192.168.1.253 and then press Enter.
If the result displayed is similar to Figure 4-3, it means the connection between your PC and the AP
has been established well.
Figure 4-3 Successful Result of Ping Command

User Manual of AirMax5X II
If the result displayed is similar to Figure 4-4, it means the connection between your PC and the AP
has failed.
Figure 4-4 Failed Result of Ping Command
If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your AP.Some
firewall software programs may block a DHCP request on newly installed adapters.

User Manual of AirMax5X II
4.2 Starting Setup in the Web UI
It is easy to configure and manage the CPE with the web browser.
Step 1. To access the configuration utility, open a web-browser and enter the default IP address
http://192.168.1.253 in the web address field of the browser.
Figure 4-5 Login by Default IPAddress
After a moment, a login window will appear. Enter admin for the password in lower case letters. Then click
LOGIN or press the Enter key.
Figure 4-6 LoginWindow
Default IP Address:192.168.1.253
Default ID/Password:admin
If the above screen does not pop up, it may mean that your web-browser has been set to a
proxy. Go to Tools menu> Internet Options> Connections> LAN Settings on the screen that
appears, uncheck Using Proxy and click OK to finish it.

User Manual of AirMax5X II
Chapter 5. Configuring the CPE
This chapter delivers a detailed presentation of CPE’s functionalities and features 3 main items below, allowing
you to manage the CPE with ease. The screen shots use the AirMax5X II as an example.

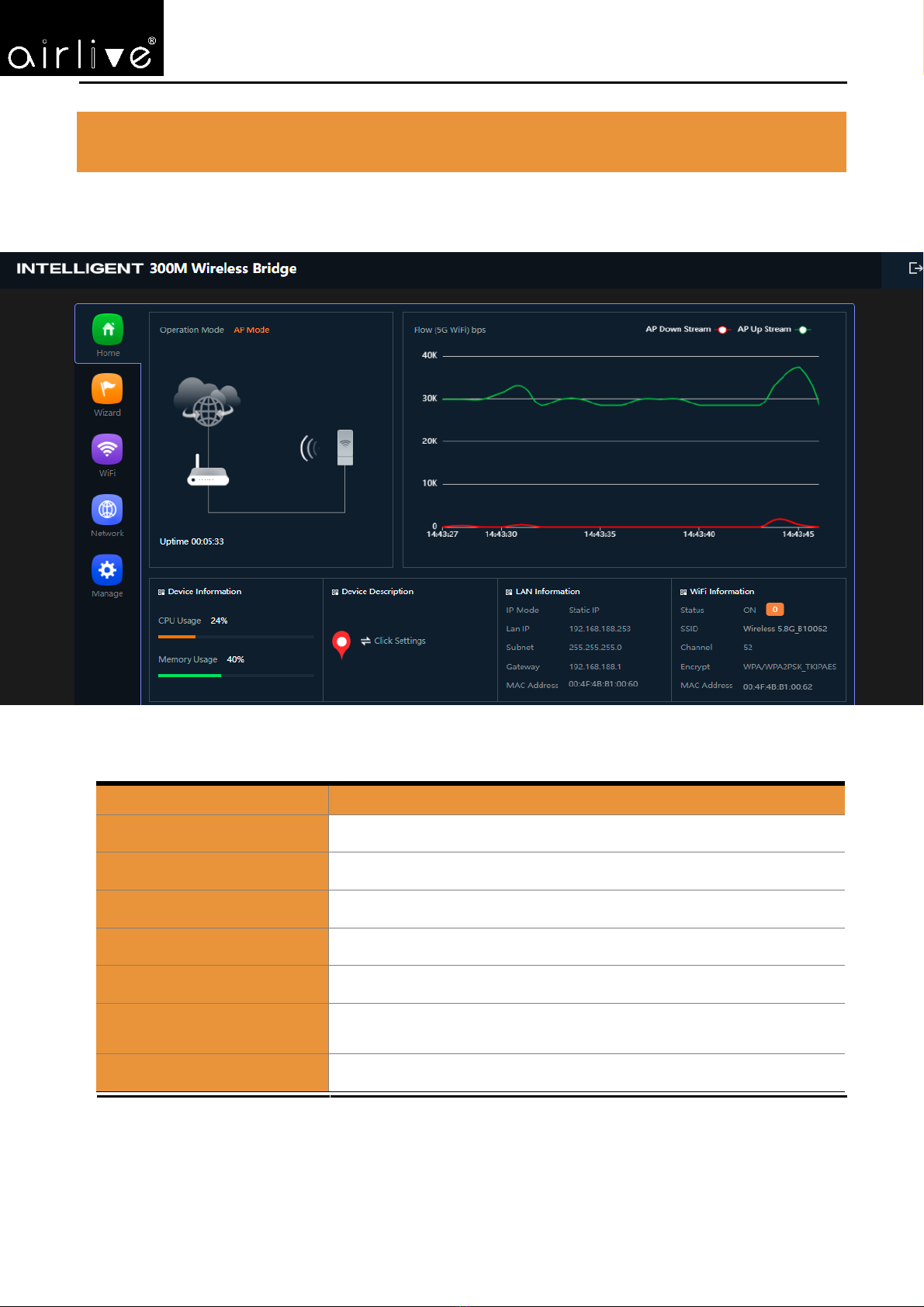

Figure 5-1 MainMenu
The page includes the following fields:
Object
Description
OperationMode
It shows the current mode
status.
DeviceInformation
It shows the
CPU/memoryusage.
DeviceDescription
You
can enter the device description.
Flow (2.4G/5G Wi-Fi) bps
It shows the Upstream/Downstream
graph.
LAN Information
It shows the device
IP mode, LAN IP, subnet, gateway and MACaddress.
Wi-FiInformation
It shows
the Wi-Fi status, SSID, channel, Encryption, MAC address and
client
list.
Version
It shows the firmware version (Double
-click to show more detailed info.).
