Airsafe E0L-OB-LED User manual

Advanced Airport Lighting System
LED Solar Obstruction Light and LED Solar Light in
Inapplicable Areas
E0L-OB-LED and EOL-IA-LED
Operation Manual
Please read this manual carefully before construction, installation and
operation of the product.
Please keep this manual properly for further reference.
This manual is subject to change without prior notice.
Airsafe Airport Equipment Co., Ltd.

Advanced Airport Lighting System
2
Revision Description
No.
Description
Version
No.
Revised by
Approved by
Date
1
First release
V1.0
Z.JL
C.JQ
Oct. 15, 2014
First revision
V1.1
H.GT
C.JQ
Nov. 21, 2016

Advanced Airport Lighting System
3
Table of Content
Table of Content ...................................................................................................................3
1.0 Foreword.........................................................................................................................4
1.1 Illustrations and Meanings...........................................................................................4
1.2 Safety Rules and Notices .............................................................................................5
1.3 Quality Assurance and Responsibility..........................................................................6
2.0 Introduction.....................................................................................................................7
2.1 Technical Specifications ..............................................................................................8
2.2 Application Environment.............................................................................................8
2.3 Application Scope .......................................................................................................9
2.4 Technical Parameters...................................................................................................9
2.5 Technical Features.....................................................................................................10
2.6 Structure....................................................................................................................11
2.7 Mode of Lighting Fixtures .........................................................................................12
2.8 Operation of Remote Control.....................................................................................14
2.9 Handling of Abnormal State of Lighting Fixtures.......................................................17
3.0 Installation ....................................................................................................................20
3.1 Direction Installation of Flange..................................................................................20
3.2 Safety Precautions .....................................................................................................20
3.3 Installation and Use ...................................................................................................21
3.4 Installation Steps .......................................................................................................22
4.0 Replacement of Components of Lighting Fixtures..........................................................23
4.1 Replace Cell ..............................................................................................................24
4.2 Replace Prism............................................................................................................25
4.3 Replace Internal Drive...............................................................................................26
4.4 Accumulator Charging...............................................................................................27
5.0 Maintenance of Lighting Fixtures ..................................................................................28
5.1 Daily Maintenance.....................................................................................................28
5.2 Regular Spot Check and Troubleshooting ..................................................................29
6.0 List of Components and Ordering of Spare Parts and Accessories..................................30
7.0 Packaging, Transportation and Storage ..........................................................................32
7.1 Packaging and Weight ...............................................................................................32
7.2 Transportation Mode .................................................................................................32
7.3 Storage......................................................................................................................32
Appendix I: Total Solar Radiation Quantity and Annual Average Sunshine Equivalents in
Regions of China.................................................................................................................33

Advanced Airport Lighting System
4
1.0 Foreword
ICAO Airport Service Manual Part 9 “Airport Maintenance Practices” and FAA
AC150/5345-26 Maintenance of Airport Visual Aid Facilities are the highest
criterions for site installation and maintenance of such lighting fixtures. This manual
was compiled with considerable reference to these two criterions.
The content stated in this manual is absolutely important, so construction
personnel must read it carefully before construction. After properly understanding
the entire content of this manual, construction personnel should carry out the
construction in strict accordance with the methods specified herein, to ensure that the
product is safely and properly installed in place.
Routine airport maintenance personnel should carry out the routine maintenance
in strict accordance with the methods specified by relevant provisions, to ensure that
the lighting fixtures are in the best operation condition.
Related personnel must strictly follow safety criterion. Any personnel without
specialized training is strictly forbidden to touch the lighting fixtures and devices.
Live line work should be avoided under any circumstances. Construction or
maintenance personnel should get acquainted with first-aid knowledge, in case of
any unexpected events.
1.1 Illustrations and Meanings
○Following illustrations will appear in this manual where necessary to remind or
warn construction or maintenance personnel.
○Please continue reading the subsequent content of this manual after properly
understanding the meanings of these illustrations.
To remind that the behavior may cause serious injury or death.
※Detailed description will be given in the box.
To remind that the behavior may cause injury to people or damage to
product.
※Detailed description will be given in the box.
To notify that the behavior is prohibited.
※Detailed description will be given in the box.

Advanced Airport Lighting System
5
1.2 Safety Rules and Notices
Using the light fixtures outside of airport is strictly prohibited.
※Inadequate maintenance or casual touch will cause light faults.
The frangible pole is equipped at the lower part of the light pole.
When it is installed, upper part of the frangible pole bearing the force
is prohibited.
※The frangible pole may be broken.
Making sure that Lamp is on power-off state before the installation or
maintenance of the lighting fixtures.
※Keep sufficient battery voltage.
Non-professional electricians are strictly forbidden to maintain any
electrical fault of the lighting fixtures.
※It may damage any electrical component of the lighting fixtures or
cause bigger fault.
Live line maintenance of the lighting fixtures is strictly prohibited; in
case of lightning and/or thunderstorm, maintenance of the lighting
fixtures is prohibited.
※It may cause electric shock accident.
Be careful when handling the lighting fixtures.
※Drop or collision may damage the parts or cause personal injury.
Please handle the damaged prism with gloves or other protective
measures.
※The glass fragment may scratch you hands.

Advanced Airport Lighting System
6
1.3 Quality Assurance and Responsibility
Any defect in design, material or workmanship, which may occur during proper
and normal use over a period of one year from date of installation but less than 15
months from date of shipment, or within the warranty period of the tender, will be
repaired or preplaced by manufacturer free of charge. The warranty doesn’t cover the
failures resulting from lamp burnt out, improper maintenance, installation or
operation, or damages due to snow ploughs. Manufacturer shall not be liable to any
further claims or particularly claims for damages not affecting the goods themselves.

Advanced Airport Lighting System
7
2.0 Introduction
This manual involves the following series lighting fixtures:
EOL-IA-LED--------------------------------------------------Solar light in Inapplicable
Areas

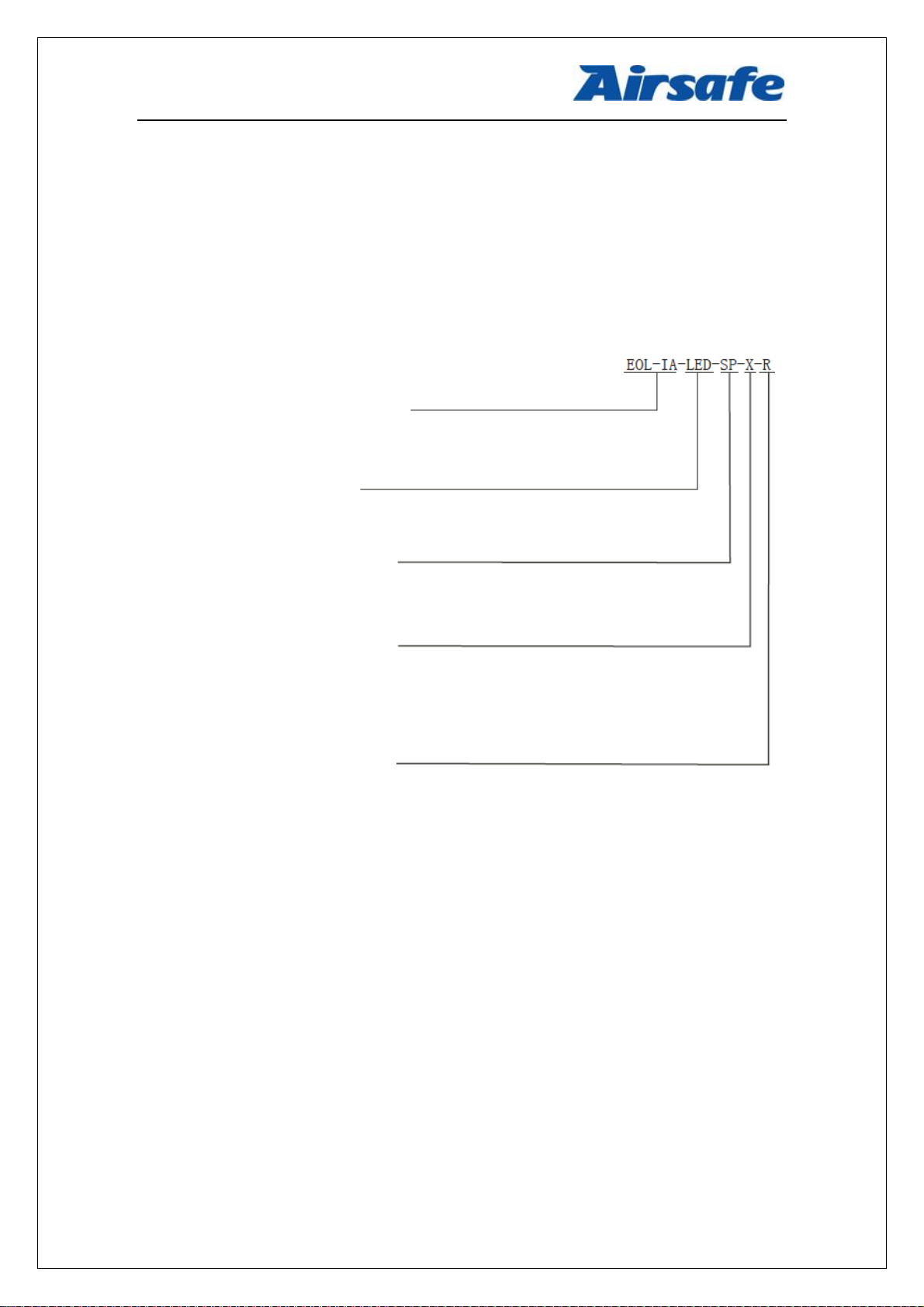

Type of Light in Solar Energy Inapplicable Areas (EOL-IA):
Type
EOL-IA: Light in inapplicable areas
Lamp
LED= LED lamp
Power supply mode
SP: Power supplied by the solar cell
Luminous mode
A: Excluding light control, continuous lighting mode
B: Including light control, continuous lighting mode
C: Including light control, flash mode
Beam color
R=Red

Advanced Airport Lighting System
8
2.1 Technical Specifications
This product conforms to the provisions of the following standards or technical
specifications. For dated standards or technical specifications, only the edition cited
applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
International Electrotechnical Commission (IEC) TS 61827;
Convention on International Civil Aviation Annex 14- Aerodromes Volume 1;
International Civil Aviation Organization (ICAO)- Aerodrome Design Manual-
Part 4: Visual Aids;
Federal Aviation Administration (FAA) AC150/5345-46;
Federal Aviation Administration (FAA) EB 67;
GB/T 7256 General Requirements of Lighting Fixtures for Civil Airport;
Department of Airport of Civil Aviation Administration of China: Advisory
Circular, Technical Requirements for Runway and Taxiway Aid Lighting Fixtures
(AC-137-CA-2015-03)
Department of Airport of Civil Aviation Administration of China, Advisory
Circular, General Technical Requirements for Civil Airport LED Aid Lighting
Fixtures (AC-137-CA-2015-01)
2.2 Application Environment
○Altitude: below 4,000m;
○Outdoor: -55°C ~ +55°C;
○Relative air humidity: not more than 95%;
○In rain, snow, ice and water;
○Expose to corrosive salt atmosphere
○Basic earthquake intensity VII.

Advanced Airport Lighting System
9
2.3 Application Scope
Elevated LED obstruction light and light in inapplicable areas for Category I, II
and III airports.
The solar illumination intensity has great impacts on the use effects of the
lighting fixtures. For the areas with insufficient sunlight all year round, the solar
lighting fixture product is not suggested.
Using the lighting fixtures beyond the specified scope is strictly
prohibited.
※Application beyond the specified scope will cause damage or risk to any
component.
Please confirm the use by referring to the sunlight table attached to the
specification.
※It is impossible to ensure that the lighting fixtures work normally in the
areas with insufficient sunlight.
2.4 Technical Parameters
Description
Type
Rated Power
Life of Light Source
LED Solar Light in
Inapplicable Areas
EOL-IA-LED
0.7VA
≥50,000h
Lamp: LED particle*1
Power supply: Solar cell
Requirement of annual average illumination duration: ＞3.1h/d
Maximum service time without sunlight: 8 days (five-level light) /40 days
(three-level light)
Remote control mode: Infrared ray
Remote control distance and angle: 1~1.5m 0°~90°
IP rating: IP65

Advanced Airport Lighting System
10
2.5 Technical Features
Long life, energy saving, maintenance free and other characteristics of LED will
bring huge economic benefits to customers;
Proprietary prism structure and manufacturing process, making the optical
efficiency excellent;
Strict LED color management ensures the consistency of light color;
The prism is made of the glass, whose surface resists the erosion of wind and
sand;
Unique taper design of the prism edge effectively prevents accumulation of rain,
snow, wind and sand;
LED of the international first-class brand is used, with proprietary drive circuit,
greatly enhancing the reliability and extending the service life of the lighting
fixtures;
Advanced solar cell panel is selected, with high energy efficiency conversion
and ultra-long service life;
The power source management software of the lighting fixtures may effectively
give full play to the efficiency of the solar cell panel;
The industrial accumulator is employed, which has the properties of low
self-discharge and low current charging;
The waterproof aviation receptacle is reserved for charging the external charger;
Lighting fixtures have compact structure and attractive appearance;
Main body of the lighting fixtures is made of aluminum alloy material with
special anodizing surface treatment, and all fasteners are made of stainless steel,
thus being applicable to all kinds of harsh environment;
High precision components machining ensures dimensional quality and
precision of the lighting fixtures.
Overall protection rating of the lighting fixtures reaches IP65 and dust will not
be easily accumulated in them;

Advanced Airport Lighting System
11
2.6 Structure
1. Prism
2. LED lamp
3. Gasket
4. Front cover
5. Gasket
6. Solar panel
7. Upper cover of shell
8. Shell cutting
9. Circuit board
10. Light body gasket
11. Shell framework
12. Accumulator pressing bracket
13. Accumulator
14. Bottom cover of shell
15. Frangible pole
16. Flange 3
17. Receptacle

Advanced Airport Lighting System
12
2.7 Mode of Lighting Fixtures
Operation modes of the lighting fixtures are controlled by the infrared ray
controller, including constant light mode, light control mode and standby mode.
When the lighting fixtures leave the factory, the “light control mode”is set.
Meanwhile, the luminous intensity of the lighting fixtures is step 3 under any mode.
1. Constant light mode:
Under the constant light mode, the lighting fixtures constantly and continuously
give out light on day and at night.
Approximate operation time of the lighting fixtures under the constant light
mode is as follows: 64 days for step-1 lighting fixtures, 56 days for step-2 lighting
fixtures, 30 days for step-3 lighting fixtures, 14 days for step-4 lighting fixtures and
4 days for step-5 lighting fixtures (the above-mentioned data are the theoretical
values of the new lighting fixtures, which are fully charged and continuously give
out light).
The constant light mode is only used for the illumination
under some special states.
※The power consumption under this mode is high.
2. Light control mode:
Under the light control mode, when the environmental intensity is lower than
35FC (about 376Lux), the lighting fixture gives out light. When the environmental
intensity is higher than 60FC (645Lux, the lighting fixture goes out. Under the state
of sunny day, the lighting fixture gives out light for about 14h per day and is turned
off for about 10h. Under the normal cases, this mode is suggested for the normal use
of the airport.
Operation time of the lighting fixtures under the light control mode is as
follows: About 75 days for step-1 lighting fixtures, about 64 days for step-2 lighting
fixtures, about 40 days for step-3 lighting fixtures, about 22 days for step-4 lighting
fixtures and about 8 days for step-5 lighting fixtures (the above-mentioned data are
the theoretical values, without charging and the lighting fixture gives out light 14h
per day).
Changing this operation mode without authorization is
prohibited.
※The power consumption under other modes is too high.

Advanced Airport Lighting System
13
3. Standby mode:
The standby mode is often used for the warehouse storage. The long-term
storage time of the lighting fixture is three months without its lamp turned on (the
ambient temperature is lower than 35℃). The lighting fixture is stored in the
warehouse. When it is in the standby mode, the lighting fixture shall be fully charged
once per three months to ensure that the cell is valid.
After long-term storage, the lighting fixtures shall be charged
before use.
※The lighting fixture performance may be poor.
This mode is used for the warehouse storage or
transportation.
※Long-term power loss of the lighting fixtures may impact the
service life of the cell.
4. Precautions:
Because the solar lighting fixture works normally depending on the weather to
some extent, we suggest the user to use the light control mode. The lighting fixture
is turned off on day and turned on at night. Under the state of sunny day, the
accumulator is charged by the solar cell panel to keep its electricity sufficient, so as
to make the lighting fixture work stably and normally for a long time. Under the
state of long-term overcast and rainy weather, without charging through sunlight,
when the internal power is used up, in order to protect the internal accumulator, the
lighting fixture will enter the standby mode. At this moment, the lighting fixture is
remotely controlled with any key of the remote control, which goes out after
flashing for three times. In such case, the lighting fixture shall be charged
immediately or the internal accumulator shall be replaced immediately. For the
charging method, see Section 4.4. For the steps of cell replacement, see Section 4.1.
Along with the increase of service time of the lighting fixtures, the electric
power storage capacity of the internal accumulator is reduced step by step and the
above-mentioned theoretical values of the operation time will be shortened
accordingly. The regular replacement time of the internal accumulator suggested is
less than three years. Such time is different from the guaranteed service life and
expected service life of the cell.
A little of combustible gas may be generated in the lighting fixture. Do not use
the lighting fixture nearby the articles generating heat, open fire or spark.

Advanced Airport Lighting System
14
2.8 Operation of Remote Control
The remote control is divided into the advanced management remote control and
standard remote control.
(Advanced Management Remote Control) (Standard Remote Control)
Advanced management remote control: It may change the operation state of the
lighting fixture and adjust its luminous intensity. Unless the lighting fixture mode
shall be changed, such remote control is often not used.
Standard remote control: Remote control used daily for easily operating the
light control mode and standby mode.
Advanced management remote control shall be kept by a
particular person.
※Prevent misoperation of the remote control

Advanced Airport Lighting System
15

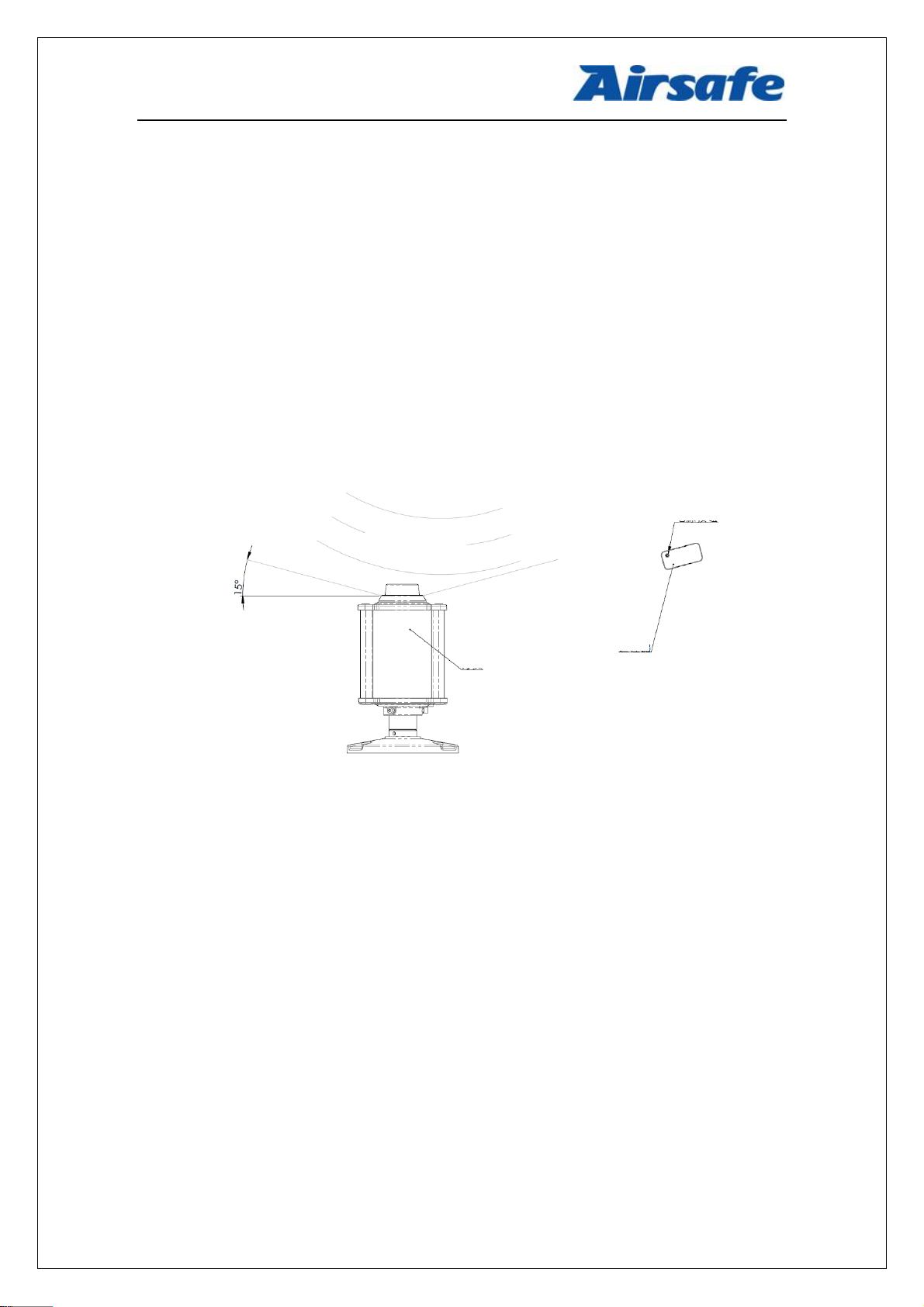

Method to remotely control the lighting fixture with a remote control:
Hold a remote control with hands to effectively and remotely control the
lighting fixture at any position in the space which is higher than its prism plane and
whose distance is no greater than 2m. The position of about upward 15° included
angle of the prism plane of the lighting fixture is the best remote control point as
shown in Figure above.
Press the button, the lighting fixture will flash once as confirmation of the
instruction after receiving it. When the angle and distance are appropriate (see
Figure below), single remote control may trigger several lighting fixtures and
change the operating mode.
Operating method of the standard remote control is as follows:
After the remote control button is pressured by aiming at the lighting fixture,
the lighting fixture will enter the corresponding mode.
Press the button “ON” on the remote control to start the light control mode 按of
the LED lighting fixture: When the environmental intensity is lower than 35FC
(about 376Lux), the lighting fixture gives out light and when the environmental
intensity is higher than 60FC (about 645Lux), the LED particle goes out.
Press the button “OFF” on the remote control to turn off the LED lighting
fixture, which enters the standby mode.
If this product is not charged continuously through sunlight for a long time, it
will automatically recover to the operation mode or ON/OFF state prior to cell
protection after the cell power is recovered. After the cell is replaced, the lighting
fixture will recover its default factory setup (light control mode, step 3 light).
Signal coverage area
Lighting fixture
Power source button
Remote control

Advanced Airport Lighting System
16
Operation of the advanced management remote control is as follows:
The advanced management remote control is kept and operated by the
management person of the user department. Because it may change the operation
mode of the lighting fixture, it must be operated in strict accordance with the
provisions of the specification.
After the remote control button is pressed by aiming at the lighting fixture, the
lighting fixture enters the corresponding mode.
Press the button “ON” on the remote control to start the constant light mode of
the LED lighting fixture.
Press the button “OFF” on the remote control to turn off the LED lighting
fixture, which enters the standby mode.
Press the button “AUTO” on the remote control to start the light control mode
of the LED lighting fixture.
When the button “TEST” on the remote control is pressed for a while, the
lighting fixture will continuously flash if it is in the light control mode, otherwise
there will be not effects.
Step adjustment steps of the advanced management remote control are as
follows:
1. Press the button “SETUP” for 5s until the lighting fixture flashes once.
2. Press the button “OK” for 5s until the lighting fixture flashes once and now
it enters the setup mode.
3. Step will be increased by one by pressing “︿” and will be decreased by one
by pressing “﹀”. There are 5 steps, which include step 1, 2, 3, 4 and 5. If the
current steps is unknown, “﹀” may be pressed for consecutive 5 times to
adjust the step to the minimum one, then press “︿” to select the step
required. Whenever the step is changed, LED will flash once.
4. Press the button “OK”, the lighting fixture will flash once, meaning to save
and exit. There will be automatic save and exit by pressing other buttons or
no action for 20s.
Operating and controlling the lighting fixtures with other
unknown remote controls are prohibited.
※Otherwise they may change the operation mode of the
lighting fixtures or there will be other unknown problems.
When the product leaves the factory, the light control
operation mode has been set, which shall not be changed
without authorization.
※Too high energy consumption may cause shortened luminous
time of the lighting fixtures.

Advanced Airport Lighting System
17
2.9 Handling of Abnormal State of Lighting Fixtures
I. Abnormal Failure of Lighting Fixtures
Possible causes:
1. Misoperation of the remote control causes the lighting fixture in the standby
mode.
2. Under the light control mode, the environmental intensity is always higher
than 60FC (about 645Lux).
3. Abnormal internal accumulator in the lighting fixture.
4. Drop of internal circuit.
Troubleshooting methods:
长按遥控器“检查
/TEST”
待机模式 光控模式
蓄电池异常 环境光强高于
60FC 内部线路脱落
电力不足 漏液
闪烁三次后熄灭
正常模式下常灭
1. Press the button “TEST” on the remote control for a while
2. Check whether the environmental intensity is too high
3. Dismount the lighting fixture and check whether the internal circuit drops.
4. Check whether the accumulator has liquid leakage.
Solutions:
Continuous grey under
normal mode
Press the button “TEST” of
the remote control for a
while
No action
Continuous
flash
Going out after
flashing for three
times
Standby mode
Light control
mode
Abnormal
accumulator
The environmental
intensity is higher
than 60FC.
Drop of
internal circuit
Insufficient
power
Liquid leakage

Advanced Airport Lighting System
18
1．If the lighting fixture is in the standby mode caused by misoperation of the
remote control, it shall be remotely controlled with a standard remote control to
make it enter the light control mode. For the operation of the remote control, see
Section 2.8.
2．If the abnormal failure of the lighting fixture is caused by insufficient power of
the accumulator, the lighting fixture shall be timely charged. For the charging
method, see Section 4.4.
3．If the abnormal failure of the lighting fixture is caused by liquid leakage of the
accumulator, the accumulator shall be timely replaced. For the replacement steps,
see Section 4.1.
4．If the abnormal failure of the lighting fixture is caused by drop of the internal
circuit, the circuit shall be timely wired or contact the manufacturer.
5．If the abnormal failure of the lighting fixture is caused by the environmental
intensity, the light pollution around the lighting fixture shall be minimized.
II. Abnormal illumination of Lighting Fixtures
Possible causes:
1. Misoperation of the remote control makes the lighting fixture in the constant
light mode.
2. Under the light control mode, the environmental intensity is always lower than
35 FC (about 376Lux).
3. Abnormal solar cell panel.
4. Troubleshooting methods.
长按遥控器“检查
/TEST”
恒光模式 光控模式
太阳能电池板
异常
环境光强低于
35FC
表面有积尘异
物板破裂损坏
正常模式下常亮
Continuous lighting
under normal mode
Press the button
“TEST” of the remote
control for a while
No action
Continuous
flash
Constant light
mode
Light control
mode
Abnormal solar
cell panel
The environment
intensity is lower
than 35FC.
Accumulated dust or
impurities on the
surface
Panel cracked
or damaged

Advanced Airport Lighting System
19
1. Press the button “TEST” on the remote control for a while.
2. Check whether the environmental intensity is too low.
3. Check whether there is accumulated dust or impurity on the surface of the solar
cell panel.
4. Check whether the solar cell panel is cracked or damaged.
Solutions:
1. If the lighting fixture is in the constant light mode caused by misoperation of the
remote control, the lighting fixture shall be remotely controlled with a remote
control to enter the light control mode. For operation of the remote control, see
Section 2.8.
2. If the lighting fixture continuously lights up abnormally caused by the
accumulated dust or impurities on the surface of the solar cell panel, the solar
cell panel shall be timely cleaned. For the cleaning method, see Section 5.1.
3. If the lighting fixture continuously lights up abnormally caused by the crack or
damage of the solar cell panel, please timely contact the manufacturer.
4. If the lighting fixture continuously lights up abnormally caused by the
environmental intensity, it shall be placed in a spacious place exposed to the
sunlight.
III. Failed Charging of Accumulator
Dismount the lighting fixture, take out of the accumulator and check whether it
has liquid leakage. If so, replace the accumulator. For the replacement steps, see
Section 4.1. If not, the driver board may be faulty. For the replacement steps, see
Section 4.3.

Advanced Airport Lighting System
20
3.0 Installation
Requirements for installation should be learned thoroughly before installation
including installation tools and site requirement, etc., to avoid malfunction of the
light due to incorrect installation.
3.1 Direction Installation of Flange
This manual does not give any guidance to installation of chassis. Please seek
for technical support from construction side. Dimension of chassis to be installed is
as follows:
3.2 Safety Precautions
Correct installation of the lighting fixture is crucial according to the design and
on-site situation. Site cleaning and direction of the lighting fixture will directly
impact its normal functions.
During installation of the lighting fixtures, consideration shall be given to the
following:
1. The lighting fixture must be installed in a place with sufficient sunlight, free
of any sheltering. It shall be ensured that there is no shield shadow on the surface
facing the light of the battery pack throughout the day. In order to prevent the handle
of the lower and upper front covers of the lighting fixture shading the sunlight, it is
suggested that the handle should face the downsun direction (north) during
installation of the lighting fixture.
2. When it is impossible for no sheltering throughout the day, there shall not
be sheltering during the sunlight period.
The lighting fixture shall not be close to the heat source as
much as possible and ventilation is very important.
※Otherwise it impacts the service life and charging efficiency of
the lighting fixture.
