SERVICE MANUAL
DATA
REVISION
HS-TA203
YL,YZ,YJ
STEREO RADIO
CASSETTE PLAYER BASIC TAPE MECHANISM : 4ZM-2 P13NF,
P13NC
S/M Code No. 09-001-421-8R2
•This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-99B-421-8T2).
•This Service Manual is not for HS-TA203(YL) Silver color.
AHRLA4_COVER.1 & 14.p65 20-Jan-00, 3:26 PM1
•Designandspecificationsaresubjecttochangewithoutnotice.
SPECIFICATIONS
Frequency range: FM: 87.5 – 108 MHz
AM: 530 – 1710 kHz
Maximum output: 15 mW + 15 mW (EIAJ/32 ohms)
Power source: DC 3V using two R6 (size AA) batteries
Maximum dimensions: 92.0 (W) x 116.4 (H) x 38.3 (D) mm
(35/8 x 45/8 x 19/16 in.)
Weight: Approx.131.5 g (4.6 oz) (excluding batteries)
2
1 8A-HRL-903-010 IB,YL(ESP)–C <YL>
1 8A-HRL-907-010 IB,YL(ESP)–C <YL>
1 8A-HRL-904-010 IB,YZ(EGFSI)–C <YZ>
1 8A-HRL-905-010 IB,YZ(EDPOHCZ)–C <YZ>
1 8A-HRL-908-010 IB,YZ(EGFSI)–IN <YZ>
1 8A-HRL-909-010 IB,YZ(EDPOHCZ)–IN <YZ>
1 8A-HRL-906-010 IB,YJ(ESC)–C <YJ>
1 8A-HRL-910-010 IB,YJ(ESC)–IN <YJ>
2 84-447-019-310 CLIP,BELT
3 87-B30-080-110 HEADPHONE,HP-M009(F)
ACCESSORIES / PACKAGE LIST
DESCRIPTION
REF.NO. KANRI
NO.
PARTNO.
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
3
ELECTRICAL MAIN PARTS LIST
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
IC
87-A21-387-040 C-IC,TA2145F
87-A20-851-040 C-IC,TA2111F
TRANSISTOR
87-A30-159-080 C-TR,KTA1298
87-026-261-080 CHIP-TR,RN1404
87-026-262-080 C-TR,RN1407
DIODE
87-020-027-080 C-DIODE,1SS184
MAIN C.B
87-A90-988-010 FLTR,KMFC5153 T6-Z
BPF101 87-A91-680-010 FLTR,GFMB5-C3
C1 87-A11-553-080 C-CAP,S 1500P-50 K B
C2 87-A11-553-080 C-CAP,S 1500P-50 K B
C5 87-010-500-040 CAP,E 33-4
C6 87-015-675-040 CAP,E 33-6.3 M SRA
C7 87-A11-565-080 C-CAP,S 8200P-50 K B
C8 87-A11-565-080 C-CAP,S 8200P-50 K B
C11 87-A11-733-080 C-CAP,S 1-16 Z F
C12 87-A11-733-080 C-CAP,S 1-16 Z F
C13 87-A11-554-080 C-CAP,S 1800P-50 K B
C14 87-A11-554-080 C-CAP,S 1800P-50 K B
C15 87-015-676-040 E/CAP 47/6.3
C16 87-A11-718-080 C-CAP,S 0.1-25 Z F
C17 87-A11-733-080 C-CAP,S 1-16 Z F
C18 87-A11-718-080 C-CAP,S 0.1-25 Z F
C21 87-A10-489-040 CAP,E 220-4 7L SR
C22 87-A10-489-040 CAP,E 220-4 7L SR
C23 87-A10-489-040 CAP,E 220-4 7L SR
C24 87-A11-726-080 C-CAP,S 0.33-16 Z F
C25 87-A11-726-080 C-CAP,S 0.33-16 Z F
C51 87-A11-733-080 C-CAP,S 1-16 Z F
C101 87-010-146-080 C-CAP,S 2P-50 C CH<YL>
C101 87-010-147-080 C-CAP,S 3P-50 C CH<YJ,YZ>
C102 87-012-150-080 C-CAP,S 20P-50 J CH
C103 87-010-315-080 C-CAP,S 27P-50<EXP[DM,GM]YLC>
C103 87-012-159-080 C-CAP,S 24P-50<[DM,GM]YLC>
C104 87-010-145-080 C-CAP,S 1P-50 C CH GRM<YL>
C104 87-010-147-080 C-CAP,S 3P-50 C CH<YJ,YZ>
C105 87-A11-566-080 C-CAP,S 0.01-25 K B
C106 87-A11-729-080 C-CAP,S 0.47-25 Z F
C107 87-A11-733-080 C-CAP,S 1-16 Z F
C108 87-A11-551-080 C-CAP,S 1000P-50 K B
C109 87-016-462-080 C-CAP,S 1-16 Z F
C110 87-010-196-080 C-CAP,S 0.1-25 Z F
C111 87-010-196-080 C-CAP,S 0.1-25 Z F
C112 87-A11-569-080 C-CAP,S 0.012-50 K B
C113 87-A11-569-080 C-CAP,S 0.012-50 K B
C114 87-A11-584-080 C-CAP,S 0.033-16 K B
C115 87-A11-584-080 C-CAP,S 0.033-16 K B
C116 87-015-688-040 E/CAP 4.7UF 35V TAPG
C117 87-010-452-080 CAPACITOR,1-16
C118 87-A11-551-080 C-CAP,S 1000P-50 K B
C119 87-010-503-040 CAP,E 220-4 GAS
C128 87-012-140-080 C-CAP, 470P-50 J CH
C130 87-012-140-080 C-CAP, 470P-50 J CH
C131 87-012-153-080 C-CAP,S 120P-50 J CH
C132 87-010-150-080 C-CAP,S 6P-50 D CH
C401 87-016-460-080 C-CAP,S 0.22-16 K B<[LM]YJ>
C401 87-A11-722-080 C-CAP,S 0.22-16<EXCEPT [LM]YJ>
C402 87-016-460-080 C-CAP,S 0.22-16 K B<[LM]YJ>
C402 87-A11-722-080 C-CAP,S 0.22-16<EXCEPT [LM]YJ>
C403 87-A11-718-080 C-CAP,S 0.1-25 Z F
CF101 87-A91-087-010 FLTR,PFS 450A6 B
J1 85-HRL-623-010 JACK,3.5 ST BLK
L1 87-A50-538-010 COIL,1UH RF CHOKE
L2 87-005-849-080 COIL,10UH(CECS)
L101 8A-HRJ-607-010 BAR-ANT,MW (KTR)
L102 8A-HRJ-606-010 COIL,FM RF
L103 8A-HRJ-605-010 COIL,FM OSC
L104 87-A50-534-010 COIL,270UH AMOSC
L105 87-A90-663-010 IFT,MW 5L H6.4
PVC101 87-A91-707-010 TUN-CAP,20P-160P 16X16 A45
R51 87-022-335-080 C-RES,S 180-1/10W F
SFR51 87-024-197-010 SEMI-FIXED RESISTOR, 1K
SW1 87-A90-133-110 SW,LEAF LSA1120JAU
SW2 87-A90-216-010 SW SL 2-2-3 SK230
VR1 87-A90-981-010 VR,RTRY 20KBX1
FRONT C.B
SW401 87-A90-330-080 C-SW,SL 1-1-2 SSSS81
* Note : EXP = EXCEPT
4
TRANSISTOR ILLUSTRATION
RN1404
RN1407
KTA1298
B
E
C
AHRLA3_3-6.9-10.p65 01/20/2000, 17:081
WIRING
65
AHRLA3_3-6.9-10.p65 01/20/2000, 17:082
SCHEMATIC DIAGRAM
87
910

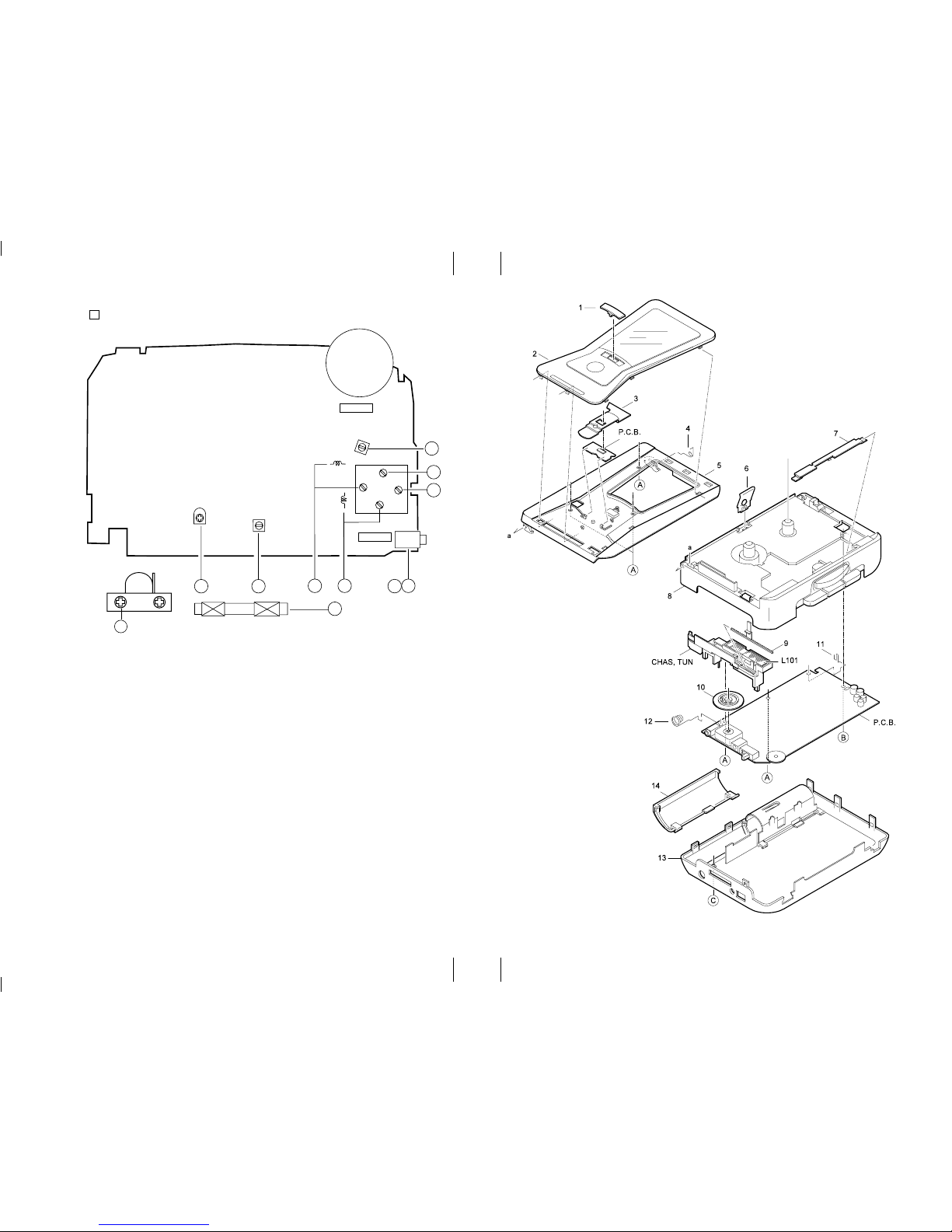

MECHANICAL EXPLODED VEW 1 / 1
ADJUSTMENT
<TUNER SECTION>
1. AM IF Adjustment
L105 ....................................................................... 455kHz
2. AM Frequency range Adjustment
L104 ................................................ 517kHz ± 5kHz<YL>
L104 .......................................... 515kHz ± 5kHz<YZ,YJ>
TC104 ........................................... 1770kHz ± 7kHz<YL>
TC104 ..................................... 1670kHz ± 7kHz<YZ,YJ>
3. AM Tracking Adjustment
L101 ....................................................................... 600kHz
TC101 .................................................................. 1400kHz
4. FM Frequency range Adjustment
L103 ........................................87.4MHz ± 0.1MHz<YZ>
L103 ...................................87.0MHz ± 0.1MHz<YL,YJ>
TC103 ................................... 109.0MHz ± 0.1MHz<YL>
TC103 ....................................108.7MHz ± 0.1MHz<YJ>
TC103 ................................... 108.3MHz ± 0.1MHz<YZ>
5. FM Tracking Adjustment
L102 .................................................................... 88.0MHz
TC102 ............................................................... 108.0MHz
<TAPE PLAYER SECTION>
6. Tape Speed Adjustment
Settings : • Test tape : TTA–100 (Tape center)
• Test point : PHONES JACK (J1)
• Volume : NON-CLIP (MAX-10dB)
• Function : TAPE
• Adjustment location : SFR51
Method : Play back the test tape and adjust SFR51 so that
the frequency becomes 3000Hz ± 10Hz(FWD).
Then confirm WOW is less than 0.50%.
7. Head Azimuth Adjustment
Settings : • Test tape : TTA–330/TTA–420
• Test point : PHONES JACK (J1)
• Volume : MAX
• Function : TAPE
• S-BASS : OFF
• Adjustment location : Head azimuth
adjustment screw
Method : Play back the 8kHz signal of the test tape and
adjust the screw so that the output becomes
maximum.
SFR 1
AMAIN C.B
PHONES J1
L104
L102
PVC1
TC101
TC103
TC104
TC102
BAR ANT
L105
L103
14
2
2
3
3
L101
VR1
67
6
VOLUME
5
IC1
SFR51
P HEAD
FWD
7
PVC101
(BAR-ANT)
4ZM-2 P13NF
4ZM-2 P13NC
AHRLA3_3-6.9-10.p65 01/20/2000, 17:083
DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.
MECHANICAL PARTS LIST 1 / 1
11
1 8A-HRL-003-010 KNOB,SL SBASS
2 8A-HRL-002-010 PANEL,SBASS SIL YU<[LM]YL>
2 8A-HRL-005-010 PANEL,SBASS YZ<[LM]YZ,[S]YZ>
2 8A-HRL-007-010 PANEL,SBASS YJ<[LM]YJ,[S]YJ>
2 8A-HRL-010-010 PANEL,SBASS MGRE YU<[GM]YL>
2 8A-HRL-017-010 PANEL,SBASS MORN<[DM]YL>
2 8A-HRL-035-010 PANEL,SBASS MGRE YZ<[GM]YZ>
2 8A-HRL-036-010 PANEL,SBASS MORN YZ<[DM]YZ>
3 8A-HRL-004-010 PLATE,INDICATOR
4 86-HRM-205-010 SPR-T,CLICK
5 8A-HRL-008-010 LID,CASS MBLU<[LM]YZ,[LM]YJ,[LM]YL>
5 8A-HRL-009-010 LID,CASS MGRE<[GM]YZ,[GM]YL>
5 8A-HRL-001-010 LID,CASS SIL<[S]YZ,[S]YJ>
5 8A-HRL-016-010 LID,CASS MORN<[DM]YZ,[DM]YL>
6 8A-HRL-202-010 SPR-P,CASS A
7 87-HRR-206-010 PLATE,HEAD J034<[S]YZ,[LM]YJ,[DM]YZ,[S]YJ,[DM]YL>
7 88-HKB-204-010 PLATE,HEAD J266G<[GM]YZ,[GM]YL>
7 88-HKB-205-010 PLATE,HEAD V10<[LM]YZ,[LM]YL>
8 88-HRJ-038-010 FRAME,CENTER J034<[S]YZ,[S]YJ,[DM]YZ,[DM]YL>
8 88-HKA-027-010 FRAME,CENTER VIO<[LM]YZ,[LM]YJ,[LM]YL>
8 88-HKA-029-010 FRAME,CENTRE GRE<[GM]YZ,[GM]YL>
9 86-HRM-009-110 POINTER,TUN
10 86-HRM-006-010 KNOB,RTRY TUN
11 86-HRM-202-010 BAT-CONTACT,(+)
12 8Z-HRM-205-010 BAT,CONTACT(-)
13 8A-HRL-014-010 CABI,REAR MGRE YU<[GM]YL>
13 8A-HRL-019-010 CABI,REAR MORN<[DM]YL>
13 8Z-HRM-027-010 CABI,REAR MBLU<[LM]YL>
13 8A-HRL-031-010 CABI,REAR SIL YZ<[S]YZ>
13 8A-HRL-032-010 CABI,REAR MBLU YZ<[LM]YZ>
13 8A-HRL-033-010 CABI,REAR MGRE YZ<[GM]YZ>
13 8A-HRL-034-010 CABI,REAR MORN YZ<[DM]YZ>
13 8Z-HRM-010-010 CABI,REAR SIL<[LM]YJ,[S]YJ>
14 8Z-HRL-010-010 LID,BATT<[S]YZ,[S]YJ,[LM]YJ>
14 8Z-HRM-028-010 LID,BATT MBLU<[LM]YZ,[LM]YL>
14 8A-HRL-020-010 LID,BATT MORN<[DM]YZ,[DM]YL>
14 8A-HRL-015-010 LID,BATT MGRE<[GM]YZ,[GM]YL>
A 87-067-732-010 TAPPING SCREW, VT1.4-3
B 87-B10-044-010 V+1.7-6.5
C 87-067-691-010 SCREW VT+1.7-6
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange
TAPE MECHANISM EXPLODED VIEW 1 / 1
12
25
23
1
REEL TABLE,L
SHAFT,REEL
FELT,CLUTCH
21
20
19
18
16
17
LEVER,REW G
CAPSTAN,
1.8-23.3
15
12
13
14
A
10
11
22
24
2
3
4
5
6
7
8
9
FRAME,CENTER
DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.
TAPE MECHANISM PARTS LIST 1 / 1
13
1 84-ZM2-012-110 LEVER,PLAY G
2 84-ZM2-211-110 GEAR,CONNECT
3 84-ZM2-222-110 SPR-T,PLAY
4 84-ZM2-015-110 LEVER,STOP G
5 84-ZM2-216-210 REEL TABLE,R
6 84-ZM2-013-110 LEVER,FF G
7 84-ZM2-223-110 SPR-T,REW STOP
8 84-ZM2-232-310 BELT,MAIN
9 84-ZM2-221-110 FLY-WHL,P2
10 84-ZM2-228-310 SPR-C,BT
11 84-ZM2-220-110 BRG,P
12 84-ZM2-210-210 GEAR,AUTO
13 84-ZM2-218-110 CAP,GEAR AUTO
14 84-ZM2-208-510 LEVER,SHIFT
15 84-ZM2-224-110 SPR-T,FF LOCK
16 84-ZM2-207-310 LEVER,AUTO
17 84-ZM2-206-410 LEVER,LOCK
18 84-ZM2-219-010 PULLEY,MOTOR
19 87-A91-379-010 MOT,BCY3B-13
20 84-ZM2-226-510 SPR-C,CLUTCH
21 84-ZM2-212-010 GEAR,CLUTCH
22 84-ZM2-233-110 ROLLER ASSY,PINCH
23 84-ZM2-227-310 SPR-C,AZIMUTH
24 84-ZM2-225-010 SPR-T,AUTO FIND
25 87-A91-529-010 HEAD,TC-950
A 84-ZM2-252-010 S-SCREW,AZI-2-6.4 C<P13NC>
A 84-ZM2-242-010 S-SCREW,AZ1-2-6.4<P13NF>

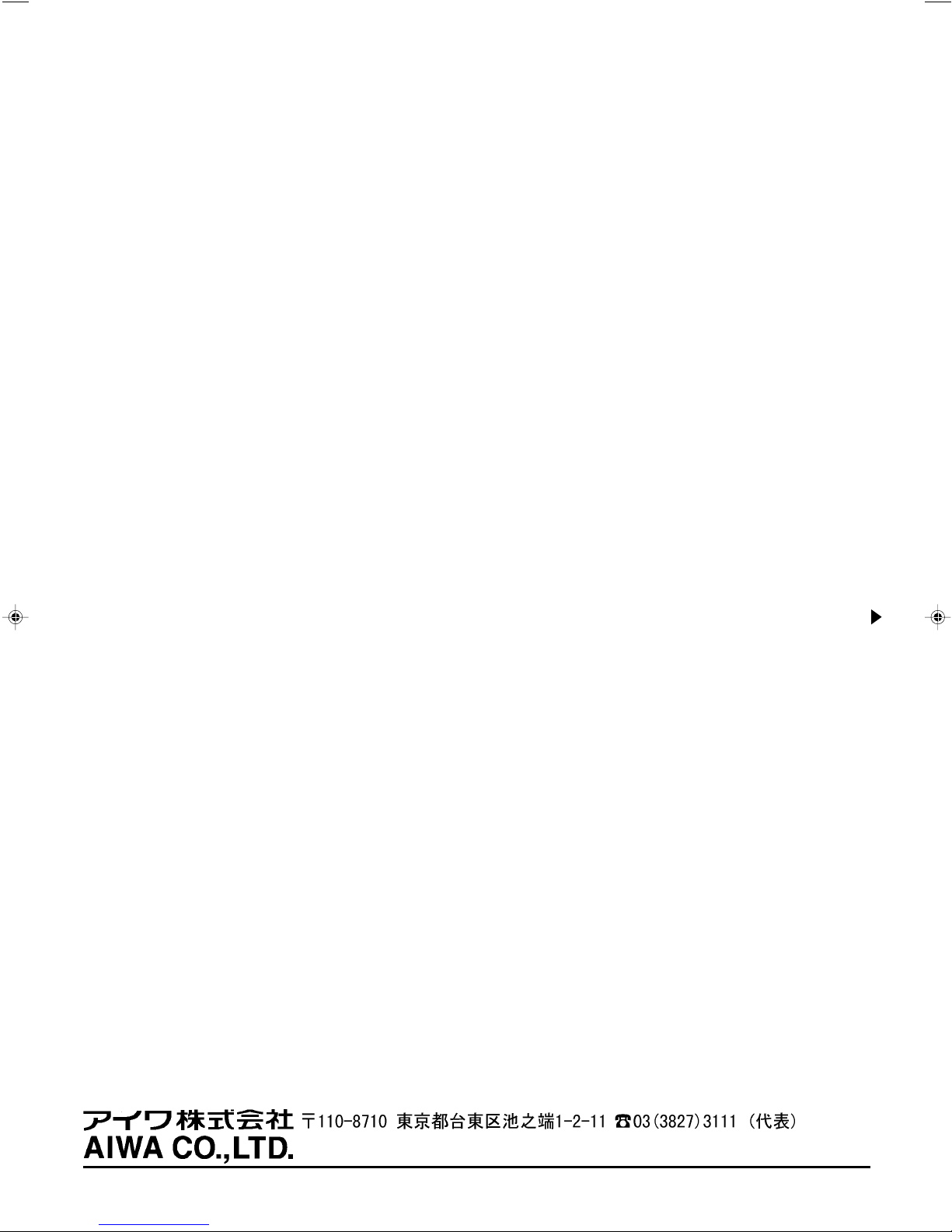

2–11,IKENOHATA1–CHOME,TAITO-KU,TOKYO 110, JAPAN TEL:03 (3827) 3111
9630469 9630472 0251431 Printed in Singapore
