AKG 6000H508905 User manual

Crown PCC130 SW 6000H50xxx
AKG Service Department, Lemböckgasse 21-25, A-1230 Wien, Austria.Tel.: [phone], FAX: [phone], e-mail: [email protected] 06/10
1/2
PCC130
6000H50900 PCC130SW
6000H50890
1
3
1
5
4
6
6
7
2
2
8
10
11
12
12
9
7
9

Crown PCC130 SW 6000H50xxx
AKG Service Department, Lemböckgasse 21-25, A-1230 Wien, Austria.Tel.: [phone], FAX: [phone], e-mail: [email protected] 06/10
2/2

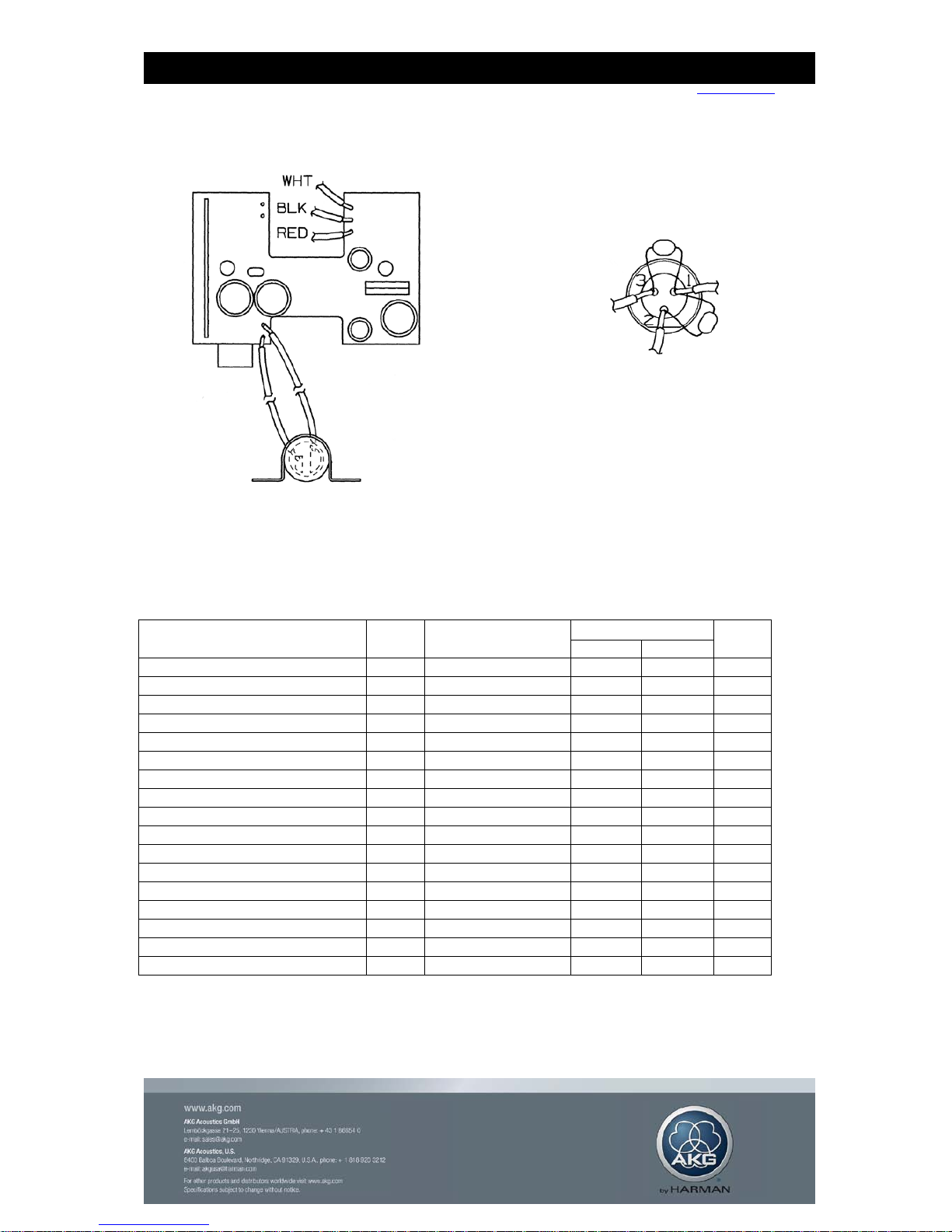

Wiring
Spare Parts
Description Pos. Part number Qty.
PCC130 PCC130SW
Electronic module PWA
1
125151-3
1 -
Electronic module PWA
1
101755-2
- 1
3-way mini slide switch (solder side)
2
C 6929-1
2 2
Mic Capsule (drilled out)
1
M45189-4
1
1
Foam Liner front
3
D 8336-6
1 1
Housing
4
126067-1
1 1
Grill
5
126915-1
1 1
Fastener push nut
6
C 8833-3
2
2
Bottom rubber Feet
7
C 9726-8
4 4
Solder lug
8
D 2935-1
1 1
Bottom label
9
102054-1
1 -
Bottom label
9
101757-1
-
1
PCC130SW membrane switch
10
D 8359-8
- 1
Red LED
11
101328-1
- 1
Mini Male Chassis Connector
12
C 6738-6
1 1
PCC Cable (mini-XLR to XLR)
-
D 6640-3
1
1
RED
WHT
BLK
