ALcom ADT1047 User manual

DIGITAL CORDLESS TELEPHONE
ADT1047 (Single Handset)
ADT2047 (Twin Handset)
USER'S GUIDE
Table of contents
1. IMPORTANT SAFETY INSTRUCTIONS ............................... 3
2. INSTALLING YOUR PHONE CONNECTING THE BASE
STATION ................................................................................ 4
2.1 CONNECTING THE BASE STATION.......................................... 4
2.2 INSTALLING AND CHARGING THE BATTERIES ...................... 4
2.3 HANDSET OVERVIEW................................................................ 5
2.4 BASE STATION OVERVIEW ..................................................... 6
2.5 DISPLAY ICONS AND SYMBOLS............................................... 7
2.6 TEXT EDITING ............................................................................ 8
3. USING YOUR PHONE ........................................................... 8
3.1 MAKE A CALL.............................................................................. 8
3.1.1 PREPARATORY DIALING ............................................... 8
3.1.2 DIRECT DIALING ............................................................. 8
3.1.3 CALL FROM THE PHONEBOOK..................................... 8
3.1.4 CALL FROM THE CALL LIST .......................................... 8
3.1.5 CALL FROM THE REDIAL LIST ...................................... 8
3.1.6 CALL TIMER .................................................................... 8
3.2 ANSWER A CALL ........................................................................ 9
3.3 END A CALL ................................................................................ 9
3.4 ADJUST EARPIECE VOLUME .................................................... 9
3.5 MUTE A CALL.............................................................................. 9
3.6 SET THE SILENT MODE............................................................. 9
3.7 TURN ON THE KEYPAD LOCK .................................................. 9
3.8 REDIAL THE LAST NUMBER ..................................................... 9
3.8.1 REDIAL A NUMBER FROM THE REDIAL LIST ............ 10
3.8.2 STORE A REDIAL NUMBER INTO THE
PHONEBOOK ................................................................ 10
3.8.3 DELETE A REDIAL NUMBER........................................ 10
3.8.4 DELETE THE ENTIRE REDIAL LIST............................. 10
3.9 FIND THE HANDSET ................................................................ 10
3.10 MAKE AN INTERNAL CALL ...................................................... 11
3.10.1 INTERCOM ANOTHER HANDSET................................ 11
3.10.2 CALL ALL HANDSETS................................................... 11
3.10.3 TRANSFER AN EXTERNAL CALL TO ANOTHER
HANDSET ...................................................................... 11
3.10.4 MAKE A 3-WAY CONFERENCE CALL ......................... 11
4. PRIVATE PHONEBOOK...................................................... 12
4.1 ADD A NEW PHONEBOOK ENTRY ......................................... 12
4.2 SEARCH A PHONEBOOK ENTRY ........................................... 12
4.3 VIEW A PHONEBOOK ENTRY ................................................. 12
4.4 EDIT A PHONEBOOK ENTRY .................................................. 12
4.5 DELETE A PHONEBOOK ENTRY ............................................ 13
4.6 DELETE THE ENTIRE PRIVATE PHONEBOOK ...................... 13
5. CALLER DISPLAY (NETWORK DEPENDENT) ................. 13
5.1 VIEW THE CALL LIST ............................................................... 13
5.2 STORE A CALL LIST NUMBER INTO THE PHONEBOOK ...... 14
5.3 DELETE AN ENTRY IN THE CALL LIST................................... 14
5.4 DELETE THE ENTIRE LIST OF THE CALL LIST ..................... 14
5.5 VIEW THE DETAILS OF THE CALL LIST ENTRY.................... 14
6. VOICE MAIL (NETWORK DEPENDENT)............................ 15
6.1 ACCESS VOICE MAIL MESSAGES.......................................... 15
6.2 DELETE VMWI ENTRIES .......................................................... 15
7. PHONE SETTINGS .............................................................. 16
7.1 DATE AND TIME SETTINGS .................................................... 16
7.1.1 CHANGE THE DATE FORMAT ..................................... 16
7.1.2 CHANGE THE TIME FORMAT ...................................... 16
7.1.3 SET THE TIME............................................................... 16
7.1.4 SET THE DATE.............................................................. 16
7.2 ALARM SETTINGS.................................................................... 17
7.2.1 TURN ON/OFF THE ALARM ......................................... 17
7.2.2 SET THE ALARM TIME (IF THE ALARM IS SET
TO BE ON) ..................................................................... 17
7.3 HANDSET SETTINGS ............................................................... 17
7.3.1 SET THE RINGER MELODY FOR INTERNAL CALLS ...17
7.3.2 SET THE RINGER VOLUME ......................................... 17
7.3.3 SET ALERT TONES....................................................... 18
7.3.4 SET THE HANDSET LANGUAGE ................................. 18
7.3.5 RENAME T HE HAND SE ...................................... .......... 18
7.3.6 CHOOSE THE INFORMATION TO BE DISPLAYED
IN IDLE ....... ..................................... ............................... 1 8
7.3.7 SET THE AUTO ANSWER............................................. 18
7.4 BASE SETTINGS....................................................................... 19
7.4.1 DE-REGISTER A HANDSET ......................................... 19
7.4.2 CHANGE THE DIAL MODE ........................................... 19
7.4.3 CHANGE THE FLASH TIME.......................................... 19
7.4.4 CHANGE THE SYSTEM PIN CODE .............................. 19
7.5 REGISTRATION ........................................................................ 20
7.6 RESET YOUR PHONE .............................................................. 20
8. TROUBLESHOOTING ......................................................... 21
9. CONFORMITY...................................................................... 22
1. IMPORTANT SAFETY
INSTRUCTIONS
When using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury,
including the following:
1. Read and understand all the instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bath tub,
kitchen sink, swimming pool).
5. Do not overload wall outlets and extension cords as this can result in
the risk of fire or electric shock.
6. Unplug this product from the wall outlet and refer servicing to Vtech
under the following conditions:
• When the power supply cord or plug is damaged or frayed.
• If the product does not operate normally by following the operating
instructions.
• If the product has been dropped and the cabinet has been damaged.
• If the product exhibits a distinct change in performance.
7. Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from
lightning.
8. Do not use the telephone to report a gas leak in the vicinity of the leak.
9. Use only the supplied NiMH (Nickel Metal Hydride) batteries! The
operation periods for the handsets are only applicable with the default
battery capacities.
10. The use of other battery types or non-rechargeable batteries/primary
cells can be dangerous. These may cause interference and/or unit
damages. The manufacturer will not be held liable for damage arising
from such non-compliance.
11. Do not use third party charging bays. The batteries may be damaged.
12. Please note the correct polarity while inserting the batteries.
13. Do not immerse batteries in water, do not place in fire.
Package contents
The package contains the following items:
ADT1047 (Single Handset) ADT2047 (Twin Handset)
･1 Handset ･2 Handsets
･1 Base station ･1 Base station
･1 AC power adapter ･1 Charge cradle
･1 Telephone line cord ･2 AC power adapters
･2 x AAA rechargeable batteries ･1 Telephone line cord
･1 User manual ･4 x AAA rechargeable batteries
･1 User manual
2. INSTALLING YOUR PHONE
CONNECTING THE BASE STATION
2.1 Connecting the base station
1. Plug the power supply & line cord into the base station.
2. Plug the power supply & line cord into the wall socket.
3. Always use the cables provided in the box.
2.2 Installing and charging the batteries
1. Slide open the battery compartment cover.
2. Place the supplied batteries as indicated. Observe polarity.
3. Slide the battery compartment cover back.
4. Put the handset on the base or charge cradle (for ADT2047 only) and
charge for 18 hours first time.
A beep indicates that the handset is properly placed on the base or
charger.
Use only the AC adaptors provided for the base station and charge cradle
(for ADT2047 only).
Use only Ni-MH rechargeable batteries supplied or equivalent type.
CAUTION: Do not use Alkaline or Non-rechargeable batteries as this may
damage the Handset and void the warranty.

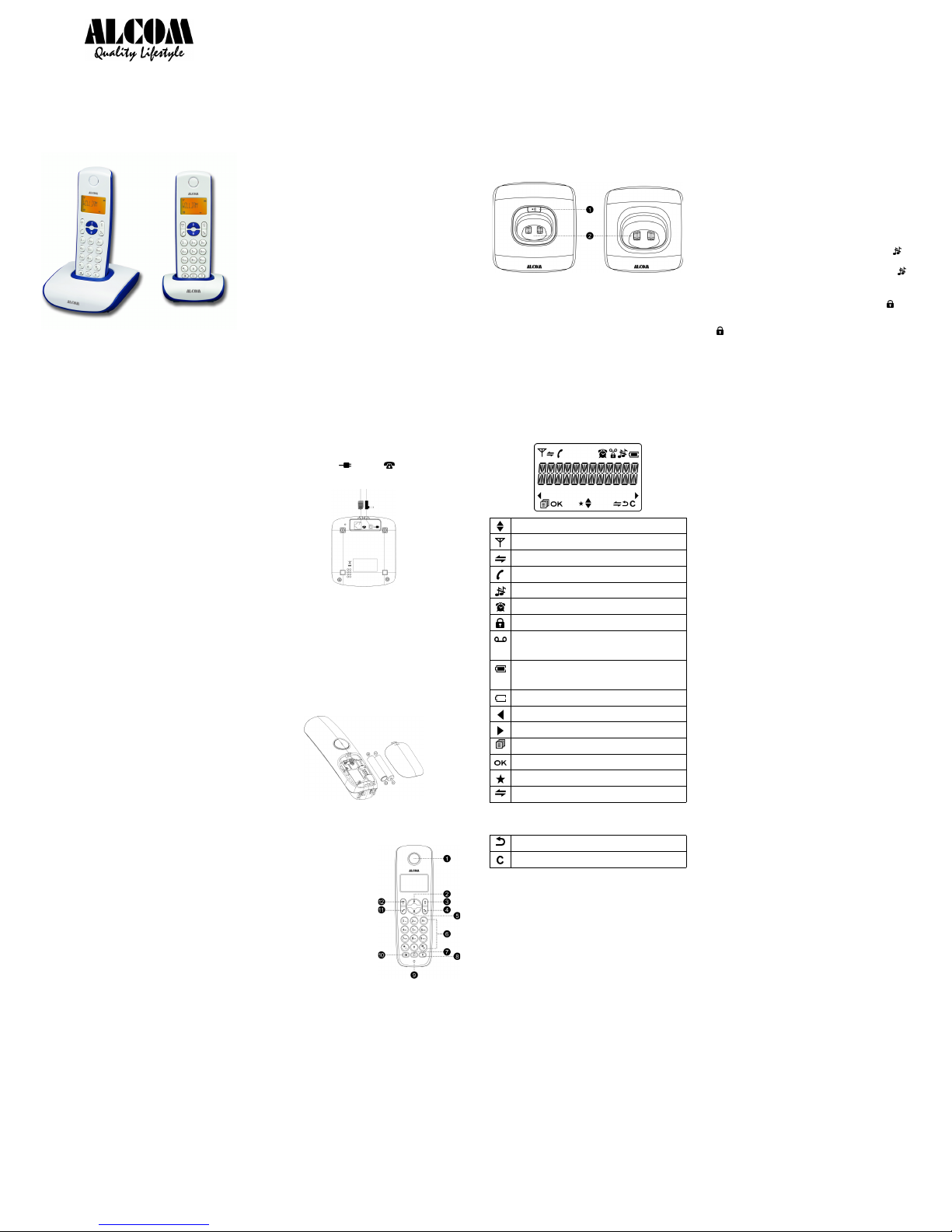

2.3 Handset Overview
1. EARPIECE
2. UP +
In idle mode: Press to access the
call list.
In menu mode: Press to scroll up
the menu items.
In Phonebook list / Redial list / Call
List: Press to scroll up the list.
During a call: Press to increase the
hearing volume.
In ringing: Press to increase the
ringer volume.
3. RIGHT SOFT KEY C
In main menu mode: Press to go
back to idle screen.
In sub-menu mode: Press to go
back to previous level.
In sub-menu mode: Press and hold
to go back to idle screen.
In editing / predialing mode: Press
to clear a character / digit.
In editing / predialing mode: Press
and hold to delete all the characters /
digits.
During a call: Press to mute / unmute the microphone.
In idle mode: Press to intercom another handset.
4. TALK OFF )
During a call: Press to end a call and go back to idle screen.
In menu / editing mode: Press to go back to previous menu.
In menu / editing mode: Press and hold to go back to idle screen.
In idle mode: Press and hold to power off the handset.
In idle mode (when the handset is powered off): Press and hold to
power on the handset.
5. DOWN -
In idle mode: Press to access the redial list.
In menu mode: Press to scroll down the menu items.
In Phonebook list / Redial list / Call List: Press to scroll down the list.
During a call: Press to decrease the hearing volume.
In ringing: Press to decrease the ringer volume.
6. ALPHANUMERIC KEYPAD, * (STAR), # (HASH)
Press to insert a digit / character / * / #
* key in idle mode: Press and hold to enable or disable the keypad lock.
* key during a call (in Pulse mode): Press to switch to tone mode.
# key in Idle mode: Press and hold to turn on / off the ringer.
0 key in idle / predialing / number editing mode: Press and hold to insert
a pause.
# key in Call List mode: Press to review caller's number if applicable.
7. PHONEBOOK
In idle mode: Press Bto access the phonebook list.
8. FLASH (R key)
In idle / predialing mode: Press Fto insert a flash to get a fresh dial
tone.
During a call: Press to access a Call Waiting Line when you hear the
call waiting prompt signal. Press again to toggle between the two calls.
9. MICROPHONE
10. REDIAL LIST
In Idle mode: Press Rto access the redial list.
11. TALK ON
In idle / predialing mode : Press to make a call.
In Redial list / Call List / Phonebook entry: Press to make a call to the
selected entry in the list.
During ringing: Press to answer a call.
12. LEFT SOFT KEY O
In idle mode: Press to access the main menu.
In sub-menu mode: Press to confirm the selection.
During a call: Press to access Intercom / Phonebook / Redial List / Call
List.
2.4 Base Station Overview
1. PAGE
Press Pon the base station to page your handset. It will ring for
approximately 60 seconds.
2. CHARGING DOCK
Place the handset for charging.
BASE UNIT CHARGE CRADLE
(For ADT2047 only)
2.5 Display Icons and Symbols
The LCD display gives you information on the current status of the telephone.
Scroll up / down the menu items / Phonebook list / Redial list / Call
List.
Steady when the handset is in range of the base. Flash when out
of range of the base or not registered to the base.
Steady when an intercom is in progress.
Flash when there is an incoming internal call.
Indicate a call is in progress.
Indicate that the ringer is switched off.
Steady when an alarm is set. Flash when the alarm time set
before reaches.
Indicate that the keypad is locked.
Indicate when there are received new Visual Message Waiting
(VMWI) not yet read. Will disappear when all the visual messages
have been read. This function must have support from the
telephone service provider.
Indicate when the battery is fully charged.
Whole icon flashes when the battery performs initial charging.
Internal block icon flashes when the battery is in final charging
stage.
Indicate when the battery needs charging.
Flash when low battery power level is detected.
Indicate when more characters are existed before the text
currently displayed.
Indicate when more characters are existed after the text currently
displayed.
Press to select more menu options if applicable.
Press to confirm the current selection if applicable.
Indicate new call in call list.
Press to conduct Intercom call when idle (when using with more
than one Handset).
(MENU)
(INT)
2.6 Text Editing
In editing mode, a cursor is displayed to indicate the current text entry
position. It is positioned at the right of the last character entered.
Writing Tips:
Once a character is selected, the cursor will move to the next position after
a short pause.
1. You can move the cursor within the text by +/-to amend the text entry.
2. Press Cto delete the last character.
3. Press and hold Cto delete the entire text string.
3. USING YOUR PHONE
3.1 Make a Call
3.1.1 Preparatory Dialing
Enter the phone number and press (to dial the number. Press Cto
clear the entry.
3.1.2 Direct Dialing
Press (to take the line and enter the phone number.
3.1.3 Call from the phonebook
Press Bto access the phonebook and press +/-to select the desired
phonebook entry. Press (to dial out to the selected phonebook entry.
Alternatively, press Oto access the phonebook to get the desired
phonebook entry.
3.1.4 Call from the Call List
Press +to access the Call List and press +/-to select the desired Call
List entry. Press (to dial out to the selected Call List entry. Alternatively,
press Oto access the Call List from the main menu.
3.1.5 Call from the redial list
Press Rto access the redial list and press +/-to select the desired
redial number. Press Oto dial out to the selected redial number.
3.1.6 Call timer
Your handset automatically times the duration of every call. The call timer
will display a few seconds after the call has made.
Press to go back to previous menu level or cancel the current
action if applicable.
Press to clear a character or stop the alarm if applicable, press to
mute / unmute during a call.
(BACK)
3.2 Answer a Call
If the handset is not on the charging cradle:
When the phone rings, press (to answer a call.
If the handset is on the charging cradle or the base station and if AUTO
ANSWER is set to ON:
When the phone rings, pick up the handset to answer a call.
3.3 End a Call
During a call connection, press )to end the call.
OR
Put the handset on the base station to end the call.
3.4 Adjust Earpiece Volume
There are 5 levels (VOLUME 1 to VOLUME 5) to choose from for each of
earpiece volume.
During a call:
Press +/-to select volume 1-5. The current setting is shown. When you
end the call, the setting will remain at the last selected level.
3.5 Mute a Call
You can talk to someone nearby without letting the caller hear you during a
call.
During a call:
Press Cto mute the microphone and "MUTED" will display on the LCD.
Your caller cannot hear you. Press Cagain to unmute the microphone.
3.6 Set the Silent Mode
In idle mode, press and hold #to turn off the handset ringer. The
icon is displayed on the LCD.
In silent mode, press and hold #to turn on the handset ringer. The
icon will disappear.
3.7 Turn on the Keypad Lock
In idle mode, press and hold *to turn on the keypad lock. The icon
is displayed on the LCD.
In keypad lock mode, press and hold *to turn off the keypad lock. The
icon will disappear.
3.8 Redial the last number
You can redial up to 51of the last numbers called. If you have stored a
name in the phonebook to go with the number, the name will be displayed
instead. The most recent last number will display at the top of the redial list.
1EEPROM size dependent
3.8.1 Redial a Number from the Redial List
1. In idle mode, press Rto access the redial list.
Remarks:
If redial entry with name, press #to view the number.
2. Press +/-to browse the redial list.
3. Press (to dial to the selected redial number.
Note:
If there are no numbers in the redial list, the display shows "EMPTY".
3.8.2 Store a Redial Number into the Phonebook
1. Follow Steps 1 and 2 in section 3.8.1.
2. Press Oand +/-to select ADD TO PB.
3. Press Oto enter the name.
4. Press Oto store the redial number into the phonebook.
5. Press Oto select phonebook melody.
6. Press +/-to browse the melody list. The respective melody will be
played when browsing the melody list.
7. Press Oto confirm.
3.8.3 Delete a Redial Number
1. Follow Steps 1 and 2 in section 3.8.1.
2. Press Oand +/-to select DELETE.
3. Press Oto confirm.
3.8.4 Delete the Entire Redial List
1. Follow Steps 1 and 2 in section 3.8.1.
2. Press Oand +/-to select DELETE ALL.
3. Press Oto confirm.
4. Press Oto confirm again.
3.9 Find the Handset
You can locate the handset by pressing Pon the base station. All the
handsets registered to the base will produce the paging tone and
"PAGING" is displayed on the LCD. You can stop the paging by pressing
(/)/C/on any handset or Pon the base again.
Note:
If there is an incoming call during paging, the phone will ring with the
incoming call instead of paging.
3.10 Make an Internal Call
This feature is only applicable when there are at least two registered
handsets. It allows you to make internal calls, transfer external calls from
one handset to another handset and make conference calls. If the called
handset is not answered within 60 seconds, the called handset will stop
ringing and the calling handset will return to external call.
Note:
If only one handset is registered to the base station, press Cwill display
"NOT POSSIBLE"
3.10.1 Intercom Another Handset
1. In idle mode, press Cand the registered handsets will display except
the calling handset.
2. Enter the desired handset number to intercom with.
3. The called handset rings and press (on the called handset to
establish the internal call.
Note:
If two handsets are registered to the base station, press Cwill connect to
another handset immediately.
3.10.2 Call All Handsets
1. In idle mode, press Cand the registered handsets will display.
2. Press 9to ring to all registered handsets.
3.10.3 Transfer an External Call to another handset
During an external call:
1. Press Oand +/-to select INTERCOM.
2. Press Oto select the desired handset to intercom with.
3. The external call is put on hold automatically and the called handset
rings.
4. Press (on the called handset to establish an internal call.
5. Press )on the calling handset or put the calling handset on the
charging cradle to end the current call with the external party.
6. The external call is transferred to the called handset.
3.10.4 Make a 3-way Conference Call
The conference call feature allows one external call to be shared with two
handsets (in intercom). The three parties can share the conversation and
no network subscription is required.
During an external call:
1. Follow Steps 1 to 4 in section 3.10.3.
2. Press and hold *on the calling handset to establish the conference
call.
Any handset hangs up during a conference call will leave the other handset
still in connection with the external call.
3 6 9
1 4 7 10
2 5 8 11

4. PRIVATE PHONEBOOK
Your phone can store up to 102private phonebook entries with names and
numbers. Each phonebook entry can have a maximum of 20 digits for the
phone number and 12 characters for the name. You can also select
different ringtones for your phonebook entries. Phonebook entries are
stored alphabetically by name.
4.1 Add a New Phonebook Entry
In idle:
1. Press Bto access the phonebook.
OR
• Press Oand +/-to select PHONEBOOK main menu item and then
press Oto access the phonebook.
2. Press Oto select ADD.
3. Press Oto enter the name.
4. Press Oto enter the number.
5. Press Oand +/-to select the desired ringtone for your phonebook
entry.
6. Press Oto store the phonebook entry.
4.2 Search a Phonebook Entry
In idle:
1. Press Bto access the phonebook.
2. Enter the first character of the name by multi-tap.
4.3 View a Phonebook Entry
In idle:
1. Press Bto access the phonebook.
2. Press +/-to select the desired phonebook entry.
3. Press Oand +/-to select VIEW.
4. Press Oand +/-to review the name, number and melody of the
selected phonebook entry.
Note:
If number is more than 12 digits, press Oor Cto view the remaining
digits.
4.4 Edit a Phonebook Entry
In idle:
1. Press Bto access the phonebook.
2. Press +/-to select the desired phonebook entry.
3. Press Oand +/-to select EDIT.
4. Press Oand the current contents of the selected phonebook entry
displays.
2EEPROM size dependent
5. Edit the name and press O.
6. Edit the number and press O
7. Press +/-to select the ringtone and press Oto confirm.
4.5 Delete a Phonebook Entry
In idle:
1. Press Bto access the phonebook.
2. Press +/-to select the desired phonebook entry.
3. Press Oand +/-to select DELETE.
4. Press Oto confirm.
4.6 Delete the Entire Private Phonebook
1. Press Bto access the phonebook.
2. Press Oand +/-to select DELETE ALL.
3. Press Oto confirm.
4. Press Oto re-confirm.
5. CALLER DISPLAY (NETWORK
DEPENDENT)
This feature is available if you have subscribed the Caller Line Identification
service with your network service provider. Your phone can store up to 103
received calls with date/time information in the Call List. The number will be
shown on the LCD when the phone is ringing. If the number matches with
one of the entries in your Private Phonebook, the caller's name stored in
the private phonebook will be displayed alternatively with the number. The
handset will ring with the melody associated with that phonebook entry.
If the caller number is disabled to send caller information, "WITHHELD" will
display.
If the caller number is not provided, "OUT OF AREA" will display.
In standby, if three unanswered calls are received, "3 NEW CALLS" will be
displayed.
5.1 View the Call List
All received calls are saved in Call List with the latest call putting at the top
of the list. When the call list is full, the oldest call will be replaced by a new
call. The unanswered call which has not been read is marked with a
icon at the centre of the bottom line of the display.
1. Press +to access the call list.
OR
• Press Oand +/-to select CALL LIST.
2. Press +/-to select the desired entry.
3. Press #to view the caller's number if applicable.
3EEPROM size dependent
5.2 Store a Call List Number into the Phonebook
1. Follow Steps 1 and 2 in Section 5.1.
2. Press Oand +/-to select ADD TO PB.
3. Press Oto enter the name.
4. Press Oand the selected call list number is displayed.
5. Edit the number if necessary.
6. Press Oand +/-to select the melody.
7. Press Oto confirm.
5.3 Delete an entry in the Call List
1. Follow Steps 1 and 2 in Section 5.1.
2. Press Oand +/-to select DELETE.
3. Press Oto confirm.
5.4 Delete the entire list of the Call List
1. Follow Steps 1 and 2 in Section 5.1.
2. Press Oand +/-to select DELETE ALL.
3. Press Oto confirm.
4. Press Oto re-confirm.
5.5 View the Details of the Call List Entry
1. Follow Steps 1 and 2 in Section 5.1.
2. Press Oand +/-to select DETAILS.
3. Press Oto display the date and time of the selected call list entry.
4. Press Oto go back to previous screen.
6. VOICE MAIL (NETWORK
DEPENDENT)
Voice Mail Waiting Indication (VMWI) is an indication given to you
when a new voice mail message is waiting on the network service provider.
This feature should be supported by your network service provider.
6.1 Access Voice Mail Messages
This feature should be supported by your network service provider.
will display and the VMWI entry is stored in the Call List when you
have new message in your voice mailbox.
1. Press Oand +/-to select CALL LIST.
OR
• Press +in idle to access the call list.
2. Press +/-to select the desired VMWI entry.
3. Press (to dial out to the voice mail server.
Note:
If a more recent VMWI entry is received from the same network server
number of an existing VMWI entry, the new VMWI will not be stored but the
date/time of the VMWI will be updated on the existing VMWI entry. After
you have accessed to all new voice mail messages, VMWI will turn off
automatically. When the call list is full, the new VMWI entry will replace the
oldest non-VMWI entry in the call list.
6.2 Delete VMWI Entries
To delete a single VMWI entry from the call list:
1. Press Oand +/-to select CALL LIST.
OR
• Press +in idle to access the call list.
2. Press +/-to select the desired VMWI entry.
3. Press Oand +/-to select DELETE.
4. Press Oto confirm.
To delete all VMWI entries from the call list:
To delete a single VMWI entry from the call list:
1. Press Oand +/-to select CALL LIST.
OR
• Press +in idle to access the call list.
2. Press and hold 4to delete all VMWI entries.
3. The will disappear.
Note:
If you choose DELETE ALL function in the call list, the handset will also
delete all VMWI entries and CID entries.
7. PHONE SETTINGS
Your phone comes with a selection of settings that you can change to
personalize your phone the way you like it to work.
7.1 Date and Time Settings
You will need to set the correct time and date so that you know when you
received call list entries. If you had subscribed for Caller ID service, when
you receive a first call, time and date will be auto updated in the handset
(only for FSK Caller ID signal).
7.1.1 Change the Date Format
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select DATE & TIME.
3. Press Oand +/-to select DATE FORMAT.
4. Press +/-to select your desired date format (DD-MM-YY or MM-DD-YY).
5. Press Oto confirm.
7.1.2 Change the Time Format
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select DATE & TIME.
3. Press Oand +/-to select TIME FORMAT.
4. Press +/-to select your desired time format (12 HR or 24 HR).
5. Press Oto confirm.
7.1.3 Set the Time
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select DATE & TIME.
3. Press Oand +/-to select SET TIME.
4. Press Oto enter the time information. The time entered will be in the
format you set in Section 7.1.2.
5. Press Oto confirm.
Note:
If time has been set before, the current time will display, otherwise,
"HH:MM" will display.
7.1.4 Set the Date
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select DATE & TIME.
3. Press Oand +/-to select SET DATE.
4. Press Oto enter the date information. The date entered will be in the
format you set in Section 7.1.1.
5. Press Oto confirm.
Note:
If date has been set before, the current date will display, otherwise,
"DD-MM-YY" will display.
7.2 Alarm Settings
You can use this phone to set an alarm clock. When an alarm is set, the
displays on the LCD. When the alarm time is reached, the and "ALARM
ON" flash on the LCD ringing with the alarm melody for a duration of 45
seconds. You can press any key to disable the alarm. If snooze function is
activated, the alarm will sound again at the end of the snooze period of
seven minutes.
7.2.1 Turn on/off the Alarm
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select ALARM.
3. Press Oand +/-to select ON/OFF.
4. Press Oto confirm.
Note:
If ON is selected, you will be asked to set the alarm time.
7.2.2 Set the Alarm Time (if the Alarm is set to be ON)
1. Follow Steps 1 to 4 in Section 7.2.1.
2. Enter the alarm time.
3. Press Oto set the snooze function.
4. Press Oand +/-to select ON or OFF.
5. Press Oto confirm.
7.3 Handset Settings
7.3.1 Set the Ringer Melody for Internal Calls
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select RING SETUP.
3. Press Oand +/-to select INT RING.
4. Press Oand +/-to select the desired ringer melody (a total of 5
melodies for your selection) for setting ringer melody for internal calls.
Note:
The respective ringer melody will be played while browsing the melody list.
5. Press Oto confirm.
7.3.2 Set the Ringer Volume
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select RING SETUP.
3. Press Oand +/-to select RING VOLUME.
4. Press Oand +/-to select the desired ringer volume (a total of 6
ringer volume levels including VOLUME OFF).
Note:
The respective ringer volume will be played during your selection.
If VOLUME OFF is selected, icon will display.
5. Press Oto confirm.
7.3.3 Set Alert Tones
A single beep is emitted when you press a key. You can turn on or off the
key tone. You can also turn on the alert tones when low battery and out of
range are detected. Low battery tone will be emitted while you are talking
with the phone to alert you that you need to charge up your battery.
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select TONE SETUP.
3. Press Oand +/-to select KEY TONE / BATTERY TONE / OUT OF
RANGE.
4. Press Oand +/-to turn on or off these tones.
5. Press Oto confirm.
7.3.4 Set the Handset Language
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select LANGUAGE.
3. Press Oand +/-to select the desired language.
4. Press Oto confirm.
7.3.5 Rename the Handset
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select RENAME HS.
3. Press Oand enter the name of your handset.
4. Press Oto confirm.
7.3.6 Choose the Information to be displayed in idle
You can choose to display time or handset name in your idle screen.
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select HS DISPLAY.
3. Press Oand +/-to select HANDSET NAME or TIME.
4. Press Oto confirm.
7.3.7 Set the Auto Answer
If you turn on the Auto Answer, you can pick up the call from the cradle
without pressing any key.
1. Press Oand +/-to select HS SETTINGS.
2. Press Oand +/-to select AUTO ANSWER.
3. Press Oand +/-to turn on or off the auto answer feature.
4. Press Oto confirm.
7.4 Base Settings
The current settings are marked an asterisk which is displayed at the
rightmost of the menu item.
7.4.1 De-register a Handset
You are requested to enter the 4-digit PIN in order to de-register a handset
from the base station. The antenna icon on the de-registered handset will blink.
Note:
You cannot de-register the handset that you are currently using.
1. Press Oand +/-to select BS SETTINGS.
2. Press Oand +/-to select DELETE HS.
3. Press Oand you are requested to enter the 4-digit system PIN.
4. Enter the 4-digit system PIN. (The default system PIN code is 0000)
5. Press Oand a list of registered handsets is displayed.
6. Press +/-to select one of the handsets that you want to de-register.
7. Press Oto confirm.
7.4.2 Change the dial mode
1. Press Oand +/-to select BS SETTINGS.
2. Press Oand +/-to select DIAL MODE.
3. Press Oand +/-to select TONE or PULSE.
4. Press Oto confirm.
7.4.3 Change the Flash Time
The flash time settings is country dependent. Please contact your local
service provider for the correct settings.
1. Press Oand +/-to select BS SETTINGS.
2. Press Oand +/-to select FLASH TIME.
3. Press Oand +/-to select your desired flash time (SHORT,
MEDIUM, LONG).
4. Press Oto confirm.
7.4.4 Change the System PIN Code
A 4-digit system PIN code is used for changing the system settings of the
base station. It is used to protect your phone against unauthorized use.
The default system PIN code is 0000.
1. Press Oand +/-to select BS SETTINGS.
2. Press Oand +/-to select CHANGE PIN.
3. Press Oand you are requested to enter the 4-digit system PIN.
4. Enter the old system PIN.
5. Press Oand enter the new system PIN.
6. Press Oand enter the new system PIN again.
Note:
If the new PIN entered in Step 6 is not matched with the new system PIN
entered in Step 5, user is requested to enter the valid system PIN again in
Step 5.
7. Press Oto confirm.
7.5 Registration
Your handset and base station is pre-registered. Up to five handsets can be
registered to a single base station.
If for some reason, the handset is not registered to the base station (
flashes even when the handset is near the base station), register your
handset according to the following procedure.
1. Press and hold Pon the base station for about five seconds, the
base station is entered into registration mode.
2. Press Oand +/-to select REGISTRATION.
3. Press Oand you are requested to enter the 4-digit system PIN.
4. Enter the 4-digit system PIN.
5. Press Oto confirm.
If the handset registration is successful, you will hear a confirmation tone
and the will stop flashing. The handset will automatically be allocated
the next available handset number. This handset number is shown in the
handset display in standby mode. If the handset registration is
unsuccessful, the will still flash.
7.6 Reset Your Phone
You can reset your phone to the default settings. After reset, all you
personal settings and call list entries will be deleted, but your phonebook
remains unchanged.
1. Press Oand +/-to select DEFAULT.
2. Press Oand you are requested to enter the 4-digit system PIN.
3. Enter the 4-digit system PIN.
4. Press Oto confirm.
5. Press Oto re-confirm.
8. TROUBLESHOOTING
If you have difficulty with your phone, please try the suggestions listed
below.
Problem Cause Solutions
No dialing tone
when pressing (
key.
a. Telephone cord of the
base station is not
plugged in.
b. The adapter cord is
not plugged in
correctly in the base
station.
c. The line is busy, as
another handset is
used.
a. Check that the
telephone line cord
has been plugged into
the base station and
the phone socket.
b. Check the base station
DC socket and the AC
adaptor plug (remove
and plug-in).
c. Wait until the line is
unoccupied.
When connected
to a PABX, cannot
make outgoing
calls or call reaches
a wrong number.
Dialing prefix is needed. Insert the dialing prefix.
"SEARCHING" is
displayed.
a. Base station out of
range.
b. Base station not
connected to mains.
c. Handset out of
Registration with
base.
a. Reduce the range.
b. Connect base station
to mains.
c. Please register the
handset with base.
Cannot make a
call.
Service not activated or
wrong setting.
Check your Subscription
with network or change
the dial mode.
No display. Empty battery. Recharge battery.
Caller ID cannot
appear.
No caller ID service
available in the network.
Check if you have
subscribed for caller ID
service.
9. CONFORMITY
This unit conforms to the following rules and regulations:
1995/5/EC Radio frequency and telecommunication equipment and the
mutual acceptance of conformity.
The CE mark proves the above.
Due to continuous product development all features and
specifications are subject to change without prior notice.
For more information on Warranty and Product Support please
contact:
Alcom Electronics Pte Ltd Singapore
Phone: [phone] Fax: [phone]
Email: [email protected]
Website: www.alcomonline.com
15 18 21
13 16 19 22
14 17 20 23
12
