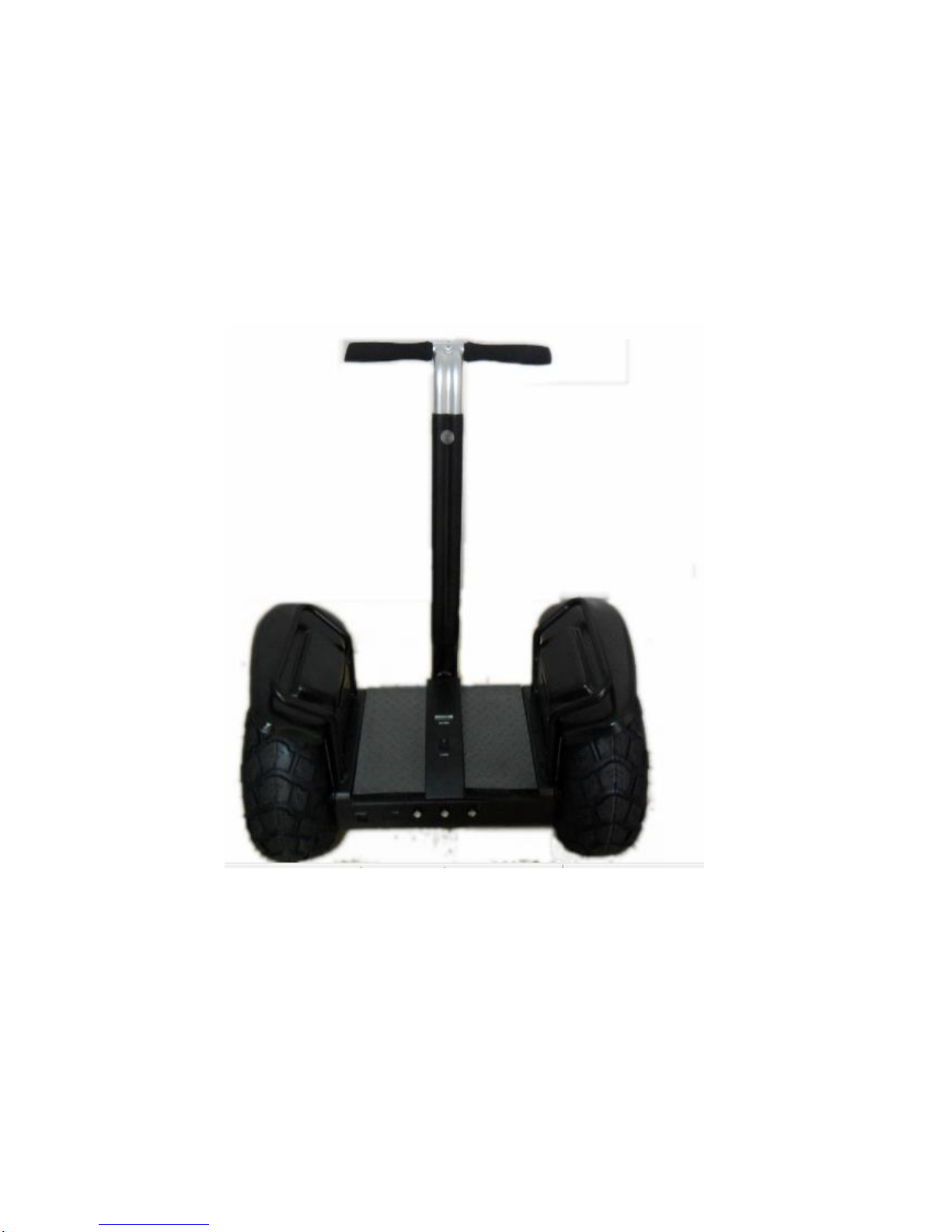

Alien Off Road Scooter User manual

1
User Manual for Off Road Scooter

2
Welcome User
The user manual comes with off road electric chariot scooter for the users’reference
when off road electric chariot scooter (Smart Vehicle) are sold.
The user's manual is applied to all the Smart vehicles off road electric chariot scooter
made by our factory. You may find that some function is different from what you
ordered.It is normal because of different series.
The content and technical specification in this manual are valid when permitted to be
printed. But our company has the right to alter and change technical specification or
design without prior notification.And we will not assume any obligation.
To ensure our off road electric chariot scooter brings you the best driving experience,
the best way is to read the user manual carefully, you will learn how to drive this future
transporter. After reading, please keep the user manual well so that you can refer to it any
time when you need.
The warranty card will come with off road electric chariot scooter.You can find your
warranty rights in the user manual.Please read the user manual carefully so that you can
know your rights and responsibilities well.
Please maintain off road electric chariot scooter according to the user manual so that
you can keep the scooter in the best condition.We have professional people who will
supply you good after service and answer any questions and problem you care.
Sincerely wish you a nice driving!
Safety Instructions
For adults use only!
Please abide by your local traffic regulations!
Please wear helmet, knee and elbow guards for safety purposes.
Please read the relevant driving guidelines in this manual!
Our company is not responsible for the accident if you don not use it
as the above request.
It is hard for us to list all associated dangers when driving and maintaining off road
electric chariot scooter, therefore, please be careful and pay attention to the safety of
yourself and others when riding.
The user manual contains important safety information --- Please read carefully.

3
Contents
Chapter I Introduction of off road electric chariot scooter...............4
Chapter II Parts Explained..................................................5
Chapter III Instruction of remote control of chariot scooter..............7
Chapter IV off road electric chariot scooter Driving.....................8

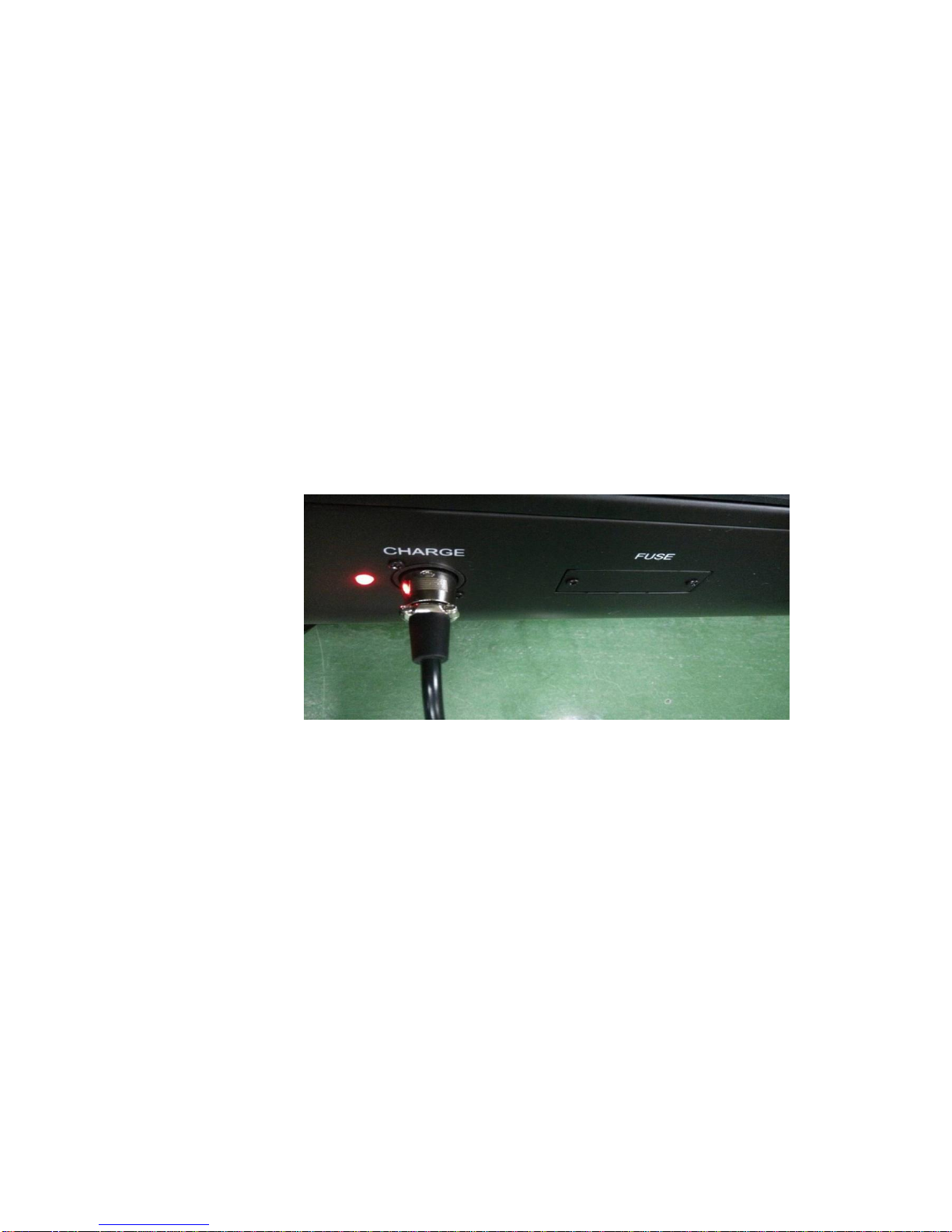

Chapter V Charging........................................................12
Chapter VI Maintenance ..................................................13
Chapter VII Notice .........................................................14
Chapter VIII Technical Data...............................................15

4
Chapter I Introduction of Off Road Scooter
The working principle of the two wheeled Scooter is based on the basic principle called
"dynamic stability" which is the automatic balance ability of the vehicle itself. After
judging body posture position with a built-in precision solid gyroscope, the vehicles
electronic brain works out proper instructions through a sophisticated and high-speed
central microprocessor, the 36V-42Ah battery drives the motor to balance the vehicle.
As a new transporter, off road scooter is difficult to classify in the traditional way, some
people think that off road scooter should be a kind of double-wheeled Unicycle, while
other people think it should be classed as a power stand-up Scooter, with its uniaxial
double design which is different from the traditional biaxial double scooter, for official
road regulations, this transporter is called Electric Personal Assistive Mobility Device
(EPAMD)
The vehicle is equipped with dual wheels, its width is as narrow as a normal adult
shoulder's width. It is 62 kg and battery-operated. It is not necessary to have a brake or
throttle during driving. When the driver leans their body forward, off road scooter will run
forward, when the body is upright, it will stop. It uses the dynamic balance principle, as
the body moves to change the center of gravity so as to keep balance. Just as the human
body stands and leans forwards it can lose balance, but the body's natural instinct will
maintain balance, the dynamic stability replicates this. off road scooter uses the wheels to
replace the function of the feet, reproducing the high precision balance action of a human,
it is also cheap and convenient to use. The energy comes from two repeat charging BTM
batteries which are free from maintenance. If sufficient power is supplied to your battery,
the full charge capacity will last continuous for 5 hours driving, the driving range depends
on the way you drive and ground conditions, driving on grass and slopes will consume
more driving power.

5
Chapter II Parts Explanation

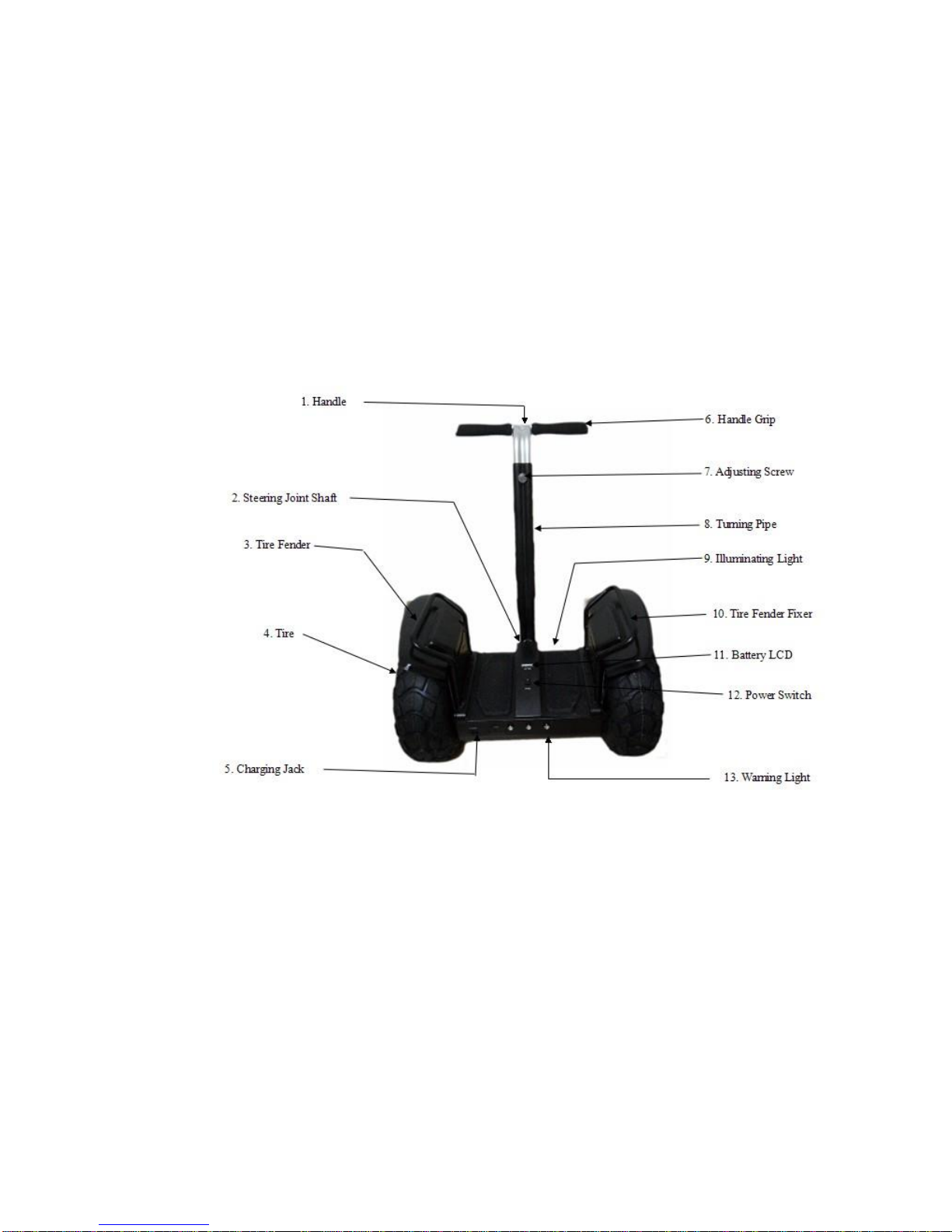

Picture 1

6
1. Handle Bar/Turning Pipe
(1)Used to control and make the off road scooter turn left or right, turn around, rotate 360
degrees. It also has support function and can play a subsidiary role in keeping body
balance.
(2) The height is adjustable. The driver can adjust it according to his or her own height to
make the handle bar comfortable.
(3)Lock the steering rod after adjustment, then turn the handle bar to confirm that it has
had been locked.
(4)Above adjustment of the handle bar/ turning pipe should be locked in position before
driving.
(5)The turning pipe can be taken apart easily for carrying or storage.
2. Power Switch
(1) The power switch is used to turn on and off the power, when the power switch is on
the off road scooter will finish the initialization-settings.
(2) It is dangerous to stand on off road scooter without turning on the power.
3. Pedal Switch (SAFE switch)
(1)The pedal can be active up or down, it has a built in safety switch. off road scooter can
check whether someone on scooter by pedal switch.
(2) The pedal switch is safety insurance, when driving, if the driver leaves the off road
scooter, the pedal switch will reset and then will stop after 3 seconds siren alarm.
4. Battery LCD
Indicate the status of the battery. It is a LCD digital screen.
5. Illuminating light
This one is used to drive in dark environment.
6. Warning Light
It is used to remind other people.

7
Chapter III Instruction of remote control of scooter

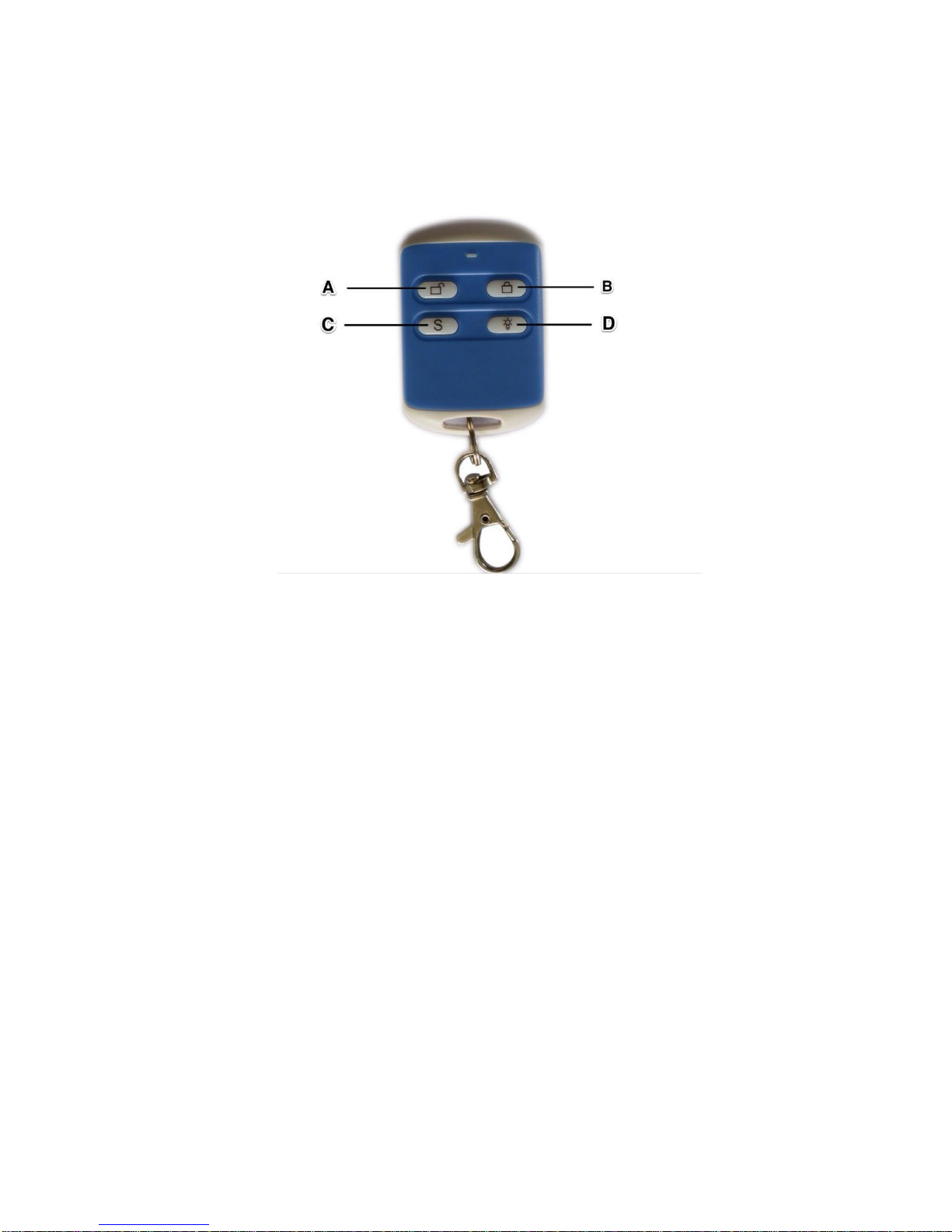

Picture 2
1. Function of Remote Control
(1)Button A: Locking scooter.
(2)Button C: Switching three kind speed mode
1.Default or Normal Mode
The max speed is18km/h and the turning is flexible and sensitive.
2. Beginner Mode
The max speed 8km/h and the turning is slow.
(3)Button D: Turning on/off light
(4)Button B:Unlocking scooter
(5)Function of recording pedal horizontal level. Powering on off road scooter,, setting a
suitable position, pressing Button C and Button D at the same time, after two beep sounds,
off road scooter will remember it as default position.
2.Button Operating

8
(1)Starting Scooter
Keep off road scooter horizontal and power on it, press Button B to unlock scooter,and
you can hear one beep sound. Then you can drive off road scooter, it is default mode.
Default mode is Normal Mode.
(2)Pulling Mode
After your pressing Button A,you can hear one beep sound(it means that the scooter is
unlocking),then you press Button A again,the scooter enters Pulling Mode. In this mode,
the scooter can be pulled by hand easily.When you press Button A the third time,the
scooter will cancel Pulling Mode.
(3)Switching Different Speed Mode
After your pressing Button C(scooter without driver on it),you can hear one beep
sound,scooter enters Beginner Mode;When you press Button B the second time,you can
hear two beep sounds, scooter enters Default Mode.Switching different speed mode is
valid only after driver leave scooter.
(4)Turning ON/OFF Light
When you press Button D,the front and back light will light;If you press Button D
again,the light will stop.It is valid pressing the button when driver on scooter .
Chapter IV off road electric chariot scooter Driving
Driving the off road scooter 2 wheel self-balance vehicle is totally different from
anything you may have driven before, off road scooter does not have a brake, accelerator
or gear system. Please read the user manual or get instruction from an experienced person
before your first ride.
off road scooter is very addictive once you enjoy the fun of driving, you will not help
yourself driving it whenever you get the chance, following these instructions will be
beneficial for your enjoyment.
Below description will be helpful to your driving.
Tip:We suggest you use Beginner Mode if you did not driver our off road scooter before.
1.Starting Operation
Hold the turning pipe/handle bar with one hand, keeping the pedal upright ,turn on the
power ,after green light, orange light and red light flash at the same time, the green light
stay on continuous, It means starting success (refer to picture 3,4), hold the handlebar
firmly with two hands, then press Button D of remote control(refer to picture 5,6).
Make sure the pedal is on horizontal level when power on off road scooter.
Step on pedal with another foot(refer to picture 7). The sequence is the left hand-right
foot-left foot -right hand or right hand -left foot-right foot-left hand. By this time you will

9
have stood on the balanced scooter. Stand upright without any body move, just relax and
keep your body balance, then scooter will still stay still (refer to picture 8).

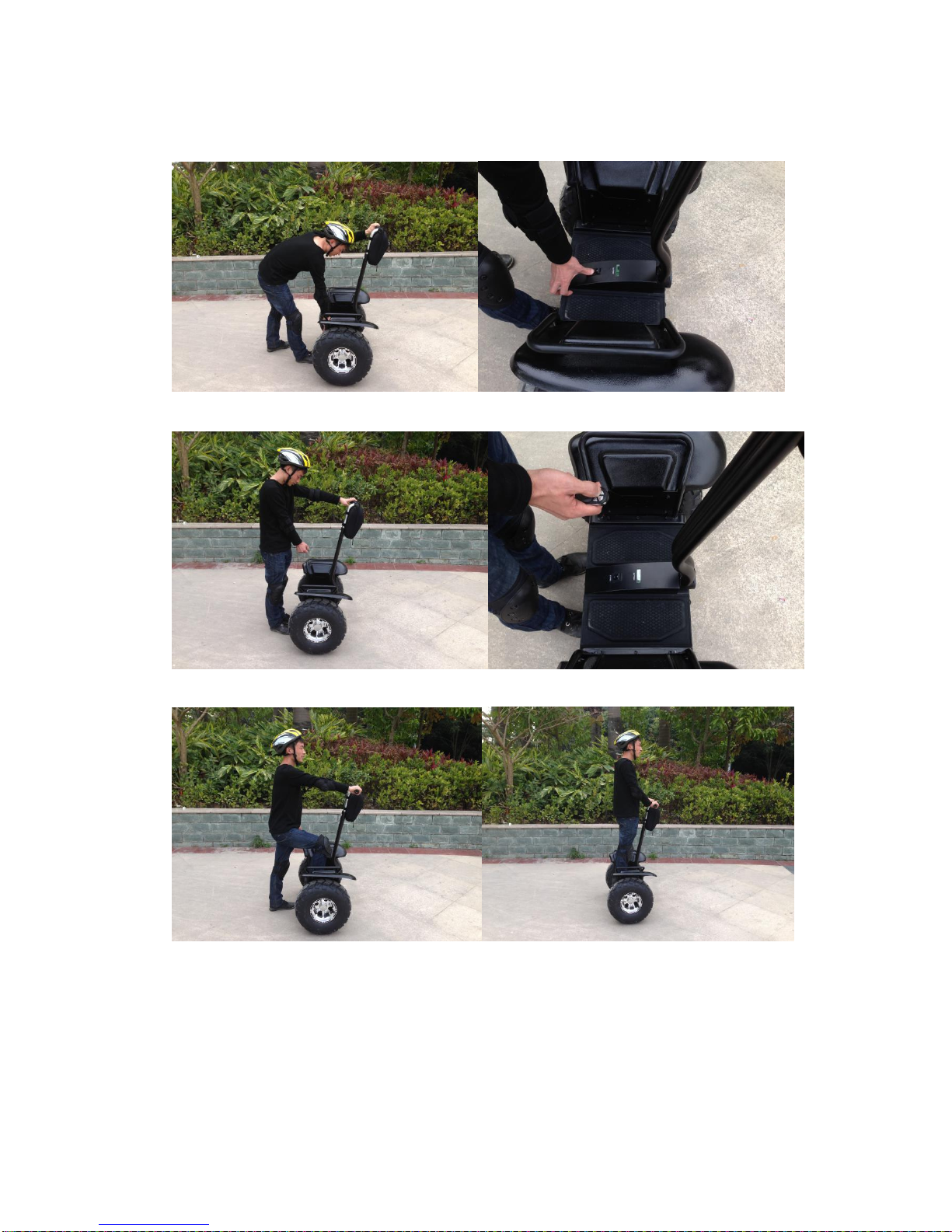

Picture 3 Picture 4
Picture 5 Picture 6
Picture 7 Picture 8
2. Driving straight forward
Lean your body forward slowly using the centre of gravity, off road scooter will move

10
forward (refer to picture 9). The driving speed is controlled by the leaning angle of your
body. Lean forward more, off road scooter will go faster and vice versa. For a stable
driving, we suggest lean forward slowly. It is dangerous for leaning forward suddenly.
This is just like a sudden acceleration when driving a car.
Picture 9
3. Braking, Driving Backward
Driving backward is not recommended for the driver's safety, because it is hard for you
to see behind when driving. Turning radius of off road scooter is zero, which you can
easily achieve in a continuous spin around 360 degrees on the spot. When you drive
forward in a straight line and you want to slow down or stop, you can lean backward or
squat down (the center of gravity backward). Lean slowly or smoothly backward is
helpful for slowing down and stopping safely (refer to picture 10).
Picture 10
Tip: Driving forward in a straight line you just simply push the handle forward, then
backward to slow down or stop.
4. Turning in Original Place, Turn Around and Rotate 360 Degrees
It is easy to turn the off road scooter when driving. Keep the turning pipe/handle bar
