ALIGATOR S5065 Duo - 4x core User manual

S5065 Duo - 4x core
Quick Guide

Google, Google Play and Android are
trademarks of Google Inc.
Contents
Before you start...................................2
DUAL SIM function..............................
Important instructions........................
Mobile controls...................................6
Insert battery and SIM card.................7
Switch On / Off....................................8
Activation and screen unlock..............8
Select SIM for calls, SMS, internet......9
Operating system Android™................9
Basic manipulation..............................9
Making calls.......................................1
Messages...........................................15
Selection of network.........................16
Photography......................................17
PC connection....................................17
Safety and ecology............................18
Declaration of conformity.................19
Before you start
Thank you for buying of our
ALIGATOR mobile phone .
Before you start please read carefully
this instruction manual.
2

DUAL IM function
Your mobile phone can be operated
with 1 or 2 SIM cards. If you insert only
one SIM card the mobile phone works
as an ordinary mobile phone.
In case you insert 2 SIM cards at the
mobile phone both are active at the
same time. It means you can be called
on both SIM cards at the same time
without any switch between them.
Both cards are on line.
Important instructions
Do not use the mobile phone at the
prohibited areas
Do not use the mobile phone while
driving the car
Do not use the mobile phone near the
medical appliances without having the
confirmation that the radio waves do
not influence its function

Mobile phone can influence the
function of the cardiac pacemakers or
other implanted appliances – please
consult your medical doctor
Switch off the mobile phone always in
the aircraft
Do not use mobile phone near the
petrol station. Always switch off the
mobile phone near explosives
Use only the original batteries supplied
by the producer. Danger of damage of
the mobile phone or explostion.
Do not throw the battery in the fire
nor expose it to the temperatures over
+60°C. Danger of explosion or fire
SAR – mobile phone meets all
prescriptions for maximal emision of
electromagnetic radiation
Please keep the mobile phone 2.5 cm
away from the body while calling. You
lower by that the quantity of
4

electromagnetic radiation absorbed
by your body
Handle the mobile phone with care,
protect it from falling on the ground,
from mechanical damage, impurity or
high temperatures. Never pick it to
pieces !
Do not place the mobile phone or its
holder in the area above the airbag in
the car
Keep it out of reach of children. It
contains small parts that could be
swollowed or they may hurt
Software and hardware of the mobile
phone are continuously innovated. The
importer reserves the right to alter the
instruction manual or particular
functions of the mobile phone without
a prior notice.
5

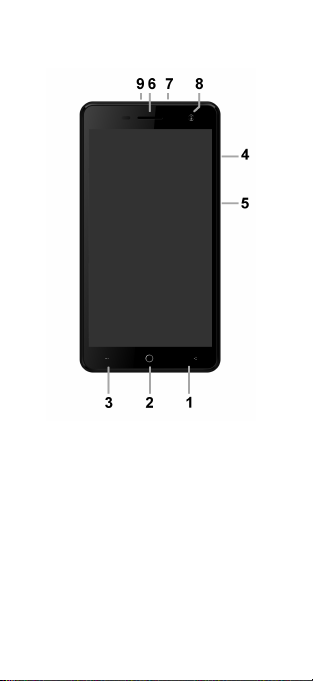

Mobile controls
1. Button : APK
2. Button : Main screen
. Button : Backwards
4. Button : Volume
5. Button : Switch On / Off
6

6. Earphones
7. Headset connector
8. Front camera
9. Micro USB connector
lnsert battery and IM card
Slip your nail at the slot under the
battery cover in the corner on the back
side of the mobile phone and carefully
pull down the cover.
Insert firstly one or two SIM cards at
the prepared slots. Insert SIM and
also MicroSD memory cards (if you
have) as per the picture instruction.
Insert the battery. Make sure that the
battery clicks smoothly into the slot in
the mobile phone.
Put the battery cover back. Place the
cover on the back side of the mobile
phone and press gently around the
7

circuit untill the cover clicks properly
on its place.
witch On / Off
To witch On - press the button (5).
Starting of the mobile phone can last
few seconds.
To witch Off – press and hold the
button (5) till the indicator window
of a switch off appears on display.
Confirm it and the mobile phone will
turn off.
Activation and screen unlock
The screen turns off automatically
after a certain time of inactivity. Turn
on / off the screen by a short press of
the button (5).
It is necessary to unlock the screen
after the activation. Put your finger on
a „Lock“ symbol and move it in the
upward direction. The screen will be
unlocked.
8

election of IM card for calls,
M and internet
Tap on the main screen, click ettings
and select IM card. Now you can set
which SIM card to be used for calls,
SMS and for internet.
Operating system Android™
Your mobile phones is provided with
the operating system Android™ . The
device is in reality a small personal
computer that can be connected with
internet from which you can download
many useful applications (via Google
Play™ store).
Basic manipulation
Meaning of the contact buttons
(1) to (3)
(1) Launched applications/APK –
serves to display a list of recent
applications. After a long press
the menu items available on the
9

current screen or in a running
application will display
(2) Main screen – short press serves
to return to the main screen.
Long press displays the Google
search
(3) Backwards – serves to return by
one level back. (Jump on the
preceding screen, closing of
offers or dialog windows on the
screen, etc.)
ystem control
Your phone is operated by using both
the buttons above, but mainly using
the touch screen.
Selecting items on the screen,
confirming dialogs and graphical
buttons on the screen are done by
tapping on them.
10

Google account
It is necessary to create the Google™
account which can be set up in
following simple steps:
1. Press the button ettings
2. Select in menu Accounts and
choose Add Account
3. Further follow instructions on
the screen .
Main screen
Same as on your PC the main screen
of the mobile phones offers you a
working area. Your main screen is
devided into more pages that can be
displayed by moving of your finger to
the left/right direction.
You can place the short cuts of icons
of applications and links or widgets
on the main screen.
Widgets are mini-applications that
enable to display some other data
(clock, weather, charging level etc.)
11

Applications
All installed applications can be
displayed by the button placed in the
middle of the lower part of the main
screen.
In basic equipment of the mobile
phone you can find applications
for making call, sending
messages and e-mails or many
other useful applications.
There are thousands of various
applications suitable for Android
system but not all of them can work
properly in your mobile phone.
Before buying of any new
application please try first its gratis
version if it works correctly in your
mobile phone.
Information and status display
So called „status bar“ is placed in the
upper part of the screen. You may find
12

here the information about time,
battery level and signal strength but
also other useful information. For
example the information about new
SMS, information about the system or
applications. Status bar can be moved
down by your finger and rolled. You
will get a detailed overview about all
announcements and information
including the possibility of a quick
control of some mobile functions
Mobile phone setup
All individual items of the telephone
set up are clearly arranged at the
settings menu.
Press the button Menu - select et
up and make the required changes.
Making calls
Dialling
Click on the earphone icon on the
main screen. A screen with keypad
for number dialling will be displayed.
1

You can enter the tel.number with
the use of the keypad buttons.
Similarly as on the common
telephone there are the letters
displayed on the buttons so you can
enter also the name.
The dialled number and all
corresponding items of the
telephone directory will be
displayed after entering of the
letters on keys of the screen.
At the bottom part of the screen
you can find the calling button with
a symbol of the head-phone. You
can dial the number by its pressing
and make your call.
Answer and Reject the call
If somebody is calling you the
information about his telephone
number (if available) and a button
with the receiver is displayed on the
screen
14

to answer the call : move the
button to the right towards the
symbol of a green receiver
to reject the call : move the
button to the left towards the
symbol of a red receiver
Call flow / Finish of the call
The Screen shuts down automatically
when you hold the mobile near the
ear. After delaying the phone away
from the ear the screen is
activated in a few moments.
Press the red button on the screen to
finish the call .
Messages
1. Click on the icon of Messages on
the lower part of the main
screen or open the screen with
applications and select the item
Messages
15

2. A list of conversations containing
received and sent SMS and MMS
messages will be displayed.
. Select the icon „+“
4. Now you can insert the receiver
and the text of the message
5. To send the text message press
the arrow button placed on the
right side of the text
election of network
You can choose whether your phone
will use 2G or G network.
Tap on the main screen on the icon
ettings and select Next in the
Wireless & networks section.
Next step, select Mobile networks
and select Preferred network type
for each SIM card. Now select item
2G or G.
16

Photography
Start the camera by tapping on the
camera icon. Point the camera at the
scene that you need to focus. Press
the shutter button on the display to
take a picture of the scene.
PC connection
You do not need any special drivers
for connection to the common PC
(valid for OS Windows Vista, 7, event.
newer). Follow these steps :
1. Connect the mobile phone with
PC with the enclosed cabel
2. Download the status bar and tap
the line with the warning
"Connected as ...."
. A connection mode offer is
opened. We recommend to use
the device mode for MTP media
4. The phone connects to the PC as
a „Media device“
After that the phone's Internal storage
and an inserted MicroSD card are
17

connected with your computer in the
section Computer - Portable Devices,
under the name ALIGATOR S5065. The
connection can be cancelled by
disconnecting of the cable.
afety and ecology
Used electric devices
Mobile phone is an
electronic appliance. It
means it must not be manipulated as
a common residential waste. Never
throw the used devices away at the
common municipal waste!!! They
may contain the substances
dangerous to the environment. Hand
over the product to the respective
collection point which provides the
ecological liquidation. Please contact
your dealer to get more information
how to deal with the used products.
Handling with the used batteries in
contradiction with given instructions
is illegal!
18

Battery liquidation
Used batteries and
accumulators do not belong
to ordinary municipal waste !!!
They may contain the substances
dangerous to the environment. Hand
over the battery to the respective
collection point which provides the
ecological liquidation. Please contact
your dealer to get more information
how to deal with the used products.
Do not throw the battery in the fire
nor expose it to the temperatures over
+60°C. Danger of explosion or fire.
Declaration of conformity
ADART COMPUTERS s.r.o. declares
that the type of the radio device
ALIGATOR S5065 is in compliance with
Directive 2014/5 / EU.
www.aligator.cz
19
