ALIGATOR A510 User manual

Quick Guide A510

Contents
Safety instructions....................................3
Putting into operation...............................6
lnsert SIM, memory card, battery.............6
Battery charging.......................................7
Switch n / ff.........................................8
Automatic time setting..............................9
Mobile controls.......................................10
Making calls............................................17
Contact list..............................................18
Photo contacts........................................19
S S call and SMS..................................19
S S Locator ..........................................21
FM Radio................................................26
Bluetooth................................................26
Mobile phone setting..............................27
PC connection........................................28
Safety and ecology.................................29
Used electric device...............................29
Battery liquidation...................................29
Declaration of conformity........................30
2

Safety instructions
Thank you for your purchase of the
ALIGAT R mobile phone. Please read
this instruction manual before use:
Do not switch on nor use the mobile
phone in the prohibited areas
Do not use the mobile phone while
driving the car
Do not use the mobile phone near the
medical appliances without having the
confirmation that the radio waves do
not influence its function
Mobile phone can influence the
function of the cardiac pacemakers or
other implanted appliances – please
consult your medical doctor
Turn it off in the aircraft
Do not use the mobile phone near the
filling petrol station
Turn off the mobile phone always
near explosives
3

Use always original batteries supplied
by the producer (danger of damage or
explosion of the mobile phone). Do
not throw the battery in the fire nor
expose it to the temperatures over
+60°C. Danger of explosion or fire !
SAR – mobile phone meets all
prescriptions for maximal emision of
electromagnetic radiation.
Please keep the mobile phone 2.5 cm
away from the body while calling. You
lower by that the quantity of
electromagnetic radiation absorbed
by your body.
Handle the mobile phone with care,
protect it from falling on the ground,
from mechanical damage, impurity or
high temperatures. Never pick it to
pieces !
4

Do not place the mobile phone or its
holder in the area above the airbag in
the car
Keep it out of reach of children. It
contains small parts that could be
swollowed or may hurt
Sometimes, the top of the external
display, including battery and signal
icons, may not appear. In this case,
turn the phone off and on to display it
correctly.
Software and hardware of the mobile
phone are continuously innovated.
The importer reserves the right to
alter the instruction manual or
particular functions of the mobile
phone without a prior notice
5

Putting into operation
lnsert SIM,memory card and battery
1. Slip your nail at the slot
under the battery cover
on the back side of the
mobile phone and pull
down carefully the cover.
2. Insert a SIM card at the
prepared slots. Insert SIM and also
MicroSD memory card (if you have)
3. Insert the battery. The three metal
contacts must point toward the
bottom part of the phone. Make sure
that the battery clicks smoothly into
the slot at the mobile phone.
4. Put the battery cover back
ATTENTION! Turn off the phone and
disconnect the charger when handling
the battery, card or SIM card. Only use
6

original batteries supplied by the phone
producer !
Battery c arging
Be sure that the battery is placed at the
mobile phone. Connect the charger with
the Micro USB connector or place the
phone at the charging stand and the
charging will start automatically.
Mobile phone can be charged if it is in
switched on / off mode. Charging level is
indicated on the mobile screen.
Battery discharged Fully charged
Mobile phone will warn you by an acoustic
signal and by message on the screen
when the battery is almost discharged. In
this case charge the battery as soon as
possible.
7

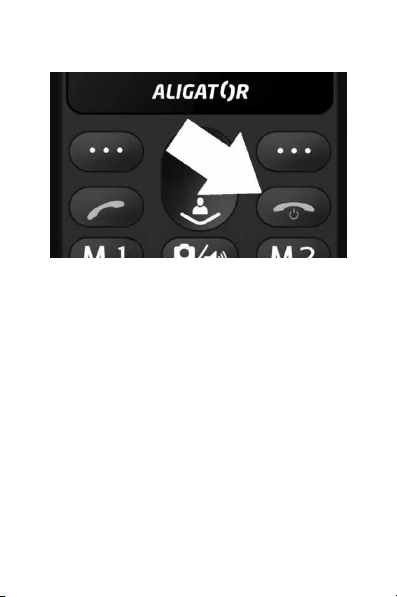

Switc On / Off
to SWITCH ON the phone - press and
hold the red button, till the phone turns on.
(Now you can be asked to enter the PIN
code in case the PIN protection is
activated).
to SWITCH OFF - press and hold the red
button, untill the mobile turns off. It is
necessary to confirm the shutdown by
pressing the left button Yes (2).
Before Switching n be sure that the
battery is inserted and is charged.
8

Automatic time setting
you will be prompted to confirm the time
when the phone is switched on for the first
time. Phone time is automatically set
when the mobile network supports it.
If the time is correct, press the left button
Save (2). therwise you can set the time
manually.
To turn on/off the automatic time setting
select in the menu:
Setting  P one  Time+Date 
Autom. Set  On/Off
9

Mobile controls
10

No Button Function
1
Rig t
functional
button
-starts contacts in
standby mode
-return from menu or exit
current function
-other functions
depending on context
(current function is
shown on display above
the key)
2
Left
functional
button
-displays Message in
standby mode
-confirms selection
in menu or activates
selected function ( K)
- other functions dep.on
context (current function
is shown on display
above the key)
11

3
Navigation
button Up /
Down
-press Up in standby
mode to display phone
menu , press Down to
display photo contacts
-move in menu and in
phone directrory
4Red
button
-long press to Switch n
/ ff
-stop or reject the call
-return from the menu or
exit current function on
the main screen
5Green
button
-press the button to
answer the call
-displays call history in
standby mode
6 Button 0 when writing tel.number
enables to write „0“,
when writing text
enables to write „gap“
12

long press to turn on/off
the torchlight
7 Button #
- inserts # when writing
numbers
-in text writing mode
toggles method of
character imput
- long press to
activate/deactivate a
silent mode
8Button *
- inserts *,+, p, w when
writing numbers
- in text writing mode
enables to insert special
characters
9 Contacts Keep clean the contacts
of the charging stand
13

10 Connector
Micro USB
Enables to connect the
charger or PC
11 Flas lig t
Powerful LED flashlight
is placed on the upper
side of the phone. Long
press button 0 to turn
on/off
2 Earp one For call listening
13 Earp one
connector
Used for headphones
connecting /mini-
handsfree
14 Volume +/-
-to control a ringtone
volume, music playback,
or FM radio.
-during a call, adjust the
volume of the call in the
earpiece (or
loudspeaker)
14

15 Camera
s utter
-press to turn the
camera on
-in camera mode, it acts
as a trigger
-in music or recorder
mode, etc., press briefly
to start / stop playback.
16 Buttons
M1, M2
-serve as a quick option
to store your favorite
phone numbers. The
stored numbers can be
then quickly dialed by
simply pressing the M1
or M2 button.
-in some menu you can
move to the sides
-in music or recorder
mode, you can go to the
previous (M1) or next
(M2) track
15

Icons on t e screen
Battery charge
level
Signal strength
Alarm clock on
Unread SMS
Missed call
Ringing off
16

Making calls
Dialing
Insert required phone number on the
mobile keypad and press the green button
(5). Mobile will start to dial required
number. If you ave dialled by mistake
a wrong number, just press the right
button „Delete“ (1) and the last digit will be
deleted. If you need to delete the whole
number, press the red button (4) and a
whole number is deleted.
Press GREEN button (5) to anwer
the call
Press RED button (4) to reject the
call
Volume – adjust the volume while
talking by the button (14)
Press t e rig t button On/Off (1)
while talking to activate the Handsfree
function
17

Contact list
You can save phone numbers and assign
names to your numbers. Contacts can be
stored either on the SIM card or at the
phone memory.
Dialing from t e contact list
Press the right button (1). You can now
enter the first letter of the name you are
looking for. After that, the list of contacts,
sorted by name in alphabetical order,
starts immediately.
Use the up and down buttons to select the
contact you want to call and press the
green call key (5).
When viewing the list, a distinctive icon
appears on each contact if it is stored on a
SIM card or at the phone memory.
18

P oto contacts
The phone allows you to store up to 8 so-
called photo contacts - the contacts to
which the photo or picture is assigned.
You can then dial them quickly and easily
by pressing the number next to the image.
The picture is also displayed when you
receive a call.
Press the Down button (3) on the main
screen to display the photo contacts.
Select in menu : Photo contacts (select
one) – Adjust (input name, number and
photo) – ptions - Save
to call t e p oto contact - Press button
Down (3) on the main screen and press
the button with the number(photo) that you
wish to call
SOS call and SMS
Press and hold the S S button on the
back side of the phone. An audible alarm
19

sounds. Now you have about 5 sec. for
interruption of the S S call. After that the
phone will automatically dial the preset
numbers from the list until they can reach
one of them. The phone repeats calls to
all numbers for a maximum of 3 times.
The phone also sends an emergency
SMS message to the preset numbers with
the preset text (to select text in the menu
Setting  SOS Set.  SOS SMS SMS
text ).
If the phone fails to call any number, it
remains in the emergency mode. At this
emergency mode the phone will
automatically answer incoming calls and
automatically activates t e andsfree
feature - loud listening. The display will
show S S.
Important!
To deactivate SOS, you need to turn
the phone off and on again !
