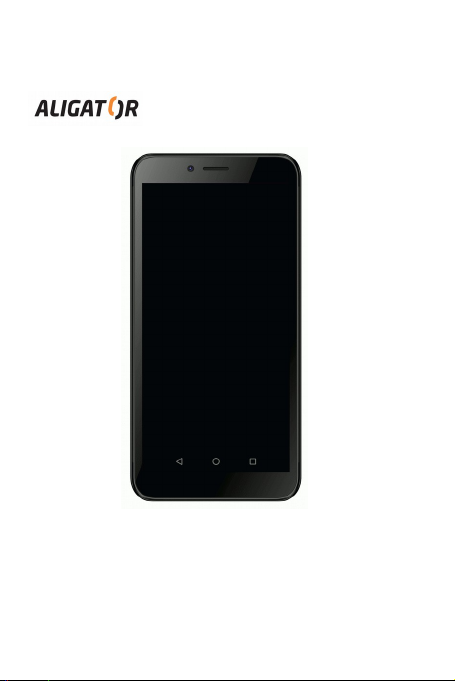

ALIGATOR S5550 DUO User manual

S5550 DUO
Quick Guide

Google, Android, Google Play and other brands are trademarks of
Google LLC.
Contents
Before you start...................................................................3
DUAL S M function...............................................................3
mportant instructions.........................................................3
Mobile phone controls........................................................6
nsert battery and a S M card..............................................7
Switch On / Off....................................................................8
The first start of the phone.................................................8
Activation and screen unlock..............................................8
Operating system Android...................................................9
Basic control........................................................................9
Making calls.......................................................................12
Messages...........................................................................14
Selection of network..........................................................15
Photography......................................................................15
PC connection....................................................................16
Selection of S M card for calling, SMS and internet..........17
Safety and ecology.............................................................17
Declaration of conformity.................................................18
2

Before you start
Thank you for buying of our ALIGATOR mobile phone.
Before you start please read carefully this instruction manual
Please visit the following website for more information,
instructions, advices etc.
https://support.google. om/android
DUAL SIM fun tion
Your mobile phone can be operated with 2 „Nano S M“
cards. f you insert only one S M card the mobile phone
works as an ordinary mobile phone.
n case you insert 2 S M cards at the mobile phone both are
active at the same time. t means you can be called on both
S M cards at the same time without any switch between
them. Both cards are on line.
Important instru tions
Do not use the mobile phone at the prohibited areas
Do not use the mobile phone while driving the car
3

Do not use the mobile phone near the medical
appliances without having the confirmation that the
radio waves do not influence its function
Mobile phone can influence the function of the cardiac
pacemakers or other implanted appliances – please
consult your medical doctor
Switch off the mobile phone always in the aircraft
Always use original batteries supplied by the
manufacturer. Risk of phone damage or explosion.
Do not throw the battery in the fire nor expose it to the
temperatures over +60°C. Danger of explosion or fire
SAR – mobile phone meets all prescriptions for
maximal emision of electromagnetic radiation
Please keep the mobile phone 2.5 cm away from the
body while calling. You lower by that the quantity of
electromagnetic radiation absorbed by your body
4

Handle the mobile phone with care, protect it from
falling on the ground, from mechanical damages,
impurity or high temperatures. Never pick it to pieces !
Do not place the mobile phone or its holder in the area
above the airbag in the car.
Keep it out of reach of children! t contains small parts
that could be swallowed or they may hurt
Software and hardware of the mobile phone are
continuously innovated. The importer reserves the
right to alter the instruction manual or particular
functions of the mobile phone without a prior notice
5

Mobile phone ontrols
1. Virtual button : APK
2. Virtual button : Main screen
3. Virtual button : Backwards
4. Volume
6

5. Button : Switch On / Off
6. Earphone
7. Headset connector
8. Front camera
9. Micro USB connector
lnsert battery and SIM ard
Slip your nail at the slot under the battery cover on the back
side of the mobile phone and carefully pull down the cover.
nsert firstly one or two S M cards at the prepared slots.
nsert S M cards and a memory MicroSD card (if you have) as
per the picture instruction.
Finally insert carefully the battery. Put the battery cover
back. Place the cover on the back side of the mobile phone
and press gently around the circuit untill the cover clicks
properly on its place.
7

Swit h On / Off
To Swit h On - press the On/Off button (5). Starting of the
mobile phone can last few seconds.
To Swit h Off – press and hold the button (5) untill the
indicator window of a switch off appears on display.
Confirm it and the mobile phone will turn off.
The first start of the phone
The first time you turn on the phone, a wizard starts,
allowing you to make basic phone, network, user account
settings, etc. Select the required language and follow the
instructions on the screen.
A tivation and s reen unlo k
The screen turns off automatically after a certain time of
inactivity. Turn on / off the screen by a short press of the
button (5)
t is necessary to unlock the screen after its activation. Put
your finger on a „Lock“ symbol on the screen and move it in
the upwards direction. The screen will be unlocked. You can
8

also unlock the screen by placing your finger on the
fingerprint reader on the back side of the phone.
Operating system Android
Your mobile phone is provided with the operating system
Android. The device is in reality a small personal computer
that can be connected with internet from which you can
download many useful applications (via Google Play store).
Basi ontrol
Meaning of the virtual onta t buttons (1) to (3)
(1) Laun hed appli ations/APK – serves to display a list of
recently launched applications.
(2) Main s reen – short press serves to return to the main
screen. Long press displays the Google search
(3) Ba kwards – serves to return by one level back. (Jump
on the preceding screen, closing of offers or dialog
windows on the screen, etc.)
9

System ontrol
Your mobile phone is operated by using of the buttons
above, but mainly using the touch screen. Selection of items
on the screen, confirming dialogs and graphical buttons on
the screen are done by tapping on them.
Main s reen
The main touchscreen is divided into multiple pages that you
can display by scrolling by the finger to the sides.
You can place application and link shortcut icons or so-called
widgets on the main screen. Widgets are gadgets that allow
to display some data or controls - such as clocks, weather,
power control, etc.
Appli ations
The basic equipment of the phone includes applications for
telephoning, sending SMS, e-mail, as well as many other
useful and entertaining applications.
There are thousands of applications for the operating
system, but not all of them can work properly. Before
10

buying of any app, always check out its free version to see if
your phone is working properly.
Information and status display
So called „status bar“ is placed in the upper part of the
screen. You may find here the information about time,
battery level and signal strength but also other useful
information. For example the information about new SMS,
information about the system or applications. Status bar can
be moved down by your finger and rolled. You will get a
detailed overview about all announcements and information
including the possibility of a quick control of some mobile
functions.
Goole (user) a ount
Google Account must be set up for a proper use of the
system. Set up your account in the setup wizard, which
starts after you turn on your phone for the first time. Google
account can be set up later as well :
1. Open the application menu by dragging the arrow up
on the main screen.
11

2. Press the button Settings
3. Select item A ounts in menu and choose Add A ount
4. Further follow instructions on the screen
Mobile phone set up
All individual items of the telephone set up are clearly
arranged at the settings menu.
Press the button Menu - select Set up and make required
changes.
More information and instru tions :
More information on how to control your phone can be
found at: https://support.google.com/android
Making alls
Dialing
Click on the earphone icon on the main screen. A screen
with keypad for number dialling will be displayed.
12

You can enter the tel.number with the use of the keypad
buttons. Similarly as on the common telephone there are
the letters placed on the keypad buttons so you can directly
enter also the name. The dialled number and all
corresponding items of the telephone directory will be
displayed after entering of the letters on keys of the screen.
At the bottom part of the screen you can find the calling
button with a symbol of the head-phone. You can dial the
number by its pressing and make your call.
Answer and Reje t the Call
By the incoming call the information about his telephone
number (if available) and a button with the receiver is
displayed on the screen.
to answer the call : move the button upwards,
to reje t the call : move the button downwards
Call flow / Finish of the Call
The Screen shuts down automatically when you hold the
mobile near the ear. The screen is activated in a few
13

moments after delaying the phone away from the ear.
Press the red button on the screen to finish the call .
Volume
During a call, you can adjust the volume by using the (4)
button placed on the side of the phone.
ATTENTION! The headset can be very l ud. Theref re, d
n t set the v lume unnecessarily t the highest level t
av id hearing damage. In additi n, when the headset is set
t high, the ther party may hear the ech f his v ice. In
this case, l wer the v lume t the level at which this
phen men n disappears.
Messages
1. Click on the icon of Messages on the lower part of the
main screen or open the screen with applications and
select the item Messages
2. A list of conversations containing received and sent
SMS and MMS messages will be displayed.
3. Select the icon on the right bottom part of the screen
14

Sele tion of Network
You can choose whether your phone will use 2G , 3G or 4G
networks.
Select Settings and choose Network and internet. Further
select Mobile network and select Preferred network type
for each S M card. Now select item 2G, 3G or 4G.
Photography
Start the camera by tapping on the amera i on.
Point the camera at the scene that you need to focus and
tap your finger on display at the place that you focus or wait
a moment untill the camera automatically focuses on the
centre. Press the shutter button on the display to take a
picture of the scene. Every once in a few seconds, if the
scene is changed, the camera automatically focuses on the
center of the image. To speed up the focus or focus on
another part of the image, tap on the desired position on the
display.
15

Attention! Always fo us first or wait for fo us, then press
the shutter button, otherwise the images an be ome
blurred.
PC onne tion
You do not need any special drivers for connection to the
common PC (valid for OS Windows 10, event. newer).
Follow these steps :
1. Connect the mobile phone with PC with the enclosed
cabel
2. Download the status bar and tap the line at the bottom
part of the expanded menu
3. A connection mode offer is opened. We recommend to
use the device mode „File transfer“
4. The phone connects to the PC as a „Media device“
After that the phone's nternal storage and an inserted
MicroSD card are connected with your computer in the
section Computer – section Portable Devices, under the
name S5550 DUO.
The connection can be cancelled by disconnecting of the
cable.
16

Sele tion of SIM ard for alls, SMS, internet
Start Settings and select Network and Internet. Next, select
the SIM ard entry. You can now set which S M card can be
used for calls, SMS and nternet connections.
Safety and E ology
Used ele tri devi es
Mobile phone is an electronic appliance. t
means it must not be manipulated as a
common residential waste.
Never throw the used devi es away at the ommon
muni ipal waste!!!
They may contain the substances dangerous to the
environment. Hand over the product to the respective
collection point which provides the ecological liquidation.
Please contact your dealer to get more information how to
deal with the used products.
17

Battery liquidation
Never throw the used batteries away at the
ommon muni ipal waste!!
They may contain the substances dangerous to
the environment. Hand over the product to the respective
collection point which provides the ecological liquidation.
Please contact your dealer to get more information how to
deal with the used products. Do not throw the battery in the
fire nor expose it to the temperatures over +60°C. Danger of
explosion or fire.
Handling with the used batteries in ontradi tion with
given instru tions is illegal!
De laration of Conformity
ADART COMPUTERS s.r.o. hereby declares that the type of
the radio device AL GATOR S5540 is in compliance with the
Directive 2014/53/EU.
www.aligator.cz/en/
Copyright © / ADART COMPUTERS s.r.o., Čimická 717/34, CZ-Prague
18
