Allegion LCN 1461 Series User manual

January 2014
C 169
1461 Series
Door controls
The LCN 1461 Series is a non-handed surface mounted
closer designed for maximum versatility. A wide choice
of options, mounting accessories and ease of installation
make this a fully universal closer.
The LCN 1461 Series has been designed to be used on
aluminium, hollow metal or wood swinging commercial
interior/exterior doors and is ideally suited for hospitals,
nursing homes, hostels, shopping centres, commercial
buildings, hotels, educational and institutional
applications.
• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast
iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size
and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
• Independent adjustment valves for adjusting
backcheck, closing and latching speeds
• All adjustment valves are concealed behind the
cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven
mounting surfaces
• Stick-on template for fast, accurate installation.
Cuts installation time in half
• Closers installed according to LCN installation
instructions require minimal periodic maintenance
or adjustments
• Cush-N-Stop®function has a built in stop
incorporated into the arm to prevent damage to
the closer, door or frame in the event of an abrupt
stop
• The 30 year warranty provides specifiers and users
with assured quality and performance
Features
Fire Rated: Tested on fire door assemblies in accordance with
Australian Standards, refer fire door manufacturer for specific
approval details

January 2014
C 170
Specifications
Door type Timber or metal
Door size External door 610mm - 1219mm
Internal door 610mm - 1524mm
Applications Regular - pull side mount
Parallel arm - push side mount
Top jamb - push side mount
Adjustment controls Closing speed
Latching speed
Delayed action
Backcheck
Strength 1-6 adjustable
Options Hold open arm
Cush-N-Stop®arm
Hold open Cush-N-Stop®arm
Adaptor plate
Parallel arm drop plate
Square metal cover
Finishes Aluminium, satin stainless steel (optional
cover only), polished stainless steel
(optional cover only)
Warranty 30 year mechanical
The LCN 1461 is designed for reduced opening force which when set to a 1 strength makes it suitable for use by people who are
frail, aged or disabled. This closer can operate at between 14-20Nm from initial opening up to 90°
Caution! Where door closers are installed and adjusted to meet reduced opening force requirements, there maybe insufficient power to
reliably close and latch the door, depending on prevailing operating conditions
Note In areas of high wind pressure and/or air conditioning pressures or doors located in exceptionally heavy traffic or oversized/
heavy doors, the LCN 4041 series closers or LCN automatic door operators are recommended
Selection Chart
Strength Exterior door Interior door
1 - 2 NA 610mm - 864mm
3 610mm - 762mm 864mm - 965mm
4 762mm - 914mm 965mm - 1219mm
5 914mm - 1067mm 1219mm - 1372mm
6 1067mm- 1219mm 1372mm - 1524mm
Specification guide
Series Function Finish
LCN 1461 series ........................LCN1461 Regular ...................................... R
Hold open ................................. HO
Delayed action .............................DA
Cush-N-Stop®........................... CNS
Hold open Cush-N-Stop®............CNS-HO
Aluminium ............................. ALUM
1. Series
Select the desired series e.g. LCN 1461 series ............................................................................................... LCN1461
2. Function
Select the required function ............................................................................................................. LCN1461HO
3. Finish
Select the desired finish e.g. Aluminium ...........................................................................................LCN1461HOALUM

January 2014
C 171
Functions
Regular For applications where the door must fully close after each opening
Hold open Suitable for doors where the door may need to be left in a hold open position. The hold open function can be set
to hold open at a single point. Hold open closers can not be used on fire doors
Delayed action Delayed action closers have an inbuilt adjustable control that delays the closing of the door, for up to
approximately 1 minute
Cush-N-Stop®Used predominantly on outward swinging doors in situations where it is not practical to fit a door stop. The
Cush-N-Stop®function has a built in stop incorporated into the arm to prevent damage to the closer, door or
frame in the event of an abrupt stop. It is recommended that metal door frames be reinforced where the arm
attaches to the transom. Maximum door opening 100°
Hold open Cush-N-Stop®Provides the same function as the Cush-N-Stop®, but has the added feature of a hold open function in the arm,
which is engaged/disengaged by a tee handle. Maximum door opening 100°
Regulating controls
Closing speed Adjustment to increase or decrease the speed at which the door closes. This allows the appropriate momentum
to close the door in a safe and secure manner. Closing speed adjustment operates from the maximum opening
to 15°
Latching speed The latching speed allows the door to close quietly and firmly. It can be adjusted to increase or decrease the
speed at which the door finally closes. This assists the final stage of the closing cycle to help overcome stubborn
latchbolts or air pressure conditions. The latching speed adjustment operates from 15° to closing
Backcheck Adjustable hydraulic backcheck provides a cushioning effect when the door is forcibly thrown open to prevent
damage to the closer, door and frame. The backcheck adjustment allows the level of resistance in the latter
stage of opening to be set at the level required. Backcheck is effective from 75°. Backcheck is a requirement for
all fire rated closers
Delayed action Enables door closing action to be delayed for an adjustable period of time before resuming normal closing,
allowing slow moving traffic to pass through. Delay action can be adjusted up to a delay time of approximately 1
minute. Operational zone of delay is between 180° to 75°
Power adjustment Spring strength may be increased or decreased by turning the allen head screw located in the end of the door
closer body
The LCN 1461 has independent regulators to control

January 2014
C 172

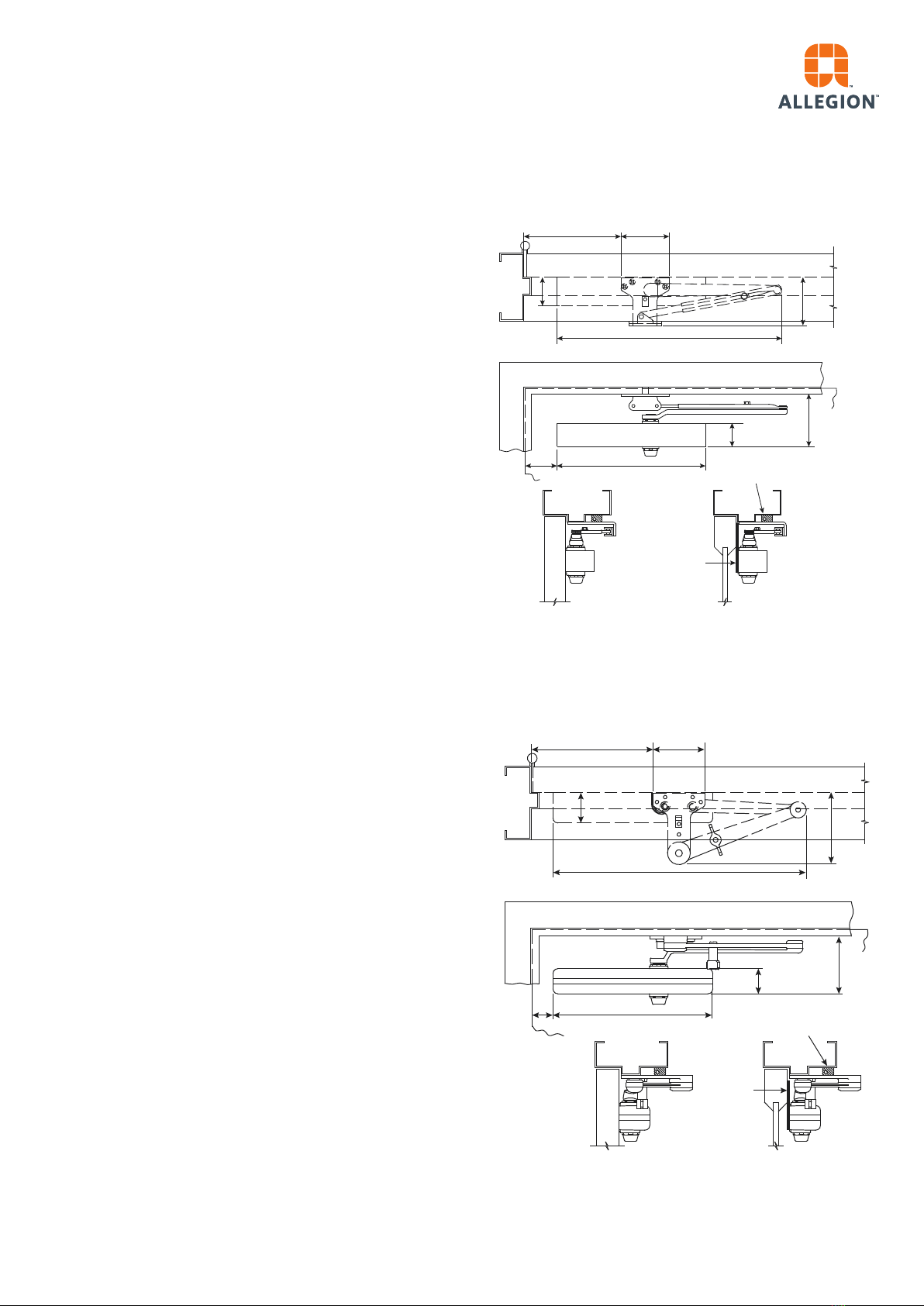

Regular mounting has a maximum opening of 180° , with frame and trim
permitting. The hold open arm allows the door to be set at one given hold open
point up to the maximum opening. The reveal should not exceed 19mm for a
regular arm or 13mm for a hold open arm. Top rail less than 64mm requires
adaptor plate. Adaptor plate requires a 38mm minimum top rail. Clearance of
70mm behind door is required for 90°installation. Delayed action closer delays
closing from 110°to 65°or 160°to 75°depending on templating
Maximum opening 110°
A = 169mm
B = 286mm
Maximum opening 180°
A = 76mm
B = 191mm
Regular (pull side) mounting
Top jamb mounting has a maximum opening of 180° . The hold open arm allows
the door to be set at a given hold open point up to the maximum opening. A
reveal of 64mm for hold open arms and 89mm for regular arms allows a 180°
opening. Top rail less than 48mm requires adaptor plate. Adaptor plate requires
a 70mm minimum top rail. For situations where the head frame is less than
44mm or a flush ceiling condition exists with a 51mm head frame, an adaptor
plate is required. Adaptor plate requires a 32mm minimum head frame. Delayed
action closer delays closing from 110°to 75°or 180°to 95°depending on
templating.
Maximum opening 110°
A = 169mm
B = 286mm
Maximum opening 180°
A = 76mm
B = 191mm
Top jamb (push side) mounting
Mounting details
A
B
60mm
318mm
289mm
51mm
48mm
19mm
68mm
1461-18
60mm
289mm
318mm
68mm
A
B
72mm
86mm
1461-18
19mm
35mm

January 2014
C 173
Cush arms can be templated for the following maximum opening/hold open
points:
1. 85°- A = 60mm & B = 243mm
2. 90°- A = 41mm & B = 230mm
3. 100°- A = 16mm & B = 205mm
Clearance for the cush shoe is 140mm from door face. Top rail less than
108mm measured from the stop requires drop plate. The drop plate requires
a 44mm minimum top rail
Cush-N-Stop®(push side) mounting
Parallel arm mounting has a maximum opening of 180°. The hold open arm
allows the door to be set at one given hold open point up to the maximum
opening. Clearance for the PA shoe is 102mm from door face. Top rail less
than 108mm measured from the stop requires drop plate. The drop plate
requires a 44mm minimum top rail. Minimum stop width is 25mm. Blade stop
clearance requires 13mm blade stop spacer. Delayed action closer delays
closing from maximum opening to approximately 75°. When installing closers
in parallel arm configuration, strength may be needed to be adjusted upwards
to compensate for power reduction
Maximum opening 100°
A = 108mm
B = 235mm
Maximum opening 180°
A = 44mm
B = 171mm
Parallel arm (push side) mounting
Mounting details
B
A
102mm
102mm
132mm
72mm
60mm
489mm
318mm Blade Stop Spacer
1461-18PA
102mm
B
A
51mm
60mm
311mm
500mm
108mm
102mm
Blade Stop Spacer
1461-18PA

January 2014
C 174
Mounting plate required top jamb
mounting where head frame is
less than 60mm or a flush ceiling
condition exists
Adaptor plate 1460-18FC
Mounting plate required for parallel
arm mounting configuration
where top rail is less than 114mm,
measured from the stop. A drop
plate requires a 44mm minimum
top rail
Drop plate 1460-18PAFC
Regular arm 1460-3077
Standard, non-handed arm mounts
hinge side or top jamb. For parallel
arm mounting, a PA shoe is also
required
Finish: Aluminium
Non-handed, hold open arm mounts
hinge side or top jamb. For parallel
arm mounting, a PA Shoe is also
required. Hold open adjustable at
shoe
Finish: Aluminium
Hold open 1460-3049
Cush-N-Stop®arm 1460-3077CNS
Non-handed parallel arm features
solid forged steel main arm and
forearm, with stop in sot shoe
Finish: Aluminium
Non-handed arm, provides hold
open function with templated stop/
hold open points. Handle controls
hold open function
Finish: Aluminium
Hold open Cush-N-Stop®arm 1460-3049CNS
PA shoe 1460-62PA
Blade stop spacer 1460-61
Required for parallel arm mounting
configurations
Finish: Aluminium
Lowers parallel arm shoe to clear
13mm blade stop
Metal cover 1460-MC
Non-handed cover, providing
complete enclosure of closer body
Finishes: Polished stainless steel,
satin stainless steel
1461 Series accessories
320mm
85mm
126mm
318mm
100mm
102mm
33mm
50mm
318mm
82mm
