1a Make sure hand of closer matches hand of door.
Remove nish plates. Hand of closer is printed on
the mounting plate label. Hand of closer cannot be
reversed. See diagram above to determine hand of
door.
1b Prepare and mortise door & frame per template on pg.
4.
1c Install closer in prepared headframe, as shown in Fig.
1, with spring tube pointing away from hinge. Fasten
mounting plate to jamb with 1/4 - 20 x 5/8 PHMS
provided.
1d Install track in door. Roller access hole must be toward
latch edge of door, as shown in Fig. 1. Fasten with 1/4
- 20 x 1/2 TORX MS provided.
1e Connect arm assembly to track by placing plastic roller
at end of arm into the roller access hole in track. See
Fig. 1. Let arm assembly rest on top of installed track.
1f To attach arm to closer:
a. Open door out of working area.
b. With a 3/32” hex wrench, turn latch & main speed
regulating screws all the way in (clockwise). See Fig. 2. DO
NOT FORCE SCREWS.
c. Using an adjustable wrench, rotate door closer shaft
approximately 90°. See Fig. 3. (R.H. - clockwise / L.H. -
counterclockwise).
LEFT
HAND
DOOR
RIGHT
HAND
DOOR
HOW TO TELL HAND OF DOOR
CLOSER
ASSEMBLY
MOUNTING
SCREWS
FINISH
PLATE
ARM
ASSEMBLY
ROLLER
ACCESS
HOLE
FINISH PLATE
TORX SCREWS
ARM SHAFT
SCREW
TRACK
TORX
SCREWS
TRACK
90°
Fig. 1
Fig. 3
Fig. 2
LATCH
SPEED
MAIN
SPEED
BACK
CHECK
TM
LEFT
HAND
DOOR
RIGHT
HAND
DOOR
HOW TO TELL HAND OF DOOR
CLOSER
ASSEMBLY
MOUNTING
SCREWS
FINISH
PLATE
ARM
ASSEMBLY
ROLLER
ACCESS
HOLE
FINISH PLATE
TORX SCREWS
ARM SHAFT
SCREW
TRACK
TORX
SCREWS
TRACK
90°
Fig. 1
Fig. 3
Fig. 2
LATCH
SPEED
MAIN
SPEED
BACK
CHECK
TM
LEFT
HAND
DOOR
RIGHT
HAND
DOOR
HOW TO TELL HAND OF DOOR
CLOSER
ASSEMBLY
MOUNTING
SCREWS
FINISH
PLATE
ARM
ASSEMBLY
ROLLER
ACCESS
HOLE
FINISH PLATE
TORX SCREWS
ARM SHAFT
SCREW
TRACK
TORX
SCREWS
TRACK
90°
Fig. 1
Fig. 3
Fig. 2
LATCH
SPEED
MAIN
SPEED
BACK
CHECK
TM
LEFT
HAND
DOOR
RIGHT
HAND
DOOR
HOW TO TELL HAND OF DOOR
CLOSER
ASSEMBLY
MOUNTING
SCREWS
FINISH
PLATE
ARM
ASSEMBLY
ROLLER
ACCESS
HOLE
FINISH PLATE
TORX SCREWS
ARM SHAFT
SCREW
TRACK
TORX
SCREWS
TRACK
90°
Fig. 1
Fig. 3
Fig. 2
LATCH
SPEED
MAIN
SPEED
BACK
CHECK
TM
Customer Service
1-877-671-7011 www.allegion.com/us
Door Closers
2210 Series
LEFT
HAND
DOOR
RIGHT
HAND
DOOR
HOW TO TELL HAND OF DOOR
CLOSER
ASSEMBLY
MOUNTING
SCREWS
FINISH
PLATE
ARM
ASSEMBLY
ROLLER
ACCESS
HOLE
FINISH PLATE
TORX SCREWS
ARM SHAFT
SCREW
TRACK
TORX
SCREWS
TRACK
90°
Fig. 1
Fig. 3
Fig. 2
LATCH
SPEED
MAIN
SPEED
BACK
CHECK
TM
Installation Instructions

d. With closer shaft now stationary, move the end of the arm to shaft of closer. Slowly move door so hole in arm lines up correctly
with closer shaft. Push arm up into position and insert arm shaft screw, as shown in Fig. 4.
Fig. 4
LATCH
SPEED
MAIN
SPEED
BACK
CHECK
Fig. 5
LATCH
SPEED
MAIN SPEED
BACKCHECK
Fig. 6
Fig. 7

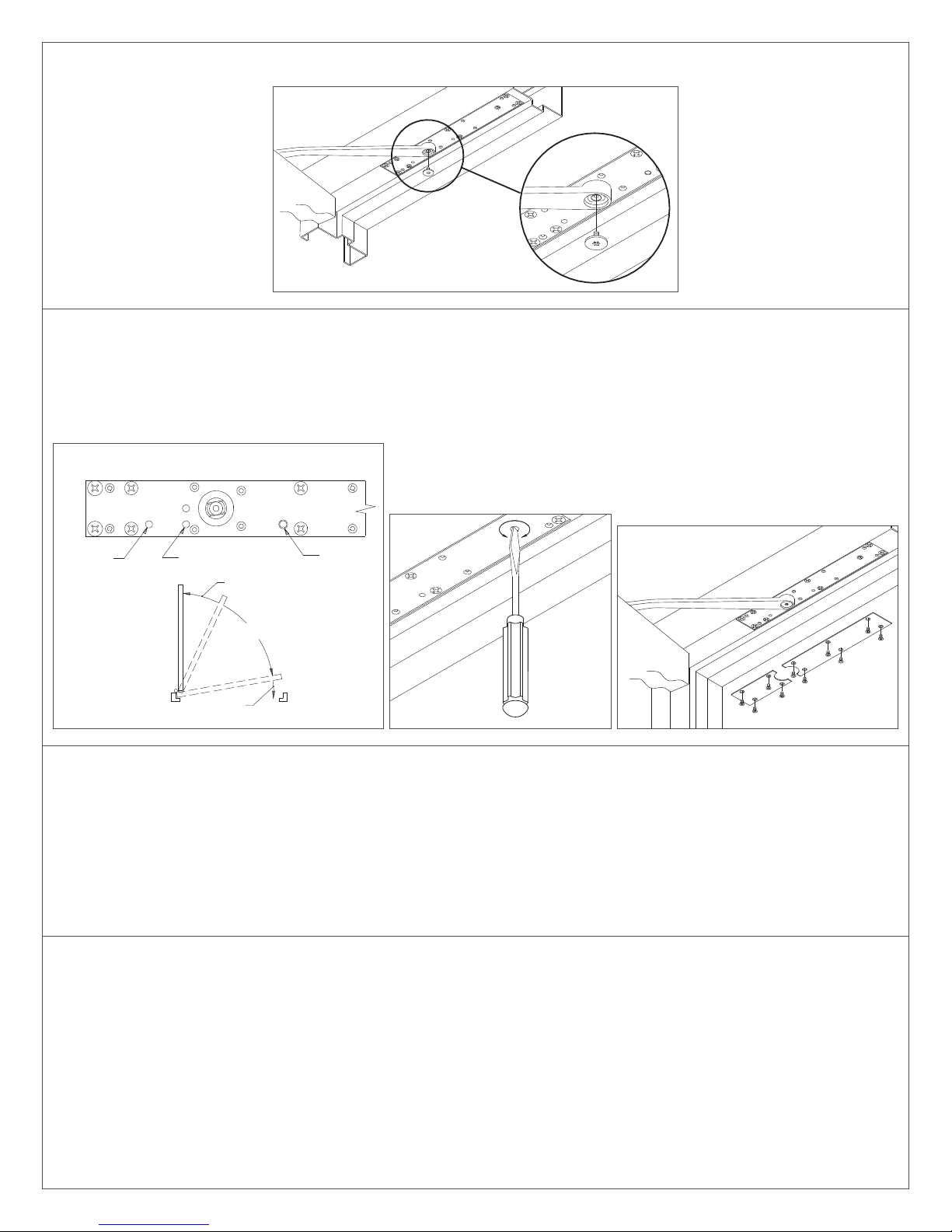

1g TO REGULATE CLOSING SPEED & BACKCHECK:
See Fig. 5 below. Use a 3/32” hex wrench to re-adjust MAIN & LATCH speed screws (closed in step 7A). Turn both MAIN & LATCH
speed screws 2 full turns counterclockwise. Open door and observe closing cycle. A normal closing time from a 90° position is 5 to 7
seconds, equally divided between MAIN & LATCH speeds. If further adjustment is required, turn regulating screws clockwise to SLOW
door speed / counterclockwise to INCREASE door speed. BACKCHECK is a feature that slows the speed of door at approximately 70°.
To INCREASE force turn BACKCHECK screw clockwise. To REDUCE force turn BACKCHECK screw counterclockwise. Do not use an
abrupt BACKCHECK setting, nor expect closer to act as a door stop!
Fig. 4
LATCH
SPEED
MAIN
SPEED
BACK
CHECK
Fig. 5
LATCH
SPEED
MAIN SPEED
BACKCHECK
Fig. 6
Fig. 7
Fig. 4
LATCH
SPEED
MAIN
SPEED
BACK
CHECK
Fig. 5
LATCH
SPEED
MAIN SPEED
BACKCHECK
Fig. 6
Fig. 7
Fig. 4
LATCH
SPEED
MAIN
SPEED
BACK
CHECK
Fig. 5
LATCH
SPEED
MAIN SPEED
BACKCHECK
Fig. 6
Fig. 7
1h CLOSING POWER ADJUSTMENT:
Depending on width of door, the 2210 has been ordered as one of three sizes: 2213, 2214 or 2215. Determine closer size from either
label on box or UL label on mounting plate. Adjustment can be made with a at head screwdriver (see Fig. 6). Adjustment range for each
size is as follows:
• 2213: Closer is shipped at minimum closing power. If MORE closing Power is required, turn adjusting screw counterclockwise, but
not more than 36 full turns. Do not turn adjusting screw clockwise.
• 2214: If MORE power is required, turn adjusting screw counterclockwise, but not more than 18 full turns. If LESS power is required,
turn adjusting screw clockwise, but not more than 18 full turns. Do not turn adjusting screw more than 18 full turns in either direction.
• 2215: Closer is shipped at maximum closing power. If LESS power required, turn adjusting screw clockwise, but not more than 36 full
turns. Do not turn adjusting screw counterclockwise.
1i Once proper operation has been veried, secure nish plates with No. 10-24 x 3/8” Torx security screws, as shown in
Fig. 7.

®
