Allegion Von Duprin QEL9447 User manual

*24908402*
24908402
Recessed Exit Device
QEL94/9547
Installation Instructions
© Allegion 2018
Printed in U.S.A.
24908402 Rev. 10/18-c
Customer Service
1-877-671-7011 www.allegion.com/us
Index
Devices covered by these instructions:
QEL94/9547/48 Concealed Vertical Rod Device (Panic and Fire)
QEL94/9547-LBR Concealed Vertical Rod Device (Fire)
Read All Warnings
Before Starting Installation!
Install in accordance with instructions or
device will not function.
WARNING
For less bottom rod (LBR) devices, do not
cover the door gap at the auxiliary fire latch
with a door edge guard or similar product.
If edge guard is installed, remove it.
CAUTION
• Warnings .................................... 1
• Parts ........................................... 2
• General Information .................... 3
• Specifications ............................. 3
• Tools Needed ............................. 3
• Set Handing ............................... 3
• Installation .................................. 4
Instruction applies to devices built after
Dec. 2014. To identify device, see QEL
motor assembly as shown.

2 of 16
PARTS
Ratchet
release
assembly Soffit strike
Top latch
assembly
Top rod
assembly
QEL motor
QEL cable
End cap
Dogging key
(panic devices
only)
End cap
Bottom rod
assembly
Bottom latch
assembly
Sill strike
Device

3 of 16
GENERAL INFORMATION
SPECIFICATIONS

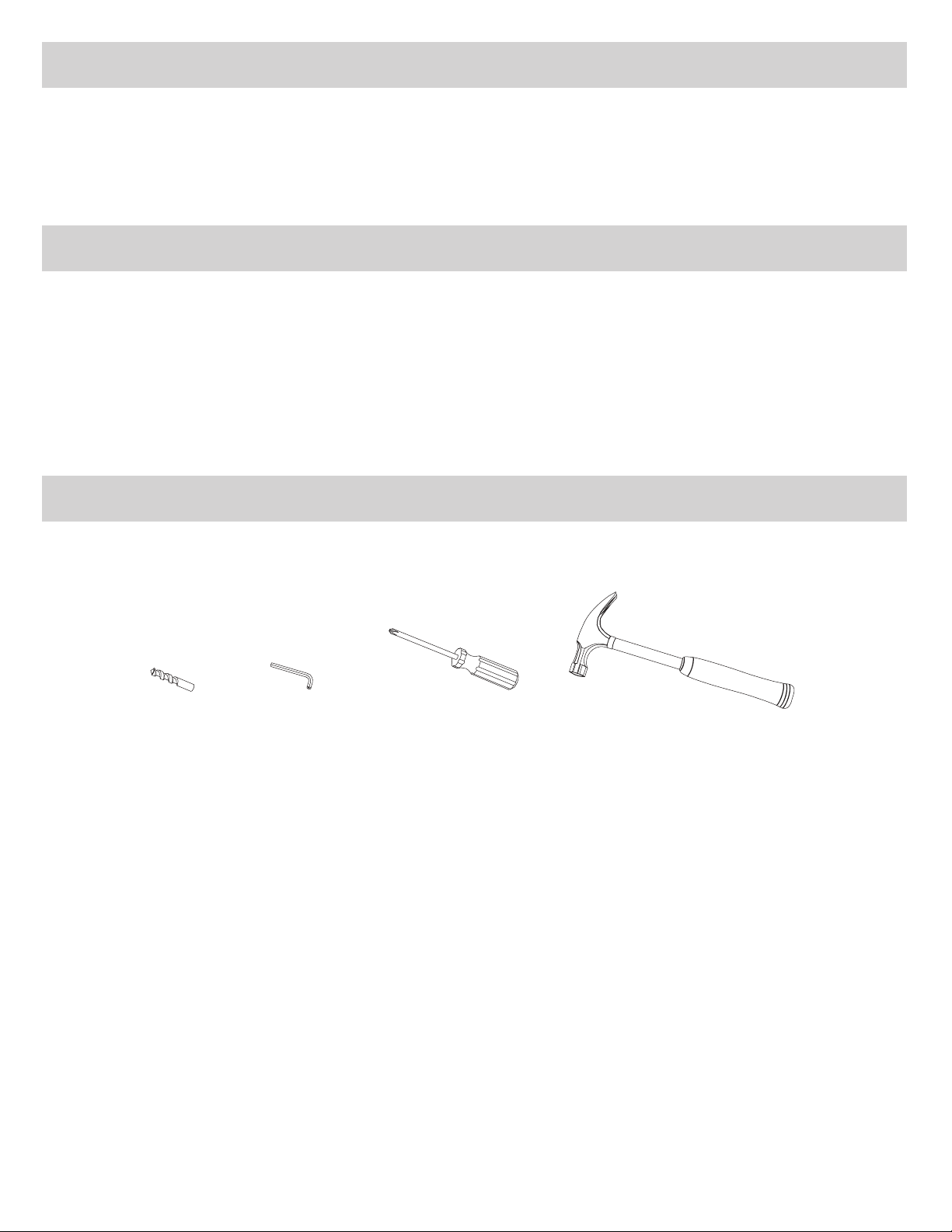

TOOLS NEEDED
The QEL94/9547 Exit Device is designed to provide reduced pushpad projection and a unique appearance b
y embedding
the device into the face of the door.
These instructions assume that a factory-prepared door and frame are being used.
Before starting installation, review "Warnings," "Parts," "Specifications," and "Tools Needed."
Mechanical
• Vertical rods adjustable for doors 6'8" to 8' tall
• Rods for 10' doors are available upon request
• Pushpad projection (depressed) 1¹⁄₈" to 1¹⁄₄"
Electrical Load
• Voltage: 24 VDC
• Current: 1.0 A inrush (0.5 sec)
0.14 A holding
These are the tools needed for installing a QEL94/9547 into a factory-prepared door and frame.
¹⁄₂" drill bit ⁷⁄₆₄" hex key #2 Phillips screwdriver Hammer

4 of 16
1 PREPARE DOOR FOR TRIM (SKIP THIS STEP IF NOT USING TRIM)
2 PREPARE HOLE FOR RATCHET RELEASE PLUNGER
Drill through the four mounting holes and trim access hole at the latch side of the cutout. See trim installation
instructions for hole sizes and locations.
a. Determine stop height (Figure 2-1), then mark center of hole on device side of door (Figure 2-2).
b. Drill a ¹⁄₂” diameter hole where marked through device side of door only.
Latch
side
Hinge
side
¹¹⁄₁₆ " for ¹⁄₂" stop height
¹³⁄₁₆ " for ⁵⁄₈" stop height
¹⁵⁄₁₆ " for ³⁄₄" stop height
Latch
Stop height
Measure from
non-beveled edge LHR shown
RHR opposite
Side opposite hinges
¹⁄₂" dia.
2³⁄₄"Top of door
Figure 2-1 Figure 2-2

5 of 16
3 WIRE LX SWITCH (LX DEVICES ONLY)
a. Connect field wiring to frame side of power transfer (Figure 3-1).
b. See LX switch wiring information (Figure 3-2) for switch configuration.
c. Connect LX switch wiring to door side of power transfer using crimp connectors. Unused wires should be insulated
separately.
The latch bolt monitor switch is activated
whenever the latch bolt is retracted. The
switch function is shown with the latchbolt
extended and the touchbar not depressed.
NOTE
Disconnect power before
wiring LX switch.
WARNING
Switch
Blue
Red
Yellow
NC
NO
Figure 3-1
Figure 3-2
Field
wiring
Power transfer
(Von Duprin EPT10 shown, or
EPT2 can be used on QEL
device without LX switch)

6 of 16

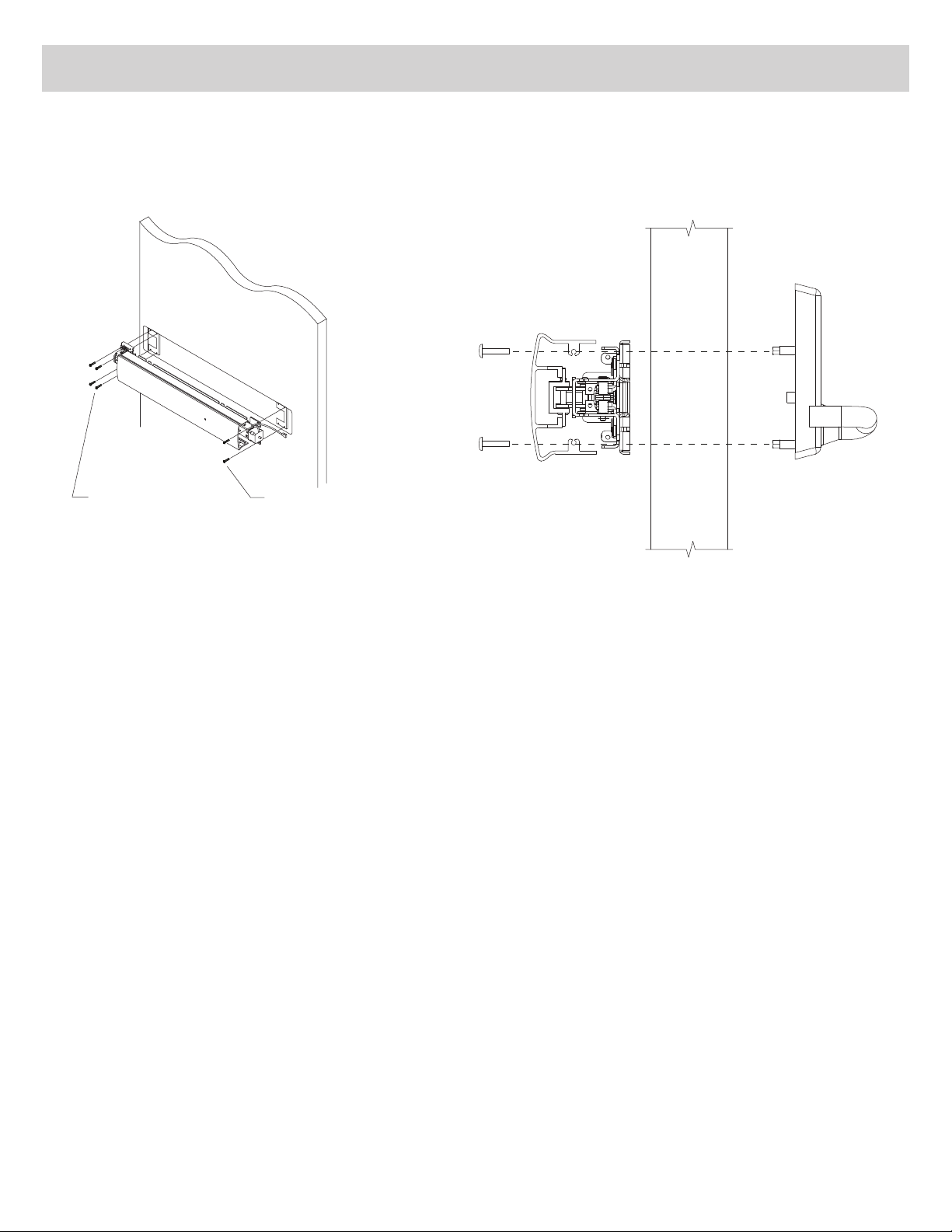

4 MOUNT DEVICE ON DOOR
5 ROUTE TWO WIRES FROM QEL EXIT DEVICE TO POWER SUPPLY
a. Mount device on door using supplied mounting screws (Figure 4-1).
b. Center device in pocket, leaving an even gap all around the device.
c. If outside trim is used, bolt through to trim (see Figure 4-2 and trim installation instructions).
PS900-Series Power Supply
with 900-Series Option
Board(s) installed
18 AWG required
Maximum distance = 200'
QEL INPACT
Exit Device
EPT shown. A door loop
or electric hinge/pivot
may also be used.
Voltage: 24 VDC
Current: 1.0 A inrush (0.5 sec)
0.14 A holding
QEL Electrical Load
QEL Cable
⁵⁄₁₆" pan head
machine screws
(quantity: 4)
⁵⁄₁₆" pan head
machine screws
(quantity: 2)
Figure 4-1 Figure 4-2
Distance
(one way)
Wire Gauge
200’
QEL device used with EPT,
Door Loop, or
Electric Hinge/Pivot
18AWG
320’ 16AWG
500’ 14AWG
800’ 12AWG

7 of 16
5 INSTALL TOP LATCH
a. Rivet two-piece top rod together. Align holes according to door height (Figure 5-1). Rod length for a 7-foot door is
approximately 38¹⁄₂”. Top rod sections are longer than bottom rod sections.
b. Attach brackets to top latch, then thread rod assembly onto latch (Figure 5-2).
c. Slide rod and latch into prep at door top (Figure 5-3), and attach rod to center case (Figure 5-4).
d. Fasten latch to door with supplied screws (Figure 5-5).
9
8
7
6
5
4
B3
2
10
A1
Line up with one
of these holes
Install
rivet
For door heights between
those shown on the chart,
use the next door height
up. For example, for a
6'11" door, use 7' on the
chart.
6'8"
6'10"
7'0"
7'2"
7'4"
7'6"
7'8"
7'10"
8'0"
8'2"
8'4"
1
1
2
3
4
5
6
7
8
9
10
B
A
A
A
A
A
A
A
A
A
A
Door Height 1st Hole 2nd Hole
Attach rod to
center case
Figure 5-1 Figure 5-2
Figure 5-3 Figure 5-4 Figure 5-5

8 of 16
6 INSTALL BOTTOM LATCH (SKIP THIS STEP FOR LBR DEVICES)
7 INSTALL 338 SOFFIT STRIKE
a. Repeat steps 6a through 6d for bottom rod and latch. Use hole 8 for most applications. Approximate rod length
is 34¹⁄₂”.
b. Press pushpad to retract latches.
c. Hang door.

9 of 16

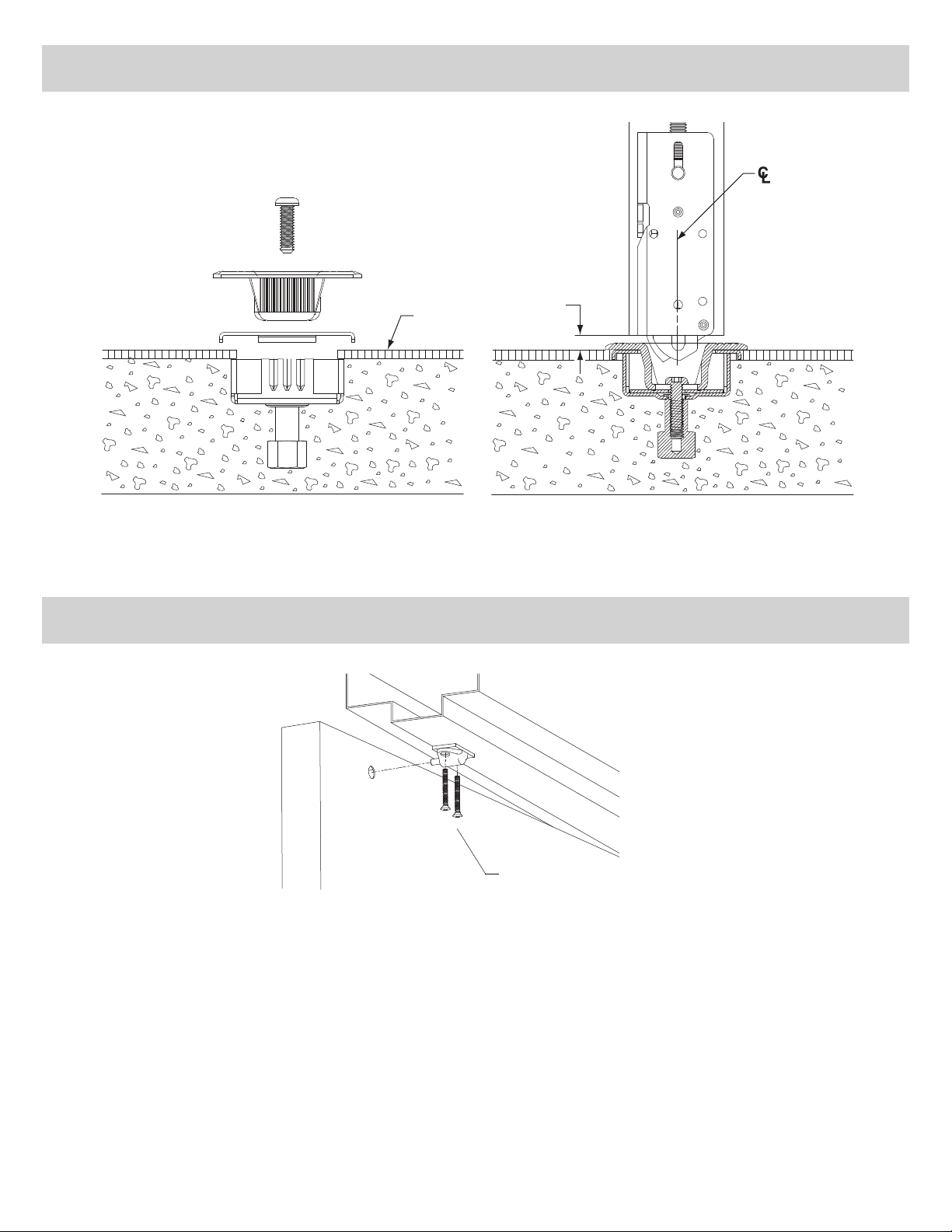

8 INSTALL SILL STRIKE OR THRESHOLD (SKIP THIS STEP FOR LBR)
#25 drill and #10-24 tap
2 places
9 INSTALL RATCHET RELEASE ASSEMBLY
Strike
¹⁄₄"
Carpet

10 of 16

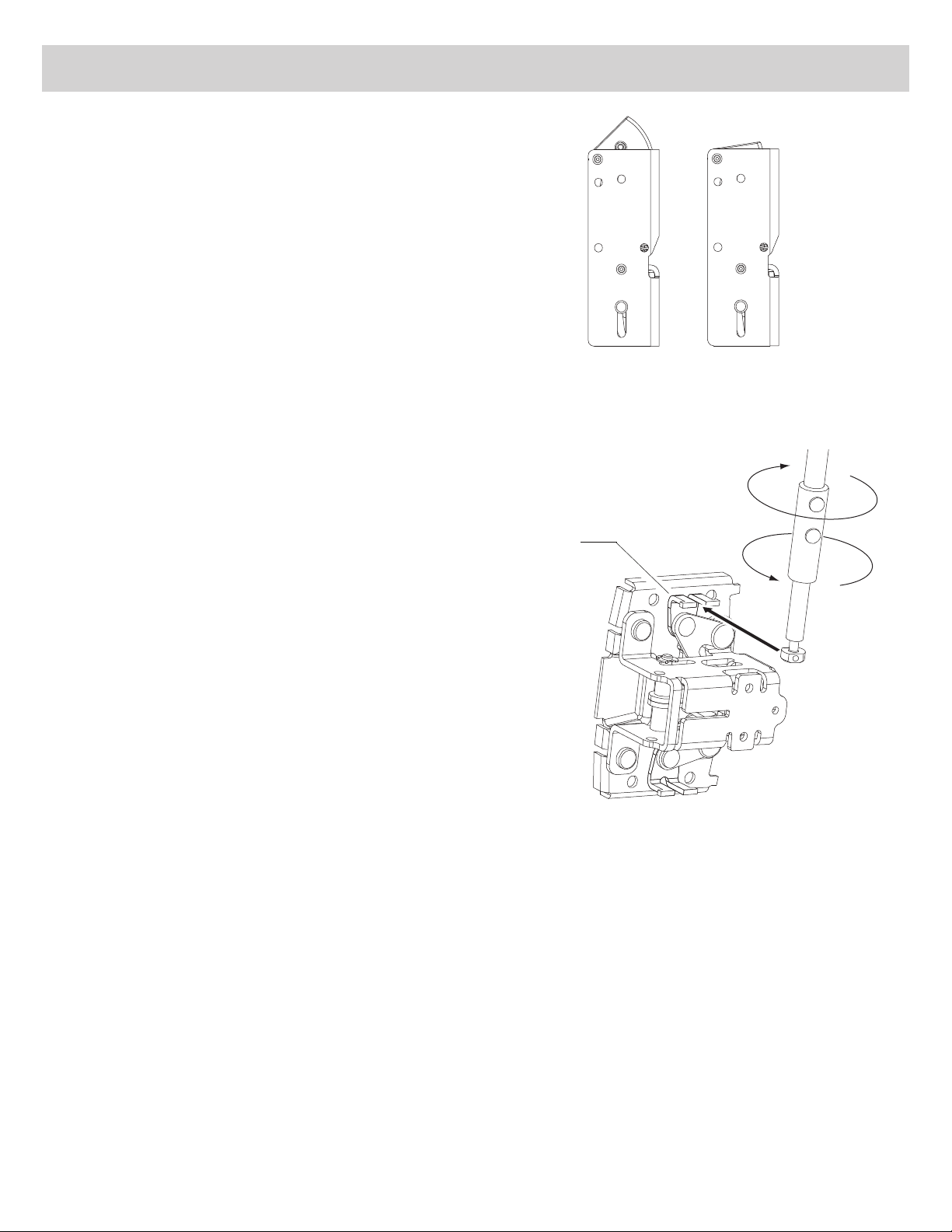

10 ADJUST TOP ROD
a. Fully depress and hold pushpad.
b. Set top latch in fully retracted (hold) position (Figure
10-1).
c. Push down on center case connector, adjust rod
length, and connect top rod (Figure 10-2).
d. Verify that pushpad projection, when depressed,
is between 1¹⁄₈” and 1¹⁄₄”. Adjust top rod if necessary:
Lengthening the top rod will reduce pushpad
projection when depressed.
e. If using trim, verify that the trim fully retracts the top
latch. If the trim does not fully retract the top latch,
adjust the top rod so it is shorter.
f. Open door and release latches by inserting a
Phillips head screwdriver into the ratchet release
plunger hole. Check top latch deadlocking: Top latch
should not retract when pressed down.
• If top latch bolt does not stay fully retracted,
shorten top rod (Figure 10-2) and retest.
• If top latch bolt does not fully extend or deadlock,
lengthen top rod (Figure 10-2) and retest.
• If bottom latch bolt does not stay fully retracted,
shorten bottom rod (see Step 11) and retest.
• If bottom latch bolt does not fully extend, lengthen
bottom rod (see Step 11) and retest.
Fully
extended
Fully retracted in
hold position
Center
case
connector
Lengthen rod
Shorten rod
Figure 10-1
Figure 10-2

11 of 16
11 ADJUST BOTTOM ROD (SKIP THIS STEP FOR LBR DEVICES)
Center case
connector
Retainer
clip
Retainer clip fits
behind legs of
center case
connector
Install screw
with ⁷⁄₆₄"
hex key
12 INSTALL RETAINER CLIPS ON TOP AND BOTTOM RODS AT CENTER CASE
a. Fully depress pushpad and release. Top latch should be in retracted position.
b. Adjust bottom rod length by rotating rod so latch clears floor when door is open.
Lengthen rod
Shorten rod

12 of 16
4 MOUNT DEVICE ON DOOR
14 ROUTE TWO WIRES FROM QEL EXIT DEVICE TO POWER SUPPLY
a. Mount device on door using supplied mounting screws (Figure 4-1).
b. Center device in pocket, leaving an even gap all around the device.
c. If outside trim is used, bolt through to trim (see Figure 4-2 and trim installation instructions).
PS900-Series Power Supply
with 900-Series Option
Board(s) installed
18 AWG required
Maximum distance = 200'
QEL INPACT
Exit Device
EPT shown. A door loop
or electric hinge/pivot
may also be used.
Voltage: 24 VDC
Current: 1.0 A inrush (0.5 sec)
0.14 A holding
QEL Electrical Load
QEL Cable
⁵⁄₁₆" pan head
machine screws
(quantity: 4)
⁵⁄₁₆" pan head
machine screws
(quantity: 2)
Figure 4-1 Figure 4-2
Distance
(one way)
Wire Gauge
200’
QEL device used with EPT,
Door Loop, or
Electric Hinge/Pivot
18AWG
320’ 16AWG
500’ 14AWG
800’ 12AWG Note: Power wires to QEL
are not polarized.
13 TEST MECHANICAL DEVICE OPERATION
a. Fully depress pushpad and push door open.
b. Release pushpad. Latch bolts should remain retracted.
c. Close door. Latch bolts should fully extend (⁵⁄₈" ± ¹⁄₁₆") and engage strikes.

13 of 16

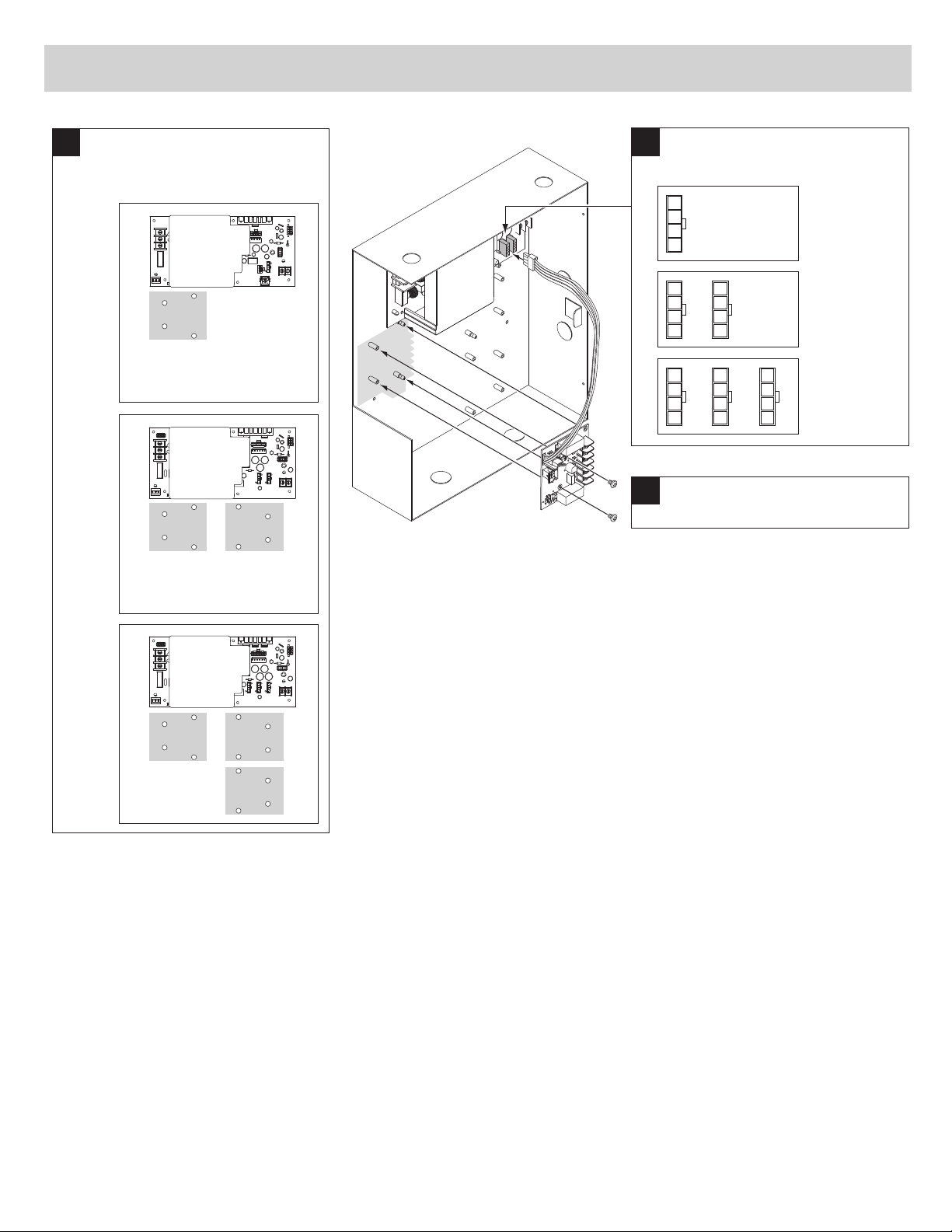

15 INSTALL 900-2RS, 4RL, OR 4R OPTION BOARD(S) INTO POWER SUPPLY
b
cSecure Board(s) with Screws
Option 1
Option 2 Option 1
Option 3
Option 2
Option 1
PS902
1 Board
PS904, 914
2 Boards
PS906
3 Boards
1
aReview Available 900 series
Option Board Mounting
PS902
PS904
PS914
PS906
1
1 2
2
3
1
Locations (Gray)
Plug Option Board Cable into
any Available Option Connector
3. The QEL is compatible with an existing 900-2Q board
if currently installed.
5. When powering multiple components, verify that the
amperage requirements of all components combined
does not exceed the power supply output rating.
4. Latchbolt retraction of (2) sequenced QEL’s requires
more than 1 second to complete.
2. If installing board in location 2 or 3, rotate board 180˚
Notes: 1. 24VDC output setting required when QEL
device connected

14 of 16
17 APPLY POWER TO POWER SUPPLY. IF 900-BB IS USED, THEN RECONNECT BATTERIES
18 CHECK OPERATION
a. Activate each input and verify all QEL devices operate properly.

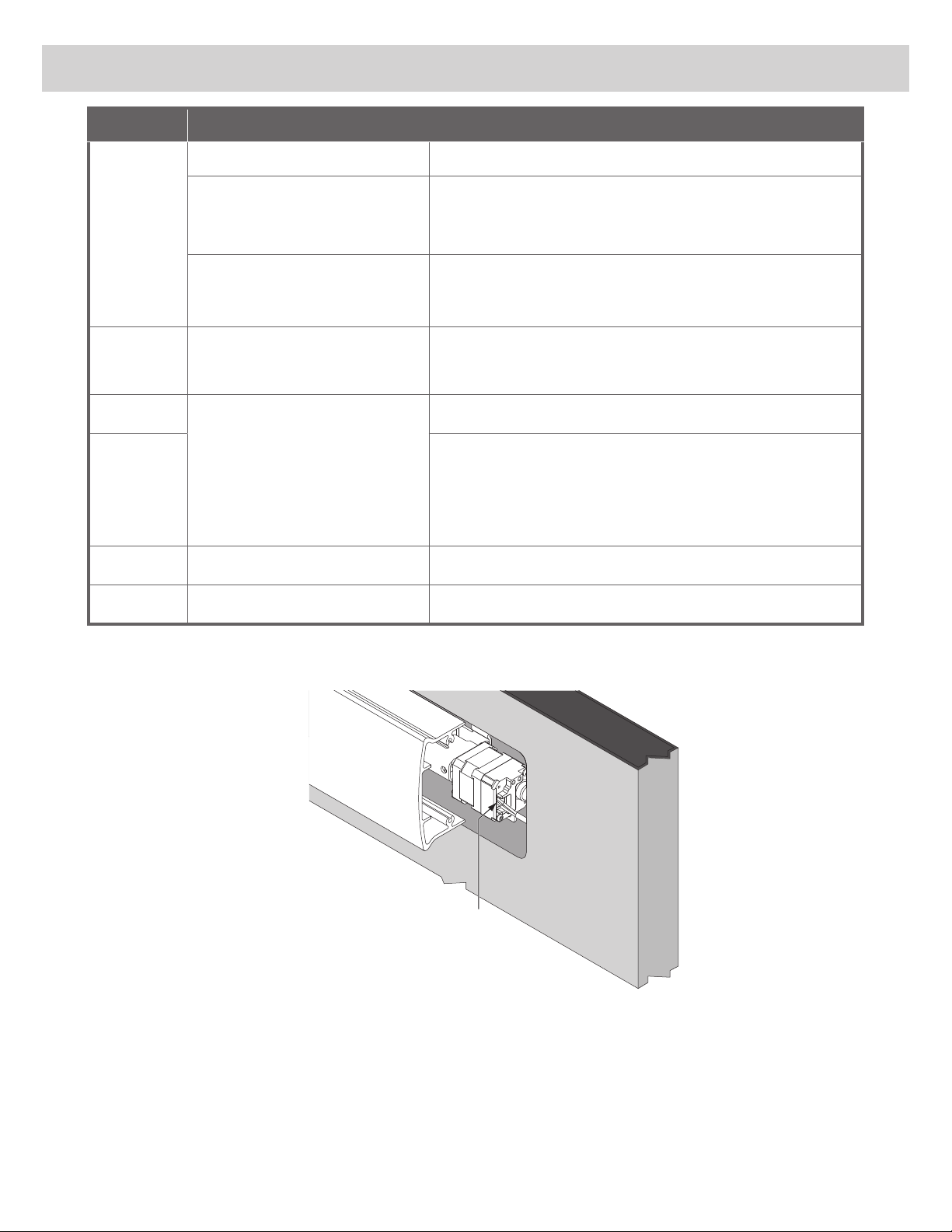

b. If any device does not operate properly, see step 19 for troubleshooting.
16 CONNECT INPUT AND OUTPUT WIRES TO OPTION BOARD, 2RS SHOWN
Sequential Mode - Typical Wiring
Input I1 will activate both outputs
QEL Device 1
(not polarized)
Access
Control
for
Devices
1 & 2
EPT-2/10
QEL Device 2
(not polarized)
EPT-2/10
900-2RS
120/240 VAC
50/60Hz
SC I1 01 I2 02 GND
Note:
Fail secure output only allowed if approved
by Authority Having Jurisdiction
Individual Mode - Typical Wiring
Input I1 will activate output 1
Input I2 will activate output 2
QEL Device 2
(not polarized)
Access
Control
for Device 2
EPT-2/10
QEL Device 1
(not polarized)
Access
Control
for Device 1
EPT-2/10
SC I1 01 I2 02 GND
900-2RS
120/240 VAC
50/60Hz
For other option board wiring diagrams, see the appropriate instruction sheet.
Sequential Mode - Typical Wiring
EPT-2/10 EPT-2/10
SC I1 01 I2 02 GND
120/240 VAC
50/60Hz
(PS900
series only)
Input I1 will activate both outputs
QEL Device 1 QEL Device 2
Note:
Fail secure
output only
allowed if
approved by
Authority Having
Jurisdiction
2RS
Access
Control
for
Devices
1 & 2
PS900
Series
Individual Mode - Typical Wiring
EPT-2/10
EPT-2/10
SC I1 01 I2 02 GND
120/240 VAC
50/60Hz
Input I1 will activate output 1
Input I2 will activate output 2
2RS
Access
Control for
Device 2
Access
Control for
Device 1
QEL Device 2
QEL Device 1
PS900
Series

15 of 16
19 IF NECESSARY, TROUBLESHOOT OPERATION
Power at the
QEL QEL Response Condition/Solution
24VDC
LED - Solid green
Latchbolt - retracted Operation normal, latch retracted immediately
LED - Solid red after latchbolt
attempts to retract multiple times
Latchbolt cannot fully retract mechanically
Verify mechanical adjustment (on vertical rod or mortise lock devices
if used). Remove and reapply input voltage to reset this condition.*
See Test Mechanical Device Operation on page 12 as needed.**
LED - Flashing green/red
Latchbolt - not retracted
Excessive tamper (while power applied, the pushpad was pulled out
at least 3 time)
Wait 15 seconds and latchbolt will retract again OR remove and
reapply power to clear condition
24VDC low LED - Flashing green
Latchbolt - retracted
Voltage low during latchbolt retraction (latchbolt retracts at reduced
force)
Wire length is too long, wire gauge is too small or power supply has
poor regulation
29VDC or
greater
LED- Flashing red
Latchbolt - will not retract
Input voltage is too high for proper operation
Wrong power supply, power supply defective.
13VDC or
lower
Input voltage is too low for proper operation
Wrong power supply, power supply defective or not set to the proper
output voltage.
To set, remove AC power from power supply, change power supply
setting from 12 to 24VDC, then reapply AC power and verify proper
operation.
0VDC LED - o󰀨
Latchbolt - not retracted
No input voltage
Problem with the power supply, control switch or wiring
0VDC LED - o󰀨
Latchbolt - retracted
No input voltage
Mechanical dogging is engaged
*For information about adjusting exit devices, you can nd their installation instructions in the support area at www.allegion.com/us or
call Technical Services at 1-877-671-7011
Output 2 LED Red
LED
on Device

16 of 16

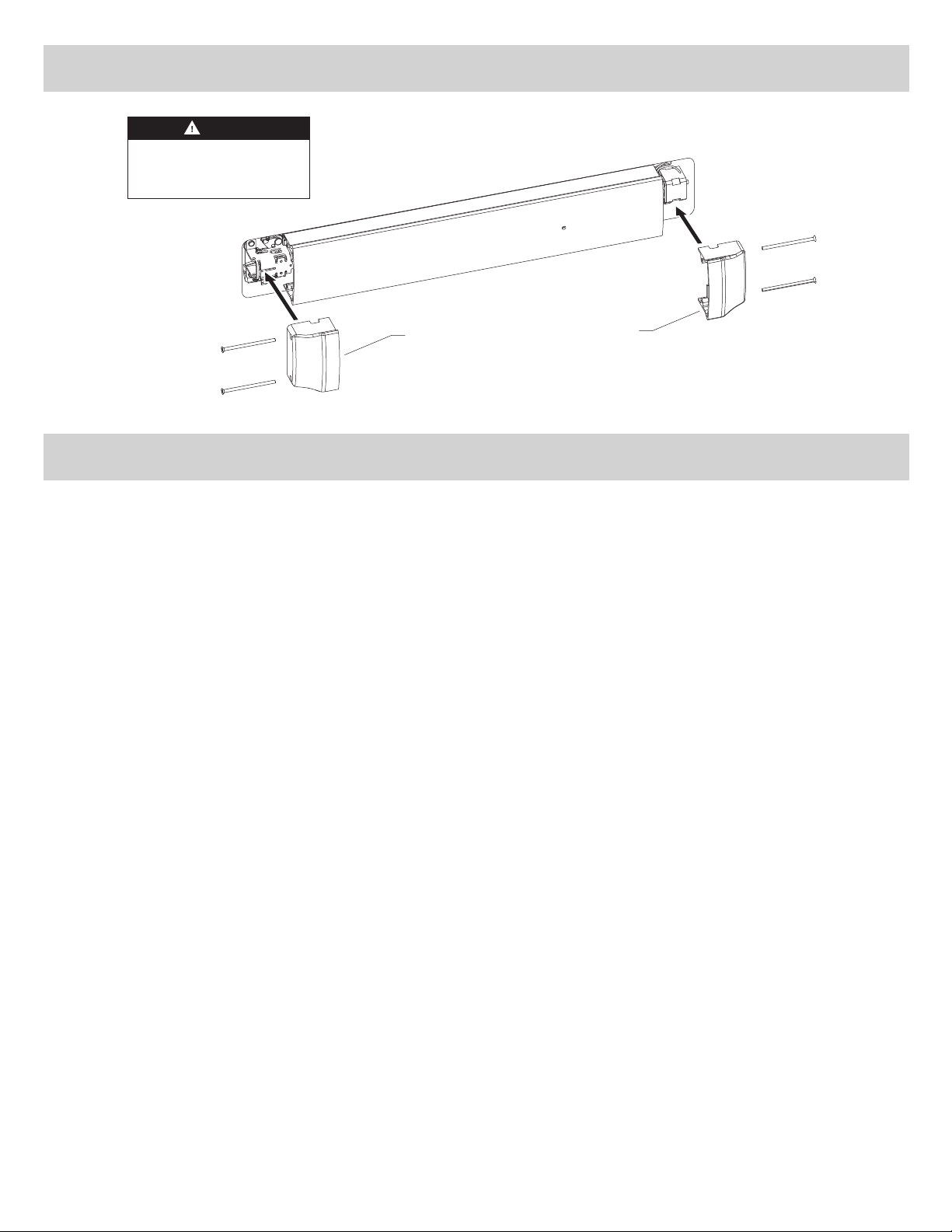

20 INSTALL END CAPS
21 INSTALL AUXILIARY FIRE LATCH (LBR DEVICES ONLY)
See installation instructions packaged with auxiliary fire latch kit.
End cap End cap
NOTE
Make sure pushpad is in
outward position before
installing end caps.
