Allen + Roth 2026VA-36-323-926 User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
36-IN VANITY WITH TOP
welcoming • sophisticated • inspiring
ITEM #4767954; 4767955; 4767952; 4767953; 4767950; 4767951; 4767948; 4767949
MODEL #2026VA-36-323-926; 2026VA-36-323-926-SR; 2026VA-36-323-925; 2026VA-36-323-925-SR;
2026VA-36-323-901; 2026VA-36-323-901-SR; 2026VA-36-323-900; 2026VA-36-323-900-SR
OR
OPTION 1
(Semi-Recessed Sink)
OPTION 2
(Undermount Sink)

2
2026VA-36-323-900-SR RVLND 36-IN VTY RYL NAVY CAR SR
2026VA-36-323-900 RVLND 36-IN VTY RYL NAVY CAR TOP
2026VA-36-323-901-SR RVLND 36-IN VTY RYL NAVY WH SR
2026VA-36-323-901 RVLND 36-IN VTY RYL NAVY WH TOP
2026VA-36-323-925-SR RVLND 36-IN VTY RYL NAVY EC SR
2026VA-36-323-925 RVLND 36-IN VTY RYL NAVY EC TOP
2026VA-36-323-926-SR RVLND 36-IN VTY RYL NAVY ECLT SR
2026VA-36-323-926 RVLND 36-IN VTY RYL NAVY ECLT TOP
MODEL NUMBER DESCRIPTION

3
TABLE OF CONTENTS FOR OPTION 1 (Semi-Recessed Sink)
Package Contents...........................................................................................................................4
Hardware Contents..........................................................................................................................4
Safety Information............................................................................................................................4
Preparation......................................................................................................................................5
Assembly or Installation Instructions...............................................................................................5
Care and Maintenance...................................................................................................................12
Warranty........................................................................................................................................12
Replacement Parts List..................................................................................................................13
TABLE OF CONTENTS FOR OPTION 2 (Undermount Sink)
Package Contents.........................................................................................................................14
Hardware Contents........................................................................................................................14
Safety Information..........................................................................................................................14
Preparation....................................................................................................................................15
Assembly or Installation Instructions.............................................................................................15
Care and Maintenance...................................................................................................................22
Warranty........................................................................................................................................22
Replacement Parts List..................................................................................................................23

4
PACKAGE CONTENTS (Semi-Recessed Sink)
HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
WARNING
CAUTION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
• Use care when assembling the vanity, take your time and follow the assembly instructions closely.
• Weight capacity for shelf is 10 lb.
SAFETY INFORMATION
• Some steps are more easily handled with two adults.
Touch-up Pen
Qty. 1
FF
PART DESCRIPTION QUANTITY
BTop 1
AVanity 1
C Backsplash 1
DSink 1
G Shelf 1
LSink Template 1
KFloor Plumbing
Cutout Lid 1
E 1
F
Right Door
(preassembled
to vanity (A))
1
CARTON
box 1 of 3
box 3 of 3
box 2 of 3
box 2 of 3
box 1 of 3
Left Door
(preassembled
to vanity (A))
Sink Template
L
A
E
F
K
G
B
C
D

5
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level
WARNING
Vanity (A) MUST be secured to wall.
Note: Clean area where the vanity (A) will be
permanently located prior to beginning installation,
ensuring the vanity (A) will not interfere with any
water supply and drain lines once mounted.
1. With two people, carefully place vanity (A)
against the wall in its final location.
While holding the vanity base firmly against the
wall, use the pre-assembled levelers on the
bottom of each leg of the vanity (A) to level the
item. Twisting the levelers counterclockwise
will raise the height of the vanity (A), and
twisting them clockwise will lower the vanity.
Once the vanity is in place, against the wall,
and level from front to back and side to side,
drill a hole through the vanity mounting area
and into the wall studs (as illustrated in
diagram 1). Using appropriate mounting
hardware (not included), secure the vanity (A)
to a wall stud. If possible, secure the vanity
(A) to two wall studs for increased stability.
1
12
A

6
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
Note: A
t this stage it may be easier to install
the faucet and drain kit (not included) to top (B)
per the manufacturer’s instructions, before
moving on to Step 3.
3.

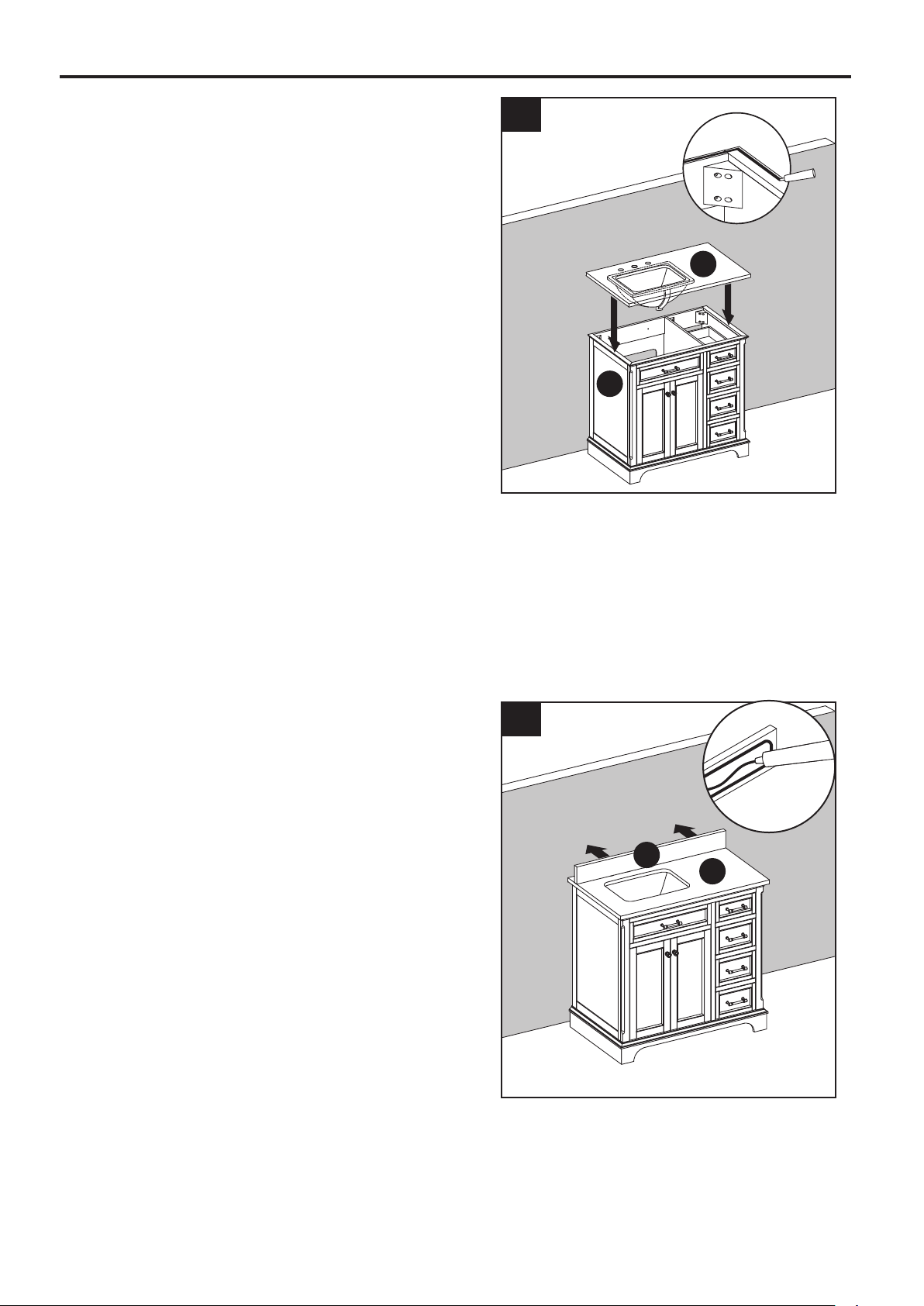

Apply stain free silicone caulk (not included) to
the top edge of vanity (A). With the help of
another adult, gently lower top (B) onto the
vanity (A). Wipe away any excess caulk with a
soft cloth, and wait approximately 24 hours for
it to dry.
2. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
up onto a scratch free surface such as a
foam sheet that came in the packaging.
2
Remove the top foam sheet
Foam sheet
C
C
Remove the backsplash and place
it on a scratch free surface
Remove the foam sheet
B
3
1
2
2
A
B

7
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

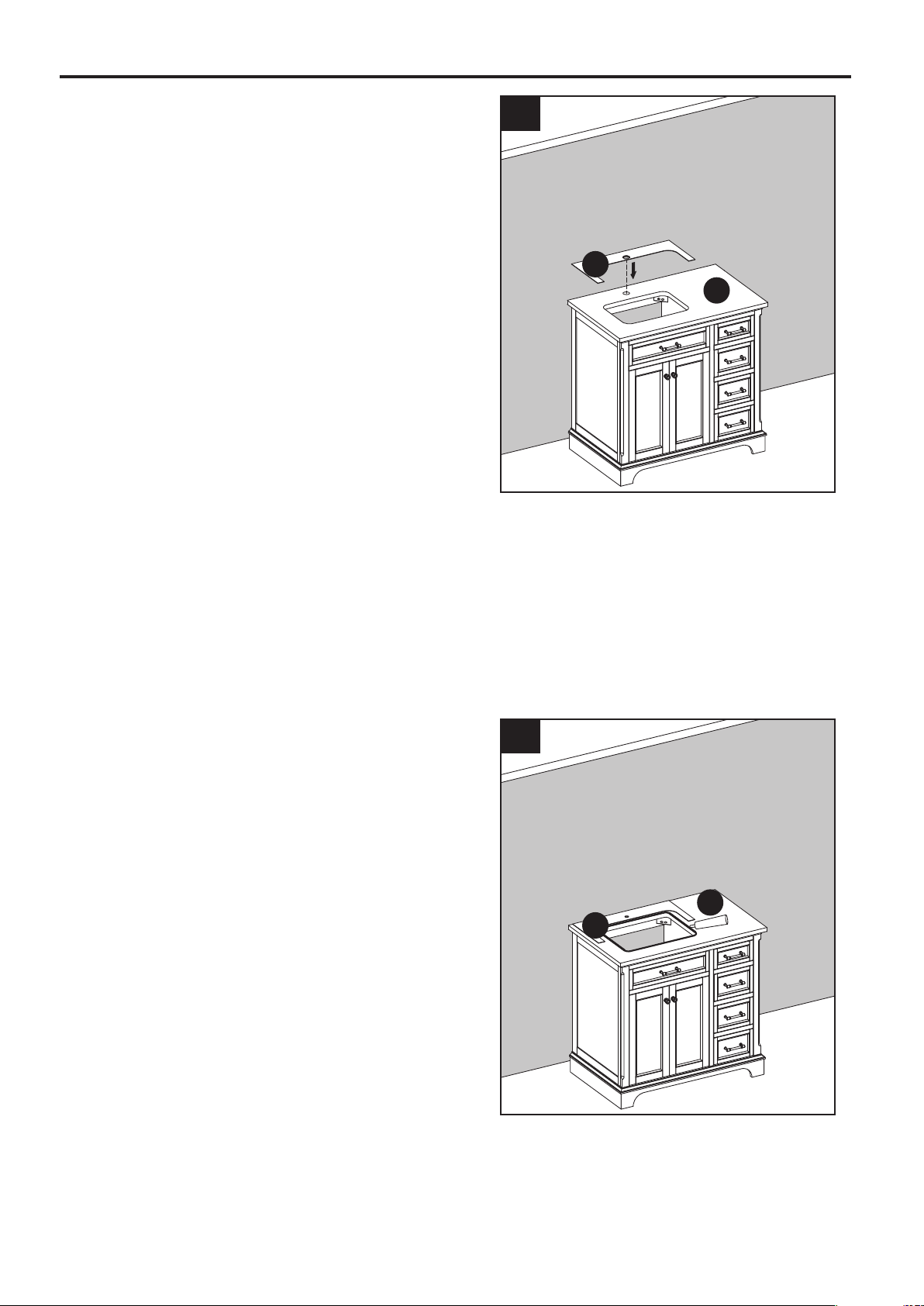

4. Put the sink template (L) on the top (B).
The hole in the cardboard needs to be
aligned with the hole in the stone top.
Make sure the sink template and stone top are
flush along the back edge.
5. Apply a thin bead of silicone caulk (not included)
onto the stone top close to the edge of the sink
cut out as pictured.
4
Sink Template
B
L
5
Sink Template
B
L

8
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

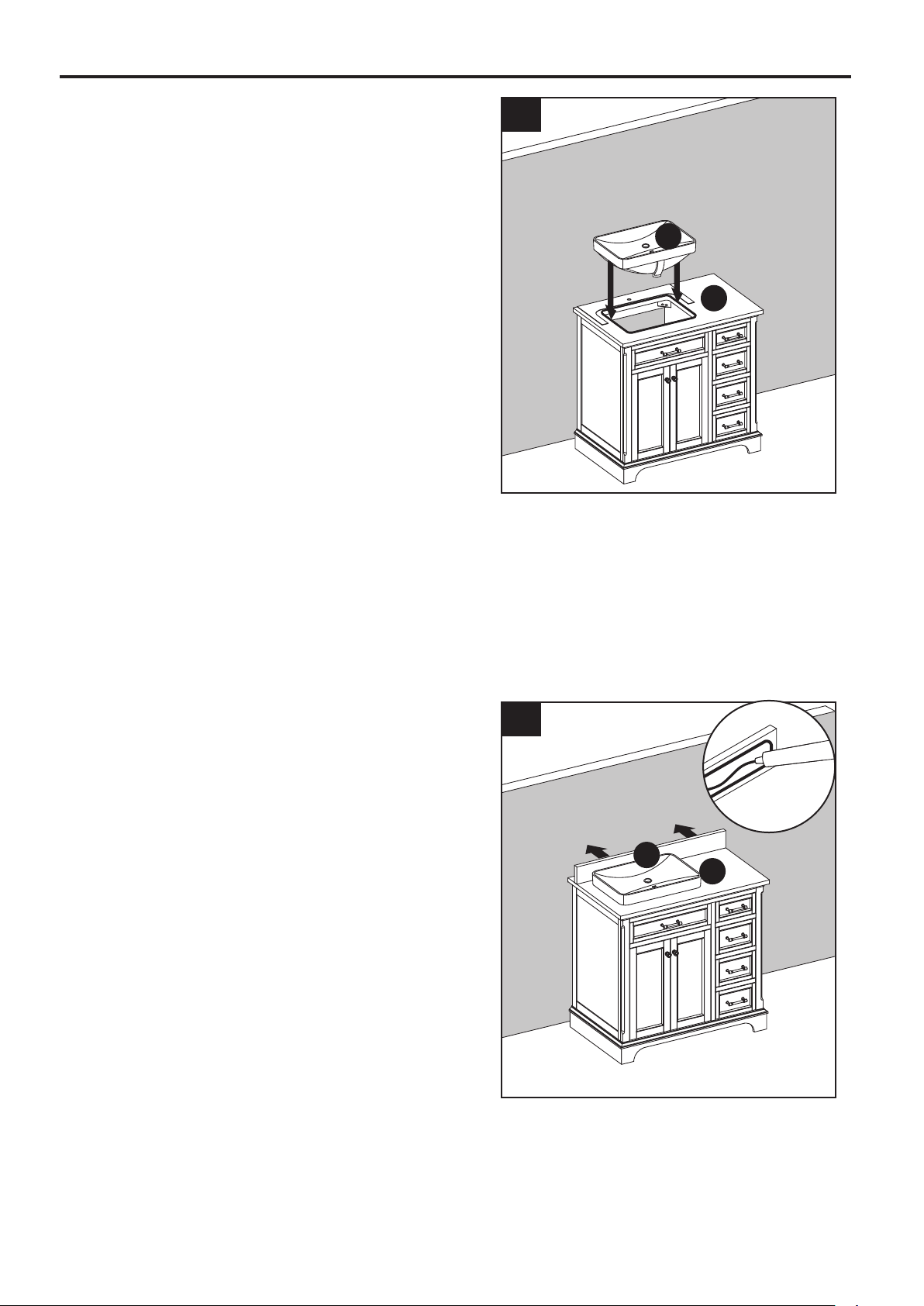

6. With the help of another adult, Gently lower
the sink onto the stone top using even
pressure to set the sink properly.
Make sure the sink over-flow hole is at the
front of wood cabinet.
If some silicone caulk has over-flowed please
clean it up at that time with water.
7. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
6
Sink Template
B
D
7
22
B
C
1

9
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

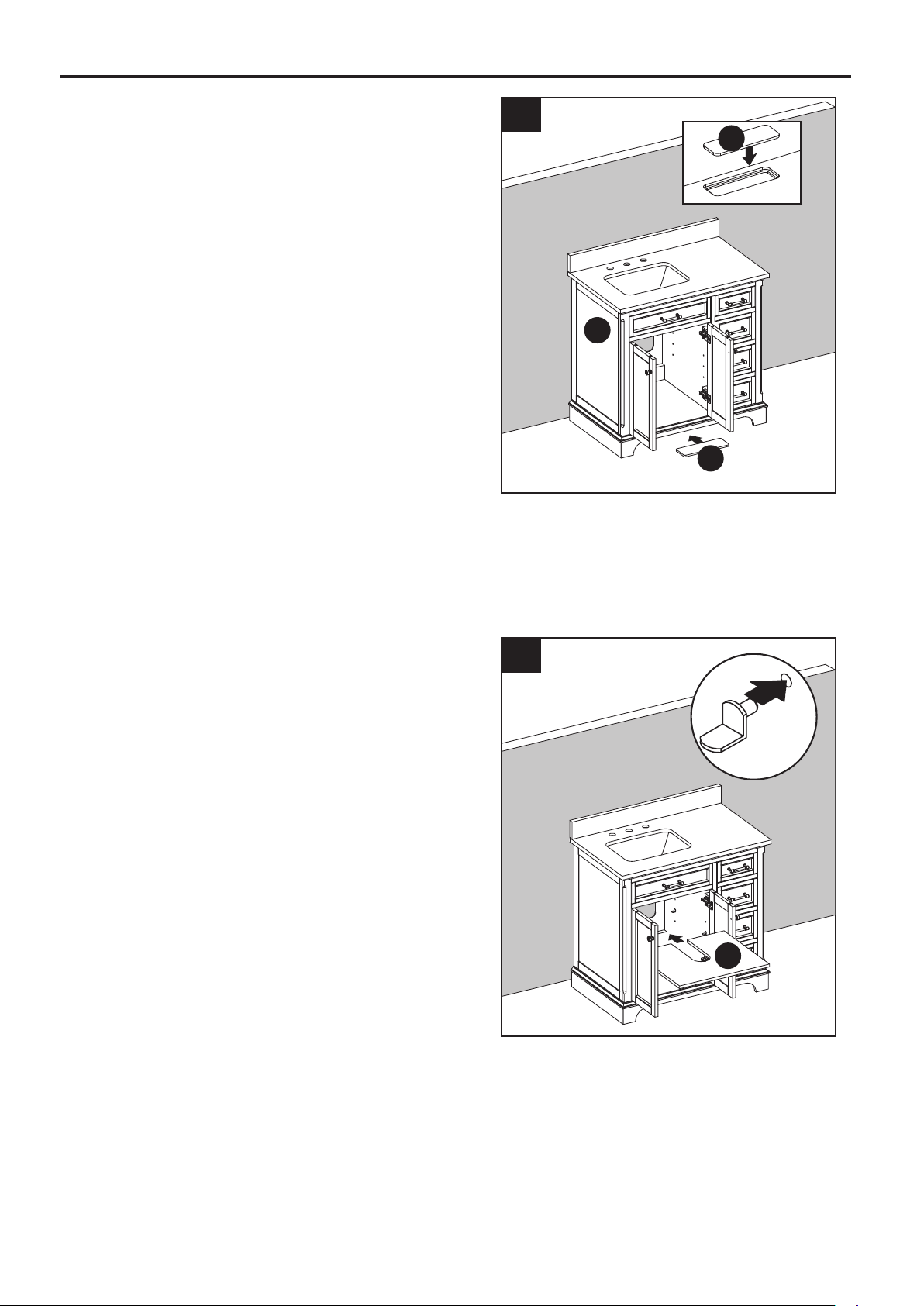

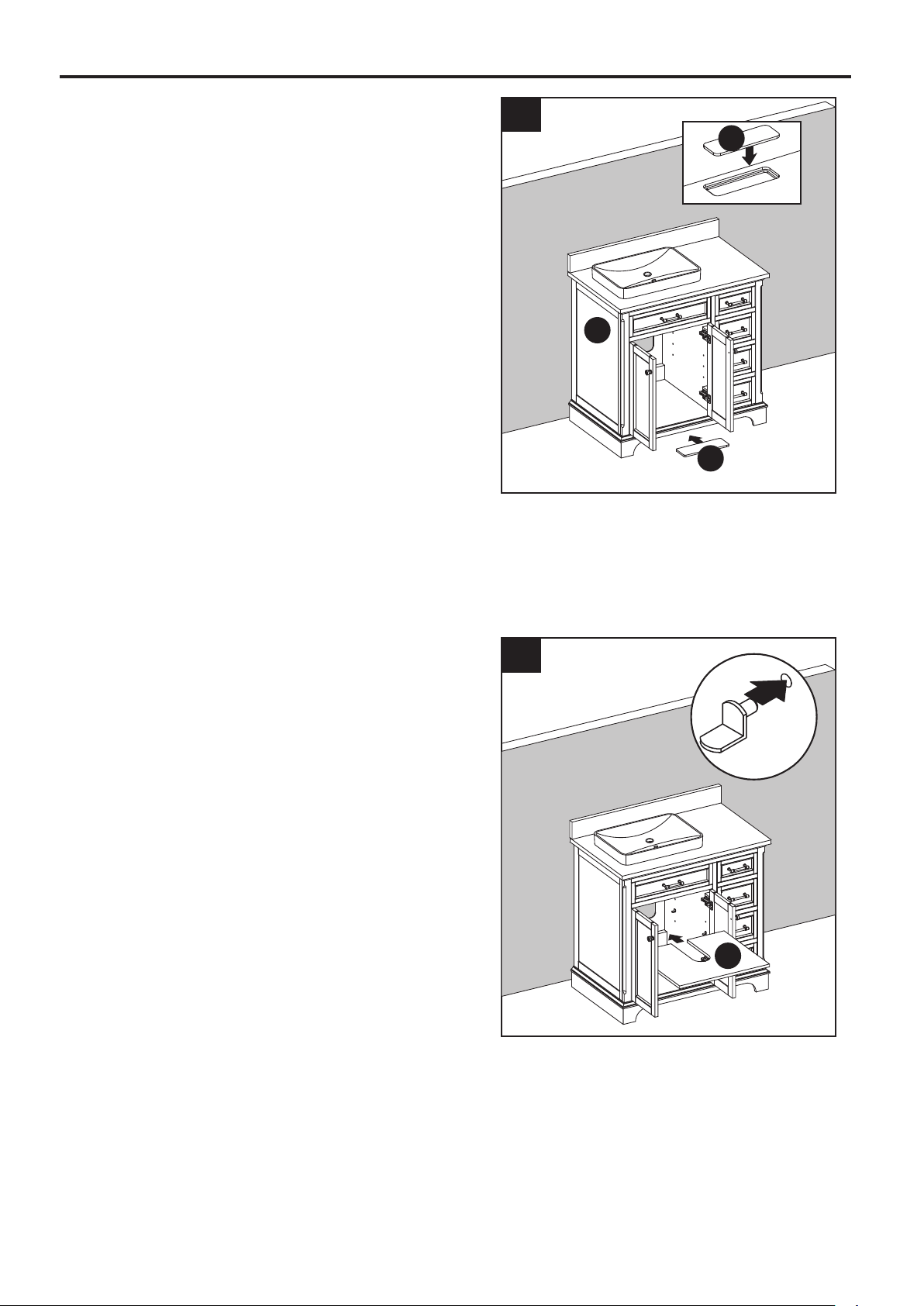

9. From the front of the assembly, insert shelf
pins at desired height, ensuring they are
level. Place shelf (G) on top of shelf pins.
8. The back of the vanity is open for accessibility
for drain(s) and water line(s) hookup. If your
plumbing comes out of the back wall, insert
the floor plumbing cutout lid (K), as shown in
Illustration 8. This will close the hole and
increase your storage space.
If your plumbing comes out of the floor, this
hole provides accessibility for drain and water
line hookup.
8
K
K
A
G
2
1
9

10
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

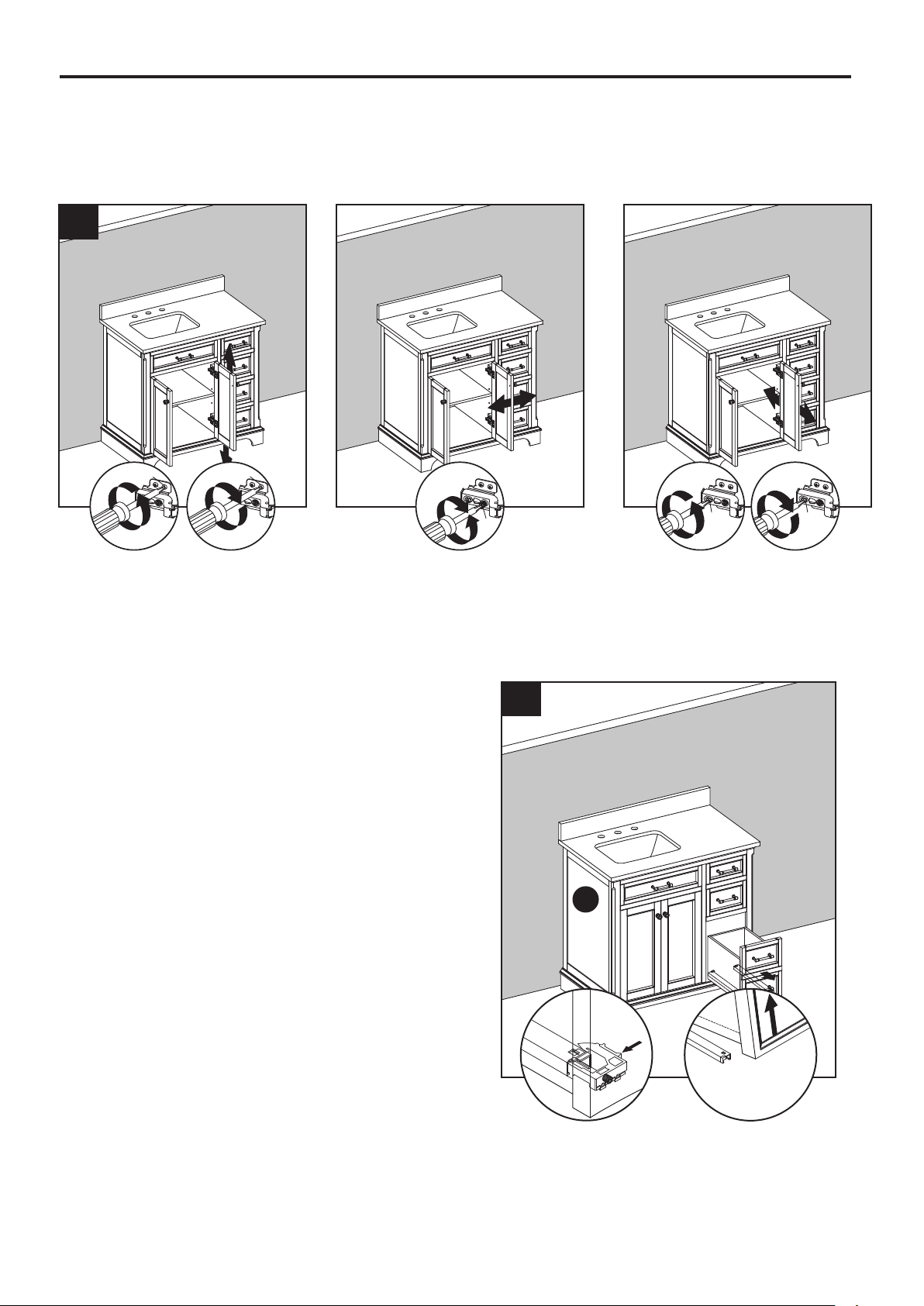

10. If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
11. To remove drawers from vanity base (A),
fully extend drawers and locate the plastic
levers on left and right sides of the metal glide
tracks. Push the plastic levers, on both sides,
at the same time, This will disengage the
drawer box from the glides. Gently lift up on
the drawer to remove it from the glide tracks.
Set aside as these will be re-installed.
10
2
2
2
2
22
b
1
1
c
1
c
3
a
1
a
3
11
A
12

11
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
12. To re-install drawers into vanity (A). Please fully
extend metal glide tracks, gently lower and slide
drawer box into rear glide catch, then, lower
drawer box down to completely rest on
extended glides, push plastic levers to
lock the drawer box in place.
Repeat for remaining drawers.
Note: To adjust the drawer box height. Please
spin the adjustment wheel to the left to raise the
drawer box or spin the adjustment wheel to
the right to lower the drawer box. You can
adjust the left and right side glide heights
independently in order to find the drawers best
alignment position.
CAUTION
DO NOT force drawer or damage to glide may
occur. If drawer does not slide in with ease,
remove and try again from the start.
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to complete
the installation.
12
A
3
2
1

12
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The stone top can be cleaned using standard marble cleaning agents available at your local
supplier.
• Tips for using touch-up pen (FF): For scratches, stroke in direction of scratch. Rub off excess
colorant promptly with a soft cloth.
IMPORTANT
• Shade variations and patterns are an inherent characteristic of stone (e.g. granite, marble,
engineered stone). Stone tops will vary from product to product. Use caution placing items
such as soap or any fragranced material on the stone surface. Use a soap dish, coaster or
similar item to protect the surface if placing any soap or fragranced products on the stone.
• If soap or fragranced products come in contact with the stone top, rinse the surface with water
and dry using a soft non-abrasive cloth.
• WARNING: Must use cleaning agents safe for stone. Check your cleaning agents use
restrictions before using on any stone. Damage to the stone may result. Vanity Manufacturer not
responsible for damage caused by improper cleaning agents or soaps used. Warranty will not
cover damage caused by the use of improper soaps or cleaning agents.
• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other
acids as these may cause damage to the stone surface.
• Periodically reseal the stone top using an appropriate stone sealer available from your local
home store. Follow the manufacturer’s directions on how to apply.
WARRANTY
The manufacturer warrants this item against defects in materials and workmanship for a period
of one (1) year from the date of original retail purchase. This warranty applies only to the original
purchaser. This warranty does not apply to any damage on the product by accident, misuse, or
modified, improper installation or by affixing accessories not produced by the manufacturer. The
manufacturer is not accountable whatsoever for product installation during the warranty period.
There is no further expressed warranty. The manufacturer shall not be legally responsible for
incidental, consequential or special damages arising at or in connection with product use or
performance except as may otherwise be accorded by law. The manufacturer disclaims any and
all implied warranties.
CARE AND MAINTENANCE

13
REPLACEMENT PARTS LIST FOR 2026VA-36-323-SR (Semi-Recessed Sink)
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
PART DESCRIPTION PART#
G Shelf 2026VB-36-323-003
D Sink SN047B
C36" Engineered Carrara Backsplash PUBS-25-925-36
36" Engineered Calacatta Backsplash PUBS-25-926-36
36" Carrara Marble Backsplash PUBS-25-900-36
BComplete Set 36" Engineered Carrara Top 3500VT-36-925
Complete Set 36" Engineered Calacatta Top 3500VT-36-926
36" Engineered White Backsplash PUBS-25-901-36
Complete Set 36" Engineered White Top 3500VT-36-901
Complete Set 36" Carrara Marble Top 3500VT-36-900
H Small Drawer Front 2026VB-36-323-004
I Middle Drawer Front 2026VB-36-323-005
J Large Drawer Front 2026VB-36-323-006
323 FP LID
SN047B-TEMPLATE
K Floor Plumbing Cutout Lid
L Sink Template
OX-0180Y
FF Touch-up Pen
B1044
GG Shelf pin
HH
II
JJ
KK
LL
Glide Track Set PUDTC-12X3-HANDLE
Pull (with screw) CF-96-004-BN
Knob (with screw) CF-D25-005-BN
Hinge C-90-107
Leveler T-1007
2026VB-36-323-
001/002
E
Right Door
Left Door
F
GG
FF HH II JJ LLKK
C
L
D
E
G
B
H
I
J
F
K
Sink Template

14
PACKAGE CONTENTS (Undermount Sink)
PART DESCRIPTION QUANTITY
BTop 1
AVanity 1
C Backsplash 1
DSink 1
G Shelf 1
KFloor Plumbing
Cutout Lid 1
E 1
F
Right Door
(preassembled
to vanity (A))
1
CARTON
box 1 of 3
box 3 of 3
box 2 of 3
box 2 of 3
Left Door
(preassembled
to vanity (A))
HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
WARNING
CAUTION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
• Use care when assembling the vanity, take your time and follow the assembly instructions closely.
• Weight capacity for shelf is 10 lb.
SAFETY INFORMATION
• Some steps are more easily handled with two adults.
Touch-up Pen
Qty. 1
FFAA BB CC DD EE
Lock Washer
Qty. 4
Nut
Qty. 4
Wrench
Qty. 1
Bolt
Qty. 4
Sink Bracket
Qty. 4
D
A
E
F
K
G
B
C

15
INSTALLATION INSTRUCTIONS (Undermount Sink)
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level
WARNING
Vanity (A) MUST be secured to wall.
Note: Clean area where the vanity (A) will be
permanently located prior to beginning installation,
ensuring the vanity (A) will not interfere with any
water supply and drain lines once mounted.
1. With two people, carefully place vanity (A)
against the wall in its final location.
While holding the vanity base firmly against the
wall, use the pre-assembled levelers on the
bottom of each leg of the vanity (A) to level the
item. Twisting the levelers counterclockwise
will raise the height of the vanity (A), and
twisting them clockwise will lower the vanity.
Once the vanity is in place, against the wall,
and level from front to back and side to side,
drill a hole through the vanity mounting area
and into the wall studs (as illustrated in
diagram 1). Using appropriate mounting
hardware (not included), secure the vanity (A)
to a wall stud. If possible, secure the vanity
(A) to two wall studs for increased stability.
1
12
A

16
INSTALLATION INSTRUCTIONS (Undermount Sink)
2. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
down onto a scratch free surface such as a
foam sheet that came in the packaging.
2
Remove the top foam sheet
Remove the foam sheet
Remove the cutout foam
sheet & hardware
Remove the top and place it
on a scratch free surface
Remove the backsplash and place
it on a scratch free surface
C
CFoam sheet
B
BACK
FRONT
Hardware
Pack
B12
BACK
FRONT
B
Foam sheet
BACK
FRONT
3
D
B
2
2
1
BACK
BACK
BACK
Sink Lip
Top
BACK
BACK
3. Apply silicone caulk (not included) to
the top edge of sink (D). With the help of
another adult, lower the sink onto the back
side of the stone top.
Make sure the sink over-flow hole is facing
the front of stone top.
Be sure to align the sink well with the stone top
cut out allowing for equal stone overhang on the
front, back and sides of the ceramic sink (D).
Note: To install the sink onto the top correctly,
ensure that the two "BACK" stamps on the sink
and the top are aligned on the same sides.
Use the guide lines marked on the sink and
bottom side of stone top to assist with sink
location.

17
INSTALLATION INSTRUCTIONS (Undermount Sink)
Hardware Used
AA Bolt x 4
4. Screw bolts (AA) into the threaded holes of
stone top (B). 4
AA
D
B
BACK
BACK
Hardware Used
Sink bracket x 4
Nut x 4
x 4Lock Washer
Wrench x 1
5. Lower the sink brackets (BB) over the bolts
(AA) and allow to rest on the sink lip. Adjust
location of bracket to firmly grasp sink lip.
Lower lock washers (DD) over bolts (AA) and
secure with nuts (CC). Hand tighten nuts (CC)
with included wrench (EE).
DO NOT OVER TIGHTEN!
Tip: Check that the sink placement is well
centered front to back and side to side of the
stone top cut out before allowing the silicone
caulk to dry. If the sink is not centered well
unscrew sink clamps, re-adjust the sink position
and re-tighten the sink brackets.
5
1
BB
3
2
EE
DD
AA
CC
D
B
BACK
BACK
BB
CC
DD
EE

18
INSTALLATION INSTRUCTIONS (Undermount Sink)
6. To install the top (B) to the vanity (A).
Apply silicone caulk to the top edge of the
wood cabinet. With the help of another adult,
gently lower the stone top with assembled sink
onto the cabinet. Make sure the stone top is flush
with the back side of the wood cabinet and the
stone overhang is equal on both sides over the
wood cabinet left and right side walls. Remove
any excess caulk before allowing to dry.
Helpful tip: it may be easier to install your
choice of faucet (not included) before securing
the vanity top (B) to vanity base (A).
7. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
6
1
2
2
A
B
7
22
B
C
1

19
INSTALLATION INSTRUCTIONS (Undermount Sink)
9. From the front of the assembly, insert shelf
pins at desired height, ensuring they are
level. Place shelf (G) on top of shelf pins.
8. The back of the vanity is open for accessibility
for drain(s) and water line(s) hookup. If your
plumbing comes out of the back wall, insert
the floor plumbing cutout lid (K), as shown in
Illustration 8. This will close the hole and
increase your storage space.
If your plumbing comes out of the floor, this
hole provides accessibility for drain and water
line hookup.
8
K
K
A
G
2
1
9

20
INSTALLATION INSTRUCTIONS (Undermount Sink)
10. If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
11. To remove drawers from vanity base (A),
fully extend drawers and locate the plastic
levers on left and right sides of the metal glide
tracks. Push the plastic levers, on both sides,
at the same time, This will disengage the
drawer box from the glides. Gently lift up on
the drawer to remove it from the glide tracks.
Set aside as these will be re-installed.
10
2
2
2
2
22
b
1
1
c
1
c
3
a
1
a
3
11
A
12
