ITEM # 3856776
MODEL # SP4960
MEDICINE CABINET WITH PIVOT ARM MAKEUP MIRROR
allen + roth®is a registered trademark of LF, LLC. All Rights Reserved.
Lowes.com/allenandroth
Español p. 10

2

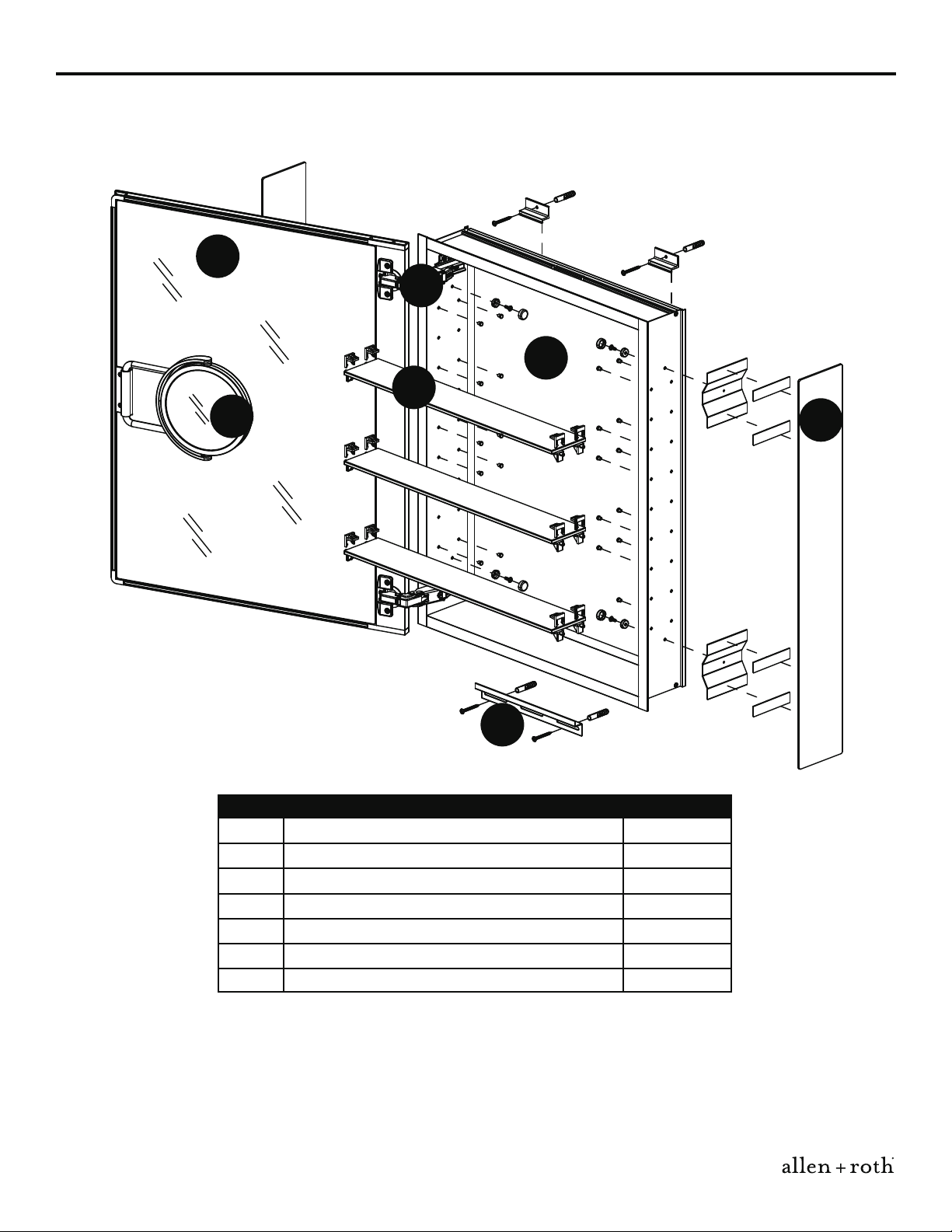

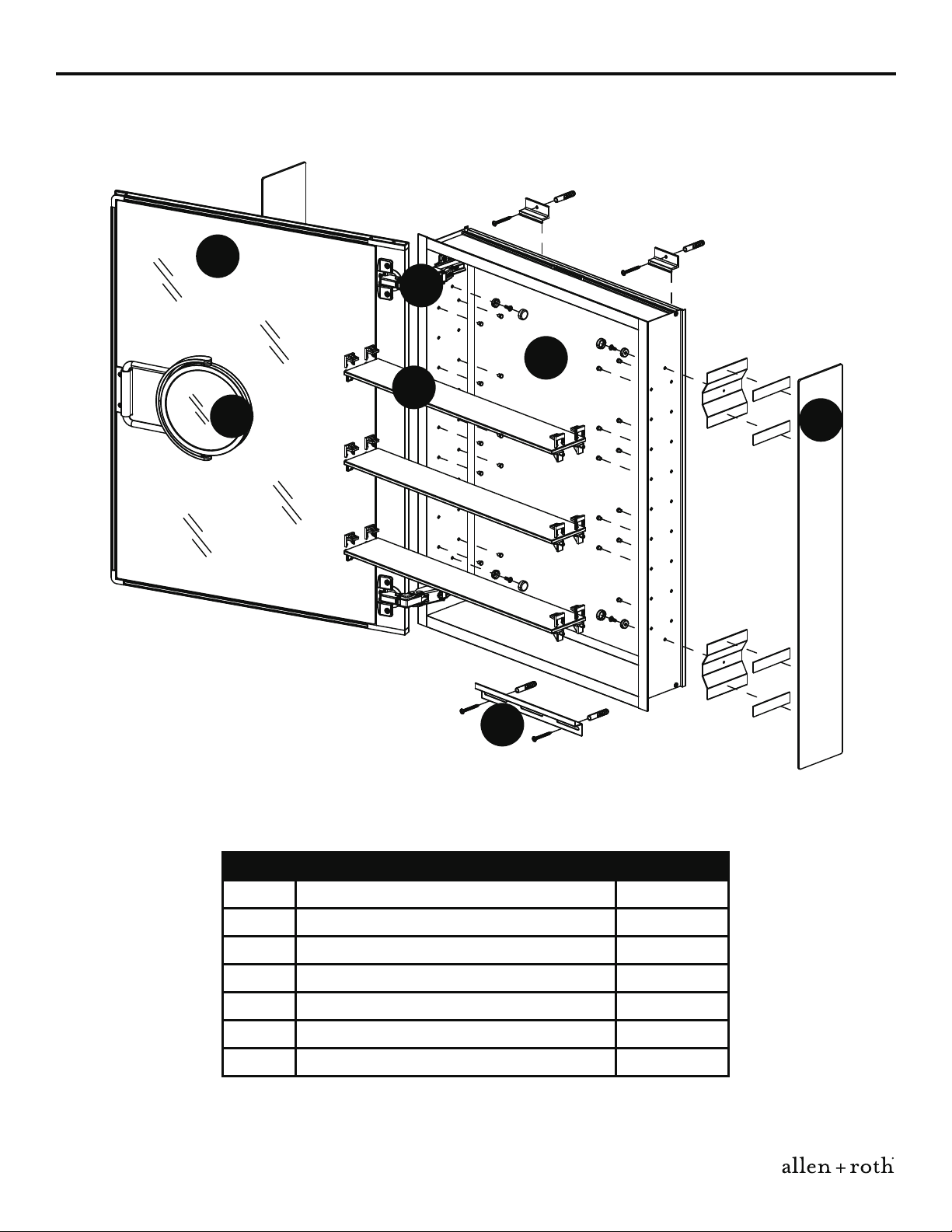

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Hinge (preassembled to Cabinet (C)) 2
B Side Mirror 2
C Cabinet 1
D Door (preassembled to Cabinet (C)) 1
E Shelf Glass 3
F Bottom Bracket 1
Lowes.com/allenandroth
G Pivot arm makeup mirror 1
A
B
C
D
E
F
G

3

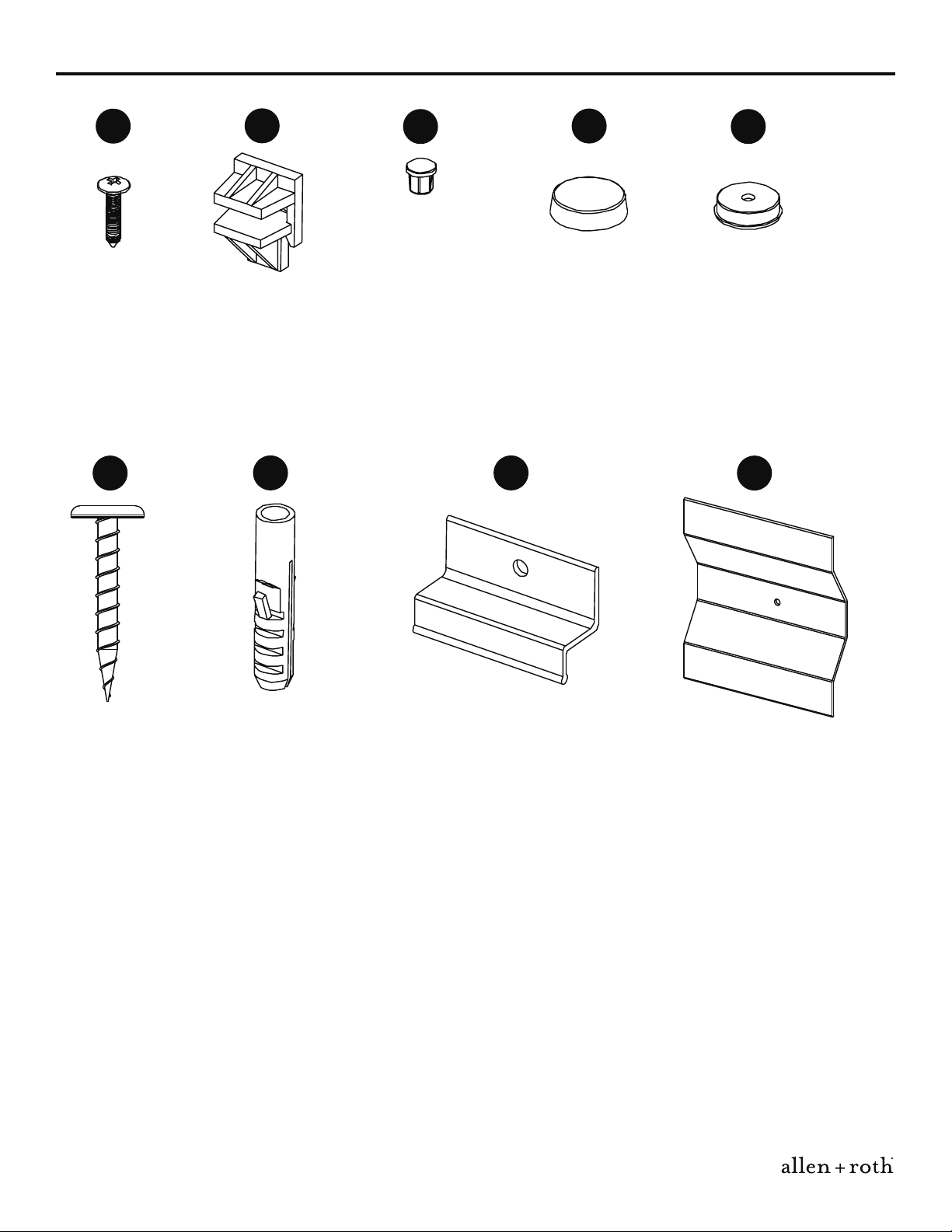

HARDWARE CONTENTS
K
Short Screw
Qty. 4+2
Shelf Clip
Qty. 12+2
Shelf Hole
Plug
Qty. 28+8
Snap Cap
Qty. 4+2
Washer
Qty. 4+2
Long Screw
Qty. 4+2
Side Mirror Bracket
Qty. 4
Wall Anchor
Qty. 4+2
Top Clip
Qty. 2
AA BB CC DD EE
GG HH II JJ
Lowes.com/allenandroth

4
PREPARATION
SAFETY INFORMATION
WARNING
CAUTION
Please read and understand this entire manual before attempting to assemble or install the
product.
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 30 minutes (with recommended two-person installation).
Tools Required for Assembly (not included): Measuring tape, Level, Phillips screwdriver, Stud
finder, Reciprocating saw and Wood shims.
This product can be installed in one of two mounting options: SURFACE MOUNT (continue to
page 5) or RECESS MOUNT (skip to page 7).
· Safety discard all packing material.
· Keep plastic bags and small parts away from children.
· Safety glasses should be worn at all times.
· Do not load this cabinet with more than 50 lbs.
· Do not load each shelf with more than 25 lbs.
· The included plastic wall anchors are intended for use with solid wall applications
only (tile or concrete).
· For recess mount, do not install side mirrors and brackets.

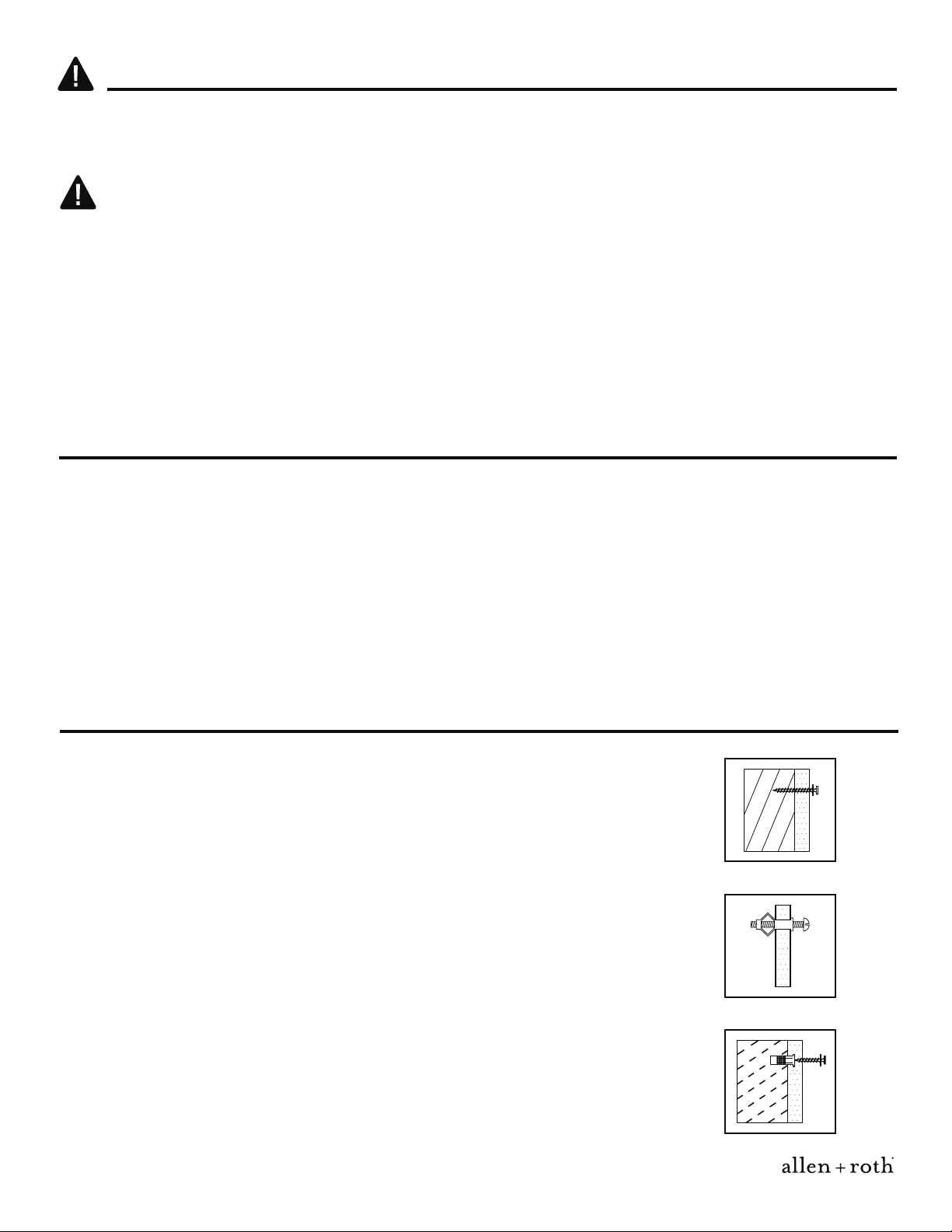

MOUNTING OPTIONS
STUD WALL: Secure bottom bracket (F) and top clip (II) to wall using
long screws (GG) and a washer (not included) at marked stud locations.
DRYWALL: Drill holes at marked locations and secure the bottom
bracket (F) and top clip (II) to wall using long screws (GG) with toggle
bolts or drywall anchors (not included).
CONCRETE WALL: Drill 5/16-inch holes at marked locations, then
insert wall anchors (HH) into holes. Secure the bottom bracket (F) and
top clip (II) to wall using long screws (GG).
Lowes.com/allenandroth

5
Lowes.com/allenandroth
SURFACE-MOUNT INSTALLATION INSTRUCTIONS
Hardware Used

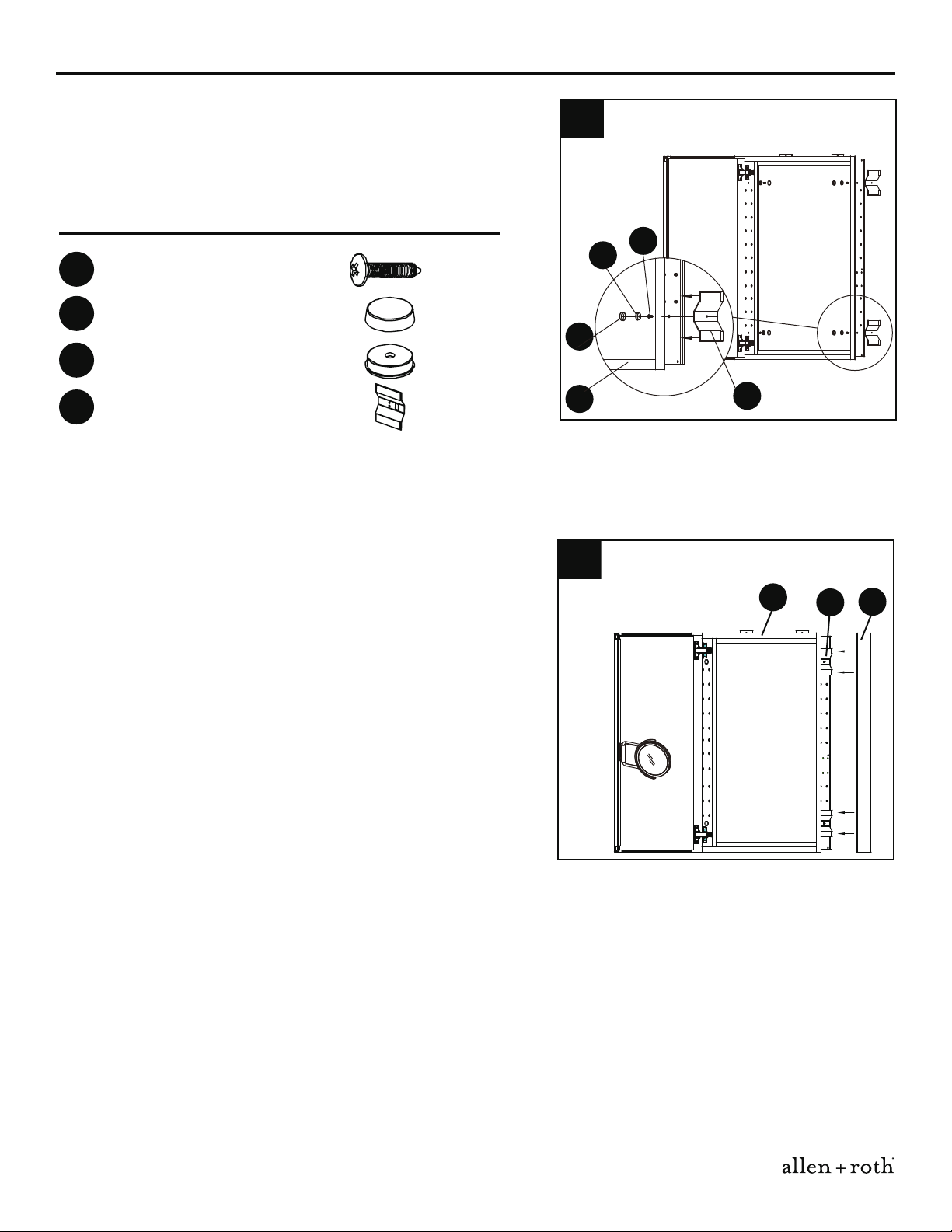

1. Using bottom bracket (F) as a guide, mark screw
locations with a pencil (not included) a minimum of 3
inches above your existing faucet/vanity. Use long screws
(GG) and hardware best suited for wall type to secure
the bottom bracket (F) to the wall. Refer to MOUNTING
OPTIONS on page 4.
2. Carefully position the cabinet (C) onto the bottom
bracket (F) and hold in place.
1
2
Long Screw x 2
GG
F
GG
GG
F
C
F
C
Side View
GG
Hardware Used

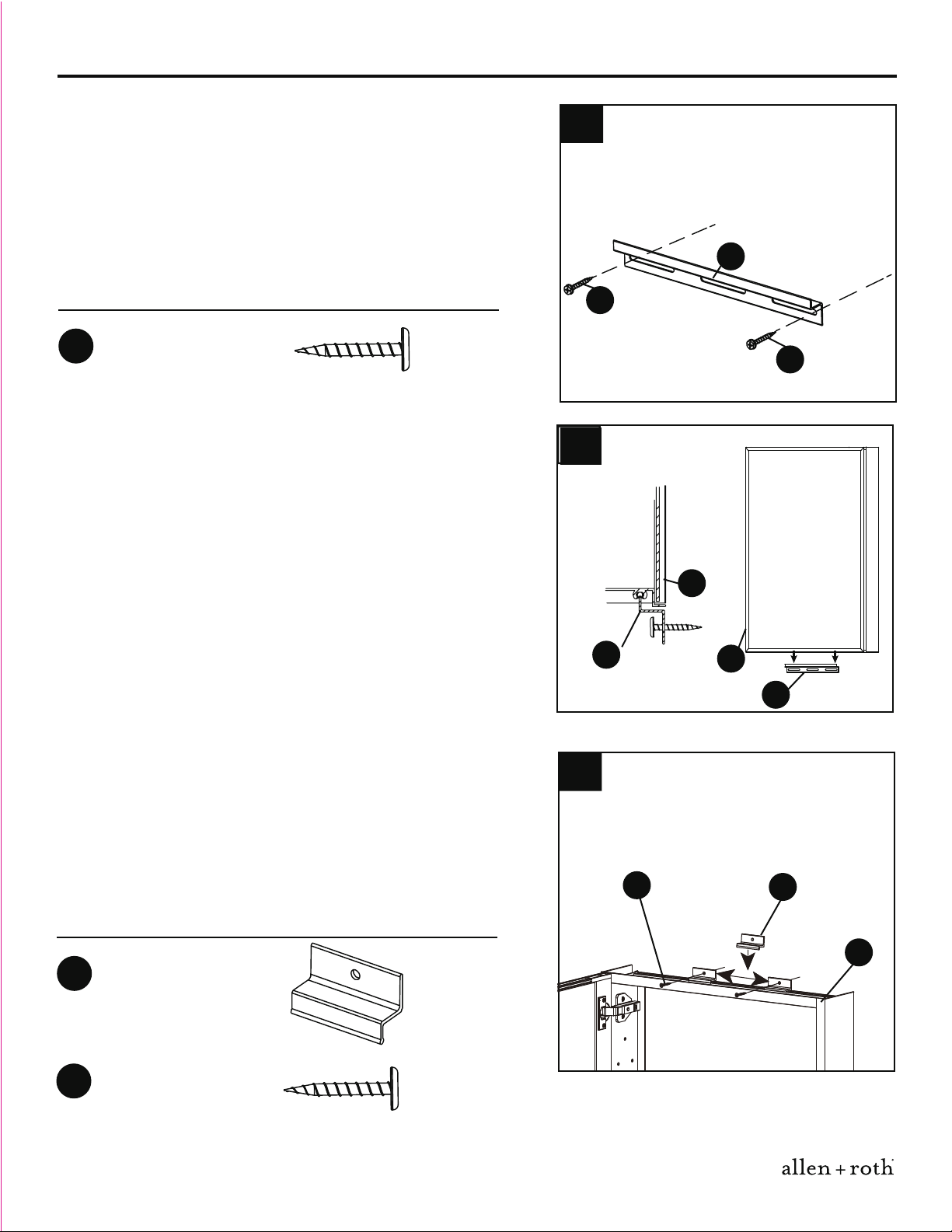

3. With the assistance of another person, install the
top clips (II) by inserting the rounded ends into the
rear top slot of cabinet (C). Slide one top clip (II) to the
left and one to the right, then use long screws (GG)
and hardware best suited for wall type to secure the
top clips (II). Refer to MOUNTING OPTIONS on page
4.
3
Top Clip
Long Screw
x 2
x 2
II
GG
II
C

6
SURFACE-MOUNT INSTALLATION INSTRUCTIONS
5. Remove the paper from the preassembled adhesive
tape on each side mirror bracket (JJ), then carefully
attach side mirrors (B) to each side of cabinet (C).
Proceed to ASSEMBLY INSTRUCTIONS on page 8 to
complete assembly.
5
B
CJJ
Hardware Used
4. Attach side mirror brackets (JJ) to cabinet (C)
where shown (on both sides) with short screws (AA)
and washers (EE), then snap caps (DD) to cover the
screw heads.
4
Short Screw
Snap Cap
Washer
Side Mirror Bracket
x 4
x 4
x 4
x 4
AA
DD
EE
JJ JJ
EE
AA
DD
C
Lowes.com/allenandroth

7
RECESS-MOUNT INSTALLATION INSTRUCTIONS
Lowes.com/allenandroth
Proceed to ASSEMBLY INSTRUCTIONS on page 8 to
complete assembly.
DD
GG
EE
Hardware Used

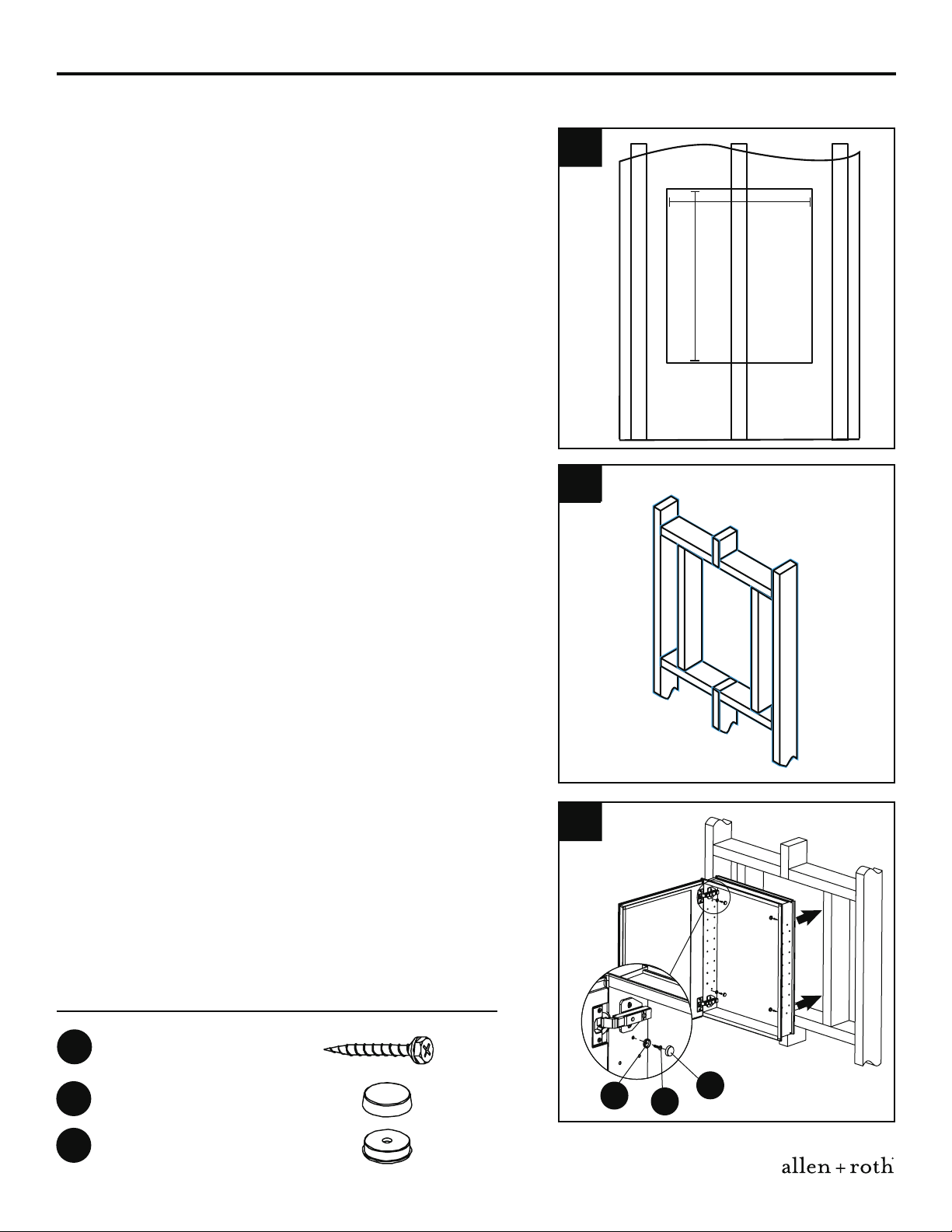

1. Determine desired location for cabinet (C), making
sure to place it where the door can swing freely without
obstruction and where no electrical or plumbing
obstacles would be behind the wall. Note: The height
of the cabinet (C) should be a minimum of 3 in. above
the faucet/vanity.
Using a reciprocating saw (not included), cut away a
rough opening of 19-1/2 in. x 25-1/2 in. x 3-7/8 in. into
the drywall.
2. Mark the opening size of the framing. Once the
drywall is cut, remove any framing in the rough
opening for the item, then frame the cutout opening as
illustrated.
3. Insert cabinet (C) into rough opening and make
sure it is level and plumb; use wood shims (not
included) as required. Then, secure both sides of
cabinet (C) to the studs from the inside using long
screws (GG) and washers (EE). Cover screw heads
with snap caps (DD).
1
2
3
Long Screw x 4
GG
Snap Cap
Washer
x 4
x 4
DD
EE
19-1/2 in.
25-1/2 in.
CAUTION: This installation type is NOT applicable for solid-wall applications.

8
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used

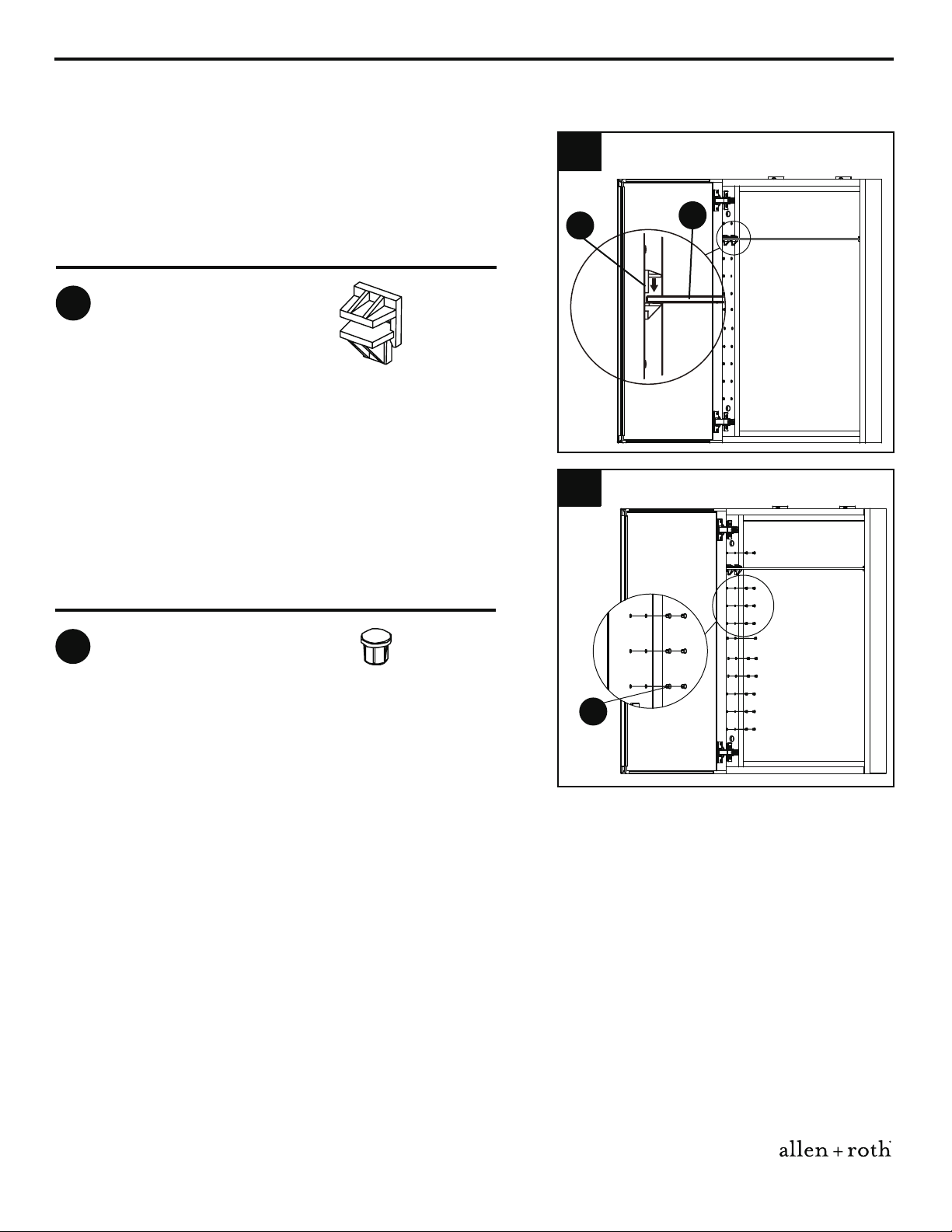

1. Install the glass shelves (E) to the desired positions
with shelf clips (BB), making sure they are level.
2. Use the shelf hole plugs (CC) to seal the empty
holes.
Shelf Clip
Shelf Hole Plug
x 12
x 20
BB
CC
Note: These steps are applicable to both surface-mount installations and recess-mount installations.
Lowes.com/allenandroth
CC
1
2
E
BB

9
Printed in Cambodia
allen + roth ® is a registered trademark
of LF, LLC. All Rights Reserved.
CARE AND MAINTENANCE
WARRANTY
This item is warranted to be free of defects in material and workmanship for one year from date
of installation. This warranty is offered only to the original consumer purchaser and may not be
transferred. This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state. This warranty does not cover defects or damage caused by normal wear
and tear, alterations, environmental conditions, humidity absorption, or mold. This warranty is
considered void if the product fails from accident, misuse, or modified, improper installation or
by affixing accessories not produced by the manufacturer. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you. If you would like to make a warranty claim, please contact customer service. All
warranty claims must include the model number of the product, copy of the original receipt and
the nature of the problem. THE MANUFACTURER DISCLAIMS ANY IMPLIED WARRANTY INCLUDING,
WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY, AND THERE ARE NO
WARRANTIES THAT EXTEND BEYOND THE DESCRIPTIONS ON THE FACE HEREOF. TO THE EXTENT
THAT SUCH DISCLAIMER IS NOT VALID UNDER APPLICABLE LAW, ANY IMPLIED WARRANTY SHALL
BE COEXTENSIVE IN DURATION WITH THIS WARRANTY.

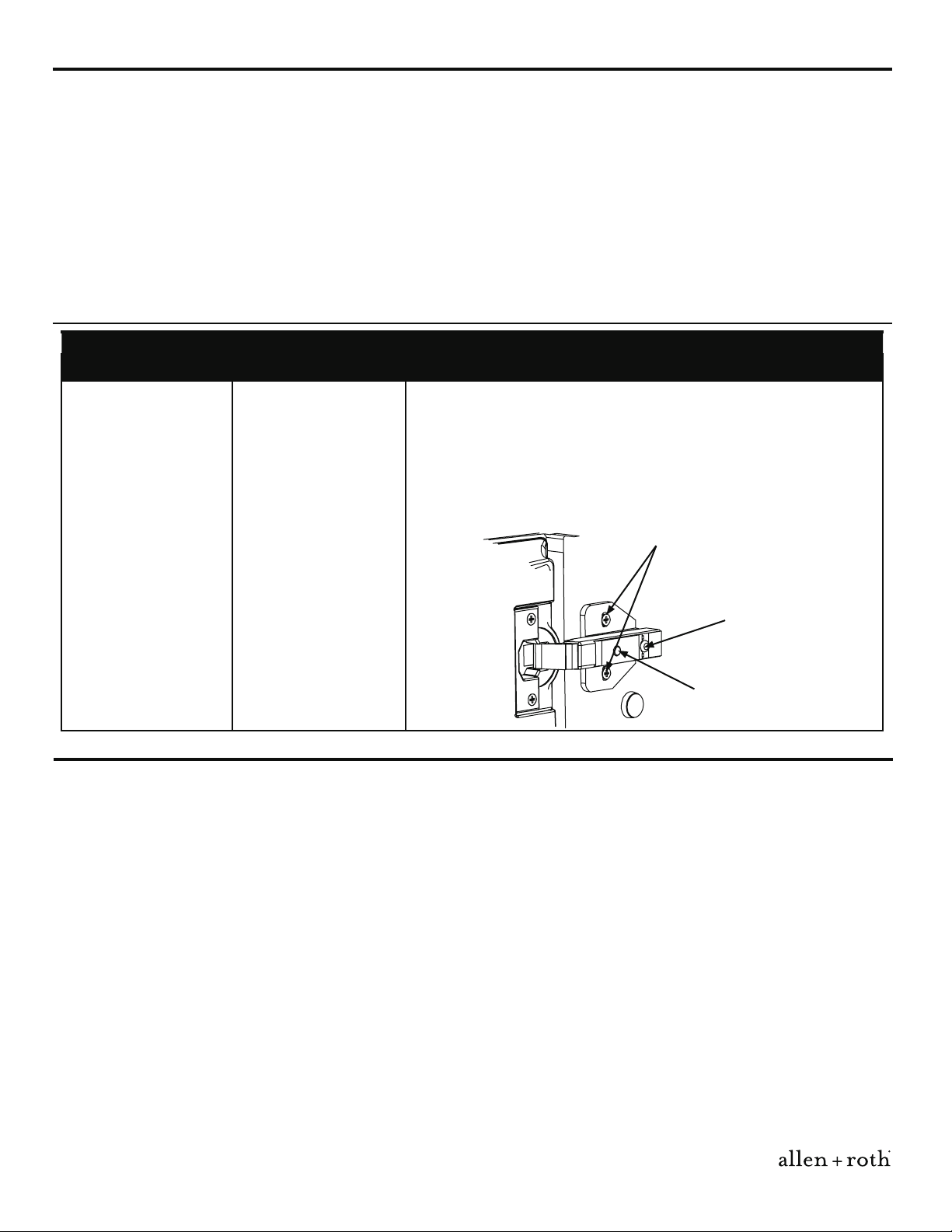

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The doors are not
aligned.
The hinges are
misaligned.
To adjust the doors right or left, loosen/tighten the
screw as in (a). To adjust the doors in or out, loosen/
tighten the screw as in (b). To adjust the doors up or
down, loosen/tighten the screws as in (c).
c
b
a
Lowes.com/allenandroth
Use of a residential glass cleaner such as Windex, Zep Streak-Free Cleaner or Spray Way or other spray
on glass cleaner. Follow the directions on your selected cleaning product, with a liberal application of the
cleaning solution. Using a lint free or microfiber cloth and remove the cleaning solution in a gentle circular
motion. If the mirror feels “tacky” while cleaning, simply apply more cleaner.
•Never clean the mirror with a lint free cloth WITHOUT cleaning solution.
• Do not use cleanerswhich include fragrances, oils, acids, alcohols, bleach, or abrasive particles.
• Do not clean with a scouring pad, rough cloth, abrasive paper towel or window scraper.
