Allen + Roth L-GZ340PCO-5 User manual

ITEM # 0401997
MODEL# L-GZ340PCO-5
HARDTOP GAZEBO
Français p. XX
Español p. XX
Français p. 21
Español p. 41
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday through Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
TM
®
Lowes.com/allenandroth
1

TABLE OF CONTENTS
Package Contents..................................................................................................................................
Hardware Contents................................................................................................................................
Safety Information..................................................................................................................................
Preparation.............................................................................................................................................
Assembly Instructions.............................................................................................................................
Care and Maintenance..........................................................................................................................
Warranty................................................................................................................................................
Replacement Parts List.........................................................................................................................
3
5
6
6
7
17
17
18
®
Lowes.com/allenandroth
2

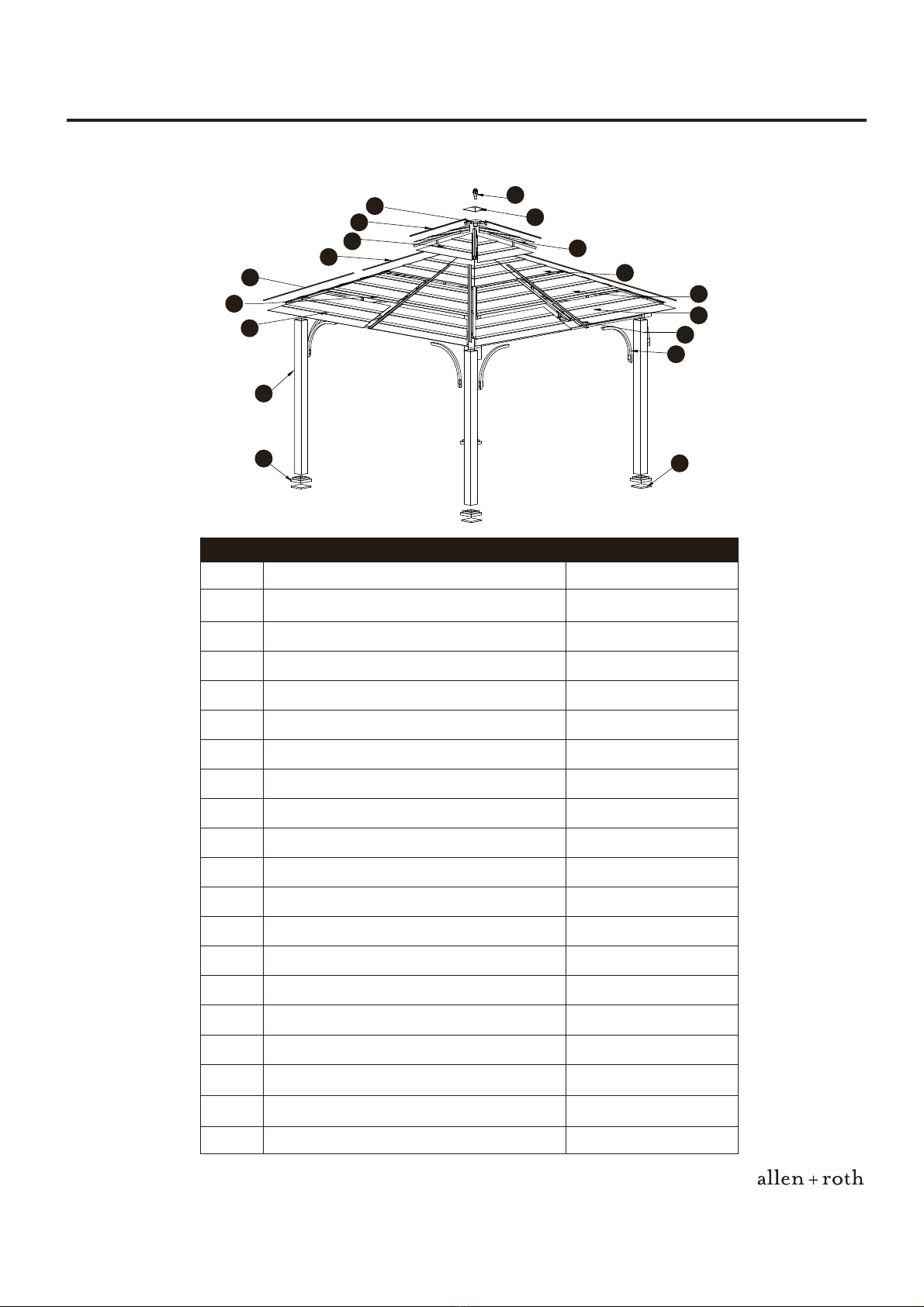

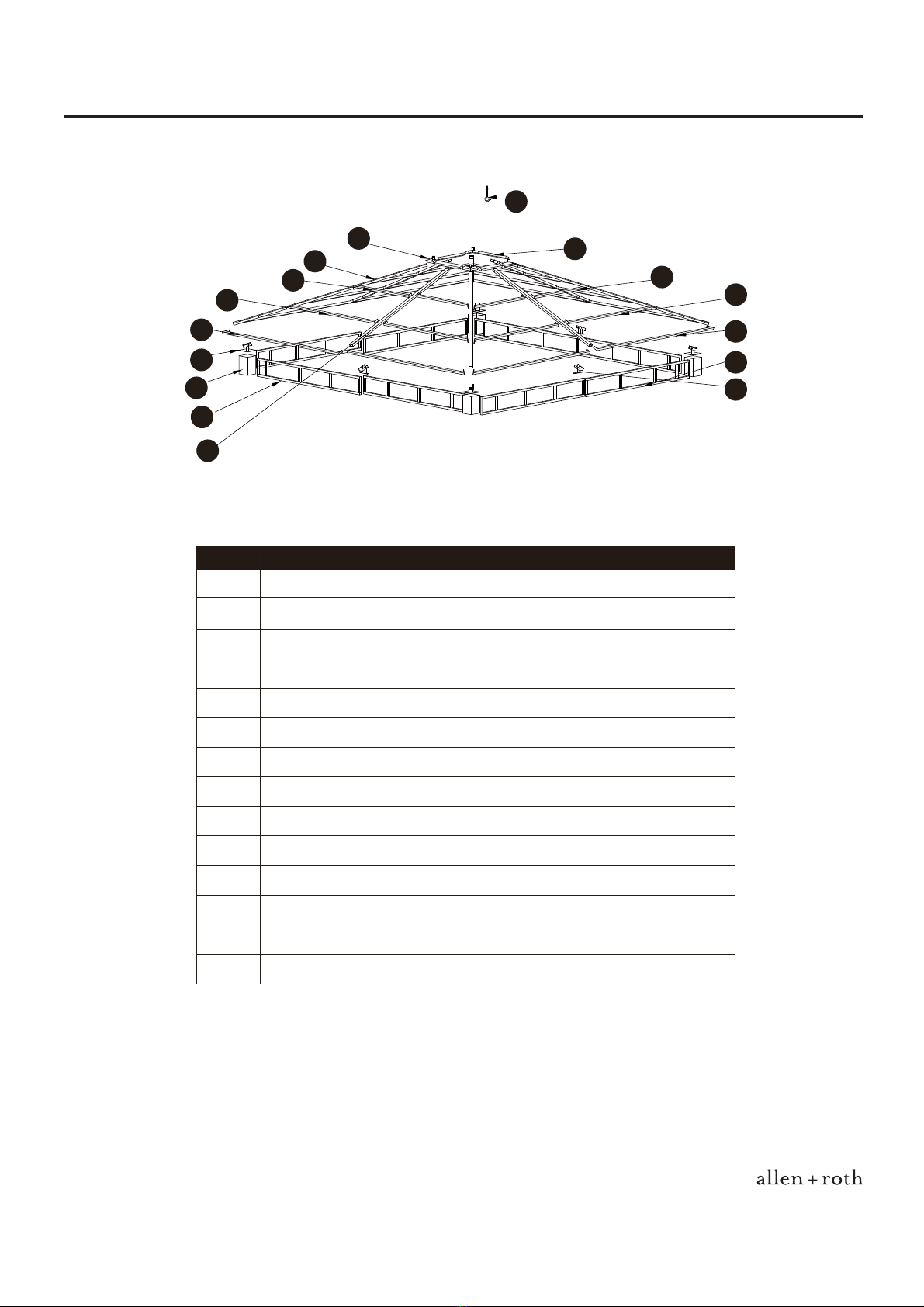

PACKAGE CONTENTS
K
I
N
L
O1
O2
M2
M4
Q
S
J
H
P
T
R
U
G2
V2
W2
X2
A2
D
G1
E
V1
W1
X1
C
B
A1
F
M1
M3
M5
®
Lowes.com/allenandroth
3

PACKAGE CONTENTS
PART
A1
A2
B
C
D
E
F
G1
G2
H
I
J
K
L
M1
M2
M3
M4
M5
N
O1
O2
P
Q
R
S
T
U
V1
V2
W1
W2
X1
X2
4
4
4
4
4
4
4
4
4
4
1
1
1
4
4
4
4
4
4
4
4
4
4
4
4
4
8
1
4
4
4
4
4
4
Left Top Screen
Right Top Screen
Post Connector
Slanting Bar Connector
Beam Connector (Upper)
Top Slanting Bar
Top Beam
Big Top Connector
Big Top Bar
Small Top Support Beam
Small Top Connector
Small Top Cover
Finial
Small Top Roof Panel
Big Roof Panel 1
Big Roof Panel 2
Big Roof Panel 3
Big Roof Panel 4
Big Roof Panel 5
Small Top Roof Cover
Big Roof Panel Cover (Corner) 1
Big Roof Panel Cover (Corner) 2
Big Roof Panel Cover (Middle)
Post
Base
Base Cover
Support Bar
Hook
Big Roof Top Beam (Short Side) 1
Big Roof Top Beam (Short Side) 2
Big Roof Top Beam (Middle Part) 1
Big Roof Top Beam (Middle Part) 2
Big Roof Top Beam (Long Side) 1
Big Roof Top Beam (Long Side) 2
DESCRIPTION QUANTITY
®
Lowes.com/allenandroth
4

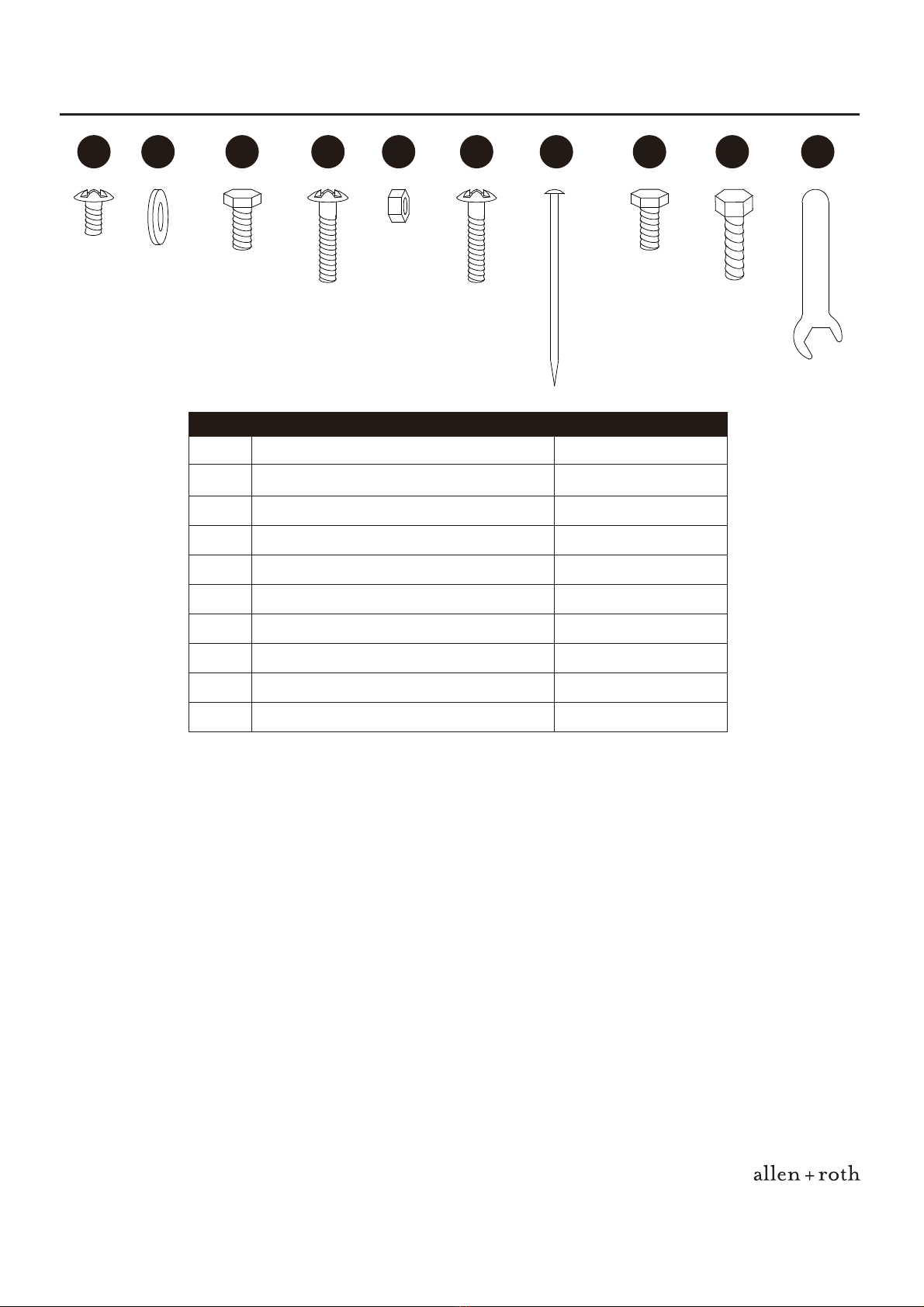

HARDWARE CONTENTS (NOT TO SCALE)
AA
M6 x 15
Screw
Qty. 108
BB
M6 Flat
Washer
Qty. 300
CC
M6 x 25
Bolt
Qty. 32
DD
M6 x 55
Screw
Qty. 16
EE
M6 Nut
Qty. 16
FF
M6 x 30
Screw
Qty. 40
HH
M6 x 15
Bolt
Qty. 56
I I
M6 x 45
Bolt
Qty. 32
JJ
M6
Wrench
Qty. 2
GG

Stake
Qty. 16
®
Lowes.com/allenandroth
5

SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product. If you have any questions regarding the product, please call our customer service
at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday through Friday.
CAUTION
WARNING
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 90 minutes.
Tools Required for Assembly: Wrench (included) and Phillips Screwdriver (not included).
PREPARATION
 This product is intended for outdoor use only and should be placed on flat, horizontal ground.
 Ensure enough clearance around the product.
 Before assembling the product, find level ground no less than 6 ft. away from any structures
or obstructions, such as fences, garages, houses, overhanging branches, laundry lines,
or electrical wires.
 The gazebo must be anchored with stakes onto the ground for added safety.
 It cannot be permanently attached to a concrete floor or platform.
 Do not assemble the gazebo on sandy, muddy or loose soil, as stakes do not have enough
anchorage in these types of soil.
 Any assembly or maintenance of the product must be carried out by adults only.
 Arrange 6 or more manpower when assembling or moving the product.
 Some parts may contain sharp edges. Wear protective gloves if necessary.
 Check all nuts and bolts periodically for tightness. When required, tighten them again.
 Do not hang any weights on the roof frame.
 Always keep children under close supervision when they are using or are around this product.
Never leave children unattended.
 Hook maximum weight: 33 lbs.
6
®
Lowes.com/allenandroth

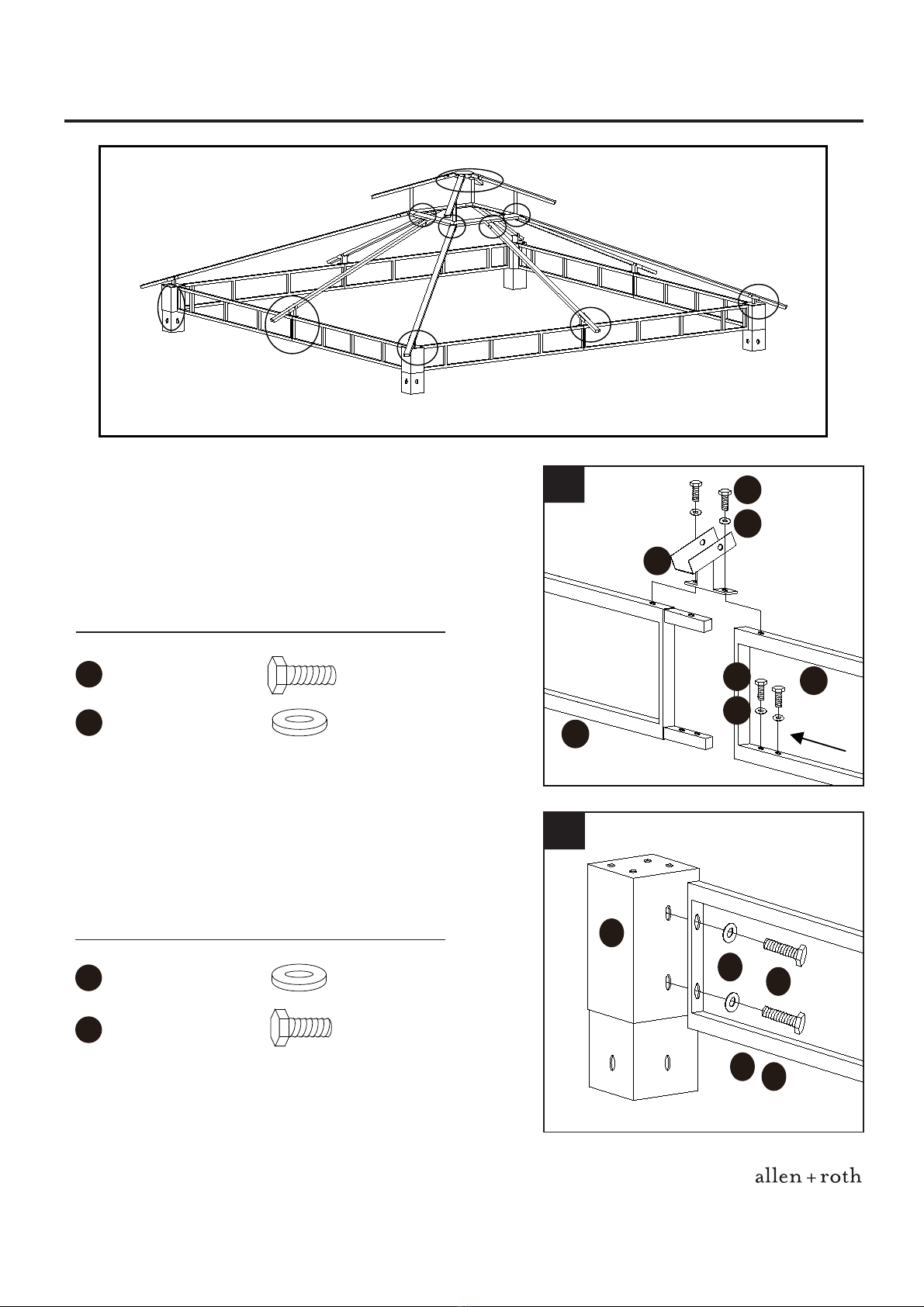

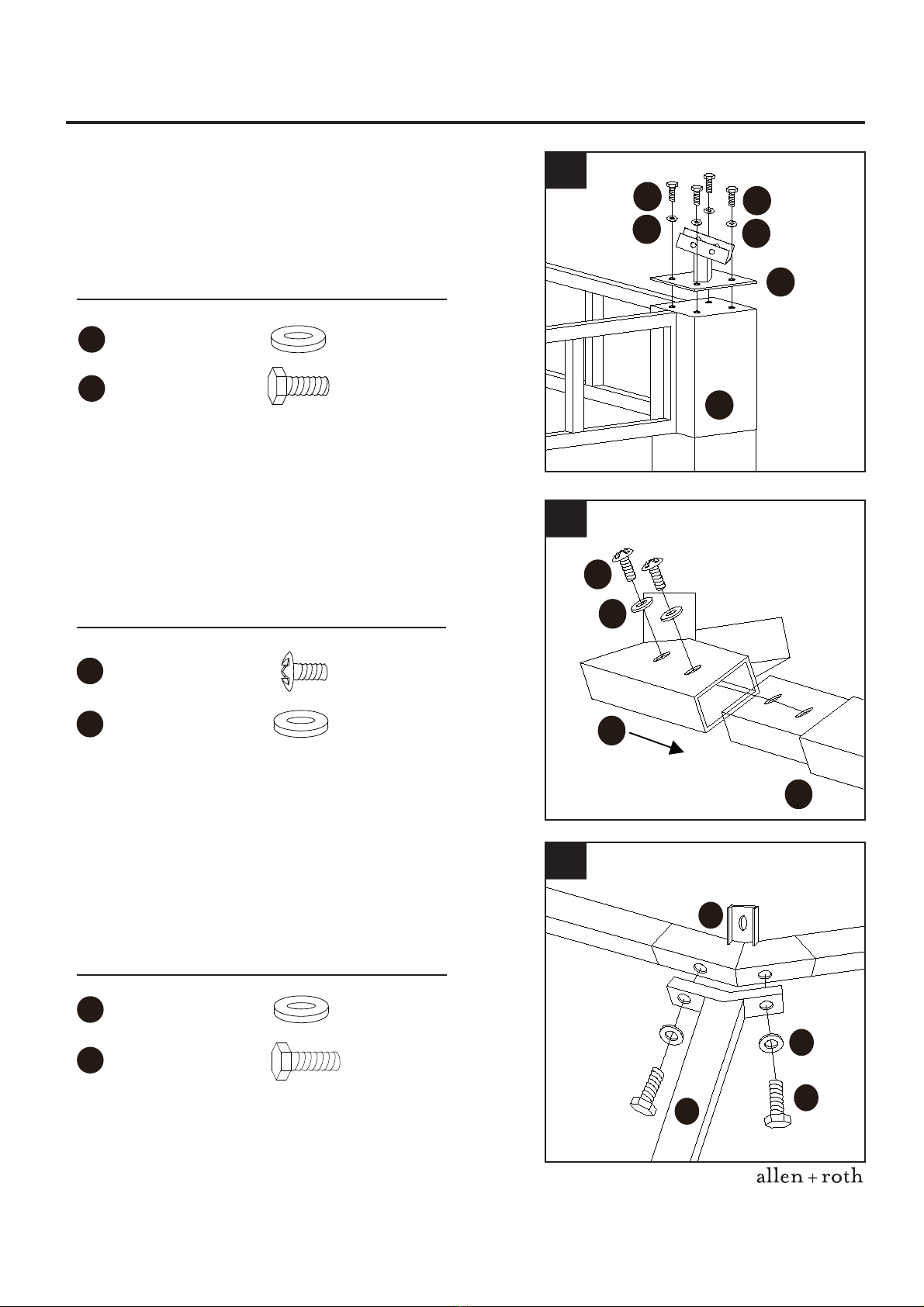

ASSEMBLY INSTRUCTIONS
EE
C
E
FF
DD
Fig.10
Fig.1
Fig.9
Fig.8
Fig.7
Fig.6
Fig.5
Fig.4
Fig.3
Fig.2
A2 A2
A1
A1
IH
G
B
B
B
1.
Hardware Used
Hardware Used
x 16
M6 × 15 Bolt
HH
x 16
M6 Flat Washer
BB
2
B
A2
A1
BB CC
x 16
M6 Flat Washer
BB
M6 × 25 Bolt x 16
CC
Insert the left top screens (A1) to the right top
screens (A2), securing them with bolts (HH) and
flat washers (BB); connect the beam connectors
(upper) (D) to the screens by using bolts (HH) and
flat washers (BB).
2. Attach the assembled screens to the post
connectors (B), securing them with bolts (CC)
and flat washers (BB).
7
®
Lowes.com/allenandroth
1
A1
A2
D
BB
HH
BB
HH

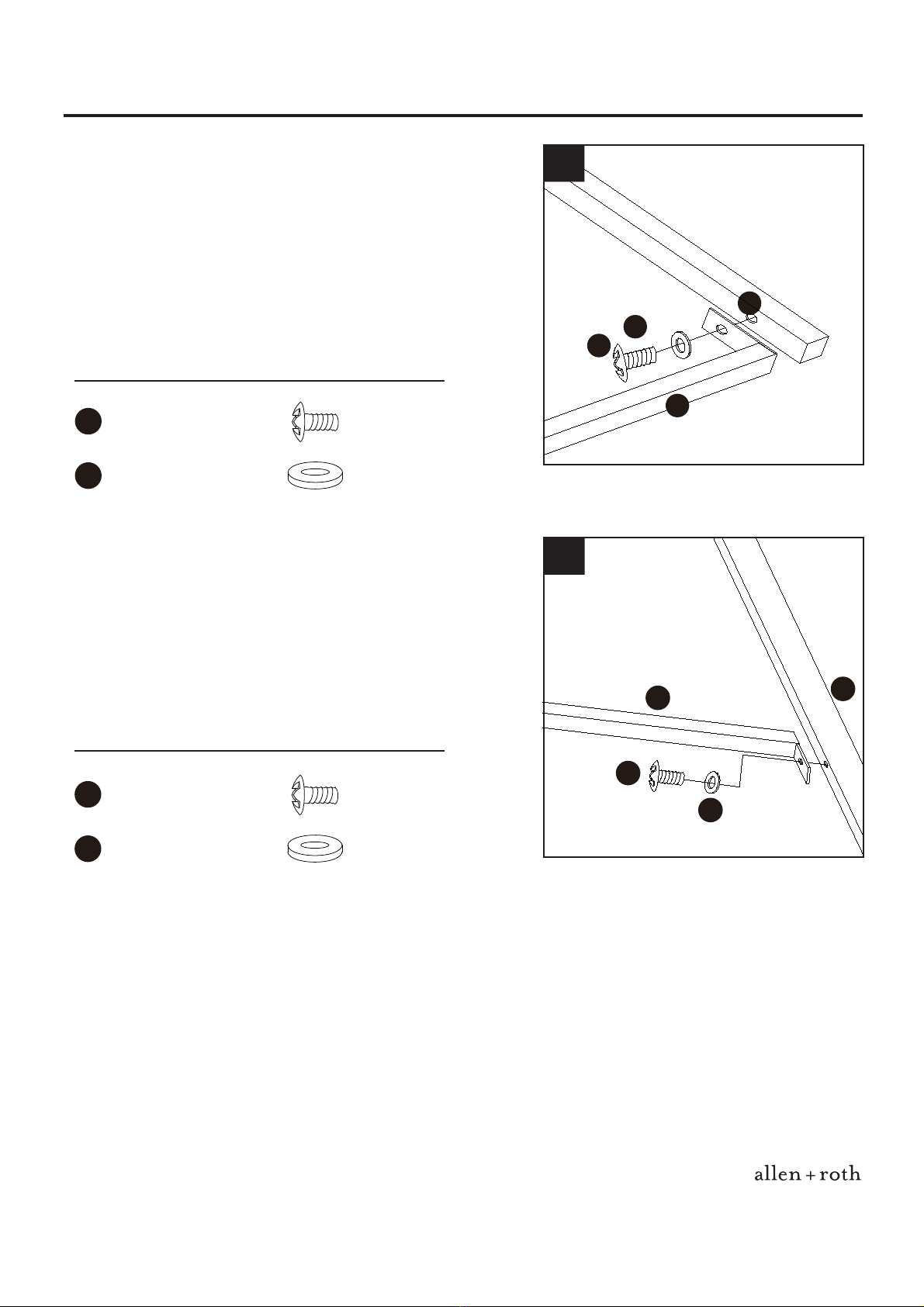

ASSEMBLY INSTRUCTIONS
4.
3.
5.
Hardware Used
Connect the big top connectors (G1) to the big top
bars (G2), securing them with screws (AA) and flat
washers (BB) on each corner.
4
AA
BB
G1
G2
x 8
M6 × 15 Bolt
HH
x 8
M6 Flat Washer
BB
x 16
M6 Flat Washer
BB
x 16
AA M6 x 15 Screw
Hardware Used
Attach the four slanting bar connectors (C) to
the post connectors (B), securing with four bolts
(CC) and four flat washers (BB) for each post
connector (B).
3
C
BB
BB
CC
BB
CC
x 16
M6 × 25 Bolt
CC
x 16
M6 Flat Washer
BB
Hardware Used
Attach the top slanting bars (E) to the big top
connectors (G1) by using bolts (HH) and flat
washers (BB).
G1
BB
EHH
5
8
®
Lowes.com/allenandroth

DD x 8
M6 x 55 Screw
x 16
x 8
M6 Flat Washer
BB
EE M6 Nut
ASSEMBLY INSTRUCTIONS
Hardware Used

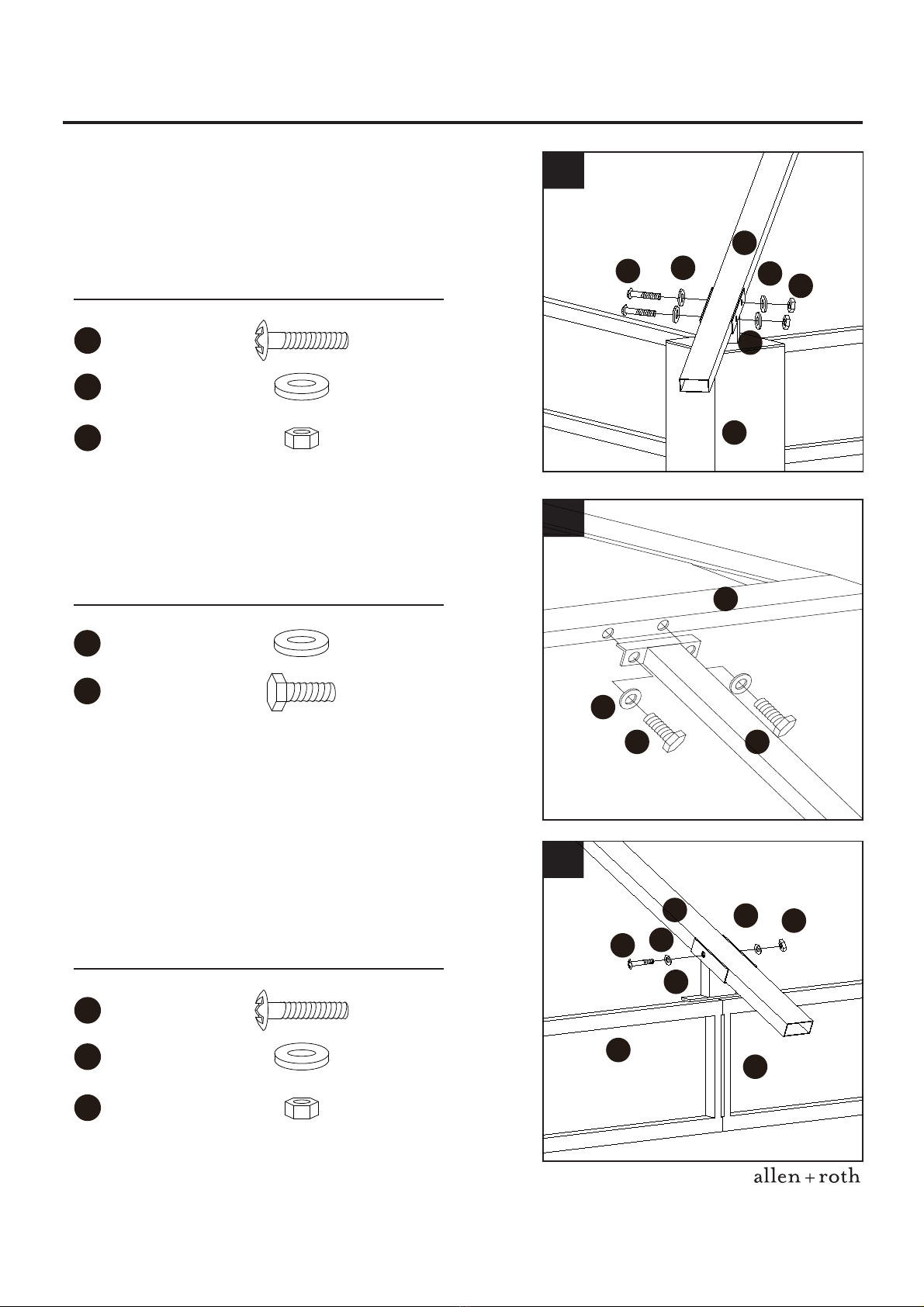

7. Attach the top beams (F) to the big top bars (G2)，
securing them with bolts (HH) and flat washers (BB). 7
6.
Hardware Used
Attach the other end of the top slanting bars (E)
to the slanting bar connectors (C), securing them
with screws (DD), nuts (EE) and flat washers
(BB) on each corner.
8.
Hardware Used
Attach the other end of the top beams (F) to the
beam connectors (upper) (D), securing them with
screws (DD), nuts (EE) and flat washers (BB).
DD x 4
M6 x 55 Screw
x 8
x 4
M6 Flat Washer
BB
EE M6 Nut
BB x 8
M6 Flat Washer
x 8
M6 × 15 Bolt
HH
7
BB
HH F
G2
6
BB
E
B
C
EE
DD BB
9
®
Lowes.com/allenandroth
8
BB EE
A1
A2
BB
DD
D
F

ASSEMBLY INSTRUCTIONS
Hardware Used

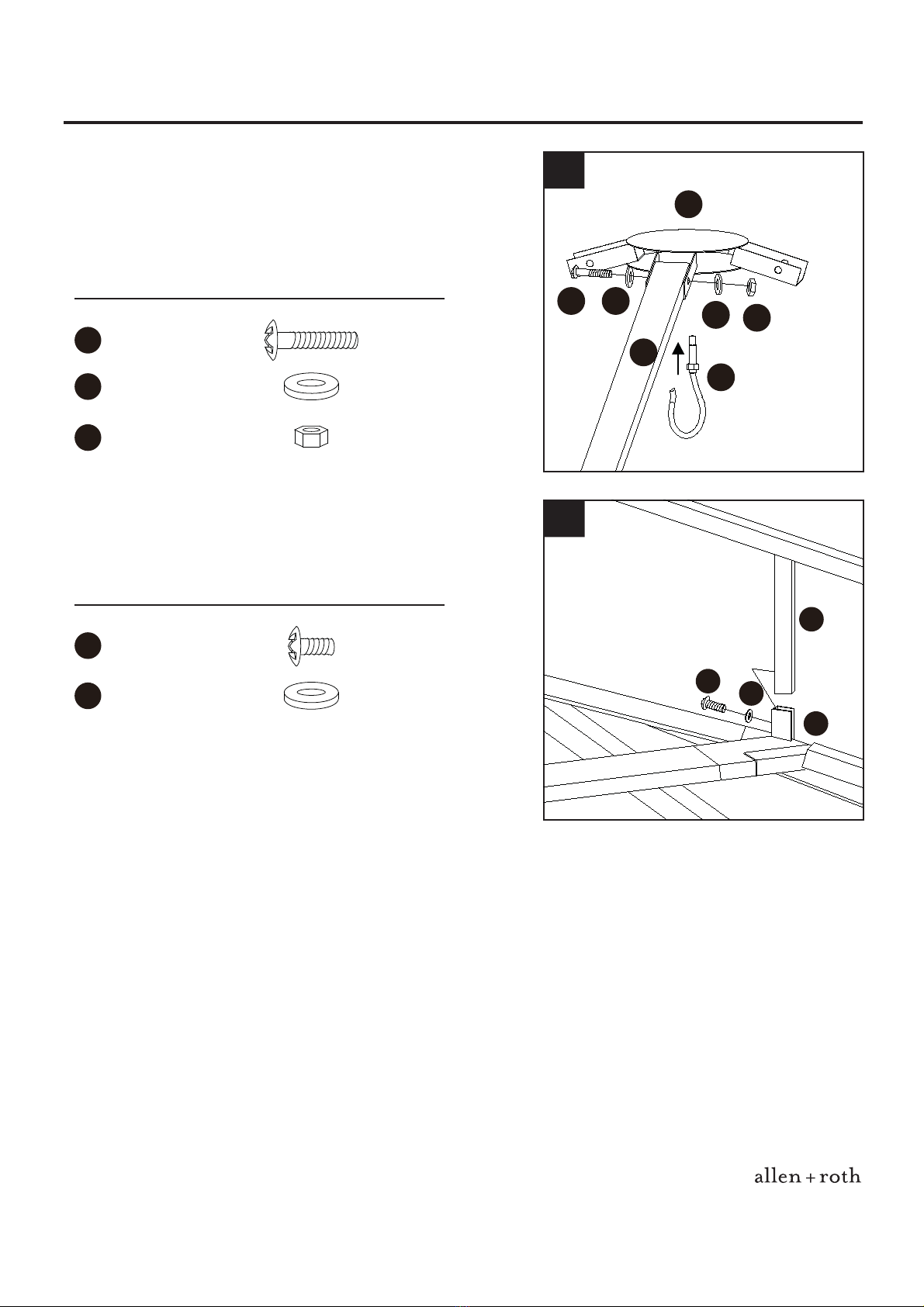

10. Attach the assembled small top to the big top
frames using screws (AA) and flat washers (BB). 10
9.
Hardware Used
Attach the hook (U) to the small top connector (I),
then connect the small top support beams (H) to
the small top connector (I), securing them with
screws (DD), nuts (EE) and flat washers (BB).
9
BB
BB
I
U
H
EE
DD
DD x 4
M6 x 55 Screw
x 8
x 4
M6 Flat Washer
BB
EE M6 Nut
x 4
M6 Flat Washer
BB
x 4
AA M6 x 15 Screw
AA BB
H
G1
10
®
Lowes.com/allenandroth

ASSEMBLY INSTRUCTIONS
Hardware Used
11. Assemble the four small top roof panels (L) by
using the screws (AA) and flat washers (BB). 11
x 16
M6 Flat Washer
BB
x 16
AA M6 x 15 Screw
12.
Hardware Used
Connect the big roof top beams (long side) 1 (X1)
and the big roof top beams (long side) 2 (X2) to
the top slanting bars (E), securing them with bolts
(HH) and flat washers (BB) on each corner.
12
AA AA AA AA
BB
L
L
BB BB BB
E
BB
HH
x 8
M6 Flat Washer
BB
x 8
M6 × 15 Bolt
HH
L
F
F
EE
E
V2
V1
W1 W2
X2
X1
Fig.14
Fig.13
Fig.12
Fig.11
11
®
Lowes.com/allenandroth
X2

ASSEMBLY INSTRUCTIONS
14. Connect the big roof top beams (middle part)
2 (W2) to the top slanting bars (E), securing them
with screws (AA) and flat washers (BB). Repeat
this procedure to assemble the big roof top beams
(short side) 1 (V1), the big roof top beams
(short side) 2 (V2), and the big roof top beams
(middle part) 1 (W1).
14
13. Connect the big roof top beams (long side) 1 (XI)
to the top beams (F), securing them with screws
(AA) and flat washers (BB). Repeat this procedure
to assemble the big roof top beams (short side) 1
(V1), the big roof top beams (short side) 2 (V2),
the big roof top beams (middle part) 1 (W1), the
big roof top beams (middle part) 2 (W2), and the
big roof top beams (long side) 2 (X2).
BB
AA
X1
F
Hardware Used
x 24
M6 Flat Washer
BB
x 24
AA M6 x 15 Screw
Hardware Used
x 16
M6 Flat Washer
BB
x 16
AA M6 x 15 Screw
AA
BB
W2 E
12
®
Lowes.com/allenandroth
13

ASSEMBLY INSTRUCTIONS
Hardware Used

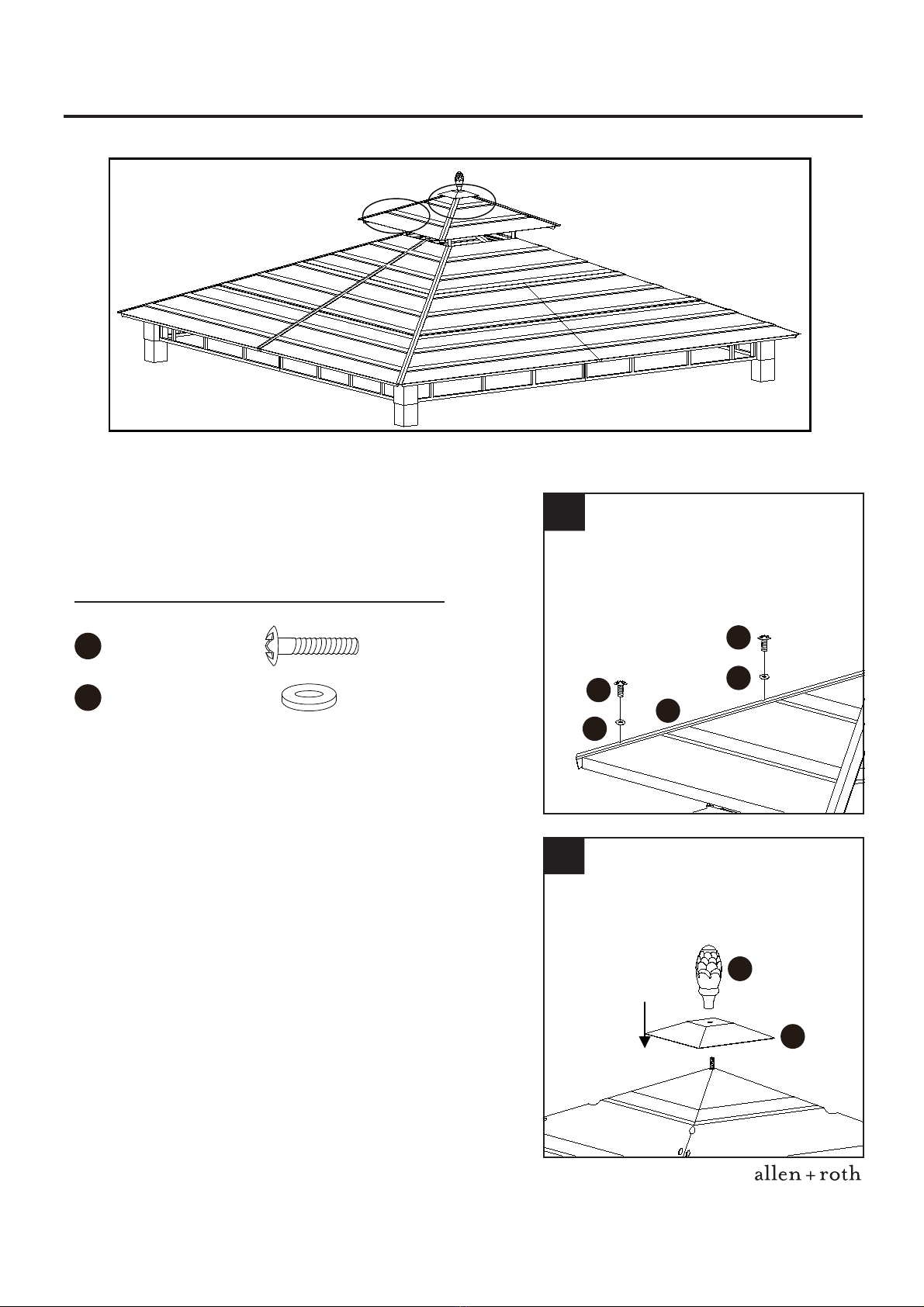

15. Attach the small top roof covers (N) to the small
top by using screws (FF) and flat washers (BB). 15
16. Insert the small top cover (J) to the assembled
small top, then attach the finial (K).
C
FF
FF
BB
BB
N
16
J
K
FF x 8
M6 x 30 Screw
x 8
M6 Flat Washer
BB
Fig.16
Fig.19
Fig.18
Fig.17
Fig.15 J
K
NL
P
O2
O1
M5
M4
M3
M2
M1
13
®
Lowes.com/allenandroth

ASSEMBLY INSTRUCTIONS
Hardware Used

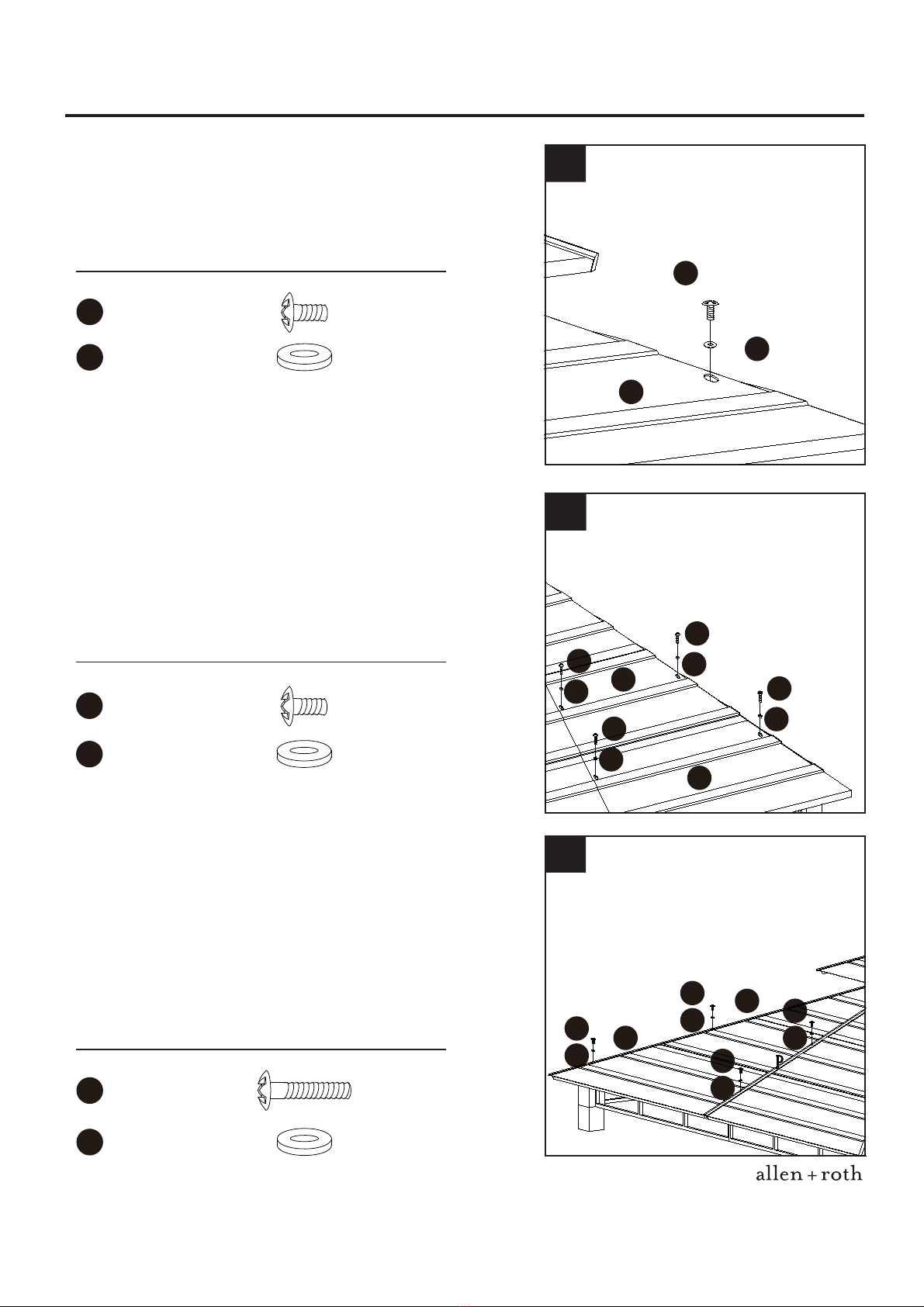

18. Connect the big roof panel covers 3 (M3) to big
roof panel covers 5 (M5) by using screws (AA)
and flat washers (BB). Repeat this procedure to
assemble the big roof panel covers 2 (M2) to the
big roof panel covers 4 (M4).
18
17.
Hardware Used
Attach the big roof panel covers 1 (M1) to the big
top, securing them with screws (AA) and flat
washers (BB).
17
19.
Hardware Used
Insert the big roof panel covers (corner) 1 (O1) to
the bottom border of the small top and connect the
big roof panel covers (corner) 2 (O2). The big roof
panel covers (corner) 1 (O1) should be on top of big
roof panel covers (corner) 2 (O2), securing them with
screws (FF) and flat washers (BB) on each corner.
Then attach the big roof panel covers (middle) (P) by
using screws (FF) and flat washers (BB).
19
BB
M1
AA
BB
O1
O2
FF BB
FF
BB
FF
FF
BB
x 8
M6 Flat Washer
BB
x 8
AA M6 x 15 Screw
x 32
M6 Flat Washer
BB
x 32
AA M6 x 15 Screw
AA
BB
AA
BB AA
BB
M5
M3
BB
AA
FF x 16
M6 x 30 Screw
x 16
M6 Flat Washer
BB
14
®
Lowes.com/allenandroth

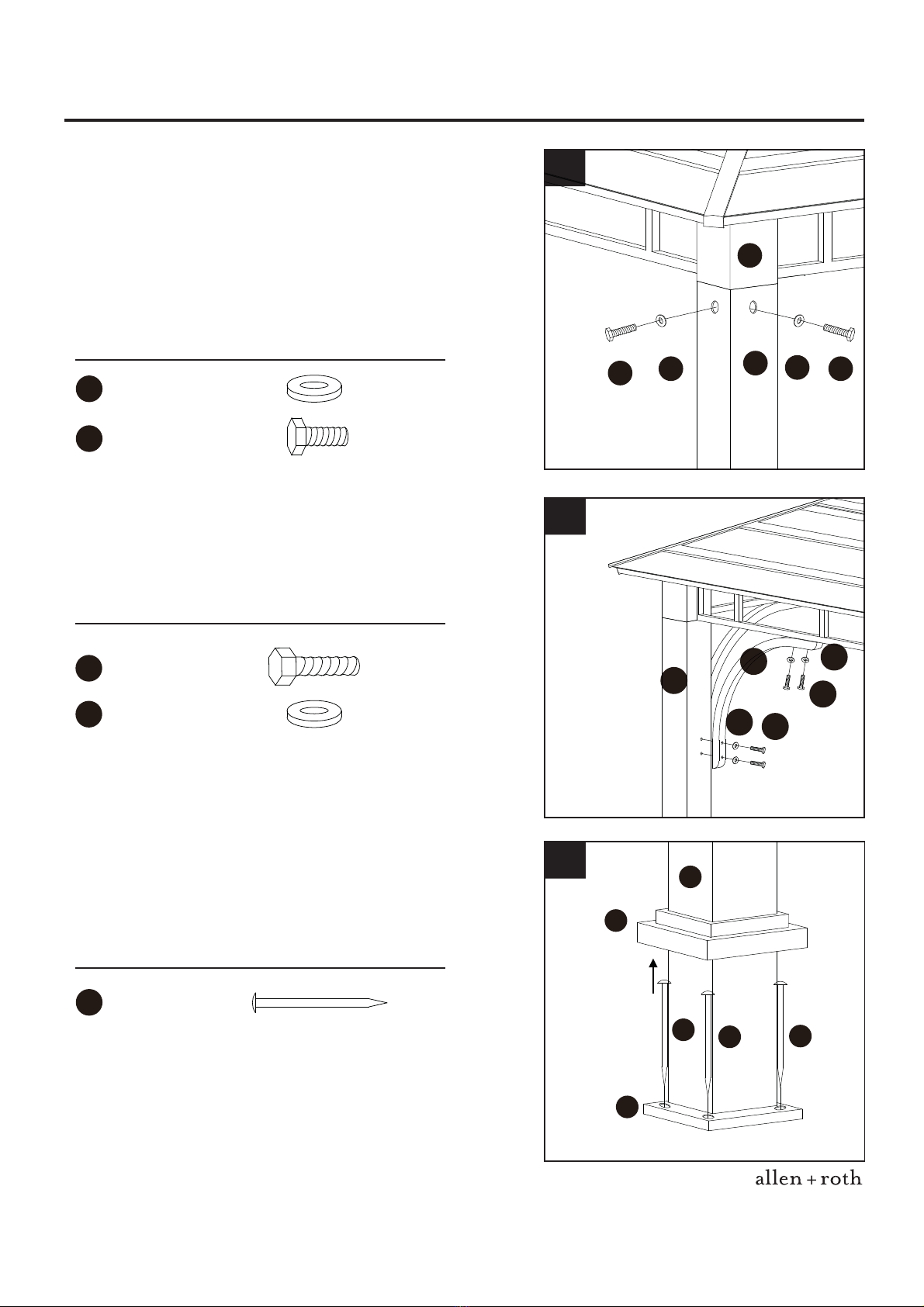

ASSEMBLY INSTRUCTIONS
20.
Hardware Used
Insert the posts (Q) into the base covers (S), and
then install the bases (R), securing them with
screws (FF) and flat washers (BB) for each post (Q).
x 16
M6 Flat Washer
BB
x 16
FF M6 x 30 Screw
Fig.23
Fig.21
Fig.20
Fig.22
Q
T
T
Q
B
B
15
®
Lowes.com/allenandroth
20
FF FF
BB BB
R
S
Q

ASSEMBLY INSTRUCTIONS
Hardware Used
22. Use the support bars (T) to fasten the posts (Q)
and the screens, securing with bolts (II) and flat
washers (BB).
22
21.
Hardware Used
Lift the assembled top frame to insert the post
connectors (B) into the posts (Q), securing with
bolts (HH) and flat washers (BB) for each post (Q).
(You can lift one side of the assembled top frame in
the air with the other side resting on the ground.
Two posts were inserted and fastened. The other
side was then lifted and the other two posts were
inserted and fastened.)
21
23.
Hardware Used
Lift the base covers (S) and use the provided
stakes (GG) to secure the assembled gazebo to
the ground.
x 16
M6 Flat Washer
BB
x 16
HH
M6 x 15 Bolt
BB
BB
I I
I I
Q
T
x 32
M6 Flat Washer
BB
x 32
I I M6 x 45 Bolt
x 16

GG
16
®
Lowes.com/allenandroth
BB
BB HH
HH
B
Q
23 Q
R
S
GG GG
GG

CARE AND MAINTENANCE







 Check all screws and nuts periodically for tightness, fastening them again as required.
This gazebo is intended for decorative and sunshade purposes only, and is not designed to
withstand hard weather, including high winds, rain, and snow. In order to avoid damages, remove
accumulated water on the roof immediately, or disassemble the gazebo. Disassemble the gazebo
in the reverse order of the assembly steps.
Always disassemble the gazebo completely. A partially disassembled gazebo is not stable enough
to resist wind and bad weather, and therefore can be damaged and/or cause damage.
Do not use bleach, acid, or other abrasive cleaners on the roof or frame parts.
Steel components of garden accessories and furniture are treated with rust inhibiting paint. How-
ever, due to the nature of steel, surface oxidation (rusting) will occur if this protective coating is
scratched. This is a natural process. To minimize this condition, it is recommended that care be
taken when assembling and handling the product, in order to prevent the paint from being
scratched.
Surface rust can be removed easily using a very light application of common cooking oil. If surface
oxidation (rusting) occurs and no measures are taken to correct it, the oxidation may start dripping
onto the assembly surface, which may cause damaging stains that may be difficult to remove.
If the product will not be used for a long period (e.g. winter time), it should be stored in a clean, dry
environment.
Keep the original packaging to store the gazebo.
ONE-YEAR LIMITED WARRANTY
This limited warranty is extended to the original purchaser and applies to defects in material and
workmanship of your item provided the item is maintained with care and used only for personal,
residential purposes.
The manufacturer warranty for this item, is to be free of defects in material and workmanship for a
period of 1 YEAR. If any defect is found, please call our customer service department at
1-866-439-9800 for help. The manufacturer will not cover transportation or delivery costs or
compensate the individual or any outside party for assembling or disassembling the product.
This warranty gives you certain rights, and you may have other rights that vary from state to state.
17
®
Lowes.com/allenandroth

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Friday.
PART
A1
A2
B
C
D
E
F
G1
G2
H
I
J
K
L
M1
M2
M3
M4
M5
N
#401997-A1
#401997-A2
#401997-B
#401997-C
#401997-D
#401997-E
#401997-F
#401997-G1
#401997-G2
#401997-H
#401997-I
#401997-J
#401997-K
#401997-L
#401997-M1
#401997-M2
#401997-M3
#401997-M4
#401997-M5
#401997-N
Left Top Screen
Right Top Screen
Post Connector
Slanting Bar Connector
Beam Connector (Upper)
Top Slanting Bar
Top Beam
Big Top Connector
Big Top Bar
Small Top Support Beam
Small Top Connector
Small Top Cover
Finial
Small Top Roof Panel
Big Roof Panel 1
Big Roof Panel 2
Big Roof Panel 3
Big Roof Panel 4
Big Roof Panel 5
Small Top Roof Cover
DESCRIPTION PART NUMBER
K
I
N
L
O1
O2
M2
M4
Q
S
J
H
P
T
R
M1
M3
M5
18
®
Lowes.com/allenandroth

REPLACEMENT PARTS LIST
PART
O1
O2
P
Q
R
S
T
U
V1
V2
W1
W2
X1
X2
#401997-O1
#401997-O2
#401997-P
#401997-Q
#401997-R
#401997-S
#401997-T
#401997-U
#401997-V1
#401997-V2
#401997-W1
#401997-W2
#401997-X1
#401997-X2
Big Roof Panel Cover (Corner) 1
Big Roof Panel Cover (Corner) 2
Big Roof Panel Cover (Middle)
Post
Base
Base Cover
Support Bar
Hook
Big Roof Top Beam (Short Side) 1
Big Roof Top Beam (Short Side) 2
Big Roof Top Beam (Middle Part) 1
Big Roof Top Beam (Middle Part) 2
Big Roof Top Beam (Long Side) 1
Big Roof Top Beam (Long Side) 2
DESCRIPTION PART NUMBER
U
G2
V2
W2
X2
A2
D
G1
E
V1
W1
X1
C
B
A1
F
19
®
Lowes.com/allenandroth

REPLACEMENT PARTS LIST
Printed in China
20
AA BB CC DD EE HH JJFF GG I I
PART
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
#401997-AA
#401997-BB
#401997-CC
#401997-DD
#401997-EE
#401997-FF
#401997-GG
#401997-HH
#401997-II
#401997-JJ
M6 x 15 Screw
M6 Flat Washer
M6 x 25 Bolt
M6 x 55 Screw
M6 Nut
M6 x 30 Screw

M6 x 15 Bolt
M6 x 45 Bolt
M6 Wrench
DESCRIPTION PART NUMBER
allen + roth®
of LF, LLC. All rights reserved.
®
Lowes.com/allenandroth
