Allen + Roth L-GZ604PCO-H User manual

1
Lowes.com/allenandroth
wAH?KIEJCOKLDEOPE?=PA@EJOLENEJC
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
ITEM #0697454
MODEL #L-GZ604PCO-H
Français p. 21
HARDTOP GAZEBO
EB15498
allen + roth ® is a registered trademark of LF, LLC.
All rights reserved.

2
TABLE OF CONTENTS
Package Contents .............................................................................................................................. 3
Hardware Contents ............................................................................................................................ 5
Safety Information ............................................................................................................................. 6
Preparation .......................................................................................................................................... 6
Assembly Instructions ...................................................................................................................... 7
Care and Maintenance ...................................................................................................................... 17
Warranty .............................................................................................................................................. 17
Replacement Parts List...................................................................................................................... 18
Lowes.com/allenandroth

3
Lowes.com/allenandroth

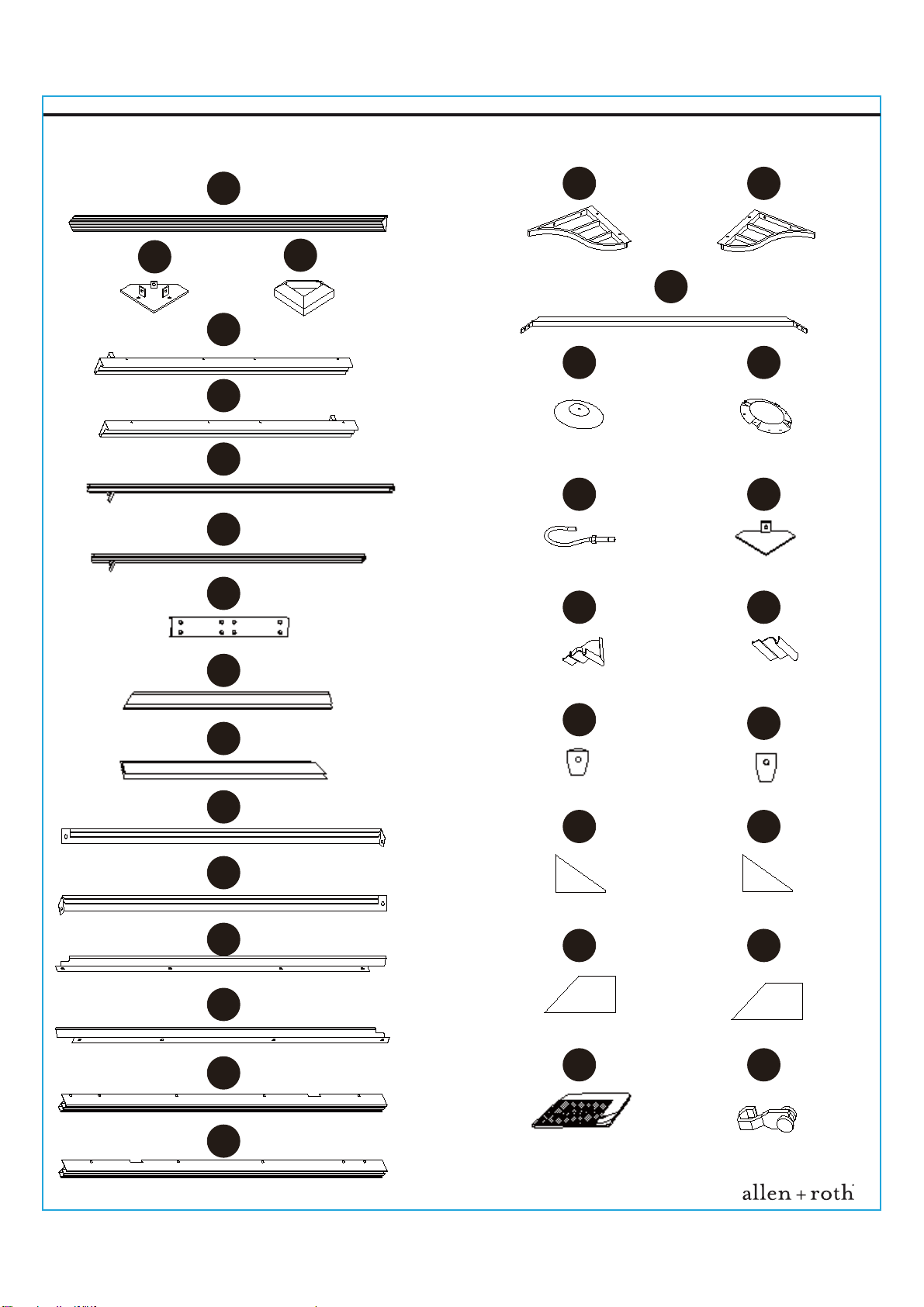

PACKAGE CONTENTS
U

4
Lowes.com/allenandroth
PACKAGE CONTENTS
G1
G2
4
4
4
4
4
4
4
4
4
4
4
4
1
1
1
4
Left Slot
Right Slot
H1
H2 F-Baffle 1
F-Baffle 2
I1
I2 Left Baffle
Right Baffle
J1
J2 Left Mosquito Netting Tube
Right Mosquito Netting Tube
K1
K2
Left Arc Support Bar
Right Arc Support Bar
L
MCorner Support
Small Roof Cover
4
NRoof Connector
4
4
4
4
4
1
4
Q2
Q1 Corner Cover
Middle Cover
S4
TPC Panel 4
Mosquito Netting
A
B1
B2
C1
C2
D
E
F
4
4
4
4
4
4
4
Post
Base
Base Cover
Left Decorative Groove
Right Decorative Groove
Oblique Beam
Middle Beam
Decorative Groove Connector
PART DESCRIPTION QUANTITY
O
PHook
48
U
Plastic Hook
Post Connector
4
R2
R1 Corner Closure Plate
Middle Closure Plate
S1
S2
S3
PC Panel 1
PC Panel 2
PC Panel 3

5
Lowes.com/allenandroth

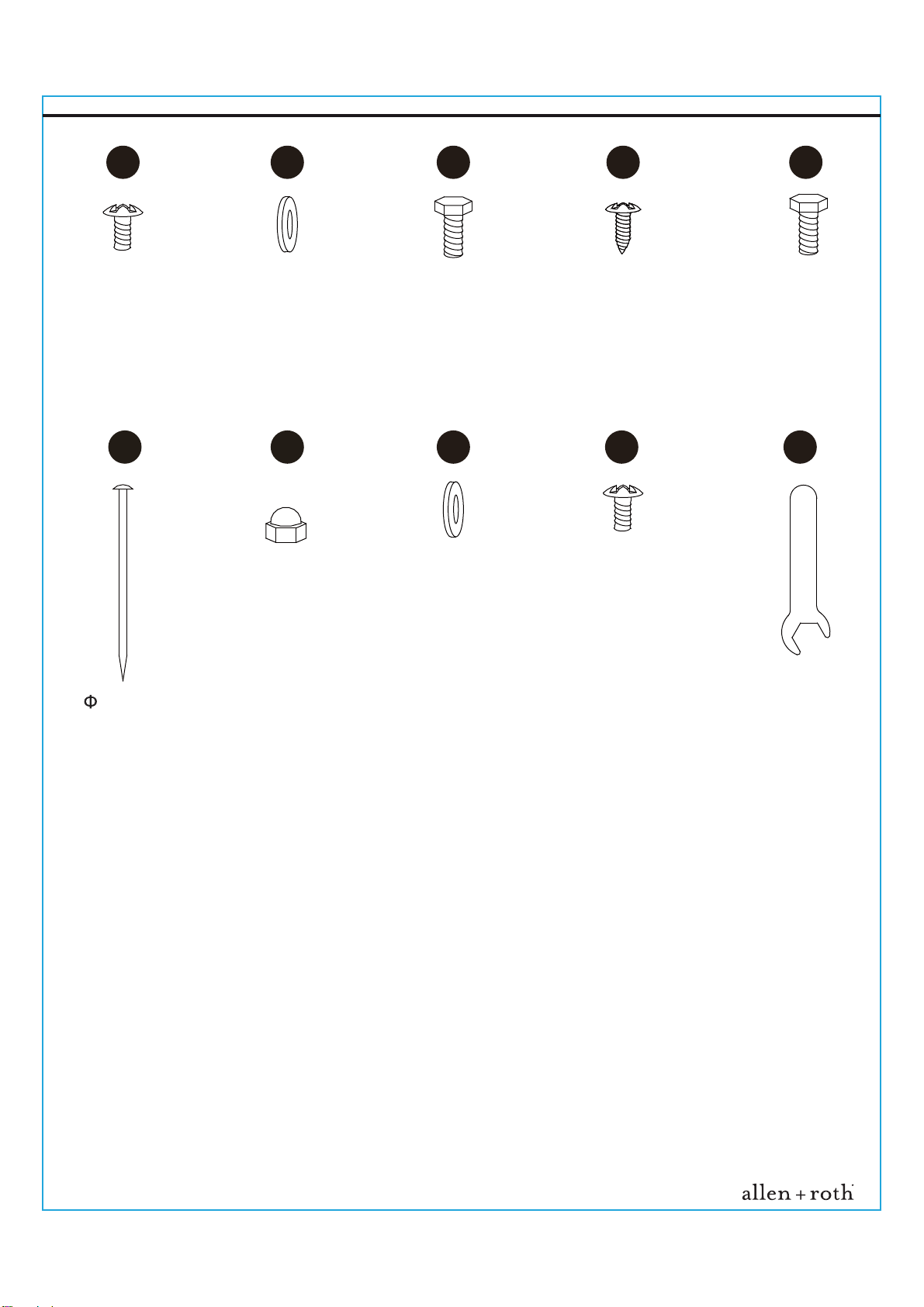

HARDWARE CONTENTS
M6 x 35 mm M5 x 15 mmM6
AA
Bolt
M6 x 15 mm
Qty. 144
BB
Flat Washer
Qty. 180
CC
Bolt
Qty. 16
DD
Bolt
Qty. 48
EE
M6
Wrench
Qty. 1
JJ
Bolt
M6 x 25 mm
Qty. 16
FF
Stake
Qty. 12
8 x 180 mm
GG
M8 Cap
Nut
Qty. 1
M8
HH
Flat Washer
Qty. 1
M6 x 20 mm
Bolt
Qty. 4
II

6
Lowes.com/allenandroth
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, or install the
product.
WARNING
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes.
Tools Required for Assembly: Wrench (included) and Phillips Screwdriver (not included).
PREPARATION
This product is intended for outdoor use only and should be placed on flat, horizontal ground.
Ensure enough clearance around the product. Before assembling the product, find level ground
no less 6 feet away from any structures or obstruction, such as fences, garages, houses,
overhanging branches, laundry lines or electrical wires.
Anchor the gazebo to the ground with stakes for added safety. Stakes are provided to secure
the gazebo in the ground. If you wish to secure the gazebo to concrete and wood surfaces,
use hardware (not included) suited for these surfaces.
Do not assemble the gazebo on sandy, muddy or loose soil, as stakes do not have enough
CAUTION
Any assembly or maintenance of the product must be carried out by adults only.
anchorage in these types of soil.
Four or more people are recommended to safely assemble and/or move the product.
Check all nuts and bolts periodically for tightness. When required, tighten them again.
Do not hang anything from the roof frame.
Always keep children under close supervision when they are using or are around this product.
Hook maximum weight: 33 lbs. (per hook).
Some parts may contain sharp edges. Wear protective gloves if necessary.

7
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
1. Attach base cover (B2) to the bottom of post (A), then
lift it and post (A) to install base (B1) to post (A) using M6
x 15 mm bolts (AA) and M6 flat washers (BB). Tighten with
Phillips screwdriver (not included).
Repeat for the remaining 3 posts (A).
1 1
Hardware Used
x 12
M6 Flat Washer
BB
JJ
x 12
M6 x 15 mm Bolt
AA
AA BB
B2
B1
BBAA
A
B2
B1
B2
B1
A
A
B2
B1
A
C2
A
B2
B1
J1
J1
J2
I2
I1
I2
K2
K2
C2
C1
I1
L
C1
I1
J2
I2
L
Q1
Q2
K1

8
Lowes.com/allenandroth

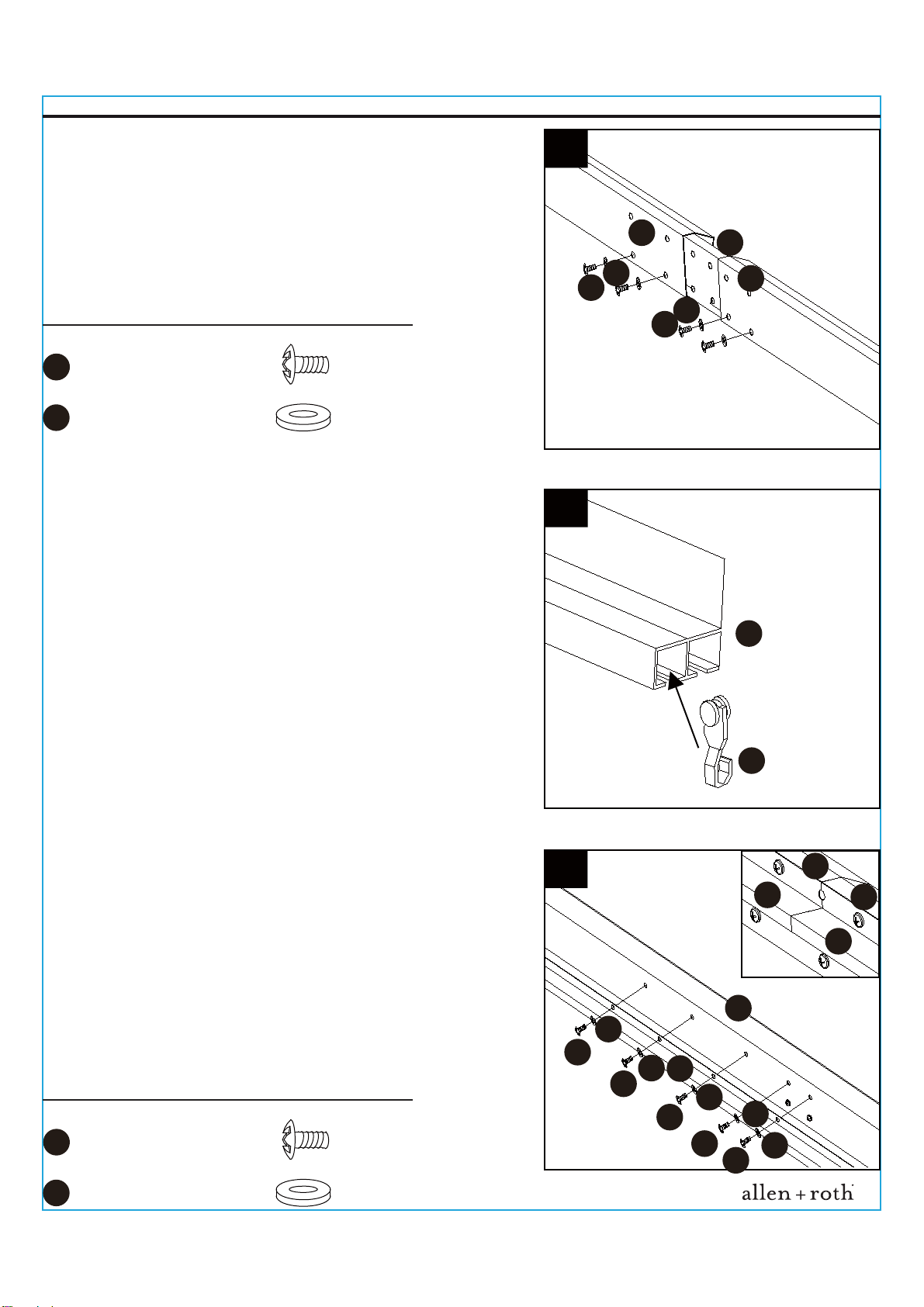

2. Connect the left decorative groove (C1) and the right
decorative groove (C2) to a decorative groove connector (F)
using four M6 x 15 mm bolts (AA) and M6 flat washers (BB).
Tighten with Phillips screwdriver.
Repeat this step for the 3 remaining left decorative grooves
(C1), right decorative grooves (C2) and decorative groove
connectors (F).
ASSEMBLY INSTRUCTIONS
2
4. Attach the left mosquito netting tubes (J1) to the left
decorative groove (C1) using 5 M6 x 15 mm bolts (AA)
and M6 flat washers (BB) for each. Tighten with Phillips
screwdriver.
Repeat this step for the right mosquito netting tubes (J2)
and right decorative grooves (C2).
Note: Ensure there is a space/hole open in the middle to
install the middle beam (H) later on.
4
3. Insert 6 plastic hooks (U) inside each left mosquito
netting tube (J1) and 6 plastic hooks (U) inside each right
mosquito netting tube(J2).
3
Hardware Used
x 16
M6 Flat Washer
BB
x 16
M6 x 15 mm Bolt
AA
M6 Flat Washer
Hardware Used
x 40
BB
x 40
M6 x 15 mm Bolt
AA
AA
AABB
BB C1
F
C2
U
J1
AA BB
BB
BB
BB BB
AA
AA
AA AA
J2
C1
C2
C1
J2
J1

9
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
5. Attach the left decorative groove (C1) and right decorative
groove (C2) of one assembly to 2 posts (A) using M6 x 35
mm bolts (CC) and M6 flat washers (BB). Tighten with M6
wrench (JJ).
Repeat for the other decorative groove assemblies to make
the frame of the gazebo.
5
Hardware Used
M6 Flat Washer
BB x 16
CC
M6 x 35 mm Bolt
x 16
JJ M6 Wrench x 1
A
C1 C2
BB
BB
CC CC
6. Secure the left decorative grooves (C1) and right
decorative grooves (C2) to the outside of the posts (A) using
M6 x 15 mm bolts (AA) and M6 flat washers (BB). Tighten
with Phillips screwdriver.
6
Hardware Used
x 8
M6 Flat Washer
BB
x 8
M6 x 15 mm Bolt
AA
6
C2
AAA
BB
AA
BB
C1
7. Attach corner covers (Q1) to each corner of the gazebo
frame. Secure the top of the corner covers (Q1) to the
assembly using M5 x 15 mm bolts (DD) and secure the
bottom using M6 x 15 mm bolts (AA) and M6 flat washers
(BB). Tighten with Phillips screwdriver.
7
Hardware Used
x 8
M6 Flat Washer
BB
x 8
M6 x 15 mm Bolt
AA
x 8
M5 x 15 mm Bolt
DD
7
DD DD
AA AA
BB
BB
C1
C2
Q1

10
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
8
10
10. Attach the corner supports (L) to the inside of each
corner of the assembly using M6 x 15 mm bolts (AA) and
M6 flat washers (BB). Tighten with Phillips screwdriver.
Hardware Used
x 16
M6 Flat Washer
BB
x 16
M6 x 15 mm Bolt
AA C1 C2
L
AA
AA AA
AA
BB
BB BB
BB
8. Attach middle covers (Q2) to the outside of the gazebo
frame. Secure the top of the middle covers (Q2) to the
assembly using M5 x 15 mm bolts (DD) and secure the
bottom using M6 x 15 mm bolts (AA) and M6 flat washers
(BB). Tighten with Phillips screwdriver.
Hardware Used
x 8
M6 Flat Washer
BB
x 8
M6 x 15 mm Bolt
AA
JJ x 8
M5 x 15 mm Bolt
DD
DD
DD
AA
BB
AA
BB
C1
C2
Q2
9. Attach left baffles (I1) to left decorative grooves (C1) using
M5 x 15 mm bolts (DD). Repeat this step for right baffles (I2)
and right decorative grooves (C2). Tighten with Phillips
screwdriver.
9
Hardware Used
JJ x 32
M5 x 15 mm Bolt
DD
C1
I1
DD DD DD DD

11
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS

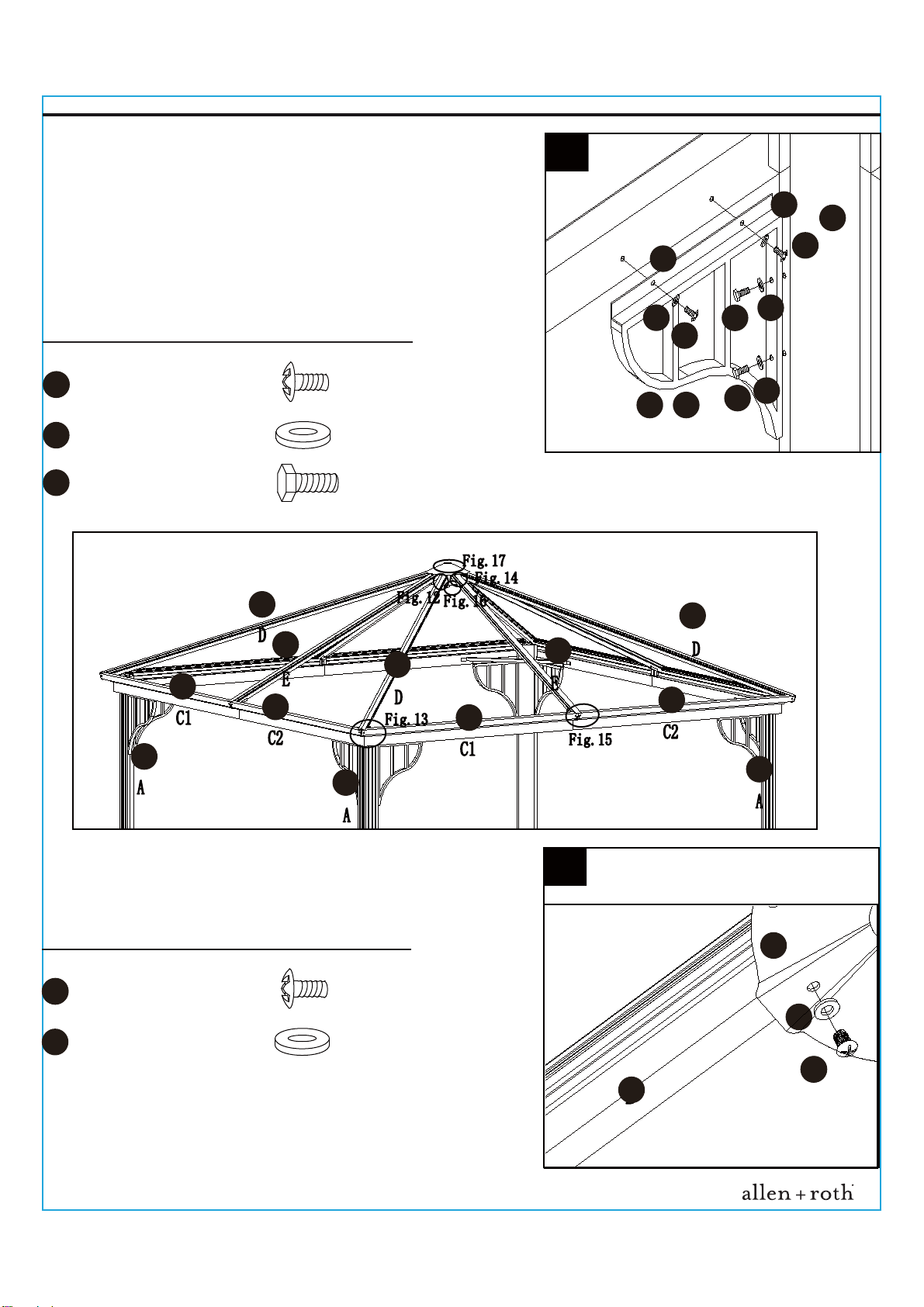

11. Attach a left arc support bar (K1) to the underside of a
left decorative groove (C1) using M6 x 15 mm bolts (AA)
and M6 flat washers (BB). Secure it to the post (A) using M6
x 25 mm bolts (EE) and M6 flat washers (BB).
Tighten with Phillips screwdriver.
Repeat for all left arc support bars (K1),then repeat this step
for the right arc support bars (K2).
11
11
A
AA
BB
AA EE
BB
BB
EE
K2K1
C1
Hardware Used
x 32
M6 Flat Washer
BB
x 16
M6 x 15 mm Bolt
AA
x 16
M6 x 25 mm Bolt
EE
BB
A
AA
D
E
D
D
C1
C1 C2 C2
E
12. Attach the top of oblique beams (D) to the underside
of roof connector (N) using M6 x 15 mm bolts (AA) and
M6 flat washers (BB).Tighten with Phillips screwdriver. 12
Hardware Used
x 4
M6 Flat Washer
BB
x 4
M6 x 15 mm Bolt
AA
AA
BB
N
D

12
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
15. Attach the bottom of the middle beams (E) to the
decorative groove assemblies using M6 x 15 mm bolts (AA)
and M6 flat washers (BB). Tighten with Phillips screwdriver. 15
Hardware Used
x 4
M6 Flat Washer
BB
x 4
M6 x 15 mm Bolt
AA
AA BB
E
C1
C2

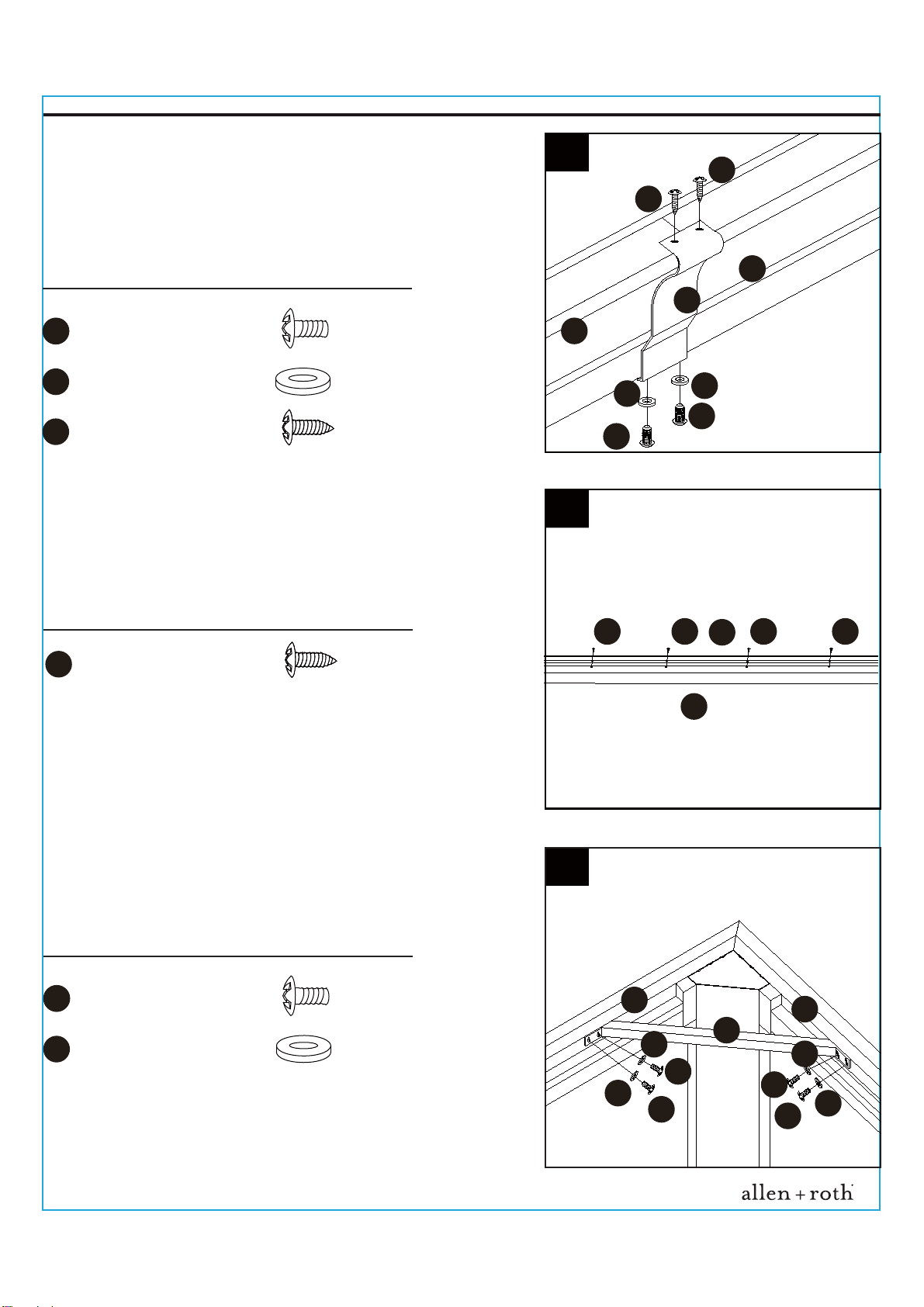

13. Attach post connectors (P) to the top of each post (A).
Then, with the assistance of another person, lift the assembly
from step 12 and insert an M6 x 20 mm bolt (II) through
a M6 flat washer (BB), then through the bottom of oblique
beam (D), post (A) and post connector (P). Tighten with
Phillips screwdriver.
Repeat for each corner.
13
Hardware Used
x 4
M6 Flat Washer
BB
x 4
M6 x 20 mm Bolt
II
BB
P
D
A
II
14
14. Attach the top of middle beams (E) to the underside
of roof connector (N) using M6 x 15 mm bolts (AA) and
M6 flat washers (BB). Tighten with Phillips screwdriver.
Hardware Used
x 4
M6 Flat Washer
BB
x 4
M6 x 15 mm Bolt
AA
BB
AA
N
D
E

13
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
17. From the top of the assembly, attach the small roof
cover (M) to the thread of hook (O). Secure using M8 flat
washer (HH) and M8 cap nut (GG). 17
Hardware Used
x 1
M8 Flat Washer
HH
x 1
M8 Cap Nut
GG
GG
HH
M
16. Attach the hook (O) to the underside of roof
connector (N). 16
E
DO
N
D
D
D
M
DE
E
S4
S2
S1
S3
S2
S1
G1
G2
S3
S4
H1
H2
H1
H2
R1
R1
R2 R2
G2
G1

14
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
19. Cover the bottom of PC panel 3 (S3) with F-baffle 1 (H1)
and cover the bottom of PC panel 4 (S4) with F-baffle 2
(H2).
Note: F-baffle 1 (H1) and F-baffle 2 (H2) will overlap.
Repeat this step for the left F-baffle 1 (H1) and F-baffle
2 (H2).
19 E
H1
20. Insert middle closure plates (R2) into the outside of
middle beams (E) to secure F-baffle 1 (H1) and F-baffle 2
(H2) using M6 x 15 mm bolts (AA) and M6 flat washers (BB).
Tighten with Phillips screwdriver.
20
Hardware Used
x 4
M6 Flat Washer
BB
x 4
M6 x 15 mm Bolt
AA
E
AA
BB
R2
18. Slide a PC panel 1 (S1) into the triangular top section
created by a oblique beam (D) and a middle beam (E).
Insert a left slot (G1) into the assembly next, then fit a PC
panel 3 (S3) into the left slot (G1); it will be secured in the
next step.
Repeat this step for the remaining PC panels 1 (S1) and PC
panels 3 (S3), then do the same for PC panels 2 (S2) and
PC panels 4 (S4) into right slot (G2).
IMPORTANT: The side of the panels with the "ON" sticker
should face upward.
18
D
E
S1
S3
G1

15
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
21. Insert corner closure plates (R1) into the outside of
oblique beams (D) using M6 x 15 mm bolts (AA) and M6
flat washers (BB). Tighten with Phillips screwdriver. 21
Hardware Used
x 4
M6 Flat Washer
BB
x 4
M6 x 15 mm Bolt
AA
D
AA
BB
R1
T

16
Lowes.com/allenandroth
ASSEMBLY INSTRUCTIONS
22. Attach the mosquito netting (T) to the previously installed
plastic hooks (U).
Note: The netting with belts should face outside.
22
T
FF
23. With the assistance of another person(s), move the
assembled gazebo to the desired installation site. For
ground installations, lift base cover (B2) and insert stakes
(FF) through holes on base (B1). For concrete/wood
installations, use appropriate hardware (not included) to
secure the item.
23
Hardware Used
x 12
ĭPP6WDNH
FF
A
U
FF
B2
B1

17
Lowes.com/allenandrothLowes.com/allenandroth
CARE AND MAINTENANCE
This gazebo is intended for decorative and sunshade purposes only, and is not designed to
Check all nuts and bolts periodically for tightness. When required, tighten them again.
withstand hard weather, including high winds, rain or snow. In order to avoid damage, remove
accumulated water on the roof immediately, or disassemble the gazebo.
Always disassemble the gazebo completely. A partially disassembled gazebo is not stable enough
to resist wind and bad weather, and therefore can be damaged and/or cause damage.
Do not use bleach, acid or other abrasive cleaners on the roof or frame parts.
Steel components of garden accessories and furniture are treated with rust-inhibiting paint.
However, due to the nature of steel, surface oxidation (rusting) will occur if this protective coating is
scratched. This is a natural process. To minimize this condition, it is recommended care be
taken when assembling and handling the product, in order to prevent the paint from being
scratched.
Surface rust can be removed easily using a very light application of common cooking oil. If surface
oxidation (rusting) occurs and no measures are taken to correct it, the oxidation may start dripping
onto the assembly surface, which may cause damaging stains that can be difficult to remove.
If the product will not be used for a long period (e.g. wintertime), it should be stored in a clean, dry
environment; keep the original packaging to store the gazebo.
ONE-YEAR LIMITED WARRANTY
This limited warranty is extended to the original purchaser and applies to defects in material and
workmanship of your item provided the item is maintained with care and used only for personal,
residential purposes.
The manufacturer warranty for this item, is to be free of defects in material and workmanship for a
period of 1 year. If any defect is found, please call our customer service department at
1-866-439-9800 for help. The manufacturer will not cover transportation or delivery costs or
compensate the individual or any outside party for assembling or disassembling the product.
This warranty gives you certain rights, and you may have other rights that vary from state to state.

Lowes.com/allenandroth
18
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Friday.
REPLACEMENT PARTS LIST
A
B1
B2
C1
C2
D
E
F
G1
G2
H1
H2
I1
I2
J1
J2
K1
K2
L
M N
O P
Q1 Q2
R1 R2
S1
S2
S3
S4
T U

Lowes.com/allenandroth
19
G1
G2 Left Slot
Right Slot
H1
H2 F-Baffle 1
F-Baffle 2
I1
I2 Left Baffle
Right Baffle
J1
J2 Left Mosquito Netting Tube
Right Mosquito Netting Tube
K1
K2
Left Arc Support Bar
Right Arc Support Bar
L
MCorner Support
Small Roof Cover
NRoof Connector
Q2
Q1 Corner Cover
Middle Cover
S4
TPC Panel 4
Mosquito Netting
A
B1
B2
C1
C2
D
E
F
#0697454-A
Post
Base
Base Cover
Left Decorative Groove
Right Decorative Groove
Oblique Beam
Middle Beam
Decorative Groove Connector
PART DESCRIPTION PART #
O
PHook
U
Plastic Hook
Post Connector
R2
R1 Corner Closure Plate
Middle Closure Plate
S1
S2
S3
PC Panel 1
PC Panel 2
PC Panel 3
Lowes.com/allenandroth
REPLACEMENT PARTS LIST
#0697454-G1
#0697454-G2
#0697454-H1
#0697454-H2
#0697454-I1
#0697454-I2
#0697454-J1
#0697454-J2
#0697454-K1
#0697454-K2
#0697454-L
#0697454-M
#0697454-N
#0697454-O
#0697454-P
#0697454-Q2
#0697454-S1
#0697454-R2
#0697454-S2
#0697454-S3
#0697454-S4
#0697454-T
#0697454-Q1
#0697454-U
#0697454-R1
#0697454-B1
#0697454-B2
#0697454-C1
#0697454-C2
#0697454-E
#0697454-D
#0697454-F

20
REPLACEMENT PARTS LIST
AA IIBB CC DD EE FF HHGG
PART
AA
BB
CC
DD
EE
FF
GG
HH
#0697454-AA
#0697454-BB
#0697454-CC
#0697454-DD
#0697454-EE
#0697454-FF
#0697454-GG
#0697454-HH
DESCRIPTION PART #
Lowes.com/allenandroth
is a registered trademark
of LF, LLC. All Rights Reserved.
Printed in China
allen + roth®
M6 x 15 mm Bolt
M6 Flat Washer
M6 x 35 mm Bolt
M5 x 15 mm Bolt
ĭPP6WDNH
M8 Cap Nut
M8 Flat Washer
M6 x 25 mm Bolt
II #0697454-IIM6 x 20 mm Bolt
JJ #0697454-JJM6 Wrench
JJ
