Allen + Roth L-GZ815PST User manual

ITEM #0732505
WOVEN GAZEBO
MODEL # L-GZ815PST
Français p. 17
ATTACH YOUR RECEIPT HERE
Serial Number PurchaseDate
Questions, problems, missing parts? Before returning toyour retailer, call our customer
service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.
EB16300 allenandroth.com
1
TM

allenandroth.com
2
PACKAGE CONTENTS
S
S
QQ
D
M
II
L
K
E
J
D1
F
F1
P
C1
E1
N
C2
o
B2
B1
A
H
H
G
G
T
T
R
R

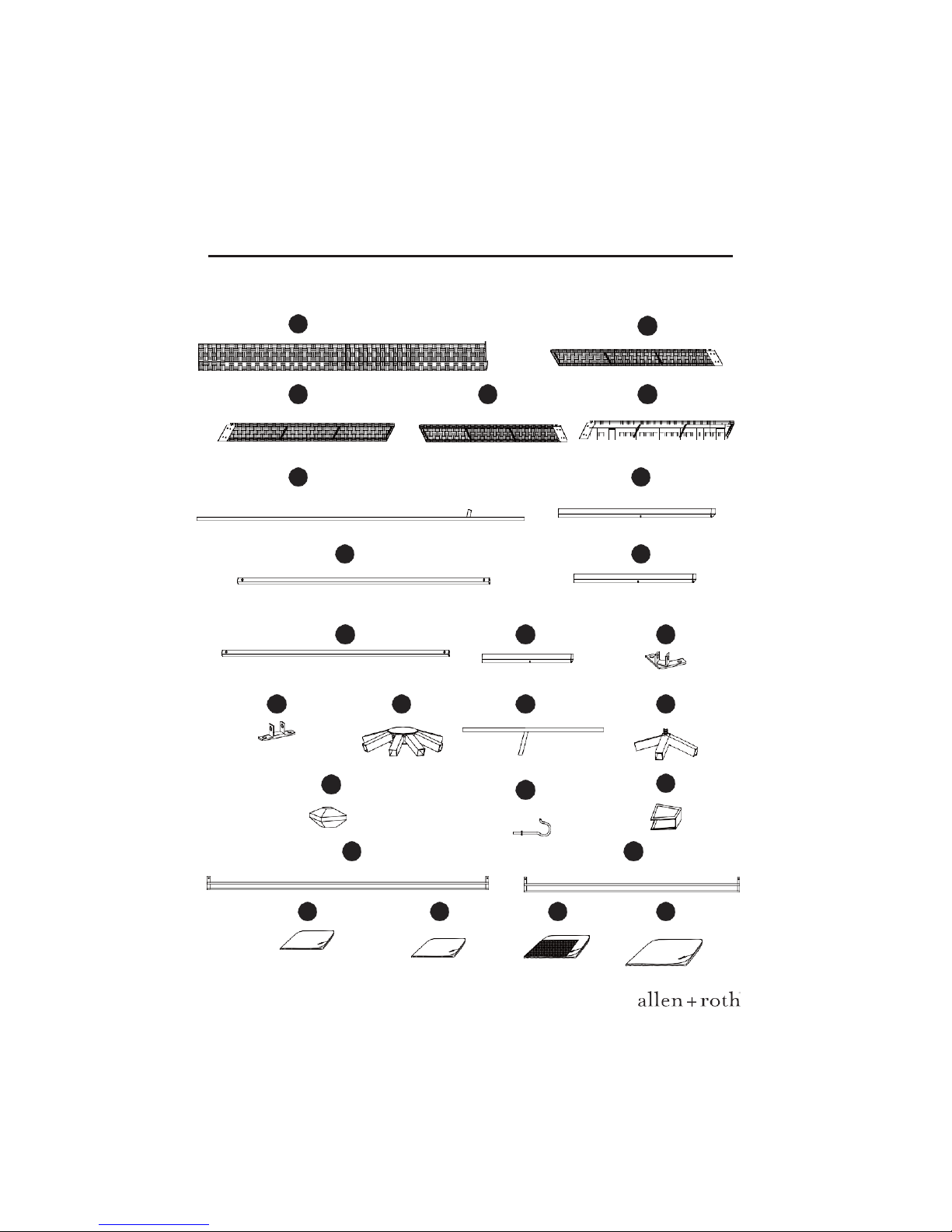

PART DESCRIPTION QUANTITY
A
Post
4
B1
Long Crossbeam 1
2
B2
Long Crossbeam 2
2
C1
Short Crossbeam 1
2
C2
Short Crossbeam 2
2
D
Sloped Beam
4
D1
Sloped Beam Lower Tube
4
E
Long Middle Beam
2
E1
Long Middle Beam Lower Tube
2
F
Short Middle Beam
2
F1
Short Middle Beam LowerTube
2
G
Connector 1
4
H
Connector 2
4
PART DESCRIPTION QUANTITY
I
Big Top Connector
1
J
Small Top Sloped Beam
4
K
Small Top Connector
1
L
Finial
1
M
Hook
1
N
Ferrule
4
O
Long Mosquito Netting Pipe
4
P
Short Mosquito Netting Pipe
4
Q
Small Canopy
1
R
Large Canopy
1
S
Mosquito Netting
1
T
Curtain
1

allenandroth.com
3
HARDWARE CONTENTS
M6 x 20 mm
Bolt M6 Flat Washer M6 x 35 mm
Long Screw M6 Nut
Qty. 72 Qty. 104 Qty. 8 Qty. 16
M6 x 20 mm
Short Screw
Qty. 8
M6
Wrench
Qty. 2
Ring ￠6 x 230 mm
Stake
Qty. 104 Qty. 12
AA
BB
CC
DD
EE
FF
GG
HH

allenandroth.com
4
SAFETYINFORMATION
Please read and understand this entire manual before attempting to assemble or
install the product.
WARNING
• Keep all children and pets away from assembly area. Children and pets should
be supervised while gazebo is being assembled.
• The assembled gazebo should be located at least 6 feet from any obstruction
such as fence, garage, house, overhanging branches, laundry lines or electrical
wires.
• Some parts may contain sharp edges. Wear protective gloves if necessary during
assembly.
• This unit is heavy. Do not assemble this item alone. Make sure there is sufficient
manpower for safe assembling or moving the gazebo.
• Check all nuts and bolts periodically for tightness and when required, tighten
them again.
• While this gazebo is manufactured to withstand winds through only the supplied
ground stakes, in areas subject to frequent severe weather, securing the gazebo
to a deck, concrete patio or footings should be considered.
• Do not use or enter the gazebo under harsh weather (e.g. thunderstorms,
high winds, hail, heavy snow etc). In these conditions, it might tip over and
could cause serious injury to bystanders. Any damage or injury caused by
which is not covered by the warranty.
• Do not use or enter the gazebo if there exists any of the following or of similar
conditions:
1. Visible movement of support members, roofing panels or sagging roofline.
2. Creaks or audible noise from the gazebo.
3. Cracks, fractures or malformation of support member or roof panels.
4. Damaged or missing fasteners.
• Do not use ladder leaning against the gazebo or climbing onto the roof.
CAUTION
• Do not install the gazebo adjacent to trees or a sloped roof. Snow and ice may
slide onto the gazebo and cause it to collapse.
• Do not hang any weights on the roof frame.
• Keep all flame and heat sources away from the tent fabric. This tent is made
with fabric that meets CPAI-84 specifications for flame resistance. It is not fire
proof. The fabric will burn if left fabric in continuous contact with any flame
source. The application of any foreign substance to the tent fabric may render
the flame source. The application of any foreign substance to the tent fabric
may render the flame-resistant properties ineffective.

allenandroth.com
5
CAUTION
• If the gazebo will not be used for a long period of time (e.g. during winter time),
disassemble and store it in a clean, dry environment.
• This product is for domestic outdoor use (i.e. decorative and sunshade
purpose only).
• Install the gazebo on level ground. Stakes are provided to secure the gazebo
to the ground. Do not assemble the gazebo on sandy, muddy or loose soil,
as stakes do not have enough anchorage in these types of soil. If you wish to
secure the gazebo to a wood deck or concrete surface, use anchors suited to
these surfaces (anchors not included).
• Always ensure the roof canvas is tensioned, so as to avoid water accumulation
on the roof.
• Remove accumulated water on the roof immediately, or disassemble the gazebo
in order to avoid damages.
• Do not remove snow from inside the gazebo by pushing on the fabric. Snow
must be cleared off regularly during snowy days. Remove the snow at the top
when it is thicker than 4 inches. In order to avoid damages, use a plastic snow
rake to remove excessive snow and ice buildup from roof and keep away from
falling debris.
• Always disassemble the gazebo before experiencing heavy wind conditions, as
it is semi-permanent construction and not designed to withstand harsh weather,
including high wind, rain and snow.
• Please check your state and local regulations prior to purchasing. Some
jurisdictions may require permits for installation and use. Some special
procedures may be valid in your area.
• Center hook’s maximum weight: 26 lbs.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is missing
or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 60-90 minutes
Tools Required for Assembly, Wrench (included) and Phillips Screwdriver (not
included).

ASSEMBLY INSTRUCTIONS
O
P Fig.1
P
C1
N C2
O
Fig.4
Fig.3
P
O
B1 Fig.5
Fig.2
P
O
B2
A
A
A
A

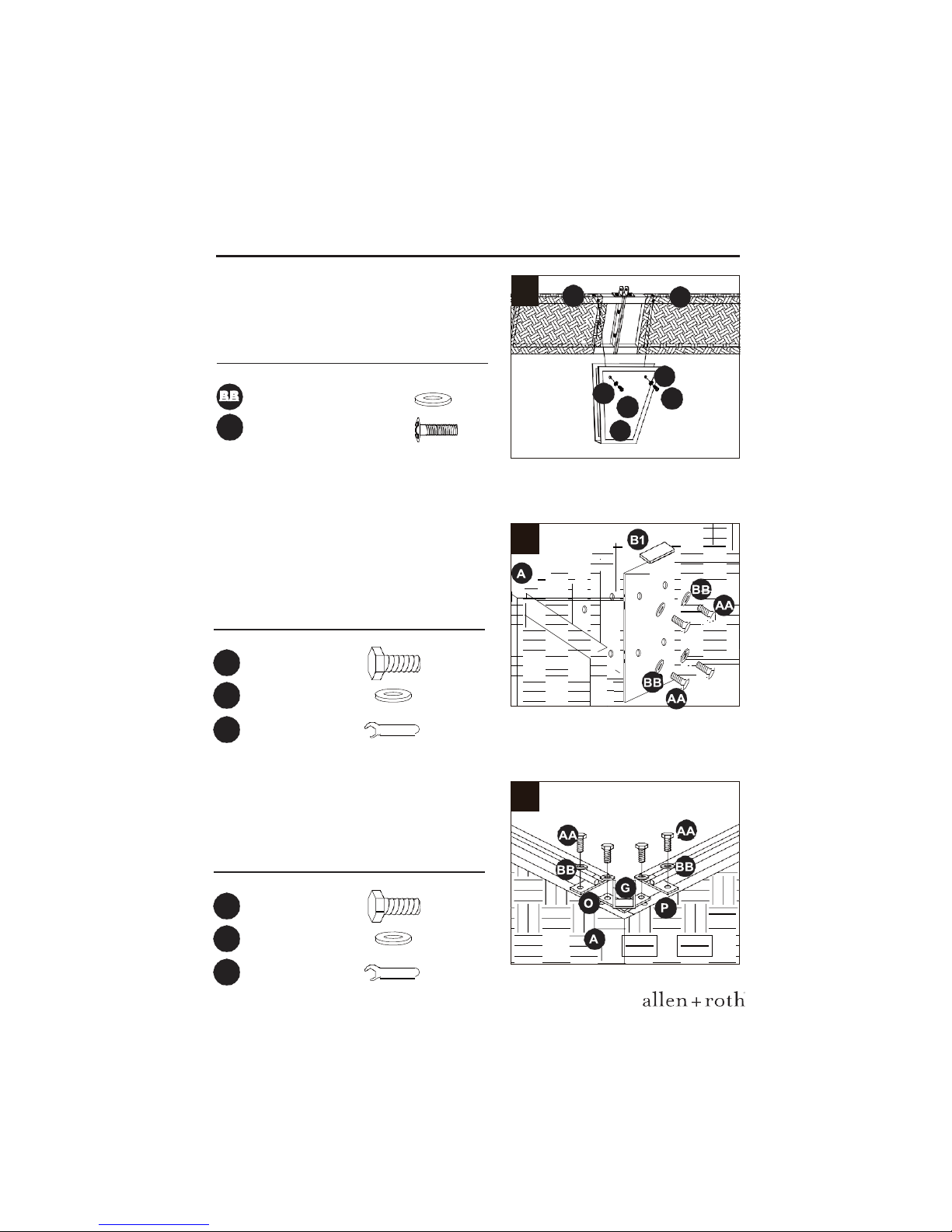

1. Connect long crossbeam 1 (B1) and long
crossbeam 2 (B2) using bolts (AA), flat
washers (BB) and nuts (DD), and then
attach connector 2 (H) to both crossbeam
assemblies using bolts (AA), flat washers
(BB).
Repeat this step for short crossbeam 1
(C1) and short crossbeam 2 (C2). Tighten
with wrench (FF).
Hardware Used
allenandroth.com
1
AA
BB
AA
BB
B1
H
B2
AA BB
BB DD
AA
M6 x 20 mm Bolt
x 16
BB
M6 Flat Washer
x 24
DD
M6 Nut
x 8
FF
M6 Wrench
x 2
6

allenandroth.com
7
FF
ASSEMBLY INSTRUCTIONS
2. Attachferrules(N) tothemiddleof crossbeam
assembliesusingshortscrews(EE) andflat
washers(BB).TightenwithPhillipsscrewdriver
(notincluded).
Hardware Used
M6 Flat Washer x 8
M6 x 20 mm Short Screw x 8
3. Attachthecrossbeam assembliesto posts(A)
usingbolts(AA) andflatwashers(BB).Tighten
withwrench(FF).
Note: The crossbeam assemblieshavetwo
differentdimensions.Makesurethey areinstalled
correctlybeforeproceeding.Alsomakesurethe
directionof the crossbeamsis correct for so that
thenettingtubescanbe installedcorrectlyin the
next step.
Hardware Used
AA M6 x 20 mm Bolt
BB M6 Flat Washer
M6 Wrench
x 32
x 32
x 1
4. Attachconnectors1 (G),longmosquito
nettingtubes(O)andshortmosquitonetting
tubes(P) to posts(A)usingbolts(AA) and
flatwashers(BB). Tightenwithwrench(FF).
Hardware Used
M6 x 20 mm Bolt
M6 Flat Washer
M6 Wrench
x 16
x 16
x 1
4
AA
BB
FF
EE
3
2
B2
B1
BB
EE
N
BB
EE

allenandroth.com
8
ASSEMBLY INSTRUCTIONS
5. Attach long mosquito netting pipes (O) to
the inside of long crossbeam assemblies
using bolts (AA) and flat washers (BB).
Tighten with wrench (FF).
Repeat this step for attaching short
mosquito netting pipes (P) to short
crossbeam assemblies.
Hardware Used
M6 x 20 mm Bolt x 8
M6 Flat Washer x 8
6. Connect long middle beams (E) and long
middle beam lower tubes (E1). Repeat to
connect short middle beams (F) and short
middle beam lower tubes (F1).
FF M6 Wrench
x 1
Fig.12 Fig.14
Fig.13
Fig.10
Fig.9
Fig.7
Fig.15
Fig.6
Fig.8
Fig.11
5
AA
BB
6

allenandroth.com
9
12-
CC
ASSEMBLY INSTRUCTIONS
7. Attach the hook (M) to the bottom center
of the big top connector (I), then insert
long middle beams (E) and short middle
beams (F) into the big top connector (I)
as shown.
8. Attach the long middle beam lower tubes
(E1) and short middle beam lower tubes
(F1) to connectors 2 (H) using long screws
(CC), flat washers (BB) and nuts (DD).
Tighten with wrench (FF) and Phillips
screwdriver.
Hardware Used
BB M6 Flat Washer x 8
M6 x 35 mm x 4
Long Screw
M6 Nut x 4
M6 Wrench x 2
9. Connect sloped beams (D) and sloped
beam lower tubes (D1).
1
9
8
DD
FF
7
F
F
F
F
E
F
M
E
F

allenandroth.com
10
11
CC
ASSEMBLY INSTRUCTIONS
10. Insert sloped beams (D) into the
remaining spots on big top connector (I).
11. Attach the sloped beam lower tubes (D1)
to connectors 1 (G) using long screws
(CC), flat washers (BB) and nuts (DD).
Tighten with wrench (FF) and Phillips
screwdriver.
Hardware Used
BB M6 Flat Washer x 8
M6 x 35mm x 4
Long Screw
M6 Nut x 4
M6 Wrench x 2
12. Insert small top sloped beams (J) into
small top connector (K).
10
11
DD
FF
12
