Alliance Laundry Systems 70223701R2 User manual

Installation
www.comlaundry.com
START
25
C
HIGH
TEMP
MED
TEMP
LOW
TEMP
NO
HEAT
123
SELECT
TEMP
INSERT
COIN
PUSH
START
123
SELECT
TEMP
INSERT
COIN
PUSH
START
START
25
C
HIGH
TEMP
MED
TEMP
LOW
TEMP
NO
HEAT
T477C T478C
T477C T478C
NOTA: El manual en
español aparece después
del manual en inglés.
Part No. 70223701R2
June 2002
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Drying Tumblers
25 Pound (220 Liter) Capacity
30 Pound (270 Liter) Capacity
35 Pound (350 Liter) Capacity
Stacked 30 Pound (300 Liter) Capacity
Refer to Page 5 for Model Identification

70223701 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation must conform with local codes or, in the absence of local codes, with:
In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/
NFPA 54 “National Fuel Gas Code”and Standard ANSI/NFPA 70 “National Electric Code.”
In Canada, installation must comply with Standards CSA-B149.1 or Natural Gas and Propane Installation
Code and CSA C22.1, latest edition, Canadian Electric Code, Part I.
In Australia, installation must comply with the Australian Gas Association Installation Code for Gas
Burning Appliances and Equipment.
IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the
user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the
above safety information must be posted in a prominent location near the tumbler for customer use.
FOR YOUR SAFETY, the information in
this manual must be followed to minimize
the risk of fire or explosion or to prevent
property damage, personal injury or
death.
W033
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Clear the room, building or area of all
occupants.
– Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
W052
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
W053
POUR VOTRE SÉCURITÉil est impératif
de suivre les instructions de ce manuel
pour minimiser les risques d’incendie ou
d’explosion et pour éviter les dommages
matériels, les blessures corporelles ou la
mort.
W033Q
•Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
•QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ :
–Ne pas tenter d’allumer d’apareil.
–Ne touchez àaucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment oùvous
vous trouvez.
–Évacuez la pièce, le bâtiment ou la
zone.
–Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du
fournisseur.
–Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
•L’installation et l’entretien doivent être
assurés par un installateur ou un
service d’entretien qualifiéou par le
fournisseur de gaz.
W052Q
AVERTISSEMENT
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
W053Q

270223701
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

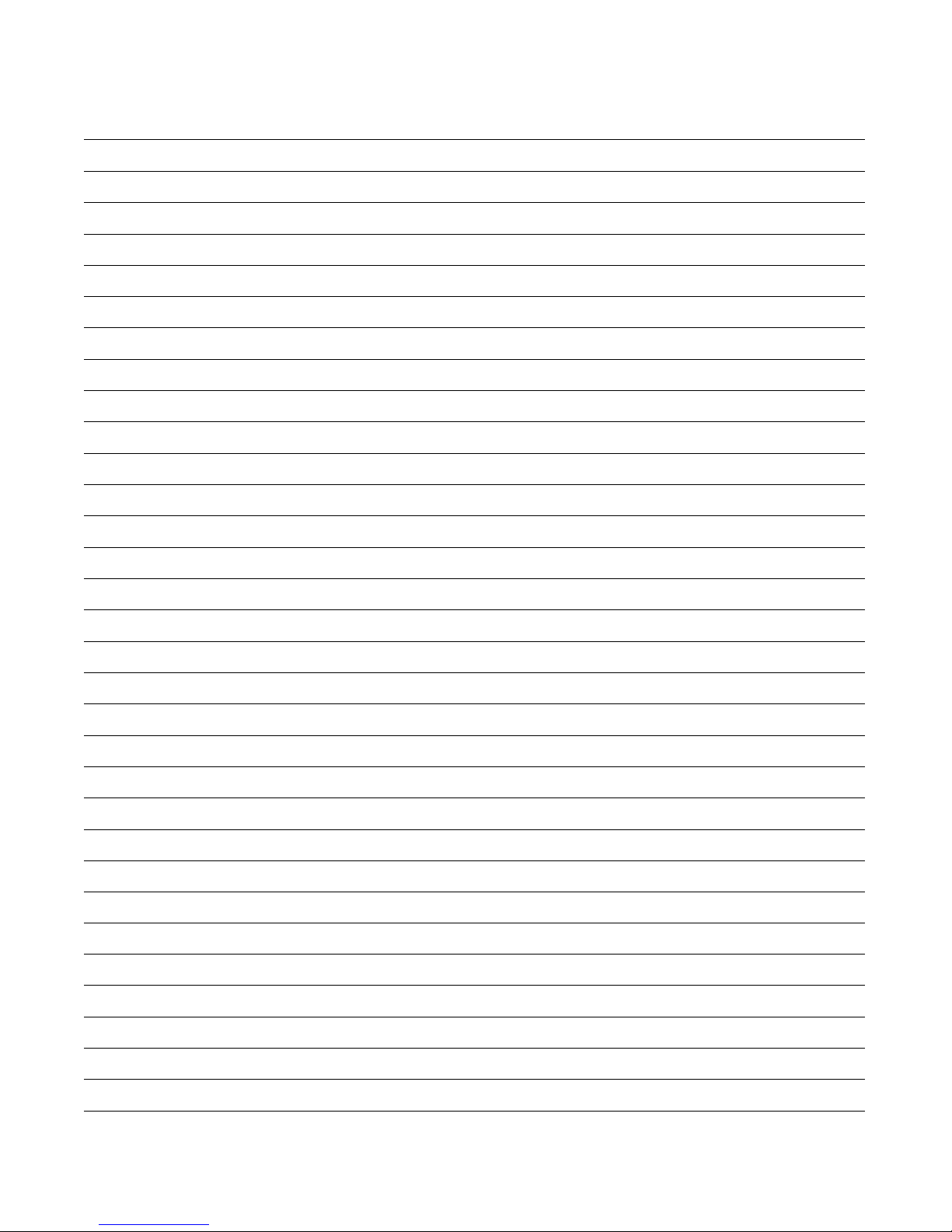

Notes

© Copyright 2002, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
70223701 3
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Table of
Contents
Introduction......................................................................................... 5
Model Identification ............................................................................. 5
Customer Service.................................................................................. 6
Wiring Diagram.................................................................................... 6
Serial Plate Location............................................................................. 7
Safety Information.............................................................................. 9
Important Safety Instructions ............................................................... 10
Specifications and Dimensions........................................................... 13
Cabinet Dimensions.............................................................................. 14
Cabinet Dimensions – Stacked Model.................................................. 15
Exhaust Outlet Locations...................................................................... 16
Gas Connection Locations.................................................................... 17
Electrical Connection Locations........................................................... 18
Steam Connection Locations ................................................................ 19
Installation........................................................................................... 21
Pre-Installation Inspection.................................................................... 21
Location Requirements......................................................................... 21
Tumbler Enclosure................................................................................ 22
Position and Level the Tumbler............................................................ 23
Installing Accessory Timing Cam ........................................................ 24
Removal of Existing Timing Cam ................................................... 24
Installation of New Timing Cam ..................................................... 24
Before Placing Tumbler into Service ................................................... 25
Required for CE Marked (European) Models Only......................... 26
Installing Gas Drying Tumblers in the European Union...................... 27
General Information......................................................................... 27
Basic Configuration ......................................................................... 28
Specific Conversion Procedures ...................................................... 29
Exhaust Requirements ....................................................................... 37
Layout................................................................................................... 37
Make-Up Air......................................................................................... 37
Venting ................................................................................................. 37
Individual Venting ........................................................................... 38
Manifold Venting............................................................................. 39
Gas Requirements............................................................................... 43
Gas Supply Pipe Sizing and Looping ................................................... 45
High Altitude Orifice Sizing................................................................. 47

470223701
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Electrical Requirements..................................................................... 49
Grounding Instructions ......................................................................... 49
Service/Ground Location...................................................................... 50
Connecting Electrical Service............................................................... 51
Configuring Your Tumbler for Other Service Voltages.................. 51
Stacked Tumbler Electrical Connections......................................... 52
For CE Marked Models Only .......................................................... 52
Conversion Instructions........................................................................ 53
Ferrite Ring Installation........................................................................ 56
Electrical Requirements for Gas and Steam Models............................ 57
Electrical Requirements for Electric Models........................................ 59
Steam Requirements........................................................................... 63
Piping Recommendations ..................................................................... 63
Adjustments......................................................................................... 65
Loading Door Switch............................................................................ 65
Airflow Switch...................................................................................... 66
Door Strike............................................................................................ 66
Removing Tumbler from Service ...................................................... 67

5
70223701 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Introduction
Model Identification
Information in this manual is applicable to these models. †
†Includes models with the following control suffixes:
Gas Steam Electric
25 Pound
(220 Liter)
DA0220SRG
DC0220SFG
DC0220SRG
DT0220SFG
DT0220SRG
GC0220SRG
GT0220SRG
JA0220SRG
JC0220SFG
JC0220SRG
JT0220SFG
JT0220SRG
SA0220SRG
SC0220SFG
SC0220SRG
ST0220SFG
ST0220SRG
DC0220SSH
DC0220SSL
DT0220SSH
DT0220SSL
GC0220SSL
GT0220SSL
JC0220SSH
JC0220SSL
JT0220SSH
JT0220SSL
SC0220SSH
SC0220SSL
ST0220SSH
ST0220SSL
DC0220SEL
DT0220SEL
GC0220SEL
JC0220SEL
JT0220SEL
SC0220SEL
ST0220SEL
30 Pound
(270 Liter)
DA0270SRG
DC0270SFG
DC0270SRG
DT0270SFG
DT0270SRG
GC0270SFG
GC0270SRG
GT0270SFG
GT0270SRG
JA0270SRG
JC0270SFG
JC0270SRG
JT0270SFG
JT0270SRG
SA0270SRG
SC0270SFG
SC0270SRG
ST0270SFG
ST0270SRG
DC0270SSH
DC0270SSL
DT0270SSH
DT0270SSL
GC0270SSH
GC0270SSL
GT0270SSH
GT0270SSL
JC0270SSH
JC0270SSL
JT0270SSH
JT0270SSL
SC0270SSH
SC0270SSL
ST0270SSH
ST0270SSL
DC0270SEL
DT0270SEL
GC0270SEL
GT0270SEL
JC0270SEL
JT0270SEL
SC0270SEL
ST0270SEL
30 Pound
Stacked
(300 Liter)
DC0300DFG
DC0300DRG
DT0300DFG
DT0300DRG
JA0300DRG
JC0300DFG
JC0300DRG
JT0300DFG
JT0300DRG
NT0300DRG
SA0300DRG
SC0300DFG
SC0300DRG
ST0300DFG
ST0300DRG
DC0300DSH
DC0300DSL
DT0300DSH
DT0300DSL
JC0300DSH
JC0300DSL
JT0300DSH
JT0300DSL
SC0300DSH
SC0300DSL
ST0300DSH
ST0300DSL
DC0300DEL
DT0300DEL
JC0300DEL
JT0300DEL
SC0300DEL
ST0300DEL
35 Pound
(350 Liter)
AT0350SRG
DA0350SRG
DC0350SFG
DC0350SRG
DT0350SFG
DT0350SRG
JA0350SRG
JC0350SFG
JC0350SRG
JT0350SFG
JT0350SRG
SA0350SRG
SC0350SFG
SC0350SRG
ST0350SFG
ST0350SRG
AT0350SSH
AT0350SSL
DC0350SSH
DC0350SSL
DT0350SSH
DT0350SSL
JC0350SSH
JC0350SSL
JT0350SSH
JT0350SSL
SC0350SSH
SC0350SSL
ST0350SSH
ST0350SSL
DC0350SEL
DT0350SEL
JC0350SEL
JT0350SEL
SC0350SEL
ST0350SEL
CD –rotary coin drop EY –EDC card ready NX –NetMaster coin ready ZC –NetMaster coin network
EC –EDC electronic coin MT –manual timer NY –NetMaster card ready ZR –NetMaster card network
EP –EDC control NC –NetMaster coin OM –OPL micro ZX –NetMaster coin ready network
EX –EDC coin ready NR –NetMaster card RM –reversing OPL micro ZY –NetMaster card ready network

Introduction
70223701
6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Customer Service
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call the following number:
[phone]
Ripon, Wisconsin U.S.A.
Wiring Diagram
The wiring diagram is inside the junction or contactor box.

Introduction
7
70223701 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

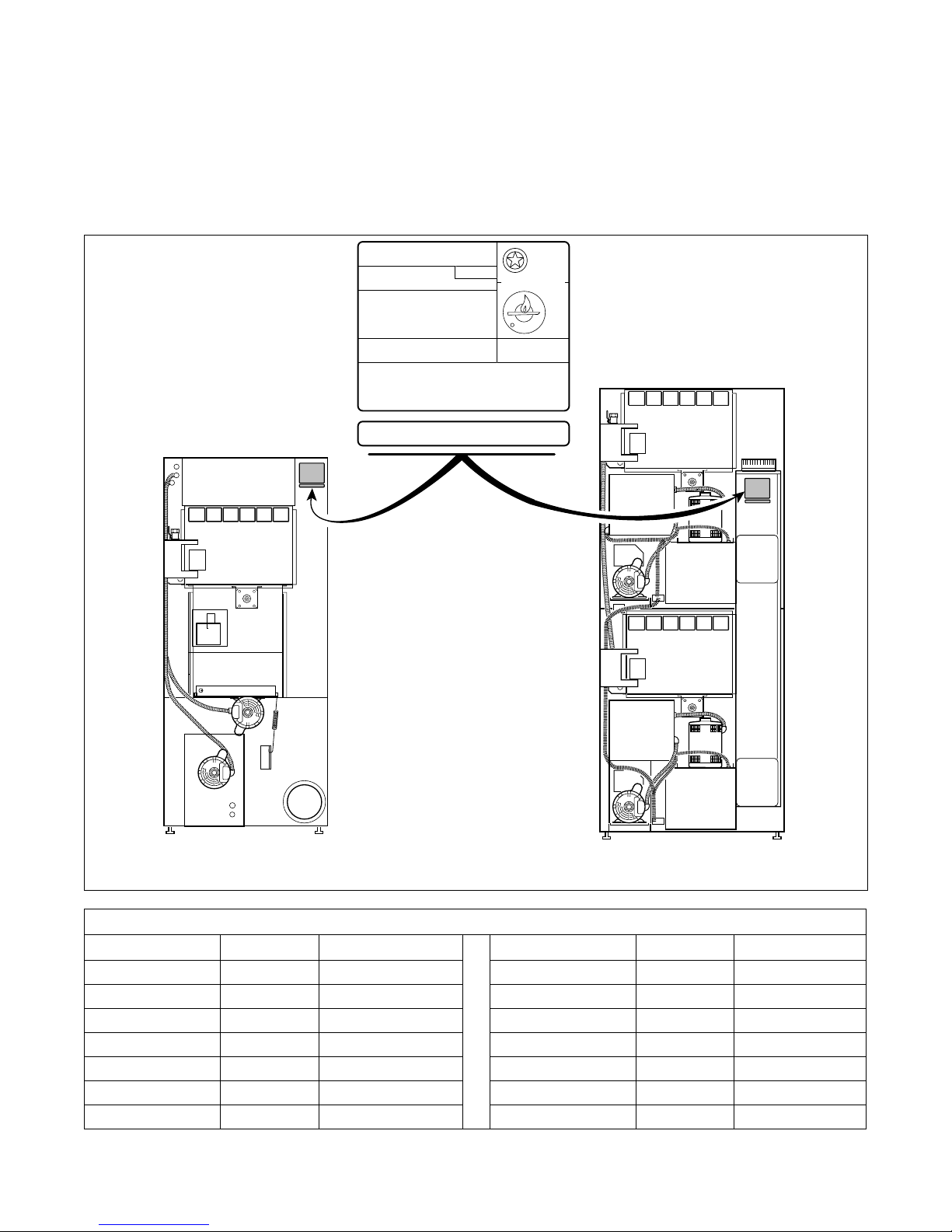

Serial Plate Location
When calling or writing for information about your
product, be sure to mention model and serial numbers.
Model and serial numbers are found on serial plate on
rear of machine, and inside door hinge.
T448I
MODEL NO:
SERIAL NO:
V-/ HERTZ/ PHASE
AMPS, WIRES + GROUND
TOTAL kW, MOTOR kW
REQ'D CIRCUIT BREAKER: AMPS
FAN OUTPUT:
@MAX "WC STATIC PRESSURE
EQUIPPED FOR: GAS@ "WC MANIFOLD PRESS.
MIN SUPPLY
PRESSURE:
ANS 72152
CLOTHES DRYER.
VOL II
CGA 72
AMPLFIEDRER
TESTED FOR NATURAL &
LIQUID PETROLEUM GASSES
MAX SUPPLY
PRESSURE:
"WC. "WC.
INPUT: BTU/hr @ BTU/cu.ft.
MADE IN U.S.A./FABRIQUE AU ETATS UNIS/FABRICADO EN LOS ESTADOS UNIDOS 70051001
T448I
MODEL NO:
SERIAL NO:
25, 30 AND 35 POUND 30 POUND STACKED
Conversion Table
Multiply By To Obtain Multiply By To Obtain
Btu .252 kCal Pounds/sq. inch .06895 Bars
Btu 1055 Joules Pounds/sq. inch .070 kg/sq. cm
Inch 25.4 Millimeters Pounds (lbs.) .454 Kilograms
Inches W.C. .036 Pounds/sq. inch Boiler Horsepower 33,479 Btu/hr.
Inches W.C. .249 kPa Boiler Horsepower 34.5 lbs. Steam/hr.
lbf/inch2(psi) .0369 kPa CFM .471 liters/second
ft328.32 Liters kW 3414 Btu/hr.

70223701
8© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Notes

9
70223701 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Safety Information
Precautionary statements (“DANGER,”
“WARNING,”and “CAUTION ”), followed by
specific instructions, are found in this manual and on
machine decals. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT”is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE”is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
IMPORTANT: Warranty is void unless tumbler is
installed according to instructions in this manual.
Installation should comply with minimum
specifications and requirements detailed in this
manual and applicable local gas fitting regulations,
municipal building codes, water supply regulations,
electrical wiring regulations, and any other
relevant statutory regulations. Due to varied
requirements, applicable local codes should be
thoroughly understood and all pre-installation
work arranged for accordingly.
NOTE: The WARNING and IMPORTANT
instructions appearing in this manual are not meant
to cover all possible conditions and situations that
may occur. It must be understood that common
sense, caution and carefulness are factors which
CANNOT be built into this tumbler. These factors
MUST BE supplied by the person(s) installing,
maintaining or operating the tumbler.
Always contact your dealer, distributor, service agent
or the manufacturer on any problems or conditions you
do not understand.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
Failure to install, maintain, and/or operate
this machine according to manufacturer’s
instructions may result in conditions which
can produce serious injury, death and/or
property damage.
W051
WARNING

Safety Information
70223701
10 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Save These Instructions
Important Safety Instructions
1. Read all instructions before using the tumbler.
2. Refer to the Grounding Instructions for the
proper grounding of the tumbler.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
4. Do not allow children to play on or in the
tumbler. Close supervision of children is
necessary when the tumbler is used near children.
This is a safety rule for all appliances.
5. Before the tumbler is removed from service or
discarded, remove the door to the drying
compartment and the door to the lint
compartment.
6. Do not reach into the tumbler if the cylinder is
revolving.
7. Do not install or store the tumbler where it will
be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumbler,
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Always clean the lint filter daily.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust, and dirt.
14. The interior of the tumbler and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Tumbler will not operate with the loading door
open. DO NOT bypass the door safety switch to
permit the tumbler to operate with the door open.
The tumbler will stop tumbling when the door is
opened. Do not use the tumbler if it does not stop
rotating when the door is opened or starts rotating
without pressing or turning the START
mechanism. Remove the tumbler from use and
call the service person.
17. Tumbler will not operate with lint panel open.
DO NOT bypass lint panel safety switch to
permit the tumbler to operate with the lint panel
open.
18. Do not put articles soiled with vegetable or
cooking oil in the tumbler, as these oils may not
be removed during washing. Due to the
remaining oil, the fabric may catch on fire by
itself.
19. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the tumbler.
20. Use the tumbler only for its intended purpose,
drying water-washed fabrics.
21. ALWAYS disconnect the electrical power to the
tumbler before servicing. Disconnect power by
shutting off appropriate breaker or fuse.
22. Install this tumbler according to these
Installation Instructions. All connections for
electrical power, grounding, and gas supply must
comply with local codes and be made by licensed
personnel when required.
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your tumbler, read and follow these
basic precautions:
W359
WARNING

Safety Information
11
70223701 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
23. Remove laundry immediately after tumbler stops.
24. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
25. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
26. Always follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the tumbler with any guards and/or
panels removed.
28. DO NOT operate the tumbler with missing or
broken parts.
29. DO NOT bypass any safety devices.
30. Solvent vapors from dry-cleaning machines
create acids when drawn through the heater of the
drying unit. These acids are corrosive to the
tumbler as well as to the laundry load being
dried. Be sure make-up air is free of solvent
vapors.
31. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
To reduce the risk of serious injury, install
lockable door(s) to prevent public access to
rear of tumblers.
W055
WARNING

70223701
12 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Notes

13
70223701 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Specifications and Dimensions
Specifications 25 Pound 30 Pound 30 Pound
Stacked 35 Pound
Noise Level Measured during Operation at
Operator Position of 1 meter in Front of
Machine and 1.6 meters from Floor
60 dBA 61 dBA 63 dBA 66 dBA
Net Weight (approximate):
pounds (kg)
330
(150)
350
(159)
575
(261)
360
(163)
Cylinder Size:
inches (mm)
26.5 x 24
(673 x 610)
26.5 x 30
(673 x 762)
30 x 26
(762 x 660)
30 x 30
(762 x 762)
Cylinder Capacity (dry weight):
pounds (kg)
25
(11.3)
30
(13.6)
2 x 30
(2 x 13.6)
35
(15.9)
Drive Motor Horsepower 1/4 1/4 1/4** 1/4
Fan Motor Horsepower 1/4 1/4 1/4** 1/4
Maximum Airflow per
Pocket: C.F.M. (L/sec)
50 Hertz 410 (194) 410 (194) 320 (151) 470 (222)
60 Hertz 450 (212) 450 (212) 350 (165) 470 (222)
Maximum Static Back
Pressure: Inches W.C. (mbar)
50 Hertz 0.6 (1.5) 0.6 (1.5) 0.8 (2.0)* 0.5 (1.3)
60 Hertz 0.8 (2.0) 0.8 (2.0) 0.9 (2.3)* 0.6 (1.5)
Gas Models
Gas Connection 1/2 in. NPT 1/2 in. NPT 1/2 in. NPT 1/2 in. NPT
Gas Consumption
kW 18.7 21.4 21.4** 26.4
Mj/hr67.57777**95
Btu/hr 64,000 73,000 73,000** 90,000
Electric Models
Heating Element
380/50/3 9 kW
21 kW 21 kW**
21 kW
400/50/3 10 kW 24 kW
Standard 12 kW
Steam Models
Steam Plumbing 3/4 in. NPT 3/4 in. NPT 3/4 in. NPT 3/4 in. NPT
Steam Consumption Boiler Horsepower (Btu/hr)
At 80 psig (5.5 bar) SH Models 3.0 (100,000) 3.0 (100,000) 2.3 (77,000)** 3.4 (113,800)
SL Models 2.4 (80,300) 2.4 (80,300) 1.9 (63,600)** 2.8 (93,700)
At 15 psig (1.03 bar) SH Models 2.1 (70,300) 2.1 (70,300) 1.6 (53,500)** 2.4 (80,300)
SL Models 1.7 (56,900) 1.7 (56,900) 1.3 (43,500)** 2.0 (67,000)
*with both pockets running
**for each pocket

Specifications and Dimensions
70223701
14 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

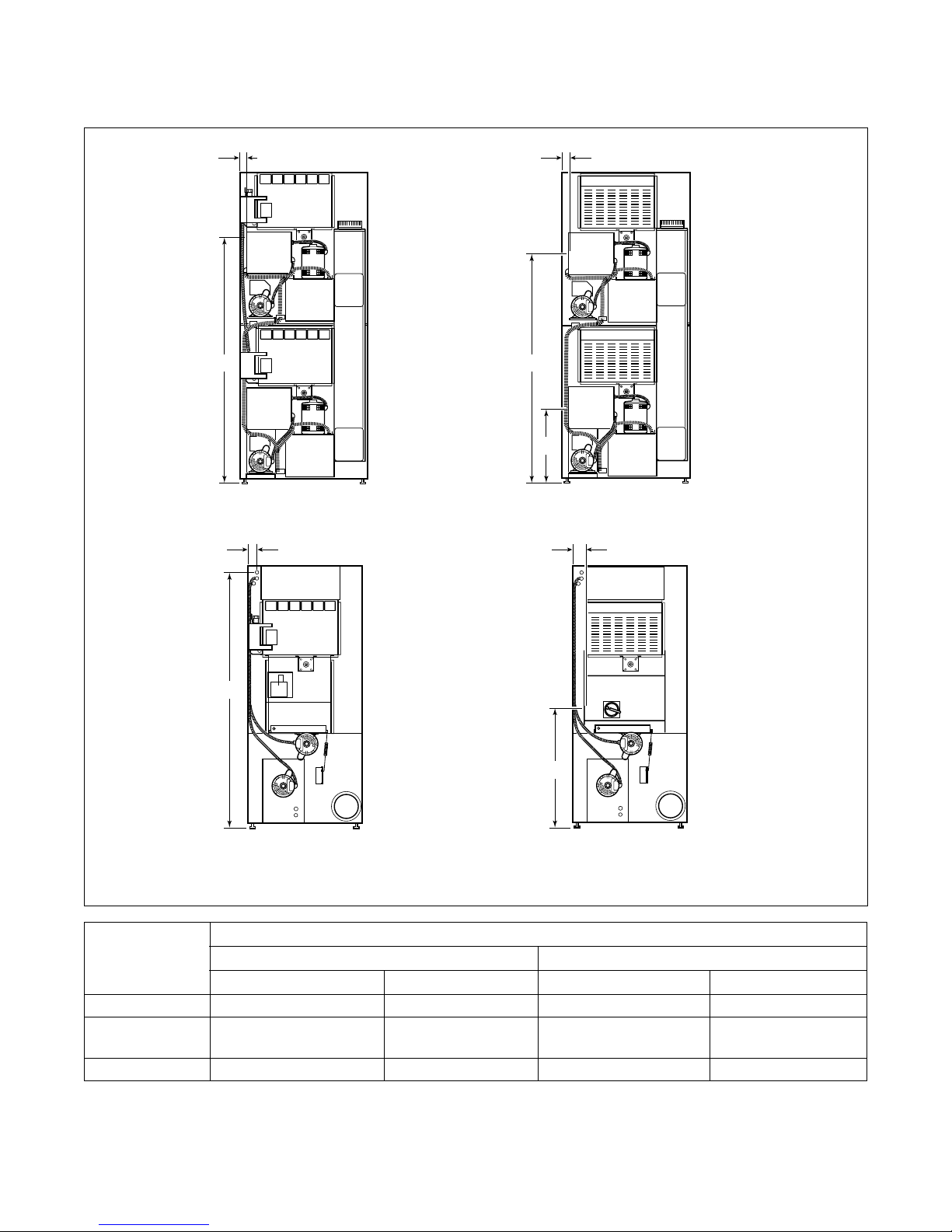

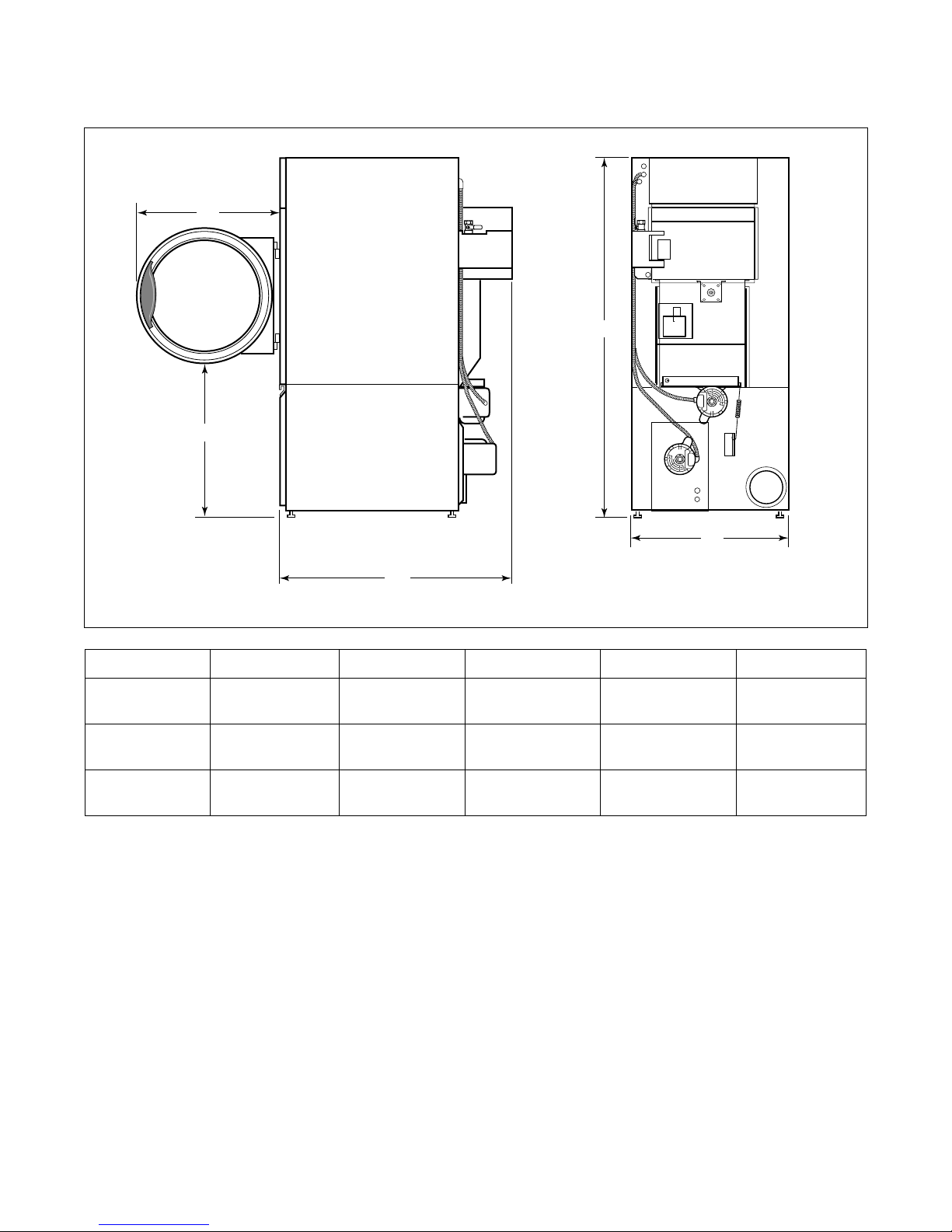

Cabinet Dimensions
NOTE: Facia panels available to increase height of
single pocket models to 72.25 inches (1835 mm) and
76.25 inches (1938 mm).
T370I
T370I
B
A
C
D
E
Models A B C D E
25 Pound 26.25 in.
(667 mm)
27.5 in.
(699 mm)
38.875 in.
(987 mm)
63.875 in.
(1622 mm)
28 in.
(711 mm)
30 Pound 26.25 in.
(667 mm)
27.5 in.
(699 mm)
44.875 in.
(1140 mm)
63.875 in.
(1622 mm)
28 in.
(711 mm)
35 Pound 28 in.
(711 mm)
27.5 in.
(699 mm)
44.875 in.
(1140 mm)
63.875 in.
(1622 mm)
31.5 in.
(800 mm)

Specifications and Dimensions
15
70223701 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Cabinet Dimensions –Stacked Model
T439I
T439I
B
C
A
DE
F
30 POUND STACKED
ModelsABCDEF
30 Pound
Stacked
48 in.
(1219 mm)
28 in.
(711 mm)
10 in.
(254 mm)
42.875 in.
(1090 mm)
31.5 in.
(800 mm)
76.25 in.
(1937 mm)

Specifications and Dimensions
70223701
16 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Exhaust Outlet Locations
T479I
C
A
B
B
A
25, 30 AND 35 POUND 30 POUND STACKED
Models Rear Exhaust
Diameter A B C
25/30 Pound 6 in. (152 mm) 3.875 in. (99 mm) 4.625 in. (117 mm) N/A
35 Pound 8 in. (203 mm) 4.875 in. (124 mm) 5.625 in. (143 mm) N/A
30 Pound
Stacked
(Manufactured
Before 3/22/99)
8 in. (203 mm) 4.875 in. (124 mm) 66.25 in. (1683 mm) 32.63 in. (829 mm)
30 Pound
Stacked
(Manufactured
After 3/22/99)
Elliptical
Fits 8 in. (203 mm)
4.325 in. (110 mm) 64.25 in. (1632 mm) 35.75 in. (908 mm)

Specifications and Dimensions
17
70223701 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Gas Connection Locations
NOTE: All connections use 1/2 inch NPT pipe.
T482I
11/2 in. NPT
T482 I
B
C
C
B
A
A
25, 30 AND 35 POUND 30 POUND STACKED
1
1
Models Gas Connection
ABC
25 Pound 59 in. (1500 mm) 1.5 in. (38.1 mm) 29 in. (737 mm)
30 Pound 59 in. (1500 mm) 1.5 in. (38.1 mm) 35 in. (889 mm)
30 Pound
Stacked
80 in. (2032 mm) 2.5 in. (64 mm) 30.5 in. (775 mm)
35 Pound 59 in. (1500 mm) 2.5 in. (64 mm) 35 in. (889 mm)

Specifications and Dimensions
70223701
18 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Electrical Connection Locations
T480I
T480I
A
BD
DB
A
C
25, 30 AND 35 POUND
GAS AND STEAM
25, 30 AND 35 POUND
ELECTRIC
30 POUND STACKED
GAS AND STEAM
30 POUND STACKED
ELECTRIC
C
C
Models
Electrical Service
Gas and Steam Models Electric Models
ABCD
25/30 Pound 62.25 in. (1581 mm) 2 in. (51 mm) 28 in. (711 mm) 3.25 in. (83 mm)
30 Pound
Stacked
57 in. (1448 mm) 2 in. (51 mm) 48.5 in. (1232 mm)
11.5 in. (292 mm)
7 in. (178 mm)
35 Pound 62.25 in. (1581 mm) 3 in. (76 mm) 28 in. (711 mm) 4.25 in. (108 mm)
