Allied Telesis AT-MC1005/2 User manual

AT-MC1004
AT-MC1005/1
AT-MC1005/2
AT-MC1005/3
AT-MC1005/4
Gigabit Ethernet Media Converters
Installation Guide
PN 613-50438-00 Rev A

Copyright 2003 Allied Telesyn, Inc.
960 Stewart Drive, Suite B, Sunnyvale CA USA 94085
All rights reserved. No part of this publication may be reproduced without prior written
permission from Allied Telesyn, Inc.
Ethernet is a registered trademark of Xerox Corporation. All other product names,
company names, logos or other designations mentioned herein are trademarks or
registered trademarks of their respective owners.
Allied Telesyn, Inc. reserves the right to make changes in specifications and other
information contained in this document without prior written notice. The information
provided herein is subject to change without notice. In no event shall Allied Telesyn,
Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever,
including but not limited to lost profits, arising out of or related to this manual or the
information contained herein, even if Allied Telesyn, Inc. has been advised of, known, or
should have known, the possibility of such damages.

iii
Electrical Safety and Emission Compliance
Statement
Standards: This product meets the following standards
U.S. Federal Communications Commission
Declaration Of Conformity
Manufacturer Name: Allied Telesyn, Inc.
Manufacturer Address: 960 Stewart Drive, Suite B
Sunnyvale, CA 94085 USA
Manufacturer Telephone: [phone]
Declares that the product: Gigabit Ethernet Media
Converters
Model Numbers: AT-MC1004, AT-MC1005/1,
AT-MC1005/2, AT-MC1005/3,
AT-MC1005/4
This product complies with FCC Part 15B, Class B Limits:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device must not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Radiated Energy
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with instructions, may cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on. The user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes and modifications not expressly approved by the manufacturer
or registrant of this equipment can void your authority to operate this
equipment under Federal Communications Commission rules.
Warning: This product requires Category 5 shielded twisted-pair or
better for RJ-45 connections to comply with Class B emission limits. If
not used with shielded cables, this product may cause radio interference
in which case the user may be required to take adequate measures to
reduce interference levels.

iv
Electrical Safety and Emission Compliance Statement
RFI Emission EN55022 Class B
 1
Warning: In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate
measures.
 2
Immunity EN55024
 3
Electrical Safety TUV-EN60950, UL1950, CSA 950
 4
Laser EN60825
 5
Important: Appendix B contains translated safety statements for installing
this equipment. When you see the
 , go to Appendix B for the translated
safety statement in your language.
Wichtig: Anhang B enthält übersetzte Sicherheitshinweise für die
Installation dieses Geräts. Wenn Sie
 sehen, schlagen Sie in Anhang B
den übersetzten Sicherheitshinweis in Ihrer Sprache nach.
Vigtigt: Tillæg B indeholder oversatte sikkerhedsadvarsler, der vedrører
installation af dette udstyr. Når De ser symbolet
 , skal De slå op i tillæg
B og finde de oversatte sikkerhedsadvarsler i Deres eget sprog.
Belangrijk: Appendix B bevat vertaalde veiligheidsopmerkingen voor het
installeren van deze apparatuur. Wanneer u de
 ziet, raadpleeg Appendix
B voor vertaalde veiligheidsinstructies in uw taal.
Important: L'annexe B contient les instructions de sécurité relatives à
l'installation de cet équipement. Lorsque vous voyez le symbole
 ,
reportez-vous à l'annexe B pour consulter la traduction de ces instructions
dans votre langue.
Tärkeää: Liite B sisältää tämän laitteen asentamiseen liittyvät käännetyt
turvaohjeet. Kun näet
 -symbolin, katso käännettyä turvaohjetta
liitteestä B.
Importante: l’Appendice B contiene avvisi di sicurezza tradotti per
l’installazione di questa apparecchiatura. Il simbolo
 , indica di consultare
l’Appendice B per l’avviso di sicurezza nella propria lingua.
Viktig: Tillegg B inneholder oversatt sikkerhetsinformasjon for installering
av dette utstyret. Når du ser
 , åpner du til Tillegg B for å finne den
oversatte sikkerhetsinformasjonen på ønsket språk.
Importante: O Anexo B contém advertências de segurança traduzidas para
instalar este equipamento. Quando vir o símbolo
 , leia a advertência de
segurança traduzida no seu idioma no Anexo B.
Importante: El Apéndice B contiene mensajes de seguridad traducidos para
la instalación de este equipo. Cuando vea el símbolo
 , vaya al Apéndice B
para ver el mensaje de seguridad traducido a su idioma.
Obs! Bilaga B innehåller översatta säkerhetsmeddelanden avseende
installationen av denna utrustning. När du ser
 , skall du gå till Bilaga B
för att läsa det översatta säkerhetsmeddelandet på ditt språk.
Industry Canada
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.

v
Table of Contents
Electrical Safety and Emission Compliance Statement .......................iii
Table of Contents ............................................................................................ v
Preface............................................................................................................. vii
Where to Find Web-based Guides ................................................................... vii
Document Conventions ....................................................................................vii
Contacting Allied Telesyn Technical Support................................................viii
Online Support .........................................................................................viii
Telephone Support ...................................................................................viii
E-mail Support .........................................................................................viii
Returning Products ........................................................................................... ix
For Sales or Corporate Information ................................................................. ix
Tell Us What You Think ................................................................................... ix
Chapter 1
Overview ........................................................................................................... 1
Key Features....................................................................................................... 3
Status LEDs ................................................................................................ 3
Fiber Optic Port........................................................................................... 4
Mode Selection Button ....................................................................................... 4
Link Test...................................................................................................... 4
MissingLink ................................................................................................. 4
Smart MissingLink ..................................................................................... 5
Half- and Full-Duplex Mode ....................................................................... 6

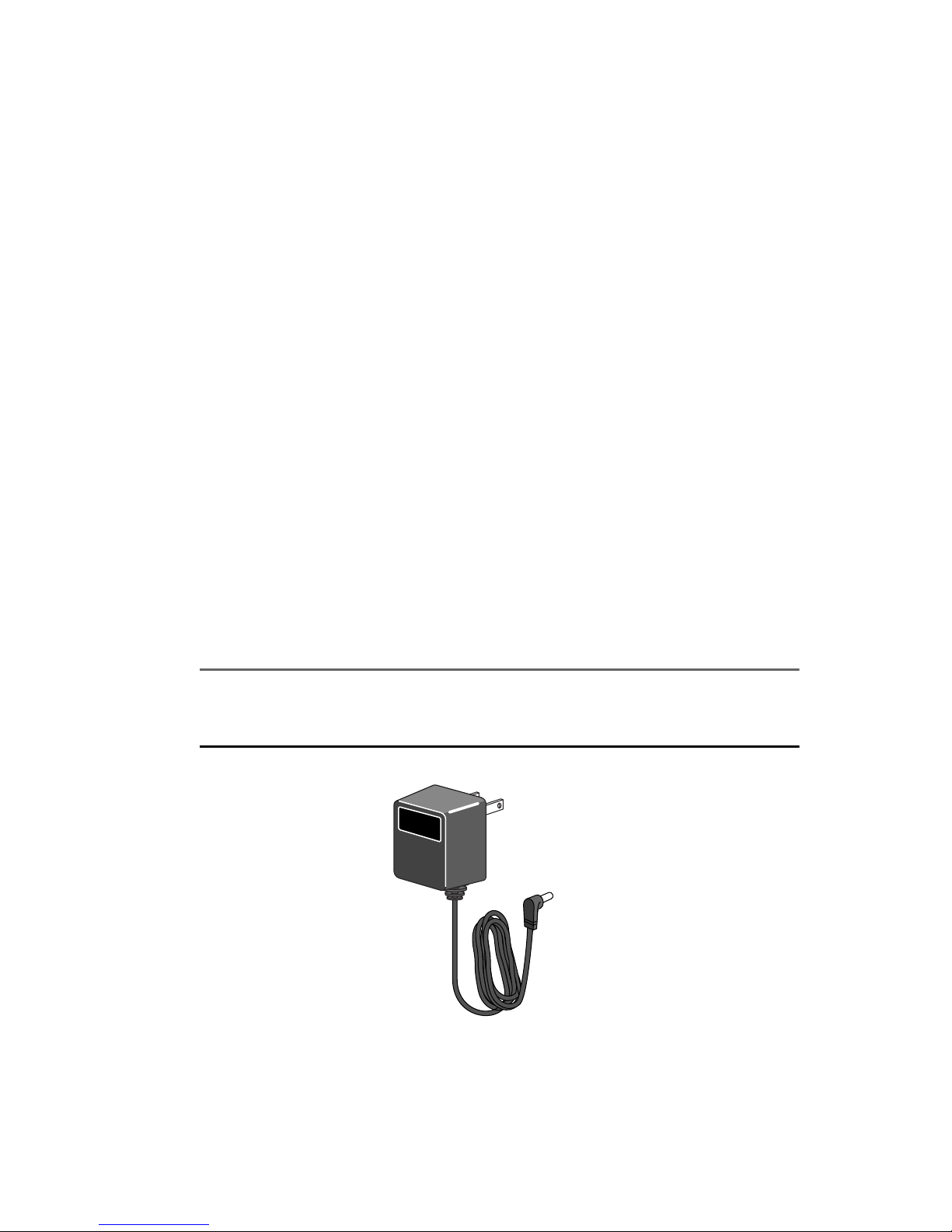

External AC/DC Power Adapter................................................................. 6

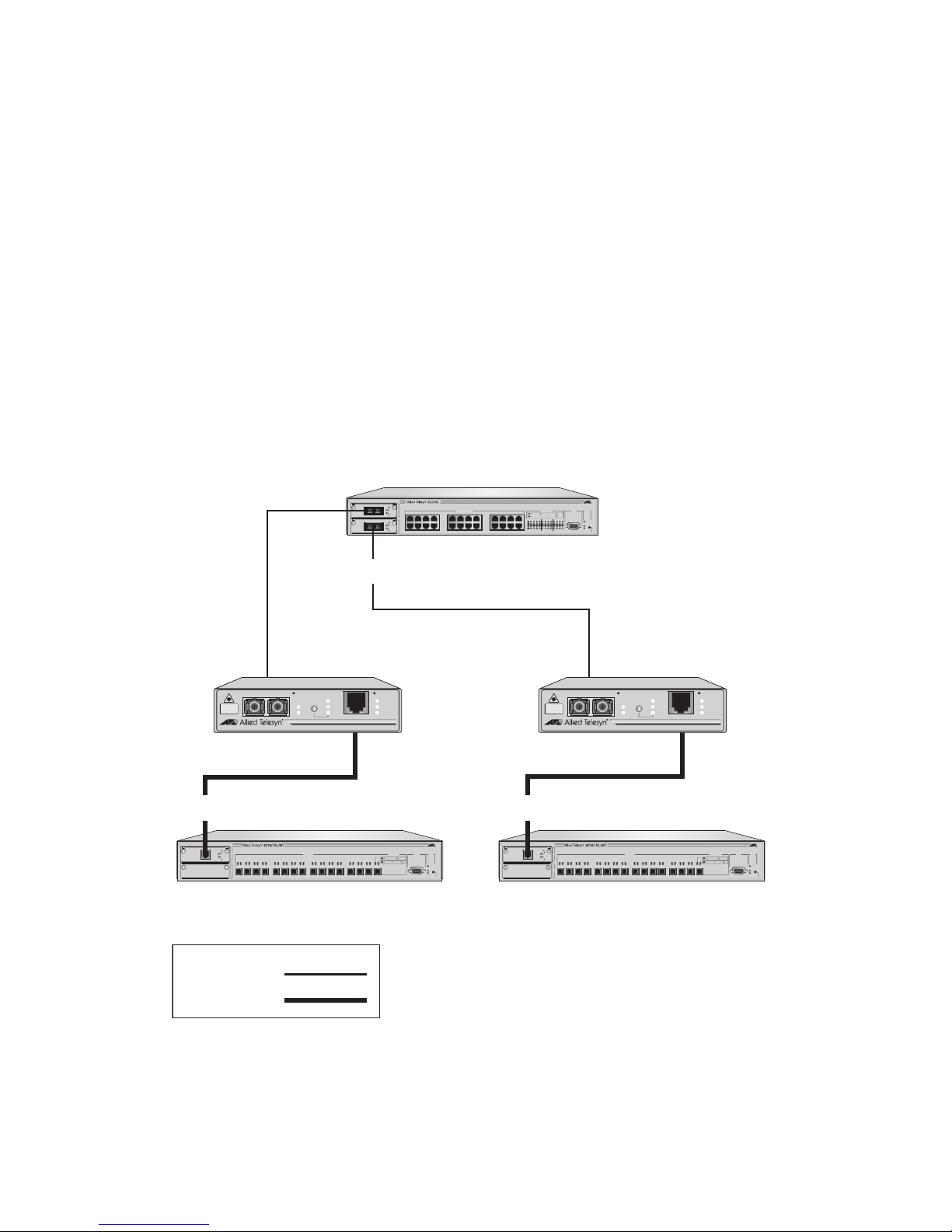

Network Topologies ............................................................................................ 7
Standalone Topology ................................................................................... 7
Back-to-Back Topology................................................................................ 8

Table of Contents
vi
Chapter 2
Installing the Media Converter ................................................................... 9
Verifying the Package Contents ........................................................................ 9
Planning the Installation............................................................................ 9
Selecting a Site .......................................................................................... 10
Reviewing Safety Guidelines .................................................................... 11
Installing the Media Converter ....................................................................... 12
Warranty Registration ..................................................................................... 14
Chapter 3
Troubleshooting ............................................................................................ 15
Appendix A
Technical Specifications ............................................................................. 17
Physical ............................................................................................................. 17
Temperature ..................................................................................................... 17
Electrical Rating............................................................................................... 17
Agency Certifications ....................................................................................... 17
Fiber Optic Port Specifications ........................................................................ 18
RJ-45 Pin Assignments .................................................................................... 19
Appendix B
Translated Safety Statements.................................................................... 21

vii
This guide contains instructions on how to install the AT-MC1004 and the
AT-MC1005/x Series Gigabit Ethernet Media Converters.
Where to Find Web-based Guides
The Allied Telesyn web site at www.alliedtelesyn.com provides you with an
easy way to access the most recent documentation and technical information
for all of our products. All web-based documents relating to this product and
other Allied Telesyn products, can be downloaded from the web site in PDF
format.
Document Conventions
This guide uses the following conventions:
Note
Notes provide additional information.
Caution
Cautions indicate that performing or omitting a specific action may
result in equipment damage or loss of data.
Warning
Warnings indicate that performing or omitting a specific action may
result in bodily injury.
Preface

Preface
viii
Contacting Allied Telesyn Technical Support
You can contact Allied Teleysn technical support online or by telephone or
e-mail.
Online Support
You can request technical support online accessing the Knowledge Base at
http://kb.alliedtelesyn.com. You can use the Knowledge Base to submit
questions to our technical support staff and review answers to previously
asked questions.
Telephone Support
For technical support by telephone, contact Allied Telesyn at one of the
following locations:
E-mail Support
Latin America, Mexico, Puerto Rico, Caribbean, and Virgin Islands
[e-mail]
Europe
[e-mail]
Americas
United States, Canada, Mexico,
Central America, South America
Tel: [phone]
Germany
Switzerland, Austria, Eastern Europe
Tel: [phone]
Asia
Singapore, Taiwan, Thailand,
Malaysia, Indonesia, Korea,
Philippines, China,
India, Hong Kong
Tel: [phone]
Italy
Spain, Portugal, Greece, Turkey, Israel
Tel: [phone]
Australia
Tel: [phone]
Japan
Tel: [phone]
France
Belgium, Luxembourg,
The Netherlands, Middle East, Africa
Tel: [phone]
United Kingdom
Denmark, Norway, Sweden, Finland
Tel: [phone]

AT-MC1004 and AT-MC1005/x Series Installation Guide
ix
Returning Products
Products for return or repair must first be assigned a Return Materials
Authorization (RMA) number. A product sent to Allied Telesyn without a
RMA number will be returned to the sender at the sender’s expense.
To obtain an RMA number, contact Allied Telesyn’s Technical Support at one
of the following locations:
For Sales or Corporate Information
You can contact Allied Telesyn for sales or corporate information at the
location below:
Allied Telesyn, Inc.
19800 North Creek Parkway, Suite 200
Bothell, WA 98011
Tel: [phone]
Fax: [phone]
Tell Us What You Think
If you have any comments or suggestions on how we might improve this or
other Allied Telesyn documents, please fill out the General Enquiry Form at
online. This form can be accessed by selecting “Contact Us” from
www.alliedtelesyn.com.
North America
Toll-free: 1-800-762-1664
Fax: [phone]
Europe, Africa, and the Middle
East
Tel: [phone]
Fax: [phone]
Latin America, the Caribbean, and
Virgin Islands
Tel: international code + 425-481-3852
Fax: international code + 425-481-3895
Puerto Rico
Tel: [phone], ext 3852
or
1-800-424-4284, ext 3852
Mexico
Toll-free: 800-424-5012, ext 3852
Fax: international code + 425-481-3895
Asia and Southeast Asia
Tel: [phone]
Fax: [phone]
Australia
Toll-free: 1-800-000-880
Fax: [phone]
New Zealand
Toll-free: 0800-45-5782

1
Chapter 1
Overview
The AT-MC1004 and AT-MC1005/x Series Gigabit Ethernet Media Converters
are designed to extend the distance of your network by converting Gigabit
Ethernet data between twisted pair cabling and either multimode or single-
mode fiber optic cabling.
The AT-MC1004 media converter features a 1000Base-SX fiber optic port and
a 1000Base-T twisted pair port. The fiber optic port has an SC connector and a
maximum operating distance of 550 meters (1,804 feet). The twisted pair port
has an RJ-45 connector and a maximum operating distance of 100 meters (328
feet).
The AT-MC1005/x media converters feature a 1000Base-LX fiber optic port
and a 1000Base-T twisted pair port. The fiber optic port has an SC connector
and a maximum operating distance of 10 kilometers (6.2 miles) to 70
kilometers (43.4 miles), depending on the model. The twisted pair port has an
RJ-45 connector and a maximum operating distance of 100 meters (328 feet).
These units operate at 1000 Mbps and feature full-duplex operation.
The AT-MC1004 and AT-MC1005/x Series Gigabit Ethernet Media Converters
can be used on a desktop or in an AT-MCR12 chassis. These units are easy to
install and do not require any software configuration or management. Figure
1 illustrates an AT-MC1004 media converter.
Figure 1 AT-MC1004 Gigabit Ethernet Media Converter
1000Base-T
MODE ML
SML
LT
LNK
ACT
PWR
LNK
ACT
V2
1000Base-SX
TX MM RX
AT-MC1004 GIGABIT ETHERNET MEDIA CONVERTER

Overview
2
Figure 2 shows an example of an AT-MC1005/x Series Media Converter.
Figure 2 AT-MC1005/x Series Gigabit Ethernet Media Converter (Model AT-MC1005/3)
Table 1 lists the cabling distances for the Gigabit Ethernet media converters.
Table 1 Maximum Cabling Distances
Port Type of Connector Maximum Operating
Distance1
1. Maximum distance may be less depending on the type of fiber optic cabling used with the port.
1000Base-T2
2. The 1000Base-T port uses 4 pair (8 wires) in a twisted pair cable.
All Models RJ-45 100 m (328 ft)
1000Base-SX
AT-MC1004 SC 550 m (1,804 ft)
1000Base-LX
AT-MC1005/1 SC 10 km (6.2 mi)
AT-MC1005/2 SC 20 km (12.4 mi)
AT-MC1005/3 SC 40 km (24.8 mi)
AT-MC1005/4 SC 70 km (43.4 mi)
1000Base-T
MODE ML
SML
LT
LNK
ACT
PWR
LNK
ACT
V2
CLASS 1
LASER PRODUCT
DO NOT STARE
INTO BEAM
1000Base-LX
TX SM RX
AT-MC1005/3 GIGABIT ETHERNET MEDIA CONVERTER

AT-MC1004 and AT-MC1005/x Series Installation Guide
3
Key Features
The media converters have the following key features:
❑LEDs for unit and port status
❑1000Base twisted pair port with a maximum operating distance of 100
meters (328 feet)
❑1000Base fiber optic port with a maximum operating distance of 550
meters (1,804 feet) to 70 kilometers (43.4 miles) using single-mode or
multimode fiber optic cabling, depending on the model
❑Mode selection button that toggles between Link Test, MissingLink  ,
and Smart MissingLink
❑Full-duplex operation
❑External AC/DC power adapter
❑Standard, compact size for desktop use or with an AT-MCR12
rackmount chassis
Status LEDs
Table 2 defines the units LEDs.
Table 2 Status LEDs
LED Color Description
PWR Green Power is applied to the unit.
LNK Green A link has been established on the ports.
ACT Green Data is being received on the ports.
Mode Status
ML Green MissingLink is enabled.
SML Green Smart MissingLink is enabled.
LT Green Link Test is enabled.

Overview
4
Fiber Optic Port
The 1000Base-SX port on the AT-MC1004 media converter has an SC
connector and is designed to operate with multimode fiber optic cabling. This
port has a maximum operating distance of 550 meters (1,804 feet) using 62.5/
125 micron multimode fiber optic cable.
The 1000Base-LX port on the AT-MC1005/x Series Media Converters has an
SC connector and is designed to operate with single-mode fiber optic cabling.
This port has a maximum operating distance of 10 kilometers (6.2 miles) to 70
kilometers (43.4 miles), depending on your model, using 9/125 micron single-
mode fiber optic cable.
Mode Selection Button
Link Test
The link test is a fast and easy way for you to test the connections between the
Gigabit Ethernet media converter ports and the end-nodes that are connected
to the ports. If a network problem occurs, you can perform a link test to
determine which port is experiencing a problem, and be able to focus your
troubleshooting efforts on the cable and end-node where the problem resides.
A link test is performed when the Mode Selection button is toggled until the
LT LED is green.
Note
Performing a link test does not interfere with a media converter’s ability
to pass network traffic.
MissingLink
The MissingLink feature enables the fiber optic ports on the Gigabit Ethernet
media converter to pass the “Link” status of their connections to each other.
When the media converter detects a problem with one of the ports, such as the
loss of connection to an end-node, the media converter shuts down the
connection to the other port, thus notifying the end-node that the connection
has been lost.

AT-MC1004 and AT-MC1005/x Series Installation Guide
5
For example, if the network twisted pair cable to the 1000Base-T port on the
media converter were to fail, the unit would respond by dropping the link on
the fiber optic port. In this way, the media converter notifies the end-node
connected to the fiber optic port that the connection on the twisted pair port
has been lost. If the failure had started with the fiber optic cabling, the unit
would drop the link to the twisted pair port.
The value to this type of network monitoring and fault notification is that
some devices can be configured to take a specific action in the event of the loss
of connection on a port. In some cases, the unit can be configured to seek a
redundant path to a disconnected end-node or send out a trap to a network
management station, and so alert the network administrator of the problem.
Note
