Alpego DELTA Series User manual

SUBSOILERS
Codice D02694/4
GB
USE AND MAINTENANCE MANUAL
Da matr:
33930
A matr:
INSTRUCTIONS TRANSLATED FROM THE ORIGINAL
DELTA
DELTA

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
2
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
ALPEGO S.p.a.
Sede Amministrativa: Via torri di Confine, 6
36053 GAMBELLARA (VICENZA) - ITALY
Sede legale:
Via Giovanni e Giuseppe Cenzato,9
36045 LONIGO (VICENZA) - ITALY
Tel [phone]
Fax [phone]
e-mail : [email protected]
web site : www.alpego.com
- MACCHINE PER LA LAVORAZIONE
DEL TERRENO
- ERPICI ROTANTI FISSI E PIEGHEVOLI
- COLTIVATORI A DENTI ED A DISCHI
- SEMINATRICI MECCANICHE,
PNEUMATICHE E COMBINATE
- DISSODATORI E RIPUNTATORI
- FRESATRICI E ZAPPATRICI
- TRINCIASARMENTI
- TRINCIASTOCCHI
I
GB
D
F
E
Dichiarazione CE
di conformità’
ai sensi della direttiva
CE 2006/42
La ditta
sottoscritta
EC Certificate
of conformity
conforming to
EEC Directions
2006/42
We
EG Konformitatserklarung
entsprechend der
EG-Richtlinie
2006/42 EWG
Wir
Déclaration de
conformité pour la
CE
conforme à la directive
de la 2006/42 CE
Nous
Declaraciòn CE
de conformidad.
Conforme a la
directiva CE 2006/42
la empresa / el
productor
ALPEGO s.r.l.
VIA TORRI DI CONFINE N°6
36053 GAMBELLARA -(VI)-ITALIA
dichiara sotto
la propria
responsabilità’
che la macchina
modello :
declare in sole
responsability,
that the
product
model :
erklaren in alleineger
Verantwortung,
da das
Produkt
Typ :
déclarons sous
notre seule
responsabilite’
que le produict
modéle :
declara bajo su
propia
responsabilidad que
la màquina
modelo:
Codice / Code: MODELLO MACCHINA
RIPUNTATORI«SEMIN_AS3__40032_IDRO_PLUS»
N° matricola / serial n°:
È’ Conforme ai
requisiti Essenziali
di Sicurezza e di
Tutela della Salute
di cui alla
Direttiva CE
2006/42
Per l’adeguamento
delle macchine
sono state adottate
le norme:
UNI EN ISO 4254-1
UNI EN 982
ISO 11684
to which this
applies, conforms
to the basic safety
and health
requirements of
EC Directions
2006/42
For the adaptation of
it blots some have
been adopted the
norms:
UNI EN ISO 4254-1
UNI EN 982
ISO 11684
auf das sich diese
Erklarung bezeith,
den einschlagigen
grundlegenden
Sicherheits und
Gesundheitsan-
forderungen
der EG-Richtlinie
2006/42 EWG
Für die Anpassung von ihr
befleckt einiges sind
angenommen worden den
Normen:
UNI EN ISO 4254-1
UNI EN 982
ISO 11684
faisant l’objet de
la déclaration est
conforme aux
prescriptions
fondamentales en
matière de sècuritè et
de santè stipulèes
dans la Directive de la
CE
2006/42
Pour l'adaptation d'elle
en éponge ont été
adoptés les normes :
UNI EN ISO 4254-1
UNI EN 982
ISO 11684
està conforme a los
requisitos esenciales de
seguridad y de defeusa de
la
salud de la directiva
CE 2006/42
Para la equparaciòn de
las màquinas nan sido
adoptado las normas
UNI EN ISO 4254-1
UNI EN 982
ISO 11684
Gambellara: La ditta

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
3
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
Consult this manual carefully before using the machine.
Knowing the machine in detail is essential for safe usage.
This manual should be kept for the whole working life of the
machine.
Thank you for choosing Alpego, you have purchased a top quality product that is
guaranteed by a decade of experience.
Before leaving the factory, each machine is carefully inspected to guarantee that it is in
perfect condition.
Should you find any faults in the product however, kindly contact your retailer
immediately.
Please do not hesitate to contact us should you need further information or assistance,
our aim is to constantly improve the product, keeping it at top level.
THE TERM “MACHINE” REPLACES THE COMMERCIAL DESCRIPTION OF THE ITEM
DESCRIBED IN THIS MANUAL.
ALL DATA AND DESCRIPTIONS REPORTED IN THIS MANUAL ARE TO BE CONSIDERED
INFORMATIVE. THE PRODUCER IS NOT BOUND TO MAINTAIN THESE
CHARACTERISTICS, WHICH CAN BE VARIED WITHOUT PRIOR WARNING

Sommario
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
1. GENERAL INFORMATION........................................................................................................................................1
1.1. PURPOSE OF THE MANUAL .............................................................................................................................1
1.2. DOCUMENTS THAT COME WITH THE MACHINE............................................................................................1
1.3. MACHINE IDENTIFICATION...............................................................................................................................1
2. GUARANTEE.............................................................................................................................................................2
2.1. GUARANTEE FORFEITURE...............................................................................................................................2
3. TECHNICAL SPECIFICATIONS................................................................................................................................2
3.1. MACHINE DESCRIPTION...................................................................................................................................2
3.2. TECHNICAL INFORMATION TABLE..................................................................................................................3
4. SAFETY PRECAUTIONS ..........................................................................................................................................3
4.1. SAFETY REGULATIONS ....................................................................................................................................3
4.2. CLOTHING...........................................................................................................................................................4
4.3. EXPLANATION OF THE SYMBOLS ON THE LABELS......................................................................................4
5. INSTALLATION .........................................................................................................................................................5
5.1. LIFTING................................................................................................................................................................5
5.2. CONNECTING TO THE TRACTOR....................................................................................................................5
5.3. POSITIONING CATEGORY 2 OR 3 HITCHES...................................................................................................6
5.1. COUPLING WITH A ROTATING HARROW OR TILLER...................................................................................7
SELECTING THE CARDAN JOINT............................................................................................................................7
6. USE.............................................................................................................................................................................8
7. TESTS AND CHECKS ............................................................................................................................................... 8
8. UNCOUPLING AND END OF SEASON OPERATIONS...........................................................................................9
9. SPARE PARTS ..........................................................................................................................................................9
10. ACCESSORIES......................................................................................................................................................10

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
GENERAL INFORMATION - 1
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
1. GENERAL INFORMATION
1.1. PURPOSE OF THE MANUAL
•This manual has been prepared by the machine manufacturer and it is an integral part of the documentation that comes with
the machine.
•In this manual you can find detailed and precise explanations regarding the correct use of the machine, and it also
establishes correct machine application and its limits.
•To guarantee the safety of people using the machine, working economy and longer durability, you must follow the instructions
given in this manual at all times.
•The manual has been divided into various sections. Consulting the index makes searching for specific topics easier.
•The illustrations in this manual are indicative. Even if you notice a difference with the machine you possess, safety and
information are still fully guaranteed.
•To continue its policy of constant development and updating, the manufacturer can modify the manual without prior warning.
PAY ATTENTION TO THE TRIANGLE. IT INDICATES DANGER
1.2. DOCUMENTS THAT COME WITH THE MACHINE
The following documents must be supplied with the machine:
•User and maintenance manual
•EC declaration of conformità
1.3. MACHINE IDENTIFICATION
At the 3 points of connection to the tractor is placed the identification plate of the machine bearing the following data:
1. Model of the machine
2. Serial number
3. Maximum weight of the machine
4. Costruction year [es: 1305 = 13 (2013) + 05 (may)]
The specified weight refers to the machine provided with the
accessories.

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
GUARANTEE - 2
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
2. GUARANTEE
When delivered, make sure that the machine and its accessories have not been damaged during transportation.
Any complaints should be made to the retailer in writing within 6 days from delivery.
2.1. GUARANTEE FORFEITURE
The guarantee is immediately rendered null and void:
•if there is a manoeuvring error
•if a shank safety screw that does not correspond to the requested needs is used
•if the power limit established by the manufacturer is exceeded (see table 3.2)
•if the instructions described in this manual are not followed
•if non-original spare parts are used
•if any modification is made to the machine without prior authorisation by the manufacturer.
3. TECHNICAL SPECIFICATIONS
3.1. MACHINE DESCRIPTION
This machine is suitable for working agricultural soil. It is very compact, so it is perfect for working with another machine behind it,
e.g. a harrow or tiller, to make clods even smaller.
The machine lifts the ground without mixing the layers, which makes using a combined machine easier (harrow or tiller). It
increases soil crumbling, giving a perfect sowing bed in just one run.
It can be used wherever the soil is crumbly enough to pass through the shanks without blocking them, and also in previously
worked soil where the amount of grass or residues are small enough to pass through the shanks in the same manner.
Apply it to tractors with a three point hitch that has the characteristics indicated in table 3.2 of the technical information section.
The main organs are:
A) Main frame
B) shank body
C) Lower tractor hitch
D) Tractor 3 point hitch
F) Combined machine 3 point hitch
G) Lower hitches for combined machine
H) Cardan support shaft, combined
machine
L) Shank body working depth regulation
pin

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
SAFETY PRECAUTIONS - 3
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
3.2. TECHNICAL INFORMATION TABLE
model
tractor
power
KW
max. working
depth mm.
working
width
mm.
Transportatio
n width
mm.
weight
kg.
tractor
hitch
category
n. of
shanks
DELTA
-
250
73-135 250 2500 2300 390 2° - 3° 4
DELTA
-
300
88-161 250 3000 2750 467 2° - 3° 4
DELTA
-
400
88-161 250 4000 3800 680 2° - 3° 6
MAXIMUM WEIGHT THAT CAN BE APPLIED TO THE REAR 3 POINT HITCH KG. 1600
4. SAFETY PRECAUTIONS
4.1. SAFETY REGULATIONS
•Read the user and maintenance manuals carefully before starting, using and carrying out maintenance on the equipment.
•The producer cannot be held responsible for injury caused to people and animals or damage caused to things because the
safety regulations have not been observed by the user.
•The machine cannot be used for purposes other than those expressly indicated in this manual.
•Carefully examine the adhesive labels on the machine and make sure you follow their indications.
•You should always wear clothes that protect the body with no hanging parts that could get stuck in moving components.
Remove watches, rings, necklaces, etc. that could cause injury in dangerous situations.
•Always use the safety shoes recommended by current accident prevention regulations.
•Always use working gloves when assembling the machine and carrying out maintenance.
•When carrying out manoeuvres do not allow people or animals to enter the working area of the machine.
•While working do not allow people, animals and other such things to approach the working range of the sods and stones that
are being thrown out by the machine.
•Do not allow other people to get on the tractor when you are working on the machine.
•You must always remain seated in the tractor driving seat. Only leave the driving seat when the handbrake has been pulled
on.
•During working stops switch off the motor, place the machine on the ground and pull on the tractor handbrake.
•Never work if the guards have been removed.
•The cardan shaft guard should always be in good condition. It should be checked periodically and fixed with the chains to
stop its rotation.

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
SAFETY PRECAUTIONS - 4
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
•Always disengage the Power Takeoff when the cardan shaft
exceeds an angle of 15° (see figure).
•Never use the machine to transport people, animals or things.
•Never work on ground or in areas that could compromise machine stability.
•When circulating on the road, it is necessary to follow the Highway Code of the country where the machine is being used.
•Never allow unauthorised people to carry out maintenance or tamper with the machine in any way.
•Make sure that maintenance and repairs are carried out in suitable and well equipped workshops.
•Always use original accessories and spare parts. If originals are not used, the guarantee is rendered null and void, and
machine safety can be at risk because of incorrect operation.
4.2. CLOTHING
Always wear safety gear and clothes. Make sure no dangling parts are present as they may get caught in moving parts.
For the same reasons please always remove watches, rings, necklaces, wristbands etc. Long hair may be a danger as well,
please keep them tied.
If it is Always wear safety gear as required by your local authorities
(safety shoes, gloves, earplugs, masks, etc.)
4.3. EXPLANATION OF THE SYMBOLS ON THE LABELS
The stickers on the machine point out the sources of danger. Observe them carefully and follow the instructions to use the
machine safely. If the stickers become damaged, they should be replaced.

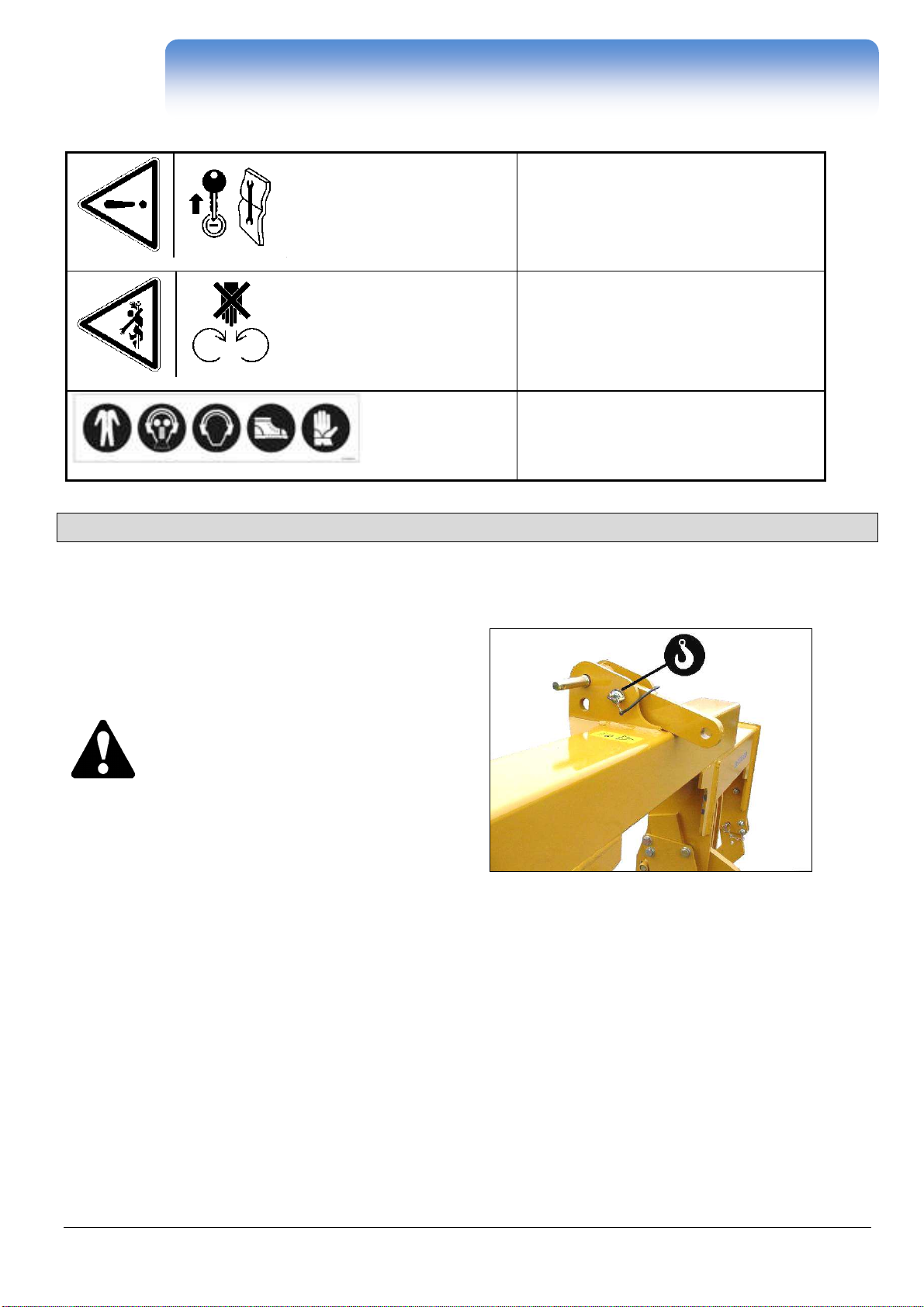

LABEL
code
INDICATION
D02612 You MUST read the user and maintenance
manual and safety instructions before using the
equipment. These must be followed during
use.
D02627 Indicates the hooking point for machine
transportation
D02613 Indicates the danger of shearing while the
machine is working

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
INSTALLATION - 5
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
D02615 Indicates the need to switch off the tractor and
remove the ignition key during maintenance
operations
D02608 Indicates the danger of entanglement while
working on the cardan shaft. Do not approach
the shaft while it is rotating.
Q15A00531
The sticker depicts the compulsory PPE
(Personal Protective Equipment): coverall,
mask, earplugs, safety shoes, gloves
5. INSTALLATION
5.1. LIFTING
The machine should be lifted and transported with
the right means, suitable for its weight, and by
personnel trained in this kind of work. Hook the
machine in the points shown in the figure and
proceed with transportation. The loads should not be
lifted by more than 200 mm from the ground while
carrying out these operations.
5.2. CONNECTING TO THE TRACTOR
The machine can be connected with category 2 and 3 hitches. It is important to check the weight on the axes. If necessary,
ballast the tractor front, above all if a machine is to be connected to the rear (rotating harrow or tiller).
Make sure that the tractor is suitable fore being coupled to the machine, then move closer towards it to connect the three points.
Switch off the motor, pull the handbrake on then get off the tractor and get ready to connect the three points.

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
INSTALLATION - 6
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
To connect the lower arms, follow the instructions below and refer
to the drawing on the right:
a) Remove screws A and bolts B.
b) Remove pins C
c) Insert the detent into the spaces D
d) Reposition the pins C the screws A and the bolts B. Select the
most suitable hole for the tractor lifting capacity
e) use the same procedure to place the third point tie rod, which is
on the tractor, into hole E.
5.3. POSITIONING CATEGORY 2 OR 3 HITCHES
The machine has category 2 and 3 connections. The
connecting pins should be positioned as shown in the
figure, and in accordance with the tractor connection
category.
Follow all the safety instructions given in paragraph 4 of this manual, and carefully read the
documentation that tells you how to use the tractor.
When the machine has been connected to the tractor, activate lifting then get ready to couple it
with a rotating harrow or a tiller.

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
INSTALLATION - 7
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
5.1. COUPLING WITH A ROTATING HARROW OR TILLER
There is a three point hitch at the back of the machine for connecting a rotating harrow or a tiller.
Connect the lower arms of the rotating harrow or the tiller to the 2 lower connections A, then
choose one of the three available holes so that you obtain the correct working depth (see section
6).
Insert the third point into the hole B, then connect one of the cardan joints indicated in section
5.5 below to the rotating harrow or the tiller.
SELECTING THE CARDAN JOINT
M70A00177
CARDAN WITH BOLT LIMITING
DEVICE FOR: RD 540 REVS.
M70A00179
CARDAN WITH BOLT LIMITING
DEVICE FOR: RE 540 REVS. – RH
1000 REVS.
M04633W
CARDAN WITH AUTOMATIC
LIMITING DEVICE FOR : RE 540
REVS. - RH 1000
M70A00177
CARDAN WITH FRICTION FOR:
FP/LP 540 REVS. - FH/LH 1000
REVS.

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
USE - 8
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
6. USE
When you have finished carrying out the instructions given in section 5,
you must regulate the working depth while the machine is connected to a
harrow or tiller.
You should regulate the working depth of the machine so that the
ploughshares work just below the blades or tines of the connected
machine.
You can regulate the working depth by positioning the shank in one of the
holes B.
Start working at a slow speed and lower the shanks into the ground until
you reach the working depth you need.
Now select the forward speed according to the ground being worked and
the available power.
7. TESTS AND CHECKS
During the first 50 working hours it is a good idea to check the tightness of the bolts on a regular basis. If necessary, tighten the
bolts as indicated in the table below.
After the first time, check bolt tightness every 200 working hours and if necessary tighten them again.
TABLE OF THE RECOMMENDED DRIVING TORQUE FOR THE BOLTS AND SCREWS
nominal diameter
hexagon wrench
mm.
driving torque
Kgm Nm
M 8
13
3 30
M 10
17
6 59
M 12
19
10 98
M 14
22
14 137
M 16
24
21
205
M 20
30
40 390
M 22
32
54 350
M 24
36
70 685

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
UNCOUPLING AND END OF SEASON OPERATIONS - 9
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
8. UNCOUPLING AND END OF SEASON OPERATIONS
When you finish working, place the Delta and the machine connected to it on the ground, then uncouple them
from the tractor. The cardan should be on its support (ref. H section 3 ).
The ground you place the machine on must be solid enough to support it.
9. SPARE PARTS
The ploughshare on the shank point wears very easily and should be replaced before the shaft body also becomes worn. You
can find the spare parts codes in the table below.
SPARE PARTS TABLE
item code figure description
D02361S BLADE
AVAILABLE SHANK BODIES
item code figure description
E02511
480 SHANK BODY
E02344 580 SHANK BODY
E02347 680 SHANK BODY

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
ACCESSORIES - 10
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
10. ACCESSORIES
There are many accessories for the machine. You must remember that each time one is added
the machine weights change, therefore make sure that tractor stability is not compromised.

MANUALE DELTA
Old Cod.D02694
New Cod. MANT2010/00605 R.4
ACCESSORIES - 11
Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
NOTE:

Copyright ©2009 della Alpego spa® - All rights are reserved. Reprinting or unauthorized use of this manual is strictly forbidden without written permission by Alpego spa
USATE SEMPRE RICAMBI ORIGINALI
EMPLOYEZ TOUJOURS LES PIECES DE RECHANGE ORIGINALES
IMMER DIE ORIGINAL-ERSATZTEILE VERWENDEN
ALWAYS USE ORIGINAL SPARE PARTS
USAR SIEMPRE REPUESTOS ORIGINALES
ALPEGO s.
p
.
a
Administrative headquarters: Via Torri di Confine, 6 36053 GAMBELLARA (VICENZA) – ITALY
Legal headquarters: Via Giovanni e Giuseppe Cenzato, 9 36045 LONIGO (VICENZA) – ITALY
Tel: [phone] – fax: [phone]
E-mail: info @ alpego.com Internet: www.alpego.com
