Alpine X009-WRA User manual

Jeep Wrangler
WRANGLER  1/13
Jeep Wrangler
X009-WRA 9”
Installation Manual
 Model: Wrangler
 Model Year: 2011-UP
Introduction
Design and specications are subject to change without notice for improvement.
To Ensure Safe Use, Always Follow These Precautions
The installation of this product requires specialized skills and experience. We recommend that you have the
product installed by the store that you purchased it from.
Before you use this product, be sure to carefully read this installation manual and the separate user's manual
so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as
a result of failure to follow the instructions in the manuals.
This manual includes a number of symbols that are intended to help you use the product safely, to prevent
harm to you and others, and to protect against damage to property. These symbols and their meanings are
listed below. Make sure you fully understand these symbols before you begin reading the main text.
Explanations of Injury and Damage That May Result from Incorrect Use
Warning Ignoring the content marked by this indication and using the product incorrectly is
expected to lead to death or serious injury.
Caution Ignoring the content marked by this indication and using the product incorrectly is only
expected to lead to injury or property damage.
Jeep Model Year
Wrangler 2011 - UP
* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is
not guaranteed if the manufacturer has made production changes to the listed vehicles above.

Jeep Wrangler
WRANGLER  2/13
Types of Precautions
Forbidden
Indicates actions that are forbidden
(must not be performed)
Mandatory
Indicates actions that are
mandatory (must be performed)
Forbidden
Indicates that disassembly is
forbidden.
Marks content that should receive
your full attention.
Warning
Do not disassemble or modify the product. Doing so could lead to an accident, re,
or electric shock.
Forbidden
Store screws and other small objects where small children cannot reach them. If one of these
small objects is swallowed, consult with a doctor immediately.
When replacing fuses, be sure to use fuses with the specied current rating. Failing to do so could
lead to an accident or re.
Forbidden Mandatory
Only connect the product to a 12 VDC negative ground car. Failing to do so could lead to
an accident or re.
Mandatory
Before you begin wiring, remove the ground wire from the negative terminal of the battery.
Failing to do so could lead to electric shock or injury.
Do not cut the insulation on a cord and take power from another device. Doing so could
lead to re or electric shock.
Forbidden
Do not install the product in a location where it will obstruct the driver’s forward view;
interfere with the operation of the steering wheel, gearshift, or the like; or pose a
threat to passengers. Doing so could lead to an accident or injury. Forbidden
When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank,
electrical wiring, and the like. This kind of damage could lead to an accident or re.

Jeep Wrangler
WRANGLER  3/13
When installing and grounding the product, do not use any of the bolts or nuts of the
steering wheel, brakes, fuel tank, or the like. Doing so could make the brakes stop working
or lead to re. Forbidden
Do not install the product near the passenger-side airbag. Doing so could interfere with the
operation of the airbag and lead to an accident or injury.
Forbidden
Bundle cords so that they don’t interfere with driving. Wrapping cords around the steering
wheel, gearshift, brake pedal, or the like, could lead to an accident or damage equipment.
Caution
Connect the product properly according to the instructions. Failing to do so could lead
to re or an accident.
Forbidden
Do not sandwich cords between the seat railing or allow them to touch protrusions.
Resulting breaks or shorts could lead to electric shock or re.
Do not block vents or heat sinks. Doing so could lead to re or damage equipment.
Use the accessories according to the instructions, and attach them securely.
Failing to do so could lead to an accident or damage equipment.
Forbidden
Do not install the product where it may be exposed to water or in a place with high levels
of humidity or dust. Doing so could lead to re or damage equipment.
Forbidden
The installation and wiring of this product requires specialized skills and experience.
Have the product installed and wired by the store that you purchased it from.

Jeep Wrangler
WRANGLER  4/13
Accessory List
Head Unit Box Parts (X009)
Owner’s Manual Disc X009 Head Unit X009 Camera Harness
AUX/Pre Out Harness GPS Antenna USB Extension Cable
8mm x 8 Screws Quick Reference Guides Registration Cards
QRG
Audio
QRG
Navigation
Alpine
Registration Card
NAVTEQ
Registration Card
iDatalink Maestro Box Parts (ALP-MRR V2.0/ALP-HRN-WRA V2.0)
Main Harness Antenna Adapter iDatalink Maestro Module
SAT Radio Antenna Adapter Maestro Module USB Flashing Cable OEM USB Adapter

Jeep Wrangler
WRANGLER  5/13

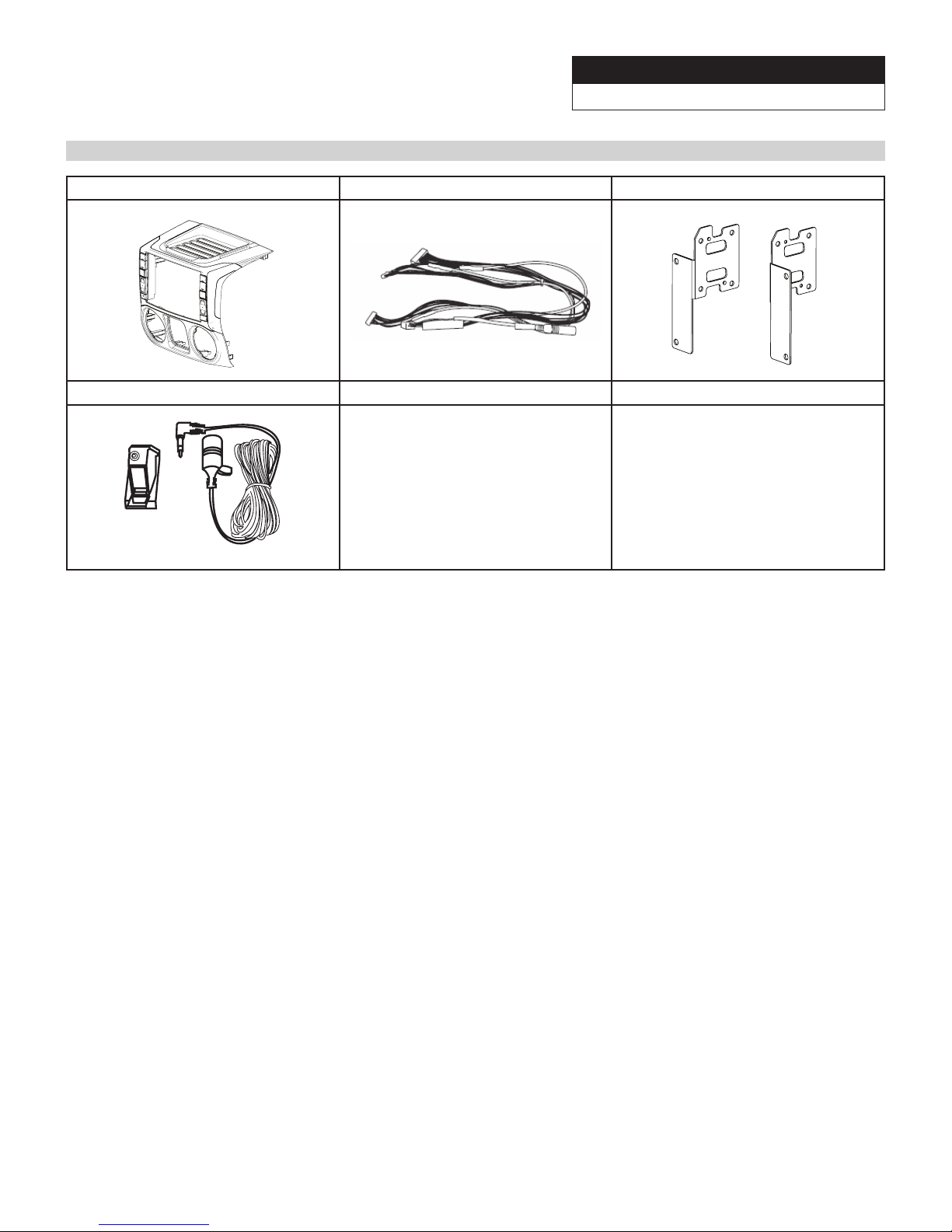

Installation Kit Parts (G-KTX-009-WRA)
X009-WRA Radio Dash Bezel Key Harness Side Mounting Brackets
Microphone

Jeep Wrangler
WRANGLER  6/13
Component Locations
Jeep
Jeep SINCE 1941
GPS Antenna Location BT Microphone Location
BT Microphone
GPS Antenna Location

Jeep Wrangler
WRANGLER  7/13

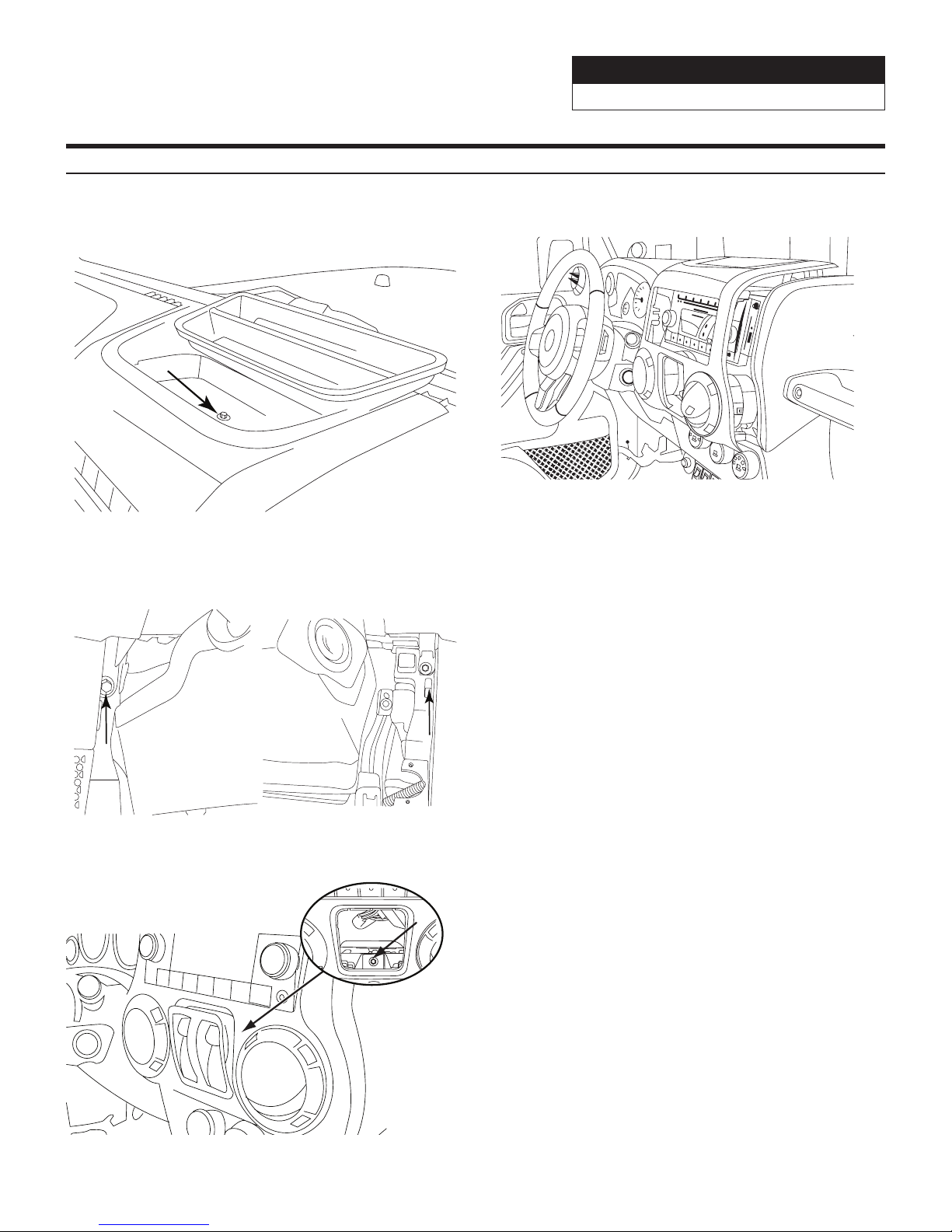

Factory Unit Disassembly Process
1 Remove the rubber cover from the top center
storage area and extract 1 x 7mm screw.
2 Remove the knee cover panel and extract 2 x 7mm
screws located to the right and left sides of the
steering wheel column.
3 Remove the window switch pod using a panel
removing tool and extract 1 x 7mm screw.
4 Remove the dash panel.

Jeep Wrangler
WRANGLER  8/13

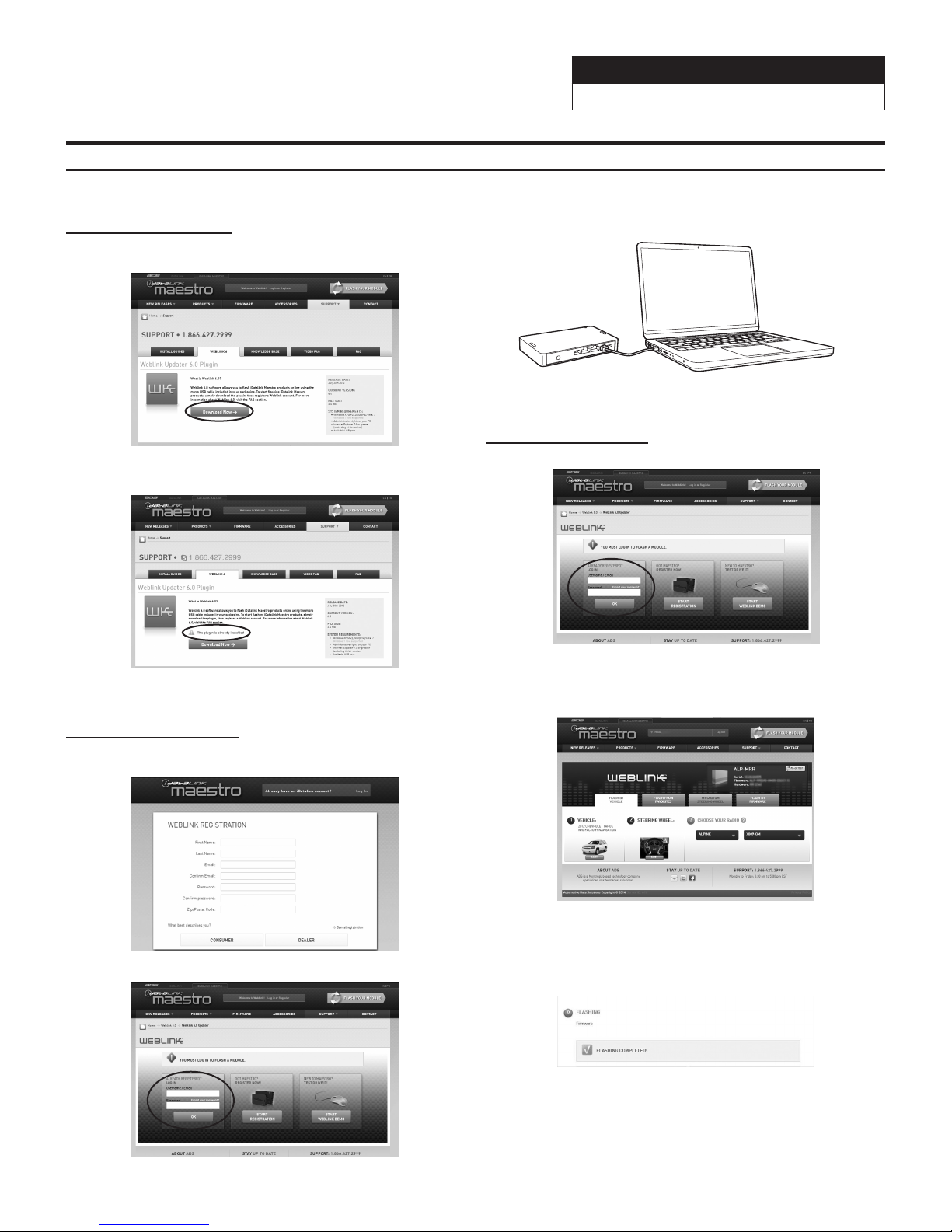

Programming the iDatalink Maestro Module
1 INSTALL THE WEBLINK PLUG-IN
Go to:
idatalinkmaestro.com/plugin and follow the installation steps.
Review the System Requirements before installing.
If the plugin is already installed, the caution, “The plugin is already
installed” appears. Please skip to step 2.
2 REGISTER A WEBLINK ACCOUNT
Go to:
idatalinkmaestro.com/register and complete the registration process.
A conrmation email will be sent to you requiring validation.
For existing customers, click log in.
3 CONNECT YOUR MAESTRO MODULE
Use the included USB cable to connect your Maestro module to your
PC.
4 LOG INTO WEBLINK
Go to:
idatalinkmaestro.com/login.
Enter your username and password, then click OK.
5 PROGRAM YOUR MODULE
Follow the programming steps for your vehicle.
6 Once Programing is complete “FLASHING
COMPLETED!” will be displayed.
Proceed to the next page to complete installation.

Jeep Wrangler
WRANGLER  9/13

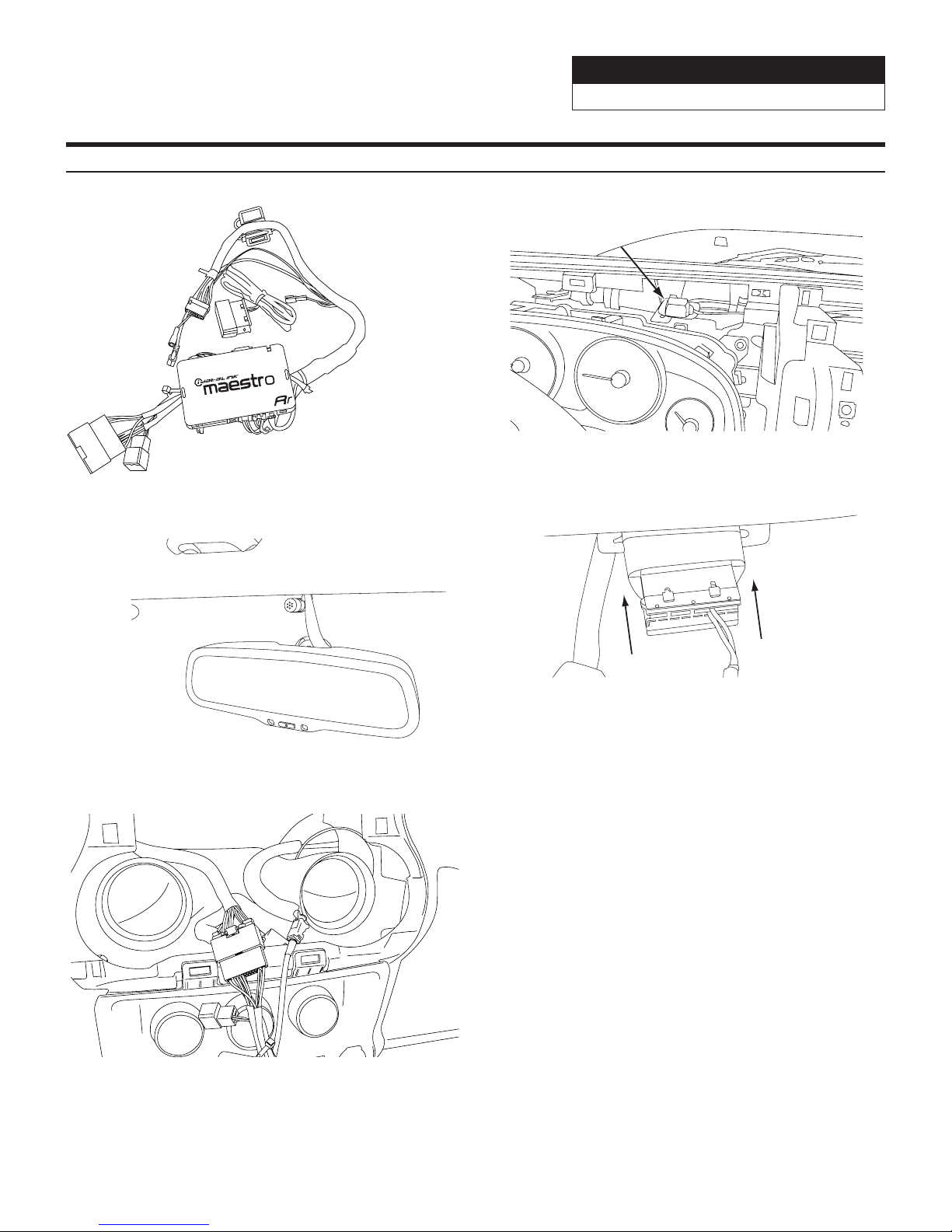

Installation Instructions
4 Place GPS antenna next to the instrument panel as
illustrated and run the cable to the radio cavity.
5 Plug the OBDII connector on to the OBDII port
below the driver side dash and run the extension to
the radio cavity.
1 Attach the Maestro to the main harness.
2 Mount the microphone as illustrated and run the
cable to the radio cavity.
3 Connect the main harness, antenna, and other
adapters to the factory harness and secure it.

Jeep Wrangler
WRANGLER  10/13

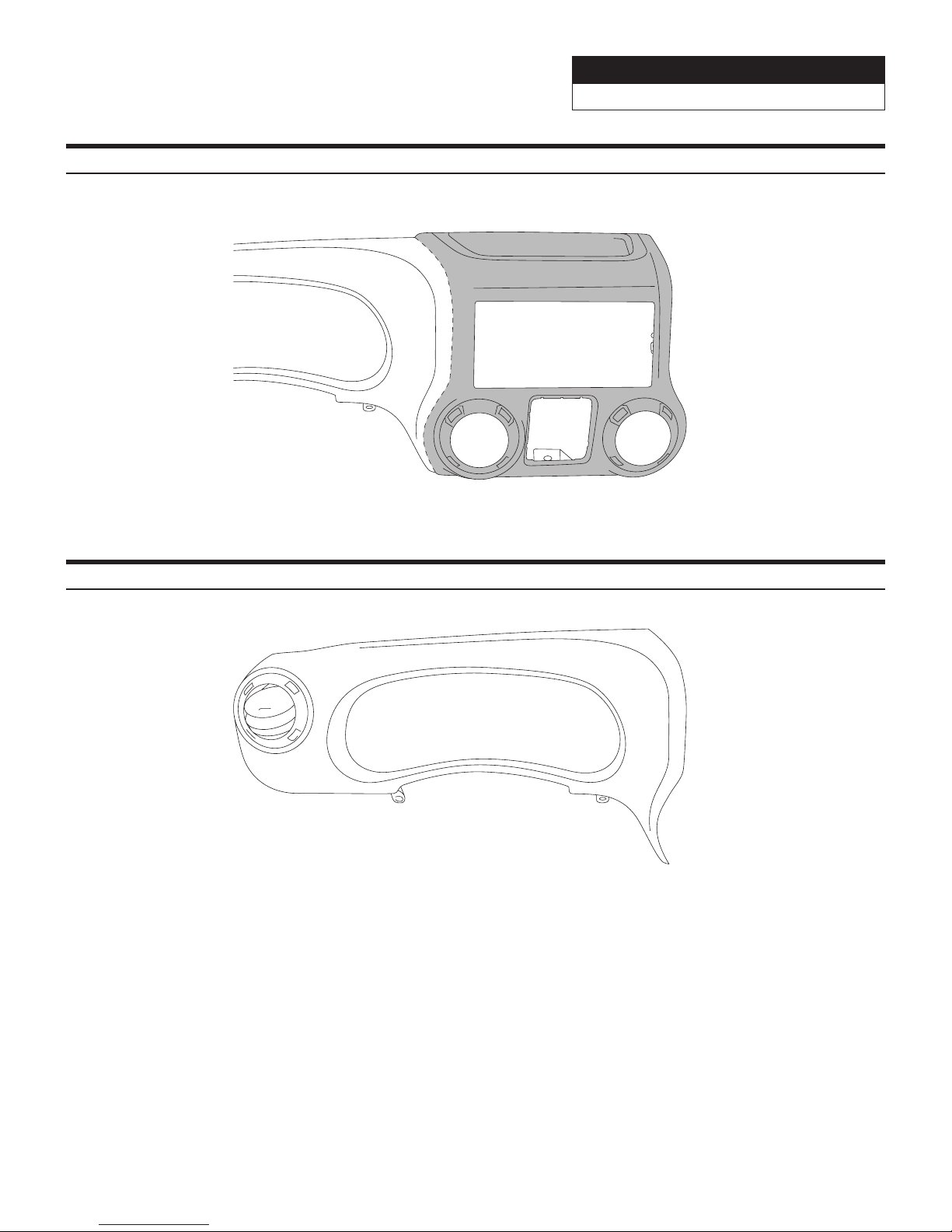

Trimming procedure for dash panel
The factory dash panel needs to be trimmed to allow the new X009- WRA bezel to t into place. Remove the
highlighted area by cutting along the dashed line.
Mount the modied panel back on the vehicle.

Jeep Wrangler
WRANGLER  11/13
Installation Instructions
5 Run the key harness through the top-left side of
X009 headunit. Mount the X009 headunit using 4 x
7mm factory screws.
6 Connect the radio bezel and snap it into place.
A/C
A/C
1 Remove the vents from the radio section on the
OEM dash panel by pressing down on the lock tab
and turning right. Mount vents on to the X009-WRA
bezel.
2 Extract 2 x 7mm screws from the OEM radio
bracket and remove it.
2
3 Use a cutting tool to trim the highlighted area
shown above.
4 Attach the brackets using the provided screws.
Lock tab
Rear view

Jeep Wrangler
WRANGLER  12/13
Bezel Wiring Diagram
Exploded-View Diagram
Dash Board
A/C
8 Pin Harness
20 Pin Harness
(Connect to X009)
8 Pin Harness
X009-WRA
Radio Dash
Bezel
X009 Head Unit
Side Mounting
Brackets
Factory Vents and Window
Switch Pod (not included)

Jeep Wrangler
WRANGLER  13/13
X009-WRA System Wiring
X009 Camera
Harness
Camera Input
HDMI Input
USB Extension
Cable
To SXM
Aux
X009 Head Unit
X009-WRA
Key Panel
GPS Antenna
10-pin Green
Connector
3-pin Black
Connector
10-pin Black
Connector
18-pin Black
Connector
3-pin Black
Connector
4-pin Data
Connector
Green/
White
3.5 Mini plug
Speed Pulse
4-pin Data Connector
To ODB II
Connector
(2-pin Black Connector)
iDatalink MAESTRO Module
To Vehicle Connectors
X009
Power
Harness
Main Harness
Blue Power Antenna
(Not used)
Blue/White Amp Turn-on
(Use only with aftermarket
ampliers)
