Alto-Shaam EC2-48 User manual

ITEM NO. _______________________
The display case is constructed of 18 gauge, non-magnetic stainless steel. A tempered glass front encloses the display case
and can be lifted to a 90 degree angle for easy cleaning. Removable, sliding glass doors on the operator side are included.
Sliding door tracks have a “clean sweep” cutout allowing for easy cleaning and crumb removal. Framed end clear glass with
rubber gasket material protects glass edges from chipping and breakage. The base is divided into two (2) individually
managed heat zones with each zone controlled by a separate thermostat with a range of 1 through 10 and heat-on indicator
light. Overhead lights are controlled by ON/OFF switches in two (2) light zones. Two (2) 125V plug outlets are available as
an option on 120/208-240V units only. Counter-top display cases include one set of 4" (102mm) legs.
■■EC2-48 - 48" (1219mm) length
■■EC2SYS-48 - 48" (1219mm) length, with base
■■EC2-48/P - 48" (1219mm) length, 47-5/16" (1202mm) self-service opening across full length of case front
■■EC2SYS-48/P - 48" (1219mm) length, with base, 47-5/16" (1202mm) self-service opening across full length of case front
● HALO HEAT … a controlled, uniform heat source that gently
holds and surrounds food for better appearance, taste, and longer
holding life.
● Holds and displays hot food fresh and moist for hours —
without adding water.
● Expandable system to meet your specific requirements.
● atches profile of leading refrigerated display case.
● HOT DISPLAY CASE
— Angled flat glass profile provides maximum product visibility.
— Displays hot food without condensation on glass.
— Thermostatically controlled heat source radiates from the
base of the display case in multiple heat zones.
— Overhead light zones with shatterproof coated bulbs.
— Holds a full range of standard (gastronorm) pan sizes, full-size
or half-size sheet pans.
— Tempered sliding glass doors reflect heat back into the products
and mirror the display to enhance merchandising effect.
●DECO ATO BASE
— Standard black painted front and end panels.
●SELF-SE VICE HOT DISPLAY
— Customer self-service opening is available across the full length of case.
— Front mounted heat-guard provides customer protection.
ANSI/NSF 4
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHONE: [phone].558.8744 U.S.A./CANADA FAX: [phone].329.8744 U.S.A. ONLY
www.alto-shaam.com
EC2SYS-48
P R I N T E D I N U .S.A.D U E T O O N G O I N G P R O D U C T D E V E L O P E N T, S P E C I F I C AT I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E . #78 - 03/08

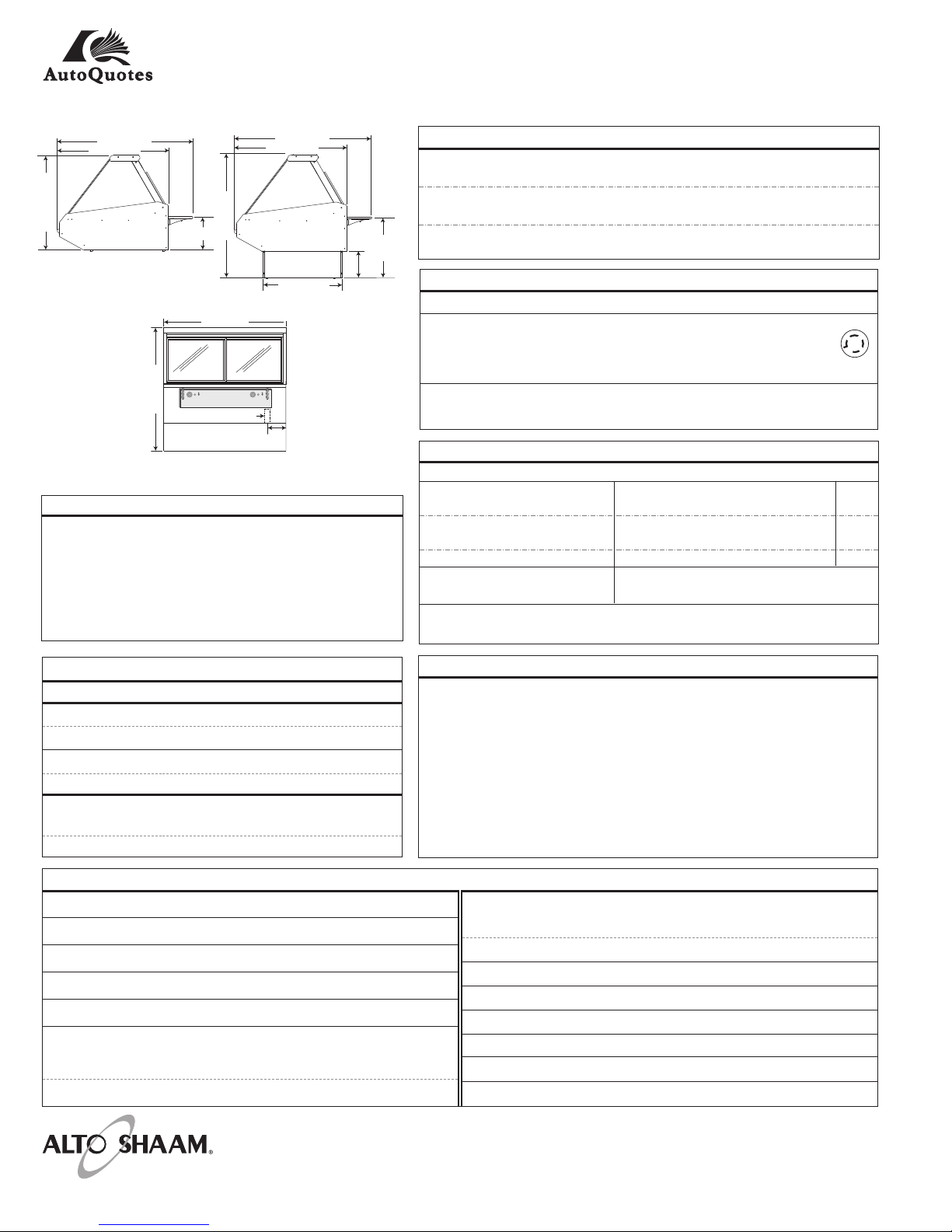

EC2-48 SERIES
EC2SYS-48 SERIES
HEATED DISPLAY S YSTEMS
EC2-48
FACTORY INSTALLED OPTIONS
●The system base is not sold as a separate
item. Order the full EC2SYS model to
receive the base.
●Panel Color Choices
➥Specify color choice:
■■Black, standard
■■Stainless Steel, optional
■■Custom Color, optional

W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHONE: [phone].558.8744 U.S.A./CANADA FAX: [phone].329.8744 U.S.A. ONLY
www.alto-shaam.com
OPTIONS & ACCESSORIES
■■BUTTING KIT CONTACT FACTORY
■■GAUGE, INTE IO AMBIENT TEMP. GU-33384
■■GLASS, NON-GLA E, F ONT GL-24256
■■GLASS, TEMPERED END PANE, BRONZE KIT 5008528
■■INDEPENDENT ELECT ICAL OUTLET 5001781
PANEL KIT, COUNTE TOP
■■B USHED STAINLESS STEEL 5004694
■■CUSTOM COLO 5004700
PANEL KIT, SYSTEM
■■B USHED STAINLESS STEEL 5004697
■■CUSTOM COLO 5004703
■■PAN INSE T, SELF-SE VICE 4" (102mm) DEEP 1001990
■■PLATFO M SCALE 55265
■■SHEET PAN DIVIDE BA PACKAGE 5002802
■■TEMPERATURE PROBE 5004916
■■THERMOSTAT GUARD COVER PLATE 5007660
■■ORK SHELF ITH GRAVY LANE 5005638
#78 - 03/08 D U E T O O N G O I N G P R O D U C T D E V E L O P E N T, S P E C I F I C AT I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A.
EC2-48 SERIES
EC2SYS-48 SERIES
HEATED DI SPLAY SYSTEMS
D I M E N S I O N S (HXWXD)
EXTERIOR, COUNTER-TOP MODEL ITH LEGS:
37-11/16" x 48" x 53-1/2" (956mm x 1219mm x 1358mm)
EXTERIOR, ITH BASE:
48" x 48" x 53-1/2" (1219mm x 1219mm x 1358mm)
ELL DIMENSIONS (XLXD):
27-3/16" x 45-5/16" x 4-1/2" (690mm x 1151mm x 114mm)
ELECTRICAL
CORD
96" (2438mm)
CUTTING BOARD IN “DOWN” POSITION CUTTING BOARD IN “DOWN” POSITION
6-3/4"
(172mm)
ON
OFF
ON
OFF
ON
OFF
48" (1218mm)
72" (1829mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
13-9/16"
(344mm)
37-11/16" (956mm)
23-7/8"
(606mm)
48" (1218mm)
10-11/16"
(270mm)
41-7/8" (1063mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
48" (1219mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
ELECTRICAL
CORD
96" (2438mm)
CUTTING BOARD IN “DOWN” POSITION CUTTING BOARD IN “DOWN” POSITION
6-3/4"
(172mm)
ON
OFF
ON
OFF
ON
OFF
48" (1218mm)
72" (1829mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
13-9/16"
(344mm)
37-11/16" (956mm)
23-7/8"
(606mm)
48" (1218mm)
10-11/16"
(270mm)
41-7/8" (1063mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
48" (1219mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
ELECTRICAL
CORD
96" (2438mm)
CUTTING BOARD IN “DOWN” POSITION CUTTING BOARD IN “DOWN” POSITION
6-3/4"
(172mm)
ON
OFF
ON
OFF
ON
OFF
48" (1218mm)
72" (1829mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
13-9/16"
(344mm)
37-11/16" (956mm)
23-7/8"
(606mm)
48" (1218mm)
10-11/16"
(270mm)
41-7/8" (1063mm)
53-1/2" (1358mm)
43-3/4" (1111mm)
48" (1219mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
48" (1218mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
EC2SYS-48
EC2SYS Profile
EC2 Profile
INSTALLATION REQUIREMENTS
Display case must be installed level. The display case must
not be installed in any area where it may be affected by steam,
grease, dripping water, high temperatures, or any other
severely adverse conditions.
Do not install a heated display case near a cold air source such
as a freezer, air conditioning vents, or in any area where
outside air fluctuation can affect performance.
WEIGHT
MODEL NET SHIP
EC2-48 305 lb (138 kg) 380 lb (172 kg)
EC2SYS-48 350 lb (159 kg) 425 lb (193 kg)
EC2-48/P 305 lb (138 kg) 380 lb (172 kg)
EC2SYS-48/P 350 lb (159 kg) 425 lb (193 kg)
CRATED DIMENSIONS (EST.): HXWXD
EC2-48: 45" x 60" x 55" (1143mm x 1524mm x 1397mm)
EC2SYS-48: 60" x 60" x 66" (1524mm x 1524mm x 1676mm)
E L E C T R I C A L
VOLTAGE PHASE CYCLE/HZ AMPS kW
120/208-240 (UL)1 50/60 13.8 3.3
a 208 1 50/60 11.6 2.5
a 240 1 50/60 13.0 3.1
230 (CE)1 50/60 12.6 2.9
230 1 50/60 12.6 2.9
Tyler Huss.eps
revised 5/30/02
added L14-20P Plug Configuration
NEMA L14-20P
20A, 250V PLUG
BARE END, NO PLUG
PA N C O N F I G U R AT I O N *
PAN SIZE DIMENSIONS QTY.
F LL-SIZE & ONE-THIRD**: 12" X20" X2-1/2" (GN 1/1) 3
12" X6" X2-1/2" (GN 1/3) 3
HALF-SIZE & ONE-THIRD**: 12" X10" X2-1/2" (GN1/2) 6
12" X6" X2-1/2" (GN 1/3) 3
F LL-SIZE SHEET PANS: 18" X26" X1" 2
MAX. CAPACITY/VOLUME:48 lbs (22 kg)
30 qts (36 L)
* Pans are not included with display case.
** Will also accept 4" (100mm) deep pans.
S P E C I F I C AT I O N S
●Six (6) overhead lights with two (2) light zones.
●Two (2) base heat zones with two (2) adjustable thermostats with
a range of 1 through 10, and two (2) heat-on indicator lights.
●Two (2) tinted, reflective, tempered glass sliding doors on
operator side.
●One (1) 10" x 36" (254mm x 914mm) operator-side work shelf.
●Self-serve model EC2-48/P has a self-serve pan insert
26-7/16" x 45-3/16" x 2" (672mm x 1148mm x 51mm) and
includes two (2) Wire Pan Grids.
