Alto-Shaam HALO HEAT EU2SYS-48/P User manual

ITEM NO. _______________________

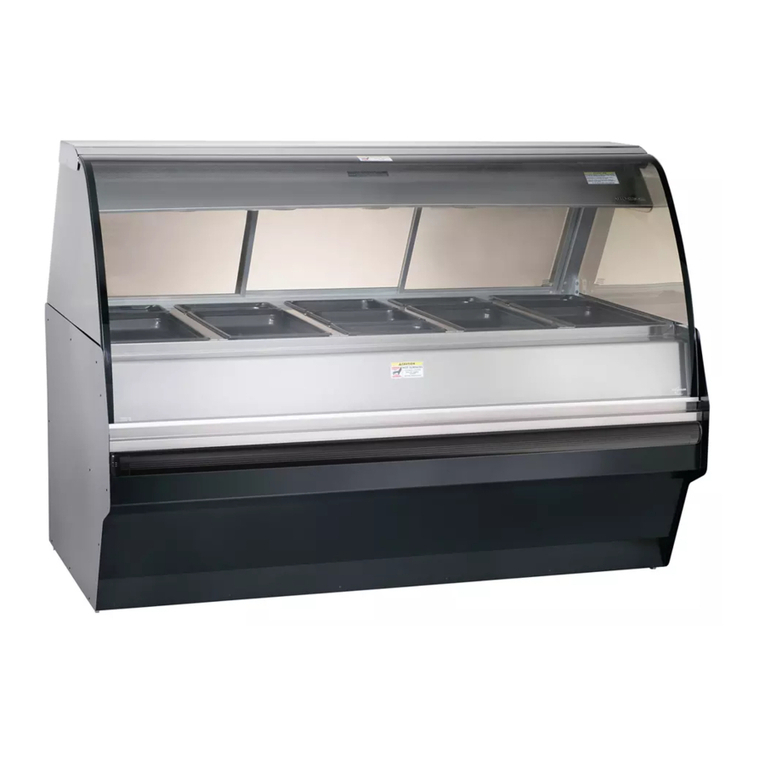

The display case is constructed of 18 gauge, non-magnetic stainless steel. A curved, tempered glass front encloses the
display case and can be lifted to a 90 degree angle for easy cleaning. Removable, sliding glass doors on the operator
side are included. Sliding door tracks have a “clean sweep” cutout allowing for easy cleaning and crumb removal.
Framed end clear glass with rubber gasket material protects glass edges from chipping and breakage. The base is
divided into two (2) individually managed heat zones with each zone controlled by a separate thermostat with a range
of 1 through 10 and heat-on indicator light. Overhead lights are controlled by ON/OFF switches in two (2) light zones.
Two (2) 125V plug outlets are available as an option on 120/208-240V units only.
■■EU2S S-48 - 48" (1219mm) length, with BU2 base,
■■EU2S S-48/P - 48" (1219mm) length, with BU2 base, 47-5/16" (1202mm) self-service opening across full length of case front
● HA O HEAT … a controlled, uniform heat source that gently
holds and surrounds food for better appearance, taste, and longer
holding life.
● Holds and displays hot food fresh and moist for hours —
without adding water.
● Expandable system to meet your specific requirements.
● HOT DISPLAY CASE
— Curved glass styling.
— Displays hot food without condensation on glass.
— Tempered sliding glass doors reflect heat back into the products
and mirror the display to enhance merchandising effect.
— Holds a full range of standard (gastronorm) pan sizes, full-size
or half-size sheet pans.
— Standard stainless steel front and black painted end panels.
— Thermostatically controlled heat source radiates from the base
of the display case in multiple heat zones.
— Overhead light zones with shatterproof coated bulbs.
●DECORATOR BASE
— Designed to accommodate your choice of equipment (750-TH-II,
750-TH-II/D, 750-S, 500-2D) or optional shelf.
— Stainless steel, distinctively framed in black as standard and
brushed stainless or custom color as alternate choices.
●SELF-SERVICE HOT DISPLA
— Customer self-service opening is available across the full
length of case.
— Front mounted heat-guard provides customer protection.
W164 9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHO E: 262.251.3800 800.558.8744 U.S.A./ CA ADA FAX: [phone].329.8744 U.S.A. O LY
www.alto-shaam.com
P R I N T E D I N U .S.A.D U E T O O N G O I N G P R O D U C T D E V E O P M E N T, S P E C I F I C A T I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E . #69 - 03/08
EU2SYS-48 SERIES
HEATED DISPLAY SYSTEMS
FACTORY I STALLED OPTIO S
●The system base is not sold as a separate
item. Order the full EU2SYS model to
receive the base.
●Panel Color Choices
➥Specify color choice:
■■Black, standard
■■Stainless Steel, optional
■■Custom Color, optional
EU2SYS-48
BACK VIEW SHOWN WITH
750-TH-II COOK AND HO D OVEN
AND OPTIONA CASTERS
EU2SYS-48
FRONT VIEW
SHOWN WITH
OPTIONA CASTERS

OPTIONS & ACCESSORIES
■■CARVING STATION 5001874
CASTERS, PLATE
■■5" (127mm), RIGID (2 REQUIRED)CS-2025
■■5" (127mm), SWIVEL WITH BRAKE (2 REQUIRED)CS-2026
■■GAUGE, I TERIOR AMBIE T TEMP. 5008527
■■GLASS, TEMPERED E D PA E, BRO ZE KIT 5001143
■■I DEPE DE T ELECTRICAL OUTLET 5001781
■■LOW PROFILE BASE
OVERALL HEIGHT REDUCED BY 4-3/ 4" (121mm) 304332
PANEL KIT, COUNTER TOP
■■BRUSHED STAINLESS STEEL 5001281
■■CUSTOM COLOR P148
PANEL KIT, S STEM
■■BRUSHED STAINLESS STEEL 5001287
■■CUSTOM COLOR 5005788
■■PAN INSERT, SELF-SERVICE 4" (102mm) DEEP 1001990
PLATFORM SCALE
■■LEFT-HAND 5001308
■■RIGHT-HAND 5001307
■■SHEET PAN DIVIDER BAR PACKAGE 5002802
■■SHELF, STAI LESS STEEL 5005786
■■TEMPERATURE PROBE 5004916
■■THERMOSTAT GUARD COVER PLATE 5007660
■■WORK SHELF WITH GRAVY LA E 5005638
W164 9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHO E: 262.251.3800 800.558.8744 U.S.A./ CA ADA FAX: [phone].329.8744 U.S.A. O LY
www.alto-shaam.com
WEIGHT(EST.)
MODEL ET SHIP
EU2SYS-48 612 lb (278 kg) 645 lb (293 kg)
EU2SYS-48/P 613 lb (278 kg) 650 lb (295 kg)
CRATED DIME SIO S: HXWXD
EU2SYS-48: NOT YET AVAI AB E
EU2SYS-48
EU2SYS-48 Profile
#69 - 03/08 D U E T O O N G O I N G P R O D U C T D E V E O P M E N T, S P E C I F I C A T I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A.
EU2SYS-48 SERIES
HEATED DISP LAY SYSTE MS
48" (1219mm)
ELECTRICAL OUTLET
26-1/2" (673mm)
31-5/8" (804mm)
58-3/16" (1477mm)
ELECTRICAL PANEL
5-1/2"
(140mm)
72" (1829mm)
ELECTRICAL PANEL
26-1/2" (673mm)31-5/8" (804mm)
5-1/2"
(140mm)
Rigid
Caster
Swivel
Caster
Swivel
Caster
96" (2438mm)
ELECTRICAL PANEL
26-1/2" (673mm)
31-5/8" (804mm)
58-3/16" (1477mm)
5-1/2"
(140mm)
32-1/2" (824mm)
31-5/8" (804mm)
5-1/2"
(140mm)
44-5/16" (1125mm)
26-1/4" (666mm)
OPENING WIDTH
28-5/16" (719mm)
OPENING HEIGHT
58-3/16" (1477mm)
58-3/16" (1477mm)
Swivel
Caster
26-1/4" (666mm)
OPENING WIDTH
Swivel
Caster
26-1/4" (666mm)
OPENING WIDTH
Rigid
Caster
Swivel
Caster Swivel
Caster
26-1/4" (666mm)
OPENING WIDTH
26-1/4" (666mm)
OPENING WIDTH
26-1/4" (666mm)
OPENING WIDTH
28-5/16" (719mm)
OPENING HEIGHT
(Shown with optional shelf)
(Shown with optional shelf) (Shown with optional shelf)
(Shown with optional shelf) (Shown with optional shelf) (Shown with optional shelf)
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
28-5/16" (719mm)
OPENING HEIGHT
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
ELECTRICAL
OUTLET
ELECTRICAL
OUTLET
28-5/16" (719mm)
OPENING HEIGHT
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
48" (1219mm)
ELECTRICAL OUTLET
26-1/2" (673mm)
31-5/8" (804mm)
58-3/16" (1477mm)
ELECTRICAL PANEL
5-1/2"
(140mm)
72" (1829mm)
ELECTRICAL PANEL
26-1/2" (673mm)31-5/8" (804mm)
5-1/2"
(140mm)
Rigid
Caster
Swivel
Caster
Swivel
Caster
96" (2438mm)
ELECTRICAL PANEL
26-1/2" (673mm)
31-5/8" (804mm)
58-3/16" (1477mm)
5-1/2"
(140mm)
32-1/2" (824mm)
31-5/8" (804mm)
5-1/2"
(140mm)
44-5/16" (1125mm)
26-1/4" (666mm)
OPENING WIDTH
28-5/16" (719mm)
OPENING HEIGHT
58-3/16" (1477mm)
58-3/16" (1477mm)
Swivel
Caster
26-1/4" (666mm)
OPENING WIDTH
Swivel
Caster
26-1/4" (666mm)
OPENING WIDTH
Rigid
Caster
Swivel
Caster Swivel
Caster
26-1/4" (666mm)
OPENING WIDTH
26-1/4" (666mm)
OPENING WIDTH
26-1/4" (666mm)
OPENING WIDTH
28-5/16" (719mm)
OPENING HEIGHT
(Shown with optional shelf)
(Shown with optional shelf) (Shown with optional shelf)
(Shown with optional shelf) (Shown with optional shelf) (Shown with optional shelf)
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
28-5/16" (719mm)
OPENING HEIGHT
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
ELECTRICAL
OUTLET
ELECTRICAL
OUTLET
28-5/16" (719mm)
OPENING HEIGHT
13-5/8"
(346mm)
OPENING
13-5/8"
(346mm)
OPENING
D I M E N S I O N S (HXWXD)
EXTERIOR, WITH BASE:
58-3/16" x 48" x 44-5/16" (1477mm x 1219mm x 1125mm)
WELL DIME SIO S (WXLXD ):
27-3/16" x 45-5/16" x 4-1/2" (690mm x 1151mm x 114mm)
PA N C O N F I G U R AT I O N *
PAN SIZE DIMENSIONS QTY.
F LL-SIZE & ONE-THIRD**: 12" X20" X2-1/2" (GN 1/1) 3
12" X6" X2-1/2" (GN 1/3) 3
HALF-SIZE & ONE-THIRD**: 12" X10" X2-1/2" (GN 1/2) 6
12" X6" X2-1/2" (GN 1/3) 3
F LL-SIZE SHEET PANS: 18" X26" X1" 2
MAX. CAPACITY/VOLUME:48 lbs (22 kg)
30 qts (36 L)
* Pans are not included with display case.
** Will also accept 4" (100mm) deep pans.
INSTALLATION REQUIREMENTS
Display case must be installed level. The display case must
not be installed in any area where it may be affected by
steam, grease, dripping water, high temperatures, or any
other severely adverse conditions.
Do not install a heated display case near a cold air source
such as a freezer, air conditioning vents, or in any area where
outside air fluctuation can affect performance.
S P E C I F I C AT I O N S
●Six (6) overhead lights with two (2) light zones.
●Two (2) base heat zones with two (2) adjustable thermostats with
a range of 1 through 10, and two (2) heat-on indicator lights.
●Two (2) tinted, reflective, tempered glass sliding doors on
operator side.
●One (1) 10" x 36" (254mm x 914mm) operator-side work shelf.
●Self-serve model EU2SYS-48/P has a self-serve pan insert
26-7/16" x 45-3/16" x 2" (672mm x 1148mm x 51mm) and
includes two (2) Wire Pan Grids.
E L E C T R I C A L
VOLTAGE PHASE CYCLE/HZ AMPS kW
120/208-240 (UL)1 50/60 13.8 3.3
at 208 1 50/60 11.6 2.5
at 240 1 50/60 13.0 3.1
230 (CE)1 50/60 12.6 2.9
230 1 50/60 12.6 2.9 BARE END, NO PLUG
BARE END, NO PLUG
