Amada MA-660A User manual

Z06OM1175807-06
OPERATION MANUAL
Original instructions
PROGRAM UNIT
MA-660A

MA-660A
Contents
1
Thank you for purchasing our Program Unit MA-660A.
Before using, read this operation manual carefully; after reading, save it in a proper place
where you can easily access.
Contents
1. Special Precautions ........................................................................................................ 1-1
(1) Safety Precautions....................................................................................................... 1-1
(2) Precautions for Handling ............................................................................................. 1-4
(3) On Disposal ................................................................................................................. 1-4
2. Features ........................................................................................................................... 2-1
3. Packaging ........................................................................................................................ 3-1
(1) Accessories ................................................................................................................. 3-1
(2) Options ........................................................................................................................ 3-1
4. Name and Functions of Each Section ........................................................................... 4-1
5. Explanation of Operation................................................................................................ 5-1
6. Fault Code List ................................................................................................................ 6-1
7. Specifications .................................................................................................................. 7-1
8. Connector Specifications ............................................................................................... 8-1

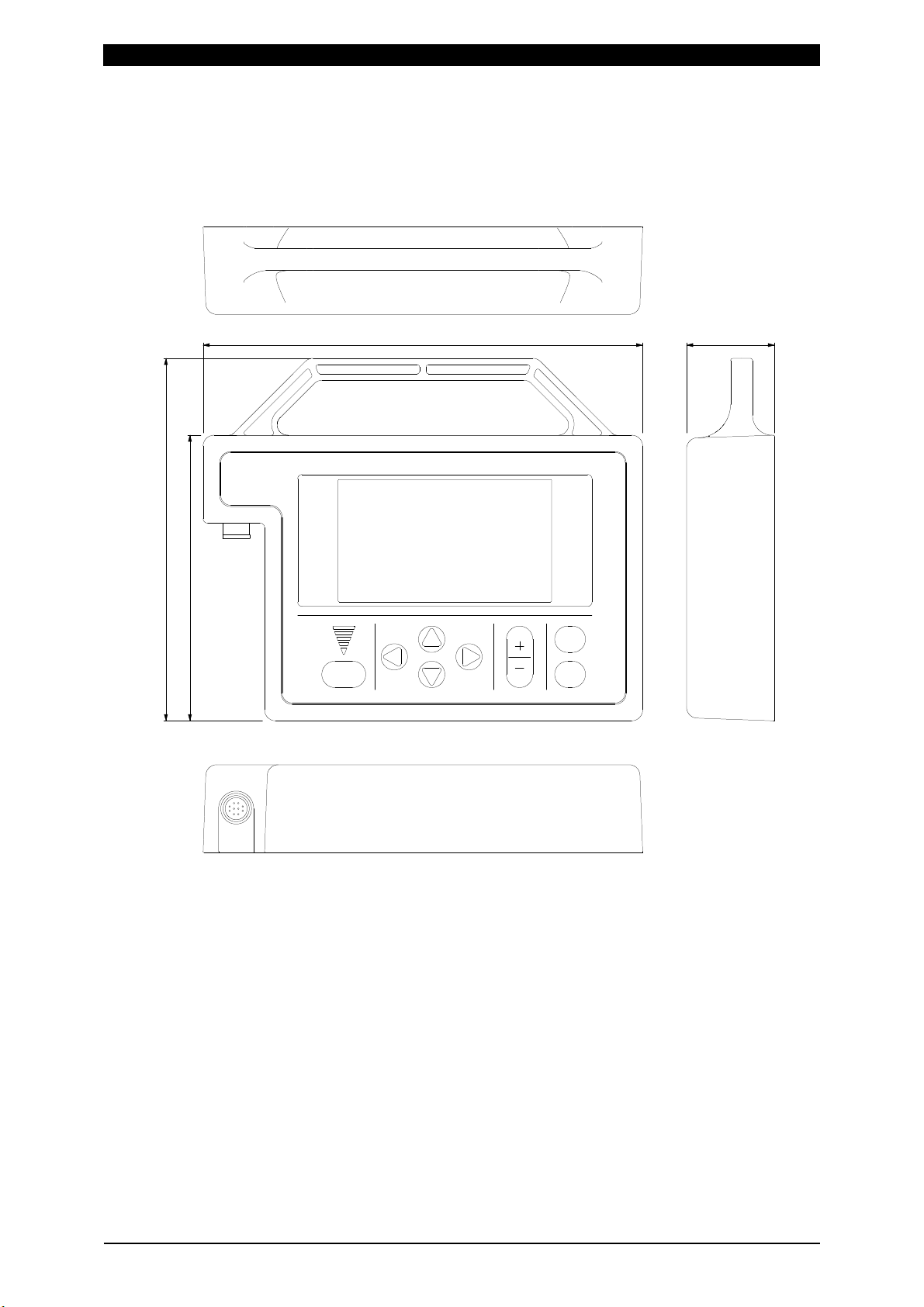

9. Outline Drawing............................................................................................................... 9-1

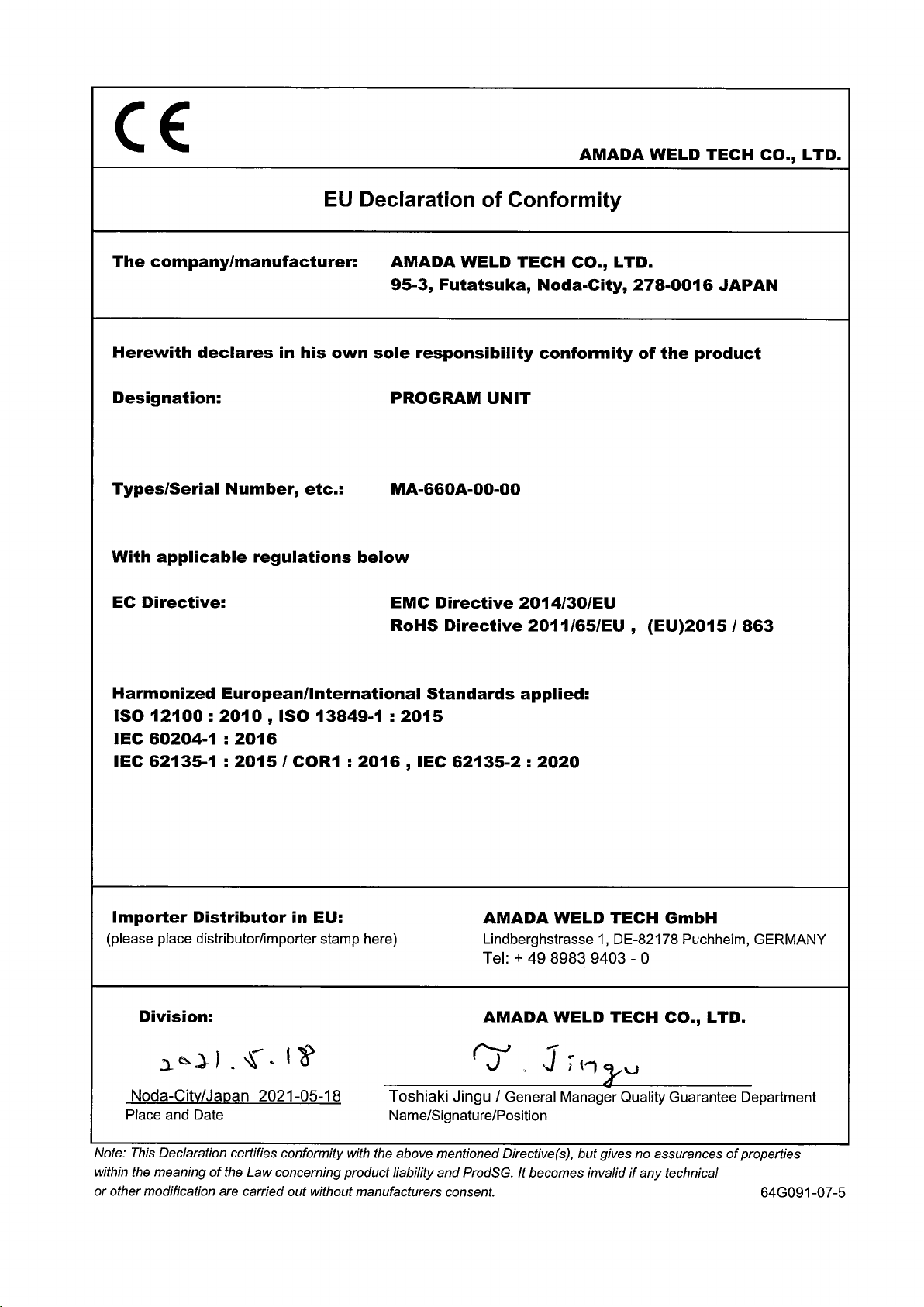

EU Declaration of Conformity

MA-660A
1. Special Precautions
1-1
These symbols denote
"prohibition". They are
warnings about actions
out of the scope of the
warranty of the product.
These symbols denote
actions which operators
must take.
Each symbol with a
triangle denotes that
the content gives
DANGER, WARNING
or CAUTION to the
operator.
1. Special Precautions
(1) Safety Precautions
Before using, read "Safety Precautions" carefully to understand the correct method
of use.
•These precautions are shown for safe use of our products and for prevention of
damage or injury to operators or others. Be sure to read each of them, since all
of them are important for safety.
•The meaning of the words and symbols is as follows.
Denotes operations and practices
that may imminently result in serious
injury or loss of life if not correctly
followed.
DANGER
!
Denotes operations and practices
that may result in serious injury or
loss of life if not correctly followed.
WARNING
!
Denotes operations and practices that
may result in personal injury or
damage to the equipment if
not
correctly followed.
CAUTION
！
!
Do not touch the inside of the Equipment unnecessarily
Since very high voltages are applied to the interior of this Equipment, it is
dangerous to touch it unnecessarily. Do not open the cover for the purposes
other than replacing the battery. When trouble occurs and inspection or repair
is needed, consult us.
Never disassemble, repair or modify the Equipment
These actions can cause electric shock and fire. Do not do anything other than
the maintenance described in the operation manual.
Never burn, destroy, cut, crush or chemically decompose the Equipment
This product incorporates parts containing gallium arsenide (GaAs).
DANGER
！

MA-660A
1. Special Precautions
1-2
Do not put your hands between the electrodes
When welding, keep your fingers and hands away from the electrodes.
Do not touch any welded part or electrodes during welding and just after
welding finished
The welded part of a workpiece, electrodes and arm are very hot.
Do not touch them; otherwise you may be burnt.
Do not splash water on the Equipment
Water splashed over the electric parts can cause electric shock and short
circuits.
Connect the specified cables securely
Cables of insufficient current capacities and loose connections can cause fire
and electric shock.
Do not damage the connecting cables
Do not tread on, twist or tense any cable. The connecting cables may be
broken, and that can cause electric
shock and fire. When repair or
replacement is needed, consult us.
Stop the operation if any trouble occurs
Continuous operation after occurrence of a trouble such as burning smell,
abnormal sound, abnormal heat, smoke, etc. can cause electric shock and
fire. If such a trouble occurs, immediately consult us or your distributor.
Persons with pacemakers must stay clear of the welding machine
A person who uses a pacemaker must not approach the welding machine or
walk around the welding shop while the welding machine is in operation,
without being permitted by his/her doctor. The welding machine generates a
magnetic field and has effects on the operation of the pacemaker while it is
turned on.
Protective gear must be worn
Put on protective gear such as protective gloves, long-sleeve jacket, leather
apron, etc. Surface flash and expulsion can burn the skin if they touch the
skin.
Wear protective glasses
If you look at the flash and expulsion directly during welding, your eyes may
be damaged. If any surface flash and expulsion gets in your eye, you may
lose your eyesight.
WARNING
！

MA-660A
1. Special Precautions
1-3
Do not place a water container on the Equipment
If water spills, insulation will deteriorate, and this may cause electric leak and
fire.
Keep combustible matter away from the Equipment
Surface flash and expulsion can ignite combustible matter. If it is impossible
to remove all combustible matter, cover them with non-combustible material.
Do not cover the Equipment with a blanket, cloth, etc.
If such a cover is used, it may be overheated and burn.
Do not use this Equipment for purposes other than welding
Use of this Equipment in a manner other than specified can cause electric
shock and fire.
Use ear protectors
Loud noises can damage hearing.
Keep a fire extinguisher nearby
Keep a fire extinguisher in the welding shop in case of fire.
Maintain and inspect the Equipment periodically
Maintain and inspect the Equipment periodically, and repair any damage
nearby before starting operation.
CAUTION
！

MA-660A
1. Special Precautions
1-4
(2) Precautions for Handling
■Handle the Transformer with care so as not to make an impact such as drop on
it.
■Do not use this Equipment in the following places:
・damp places (where humidity is higher than 90%),
・hot or cold places (where temperatures is above 40°C or below 5°C),
・places near a high noise source,
・places where chemicals are handled,
・places where water will be condensed,
・dusty places, and
・places at an altitude above 1000 meters.
■Clean the outside of the Equipment with a soft, dry cloth or one wet with a little
water. If it is very dirty, use diluted neutral detergent or alcohol. Do not use paint
thinner, benzine, etc., since they can discolor or deform the Equipment.
■Do not put a screw, a coin, etc., in the Equipment, since they can cause a
malfunction.
■Operate the Equipment according to the method described in this operation
manual.
■Operate the switches and buttons carefully by hand. If they are operated roughly
or with the tip of a screwdriver, a pen, etc., this will cause malfunction or
damage.
■Operate the switches and buttons one by one. If two or more are operated at a
time, the Equipment may malfunction or be damaged.
(3) On Disposal
This product incorporates parts containing gallium arsenide (GaAs). At the time
of disposal, separate it from general industrial waste or domestic waste and carry
out the disposal in accordance with applicable laws and regulations.

MA-660A
2. Features
2-1
2. Features
The MA-660A is a program unit which is connected to our welding power supplies and
used to set the operating condition, etc. of those products.
The MA-660A can be connected to applicable products; it can be used by rewriting the
contents of the memory.
CAUTION
Normally, the equipment can be used as a program unit just after the power is turned
on. However, it takes several minutes to rewrite the contents of the memory in the
following cases.
•When there is no program in the memory.
•When the model number of equipment differs from that of the equipment
previously connected.
•When the program version of equipment differs from that of the equipment
previously connected.

MA-660A
3. Packaging
3-1
3. Packaging
(1) Accessories
Item Model No. Item No. Q’ty
Operation manual AS1175809(OM1175806,OM1175807) 1175809 1
(2) Options
Item Model No. Item No.
2 m SK-1176504 1176504
5 m SK-1176505 1176505
10 m SK-1176506 1176506
15 m SK-1176507 1176507
Circuit cable
20 m SK-1176508 1176508

MA-660A
4. Name and Functions of Each Section
4-1

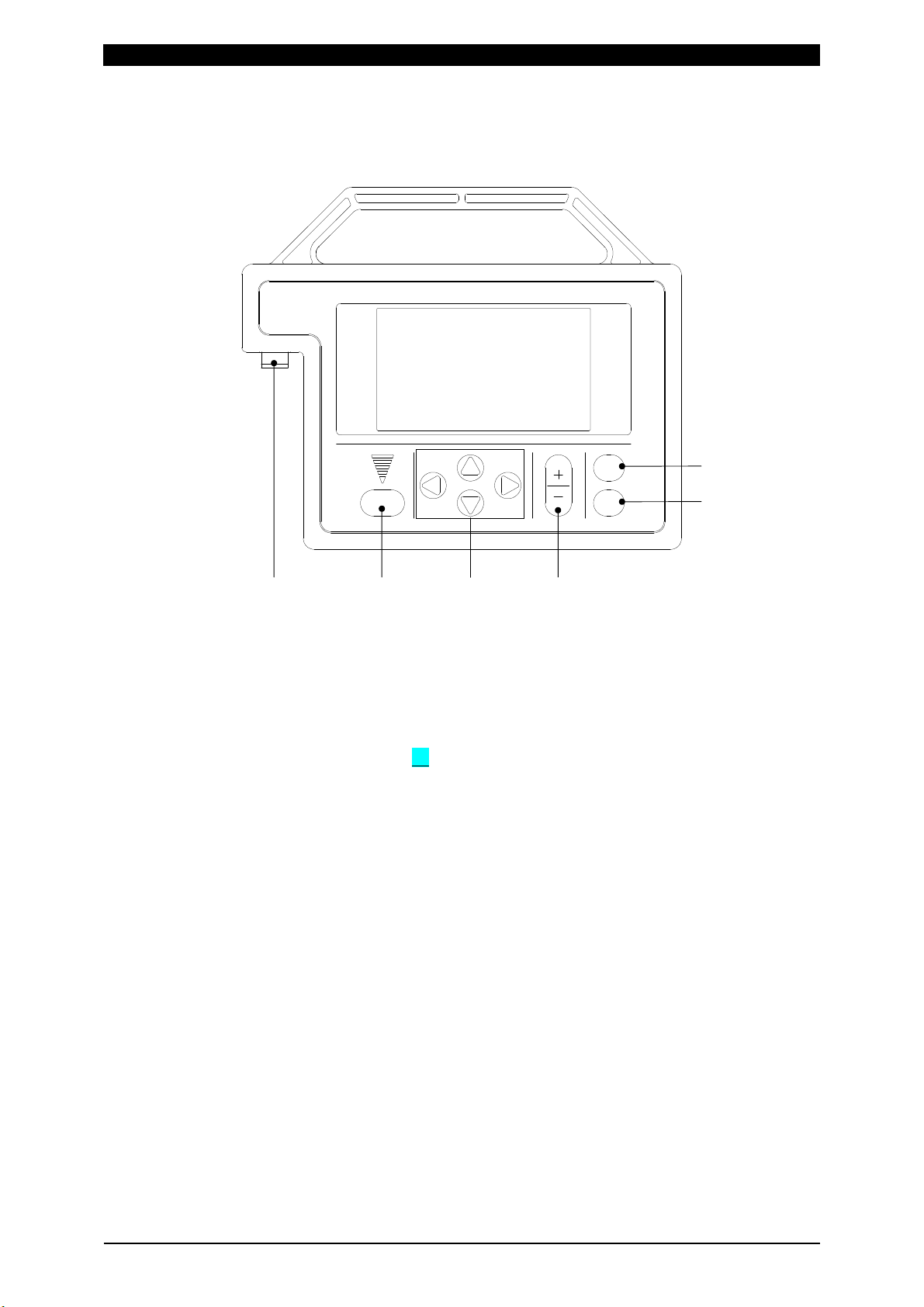

4. Name and Functions of Each Section
CURSOR
ENTER
MENU
ON
OFFRESET
TROUBLE
1TROUBLE RESET key
Pressing this key after the cause of trouble is eliminated while an error
message is indicated turns off the error massage.
2CURSOR keys
Used to move the cursor ( ) to select an item.
3+ON/-OFF keys
Used to change the value of a selected item or turn it on and off.
4ENTER key
Used to write the set or changed value and [ON/OFF] data in the Power Supply
connected to the MA-660A. After any data is set or changed, be sure to press
this ENTER key to write that data before moving the cursor.
If this ENTER key is not pressed, the Power Supply connected to the MA-660A
does not recognize the set data.
5MENU key
Used to display the MENU screen. Press this key to return to the MENU screen
from any other screens.
1 2 36
5
4

MA-660A
4. Name and Functions of Each Section
4-2
6Connector
Used to connect the circuit cable. Connect the other end of the cable to the
PROGRAM UNIT connector of the Power Supply.
CAUTION

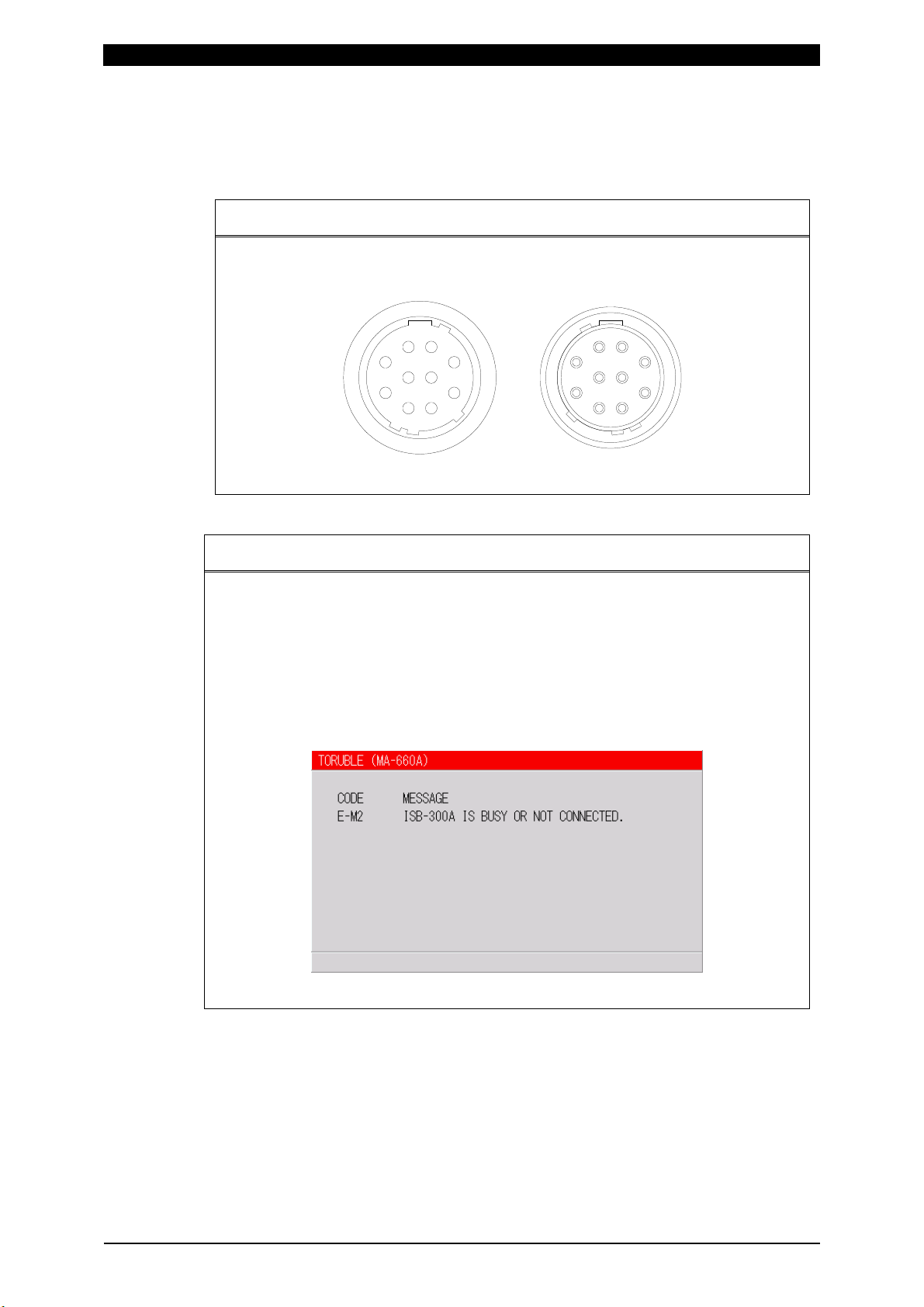

When connecting the circuit cable, insert it with aligned with the key groove
of the connector. The connector may be broken if inserted with force.
MA-660A side (male) Circuit cable side (female)
CAUTION
No settings or changes may be made to any item from the receipt of the start
signal through the end of the weld sequence and turning off the start signal.
If setting is performed during the weld sequence, the following screen
appears. Press the TROUBLE RESET key 1.
Also, when changing a screen to call up another setting schedule during the
weld sequence, the TROUBLE RESET key 1does not work even if the
following screen appears. In this case, you need to turn on the power again.
(When connecting to the Power Supply, ISB-300A)

MA-660A
5. Explanation of Operation
5-1
5. Explanation of Operation
Normally, the MA-660A can be used as a program unit of the connected product just
after the power is turned on.
For how to operate, see the Operation Manual attached to the connected welding power
supply.
In the following cases, however, the MA-660A works as a program unit several minutes
after being turned on because of rewriting the contents of the memory.
When there is no program in the memory.
Download the program in the memory.
Select YES for OVER WRITE and press the ENTER key to rewrite the contents of the
memory.
When the model number and the program version of the welding power supply stored
in the MA-660A differ from those of the connected welding power supply.
Download the program in the memory.
Select YES for OVER WRITE and press the ENTER key to rewrite the contents of the
memory.
MA-660A PROGRAM CHECK
CONNECT MEMORY
ISB-300A [V00-00A] PROGRAM ERASED
MA-660A (ISB-300A )
[V00-01A]
CONNECT IMPOSSIBLE
OVER WRITE NO
MA-660A PROGRAM CHECK
CONNECT MEMORY
ISB-300A [V00-00A] ISB-300A [V00-01A]
MA-660A (ISB-300A ) MA-660A (ISB-300A )
[V00-01A] [V00-02A]
CONNECT IMPOSSIBLE
OVER WRITE NO

MA-660A
5. Explanation of Operation
5-2
When you want to rewrite the program in the memory with pressing the upper portion
of the CURSOR key at power-on.
Select YES for OVER WRITE and press the ENTER key to rewrite the contents of the
memory.
MA-660A PROGRAM CHECK
CONNECT MEMORY
ISB-300A [V00-00A] ISB-300A [V00-00A]
MA-660A (ISB-300A ) MA-660A (ISB-300A )
[V00-01A] [V00-01A]
OVER WRITE NO

5-3
Memory lost?
POWER ON
Proper product connected?
Model name and program version are same as those in MA-660A memory?
MA-660A does not support the connected product, communication cable is broken, or wrong connection is made. There is no program in memory.
"CONNECT IMPOSSI BLE" blinks.
Unusable
Wait for several minutes to overwrite memory to support product connected.
MA-660A is now working as program unit of product con- nected. See operation manual of the connected product.
NO
YES
NO
YES
NO
YES
NO
(1) Check product
connected.
(2) Check communi-
cation cable.
TORUBLE (MA-660A) CODE MESSAGE E-M1 COMMUNICATION LINE ERROR
MA-660A PROGRAM CHECK CONNECT MEMORY ISB-300A [V00-00A] PROGRAM ERASED MA-660A (ISB-300A ) [V00-01A] CONNECT IMPOSSIBLE OVER WRITE NO
Rewrite program in memory? (Turn on the power with pressing CURSOR key.)
MA-660A PROGRAM CHECK CONNECT MEMORY ISB-300A [V00-00A] ISB-300A [V00-01A] MA-660A (ISB-300A ) MA-660A (ISB-300A ) [V00-01A] [V00-02A] CONNECT IMPOSSIBLE OVER WRITE NO
MA-660A PROGRAM CHECK CONNECT MEMORY ISB-300A [V00-00A] ISB-300A [V00-00A] MA-660A (ISB-300A ) MA-660A (ISB-300A ) [V00-01A] [V00-01A] OVER WRITE NO
Erase former data and write program version of connect ed product? OVER WRITE ?
Erase former data and write program to support newly selected product? OVER WRITE ?
Make it support the currently con- nected product? OVER WRITE ?
NO
NO
OK
YES
YES
Flowchart of O
p
erationafterPowerisTurnedon
5. Explanation of Operation
5-3
MA-660A

MA-660A
6. Fault Code List
6-1
6. Fault Code List
In the event of a problem with the Power Supply, the MA-660A displays the fault code
and message.
In such cases, read this section carefully, then inspect the equipment and take the
necessary countermeasures. If you have any questions, consult us or your distributor.
Fault
code
Error message Cause Measures
E-M1 COMMUNICATION
LINE ERROR
･Cannot be connected to the
welding power supply.
･
Check if the circuit cable for broken
wire and for wrong connection.
･Check if the MA-660A supports the
connected welding power supply.
･Check the connected welding
power supply for fault.
E-M2
*** IS BUSY OR
NOT
CONNECTED
Note)
*** indicates the
model number of
welding power supply
connecting to the
MA-660A.
･The welding power supply is
performing the welding sequence.
･Process of schedule setting is
being executed.
･Cannot be connected to the
welding power supply.
･
Wait until the welding sequence of
welding power supply is complete.
･Set the next schedule after the
process of schedule setting is
complete.
･Check if the circuit cable for broken
wire and for wrong connection.
･Check the connected product for
fault.

MA-660A
7. Specifications
7-1
7. Specifications
Power supply voltage 24
V DC (supplied from the welding power supply)
Display TFT liquid crystal panel
Operation environment
Ambient temperature: +5° – +40°C
Maximum humidity: 90% max. (Dew condensation not allowed)
Maximum altitude: 1000 meters max.
Storage environment Temperature range: -10°– +55°C
Maximum humidity: 90% max. (Dew condensation not allowed)
Case protection IP40
Outline dimensions 165
mm (H) × 200 mm (W) × 40 mm (D) (Not including
projections)
Mass 470
g

MA-660A
8. Connector Specifications
8-1
8. Connector Specifications
1: RD + / SD +
2: RD – / SD –
3: NC
4: NC
5: NC
6: +24
V DC IN supplied from the
connected welding power supply
7: 0
V
8: Shield
9: NC
10: NC
CAUTION
Use the cable purchased from us.
！
1
2
3
45
6
7
8
910

MA-660A
9. Outline Drawing
9-1
9. Outline Drawing
(Dimensions in mm)
CURSOR
ENTER
MENU
ON
OFFRESET
TROUBLE
40
130
200
165
