Amana AE093E35AX User manual

•Allsafetyinformationmustbefollowed.
See Installation instructions for more safety precautions.
•RefertotheappropriatePartsCatalogforpart number information.
•Models listed on page 3.
AE/AH
R410A Window Air Conditioners
& Heat Pumps
RT4271000r1
October2014
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures or services performed by an unqualified person.
isaregisteredtrademark of MaytagCorporationorits related companiesandis used underlicenseto Goodman Company,L.P.,Houston, TX, USA. Allrightsreserved.
Copyright © 2010-2014 Goodman Company, L.P.
AE/AH 18,000
AE/AH 9,000 and 12,000

PRODUCT IDENTIFICATION
2
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequesting service orpartsinformation.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
WARNING
WARNING ONLY individuals meeting (at a
minimum) the requirements of
an "Entry Level Technician" as specified by the Air-
Conditioning, Heating, and Refrigeration Institute (AHRI)
may use this information. Attempting to install or repair
this unit without such background may result in product
damage, personal injury, or death.
WARNING
WARNING

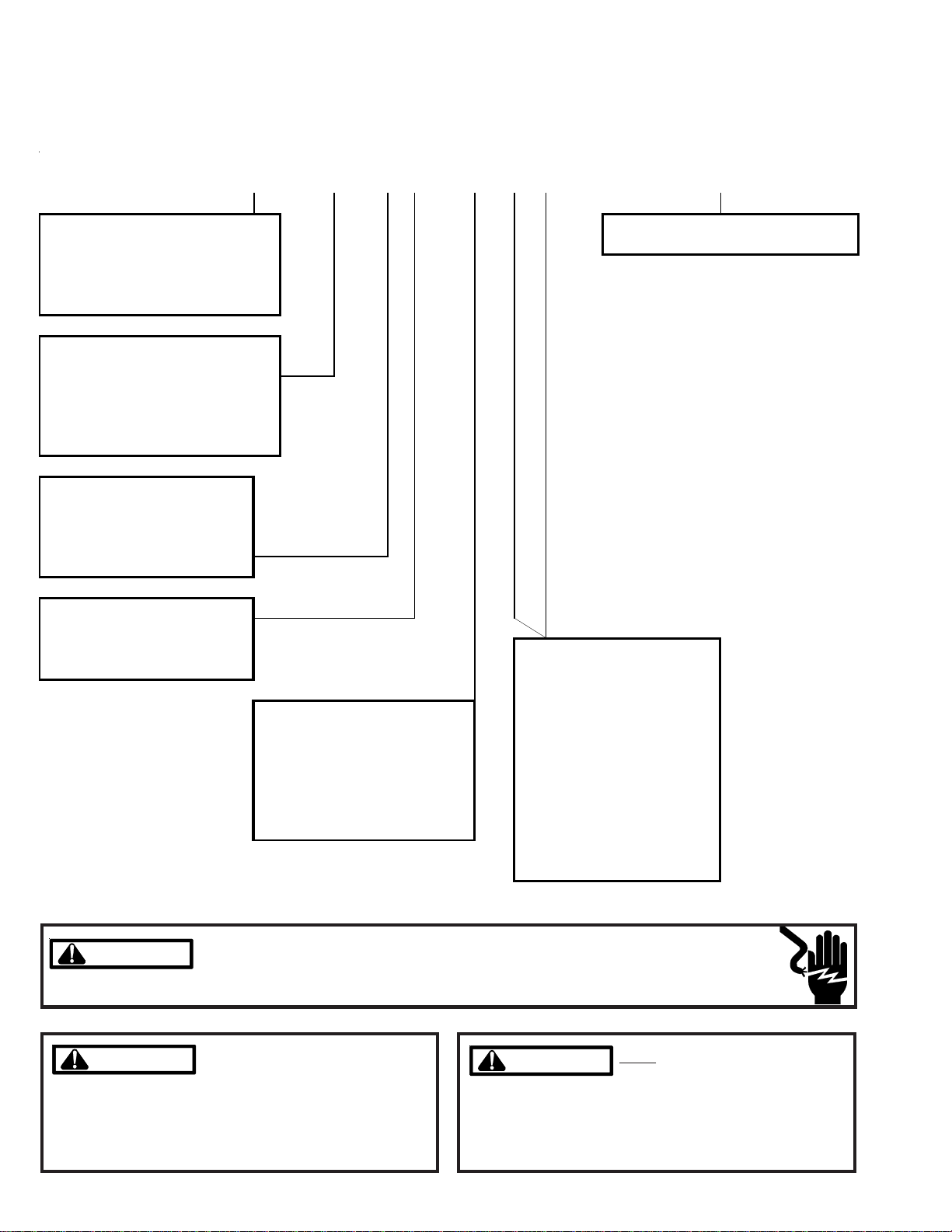

AE 09 3 E 35 A X
BASIC MODEL TYPE
AE = Electric Heat TTW
AH = Heat Pump TTW
COOLING CAPACITY
09 = 9000 BTUH
12 = 12000 BTUH
18 = 18000 BTUH
RATED VOLTAGE
3 = 230/208V 60Hz 1Ph
DESIGN SERIES (Refrig)
A = R-22
E = R-410A FEATURE CODE
G = 2014 R-410A MA = Standard Model R-22
AX= Standard Model R-410A
HEATER SIZE
35 = 3.5 kw (230/208V)
Use up to 4 as needed
In alphabetical order
AA
MAJOR/MINOR DESIGN REV.

PRODUCT IDENTIFICATION
3
The model number is used for positive identification of component parts used in manufacturing. Please use this number
whenrequesting service orpartsinformation.
AE093E35AX
AE123E35AX
AE183E35AX
AE093G35AX
AE183G35AX
AE123G35AX
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
that is not design certified by
Goodman for use with this unit.
Serious property damage, personal injury, reduced unit
performance and/or hazardous conditions may result
from the use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.
WARNING
WARNING
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR
INSTALLING THIS UNIT. MULTIPLE POWER
SOURCES MAY BE PRESENT. FAILURE TO DO SO
MAY CAUSE PROPERTY DAMAGE, PERSONAL
INJURY OR DEATH.
AH093E35AX
AH123E35AX
AH183E35AX
AH183G35AX
AH093G35AX
AH123G35AX

PRODUCT DESIGN
4
AE room air conditioners and AH heat pump units are de-
signedfor windowinstallations inresidentialapplications and
areavailable in 9,000,12,000and 18,000 BTUHsizes.They
aredesignedfor 208/230 volt single phase applications.
The provided filter must be installed and under no circum-
stancesshould theunit beoperatedwithout thefilter inplace.
LocationandClearances
Be sure electrical service is adequate for chosen model of
air conditioner or heat pump. Complete electrical rating for
unitis found on serial plate locatedbehind front grille. Elec-
trical outlet must be close enough to unit for power cord to
reachwithout strain.
Air conditioner should be the only appliance on individual
circuit.
For personal safety and to avoid possible damage to appli-
ance or home, observe all safety instructions.
•Unitwith an optional window mounting kit
These models are designed for mounting though an
openingin awall.These units canbeadapted towindow
installation by using the optional window mounting kit
suppliedwith your unit.
•Unitwithoutawindow mounting kit
Nowindowmountingkitis supplied with the unit. These
modelsare designedfor mountingthroughan openingin
awall. Theseunits canbeadapted towindow installation
bypurchasing an optional window mounting kit.Consult
yourdealerto choose the kit that is appropriate for your
modelandinstallation.
NOTES:
1. Mechanical experience is required to install the air
conditioneror heat pump.
2. Installation can take from 1 to 3 hours, depending on
installer’s knowledge and skill.
3. If you encounter problems during installation, call our
consumerinformationlinetoll-freeat1-877-376-0214(U.S.
andCanada only). If your problem cannot beresolvedby
phone, contact an authorized Amana®brand servicer.
Contact and service will be at your expense.

SPECIFICATIONS
5
AE***[E/G]35AX
MODEL AE093E35AX AE093G35AX AE123E35AX AE123G35AX AE183E35AX AE183G35AX
Cooling (BTU's) 9500
9200 9000 8700 11600 11200 11600 11200 17800 17400 17600 17200
@
EER
CEER 10.0 11.0 10.9 10.0 11.0 10.9 9.7 10.8 10.7
Cooling Watts 950 - 920 820 -790 1160 - 1120 1050 - 1020 1835 - 1795 1630 -1590
Cooling Amps 4.3 - 4.5 3.7 -4.0 5.2 - 5.7 4.5 - 4.9 8.2 - 8.8 7.1 - 7.6
Electric Heat 10700 - 8500 10700 - 8500 10700 - 8500 10700 - 8500 11000 - 9000 11000 - 9000
Rating Electric Heat Watts 3500 3580 - 2770 3500 3580 - 2770 3600 3680 - 3030
Actual Electric Heat Watts 3575 - 2765 3580 - 2770 3575 - 2765 3580 - 2770 3555 - 2900 3680 - 3030
Electric Heat Amps 16.0 - 14.6 16.0 -14.6 16.0 - 14.6 16.0 -14.6 16.0 - 15.6 16.0 - 15.6
Heatpump
Heatpump Watts --- --- --- --- --- ---
Heatpump Amps --- --- --- --- --- ---
Reverse Cycle Amps --- --- --- --- --- ---
Voltage 230 - 208 230 - 208 230 - 208 230 - 208 230 - 208 230 - 208
Power Cord
Rating 20 amp 20 amp 20 amp 20 amp 20 amp 20 amp
Type LCDI LCDI LCDI LCDI LCDI LCDI
Length 6 feet 6 feet 6 feet 6 feet 6 feet 6 feet
Dehumidification: pints / hour 2.3 2.1 2.6 2.8 4.2 3.6
Fan Speeds
CFMcooling : High-Medium-Low 280 - 230 270 - 220 280 - 230 270 - 220 450 - 390 520 - 440
ExhaustAir&CFM NONONONO9.59.5
Motor Capacitor 4uf 4uf 4uf 4uf 7uf 7uf
Controls
Thermostat temp. range (deg.) 61 - 86 61 - 86 61 - 86 61 - 86 61 - 86 61 - 86
Energy Saver ( auto fan ) Yes Yes Yes Yes Yes Yes
24 hour timer Yes Yes Yes Yes Yes Yes
3minutecompressor delay Auto Auto Auto Auto Auto Auto
Chassis Size
Chassis Heighth 15 3/8" 15 3/8" 15 3/8" 15 3/8" 16 7/8" 16 7/8"
Chassis Width 22 5/8" 22 5/8" 22 5/8" 22 5/8" 26 " 26 "
Chassis Depth 24" 24" 24" 24" 27 3/4" 30 1/2"

6
SPECIFICATIONS AH***[E/G]35AX
MODEL AH093E35AX AH093G35AX AH123E35AX AH123G35AX AH183E35AX AH183G35AX
Cooling (BTU's) 9500
9200 9000 8700 11600 11200 11600 11200 17300 17000 17300 17000
@
EER
CEER 10.0 9.9 9.8 9.5 9.9 9.8 9.0 9.9 9.8
Cooling Watts 950 - 920 910 - 880 1220 - 1180 1170 - 1130 1920 - 1890 1750 -1720
Cooling Amps 4.6 - 4.8 3.9 - 4.2 5.5 - 5.9 5.1 - 5.3 8.5 - 9.0 7.3 - 7.8
Electric Heat 10700 - 8500 10700 - 8500 10700 - 8500 10700 - 8500 11000 - 9000 11000 - 9000
Rating Electric Heat Watts 3500 3580 - 2770 3500 3580 - 2770 3600 3680 -3030
Actual Electric heat Watts 3575 - 2765 3580 - 2770 3575 - 2765 3580 - 2770 3680 - 3030 3680 -3030
Electric Heat Amps 16.0 - 14.6 16.0 - 14.6 16.0 - 14.6 16.0 - 14.6 16.0 - 15.6 16.0 - 15.6
Heatpump (BTU's) 8400
8100 7500 7200 10300 10000 10200 9900 16000 15700 14300 14000
@C.O.P. 2.92.72.62.62.62.8
Heatpump Watts 850 - 820 810 -780 1160 - 1130 1150 - 1110 1800 - 1770 1500 - 1470
Heatpump Amps 4.2 - 4.5 3.5 - 3.8 5.1 - 5.6 5.1 - 5.3 8.3 - 8.8 6.5 - 7.0
Voltage 230 -208 230 -208 230 -208 230 -208 230 -208 230 -208
Pow er Cord
Rating 20 amp 20 amp 20 amp 20 amp 20 amp 20 amp
Type LCDI LCDI LCDI LCDI LCDI LCDI
Length 6 feet 6 feet 6 feet 6 feet 6 feet 6 feet
Dehumidification: pints / hour 2.2 2.1 2.5 3.2 4.1 4.7
Fan Speeds
CFMcooling : High-Medium-Low 280 - 230 270 - 220 280 - 230 270 - 220 590-510 540-460
ExhaustAir&CFM NONONONO9.59.5
Motor Capacitor 4uf 4uf 4uf 4uf 7uf 7uf
Controls
Thermostat temp. range (deg.) 61 - 86 61 - 86 61 - 86 61 - 86 61 - 86 61 - 86
Energy Saver ( auto fan ) Yes Yes Yes Yes Yes Yes
24 hour timer Yes Yes Yes Yes Yes Yes
3 minute compressor delay Auto Auto Auto Auto Auto Auto
Chassis Size
Chassis Heighth 15 3/8" 15 3/8" 15 3/8" 15 3/8" 16 7/8" 16 7/8"
Chassis Width 22 5/8" 22 5/8" 22 5/8" 22 5/8" 26 " 26 "
Chassis Depth 24" 24" 24" 24" 30 1/2" 30 1/2"

COOLING PERFORMANCE DATA
7
AE***[E/G]35AX
SEN
BTUH SEN
BTUH SEN
BTUH SEN
BTUH
85 95 105 115
75 8960 6770 76 8495 6540 77 8000 6295 79 7470 6055 81
61 80 8910 7925 89 8460 7690 91 7975 7445 93 7570 7570 100
85 9065 9065 100 8695 8695 100 8315 8315 100 7875 7875 100 75 10135 5435 54 9680 5230 54 9045 5020 55 8455 4915 58
67 80 10035 6725 67 9500 6285 66 8930 6065 68 8345 5775 69
85 9875 7825 79 9420 7690 82 8780 7405 84 8230 6965 85 75 11390 4075 36 10790 3855 36 10185 3635 36 9540 3405 36
73 80 11260 5210 46 10670 4990 47 10040 4765 47 9390 4535 48
85 11115 6340 57 10520 6125 58 9890 5895 60 9230 5665 61 75 10985 10985 100 10355 8225 79 9645 7895 82 9055 7515 83
61 80 10940 9965 91 10320 9660 94 9585 9305 97 9165 8900 97
85 11220 11220 100 10695 10695 100 10055 10055 100 9380 9380 100 75 12445 6775 54 11895 6545 55 11040 6190 56 10185 5850 57
67 80 12305 8150 66 11600 7855 68 10840 7545 70 9960 7220 73
85 12105 9585 79 11505 9335 81 10640 9005 85 9745 8675 89 75 14050 4985 35 13285 4700 35 12510 4420 35 11625 4105 35
73 80 13880 6400 46 13105 6115 47 12315 5830 47 11335 5485 48
85 13695 7815 57 12940 7540 58 12055 7250 60 11070 6880 62 75 16855 16855 100 15890 12625 79 14795 12120 82 9055 11530 127
61 80 16790 15290 91 15835 14820 94 14705 14275 97 9165 13660 149
85 17215 17215 100 16410 16410 100 15430 15430 100 14390 14390 100 75 19095 10400 54 18250 10045 55 16935 9500 56 15630 8975 57
67 80 18885 12505 66 17800 12055 68 16635 11580 70 15280 11080 73
85 18575 14705 79 17655 14325 81 16325 13820 85 14955 13310 89 75 21560 7650 35 20385 7215 35 19195 6780 35 17835 6295 35
73 80 21300 9825 46 20115 9385 47 18900 8950 47 17395 8420 48
85 21015 11995 57 19860 11570 58 18500 11130 60 16985 10560 62
SHR TOTAL
BTUH SHR
AE093AE123AE183
MODEL ID WB
ENT ID DB
ENT TOTAL
BTUH SHR TOTAL
BTUH
AE "E" MODEL 230V
TOTAL
BTUH SHR
OUTDOOR TEMP

8
COOLING PERFORMANCE DATA AE***E35AX
SEN
BTUH SEN
BTUH SEN
BTUH SEN
BTUH
85 95 105 115
75 8660 6470 75 8195 6240 76 7700 5995 78 7170 5755 80
61 80 8610 7625 89 8160 7390 91 7675 7145 93 7270 7270 100
85 8765 8765 100 8395 8395 100 8015 8015 100 7575 7575 100 75 9835 5135 52 9380 4930 53 8745 4720 54 8155 4615 57
67 80 9735 6425 66 9200 5985 65 8630 5765 67 8045 5475 68
85 9575 7525 79 9120 7390 81 8480 7105 84 7930 6665 84 75 11090 3775 34 10490 3555 34 9885 3335 34 9240 3105 34
73 80 10960 4910 45 10370 4690 45 9740 4465 46 9090 4235 47
85 10815 6040 56 10220 5825 57 9590 5595 58 8930 5365 60 75 10585 10585 100 9955 7825 79 9245 7495 81 8655 7115 82
61 80 10540 9565 91 9920 9260 93 9185 8905 97 8765 8500 97
85 10820 10820 100 10295 10295 100 9655 9655 100 8980 8980 100 75 12045 6375 53 11495 6145 53 10640 5790 54 9785 5450 56
67 80 11905 7750 65 11200 7455 67 10440 7145 68 9560 6820 71
85 11705 9185 78 11105 8935 80 10240 8605 84 9345 8275 89 75 13650 4585 34 12885 4300 33 12110 4020 33 11225 3705 33
73 80 13480 6000 45 12705 5715 45 11915 5430 46 10935 5085 47
85 13295 7415 56 12540 7140 57 11655 6850 59 10670 6480 61 75 16455 16455 100 15490 12225 79 14395 11720 81 8655 11130 129
61 80 16390 14890 91 15435 14420 93 14305 13875 97 8765 13260 151
85 16815 16815 100 16010 16010 100 15030 15030 100 13990 13990 100 75 18695 10000 53 17850 9645 54 16535 9100 55 15230 8575 56
67 80 18485 12105 65 17400 11655 67 16235 11180 69 14880 10680 72
85 18175 14305 79 17255 13925 81 15925 13420 84 14555 12910 89 75 21160 7250 34 19985 6815 34 18795 6380 34 17435 5895 34
73 80 20900 9425 45 19715 8985 46 18500 8550 46 16995 8020 47
85 20615 11595 56 19460 11170 57 18100 10725 59 16585 10160 61
AE123AE183
ID WB
ENT ID DB
ENT TOTAL
BTUH SHR
AE093
TOTAL
BTUH TOTAL
BTUH
SHR SHR
AE "E" MODEL 208V
SHRMODEL TOTAL
BTUH

COOLING PERFORMANCE DATA
9
SEN
BTUH SEN
BTUH SEN
BTUH SEN
BTUH
85 95 105 115
75 8841 7057 80 8474 6956 82 7915 6912 87 7298 6757 93 80 8851 8365 95 8529 8192 96 8040 7770 97 7325 7188 98 85 9098 8695 96 8966 8556 95 8153 7854 96 7438 7326 98 75 9322 5129 55 9393 5541 59 8895 5178 58 8393 5163 62 80 9373 6031 64 9403 6230 66 8942 6448 72 8359 6208 74 85 9431 6903 73 9444 7855 83 8952 7670 86 8359 7467 89 75 10143 3417 34 10065 3420 34 9834 3569 36 9475 3474 37 80 10187 4596 45 10088 5017 50 9844 4887 50 9437 4785 51 85 10238 6103 60 10146 6287 62 9865 6207 63 9427 5853 62 75 10945 8746 80 10491 8414 80 9799 8760 89 9035 8364 93 80 10957 10321 94 10559 10207 97 9954 9595 96 9069 8956 99 85 11264 10881 97 11100 10825 98 10093 9849 98 9209 9063 98 75 11541 6516 56 11629 6300 54 11012 6441 58 10391 6540 63 80 11604 7622 66 11642 7893 68 11071 7715 70 10349 7626 74 85 11675 8647 74 11692 9901 85 11083 9716 88 10349 9264 90 75 12557 4395 35 12460 4147 33 12175 4505 37 11730 4172 36 80 12612 6126 49 12490 6340 51 12188 5952 49 11684 5855 50 85 12675 6847 54 12561 7670 61 12213 7687 63 11671 7226 62 75 16674 13520 81 15983 13479 84 14928 13428 90 13764 13046 95 80 16693 15791 95 16085 15394 96 15164 14611 96 13816 13533 98 85 17160 16205 94 16911 16335 97 15377 15025 98 14029 13935 99 75 17582 9752 55 17716 10087 57 16776 10168 61 15830 9836 62 80 17678 11251 64 17736 11743 66 16866 12219 72 15766 11779 75 85 17787 13395 75 17812 14702 83 16885 14858 88 15766 14552 92 75 19130 6504 34 18983 6309 33 18548 6846 37 17870 6529 37 80 19213 8985 47 19028 9330 49 18567 9501 51 17800 9215 52 85 19309 11049 57 19136 11656 61 18605 11657 63 17780 10936 62
AE183 AE123 AE093
67 73 67 73 61 67 73 61 61
SHR TOTAL
BTUH SHR TOTAL
BTUH SHR
AE "G" MODEL 230V
OUTDOOR TEMP
MODEL ID WB
ENT ID DB
ENT TOTAL
BTUH SHR TOTAL
BTUH
AE***G35AX

10
COOLING PERFORMANCE DATA AE***G35AX
SEN
BTUH SEN
BTUH SEN
BTUH SEN
BTUH
85 95 105 115
75 8748 7243 83 8385 6926 83 7832 6892 88 7221 6651 92 80 8758 8145 93 8439 8186 97 7955 7844 99 7248 7103 98 85 9003 8742 97 8872 8591 97 8067 7830 97 7360 7307 99 75 9224 5025 54 9294 5389 58 8801 5457 62 8305 5286 64 80 9274 6028 65 9305 6141 66 8848 6223 70 8271 6203 75 85 9331 7216 77 9345 7768 83 8858 7931 90 8271 7772 94 75 10036 3713 37 9959 3408 34 9731 3539 36 9375 3458 37 80 10080 4686 46 9982 4891 49 9741 4870 50 9338 4840 52 85 10130 5751 57 10039 6104 61 9761 6139 63 9328 5877 63 75 10614 8869 84 10175 8493 83 9503 8363 88 8762 8240 94 80 10627 9883 93 10240 9933 97 9653 9449 98 8795 8619 98 85 10924 10562 97 10765 10509 98 9789 9618 98 8931 8931 100 75 11193 6352 57 11278 6342 56 10680 6621 62 10077 6225 62 80 11254 7202 64 11290 7339 65 10737 7579 71 10036 7326 73 85 11323 8350 74 11339 9385 83 10749 9355 87 10036 9046 90 75 12178 4262 35 12084 4130 34 11807 4487 38 11376 4295 38 80 12231 5921 48 12113 5935 49 11820 5792 49 11331 5666 50 85 12292 6863 56 12182 7553 62 11844 7658 65 11319 7131 63 75 16337 13221 81 15660 12689 81 14626 12871 88 13486 12690 94 80 16356 15211 93 15761 15288 97 14858 14477 97 13537 13266 98 85 16813 16223 96 16569 15935 96 15066 14915 99 13745 13745 100 75 17227 9570 56 17359 9616 55 16437 10191 62 15510 9469 61 80 17321 11085 64 17377 12164 70 16525 11640 70 15447 11585 75 85 17427 13089 75 17453 14772 85 16544 14556 88 15447 13986 91 75 18743 6935 37 18599 6384 34 18173 6724 37 17509 6478 37 80 18825 9336 50 18643 9508 51 18192 9278 51 17440 8809 51 85 18919 10452 55 18750 11484 61 18230 11481 63 17421 10975 63
AE093AE123AE183
67 73 67 73 61 67 73 61
TOTAL
BTUH SHR TOTAL
BTUH SHR
61
ID WB
ENT ID DB
ENT TOTAL
BTUH SHR TOTAL
BTUH SHRMODEL
AE "G" MODEL 208V

COOLING PERFORMANCE DATA
11
AH***E35AX
SEN
BTUH SEN
BTUH SEN
BTUH SEN
BTUH
85 95 10
5
115
75 8960 6670 74 8485 6435 76 7970 6185 78 7445 5930 80
61 80 8890 7785 88 8425 7540 89 7935 7290 92 7400 7380 100
85 8955 8955 100 8570 8570 100 8155 8155 100 7710 7710 100 75 10155 5390 53 9670 5250 54 9040 4960 55 8430 4855 58
67 80 10030 6430 64 9500 6185 65 8920 6005 67 8315 5670 68
85 9865 7690 78 9405 7545 80 8755 7250 83 8150 6965 85 75 11410 4090 36 10820 3870 36 10190 3635 36 9535 3400 36
73 80 11275 5175 46 10680 4955 46 10045 4720 47 9385 4485 48
85 11130 6260 56 10530 6040 5
7
9885 5805 59 922
0
5570 60
75 10985 8520 78 10355 8225 79 9645 7895 82 8795 7515 85
61 80 10940 9965 91 10320 9660 94 9585 9305 97 8900 8900 100
85 11220 11220 100 10695 10695 100 10055 10055 100 9380 9380 100 75 12445 6775 54 11895 6545 55 11040 6190 56 10185 5850 57
67 80 12305 8150 66 11600 7855 68 10840 7545 70 9960 7220 73
85 12105 9585 79 11505 9335 81 10640 9005 85 9745 8675 89 75 14050 4985 35 13285 4700 35 12510 4420 35 11625 4105 35
73 80 13880 6400 46 13105 6115 47 12315 5830 47 11335 5485 48
85 13695 7815 57 12940 7540 58 12055 7250 60 11070 6880 62 75 16380 12710 78 15445 12270 79 14380 11775 82 13120 11205 85
61 80 16320 14865 91 15390 14405 94 14295 13875 97 13275 13275 100
85 16730 16730 100 15950 15950 100 14995 14995 100 13990 13990 100 75 18560 10105 54 17740 9760 55 16460 9235 56 15195 8725 57
67 80 18355 12155 66 17300 11715 68 16165 11255 70 14850 10770 73
85 18055 14295 79 17160 13925 81 15865 13435 85 14535 12935 89 75 20955 7435 35 19810 7010 35 18655 6590 35 17335 6120 35
73 80 20700 9545 46 19550 9125 47 18370 8695 47 16910 8180 48
85 20425 11655 57 19300 11245 58 17980 10815 60 16510 10260 62
OUTDOOR TEMP
TOTAL
BTUH SHR TOTAL
BTUH SHRMODEL ID WB
ENT ID DB
ENT TOTAL
BTUH SHR TOTAL
BTUH SHR
AH "E" MODEL 230V
AH12
3
AH09
3
AH183

12
COOLING PERFORMANCE DATA AH***E35AX
SEN
BTUH SEN
BTUH SEN
BTUH SEN
BTUH
85 95 105 115
75 8660 6470 75 8195 6240 76 7700 5995 78 7170 5755 80
61 80 8610 7625 89 8160 7390 91 7675 7145 93 7270 7270 100
85 8765 8765 100 8395 8395 100 8015 8015 100 7575 7575 100 75 9835 5135 52 9380 4930 53 8745 4720 54 8155 4615 57
67 80 9735 6425 66 9200 5985 65 8630 5765 67 8045 5475 68
85 9575 7525 79 9120 7390 81 8480 7105 84 7930 6665 84 75 11090 3775 34 10490 3555 34 9885 3335 34 9240 3105 34
73 80 10960 4910 45 10370 4690 45 9740 4465 46 9090 4235 47
85 10815 6040 56 10220 5825 57 9590 5595 58 8930 5365 60 75 10585 10585 100 9955 7825 79 9245 7495 81 8655 7115 82
61 80 10540 9565 91 9920 9260 93 9185 8905 97 8765 8500 97
85 10820 10820 100 10295 10295 100 9655 9655 100 8980 8980 100 75 12045 6375 53 11495 6145 53 10640 5790 54 9785 5450 56
67 80 11905 7750 65 11200 7455 67 10440 7145 68 9560 6820 71
85 11705 9185 78 11105 8935 80 10240 8605 84 9345 8275 89 75 13650 4585 34 12885 4300 33 12110 4020 33 11225 3705 33
73 80 13480 6000 45 12705 5715 45 11915 5430 46 10935 5085 47
85 13295 7415 56 12540 7140 57 11655 6850 59 10670 6480 61 75 16455 16455 100 15490 12225 79 14395 11720 81 8655 11130 129
61 80 16390 14890 91 15435 14420 93 14305 13875 97 8765 13260 151
85 16815 16815 100 16010 16010 100 15030 15030 100 13990 13990 100 75 18695 10000 53 17850 9645 54 16535 9100 55 15230 8575 56
67 80 18485 12105 65 17400 11655 67 16235 11180 69 14880 10680 72
85 18175 14305 79 17255 13925 81 15925 13420 84 14555 12910 89 75 21160 7250 34 19985 6815 34 18795 6380 34 17435 5895 34
73 80 20900 9425 45 19715 8985 46 18500 8550 46 16995 8020 47
85 20615 11595 56 19460 11170 57 18100 10725 59 16585 10160 61
AE123AE183
ID WB
ENT ID DB
ENT TOTAL
BTUH SHR
AE093
TOTAL
BTUH TOTAL
BTUH
SHR SHR
AE "E" MODEL 208V
SHRMODEL TOTAL
BTUH

COOLING PERFORMANCE DATA
13
AH***G35AX
SEN
BTUH SEN
BTUH SEN
BTUH SEN
BTUH
85 95 105 115
75 8841 7057 80 8474 6956 82 7915 6912 87 7298 6757 93 80 8851 8365 95 8529 8192 96 8040 7770 97 7325 7188 98 85 9098 8695 96 8966 8556 95 8153 7854 96 7438 7326 98 75 9322 5129 55 9393 5541 59 8895 5178 58 8393 5163 62 80 9373 6031 64 9403 6230 66 8942 6448 72 8359 6208 74 85 9431 6903 73 9444 7855 83 8952 7670 86 8359 7467 89 75 10143 3417 34 10065 3420 34 9834 3569 36 9475 3474 37 80 10187 4596 45 10088 5017 50 9844 4887 50 9437 4785 51 85 10238 6103 60 10146 6287 62 9865 6207 63 9427 5853 62 75 10945 8746 80 10491 8414 80 9799 8760 89 9035 8364 93 80 10957 10321 94 10559 10207 97 9954 9595 96 9069 8956 99 85 11264 10881 97 11100 10825 98 10093 9849 98 9209 9063 98 75 11541 6516 56 11629 6300 54 11012 6441 58 10391 6540 63 80 11604 7622 66 11642 7893 68 11071 7715 70 10349 7626 74 85 11675 8647 74 11692 9901 85 11083 9716 88 10349 9264 90 75 12557 4395 35 12460 4147 33 12175 4505 37 11730 4172 36 80 12612 6126 49 12490 6340 51 12188 5952 49 11684 5855 50 85 12675 6847 54 12561 7670 61 12213 7687 63 11671 7226 62 75 16674 13520 81 15983 13479 84 14928 13428 90 13764 13046 95 80 16693 15791 95 16085 15394 96 15164 14611 96 13816 13533 98 85 17160 16205 94 16911 16335 97 15377 15025 98 14029 13935 99 75 17582 9752 55 17716 10087 57 16776 10168 61 15830 9836 62 80 17678 11251 64 17736 11743 66 16866 12219 72 15766 11779 75 85 17787 13395 75 17812 14702 83 16885 14858 88 15766 14552 92 75 19130 6504 34 18983 6309 33 18548 6846 37 17870 6529 37 80 19213 8985 47 19028 9330 49 18567 9501 51 17800 9215 52 85 19309 11049 57 19136 11656 61 18605 11657 63 17780 10936 62
AE183 AE123 AE093
67 73 67 73 61 67 73 61 61
SHR TOTAL
BTUH SHR TOTAL
BTUH SHR
AE "G" MODEL 230V
OUTDOOR TEMP
MODEL ID WB
ENT ID DB
ENT TOTAL
BTUH SHR TOTAL
BTUH

14
COOLING PERFORMANCE DATA AH***G35AX
SEN
BTUH SEN
BTUH SEN
BTUH SEN
BTUH
85 95 105 115
75 8748 7243 83 8385 6926 83 7832 6892 88 7221 6651 92 80 8758 8145 93 8439 8186 97 7955 7844 99 7248 7103 98 85 9003 8742 97 8872 8591 97 8067 7830 97 7360 7307 99 75 9224 5025 54 9294 5389 58 8801 5457 62 8305 5286 64 80 9274 6028 65 9305 6141 66 8848 6223 70 8271 6203 75 85 9331 7216 77 9345 7768 83 8858 7931 90 8271 7772 94 75 10036 3713 37 9959 3408 34 9731 3539 36 9375 3458 37 80 10080 4686 46 9982 4891 49 9741 4870 50 9338 4840 52 85 10130 5751 57 10039 6104 61 9761 6139 63 9328 5877 63 75 10614 8869 84 10175 8493 83 9503 8363 88 8762 8240 94 80 10627 9883 93 10240 9933 97 9653 9449 98 8795 8619 98 85 10924 10562 97 10765 10509 98 9789 9618 98 8931 8931 100 75 11193 6352 57 11278 6342 56 10680 6621 62 10077 6225 62 80 11254 7202 64 11290 7339 65 10737 7579 71 10036 7326 73 85 11323 8350 74 11339 9385 83 10749 9355 87 10036 9046 90 75 12178 4262 35 12084 4130 34 11807 4487 38 11376 4295 38 80 12231 5921 48 12113 5935 49 11820 5792 49 11331 5666 50 85 12292 6863 56 12182 7553 62 11844 7658 65 11319 7131 63 75 16337 13221 81 15660 12689 81 14626 12871 88 13486 12690 94 80 16356 15211 93 15761 15288 97 14858 14477 97 13537 13266 98 85 16813 16223 96 16569 15935 96 15066 14915 99 13745 13745 100 75 17227 9570 56 17359 9616 55 16437 10191 62 15510 9469 61 80 17321 11085 64 17377 12164 70 16525 11640 70 15447 11585 75 85 17427 13089 75 17453 14772 85 16544 14556 88 15447 13986 91 75 18743 6935 37 18599 6384 34 18173 6724 37 17509 6478 37 80 18825 9336 50 18643 9508 51 18192 9278 51 17440 8809 51 85 18919 10452 55 18750 11484 61 18230 11481 63 17421 10975 63
AE093AE123AE183
67 73 67 73 61 67 73 61
TOTAL
BTUH SHR TOTAL
BTUH SHR
61
ID WB
ENT ID DB
ENT TOTAL
BTUH SHR TOTAL
BTUH SHRMODEL
AE "G" MODEL 208V

15

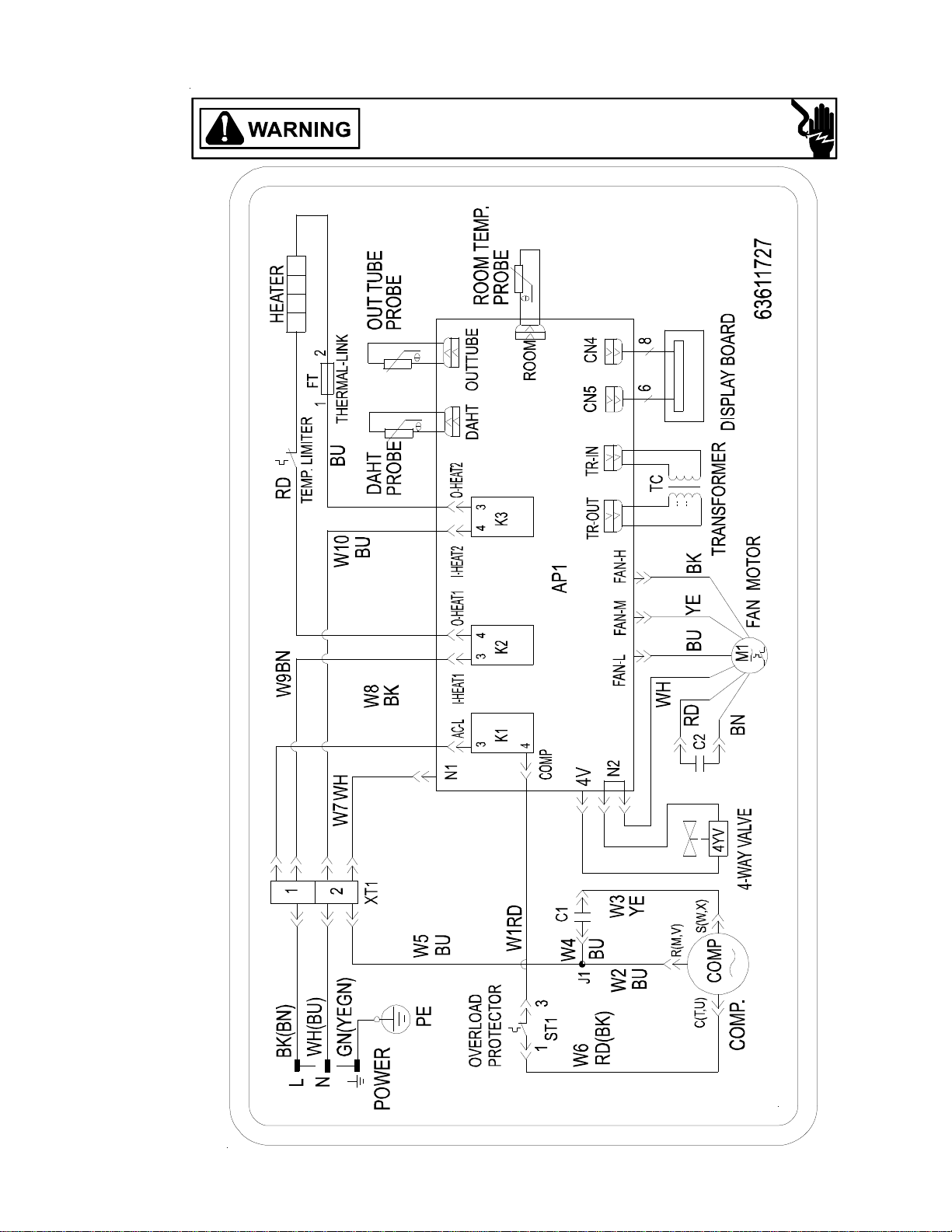

WIRING DIAGRAMS
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
AE[093-123][E/G]35AX
III

16
WIRING DIAGRAMS
WARNING HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
AE183[E/G]35AX
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
I
II

17
WIRING DIAGRAMS
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
AH[093-123][E/G]35AX
III

18
WIRING DIAGRAMS
WARNING HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
AH183[E/G]35AX
I
II

19
TROUBLESHOOTING
STATUS CORRECTIVE ACTION
1F1 Outdoor ambient thermostat
not registering on the board. Replace or re-connect the thermostat
2F2 Outdoor ambient thermostat
not registering on the board. Replace or re-connect the thermostat
3F4 Outdoor coil thermostat
not registering on the board Replace or re-connect the thermostat
4FJ Indoor discharge thermostat
not registering on the board Replace or re-connect the thermostat
CODE

THIS PAGE INTENTIONALLY LEFT BLACK
