AMC MP01 User manual

User
Manual
MP 01
Music player

Safety instructions
USER MANUAL MP 01 Misic player
When using this electronic device, basic precautions
should always be taken, including the following:
1Read all instructions before using the product.
2Do not use this product near water (e.g., near a bathtub, washbowl,
kitchen sink, in a wet basement or near a swimming pool etc).
3 Use this device when you are sure that player has
a stable base and it is fixed securely.
4This product, in combination with amplifier and loudspeakers may be
capable of producing sound levels that could cause permanent hearing
loss. Do not operate for a long period of time at a high volume level or at
a level that is uncomfortable. If you experience any hearing loss or ringing
in the ears, you should consult with otorhinolaryngologists.
5The product should be located away from heat sources such as radiators,
heat vents, or other devices that produce heat.
6The product should be connected to a power supply that is described
in the operating instructions or are marked on the product.
7The power supply should be undamaged and never share an outlet
or extension cord with other devices. Never leave device plugged
into the outlet when it is not being used for a long period of time.
8Care should be taken that objects do not fall into liquids and liquids
would not be spilled on the device.
9The product should be serviced by qualified service personnel if:
– The power supply or the plug has been damaged.
– Objects have fallen into or liquid has been spilled on the product.
– The product has been exposed to rain.
– The product has been dropped or the enclosure damaged.
10 There are some areas with high voltage inside, to reduce the risk of electric
shock do not remove cover of the microphone receiver or power supply.
The cover should be removed by the qualified personnel only.
CAUTION
To reduce the risk of electric shock, do not remove screws.
No user-serviceable parts inside. Refer servicing to qualied
service personnel. To reduce the risk of re, electric shock
or product damage, do not expose this apparatus to rain,
moisture, dripping or splashing and that no objects lled
with liquids, such as vases, shall be placed on the apparatus.
RISK OF ELECTRIC SHOCK
DO NOT OPEN

x
y
y
x
25
o
Maximum Usage 65mm
Minimum Usage 18mm
Minimum Usage 18mm
y
y
25
x
x
y
Minimum Usage 18mm
Minimum Usage 18mm
Minimum Usage 18mm
Maximum Usage 65mm
Maximum Usage 65mm
25
25
o
x
x
M
M
M
Ma
Mi
M
M
M
M
M
M
y
Max
Min
y
Mi
a
a
axi
ni
n
n
n
n
x
x
xim
nim
i
i
mu
mu
m
m
m
m
m
m
mu
mum
u
u
u
u
u
u
um
um
m
m
m
m
m
m
m U
m U
m
m
m
U
U
U
U
U
U
Us
Us
Us
U
U
sa
sa
a
ag
ag
g
g
g
g
g
ge
ge
g
g
g
g
g
g
ge 6
e 1
e
e
e
65
18
1
6
6
65
18m
8
8
8
8
65
5
5m
8m
8m
5m
m
y
mm
mm
m
y
y
m
m
m
m
m
mm
m
m
m
m
m
m
m
x
Table of contents
USER MANUAL MP 01 Misic player
Before you start
Introduction......................................................................................................................................................2
Features................................................................................................................................................................2
Operation
Front panel ........................................................................................................................................................3
Rear panel...........................................................................................................................................................4
IR remote control.........................................................................................................................................5
Tuner Functions ........................................................................................................................................6-7
CD/USB/SD Functions ..........................................................................................................................7-8
Specifications
General specifications................................................................................................................................9
Tuner section ...................................................................................................................................................9
CD/USB/SD section .....................................................................................................................................9

USER MANUAL MP 01 Misic player
Before you start
02
MP01 music players with integrated CD player, FM tuner and USB, SD reader. MP 01 CD player and FM tuner
functions can be controlled by remote control supplied with each player. Two separate CD and FM tuner line
outputs support 2-zone music applications.
FEATURES
• Compressedaudioplayback
• Supportsupto32GBUSBashandSDcards
• ID3andRDSinformationsupport
• IRremotecontrol
• Balancedstereoaudiooutput

USER MANUAL MP 01 Misic player
Front Panel

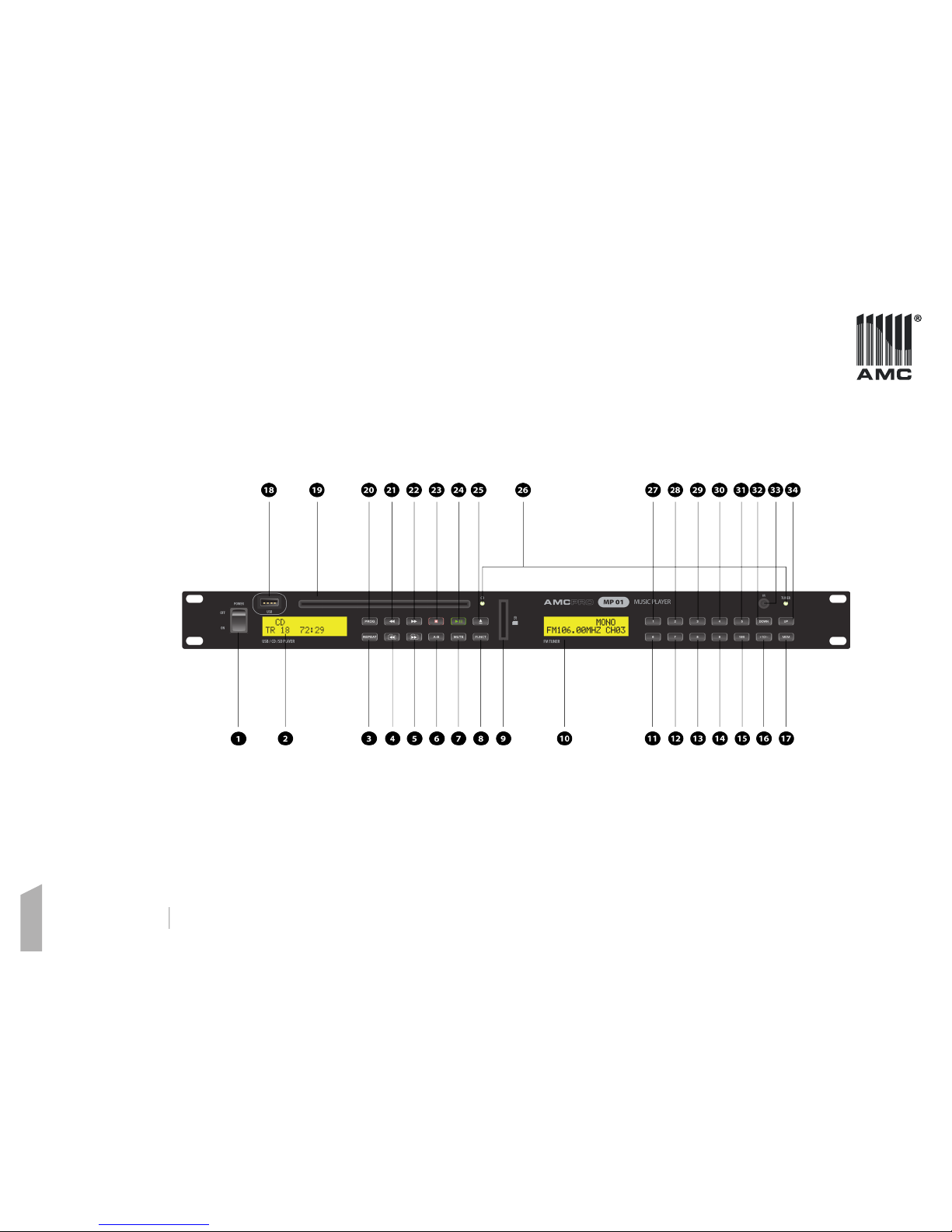

1. Power ON/OFF switch |2. CD/USB/SD Display |3. Repeat |4. Folder skip button |5. Folder skip button |6. A-B repeat button |7. Mute
8. CD/USB/SD selector |9. SD/MMC slot |10.Tuner display |11. Station preset button 6 |12. Station preset button 7 |13. Station preset button 8
14. Station preset button 9 |15. Station preset button 10 |16. Jump through 10 radio station | 17. Memory button |18. USB slot |19. CD slot |20. Program
button |21. Track skip button |22. Track skip button |23. Stop button |24. Play/pause button |25. CD eject button |26. LED indicator for IR remote control
27. Station preset button 1 |28. Station preset button 2 |29. Station preset button 3 |30. Station preset button 4 |31. Station preset button 5 |32. Station
search button (down) |33. IR detector for IR remote control |34. Stations search button (up)
Operation
03

USER MANUAL MP 01 Misic player04
Operation
Rear Panel

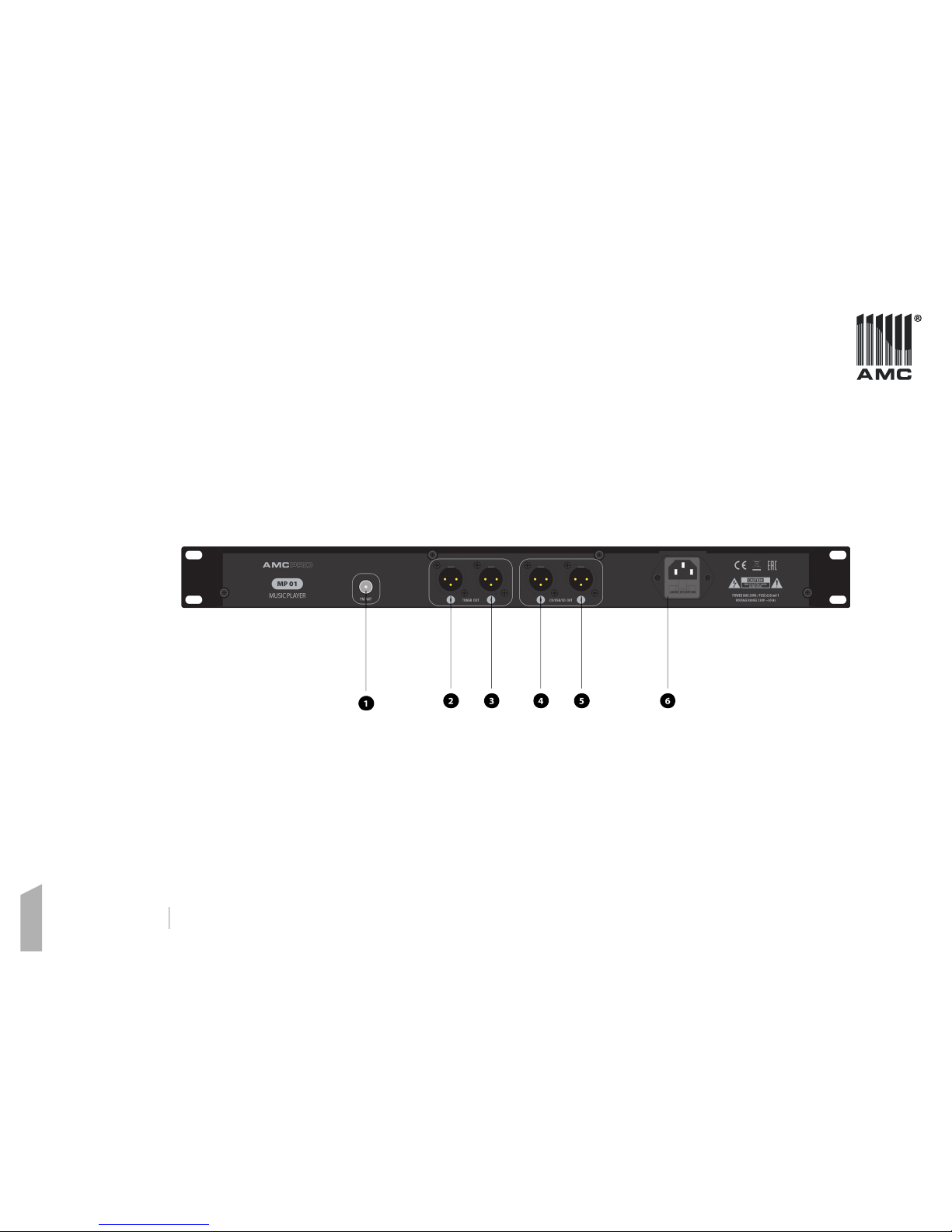

1. FM antenna input |2. Tuner right channel output |3. Tuner left channel output | 4. CD/USB/SD right channel output
5. CD left channel output | 6. Mains input socket and fuse

USER MANUAL MP 01 Misic player
Operation
IR remote control
1. IR remote buttons which are assigned to control CD/USB/SD player only. |2. IR remote buttons which are assigned to control both CD/USB/SD player and radio
tuner. In white color are markered functions for the CD/USB/SD player, in red – functions for the radio tuner. |3. IR remote buttons which are assigned to control ra-
dio tuner player only. |4. This function identifies which part of the player CD/USB/SD or Radio tuner will be sensitive to IR remote control. Selected part is indicated
by green color LED on the front panel.
Batteries changing
1. Open the battery cover
2. Insert two AAA batteries in
accordance with marks in the remote
control battery compartment
3. Close the battery cover
05

USER MANUAL MP 01 Misic player
Tuner Functions
MEMORY
This function is designed for adding radio stations in the presets and adjusting
the clock.
Radio tuner is turned on:
Afterpressing“Memory”buttonthepresetnumberstartsashing.Setthepreset
number by using number keys and press “Memory” to save the preset. At this
moment the displayed frequency will be memorized in the selected preset
(from 1to 30). After 5 seconds of inactivity memory mode shuts off automati-
cally.
Radio tuner is turned off:
Press “Memory” button and LCD will display the time. Use UP/DOWN keys to
adjust minute’s, to adjust hours press “Memory”one more time. To confirm the
time press “Memory” again.
UP/DOWN
Auto tuning starts after pressing “UP” or “DOWN”button more than 1,5 sec when
“UP” or “DOWN”button is pressed for a short time manual search mode is acti-
vated, every time when “UP” button is pressed, the FM frequency is increased
by 50kHz. Every time when “DOWN”button is pressed, the FM frequency is
decreased by 50kHz.
06
Operation
+10/--
This key jumps 10 steps through the preset station list. For example. If preset 2
is selected, after pressing +10/-- button preset No. 12 will be selected. if +10/--
button will by pressed one more time preset No. 22 will be selected. Press this
button more than 1,5 second ant the station number can be added using the
numbers‘ key.
10/0
To jump between the 1 and 10 presets stations press“10/0” button.
SLEEP
The radio tuner automatically turns off after terminated time if the sleep mode
is active. The sleep time begins from 90 seconds and changes cyclically 90 80
70 60 50 40 30 20 10 OFF with every pushing the SLEEP
key when the sleep time is in the display.
ASM
This an auto search for radio stations function. Press“AMS”button more than
1,5 seconds and the tuner will search the radio station and store in memory
automatically.

USER MANUAL MP 01 Misic player
07
Operation
DIRECT
This function allows to set radio stations frequency by using the number but-
tons. Press this button once, then use the number buttons to input the station
frequency, again press “DIRECT” key to confirm the frequency and the tuner will
jump to this station. If the input frequency is beyond the range, the tuner will
display ERR.
RDS
This key is useful to change RDS functions* cyclically PS PTY RT CT
PS – program service (call letters or station identity name will displayed)
PTY - program type (allows easily to nd similar program by genre News, Drama,
Rock music…)
RT - radio text (textual information, usually title and artist of the currently
playing song)
CT - clock time
MUTE
Press “Mute”button to mute audio output, to disable mute press“Mute”again.
MO/ST
Press “MO/ST” button to set mono or stereo mode for the radio tuner.
ME/UP
This function allows to jump to the next radio station of the radio station
presets.
ME/DOWN
This function allows to jump to the previous radio station of the radio station
presets.
CD/TUNER
This function identifies, which part of the player CD/USB/SD or Radio tuner will
be sensitive to IR remote control. Selected part is indicated by green color LED
on the front panel.
CD/USB/SD Functions
PLAY/PAUSE
By pressing this key when CD is stopped, play starts after track search. When this
key is pressed during playing the CD mode is changed in to pause. When this
key is pressed during CD is paused, it switches back to play mode.
STOP
When CD is playing or is in pause mode, by pressing this key it stops.
FUNCT
This button is designed for audio source selection. (CD/USB/CARD)
A-B
This function is for repeat the selected place in the sound track. When sound track
is playing press this button one time to set start point and press second time to
set end point. For the stopping “A - B” repeat, press“A – B”button one more time.

USER MANUAL MP 01 Misic player
08
Operation
CUE
In stop mode this key changes starting track (file) in ascending order, and auto-
matically goes to first track if it is in the last track. Single pressed in play mode or
program mode changes to next track, in random mode skips to random track.
By pressing longer than 0,7 sec. switches to fast forward mode.
REV
In stop mode this key changes starting track (file) in descending order, and au-
tomatically goes to the last track if it is in first track. Single pressed in play mode
or program mode changes to previous track (file). By pressing longer than 0,7
sec switches to fast reverse mode.
FOLDER >>
In stop mode this key skips the starting play folder to next previous, and
automatically switches to last folder if current folder is first. In the program entry
mode this key switches to previous folder’s first file, if the folder is first it switch-
es to last folder. In normal play mode this key skips the playing file and switches
to previous folder’s first file.
REPEAT
In USB/SD mode, when pushing the key PLAY mode switches like shown below:
While pushing the key in CD mode, PLAY mode is changed in this order:
EJECT
By pushing this key CD is ejected.
PROG
This key is used for programming. All program is cleared when STOP key is
pushed in the programming mode.
MUTE
When this key is pushed during CD/USB/SD is playing, the sound in the output
is muted. Pressed again the sound is turned on again.
Repeat Track Repeat Folder
Play AllPlay All Random
Repeat All
Repeat Track
Play AllPlay All Random
Repeat All

USER MANUAL MP 01 Misic player09
Specifications
GENERAL
TUNER SECTION
CD SECTION
Input
FM 75 ohm unbalanced antenna
terminal
USB port, SD/MMC port
Output
Stereo balanced XLR output for FM tuner
Stereo balanced XLR output for
CD/USB/SD player
Power supply 230V AC 50Hz
Power consumption 50 VA
Weight 3,8kg
Dimensions 482mm x 44mm x 250mm
Output level +4dBu (± 2dBu)
Output level difference between channels 2dB
Frequency response 20 Hz 20 KHz
Audio channel separation @ 1 KHz 60 dB
THD 0,1 %
S/N ration 70 dB
Output level -5 dBu
Tuning Frequency range 87,5 – 108 MHz
Sensitivity 10 μV
S/N ratio 55 dB
Image rejection 45 dB
THD 0,1 %
Audio channel separation 35 dB
The specifications are correct at the time of printing this manual.
For improvement purposes, all specifications for this unit, including
design and appearance, are subject to change without prior notice.
