American Standard Triangle Cadet PRO 216AD Series User manual

SAVE FOR FUTURE USE
7301948-100
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Triangle Cadet®PRO 2-piece Toilet
Elongated and Round Front
Models 216AD, 216BD Series
INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!NOTE: Pictures may not exactly define contour of china and components.
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years.To ensure this product is installed properly, please read
these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
Wax Ring
TankTo Bowl Gasket
Slow CloseToilet Seat
Water Supply Line
Attachment Handles
with Nuts (2)
Plastic Washers (2)
Bolt Caps (2)
Also includes Standard Bolt Caps (2)
Bowl-To-Floor
Knobs (2)
T-Bolts with
Retainer (2)
EZ-INSTALL KIT INCLUDED WITH TANK
TANK 4189D
BOWL 3517A ELONGATED
BOWL 3517B ROUND FRONT
SOLD SEPARATELY
EZ-INSTALL KIT INCLUDED WITH BOWL

7301948-100
- 2 -
BACK-TO-BACK INSTALLATION
Recommended fitting type for
back-to-back installations.
Depending upon your plumbing and venting conditions, the flow from the Cadet® PRO in a
back-to-back installation may create a vacuum on the system and draw water from the opposing
bowl. The National Standards Plumbing Code prohibits the use of a cross fitting for drainage as
throw over is possible. The code does approve a directional "Y" style fitting with proper venting to
direct the water downward and away from the other toilet.
Press firmly.
NOTE: 1/4" EZ-BOLTS INCLUDED.
IF 5/16" BOLTS ARE REQUIRED,
PURCHASE SEPARATELY.
Wax Ring
(sold separately)
1 2
Turn Off Water Supply Flush to remove
water from tank;
sponge remaining
water from
bowl before
removing toilet.
Clean Flange
Before You Start: If Removing An ExistingToilet
!Caution: If leaving floor flange
open for more than 1-2 hours,
cover flange to prevent escaping
sewer gases.
ROUGHING-IN DIMENSIONS: NOTE: Distance from wall to closet flange centerline must be as shown below.
492mm
(19-3/8")
356mm
(14")
815mm
(32-1/16")
82mm
(3-1/4")
FINISHED
WALL
FINISHED
FLOOR
305mm
(12")
294mm
(11-9/16")
31mm
(1-1/4")
305mm
(12")
419mm
(16-1/2")
470mm
(18-1/2")
894mm
(35-3/16")
140mm
(5-1/2")
FINISHED
WALL
492mm
(19-3/8")
356mm
(14")
815mm
(32-1/16")
82mm
(3-1/4")
FINISHED
WALL
FINISHED
FLOOR
305mm
(12")
294mm
(11-9/16")
31mm
(1-1/4")
305mm
(12")
419mm
(16-1/2") 419mm
(16-1/2")
140mm
(5-1/2")
843mm
(33-3/16")
FINISHED
WALL
Elongated Model 216AD Series Round Front Model 216BD Series

7301948-100
- 3 -
3
5
7
6
4
Apply weight evenly.
Do not move after
placement. Water
tight seal may break.
!
WARNING: Overtightening of
water supply line nuts could
result in breakage and potential
flooding. If the connection leaks
after hand tightening, replace
the supply line. Do not use any
type of sealant on the water
supply connection. Use of
plumber’s putty, pipe dope, or
any other type of sealant will
void the warranty.
Hand tighten
only. Do not
overtighten.
!
Connect water
supply line.
(Sold separately)
Hand tighten nut.
A
NOTE: To ease
installation, push
down on the top of
the tank while
tightening handles.
Tighten handles
alternately until the
tank contacts the
front and back of the
bowl achieving
china-to-china
contact.
B
Turn on water supply.
NOTE: 1/4" EZ-BOLT
AND CAP SHOWN.
IF 5/16" BOLT USE
STANDARD DISK AND
CAP INCLUDED.

7301948-100
- 4 -
8
When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth.
WARNING: Do not use in-tank cleaners. These products can seriously corrode fittings in the tank. This damage can cause leakage and property damage.
American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners.
CARE AND CLEANING
In the United States:
American Standard Brands
P.O. Box 6820
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: [phone]
www.americanstandard.com
In Canada:
AS Canada, ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: [phone]
www.americanstandard.ca
In Mexico:
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
www.americanstandard.com.mx
FOR REPAIR PARTS LIST, SEE LABEL UNDER TANK LID.
Does not flush
Poor or
sluggish flush
Toilet leaks
Toilet does not
shut off
Toilet bowl
rocks after
installation
a. Water supply valve closed.
b. Supply line blocked.
c. Flush valve chain too loose or disconnected.
d. Sand or debris lodged in water control.
a. Bowl water level too low.
b. Supply valve partly closed.
c. Partially clogged trapway and/or drain pipe and/or vent.
d. Supply pressure too low.
a. Poor supply line connection.
b. Poor bowl to tank/floor connection.
a. Flapper seal leaking or deformed.
b. Sand or debris lodged in water control.
c. Flush valve chain too tight, holding flapper open.
a. Wax ring not fully compressed.
b. Floor not level.
a. Open valve and allow water to fill tank.
b. Shut off water supply, disconnect supply line and inspect all gaskets and washers. Reassemble.
c. Readjust chain length as required.
d. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at:
www.americanstandard-us.com/enews/fluidmasterguide.pdf
a. Check that refill tube is connected to water control and inserted into overflow tube without being
kinked or damaged.
b. Open supply valve fully. Be sure that proper supply tube size is used.
c. Remove obstruction. Consult a plumber if necessary.
d. Normal supply pressure must be at least 20 psi.
a. Review Step 7 of installation procedure.
b. Review Step 1 through 6 of installation procedure.
a. Clean debris from seal surface. Replace flapper seal as needed. See web for more info.
b. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at:
www.americanstandard-us.com/enews/fluidmasterguide.pdf
c. Readjust chain length as needed.
a. Retighten bowl-to-floor knobs.
b. Use toilet shims and /or place a bead of caulk around the base of the toilet.
Problem Possible Cause Corrective Action

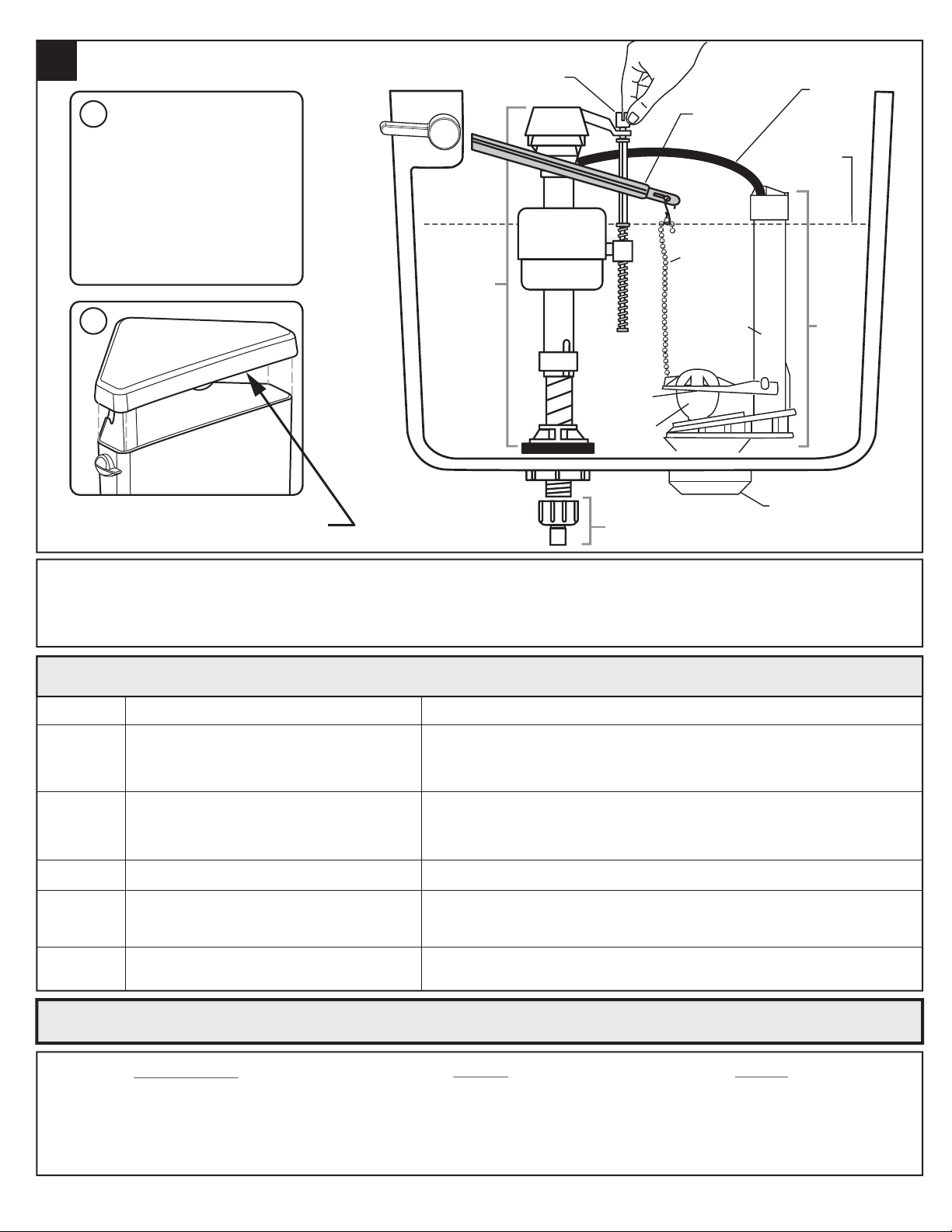

TROUBLESHOOTING GUIDE - See Step 8 For Diagram
Adjust water level to level
indicated on tank by turning
water level adjustment knob
to move float cup up or down.
B
A
Water Level
Adjustment Knob
Trip Lever Rod
Flush
Valve
Flapper
Water Supply Line
Tank to Bowl Gasket
Approximate
Water Level
Flush Valve
Chain
Fill Valve
Or Water
Control
Float Cup
Refill Tube
Overflow
Tube
Flapper
Seal
REPAIR PARTS LABEL
LOCATED UNDER TANK LID.
