American Time WN261RSxE User manual

Installation and Operation Manual
Part # H004905
Rev. 1
November 2017
WN261RSxE and WN461RSxE
Wi-Fi Digital Clock/Elapsed Time
Indicator with Code Blue

© American Time
2
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Introduction
The Wi-Fi clock(s) should be installed in a secure location protected from:
– Physical damage
– Water, including condensation
– Direct sunlight
– Operation by untrained personnel
Operation of this product in a manner inconsistent with the instructions in the manual may result in damage to
the product and will void the warranty.
WARNING: Hazardous voltage in electrical equipment can cause severe personal injury or death.
Inspection, installation, and preventive maintenance should only be performed on equipment to which power
has been turned off, disconnected and electrically isolated so no accidental contact can be made with
energized parts.
Electrostatic Sensitive Devices
CAUTION: Some of the equipment in this manual
contains electronic devices that are sensitive to static
electric charges. To guarantee protection for the circuitry
of this unit, it is required that electrostatic handling
precautions be observed when installing or repairing this
equipment. Any technician or other personnel working on
this unit must wear a static grounding wrist strap or similar
device to provide protection of sensitive components.
Safety Precautions
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES

Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
3
© American Time
Table of Contents
Specications........................................................................................................................................................... 4-5
Digital Clock.............................................................................................................................................................4
Timer Control Station ...............................................................................................................................................5
Introduction ..................................................................................................................................................................6
Important Installation and Warranty Information.......................................................................................................7
Clock/Timer Description .............................................................................................................................................8
ATSTCS Control Station Switch Functions.................................................................................................................9
Installation .............................................................................................................................................................10 -11
Digital Clock/Timer ................................................................................................................................................ 10
Control Station....................................................................................................................................................... 11
Operation............................................................................................................................................................... 12-15
Digital Clock – Button Operation....................................................................................................................... 12-13
Power Up............................................................................................................................................................... 14
Elapsed Time Counter ........................................................................................................................................... 15
Code Blue ...................................................................................................................................................................16
Important Considerations ......................................................................................................................................... 17
Clock Conguration ..............................................................................................................................................18-19
Limited Access Point Mode ................................................................................................................................... 18
Clock Conguration ............................................................................................................................................... 19
Wi-Fi Conguration.............................................................................................................................................. 20-23
Administrator Settings...............................................................................................................................................24
Firmware Update / Factory Defaults Restore...........................................................................................................25
Troubleshooting .........................................................................................................................................................26
Operator Maintenance...............................................................................................................................................27
Appendix A - Enterprise Security Conguration................................................................................................ 28-29
Appendix B - SNTP Time Servers / Appendix C - Supported Time Zones ............................................................30
Appendix D - Operator Flowchart.............................................................................................................................31

Introduction
Appendix
Troubleshooting
Code Blue
Clock
Configuration
Wi-Fi
Configuration
Administrator
Settings
Operation
Installation
Specifications
© American Time
4
Introduction
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Specifications
Wi-Fi Features:
• Supports 2 static IP address SNTP servers for redundancy or Pool domain names
• 802.11n (b/g compatible, 2.4 GHz only)
• Data rates: 72, 65, 58, 43, 29, 22, 14, 7 Mb p s (8 02.11n)
54, 48, 36, 24, 18, 12, 9, 6 Mbps (802.11g)
11, 5.5, 2, 1 Mbps (802.11b)
• Security protocols: WEP, WPA/WPA2 and Enterprise (PEAPv0-MSCHAPv2)
• DHCP or Static IP addressing
• Limited Access point operation for configuration
• Clocks may be precongured (SSID, Passphrase, time zone, time servers) for plug-n-play installation
• Staggered wake times for reduced network load
• Wi-Fi Alliance Radio/FCC/ICES certified
• RoHS Compliant
Digital Clock Features:
• Super-bright red LED for high readability
• WLAN time synchronization
• Non-glare lens
• Selectable 12 or 24-hour format
• ±1 second accuracy
• Black anodized aluminum frame (except American series digital clocks use steel enclosures)
• Visibility: 1.8 inches=75 ft.; 2.5 inches=150 ft.; 4 inches=250 ft.

Introduction
Appendix
Operator
Maintenance
Important
Considerations
Clock
Configuration
Wi-Fi
Configuration
Firmware
Update
Operation
Installation
Specifications
© American Time 5
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
GENERAL
Clock Dimensions: Varies by model
Clock Weight: Varies by model
Weight: ........................ ATSTCS Control Station.......................... 0.27 lb.
External Dimensions: ATSTCS Control Station ....................... 4.63"h X 4.56"w X 1.25"deep
ELECTRICAL
Power Requirements (Digital Clock/Timer only):
Line Voltage:................................................................................. 120vac 50/60Hz -WN261RSAE & WN461RSAE
24vac 50/60Hz - WN261RSBE&WN461RSBE
220vac 50/60Hz - WN261RSKE&WN461RSKE
Note: Voltage is set at factory. See above part number sufx for reference.
Current (Digital Clock/Timer only):
2.3” 6 digit 120vac................................... 70 mA (max), 63 mA (avg)
4” 6 digit 120vac...................................... 147 mA (max), 118 mA (avg)
Distance of ATSTCS from Digital Clock/Timer: ......................... 30-ft maximum with 22 AWG stranded wire
with minimum 1/32" thick insulation
Code Blue Circuits: ...................................................................... 3.0mA. max. @ 12vac/vdc-30vac/vdc
ENVIRONMENTAL
Ambient Operating Range:.......................................................... 41˚F to 131˚F
Recommended Storage Temperature:-...................................... 41˚F to 131˚F
Operating Humidity: .................................................................... 0% to 95%, non-condensing
Humidity: ...................................................................................... 85%RH at 30°C (86°F)
OPERATION
Modes Available: ......... 12 hour or 24-hour Wi-Fi synchronized
Incrementing timer with programmable preset value and start/stop capability
Decrementing timer with programmable preset value and start/stop capability
Code Blue incrementing timer
Accuracy: ..................................................................................... ±1 second to SNTP time server
Indications: .................. Digital Clock/Timer.................................. hours and minutes - 4", bright red, seven
segment LED’s
hours and minutes are separated by a colon
seconds - 2", bright red, seven segment LED’s
ATSTCS Control Station .......................... 2 second audible alarm
Specifications

Appendix
Troubleshooting
Code Blue
Clock
Configuration
Wi-Fi
Configuration
Administrator
Settings
Operation
Installation
Introduction
Specifications
© American Time
6
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Introduction
Wi-Fi is a popular technology that allows an electronic device to exchange data or connect to the internet wirelessly
using radio waves. Wi-Fi and Simple Network Time Protocol (SNTP) are used to make installation and setup as
simple as possible. All you need to do is apply power to your precongured clock in an area where the intended
Wireless Local Area Network (WLAN) signal strength is sufficient.
Each Wi-Fi clock can be factory-congured to receive the precise time signal from your network server. They also
automatically correct for the Daylight Saving Time changes and require little maintenance. Wi-Fi clocks only require
synchronization twice per day using SNTP and create very little network trafc with staggered wake times. The electric
and digital models can be user-selected to synchronize at a desired frequency.
Network
Precongured Wi-Fi Clocks are plug and play on networks with Dynamic Hosting Conguration Protocol (DHCP).
A limited access point mode is also available for clocks that are not precongured at American Time as recommended.
Introduction
American Time
140 3rd Street South, PO Box 707
Dassel, MN 55325-0707
Phone: [phone]
Fax: [phone]
american-time.com

Appendix
Operator
Maintenance
Important
Considerations
Clock
Configuration
Wi-Fi
Configuration
Firmware
Update
Operation
Installation
Introduction
Specifications
© American Time
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
7
Installation and Warranty Information
IMPORTANT INSTALLATION AND WARRANTY INFORMATION
WARRANTY INFORMATION: American Time (the Manufacturer) provides a limited warranty to the Original Purchaser
of this product. The Original Purchaser is the party to whom the Manufacturer issued its Sales Order, generally the
Manufacturer’s distributor. In order to preserve this warranty, it is important that only persons who have been properly
trained and authorized by the Manufacturer service the product.
Other parties involved in the installation of this product may have also provided a warranty, which may be different
than that of the Manufacturer. The Manufacturer will only be responsible to the Original Purchaser and only for the
Manufacturer’s own warranty.
For further information regarding the Manufacturer’s warranty, contact the Original Purchaser.
OWNER’S MANUAL: The owner’s manual does not purport to cover all the details or variations in the equipment
described, nor does it provide for every possible contingency to be met in connection with installation, operation and
maintenance. All specications subject to change without notice. Should further information be desired or should
particular problems arise which are not covered sufciently, the matter should be referred to the Installer or Original
Purchaser listed below.
INSTALLER INFORMATION
COMPANY: _____________________________________________________________________________________________
INSTALLER: ____________________________________________________________ PHONE: _______________________
ADDRESS: _____________________________________________________________________________________________
CIT Y: __________________________________________ STATE: ________________ ZIP: ___________________________
DATE INSTALLED: _______________________________ INSTALLER’S SIGNATURE: ______________________________
ORIGINAL PURCHASER INFORMATION
COMPANY: _____________________________________________________________ PHONE: _______________________
ADDRESS: _____________________________________________________________________________________________
CIT Y: __________________________________________ STATE: ________________ ZIP:____________________________
PURCHASER’S PURCHASE ORDER NO: ___________________________________ DATE PURCHASED: _____________
ATS SALES ORDER ACKNOWLEDGMENT NO.: ______________________________________________________________
ORIGINAL PURCHASER’S SIGNATURE: ____________________________________________________________________
NOTE: A copy of the above-completed information may be required by the Manufacturer for authorization of
Warranty services.

Appendix
Troubleshooting
Code Blue
Clock
Configuration
Wi-Fi
Configuration
Administrator
Settings
Operation
Installation
Introduction
Specifications
© American Time
8
Introduction
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Clock/Timer Description
START/STOP RESET
INCREMENT ENTER
RUN
SET
UP
DOWN
CLOCK
4 9/16”
4 1/2”
Control Station
24 ”
6.1”
3.5”
ATSTCS Control Station
Digital Clock/Timer

Appendix
Operator
Maintenance
Important
Considerations
Clock
Configuration
Wi-Fi
Configuration
Firmware
Update
Operation
Installation
Introduction
Specifications
© American Time 9
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Control Station Switch Functions
START/STOP RESET
INCREMENT ENTER
RUN
SET
UP
DOWN
CLOCK
RESET
ENTER
RUN
SET
UP
DOWN
CLOCK
START/STOP
INCREMENT
Run/Set Switch -
• Set Position: This position is used to set a preset up or down counting time (Timer). It is also
used to reset the Code Blue timer.
This position is not used for setting time. The controller will allow you to enter in a
12/24 hour mode and set a time. However, the time will be controlled and updated by
the Wi-Fi receiver.
• Run Position: This position is used to permit Clock/Timer to operate.
Up/Clock/Down Switch -
• Up Position: This position is used to choose up counting elapsed timer mode.
• Clock Position: This position is used to choose clock mode.
• Down Position: This position is used to choose down counting elapsed timer mode.
Start/Stop/Increment Switch -
• This button is used to Start/Stop, and resume timer count, when Run/Set Switch is in the
Run position (Code Blue timer can only be stopped).
• This button is also used to increment/advance the number value being set when the Run/Set
Switch is in Set position.
Reset/Enter Switch -
• This button is used to return a timer (excluding the Code Blue timer) to the beginning of its
count, when the Run/Set Switch is in Run position.
• This button can also be used to select a eld (i.e. format, minute digits, hour digits) when the
Run/Set Switch is in Set position.

Appendix
Troubleshooting
Code Blue
Clock
Configuration
Wi-Fi
Configuration
Administrator
Settings
Operation
Installation
Introduction
Specifications
© American Time
10
Introduction
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Digital Clock/Timer Installation
Digital Clocks
Before installing verify:
• Dynamic Host Conguration Protocol (DHCP) settings
• Firewall port 123 is open for UDP data
• Good Wi-Fi coverage at intended installation location.
The Digital Clock/Timer can be mounted to a single or double gang box. To install the Digital Clock/Timer,
follow the instructions below. Ensure that installation conforms to the National Electrical Code and local
wiring codes.
CAUTION: Electric Shock Hazard! Ensure that NO electrical power is present on any wire before installation.
1. Remove the 6-32 black screw on the top of the clock which secures the back mounting
plate. Mount the back plate to a single or double gang box. See Figure2on page 11.
2. Make electrical connections (hot, neutral, ground) to non-switched electrical circuit wiring
using UL approved wire nuts. Route eld wiring away from sharp projections, corners
and internal components. For Molex, connect white to neutral/common, black to positive/
hot, green to ground and red to optional correction line if using a wired master.
Note: Voltage is set at the factory. See part number sufx reference.
120vac 50/60 Hz (WN261RSAE & WN461RSAE)
24vac 50/60 Hz (WN261RSBE & WN461RSBE)
220vac 50/60Hz (WN261RSKE & WN461RSKE)
3. Pull the ten wires from the clock to the control station. Keep these ten wires
separate from the high voltage wires. See Figure1on page 11.
Note: there are two wires (white and green) in the bundle that are not used.
4. Join the two Molex connectors together, placing excess wiring and Molex connectors into the gang box.
5. Slide the clock onto the metal mounting bracket installed in Step 1 and reinsert 6-32 screw
from the top of the clock into the mounting bracket hole. See Figure2on page 11.
6. Connect eld wiring interconnecting the Clock/Timer with the ATSTCS Control Station to
the appropriate terminals of the Digital Clock/Timer See wiring detail on next page.
Chassis ground MUST be connected to conduit/Earth ground to provide proper protection from
electric shock.
CAUTION: Electric Shock Hazard! When making installation, route eld wiring away from sharp projections,
corners, and internal components.
7. Make sure the WiFi receiver has been properly set up (reference
page 20). If precongured, continue on to step 8.
8. Apply power to the circuit and conrm correct operation.
9. Upon startup, the clock will ash the version number and then correct on the rst successful
SNTP time sync. This should take less than one minute. If the clock is not updating, review
the steps listed above and reference Troubleshooting (page 26) for instruction.

Appendix
Operator
Maintenance
Important
Considerations
Clock
Configuration
Wi-Fi
Configuration
Firmware
Update
Operation
Installation
Introduction
Specifications
© American Time 11
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual

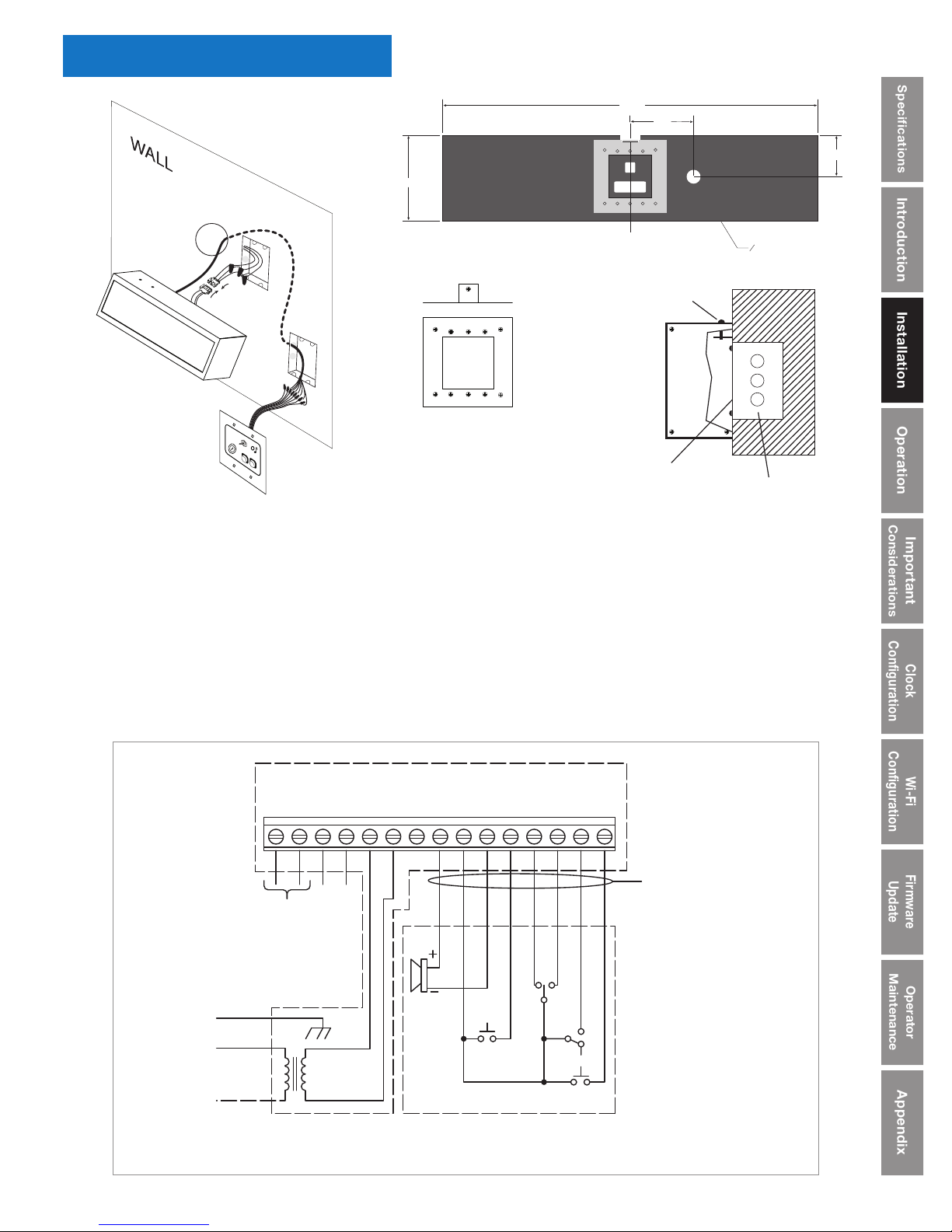

Control Station Installation
Figure 1
Figure 2
6-32 x 3/4black screw
secures device to the
mounting plate
Single or double gang
box (supplied by others)
must be securely mounted
Mounting plate
fastens to the
back box
Mounting plate detail
23
5
/
8
”
53/8”
23/4
”
7/8”
4.0”
0
Pre-drilled
hole Back of Clock
The ATSTCS Control Station can be mounted to a double gang box, 1½ inch deep or deeper. The Control Station
can be mounted up to 30 feet away from the Digital Clock/Timer. The recommended minimum interconnecting eld
wire size is #22.8 AWG stranded wire.
Ensure that installation conforms to the National Electrical Code and local wiring codes.
CAUTION: Electric Shock Hazard! Ensure that NO electrical power is present on any wire before installation.
1. Pull interconnecting eld wires into the double gang box.
2. Connect eld wiring interconnecting the ATSTCS Control Station with the Digital Clock/
Timer to the appropriate wires of the Control Station. See wiring detail below.
3. Mount the Control Station to the double gang box using the machine screws provided.
K2+ K2– K1+ K1– 12VAC 12VAC UNREG GND PIEZO S5 S4 S3 S2 S1
RED BLACK VIOLET GREY BROWN BLUE ORANGE YELLOW
CHASSIS
NEUTRAL
120VAC
50/60Hz
TERMINALS K2+ AND K2– ARE USED FOR CODE BLUE MODE
Typical wiring for the Digital Clock/Timer with Control Station
PIEZO
BUZZER
30 ft. maximum #22
AWG wire (minimum)
with 1/32" insulation
(minimum)
RESET
ENTER
START/STOP
INCREMENT
UP CLOCK DOWN
SET
RUN
K2+ K2– K1+ K1– 12VAC 12VAC
UNREG GND PIEZO S5 S4 S3 S2 S1 NOT USED NOT USED
RED BLACK VIOLET GREY BROWN BLUE ORANGE YELLOW GREEN WHITE
PIEZO
BUZZER
RESET
ENTER
START/STOP
INCREMENT
UP CLOCK DOWN
SET
RUN
Green-Earth Gnd
White-Neutral line
Black-Hot line
Digital Clock/Timer
ATSTCS Control Station
20 ft. supplied cable.
Can be extended to 30 ft.
maximum using #22 AWG
wire (min.) with 1/32”
insulation (min.)

Appendix
Troubleshooting
Code Blue
Clock
Configuration
Wi-Fi
Configuration
Administrator
Settings
Operation
Installation
Introduction
Specifications
© American Time
12
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Introduction

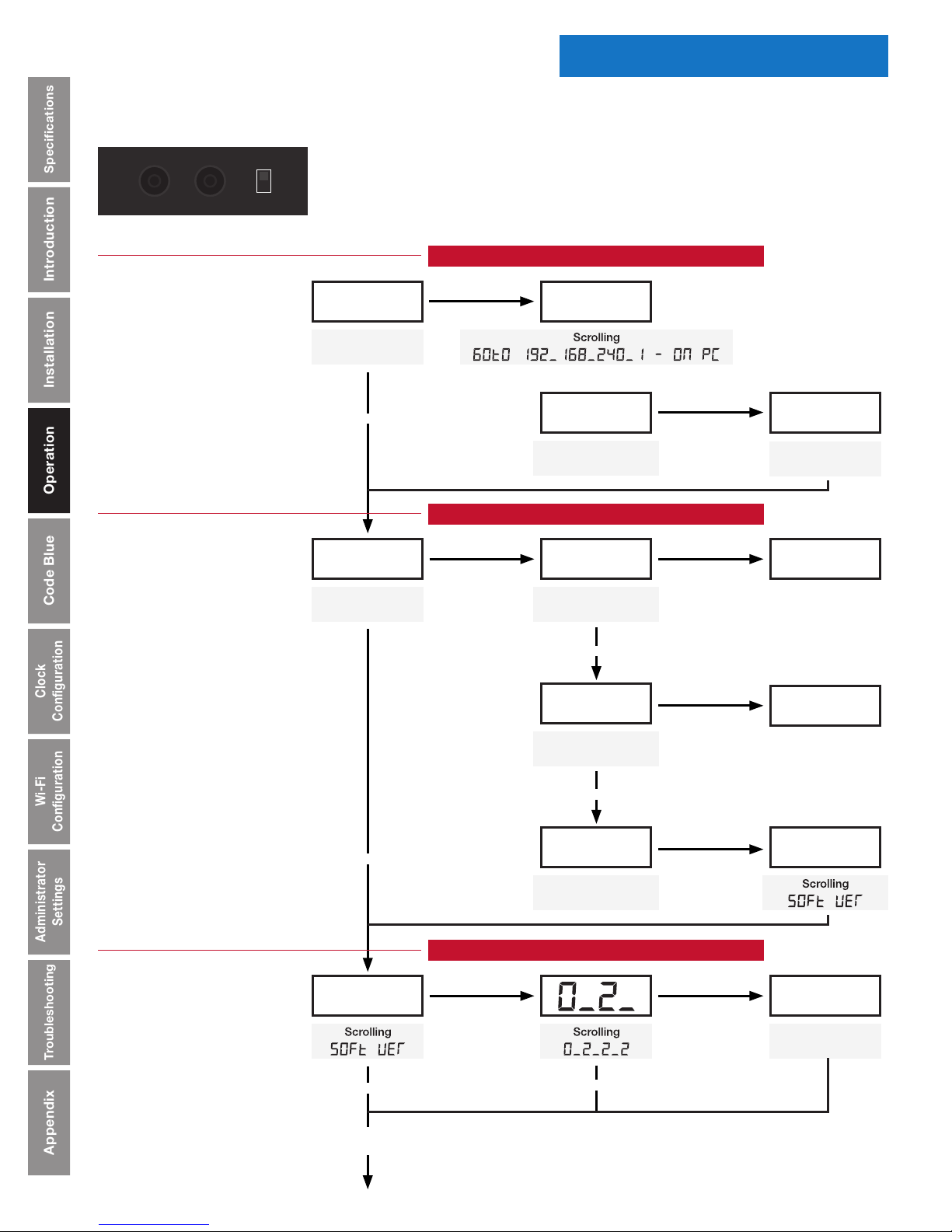

Digital Button Operation
Provisioning Clock
60T0SEtU
Scrolling
SEtUP
Press Enter Button
Setting Clock to 12 or 24 Hour Mode
12or SEt
SEt
CANC
CANC
SOFt
dONE
dONE
Scrolling
12or24 Hr
Scrolling
SEt 12 Hr
Scrolling
SEt 24 Hr
Scrolling
CANCEL
Scrolling
CANCEL
Press Enter Button Press Enter Button
Press Enter Button
Press Enter Button
Press Enter Button
Press Increment Button
When Clock is Connected
Press Increment Button
Press Increment Button
Continue to Software Update
on Following Page
Press Increment Button
Press Increment Button
Display Software Version
SOFt Press Enter Button SOFt
Scrolling
sOFt UPdAtE
Press Enter Button
Press Increment Button
Fig. 1
Set the clock
into provisioning
mode in which
the settings can
be changed.
Go to the top of the clock case to change settings on the
digital clock. Begin by switching to Set and using the Enter and
Increment buttons as required, referencing the Figures below.
When complete, switch back to the Run position.
Fig. 3
Display the
software version
currently installed.
Fig. 2
Sets the clock
display to a 12
hour or 24 hour
time format.
Run
SetIncrement
Enter
3”
Edge of casing
.95”
SEtU
Scrolling
SEtUP
The buttons on the digital clock can be used for general clock conguration and advanced debug.

Appendix
Operator
Maintenance
Important
Considerations
Clock
Configuration
Wi-Fi
Configuration
Firmware
Update
Operation
Installation
Introduction
Specifications
© American Time
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
13

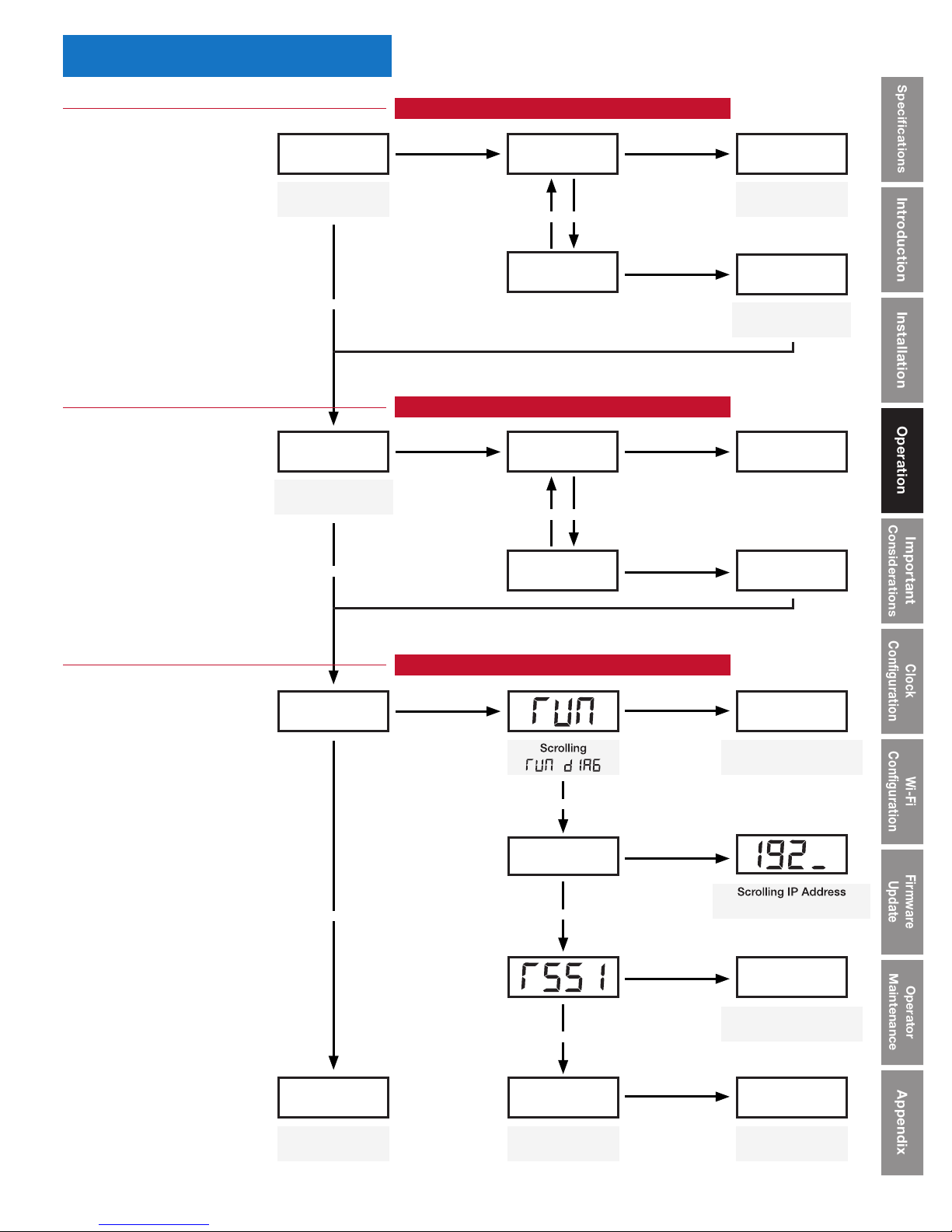

Digital Button Operation
Press Increment Button
Press Increment Button
Press Increment Button
Software Update
YES
NO
UPdA
FACt
Press Enter Button Press Enter Button
Press Enter Button
SOFt
Scrolling
sOFt UPdAtE
Scrolling
UPdAtE DONE
Scrolling
FACt DEfAULt
Press Increment Button
Factory Default
YES
NO
FACt Press Enter Button Press Enter Button
Press Enter Button
Press Increment Button
Scrolling
FACt DEfAULt
dONE
d1A6
Diagnostics
IP
Press Enter Button Press Enter Button
Press Enter Button
Press Enter Button
Press Enter Button
NEt-
-065
d1A6
Press Increment Button
Scrolling
NEt-P SNtP-p
Range Example
Optimal is: -070
XXX_ XXX_ XXX_ XXX_
Press Increment Button
Press Increment Button
CANC
Scrolling
CANCEL
SEtUSEtU
Scrolling
SEtUP
Scrolling
SEtUP
Fig. 4
Update the
rmware via
access to the
internet through
port 80.
Fig. 5
Restore the
clock to the
precongured
factory settings.
Fig. 6
Run connection
diagnostics on
the clock.

Appendix
Troubleshooting
Code Blue
Clock
Configuration
Wi-Fi
Configuration
Administrator
Settings
Operation
Installation
Introduction
Specifications
© American Time
14
Introduction
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Operation
Powering Up
Before applying power, place the SET/RUN switch to the RUN position and the UP/DOWN/CLOCK switch to
the CLOCK position.
Apply power to the unit. The displays may rotate during the power on self test and then a version number will appear
for a few seconds. Once the receiver inside the clock completes an SNTP time sync, the clock will display and begin
keeping time.
Setting Time
Setting of the time is not needed for the digital clock or timer control station. The time information is automatically
updated by the Wi-Fi receiver. The 12- or 24-hour mode option is congured by the display settings of the Wi-
Fi receiver.
The ATSTCS timer control station will allow the user to set a 12- or 24-hour mode and time when the SET/RUN switch
is in the SET position. However, the time and the 12- or 24-hour format will be overridden by the Wi-Fi receiver settings
after it updates the time. Set the SET/RUN switch to the RUN position and the UP/DOWN/CLOCK switch to the
CLOCK position to return the clock display.
Setting the Up Counter Preset Time
If you want to use the alarm and hold feature with the UP timer, you will need to set a preset time for the UP timer.
Set the UP/DOWN/CLOCK switch to the UP position.
Set the SET/RUN switch to the SET position. The hours digits will be flashing.
Using the INCREMENT switch, set the desired hours for the preset time, then press ENTER. The minutes digits will
now be flashing.
Set the desired minutes the same way, then press ENTER. The seconds digits will then be flashing.
Set the desired seconds the same way, then press ENTER. The display will then ash donE.
Set the SET/RUN switch back to the RUN position.
nNote: A preset of 00:00:00 allows the digital clock/timer to be used as a standard elapsed timer with a maximum
elapsed time of 30:59:59.

Appendix
Operator
Maintenance
Important
Considerations
Clock
Configuration
Wi-Fi
Configuration
Firmware
Update
Operation
Installation
Introduction
Specifications
© American Time 15
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Operation
Up Counter Elapsed Time Operation
Once the desired preset value has been set, the unit is now ready to function as an UP count elapsed timer.
1. Be sure the SET/RUN switch is in the RUN position.
2. Set the UP/DOWN/CLOCK switch to the UP position.
3. Press RESET to display 00:00:00.
4. Press the START/STOP switch to begin counting elapsed time.
5. Press the START/STOP switch again to stop and hold the count.
6. Press the START/STOP switch again to resume elapsed time counting.
7. To start over press RESET to display 00:00:00 again.
When the timer reaches the preset value, it will sound the audible alarm for 2 seconds and hold the
time count.
During an UP count elapsed time operation, you can display any of the other time functions using the UP/
DOWN/CLOCK switch as desired.
Setting the Down Counter Preset Time
If you are using the clock as a DOWN counting elapsed timer, you will need to set a preset time to count
DOWN from. In this mode, the alarm and hold will occur at 00:00:00.
1. Set the UP/DOWN/CLOCK switch to the DOWN position.
2. Set the SET/RUN switch to the SET position. The hours digits will be flashing.
3. Using the INCREMENT switch, set the desired hours for the preset time,
then press ENTER. The minutes digits will now be flashing.
4. Using the INCREMENT switch, set the desired minutes for the preset time,
then press ENTER. The seconds digits will then be flashing.
5. Using the INCREMENT switch, set the desired seconds for the preset
time, then press ENTER. The display will then flash donE.
6. Set the SET/RUN switch back to the RUN position.
Down Counter Elapsed Time Operation
Once the desired preset value has been set, the unit is now ready to function as a DOWN count
elapsed timer.
1. Set the UP/DOWN/CLOCK switch to the DOWN position.
2. Be sure the SET/RUN switch is in the RUN position.
3. Press RESET to display the preset value which was set previously.
4. Press the START/STOP switch to begin counting down elapsed time.
5. Press the START/STOP switch again to stop and hold the count.
6. Press the START/STOP switch again to resume elapsed time counting.
7. To start over press RESET to display the preset value again.
When the timer reaches 00:00:00, the timer will stop counting and the audible alarm will sound for 2 seconds.
During a DOWN count elapsed time operation, you can display any of the other time functions using the UP/
DOWN/CLOCK switch as desired

Appendix
Troubleshooting
Code Blue
Clock
Configuration
Wi-Fi
Configuration
Administrator
Settings
Operation
Installation
Introduction
Specifications
© American Time
16
Introduction
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Code Blue
Description
The Code Blue feature provides an override which forces the clock into a special count up elapsed time mode.
No matter which of the three normal functions is being displayed, Code Blue input will cause the unit to begin
counting elapsed time from 00:00:00. All other functions of the unit continue to operate in the background during
a Code Blue.
Operation
A Code Blue is initiated by applying a signal ranging from 12vac/vdc to 30vac/vdc to the K2+ and K2- terminals.
See the sample wiring diagram below for more detail.
The Code Blue timer is the highest priority function of the clock/timer while in the run mode. No matter which of
the 3 normal functions is being displayed, the Code Blue input will cause the clock to begin counting up elapsed
time from 00:00:00.
The Code Blue timer can be stopped and the time held for viewing by pressing the START/STOP button on the
ATSTCS switch panel. The Code Blue timer cannot be restarted from the switch panel.
To reset the clock back to normal operation, the RUN/SET switch must be set to the SET position momentarily
and then returned to the RUN position.
All other functions of the clock continue to operate in the background during a Code Blue. Time of day and time
corrections from the Wi-Fi receiver will not be affected. The standard count up timer and the count down timer
will continue as well. However, if one of these timers is switched on for display when a Code Blue occurs, that
particular timer will be reset when the clock is reset back to normal operation.
Digital Clock/Timer Code Blue wiring using Control Station
The Control Station is connected as normal.
K2+ K2– K1+ K1– 12VAC 12VAC
UNREG GND PIEZO S5 S4 S3 S2 S1 NOT USED NOT USED
RED BLACK VIOLET GREY BROWN BLUE ORANGE YELLOW GREEN WHITE
PIEZO
BUZZER
RESET
ENTER
START/STOP
INCREMENT
UP CLOCK DOWN
SET
RUN
Green-Earth Gnd
White-Neutral line
Black-Hot line
Digital Clock/Timer
ATSTCS Control Station
20 ft. supplied cable.
Can be extended to 30 ft.
maximum using #22 AWG
wire (min.) with 1/32”
insulation (min.)

Appendix
Operator
Maintenance
Important
Considerations
Clock
Configuration
Wi-Fi
Configuration
Firmware
Update
Operation
Installation
Introduction
Specifications
© American Time 17
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Important Considerations
The ATSTCS must be in the RUN mode for Code Blue to override.
The 12vac/vdc to 30vac/vdc signal that starts the Code Blue timer originates from equipment external to the Digital
Clock/Timer. The external equipment usually employs a switch device (i.e., a relay contact) to apply this signal. That
switching device is often referred to as the Code Blue contact.
The Code Blue contact does not have to open before resetting the Digital Clock/Timer back to normal operation, but
must be opened before another Code Blue can occur. The transition from no voltage to applied voltage (across the
K2+ and K2- terminals) initiates a Code Blue.
If the Code Blue contact opens and closes again before the Digital Clock/Timer is reset back to normal operation, the
Code Blue timer will start over from 00:00:00.
If a power failure occurs during any Code Blue event, the Code Blue timer will start over from 00:00:00.

Operation
Installation
Appendix
Troubleshooting
Code Blue
Clock
Configuration
Wi-Fi
Configuration
Administrator
Settings
Introduction
Specifications
© American Time
18
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Introduction
The clock will act as a limited access point for direct Wi-Fi communication to complete conguration.
After connecting to the clock with a wireless device it can be congured with a web browser.
n Note: If your clock was precongured by American Time this process is unneeded unless changes are required.
Digital Configuration
To enter conguration (limited access point mode) complete the following process:
Ensure that the clock is powered up and move the Run/Set switch from Run to Set. The clock will display a
scrolling message: SEtUP. Press the Enter button and the clock Wi-Fi module will go into provisioning mode.
1. Connect to the clock with a Wi-Fi enabled device (SSID will show up as American Time - xxxxxx
under available wireless networks, where xxxxxx is the last 6 digits of the mac address.

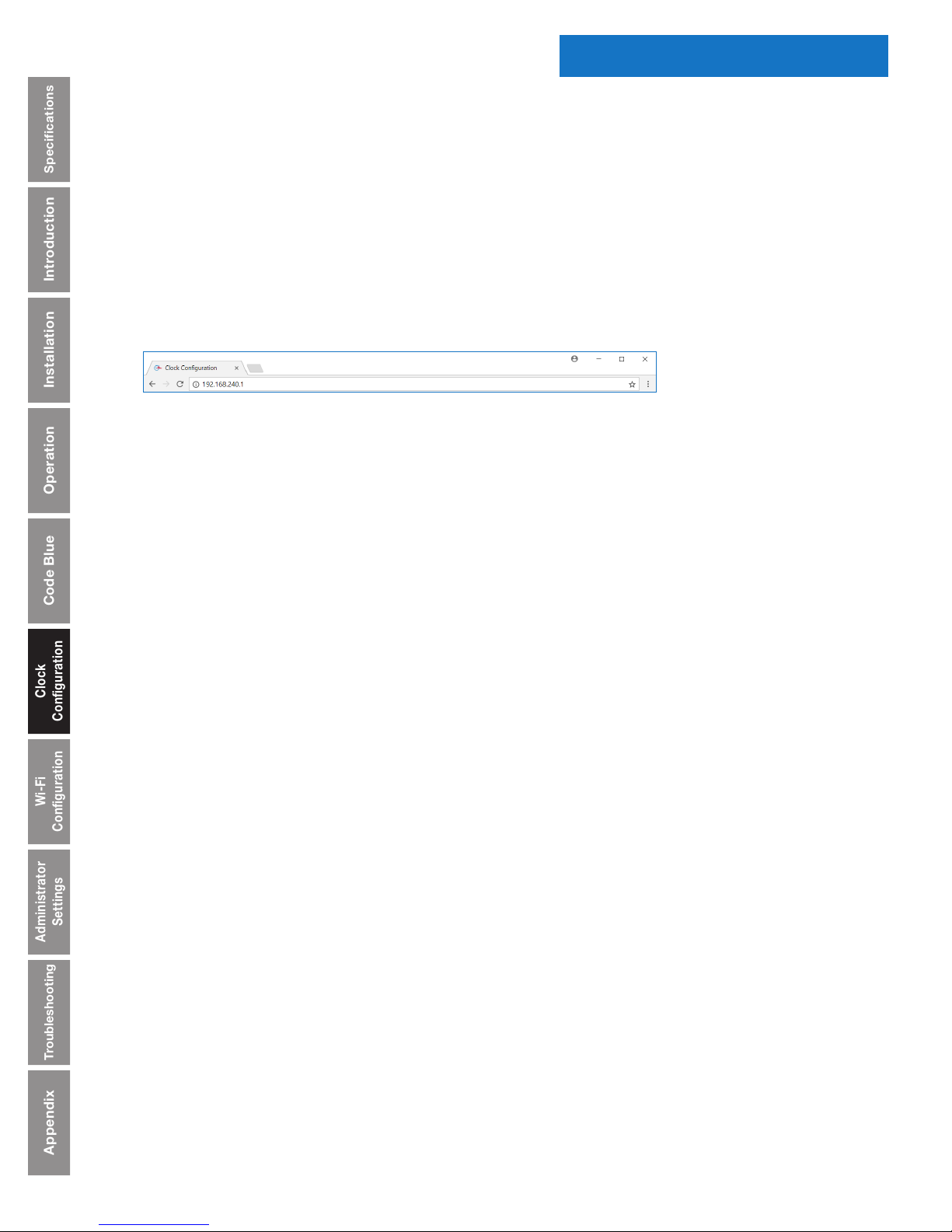

2. Enter 192.168.240.1 into the URL of a web browser of the Wi-Fi enabled device.
3. Refer to Clock Conguration (page 21) to congure clock settings and
Wi-Fi Conguration (page 22) to congure Wi-Fi settings.
4. When the clock Wi-Fi module is connected to the Wi-Fi enabled device, the clock will
scroll the message: CANCEL across the screen. Press the Enter button to cancel the
provisioning and disconnect the Wi-Fi module from the Wi-Fi enabled device.
Conguration (Limited Access Point Mode)

Operation
Installation
Appendix
Operator
Maintenance
Important
Considerations
Clock
Configuration
Wi-Fi
Configuration
Firmware
Update
Introduction
Specifications
© American Time
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
19
Clock Configuration
1. Clock Display Format – Sets the clock displays to a 12 hour or 24 hour time format. Applicable to
Digital Clocks only.
2. Sync Frequency – Sets the frequency of the clock sync from 1 to 12 hours. Applicable to Electric and
Digital clocks only.
3. Time Zones – The Time Zone entry sets the time zone. Reference Appendix B for a list of all available time zone
configurations.
4. Daylight Saving Time – Enable (Auto, Custom Fixed or Custom Floating) or Disable (Off) Daylight Saving
Time adjustments.
5. Use IP Address – When Use IP Address is selected "Primary SNTP IP and "Secondary SNTP IP" static IP
addresses are used for SNTP synchronization.
6. Use DNS – When Use DNS is selected "Pool Domain Name" is used for SNTP synchronization.
7. Primary SNTP IP – This is the rst SNTP time server from which the Wi-Fi clock will receive time. This server will
be attempted rst. If it fails to provide a valid time the secondary server is tried next.
8. Secondary SNTP IP – This is the second SNTP time server from which the Wi-Fi clock will receive time. This
server is attempted only after the Primary SNTP server IP fails.
9. Pool Domain Name – This text is used to retrieve an IP address from a DNS server for SNTP synchronization (i.e.
Pool.ntp.org or time.nist.gov).
10. Save button – This button is used to save on screen settings.
11. Wi-Fi Conguration – This button moves to client settings menu page. Through the client settings menu page
wireless network conguration pages can also be reached.
12. Exit Setup – This button exits limited Access Point mode and returns to normal operation.
13. Current SSID – The current Service Set Identier (SSID) is the name of the wireless network the Wi-Fi clock will
attempt to use if left unchanged.
14. FW Version – The current rmware version used on the Wi-Fi clock.
15. MAC Address – The Media Access Control (MAC) address is a unique identier assigned to the Wi-Fi clock
network hardware for communications.

Code Blue
Operation
Installation
Appendix
Troubleshooting
Wi-Fi
Configuration
Administrator
Settings
Clock
Configuration
Introduction
Specifications
© American Time
20
Wi-Fi Digital Clock/Elapsed Time Indicator
with Code Blue Installation Manual
Introduction
Wi-Fi Configuration
1. Click on “WiFi Conguration” button from clock conguration pages.
2. Click on “Wireless and Network Configuration”.
3. Select Wi-Fi conguration entry method.
a. Click on “Select an Existing Network" if beacon is active and available (this is normally the case) from
desired network. If you select this option, go to "a. Select an Existing Network" on page 21.
b. Click on “Manual Conguration to Join a Network” if beacon is not active or is unavailable.
If you select this option, go to "b. Manual Conguration to Join a Network" on page 23.
Wi-Fi Configuration
