AMP AFL-4033 Operating and safety instructions

- 1 -
AMP®LOW VOLTAGE LANDSCAPE LIGHTING
AMP®27W RGBCW LED Flood Light with Yoke Mount (Dimmable)
ITEM: AFL-4033
INSTALLATION & MAINTENANCE GUIDE
1-813-978-3900 • Mon-Fri 9am-6pm (EST)

IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION
INSTALLATION & MAINTENANCE GUIDE
!
This luminaire is intended for installation in accordance with local codes
and the National Electric Code (NEC). Failure to adhere to these codes and
instructions may result in serious injury, property damage and void the
warranty.
These instructions do not intend to cover all variations in installation, operation
maintenance or mounting situations.
1. Make sure the power is turned OFF before installing or servicing this
luminaire.
2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or
more from pool, spa or fountain.
3. This luminaire is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.
4. Wiring connections must be made with UL listed wire connectors that
are suitable for outdoor use.
5. Position the low voltage wire and wire connector so that it is located
within 6 inches (15.2 cm) from a building structure, a luminaire or fitting.
6. The main low voltage cable is intended for shallow burial - less than 6
inches (152 mm).
IMPORTANT SAFETY INSTRUCTIONS
!
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
LIGHTED LAMP IS HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
6. Do not operate the luminaire fitting with a missing or damaged shield.
SAVE THESE INSTRUCTIONS
AMP®27W RGBCW LED Flood Light - AFL-4033
813.978.3900 • [email protected]om • www.amplighting.com
2

PACKAGE CONTENTS
PARTS REQUIRED
813.978.3900 • [email protected]om • www.amplighting.com
2
813.978.3900 • [email protected]om • www.amplighting.com
3

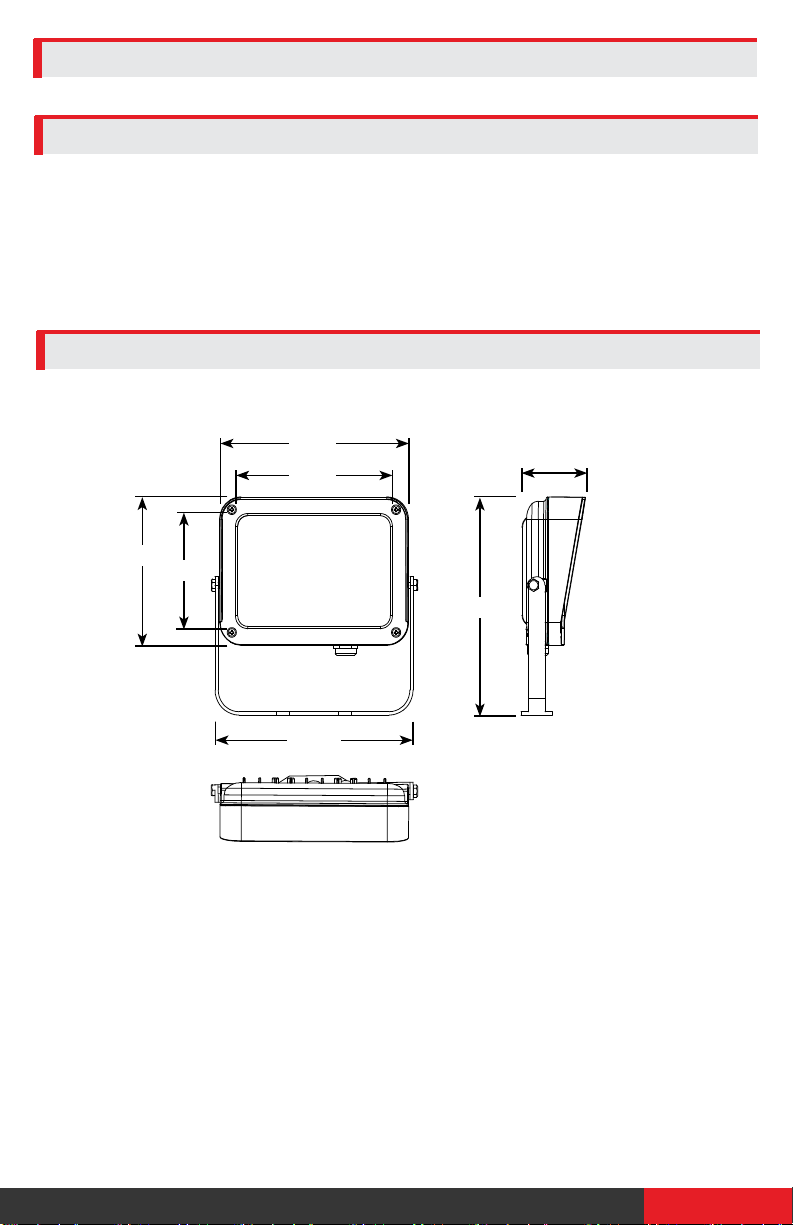

PRODUCT DIMENSIONS
A. (1) Fixture Body
A. (1) Mounting Accessory
B. (1) Coupler
C. (1) Remote
D. (1) Hex Nut
E. (2) AAA Batteries
7.48”
7.12”
5.77”
4”
5.35”
7.87”
2.22”

INSTALL STAKE
1
INSTALL FIXTURE BODY TO STAKE
2
INSTALLATION & MAINTENANCE GUIDE
AMP®27W RGBCW LED Flood Light - AFL-4033
813.978.3900 • [email protected]om • www.amplighting.com
4
Determine the desired
location for mounting the
stake. Hammer the stake
into the ground until flange
of stake is flush to grade. To
avoid damage to the stake,
place a board on top of the
stake while hammering.
Note: If the ground is hard
and the stake is difficult to
install, make a crosscut in the
ground using a flat shovel.
Soil
Ground
Bored
Stake
Thread the coupler onto
the stake. Place the yoke
mount of the fixture body
over the coupler and
secure with the hex nut.
Fixture Body
Ground
Supply Wire
Coupler
Yoke Mount
Hex Nut
Soil
Stake

WIRE CONNECTIONS
3
ADJUST FIXTURE BODY DIRECTION
4
813.978.3900 • [email protected]om • www.amplighting.com
4
813.978.3900 • [email protected]om • www.amplighting.com
5
Strip both leads from the fixture wires. Using two UL listed wire
connectors (sold separately), connect the leads from the fixture
wires to the main supply cable leads.
Fixture Body
Fixture Wire
Wire Connector
Main Supply Wire
ROTATE Adjust the fixture body to
the desired orientation and
tighten the screws with the
wrench.
After installation,
A. Check to make sure the fixture is mounted properly.
B. Check to make sure the wires are connected properly.
Last, turn on the power and check if the lighting fixture works. If
not, turn off the power and contact your local electrician.
Fixture Body
Wrench
Screw

INSTALLATION & MAINTENANCE GUIDE
AMP®27W RGBCW LED Flood Light - AFL-4033
813.978.3900 • [email protected]om • www.amplighting.com
6
REMOTE CONTROLLER INSTRUCTIONS
No. Button
Name Function Description
1 ALL ON
Turns on all lights which are
controlled by this remote that
are within range.
2 ALL OFF
Turns off all lights which are
controlled by this remote that
are within range.
3 Indicator
Illuminates red when any
button is pressed to indicate
signal transmission.
4
RGB color wheel. Touch the
desired color to change the
light xture within the selected
zone and within range to that
color.
5,6
Decrease or increase the
light xture brightness on the
selected zone and within range
by pressing the corresponding
button.
No. Button Name Function Description
7 W Adjusts the light to a warmer color temperature (CCT). Short press
for increments, long press for continuous adjustment.
8 C Adjusts the light to a cooler color temperature (CCT). Short press for
increments, long press for continuous adjustment.
9CCT Color temperature (CCT) selector. Toggles though 2200K-2700K-
3000K-4000K CCT when pressing.
10 ZONE
1,2,3,4,5,6
Zone selection button. Press to select desired zone.
ALL ON ALL OFF
W
C
1 3
2
4
ZONE
6
5
CCT
ON OFF
W
C
1 3
2
4
ZONE
6
5
CCT
ON OFF
W
C
1 3
2
4
ZONE
6
5
CCT
ON OFF
W
C
1 3
2
4
ZONE
6
5
CCT
1
5
7
10
3
2
6
8
9
4

813.978.3900 • [email protected]om • www.amplighting.com 813.978.3900 • [email protected]om • www.amplighting.com
7
INSTALL AAA BATTERIES
1
-
+
-
+
Back of Remote
Controller
Battery
Compartment
Battery Cover
AAA Battery
(Sold Separately)
Open the battery cover, install
two AAA 1.5V batteries into
the battery compartment.
Pay attention to the “+”/“-”
polarities of the battery when
installing. Always reinstall the
battery cover after installing
AAA 1.5V batteries.
PAIR CODES
2
ALL ON ALL OFF
W
C
1 3
2
4
ZONE
6
5
CCT
ZONE
All products default to a factory setting.
The lights must be paired by the remote
controller before using them.
1. Install light(s).
2. Power the light(s) on. The light(s) will
blink between warm and cool light
for 30 seconds indicating pairing
mode.
3. While the light(s) are in pairing mode,
press the desired zone number on
the remote once to pair the light
fixture(s) with that zone. Cool white
light (4000K) will flash three times
indicating that the fixture is paired
successfully with the zone. The
light(s) will turn to warm white light
(2200K).

INSTALLATION & MAINTENANCE GUIDE
AMP®27W RGBCW LED Flood Light - AFL-4033
813.978.3900 • [email protected]om • www.amplighting.com
8
PAIR CODES (CONTINUED)
2
1. Using the same process you can pair additional fixtures to
the same or different zones.
Note:
1. Please ensure light(s) are within range of the remote
controller.
2. If zone pairing fails, power the light(s) OFF and ON, then
repeat the above steps.
3. If pairing operation is not completed within 30 seconds,
the lights will return to their default static cool white
CCT (4000K). Once in this state, whenever the light(s) are
powered OFF and back ON, the light(s) will re-initiate pairing
mode for 30 seconds. This process will continue until pairing
is successful.
4. The RF bulb(s) or fixture(s) can be paired with a maximum
of 4 remote controllers. Power the light(s) OFF and ON and
within 30 seconds the bulbs and fixtures can be paired with
another remote controller by pressing the desired zone
number. The fixture will flash cool white light (4000K) once
after successful pairing. The bulb(s) or fixture(s) can be
controlled by any of the paired remote controllers.
5. If more than four remote controllers are paired to the lights
successfully, the first remote controller will be unpaired
automatically. Only the last four remote controllers are
functional.

813.978.3900 • [email protected]om • www.amplighting.com
8
813.978.3900 • [email protected]om • www.amplighting.com
9
ADJUST BRIGHTNESS
3
ADJUST COLOR TEMPERATURE
2
ALL ON ALL OFF
W
C
1 3
2
4
ZONE
6
5
CCT
ZONE
Brightness
Increase
Brightness
Decrease
1. Select the desired lights by
pressing the zone to which
they have been assigned.
2. Press the brightness increase
button to increase the light
brightness, or press the
brightness decrease button to
decrease the light brightness.
Note:
1. Press the
ON OFF
W
C
1 3
2
4
ZONE
6
5
CCT
or
ON OFF
W
C
1 3
2
4
ZONE
6
5
CCT
button
once and the brightness will
adjust one level.
2. Long press the
ON OFF
W
C
1 3
2
4
ZONE
6
5
CCT
or
ON OFF
W
C
1 3
2
4
ZONE
6
5
CCT
button, and the brightness will
gradually increase or decrease
until the button is released.
ALL ON ALL OFF
W
C
1 3
2
4
ZONE
6
5
CCT
ZONE
Warm Light
Button
Cool Light
Button
1. Select the lights by pressing
the zone they are in.
2. Press the warm light button or
cool light button to the desired
color temperature.
Note:
1. Press the warm light button
or cool light button once, the
color temperature will adjust
to the next level.
2. Long press the warm light
button or cool light button,
the color temperature will
gradually increase or decrease
until the button is released.

INSTALLATION & MAINTENANCE GUIDE
AMP®27W RGBCW LED Flood Light - AFL-4033
813.978.3900 • [email protected]om • www.amplighting.com
10
QUICK COLOR TEMPERATURE ADJUSTMENT
5
ADJUST COLOR
6
ALL ON ALL OFF
W
C
1 3
2
4
ZONE
6
5
CCT
ZONE
CCT
Button
The preset color temperatures of the
CCT button are 2200K, 27000K, 3000K
and 4000K.
1. Select the lights by pressing the
zone they are in.
2. Press the CCT button to adjust
the lights through 2200K-2700K-
3000K-4000K color temperatures.
ALL ON ALL OFF
W
C
1 3
2
4
ZONE
6
5
CCT
RGB
Palette
Warm Light
Button
Cool Light
Button
Use the RGB Palette wheel to
select colored light modes and
“W”, “C”, or “CCT” buttons to
select white light modes.
1. For white light, press
the warm light button
or cool light button to
adjust the white light color
temperature.
2. For color light, touch the
RGB palette wheel to adjust
the light color.

813.978.3900 • [email protected]om • www.amplighting.com
10
813.978.3900 • [email protected]om • www.amplighting.com
11
CONTROL BY GROUP
7
UNPAIR LIGHTS
8
ALL ON ALL OFF
W
C
1 3
2
4
ZONE
6
5
CCT
ZONE
(Group)
All ON 1. To control lights by group,
Select the lights by pressing
the zone they are in. And then
press respective function
buttons to adjust the lights.
ALL ON ALL OFF
W
C
1 3
2
4
ZONE
6
5
CCT
ZONE
All ON If you need to re-pair the light(s) that
have already been paired to a different
zone, they must be unpaired rst.
1. To unpair lights by group, turn
off the light(s) that are required
to be unpaired and then back on.
Select the light(s) by pressing
the zone they are in. Press the
corresponding zone button 6 times.
2. To unpair all lights, turn off all
lights and then turn on all lights.
Press the all “ON” button 6 times.
3. After pressing six times, the
corresponding lights will ash three
times and then turn off, indicating that unpairing is complete. Now the
lights will be restored to the factory settings.
Note:
1. When the lights are ready for unpairing, you must only press zone
button 1 to 6 in the zone area or “ON” button. Otherwise, unpairing will
fail.
2. If unpairing fails, the process needs to be re-initiated.

Specifications and product details subject to change without notice.
© Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected]om • amplighting.com
1-813-978-3900 • Mon-Fri 9am-6pm (EST)
