AMQ KINEX SINGLE RUN User manual

KINEX installation guide

KINEX INSTALLATION GUIDE | 2 amqsolutions.com
CONTENTS
SAFETY STATEMENT .................... 3-6
SINGLE RUN.............................7
Hardware, Components & Optional
Accessories .............................8
Assembly Outline .........................9
Assembly Instructions
Cantilever to Base Frame Assembly .........10
Feet Assembly ..........................11
Beam Assembly .........................12
Beam Side Cover & Front Cover Assembly....13
Electrical — Handset & Cable Assembly......14
Electrical — 4 Circuit .....................15
Electrical — 3 Circuit .....................16
Worksurface Assembly....................17
Bridge Connector Assembly ...............18
Screen Clip Assembly ....................19
Data Faceplate & Electrical Side Cover
Installation .............................20
DOUBLE RUN ...........................21
Hardware, Components & Optional
Accessories ............................22
Assembly Outline ........................23
Assembly Instructions
Cantilever to Base Frame Assembly .........24
Glide Assembly .........................25
Cross Beam Assembly....................26
Stretcher Bars and Cantilever Assembly ......27
Screen Clip Cover & Cross Beam Cover
Assembly ..............................28
Electrical — Handset & Cable Assembly......29
Electrical — 4 Circuit .....................30
Electrical — 3 Circuit .....................31
Worksurface Assembly....................32
Bridge Connector Assembly ...............33
Screen Clip Assembly ....................34
End Panel Assembly (Accessory) ...........35
Power Pole Assembly (Accessory) ..........36
Data Faceplate & Electrical Side Cover
Installation .............................37
Extended Bridge Connector Assembly .......38
Connecting DR to SR Assembly ............39

KINEX INSTALLATION GUIDE | 3 amqsolutions.com
SAFETY STATEMENT
WARNING RISK OF SERIOUS INJURY DUE TO PINCH POINTS, TIPOVER, OR
POTENTIAL COLLAPSE.
This powered, adjustable height desk appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.
• RISK OF DEATH OR SERIOUS
INJURY. Raising or lowering desk
cantrap, pinch or crush body parts or
property.
• CRUSH HAZARD - DO NOT PLACE
FEET, LEGS OR OTHER BODY
PARTS ON OBJECTS PLACED
UNDER TABLE TOP OR BELOW
MODESTY PANEL.
• DO NOT OPERATE THIS EQUIPMENT
Unless Properly Trained.
• DO NOT ALLOW USE BY CHILDREN
or people unable to understand the risks
and to safely adjust the desk height.
• INSPECT REGULARLY. Stop using if
product is damaged or has loose parts.
Only repair with AMQ authorized parts
and methods.
• MAINTAIN >1” (25mm) GAP ABOVE
OBJECTS ON DESK AT MAX HEIGHT
AND BETWEEN THE DESK &
ADJACENT OBJECTS. Locate desk,
accessories, and nearby objects to
allow movement of desktop through full range without pulling cords, trapping body parts, or colliding with anything
(shelves, electrical plugs and cords, door knobs, window sills, storage cabinets, etc.)
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a class B digital device pursuant to Part 15 for FCC rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving
antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet or a circuit different from
that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
Important: Changes or modifications to this product not authorized by AMQ could void your authority to operate the product.
Max.
Min.
>1"
(25mm)
>1"
(25mm)
>1"
(25mm)
X
X
X
NOTE: Desk image
is for reference only.
Table shape and leg
quantity may change
based on the style
and configuration.
1/[phone]
www.amqsolutions.com
FOR REFERENCE ONLY
FOR REFERENCE ONLY
FOR REFERENCE ONLY
?

KINEX INSTALLATION GUIDE | 4 amqsolutions.com
WARNING
SAFETY STATEMENT
RISK OF SERIOUS INJURY:
POTENTIAL FOR INJURY: The use of worksurfaces that do not comply with the AMQ defined criteria and limitations
could cause personal injury or property damage due to pinch points, instability, or other problems.
POTENTIAL FOR NON-COMPLIANCE: The use of work surfaces that do not comply with AMQ criteria VOIDS any
AMQ claims of compliance with ANSI/BIFMA, UL, LEED, or other applicable requirements. The use of non-AMQ work
surfaces on AMQ adjustable-height bases may NOT be accepted as compliant to municipal electrical codes or OSHA
federal workplace standards, because this use does not create an NRTL (UL, ETL, etc.) listed product. AMQ is not
responsible for the ultimate determinations of compliance for height-adjustable bases with non-AMQ work surfaces.AMO
assumes NO liability for lack of standards compliance in these instances.
WARRANTY RESTRICTIONS: The use of non-AMQ supplied work surfaces VOIDS all AMQ warranties, expressed or
implied.
DISCLAIMER: The use of non-AMQ work surfaces is NOT recommended. Any use of a non-AMQ work surface
requires additional investigation by the customer regarding the appropriateness for use. It is the sole responsibility of
the customer to determine the suitability and safety of the selected work surface construction and attachment means.
The following information is provided as a guideline, but does not address all potential issues. Customers should seek
professional guidance as to the appropriateness of their chosen work surface.
MANDATORY REQUIREMENTS REGARDLESS OF WORK SURFACE MATERIAL OR CONSTRUCTION:
FASTENERS: Adjustable-height bases include fasteners intended for use with AMQ work surfaces.
These fasteners may potentially also be suitable for work surfaces meeting the following criteria:
• Medium-density or higher particleboard or fiberboard cores with High-pressure laminate (HPL), Lowpressure
laminate (LPL) or veneer & backers
• Thickness of .984” (25.0 mm) or greater
• Fasteners located a minimum distance of .984” (25.0 mm) from any edge
Any other work surface construction will require different and/or additional fastening means and these means must
be determined by the project’s designer , architect, or engineer. For example , solid-surface materials should use
appropriate threaded inserts and corresponding
fasteners or similar attachment means.
In all cases, all fastener locations provided in the
base attachment features MUST be used (e.g. if
attachment plate has 6 screw holes, all 6 holes
must be used for attachment).
FLAMMABILITY: Any worksurface or similar large
part> 10ft” 2 must have a flame spread< 200
and a smoke developed index < 450 when tested
per UL 723.
SHARP EDGES: All accessible edges of the
work surface must meet 1439 test for sharp
edges.
DIMENSIONAL LIMITATIONS:
• Work surface depth not to exceed
30”(762mm)
• Longitudinal work surface position on base
must be on centerline± 2.0” (50.8 mm)
• Work surface overhang (distance from side
of support cantilever to edge of work surface)
must be greater than .984” (25.0mm) and
may not exceed 15.0” (381 mm)
WORKSURFACE
OVERHANG
C
L
+
WORKSURFACE
WIDTH
WORKSURFACE
DEPTH

KINEX INSTALLATION GUIDE | 5 amqsolutions.com
• Work surface overhangs larger than .984” (25.0mm) are not allowed on widths< 64.0” (1625.6 mm)
• Work surface overhangs between .984” (25.0mm) and 15.0” (381 mm) may exist on one side only for tops that are~
64.0” (1625.6 mm) and~ 71.645” (1820.8 mm)
• Work surfaces larger than 71.685” (1820.8 mm) must have overhangs larger than .984” (25.0mm) on at least one
side, but may not exceed 15.0” (381 mm) on any side
• Maximum work surface width may not exceed 72”(1828.Bmm)
FOLLOW ALL WARNINGS PROVIDED FOR BASE+ WORK SURFACE.
SAFETY STATEMENT

KINEX INSTALLATION GUIDE | 6 amqsolutions.com
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed,
including the following: Read all instructions before using (this furnishing). PLEASE
SAVE THESE INSTRUCTIONS, AND THE USER GUIDE, IN AN OBVIOUS
PLACE FOR THE END USER AFTER ASSEMBLY.
1. Always unplug this furnishing from the electrical
outlet before cleaning.
2. Use this table only for its intended use as
described in these instructions. Do not
use attachments not recommended by the
manufacturer.
3. Never operate this table if it has a damaged cord
or plug, if it is not working properly, or if it has been
dropped or damaged.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
8. For loading always put heavier items at the bottom and not near the top in
order to help prevent the possibility of the furnishing tipping over.
9. Do not sit/stand on product.
10. Inspect regularly, stop using if damaged or loose parts found.
The desk or table shall be installed near power socket & the plug shall be
easily accessible.
POLARIZED PLUG INSTRUCTIONS (Only For Products with Polarized Plug)
—To reduce the risk of electrical shock, some furnishings have a polarized plug
(one blade is wider than the other) like the plug illustrated in Figure 1. This plug will
fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician to install the proper
outlet. Do not change the plug in any way.
GROUNDING INSTRUCTIONS (For Grounded Products only) — Some products must be grounded. Connect these
types of appliances to a properly grounded outlet in accordance with all local codes and ordinances. If a grounded
outlet is not available and cannot be installed, an Adaptor with Grounding Screw must be used as shown in Figure 2.
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
For products sold in North America and other 120V regions: this product is intended for use on a nominal 120-V circuit.
These products use a grounding plug that looks like the plug illustrated in sketch A in Figure 2. Make sure that the
product is connected to an outlet having the same configuration as the plug. No adapter should be used with this
product, unless using the Adapter w Grounding Screw shown in illustration.
PLUG ILLUSTRATION DISCLAIMER - The illustrations shown to the left show a plug typically seen in North America and
other 120V regions. Illustrations shown here may not match your product. Depending on your region, the plug pin size and
shape may change.
OPERATING INSTRUCTIONS:
Please refer to the provided User Guide, which is also available at www.amqsolutions.com
GROUNDED
OUTLET
GROUNDED
OUTLET BOX
(A)
(B)
METAL
SCREW
ADAPTER
TAB FOR
GROUNDING SCREW
GROUNDING PIN
Figure 1
Polarized Plug
Figure 2
Grounding methods
Products with Grounded Plugs
Products with Polarized Plugs
SAFETY STATEMENT
WARNING

KINEX SINGLE RUN

KINEX INSTALLATION GUIDE | 8 amqsolutions.com
KINEX SINGLE RUN
Optional
PHASE 1 | Hardware, Components & Optional Accessories
Hardware
Components
M6*10
x 6
Feet set
(either 22” or 28”)
NOTE: Not including the above electricals for fixed height
Kinex (using fixed columns)
Standard
Handset x 1
Power Cord
x 1
Connector
Cables
(6 pins) x 1
Stretcher Frame
SR Beam (48”, 60”or 72”)
Worksurface
(48”, 60”or 72” in width
23” or 29” in depth)
M10*22
x 10
ST3*20
x 2
ST5*20
x 18
M6*12
x 8
M6*10 x 4
(16 screws
already
pre-mounted)
Allen Keys
Column (left & right)
(3-Stage, 2-Stage or
Fixed Column)
Cantilever set
(left & right)
Beam Bottom
Cover x 2
LED Handset with 4 presets
ST4*20 x 2
Screen Clip x 2
M6*10 x 4
SR Cross Beam & Cover Set
(for 24” or 30”)
M6*10 x 6
M10*22
SR Power Pole Adapter
M6*10 x 4
Bridge
Connector
Beam Side
Cover x 2
Beam Front
Cover x 2
Electrical Outlet
Cover x 6
Beam Screen
Clip Hole
Cover x 2
These drawings identify the parts included with your Height Adjustable Table. Some of these parts are considered by regulatory bodies
to be critical components. If any parts shown here do not match your order, please contact AMQ at [email protected]

KINEX INSTALLATION GUIDE | 9 amqsolutions.com
KINEX SINGLE RUNPREPARATION | Assembly Outline
WARNING
ASSEMBLY PART #
1. Cantilever to Base Frame Assembly 1,2&3
2. Feet Assembly 4
3. Beam Assembly 5
4. Beam Side Cover & Front Cover Assembly 6,7&8
5. Electrical: Handset & Cable Assembly *
6. Electrical: 4-Circuit or 3-Circuit
7. Worksurface Assembly
8. Bridge Connector Assembly 9
* Step 5 is not applicable for installation of
fixed height Kinex (using fixed columns)
KINEX SINGLE RUN is not designed
for single unit application. Minimum
deployment of 2 units is advised.
6
6
5
4
4
3
3
2
1
1
7
7
8
9

KINEX INSTALLATION GUIDE | 10 amqsolutions.com
KINEX SINGLE RUNPHASE 1 | Cantilever to Base Frame Assembly
Step 1
Insert cantilever at both ends of the frame as
shown in the dragram below.
Step 2
Place the column on both ends.
Step 3
Screw (M6*12) in to lock column & cantilever into
position.
Step 4
Screw (M6*10 Button head) to secure cantilever to
frame.
4
4
3
2
1

KINEX INSTALLATION GUIDE | 11 amqsolutions.com
KINEX SINGLE RUNPHASE 2 | Feet Assembly
Step 1
Place the feet hole onto the column.
Step 2
Screw in using M10*22 screws to secure feet.
2
1

KINEX INSTALLATION GUIDE | 12 amqsolutions.com
KINEX SINGLE RUNPHASE 3 | Beam Assembly
Step 1
Adjust stretcher frame depending on the beam
length selected. Make sure the middle stretcher
bar is positioned right in the middle by using the
marking guides indicated on it.
Step 2
Slot beam into column bracket as in diagram
below.
Step 3
Screw in M10*22 screws to secure beam from the
front.
(If there is power block option selected, recommend to install it
to beam first before assembling the beam to frame.) See Phase 6
for power block assembly.
Step 4
Screw in M6*10 screws to secure the beam from
the sides.
Step 5
Tighten all 8 pre-installed socket screws to secure
the stretcher frame.
5
5
4
3
2
1

KINEX INSTALLATION GUIDE | 13 amqsolutions.com
KINEX SINGLE RUNPHASE 4 | Beam Side Cover & Front Cover Assembly
Step 1
Hook on beam side covers on both ends.
Step 2
Attach front covers to the beam.
Step 3
Attach beam screen clip hole covers.
3
2
1

KINEX INSTALLATION GUIDE | 14 amqsolutions.com

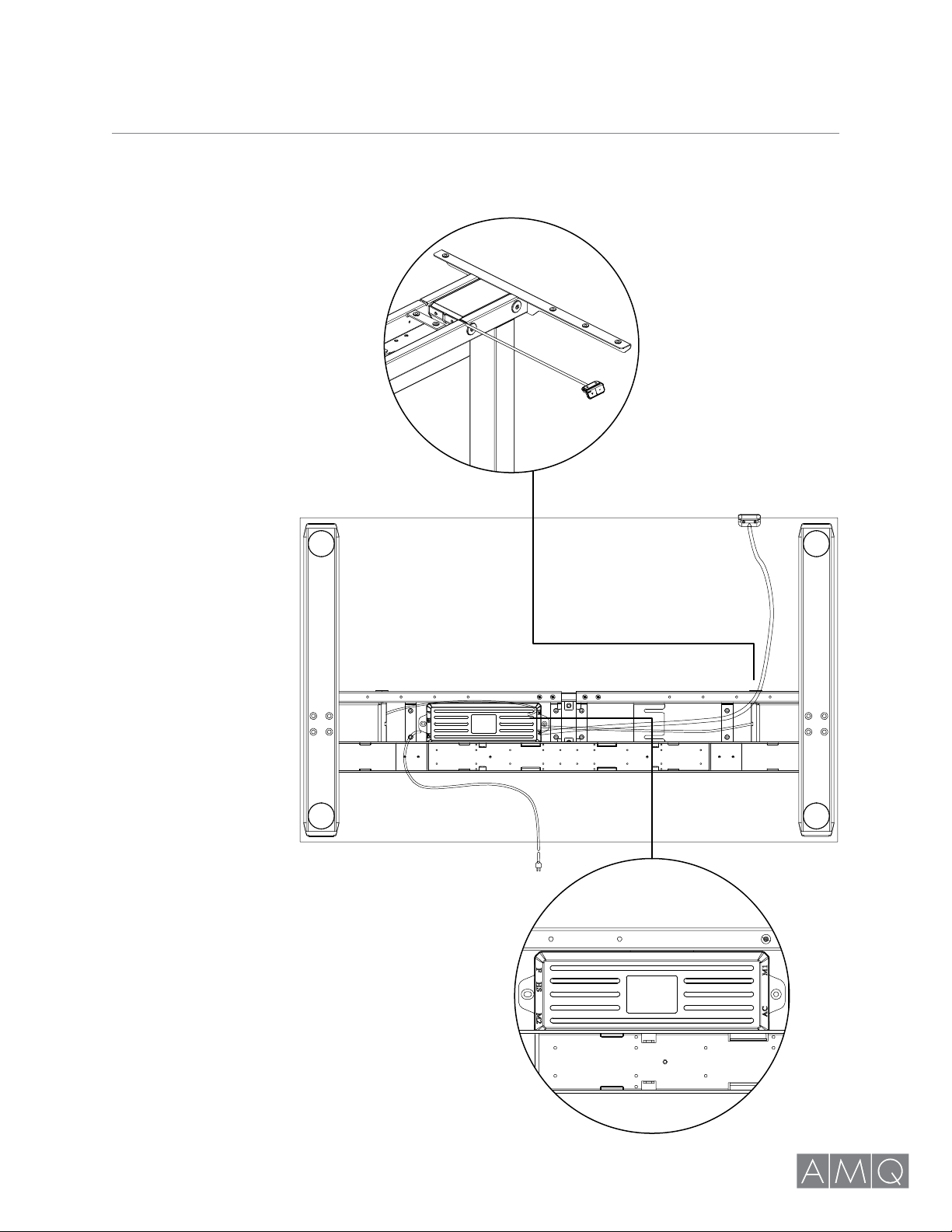

KINEX SINGLE RUNPHASE 5 | Electrical — Handset & Cable Assembly
NOTE:
Not applicable for installation of fixed
height Kinex (using fixed columns)
Position the handset
wire first before installing
the worksurface
Power
Handset

KINEX INSTALLATION GUIDE | 15 amqsolutions.com
KINEX SINGLE RUNPHASE 6 | Electrical — 4 Circuit
Step 1
Install the 4-circuit brackets into the beam. There
are pre-threaded holes ready. Use the machine
screws provided in the package for operation.
4-circuit with 4-duplex power block requires 1
bracket (6-duplex power block available which
requires 2 brackets).
Step 2
Drop-in the power block into the bracket and make
sure it locks into position.
Step 3
Install the supporting bracket at each end of the
power block using the long screws provided.
Step 4
Hook the bottom beam covers on the hooks
provided.
x 2
Lock in position
6-duplex power block
available which requires
2 brackets 3
2
1
4-duplex power block
4
3
2
1

KINEX INSTALLATION GUIDE | 16 amqsolutions.com
KINEX SINGLE RUNPHASE 6 | Electrical — 3 Circuit
Step 1
Insert the 3-circuit block into the beam.
Step 2
Slide in the junction block brackets and screw
it into the pre-threaded holes. Use the machine
screws provided in the package for operation.
Step 3
Hook the bottom beam cover on the hooks
provided.
3
2
1
1
1

KINEX INSTALLATION GUIDE | 17 amqsolutions.com
KINEX SINGLE RUNPHASE 7 | Worksurface Assembly
Step 1
Position the worksurface using the cantilever as a
reference. Left & right should have equal overhang
so does front & back. Secure worksurface using
ST5*20 screws.
Step 2
Mount the handset using the ST3*20 screws
provided.
2
1

KINEX INSTALLATION GUIDE | 18 amqsolutions.com
KINEX SINGLE RUNPHASE 8 | Bridge Connector Assembly
WARNING KINEX SINGLE RUN is not designed for single unit application.
Minimum deployment of 2 units is advised.
Step 1
Remove beam side covers.
Step 2
Position the bridge connector as in diagram.
Step 3
Secure the bridge connector with M6*10 screw
provided.
Step 4
Joint in the next table and screw in.
4
3
2
1

KINEX INSTALLATION GUIDE | 19 amqsolutions.com
KINEX SINGLE RUNACCESSORY | Screen Clip Assembly
Step 1
Slide in screen bracket to the worksurface with the
knob facing downwards. The brackets come in a
pair of right & left.
Step 2
Slide in screen to the screen bracket.
Step 3
Position the screen in the middle of the
worksurface then rotate knob to secure screen
bracket to worksurface.
Step 4
Position the screen to desire height and turn screw
to secure the screen.
4
3
2
1

KINEX INSTALLATION GUIDE | 20 amqsolutions.com
KINEX SINGLE RUNOPTIONAL | Data Faceplate & Electrical Side Cover Installation
Step 1
Data faceplate.
Step 2
Electrical Outlet Covers for any unused cutout holes.
2
2
1
