About AmTrykes®
AmTryke® therapeutic tricycles, owned and operated by National AMBUCS™
Inc., are designed for people with disabilities who are unable to operate a
traditional bicycle. AmTryke tricycles or “trykes,” can be operated by feet,
hands or both, and include a wide variety of models. The trykes can also be
adjusted to fit the needs of different riders, including frame size, type of seat,
trunk and leg supports.
AmTryke’s 1020 Junior Handcycle provides a good mobility option for larger
riders and features an adjustable easy slide wheel chair seat for transfer of
riders. Riders who are comfortable with the normal wheelchair position find
this seat familiar and easy to adjust. This hand crank tryke operates easily and
includes a 3-speed Shimano hub for ease in riding on gentle slopes and hilly
terrain. A tight turning radius makes this tryke easy to maneuver. An adjustable
foot platform provides secure foot positioning. This tryke also features a basket
for shopping, a coaster brake for additional safe riding and a front hand brake.
1020 can be adapted with several accessories. See Optional Accessories in this
manual for more information. You can also visit our website for most up to
date information at www.ambucs.org.
About This Manual
Read this manual carefully before assembling your tryke or using it for the first
time. This manual includes important information about safety, assembly and
maintenance. Keep this manual in a safe place for information and for ordering
accessories/parts.
AMBUCS/AmTryke reserves the right to make changes to the design and
technology of AmTrykes. The assembly instructions are accurate as of the date
of this manual’s printing.

Revised: 4/14/2021 2
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
Safety
Safety is very important to us. AmTryke products are designed in accordance
with the latest safety standards and are constantly monitored for quality. We
use information from this quality control to develop our products.
We urge all riders to seek the opinion of their health-care provider(s) before
riding their tryke.
AmTrykes should be used for their intended purpose only.
Safe Riding Tips
Before riding, familiarize yourself how the tryke operates —it’s steering,
braking and shift gears (if applicable). Adjust the seat, handlebars and pedals to
fit the rider. Please see Fitting AmTryke for Rider section in this manual for
more information.
Here are some tips about riding safety:
•AmTrykes should be used with close adult supervision.
•Riders must wear helmets. All our trykes include a free safety-rated helmet.
The helmet must fit appropriately. A properly fitting helmet sits on the head
comfortably −a helmet that sits high on the head is too small. Some
movement is acceptable, but a helmet that moves a lot is too large. See the
illustration below for reference:
Correct Way to Wear Helmet
Wear the helmet flat atop your head,
not tilted back at an angle.
Make sure the helmet fits snugly and
doesn’t obstruct your vision. The chin
strap should fit securely and the buckle
stay fastened.
GRAPHIC COURTESY OF BUDDY BIKE LLC
For more information about
finding the correct size helmet,
see Helmet Sizing Chart on page
18.
NOTE: Be careful not to pinch the
skin when fastening helmet buckle.

Revised: 4/14/2021 3
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
•Riders must wear shoes. If shoes have laces, they must be tied properly.
•Most trykes are equipped with a steering pin and have three steering options
available:
oFull steering: No steering pin. This option allows riders to make sharp turns
and is appropriate for riders who ride at slow speeds or in close quarters.
Close adult supervision is required.
oLimited steering: This option allows riders to turn 20 degrees in either
direction, thus, reducing the risk of over-steering or tipping over.
oNo steering: This option allows for riding straight only. A supervising adult
is required to turn the tryke.
•To avoid tipping the tryke over, approach wheelchair ramps or thresholds at
a 90-degree angle.
•Use caution on sloped parking lots, driveways and sidewalks. Avoid excess
speed by having an adult restrain the tryke from behind on sloped surfaces.
The trykes have many options for control features. Consult AmTryke to find
out the best solution for your rider.
•Many riders do not have the motor skills required to be able to use the hand
brake effectively.
•Depending on trunk stability, behavioral compliance and body awareness,
some riders may need supports (e.g., lateral, head), belts (e.g. lap, shoulder),
hip abductors or other specialized equipment. A physical therapist/health
professional can assist you with any recommendations.
•Riders should only be allowed to ride trykes that are the appropriate size. If
you are uncertain, refer to AmTryke Sizing Charts in this manual or contact a
physical therapist.
•Before riding, always check that all tires are inflated properly.
•If parts are broken or missing, the tryke should not be used until repaired.
WARNING: DO NOT RIDE IN OR NEAR TRAFFIC, OR WHERE THERE IS
A RISK OF FALLING OFF CURBS, STAIRS, POTHOLES OR OTHER HAZARDS.
WARNING: NEVER ALLOW MORE THAN ONE RIDER ON AMTRYKE.
WARNING: DO NOT RESTRAIN TRYKE BY GRABBING HANDLEBARS
OR HAND BRAKE —THIS MAY CAUSE IT TO TURN SHARPLY AND TIP
OVER.

Revised: 4/14/2021 4
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
Brakes
If your tryke has brakes (front or coaster brakes) be careful when using the
brakes. Operate the brakes gradually. If your tryke has front brakes (front
caliper brake or both front caliper brake and rear disk brake) squeeze the brake
lever(s) gradually until you feel brake(s) working. The left brake lever operates
the front caliper brake and the right lever operates the rear brake. To stop your
tryke, use both brakes. It is advisable to start braking by operating the rear
brake slightly before the front brake.
Shift Gears
If your tryke has shift gears, use precaution when shifting gears. When shifting
gears keep pedaling but reduce pedaling pressure. Do not try to change gears
when pedals or wheels are not moving. Also, never change gears while back
pedaling and do not force the gear shifter when changing gears.
WARNING: BE CAREFUL WHEN OPERATING BRAKES. SUDDEN
BRAKING MAY CAUSE TRYKE TO TIP OVER.
CAUTION: USE CAUTION WHEN SHIFTING GEARS.

Revised: 4/14/2021 5
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
Assembly Instructions
Please refer to the following instructions on how to assemble your tryke. Study
the instructions carefully before beginning assembly and follow the sequence
shown in the instructions.
Be careful when assembling your tryke. Make sure that your working area is
free of possible sources of danger, such as tools lying around.
Always dispose of packaging material properly. Do not let children play with
plastic bags.
When assembling your tryke, bolt all parts together loosely at first and check
that they have been put together correctly. Tighten lock nuts by hand until
snug and then use proper tools to tighten nuts completely.
Getting Started
Your AmTryke is shipped in parts. Carefully remove and lay out all parts from
the carton so that you don’t scratch or lose any parts or pieces. Check that you
have all the necessary parts. If any parts are missing, please call us at 1-888-
AMTRYKE for assistance.
Remove packaging material and discard. See the following photo to identify
different parts:
NOTE: AmTryke must be assembled by an adult.
CAUTION: CHECK THAT ALL SCREWS HAVE BEEN
SECURELY TIGHTENED BEFORE USING YOUR TRYKE.
WARNING: THERE IS ALWAYS A DANGER OF INJURY
WHEN WORKING WITH TOOLS OR DOING MANUAL WORK.
WARNING: THERE IS A RISK OF SUFFOCATION WITH
PLASTIC BAGS. KEEP PLASTIC BAGS AWAY FROM CHILDREN.

Revised: 4/14/2021 6
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
102 parts
Your AmTryke also includes the following hardware not shown in the picture
above:
Seat back hardware
Front
wheel
Seat
Back
wheel
Nut
cover
Foot platform
Main
frame
Front
fork
Crank
arms
Basket
Rear
frame
Chain
Tubes
Cables, shifter and brake do not
mount here. Use seat mount
control kit instructions on page 11
& 12 instead.
ShiftControl
Brake Lever
Handlebar
stem
Seat belt
Basket
brace
Rear
axle
Front
brake
Sprocket
Back
wheel
Basket hardware
Steering
centering
spring

Revised: 4/14/2021 7
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
You need the following tools for assembly (too see a picture of different tools,
see page 19):
Frames
Start assembling your tryke by first attaching the rear frame onto the main
frame.
Before attaching the rear frame to the front fork assembly, attach back wheels
to it:
1. Remove the axle nut, washer and
spacer from the axle.
2. Slide the axle through the rear frame
from the right side to the left side of
the tryke until the axle protrudes out
of both sides.
3. Slide the wide spacer over the left axle
Rear frame with axle (pictured from back)
Spacer
Washer
Axle nut
TOOLS REQUIRED:
•8 and 10 mm wrench/socket
•12 and 13 mm wrench/socket
•14 and 15 mm wrench (incl.)
•22 mm socket or adjustable wrench
•7/32 and 5/32 Allen wrench
•Flat and Phillips head screwdriver

Revised: 4/14/2021 8
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
side.
4. Remove the axle nut from the right side.
5. Slide the back wheels onto both sides.
Put a washer on the axle first and then
the axle nut. Use a 22 mm socket or
adjustable wrench to tighten.
6. Install black axle nut covers over the
nuts. Tap lightly with the palm of your
hand to secure.
To attach the rear frame onto the front fork assembly, slide the main frame
assembly over the square mating tube
on the rear frame. Insert the safety pin
(silver) and threaded lever to secure the
two pieces.
Nut cover
Rear axle (left side)
CAUTION: BE CAREFUL NOT TO OVER TIGHTEN AXLE NUTS. DOING SO
BINDS AXLE BEARINGS AND CREATES LOUD CREAKING OR CLICKING NOISE.
UNTIGHTEN NUTS UNTIL WHEELS OPERATE QUIETLY.

Revised: 4/14/2021 9
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
Handgrips
To install the handgrips, stand in front of the tryke and carefully hand thread
the left handgrip counterclockwise and the right clockwise onto the crank arms.
When you are sure that they are threaded correctly, tighten with a 15 mm
wrench or socket.
Foot Platform
To install the foot platform to the frame, begin by putting a thick washer over a
large Allen bolt. Hold foot platform
assembly to the underside of the frame
and align holes. Start threading each
Allen bolt with thick washer by hand
until both are threaded enough to hold
foot plate assembly in place. Use the
Allen key provided to tighten the bolts
until secure.
Seat
Start seat assembly by first putting
together the seat:
1. Slide the backrest into the seat and
align the holes.
Crank arms (pictured from front)
NOTE: The handgrip with the brake lever
goes on the left crank arm and the
handgrip with the shifter lever goes on the
right crank arm.
Foot platform
TIP: Pedal threads tighten toward
front of bike.
CAUTION: BE CAREFUL WHEN THREADING PEDALS. DO NOT FORCE.
PEDALS THREAD EASILY WHEN INSTALLED PROPERLY.

Revised: 4/14/2021 10
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
2. Slide a large flat washer over an Allen bolt and through the seat belt
grommet, and put the bolt through the hole in the backrest.
3. Put a small flat washer and nut on the other side of the bolt. Use a 13 mm
wrench or socket to tighten the nut. (Repeat process on the other side).
Next, install the seat to the frame:

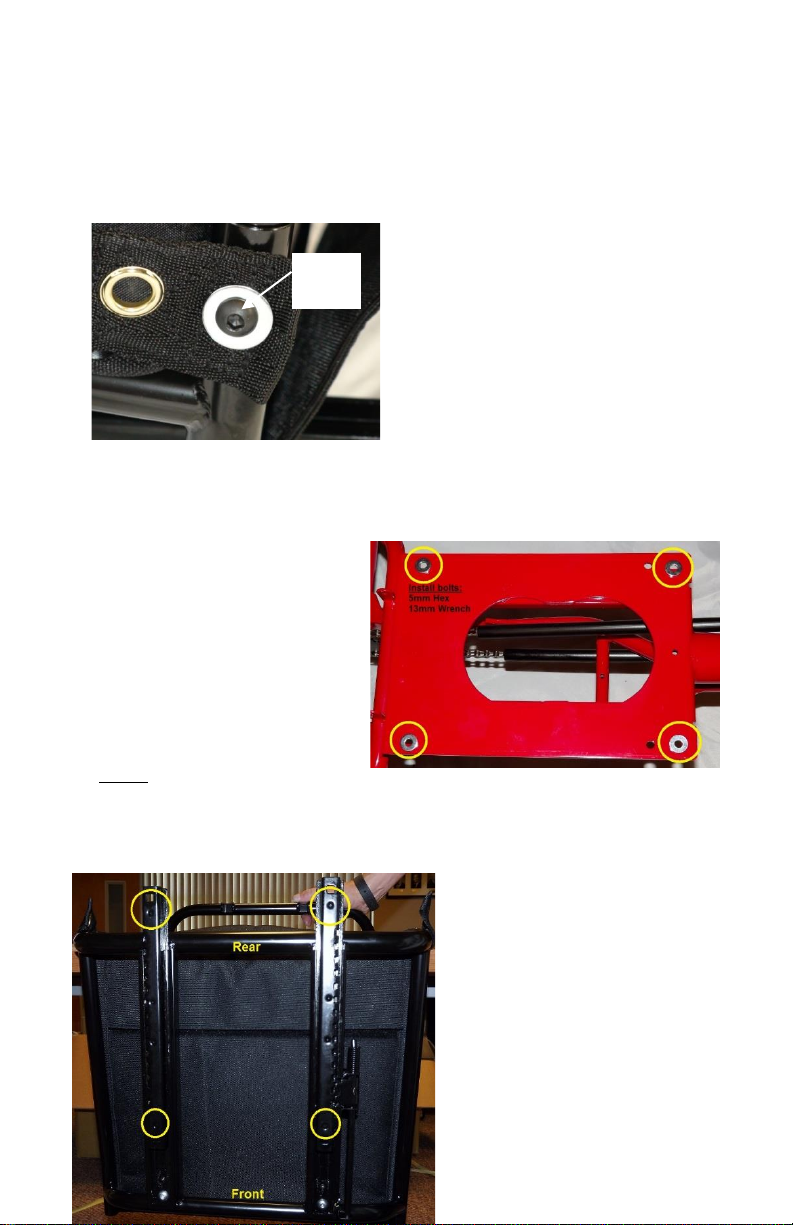

1. Remove four nuts from the
bottom of the seat and place
the seat on the rear frame
with the threaded bolts
protruding through the seat
plate. Four Thick Washers
should be placed on top of the
Seat Support. It is important
to note that these washers
MUST be in place in order to
slide seat forwards and backwards—once fully assembled. We recommend
installing rear bolts first—this helps hold seat in place as you install the front
bolts. Both sets require a 5mm Hex and 13mm Wrench to tighten properly.
Step 1
Allen
bolt

Revised: 4/14/2021 11
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
Seat Mount Control Kit
Part #: 30-24-1424-3
Tools: 5mm Allen Wrench, Phillips Screw Driver, Scissors

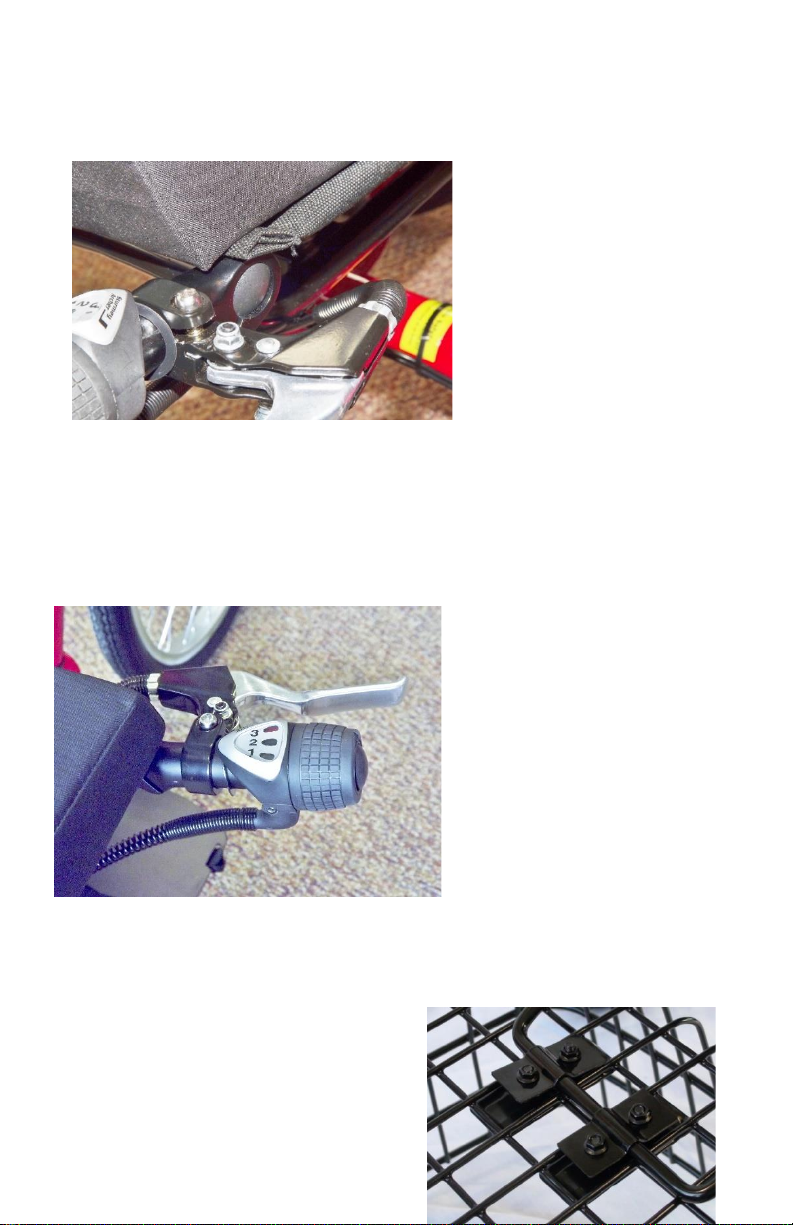

This kit helps mount the brake lever and/or twist shift under the wheelchair
seat. Mounts on left or right side. This removes the cables from the handsets.
1) To begin, remove the first corner screw holding the seat fabric in
place. Once removed, it allows for space to mount the bar stub.
Slide the bar end over the seat frame as pictured below. A 5mm
Allen Wrench is needed to open and close bar end. It usually helps
to use a larger blade screwdriver to gently pry open the bar end so it
will slip easily onto the seat frame. You may have to do this as well
with the brake lever.

Revised: 4/14/2021 12
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
2) Once the bar end is installed, attach the brake lever first followed by
the grip shifter or thumb shifter (if applicable). If needed, please
follow the instructions concerning twist shift and brake found in
your tryke manual. Use the zip ties to help position cables along the
tryke frame to prevent damage during rides.
Note: Your 1020 or
1024 may have come
with a thumb shifter,
rather than the grip
shifter pictured. If so,
it will still mount to the
front corner of the
seat.
Basket

Revised: 4/14/2021 13
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
To install the basket, follow these steps:
1. Attach the basket support using two short black Phillips screws, two nuts
and two black brace brackets.
2. Attach the basket to the backside of the seat back using two clamps, two
long lag bolts and two nuts.
3. Attach the basket support bar to the rear frame using two bolts and two
nuts.
Wheel Reflectors
To install the wheel reflectors, place the reflectors in an area on the rim that is
opposite the valve stem, behind a single
spoke with two spokes on the opposite
side. Align the front of spoke with the clot
in the reflector. Insert the white pin with
the slotted end going over the spoke into
the hole in the reflector. Use a
screwdriver to turn the white pin until it
locks in place.
Saddle
seat
Step 1
Step 2
Step 2
Single spoke
Wheel reflector
Brace
brackets
Phillips
screws
Clamp
Lag bolt
Lag bolt
Clamp
Basket
support
bar

Revised: 4/14/2021 14
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
Fitting AmTryke for Rider
The 1020 model has been designed for larger riders and offers an adjustable
easy slide wheel chair seat. Please see the information below for quick
reference on rider requirements:
For more information on how to measure rider’s size correctly, see the
AmTryke Sizing Chart on page 17.
Follow these instruction to adjust the tryke for the rider:
1. Loosen the lever underneath the seat and adjust the seat position by sliding
it forward/back. Tighten the lever.
2. Adjust the pedal platform by loosening the knob. Retighten when done.
3. Adjust the height of the handlebar stem to fit the rider.
Optional Accessories
Most AmTryke models can be adapted with a variety of seating options and
accessories, so that most riders can feel safe and secure. See the table below
for accessories available for 1020:
OPTIONAL ACCESSORIES
License plate
For a complete and updated list of available accessories, please visit our
website at www.amtrykestore.org.
NOTE: You may need assistance while fitting the tryke.
1020
Rider’s height: Max. __ inches
Arm length __-__ inches
Leg length __-__ inches
Maximum weight: ___ lbs

Revised: 4/14/2021 15
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx

Revised: 4/14/2021 16
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
Troubleshooting
Here are some common troubleshooting issues with answers.
Pedals/handles will not thread into crank arms.
Check to make sure that the right pedal is used on the right side and the left
pedal is used on the left side.
Rear wheels make noise.
Axle nut(s) is too tight. You need to loosen it slightly.
Brakes squeal or rub against the tire.
Brakes are adjusted too tight. Readjust.
Cable wraps around crank arms.
Only happens when pushing backward. Hold onto cable while doing so and
direct the cables.
For other issues not answered here, please contact AmTryke at 1-800-838-1845
or email us at [e-mail].
Maintenance
Maintenance is important to help keep your AmTryke in good working order
for years to come. This section includes some general maintenance tips.
Wheels and Tires
Wobbly wheels cut braking power, so keep all wheels running true. Wheels can
lose alignment over time when spokes stretch. Wheel alignment takes special
tools and know-how, so have this done by a professional/bike shop.
Proper tire pressure is also very important. If tire pressure is too low, it can
cause a flat and rolling resistance, and if tire pressure is too high, it can cause a
tube to blow out. Keep tires inflated to the pressure marked on the tire.
Correct pressure assures longest tire life. Repair tube punctures with a self-
adhesive patch, follow instructions that came with the repair kit.
Brakes
Brake shoes wear out so inspect them at least every six months. Make sure that
they are properly aligned on the wheel rim for maximum braking power. Make
adjustments if necessary.

Revised: 4/14/2021 17
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
It is best to let a professional to replace brake shoes. If you, however, decide to
replace them yourself, remove the old brake shoes and install new shoes in the
brake arm. Tighten the brake shoe clamp bolt.
Chain
Clean the chain at least every six months, more often if you have been riding
your tryke over sand and dirt, or through water and mud.
You do not have to remove the chain for cleaning. You may clean the chain
with an environmentally safe chain cleaning product and brush. If you use a
solvent (such as kerosene) then remove the chain (with a chain rivet tool) and
immerse it in the solvent to avoid spilling/staining, particularly on the tires or
brake shoes.
Maintenance Schedule
Follow this maintenance schedule to keep your AmTryke in safe operating
condition.
MAINTENANCE SCHEDULE
PART
TO DO LIST
WHEN
All handlebar bolts
Check tightness
Every 4 months
Brake cables
Check for slack, frayed cable
Every 6 months
Brake arms
Check mounting bolt tightness
Every 6 months
Brake levers
Check tightness on handlebars
Every 6 months
Brake shoes
Inspect for wear, alignment
Every 6 months
Chain
Check for wear, clean, relube or tension
Every 6 months
Pedals
Check tightness
Every 9 months
Rear axle nuts
Check tightness
Every 4 months
Tires
Check tire pressure
Weekly
Wheel alignment
Check wheels for out of trueness
Every 6 months
Before riding your tryke, always check that it is in proper working
order. Check that all quick release lock levers, nuts and bolts are
properly tightened, and that tires are properly inflated.

Revised: 4/14/2021 18
https://nationalambucsinc.sharepoint.com/Shared
Documents/FileShares/FileShares/Documents/Amtryke/Manuals and Instructions -
2016/Models/1024/1020 &1024.docx
Seat post
Check tightness of levers
Weekly
Seat
Check tightness
Monthly
