About AmTrykes®
AmTryke® therapeutic tricycles, owned and operated by National AMBUCS™
Inc., are designed for people with disabilities who are unable to operate a
traditional bicycle. AmTryke tricycles or “trykes,” can be operated by feet,
hands or both, and include a wide variety of models. The trykes can also be
adjusted to fit the needs of different riders, including frame size, type of seat,
trunk and leg supports.

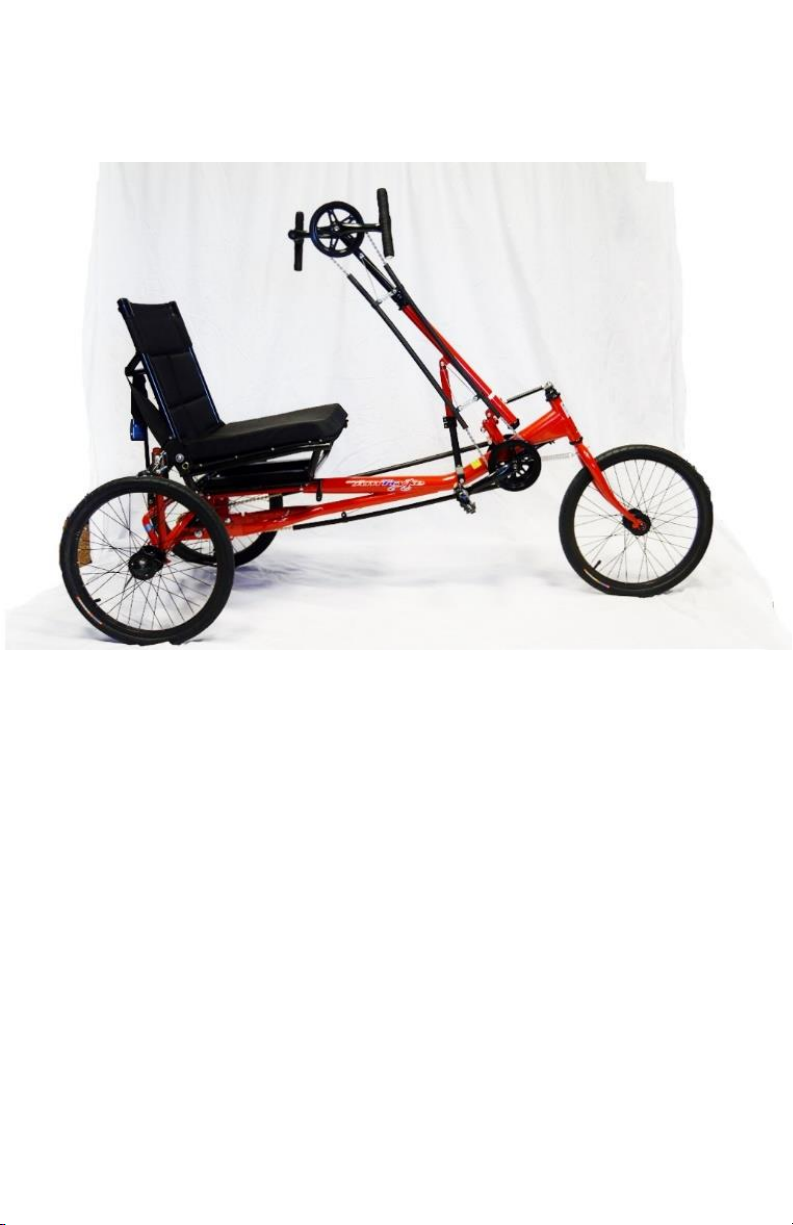

AmTryke’s JT-2000 is a recumbent foot cycle. It has a fully adjustable
recumbent seat that fits almost any adult rider. The cycle features a 14-speed
Shimano hub paired with rear disk and front hand brakes. It is designed for
comfortable riding on paved trails and roads. The multiple speeds allow the
rider to keep pace with family members and friends in most situations and
achieve higher speeds when appropriate. The cycle’s turning radius is 10 feet.
JT-2000 can be adapted with several accessories. See Optional Accessories in
this manual for more information. You can also visit our website for most up to
date information at www.ambucs.org.
About This Manual
Read this manual carefully before assembling your tryke or using it for the first
time. This manual includes important information about safety, assembly and
maintenance. Keep this manual in a safe place for information and for ordering
accessories/parts.
AMBUCS/AmTryke reserves the right to make changes to the design and
technology of AmTrykes. The assembly instructions are accurate as of the date
of this manual’s printing.

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Safety
Safety is very important to us. AmTryke products are designed in accordance
with the latest safety standards and are constantly monitored for quality. We
use information from this quality control to develop our products.
We urge all riders to seek the opinion of their health-care provider(s) before
riding their tryke.
AmTrykes should be used for their intended purpose only.
Safe Riding Tips
Before riding, familiarize yourself how the tryke operates —it’s steering,
braking and shift gears (if applicable). Adjust the seat, handlebars and pedals to
fit the rider. See Fitting AmTryke for Rider section in this manual for more
information.
Here are some tips about riding safety:
AmTrykes should be used with close adult supervision.
Riders must wear helmets. All our trykes include a free safety-rated helmet.
The helmet must fit appropriately. A properly fitting helmet sits on the head
comfortably a helmet that sits high on the head is too small. Some
movement is acceptable, but a helmet that moves a lot is too large. See the
illustration below for reference:
Correct Way to Wear Helmet
Wear the helmet flat atop your head,
not tilted back at an angle.
Make sure the helmet fits snugly and
doesn’t obstruct your vision. The chin
strap should fit securely and the buckle
stay fastened.
GRAPHIC COURTESY OF BUDDY BIKE LLC
For more information about
finding the correct size helmet,
see Helmet Sizing Chart on page
23.
NOTE: Be careful not to pinch the
skin when fastening helmet buckle.

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Riders must wear shoes. If shoes have laces, they must be tied properly.
Most trykes are equipped with a steering pin and have three steering options
available:
oFull steering: No steering pin. This option allows riders to make sharp turns
and is appropriate for riders who ride at slow speeds or in close quarters.
Close adult supervision is required.
oLimited steering: This option allows riders to turn 20 degrees in either
direction, thus, reducing the risk of over-steering or tipping over.
oNo steering: This option allows for riding straight only. A supervising adult
is required to turn the tryke.
To avoid tipping the tryke over, approach wheelchair ramps or thresholds at
a 90-degree angle.
Use caution on sloped parking lots, driveways and sidewalks. Avoid excess
speed by having an adult restrain the tryke from behind on sloped surfaces.
The trykes have many options for control features. Consult AmTryke to find
out the best solution for your rider.
Many riders do not have the motor skills required to be able to use the hand
brake effectively.
Depending on trunk stability, behavioral compliance and body awareness,
some riders may need supports (e.g., lateral, head), belts (e.g. lap, shoulder),
hip abductors or other specialized equipment. A physical therapist/health
professional can assist you with any recommendations.
Riders should only be allowed to ride trykes that are the appropriate size. If
you are uncertain, refer to AmTryke Sizing Charts in this manual or contact a
physical therapist.
Before riding, always check that all tires are inflated properly.
If parts are broken or missing, the tryke should not be used until repaired.
Brakes
If your tryke has brakes (front or coaster brakes) be careful when using the
brakes. Operate the brakes gradually. If your tryke has front brakes (front
WARNING: DO NOT RIDE IN OR NEAR TRAFFIC, OR WHERE THERE IS
A RISK OF FALLING OFF CURBS, STAIRS, POTHOLES OR OTHER HAZARDS.
WARNING: NEVER ALLOW MORE THAN ONE RIDER ON AMTRYKE.
WARNING: DO NOT RESTRAIN TRYKE BY GRABBING HANDLEBARS
OR HAND BRAKE —THIS MAY CAUSE IT TO TURN SHARPLY AND TIP
OVER.

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
caliper brake or both front caliper brake and rear disk brake) squeeze the brake
lever(s) gradually until you feel brake(s) working. The left brake lever operates
the front caliper brake and the right lever operates the rear brake. To stop your
tryke, use both brakes. It is advisable to start braking by operating the rear
brake slightly before the front brake.
Shift Gears
If your tryke has shift gears, use precaution when shifting gears. When shifting
gears keep pedaling but reduce pedaling pressure. Do not try to change gears
when pedals or wheels are not moving. Also, never change gears while back
pedaling and do not force the gear shifter when changing gears.
WARNING: BE CAREFUL WHEN OPERATING BRAKES.
SUDDEN BRAKING MAY CAUSE TRYKE TO TIP OVER.
CAUTION: USE CAUTION WHEN SHIFTING GEARS.

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Assembly Instructions
Refer to the following instructions on how to assemble your tryke. Study the
instructions carefully before beginning assembly and follow the sequence
shown in the instructions. .
Be careful when assembling your tryke. Make sure that your working area is
free of possible sources of danger, such as tools lying around.
Always dispose of packaging material properly. Do not let children play with
plastic bags.
When assembling your tryke, bolt all parts together loosely at first and check
that they have been put together correctly. Tighten locknuts by hand until
snug; then use proper tools to tighten nuts completely.
Getting Started
Your AmTryke is shipped in parts. Carefully remove and lay out all parts from
the carton so that you don’t scratch or lose any parts or pieces. Check that you
have all the necessary parts. If any parts are missing, please call us at 1-888-
AMTRYKE for assistance.
Remove packaging material and discard. See the following Tryke Parts Locator
to identify different parts:
NOTE: AmTryke must be assembled by an adult.
CAUTION: CHECK THAT ALL SCREWS HAVE BEEN
SECURELY TIGHTENED BEFORE USING YOUR TRYKE.
WARNING: THERE IS ALWAYS A DANGER OF INJURY
WHEN WORKING WITH TOOLS OR DOING MANUAL WORK.
WARNING: THERE IS A RISK OF SUFFOCATION WITH
PLASTIC BAGS. KEEP PLASTIC BAGS AWAY FROMCHILDREN.

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000

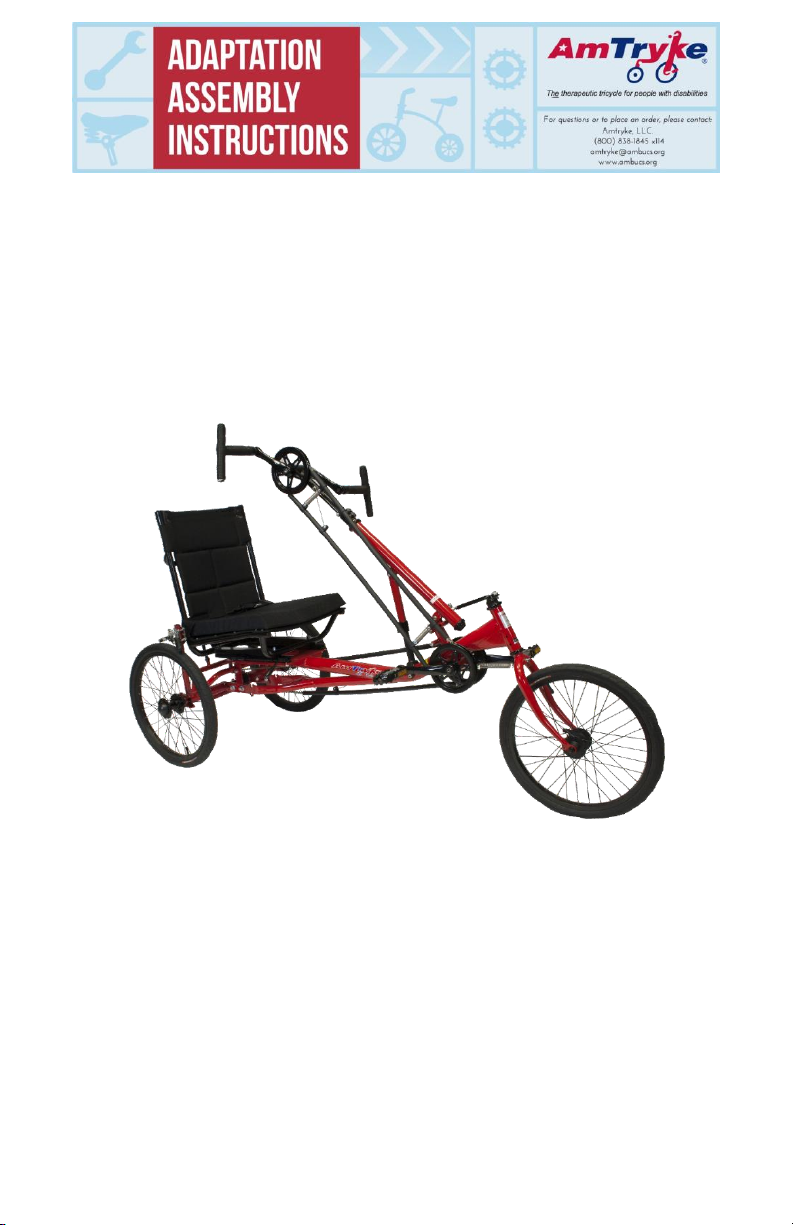

AM-20 Tryke Parts Locator
Your AmTryke also includes the following hardware:
Hardware

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
You need the following tools for assembly (too see a picture of different tools,
see page 24):
Wheels
Start assembling your tryke by attaching the wheels to the rear and main
frames. First, attach the back wheels to the rear frame:
1. Remove the 22 mm nuts and flat washers from both ends of the axle and
slide wheels over each side.
2. Replace the washers and nuts on each side of the axle and tighten using a
22 mm socket or adjustable wrench.
3. Place the black nut covers on top of the wheel nuts on each side. Lightly tap
with the palm of your hand to secure in place.
Step 1
Directional arrow
NOTE: Pay attention to directional arrows on the tires.
CAUTION: DO NOT TO OVER TIGHTEN WHEEL NUTS.
WHEEL BEARINGS MAY BE DAMAGED.
Axle
TOOLS REQUIRED:
5 mm Allen wrench (incl.)
8 and 10 mm wrench/socket
14 and 15 mm wrench (incl.)
22 mm socket or adjustable wrench
Needle nose pliers
Phillips head screwdriver

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Next, install the front wheel to the front fork of main frame:
1. Remove the black plastic thread
protectors from each end of the
axle.
2. Use the quick release wrench to
remove the thumb nut from one
side.
3. Place the front wheel in the front
fork and slide the shaft of the quick
release axle through the center of
the rim.
4. Put the spring of the quick release axle on the other side with the narrow
end pointing inward.
5. Thread the thumb nut back on and tighten.
Step 3
Step 2
Steps 1 and 2
Step 3
Step 4
Nut &
washer
Nut
cover
Quick
release
axle
Thumb nut
Spring

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Frames
To attach the frames together, slide the rear frame into the main frame. Use
four large lag bolts, washers and nuts to
secure the frames (both sides). Tighten
with a 15 mm socket or wrench.
Next, install the chain from the main
hub to the rear axle sprocket. Use a pair
of needle nose pliers to snap the master
link in place.
To finish assembling the frames, pull back on the rear frame to tighten the
chain. While pulling, tighten the four nuts with a 15 mm socket or wrench.
Install the upper support Allen bolts (one on each side), washers and nuts using
a 5 mm Allen wrench and 13 mm wrench.
Seat
Start seat assembly by first attaching the seat support bracket to the rear
frame. Use two 5 mm Allen bolts and
nuts to secure it. Tighten with a 10 mm
socket or wrench, and a 5 mm Allen
wrench.
Main and rear frames attached
Allen
bolt
Lag
bolts
NOTE: Do not tighten completely
at this point.
Chain with master link
Main
hub
Master
link
Chain installed
Rear axle
sprocket
B-2 stamped
Seat support bracket
Seat
support
bracket

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Next, attach the seat mounting bracket to the frame:
1. Place the seat bracket over the main
frame so that one hole in the bracket
aligns with a hole in the frame.
2. Remove the thumb nut from the quick
release lever and insert its shaft
through the bracket and frame. Thread
the nut back on and press the lever
down.
3. Install two short seat supports on the back of seat frame using two long
shafted Allen bolts with flat washers and nuts. Tighten with a 10 mm
wrench or socket, and a 5 mm Allen wrench.
4. Slide the short support bars over the long bars of the seat support bracket.
Align the holes and insert a clevis pin with snap ring to both bars.
Quick
release lever
Steps 1 and 2
Seat support
Seat
frame
Support
mounts
Allen
bolt
Step 3
Clevis pin
Step 2
NOTE: Angle of the seat is adjusted with the support bars 
the lower the adjust, the greater the angle.
NOTE: Turn the lever until tight and then press it down to lock.
Make sure that the seat bracket securely tightened before riding.
Seat
support
bracket
Short
seat
support
bars

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Finish seat assembly by attaching the seat cover to the seat frame. Find the two
edges that have pockets (two other
edges have straps or buckles) and:
1. Slide the seat cover over the seat
frame.
2. Lace the straps through the buckles
and tighten them by pulling. The
cover will conform to the seat frame.
Front Brakes
The front brake caliper is already installed but you need to install the brake
levers onto the handlebar and connect the brake cable to them (the cable is
already attached to frame).
Brake Levers
Each brake lever has a button on it with a spring underneath it. The brake lever
should be installed so that the button is on the top side and hand grip points to
the outside of the tryke.
Buckle
Step 1
Step 2
Finished seat
Pocket
Seat
frame
TOOLS REQUIRED:
5 mm Allen wrench

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
To install the brake levers:
1. Slide one brake lever over one side of
the handlebar until just before the
curved portion of the handlebar. Adjust
the position of the brake lever to a
comfortable position.
2. Tighten the brake lever clamp with a 5
mm Allen wrench securely so that it
cannot slide.
Repeat this process for opposite side.

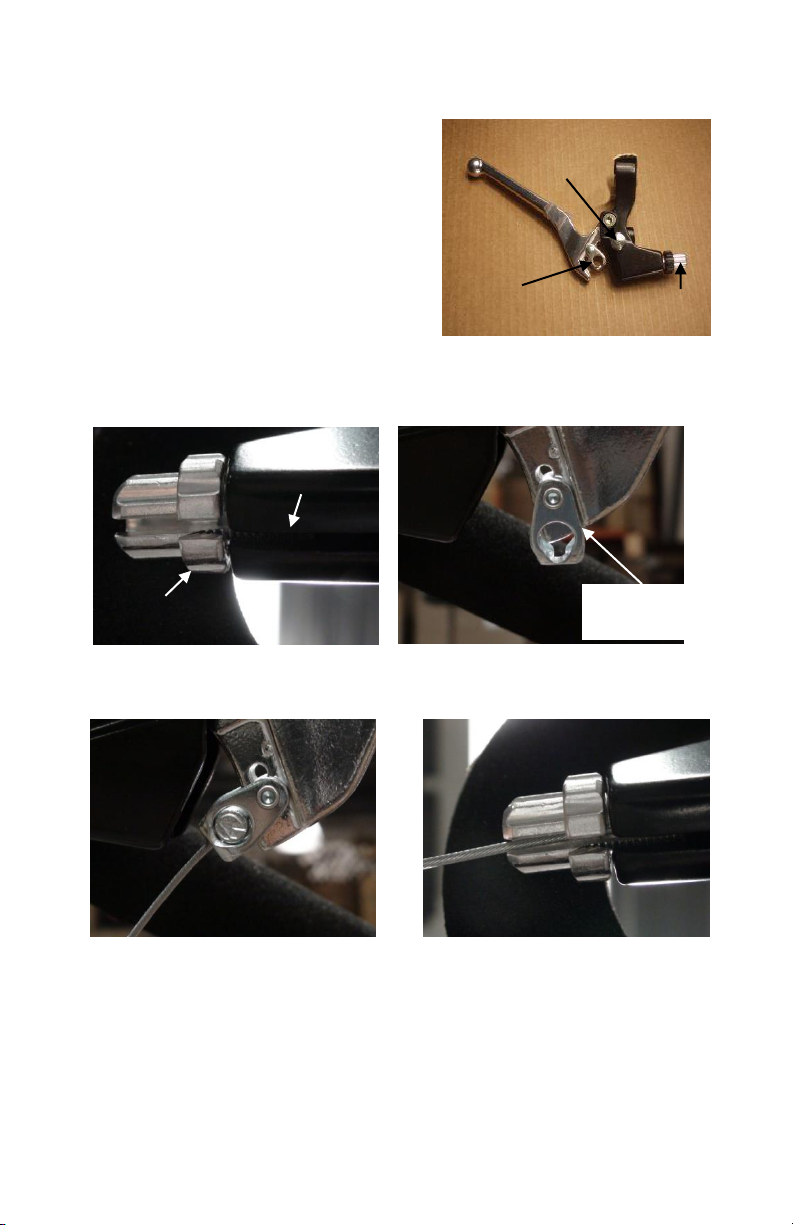

The brake cable Ferrell has two parts, the
Ferrell and lock nut. The Ferrell and lock nut each have a slot for the cable to
slide through. To attach the cable to the brake levers, follow these steps:
Brake lever parts
Ferrell
Brake
cable
barrel
clamp
Button
Slotted
brake
handle
Ferrell
Lock nut
Step 1: Turn the Ferrell so that the slot
in it and the lock nut align.
Step 2: Pull in on the lever and pull out
the cable barrel arm.
Step 3: Insert the cable barrel into the
cable barrel arm.
Step 4: Slide cable through the slots of
the Ferrell and lock nut, then turn the lock
nut and Ferrell 180 degrees from each
other.
Cable barrel
arm

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Brake Caliper
To install cable to the brake caliper, follow these instructions:
1. Thread the cable through the large end
of the cable noodle.
2. Slide the cable noodle through the slot
in the caliper control arm.
3. Slide the rubber boot over the cable and
onto the cable noodle.
4. Use a 5 mm Allen wrench to loosen the
anchor bolt on the caliper arm and put
the cable between the thick washer and
caliper arm.
Brake Adjustment
To adjust the brakes, follow these instructions:
1. Squeeze the top of the caliper arms
with your hand until the brake pads
lightly touch the rim.
2. While squeezing the caliper arms,
tighten the anchor bolt with a 5 mm
Allen wrench. Once the anchor bolt
is tight, you can release the caliper
arms.
3. Pull the brake lever in and hold it
while trying to push the bike. If you
are unable to move the bike easily
then the brakes are set correctly. If you are able to push the bike then you
will need to adjust the brakes more.
If you need to adjust them more, follow these steps:
Step 1
Steps 1 and 2
Cable noodle
Steps 2 and 3
Step 4
Large
end
Cable
noodle
Brake
noodle
Anchor
bolt
Rubber boot
Caliper
arm
Anchor
bolt
Caliper
arm

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
1. Loosen the lock nut on the brake lever by turning it to the left
(counterclockwise).
2. Loosen the Ferrell by turning it to the left two complete turns.
3. Tighten the lock nut by turning it to the right (clockwise).
4. Test the brakes to see if they hold if they do then you are finished. If the
brakes do not hold and the bike still moves freely repeat step 1.
5. When you are satisfied with the brakes, pull the brake lever in all the way
ten times to make sure the cable is not going to slip.
Pedals
Put a thin washer in the pedal crank arm and hand thread the right pedal
clockwise and the left pedal counterclockwise into the pedal crank arms. When
you are certain that the pedals are threaded properly, use a 15 mm wrench to
tighten securely.
Reflectors
Install the rear reflector with bracket on the rear frame (between the seat
support brackets). Use a Phillips head
screwdriver to remove the clamping
screw from the bracket. Open the clamp
and place it on the frame. Thread the
clamping screw back and tighten.
Follow the same procedure and attach
the front reflector to the steering stem
tube.
B-2 stamped
Rear reflector
Front reflector
CAUTION: BE CAREFUL WHEN THREADING PEDALS. DO NOT
FORCE! PEDALS THREAD EASILY WHEN INSTALLED PROPERLY.
TIP: Pedal threads tighten
toward the front of bike.

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
To install the wheel reflectors, place them in an area on the rim behind a single
spoke with two spokes on the
opposite side. Align the front spoke
with the slot in the reflector and
insert the reflector holding pin with
the slotted end going over the
spoke into the hole in the reflector.
Press firmly until you hear it click
into place.
Fitting AmTryke for Rider
JT-2000 has been designed for adults. See the information below for quick
reference on rider’s size requirements:
For more information on how to measure rider’s size correctly, see Rider’s
measurements graphic on page 23.
Follow these instruction to adjust the tryke for rider:
1. Adjust the seat by moving it forward/back to suit the rider’s needs. When
seated, the rider’s knees should be slightly bent. Tighten the quick release
lever under the seat securely.
2. Adjust the seat back by moving seat back support rods up/down. Secure
both clevis pins.
3. Adjust handlebars forward/back and up/down.
If you need further adjustments, see Optional Accessories on the next page for
different options.
JT-2000
Rider’s height: Max. 74 inches
Arm length 20-28 inches
Leg length 30-41 inches
Maximum weight: 250 lbs
NOTE: You may need assistance while fitting the tryke.
Wheel reflector

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Optional Accessories
Most AmTryke models can be adapted with a variety of seating options and
accessories, so that most riders can feel safe and secure. See the table below
for accessories available for JT-2000:
OPTIONAL ACCESSORIES
Exercise pedals
Water bottle
Toe clips
Safety flag
Odometer
License plate
Rear mirrors
For a complete and updated list of available accessories, please visit our
website at www.ambucs.org.
Troubleshooting
Here are some common troubleshooting issues with answers.
Pedals/handles will not thread into crank arms.
Check to make sure that the right pedal is used on the right side and the left
pedal is used on the left side.
Rear wheels make noise.
Axle nut(s) is too tight. You need to loosen it slightly.
Brakes squeal or rub against the rim/tire.
Brakes are adjusted too tight. Readjust.
For any issues not answered here, please call AmTryke at 1-888-AMTRYKE or
email us at [e-mail].

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Maintenance
Maintenance is important to help keep your AmTryke in good working order
for years to come. This section includes some general maintenance tips.
Wheels and Tires
Wobbly wheels cut braking power, so keep all wheels running true. Wheels can
lose alignment over time when spokes stretch. Wheel alignment takes special
tools and know-how, so have this done by a professional/bike shop.
Proper tire pressure is also very important. If tire pressure is too low, it can
cause a flat and rolling resistance, and if tire pressure is too high, it can cause a
tube to blow out. Keep tires inflated to the pressure marked on the tire.
Correct pressure assures longest tire life. Repair tube punctures with a self-
adhesive patch, follow instructions that came with the repair kit.
Brakes
Brake shoes wear out so inspect them at least every six months. Make sure that
they are properly aligned on the wheel rim for maximum braking power. Make
adjustments if necessary.
It is best to let a professional to replace brake shoes. If you, however, decide to
replace them yourself, remove old brake shoes and install the new shoes in the
brake arm. Tighten the brake shoe clamp bolt.
Chain
Clean the chain at least every six months, more often if you have been riding
your tryke over sand and dirt, or through water and mud.
You do not have to remove the chain for cleaning. You may clean the chain
with an environmentally safe chain cleaning product and brush. If you use a
solvent (such as kerosene) then remove the chain (with a chain rivet tool) and
immerse it in the solvent to avoid spilling/staining, particularly on the tires or
brake shoes.
Before riding your tryke, always check that it is in proper working
order. Check that all quick release lock levers, nuts and bolts are
properly tightened, and that tires are properly inflated.

Revised: 12/16/2015
N:\AmTryke\Manuals and Instructions\New Manuals\Manual Docs and Pdf\JT2000
Maintenance Schedule
Follow this maintenance schedule to keep your AmTryke in safe operating
condition.
MAINTENANCE SCHEDULE
PART
TO DO LIST
WHEN
All handlebar bolts
Check tightness
Every 4 months
Brake cables
Check for slack, frayed cable
Every 6 months
Brake arms
Check mounting bolt tightness
Every 6 months
Brake levers
Check tightness on handlebars
Every 6 months
Brake shoes
Inspect for wear, alignment
Every 6 months
Chain
Check for wear, clean, relube or tension
Every 6 months
Pedals
Check tightness
Every 9 months
Rear axle nuts
Check tightness
Every 4 months
Tires
Check tire pressure
Weekly
Wheel alignment
Check wheels for out of trueness
Every 6 months
Seat post
Check tightness of levers
Weekly
Seat
Check tightness
Monthly
