AMX NXA-BASE/1 User manual

7" modero®widescreen battery base/1 kit
WIRE-FREE SOLUTION
The 7” Modero Widescreen Battery Base/1 Kit completes the totally
wireless control experience. This innovative Battery Base option allows
the 7” Modero Widescreen to receive power from a single battery source.
The need for an external power cord has been eliminated.
HOW IT WORKS
Simply install the optional 802.11b Wi-Fi Compact Flash Card (NXA-
WC80211b/CF) into the base of the 7” panel and connect to a wireless
access point. The Wi-Fi Card establishes wireless control capabilities
while the Battery Base/1 Kit provides a wireless source of power. A
popular feature of the AMX Modero family of touch panels, the wireless
control experience solves difficult wiring logistics and avoids having to
alter fine furniture in commercial and residential environments.
WHAT’S IN THE KIT
The Battery Base/1 Kit includes two components: the NXA-BASE/1
Battery Base and one NXT-BP Modero Power Pack. The Power Pack
installs directly into the Battery Base compartment. The Battery Base then
seamlessly attaches to the 7” panel. At less than one inch high, the
Battery Base complements the sleek Modero Touch Panel design.

NXA-BASE/1KIT (FG2255-05K)
KIT INCLUDES
• NXA-BASE/1 (FG2255-05)
• NXT-BP (FG2255-10) - Quantity 1
DIMENSIONS (HWD)
• NXA-BASE/1 (FG2255-05): 0.92" x 5.96" x 6.93"
(2.36 cm x 15.14 cm x 17.6 cm)
• NXT-BP (FG2255-10): 0.69" x 3.50" x 5.81"
(1.75 cm x 8.89 cm x 14.76 cm)
POWER
• NXA-BASE/1: 2.4 A @ 12 VDC (max power draw)
• NXT-BP: Voltage - 11.1 Volts
WEIGHT
• Base unit: 0.75 lbs (0.340 kg)
• Single NXT-BP battery: 1.00 lbs (0.45 kg)
• Base and 1 battery: 1.75lbs (.79 kg)
NXA-BASE/1 FEATURES
• Charge current 2.4A @ 12 VDC
• Charge time for one depleted battery ~ 5 to 8 hours
• The Modero unit plus battery base requires a
PSN4.4 power supply
NXT-BP FEATURES
• Battery Usage: 4 to 8 hours of continuous use
(time is usage dependant)
• Charge Capacity: 6000mAh
• Temperature Storage/Discharge: -20° C (-4° F)
to +60° C (140° F)
• Operating temperature 10° C to +35° C
OPTIONAL ACCESSORIES
• NXT-CHG Kit (FG2250-50K): 1 charger
(FG2250-50) and 2 NXT-BP batteries (FG2255-10)
• NXT-BP battery (FG2255-10)

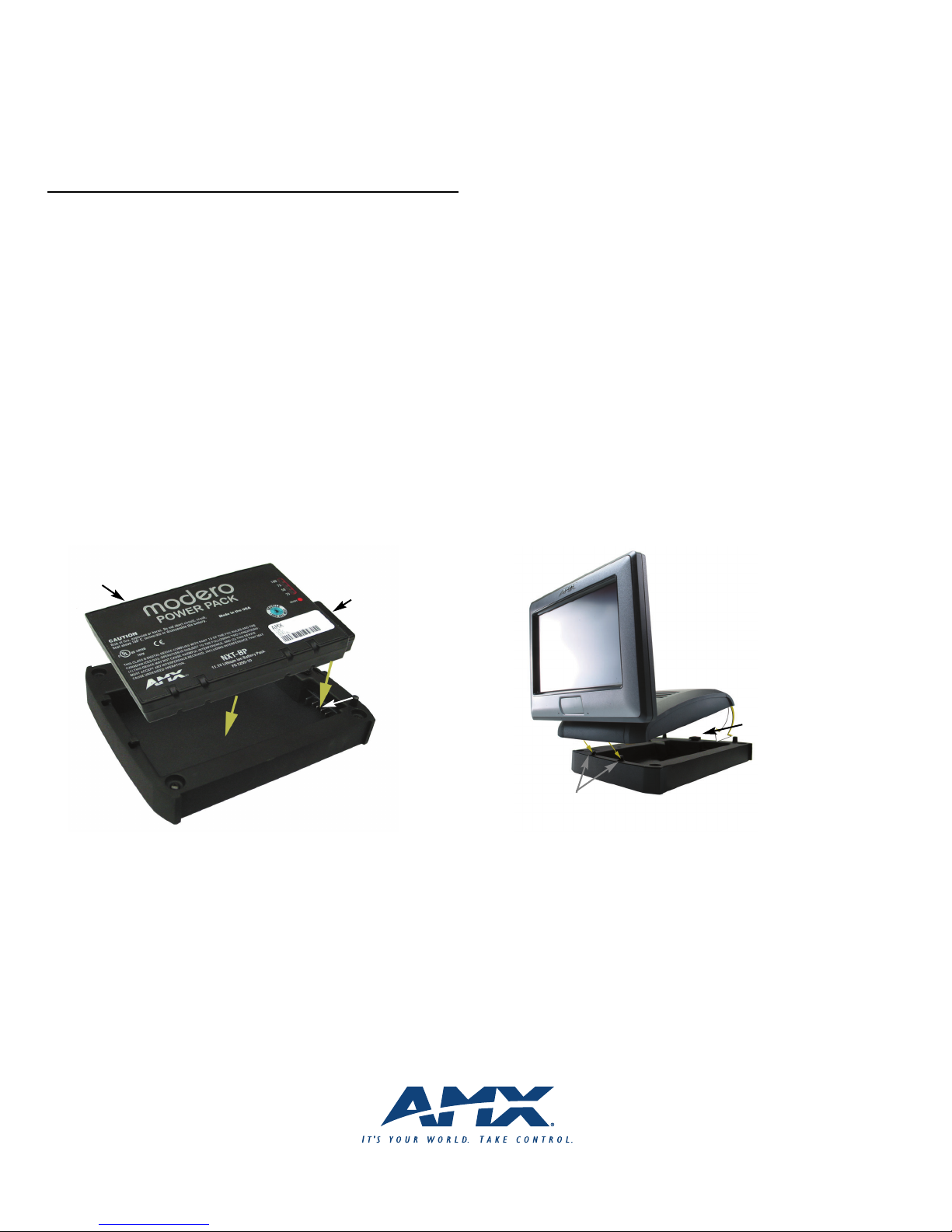

NXT-BB Battery
Battery Connector
Battery Connector
Port
Battery Locking
Mechanism
Alignmnet Pegs
7" modero®widescreen battery base/1 kit
