Anatomic SITT Zitzi Delfi Pro User manual

2017-09-20
EN
User manual
Zitzi Delfi Pro

2
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
Table of contents
Safety precautions ........................................3
Tool ......................................................................4
Mounting of the back...................................4
Seat adjustments ...........................................5
- Seat width adjustment ............................5
- Leg length dierance................................6
- Seat slope adjustment..............................6
- Abduction and adduction.......................7
Hip angle adjustments.................................8
Adjusting the back height .........................9
Reinforced back............................................10
Adjustable back ..............................................11
Foldable trunk support ..............................12
Headrest ........................................................... 13
Foldable headrest bracket....................... 14
Side adjustable headrest bracket......... 15
Mounting of other headrest brackets 16
- Headpod Bracket...................................... 16
- HeadActive Bracket ................................. 16
- Forehead strap Bracket ......................... 16
Pelvic support.................................................17
Hip support ..................................................... 18
Hip belt.............................................................. 19
Mounting of the Support serie .............20
Armrest ..............................................................21
Upper arm support .................................... 22
Table, solid ...................................................... 23
Table, foldable............................................... 24
Table, reinforced .......................................... 25
Footrest ........................................................... 26
Divided footrest............................................27
Footrest - whole, adjustable.................. 28
Footrest - divided adjustable................ 29
Footrest - turn-up.......................................30
Footrest - flexible footrest adapter....30
Calf support.................................................... 31
Footrest high edge, single stay............ 32
From single stay to double stay .......... 33
Technical data............................................... 33
Drilling instructions whole footrest ....34
Drilling instructions divided footrest. 35
Ankle holder .................................................. 36
Lumbar support........................................... 37
Driving bow.................................................... 38
Heating package ......................................... 38
Play bow .......................................................... 39
Sun cover ........................................................40
Flat seat ...........................................................40
Mounting on a frame.................................. 41
Adapter system universal........................ 42
Technical data...............................................43
Maintenance instructions ........................44
Summary and follow-ups........................ 45
Adaptation and customization.............46
Terms of sale ................................................. 47

3
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
Introduction
In order to use the Zitzi Delfi PRO in its full extent, it is important that you read this
manual. This applies to everyone close to the user.
The product is intended for users with seating problems and fits many dierent
kinds of diagnoses. Adaptation/fitting of Zitzi Delfi Pro must be done by a
medically qualified person.
If you need additional information, please contact Anatomic SITT AB.
Field of application
The product is only intended for use as a seating system together with chassis
produced by Anatomic SITT AB.
If other uses are desired, please contact Anatomic SITT AB.
Correspondence
Zitzi Delfi Pro and its accessories are CE marked products. A unique serial number
is located on a label placed under the activation housing. This serial number should
be quoted in any correspondence regarding the product.
Check the checkbox if the product
is CUSTOMIZED.
The CE Mark is no longer valid and
should be removed.
Place of label
This product is manufactured by Anatomic SITT AB
Postal address Anatomic SITT AB, Box 6137, SE-600 06 Norrköping
Street address Anatomic SITT AB, Terminalgatan 1, SE-603 61 Norrköping
Phone [phone]
Fax [phone]
Email [e-mail]
Webb anatomicsitt.com
Instructions movies youtube.com/anatomicsitt
Follow us on facebook.com/anatomicsitt
Safety precautions
Crash tested
Zitzi Delfi Pro is crash tested and approved according to ISO 16840-4.

4
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]

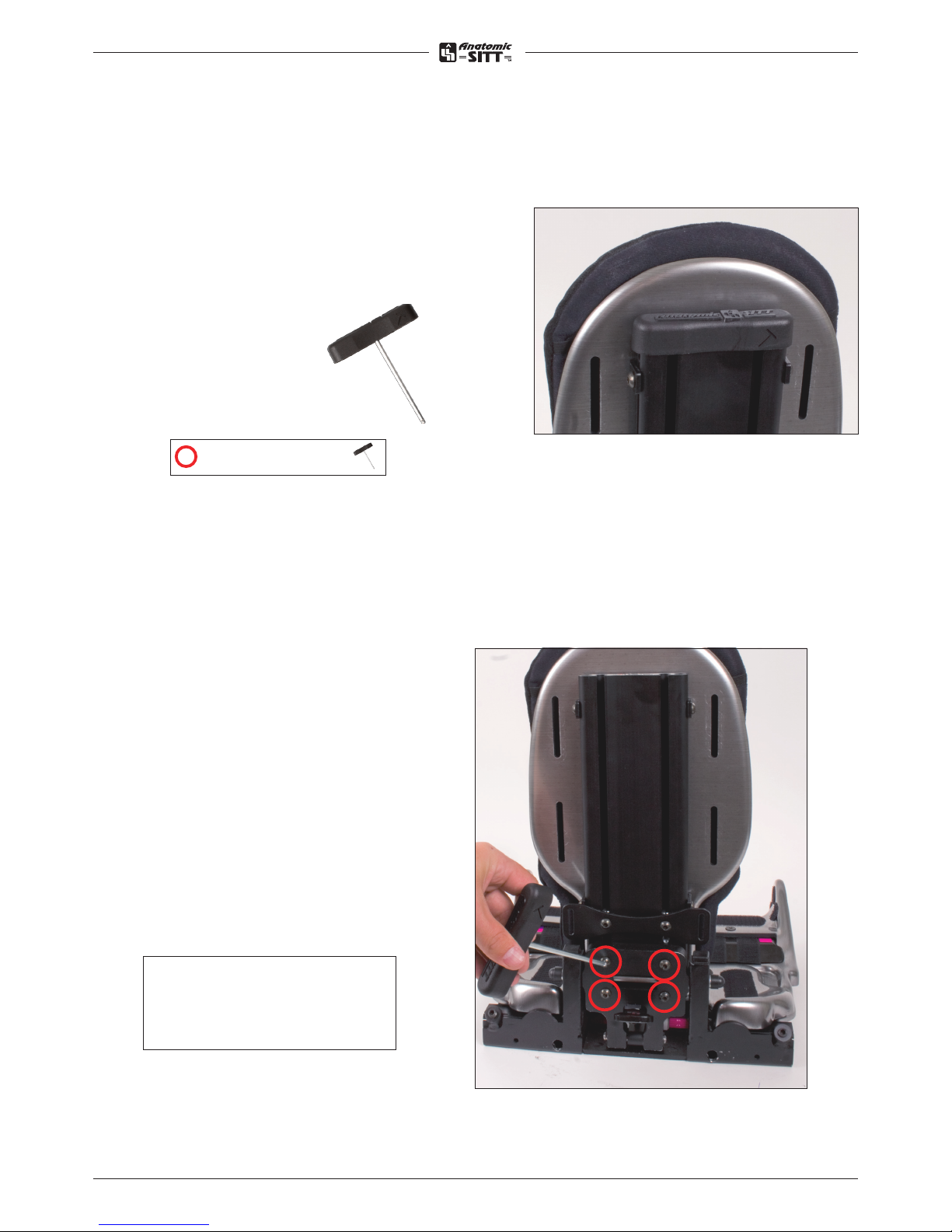

Tool
The hexa key (4 mm) is integrated in
the top of the back and can be used to
make adjustments.
Mounting of the back
The backrest is mounted with 4 bolts.
Lock the back profile by tighten the
bolts.
The back will automatically be in the
right place.
Notice!
For high tonus patients,
select reinforced back!
= Adjustment bolt

5
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]

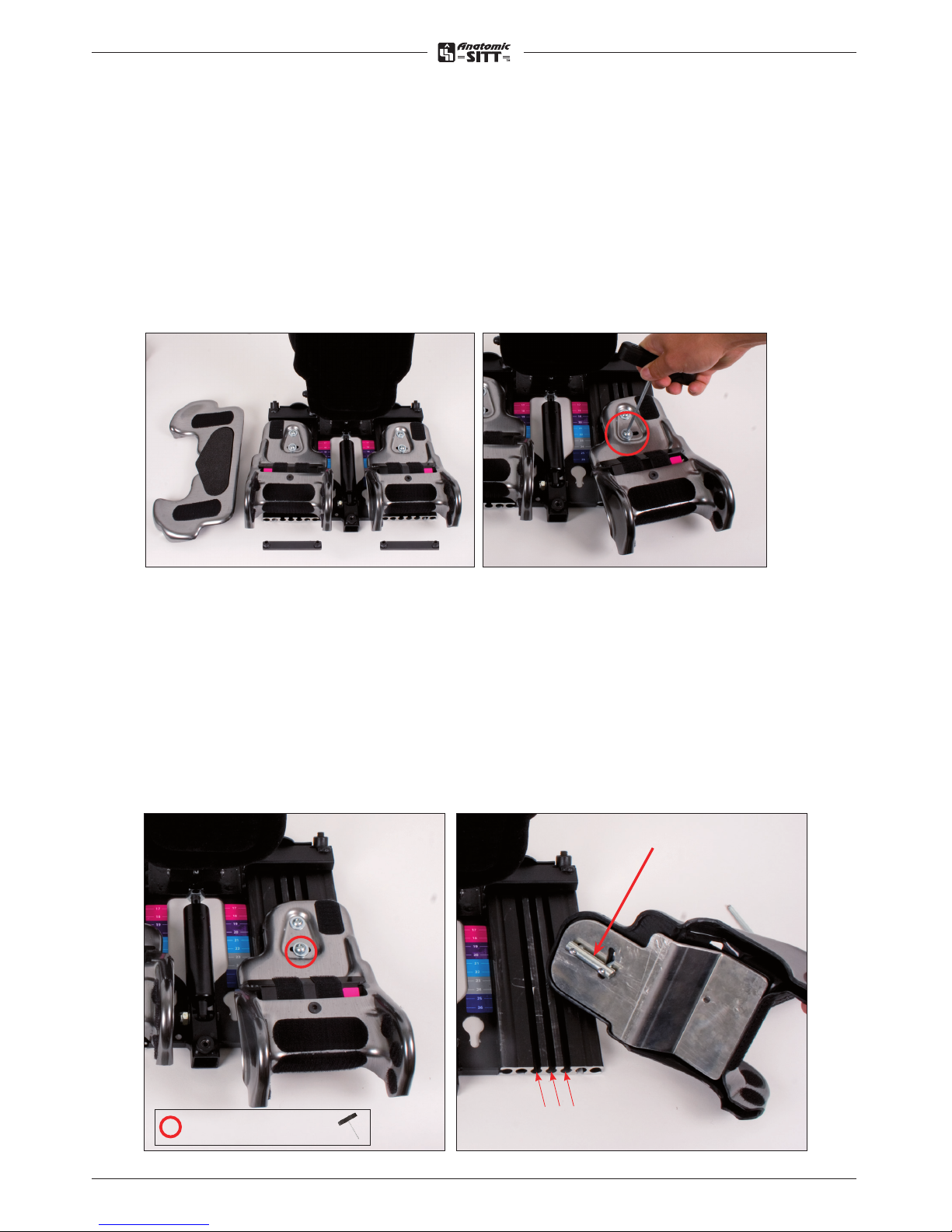

Seat adjustments
Seat depth, leg length dierence and abduction/ adduction of the legs can
easily be adjusted. Start with take away the lining of the seat plate to get to the
adjustment bolts.
Note! Do not loosen the bolt completely, just loosen it up a bit.
Seat width adjustment
To increase or reduce the seat width, the leg parts needs to be adjusted.
For maximum seat width, the rim should be in track 3, and for minimal seat width
the rim should be in track 1.
- Loosen the two bolts with the hexa key.
- Move the leg part to desired track position.
- Tighten the bolts when desired position is reached.
(Default track for the leg parts is track 1)
Track 1, 2, 3
Pin
= Adjustment bolt

6
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]

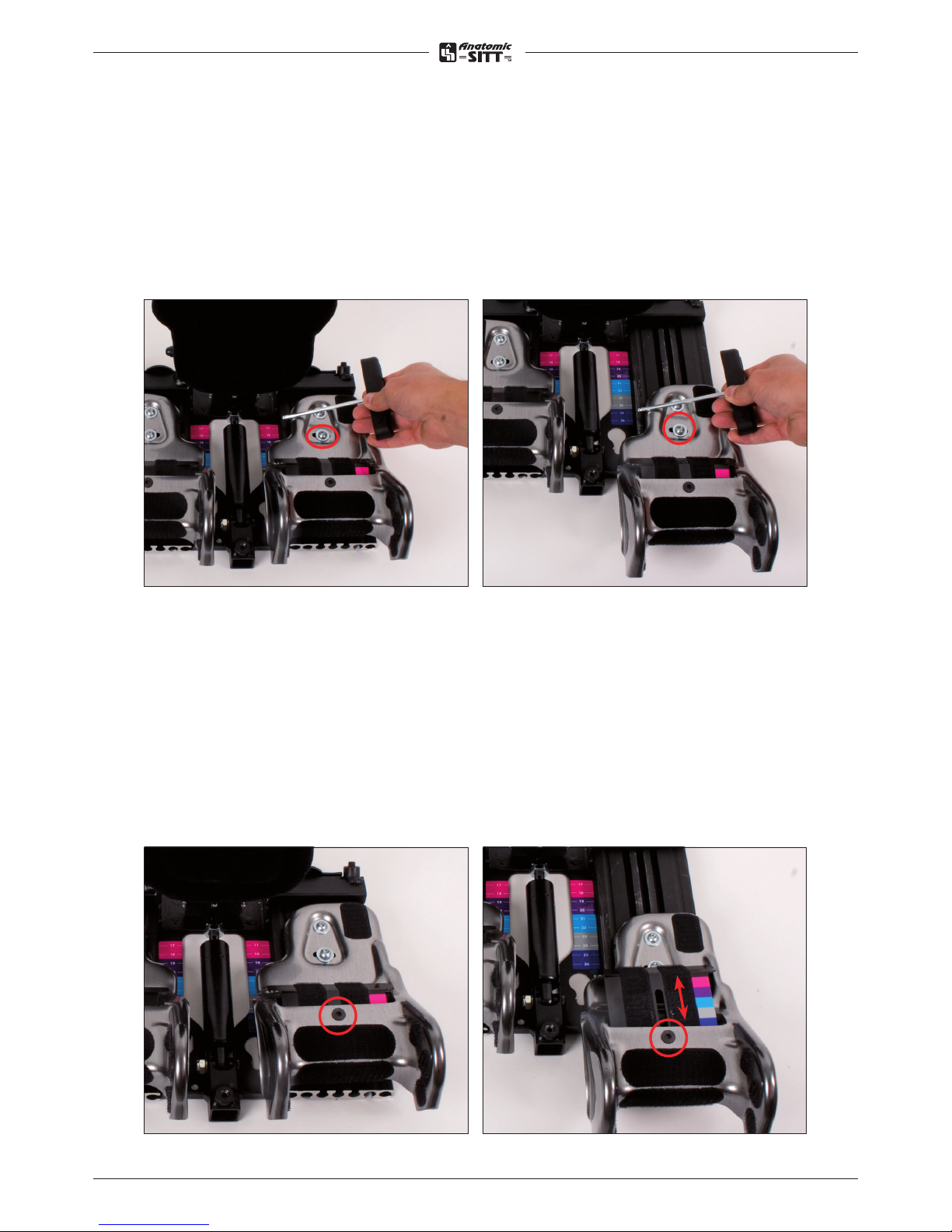

Seat slope adjustment
When adjusting the seat depth, the seat slope adjustment also should follow.
Example: If the seat depth is adjusted to 23 cm (grey field), the seat slope also
should be in the grey field to keep an correct seat slope.
Loosen the bolt with the hexa key and move the leg part to desired track position.
Tighten the bolts when desired position is reached.
Leg length dierence
Loosen the two bolts with the hexa key and move the leg part to desired track
position. Tighten the bolts when desired position is reached.

7
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
Abduction and adduction
Loosen the bolt with the hexa key and move the leg part to desired track position.
Tighten the bolts when desired position is reached.
Neutral Adduction Abduction

8
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]

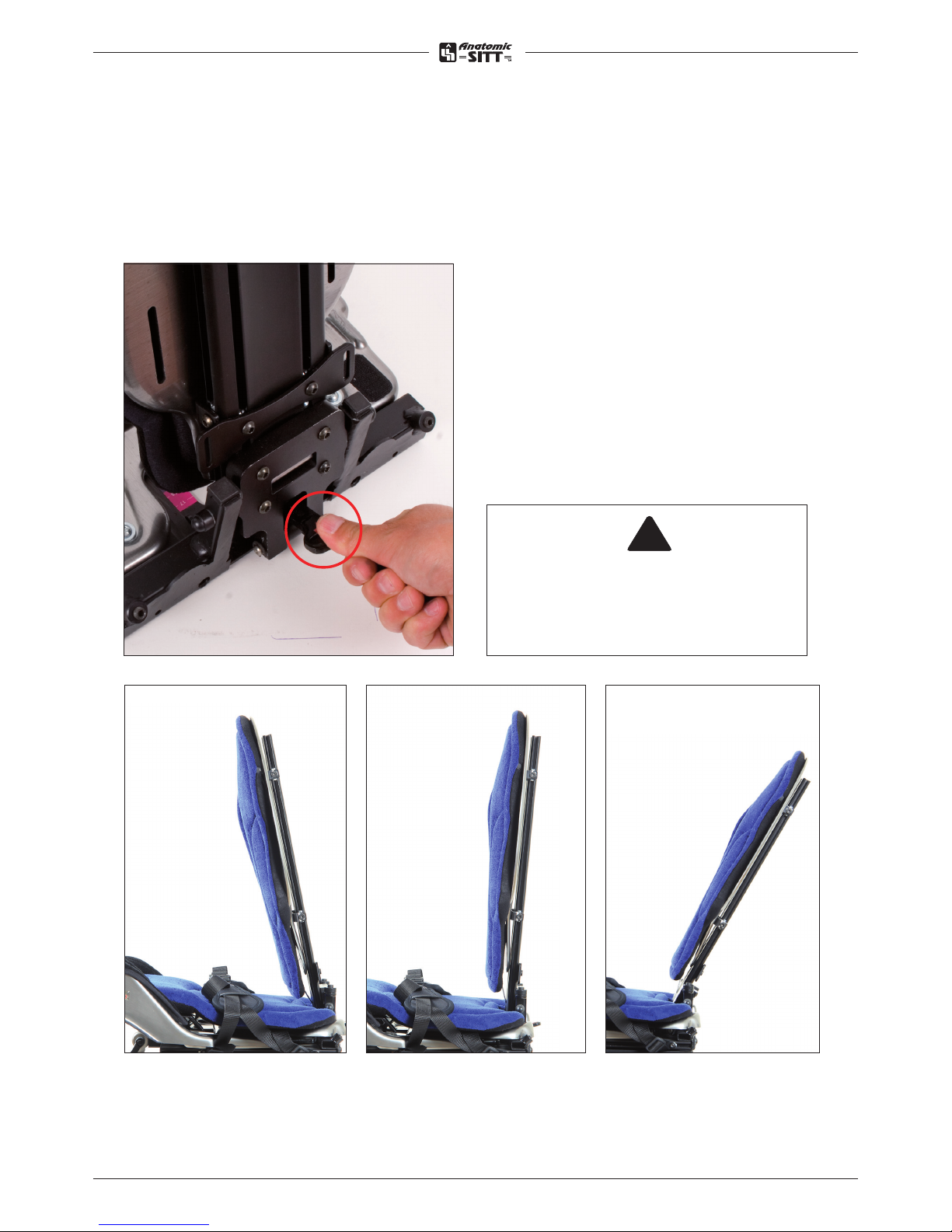

Hip angle adjustments
To activate the lip, pull it straight out
and then up. To adjust the angle of the
back, push the lip downwards and place
it in the desired position.
When desired position is reached, let
go of the lip and put it into ”child safe
mode”
It is very important that the lip
is in the safety mode, resting
downwards, when the adjustments
are done.
!!

9
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
Adjusting the back height
- Loosen the bolts (A) on both sides
of the back profile (2 on each side)
- Adjust to desired height
- Lock the bolts
Place the back so you can take usage
of the integrated lumber support!
A
= Adjustment bolts

10
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]

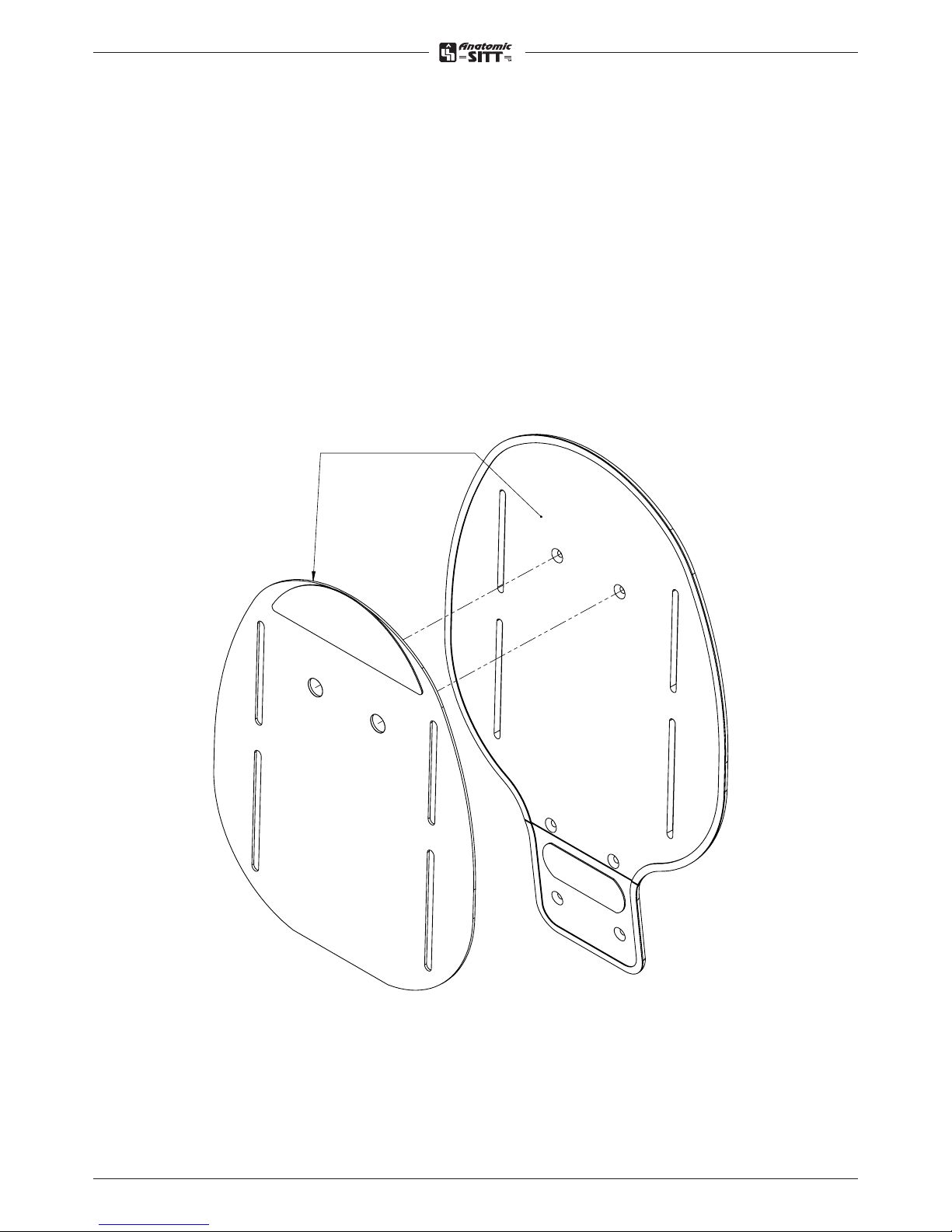

Reinforcement plate is attached to the back plate using double-sided tape.
Make sure all traces and holes are aligned. The plate is then held in place through
the carriage bolts that attaches the trunk supports to the tracks.
Fästs med dubbelhäftande
tejp mot denna yta
DELFI PRO, RYGG STORLEK 3, FÖRSTÄRKT
285018 Rygg stl. 3 förstärkt, kpl. (Höjd 48 cm) - Zitzi Delfi Pro
285259 Förstärkningsplåt ryggplatta stl. 3 - Delfi Pro
Reinforced back
Attach the back plate
using double-sided
tape to this surface

11
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
Adjustable back
Adjustments
• Loosen the knob (2 on each side, 4
totally) and move the backrest to the
desired position.
• Tighten the knobs when desired
position is reached
Mounting of chest pads
Mount the chest pads with the enclosed
carriage bolt, washer and knob (see
picture). The distance should be placed
between the chest pads and the back so
the fabric isn’t squashed.
Knobs

12
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]

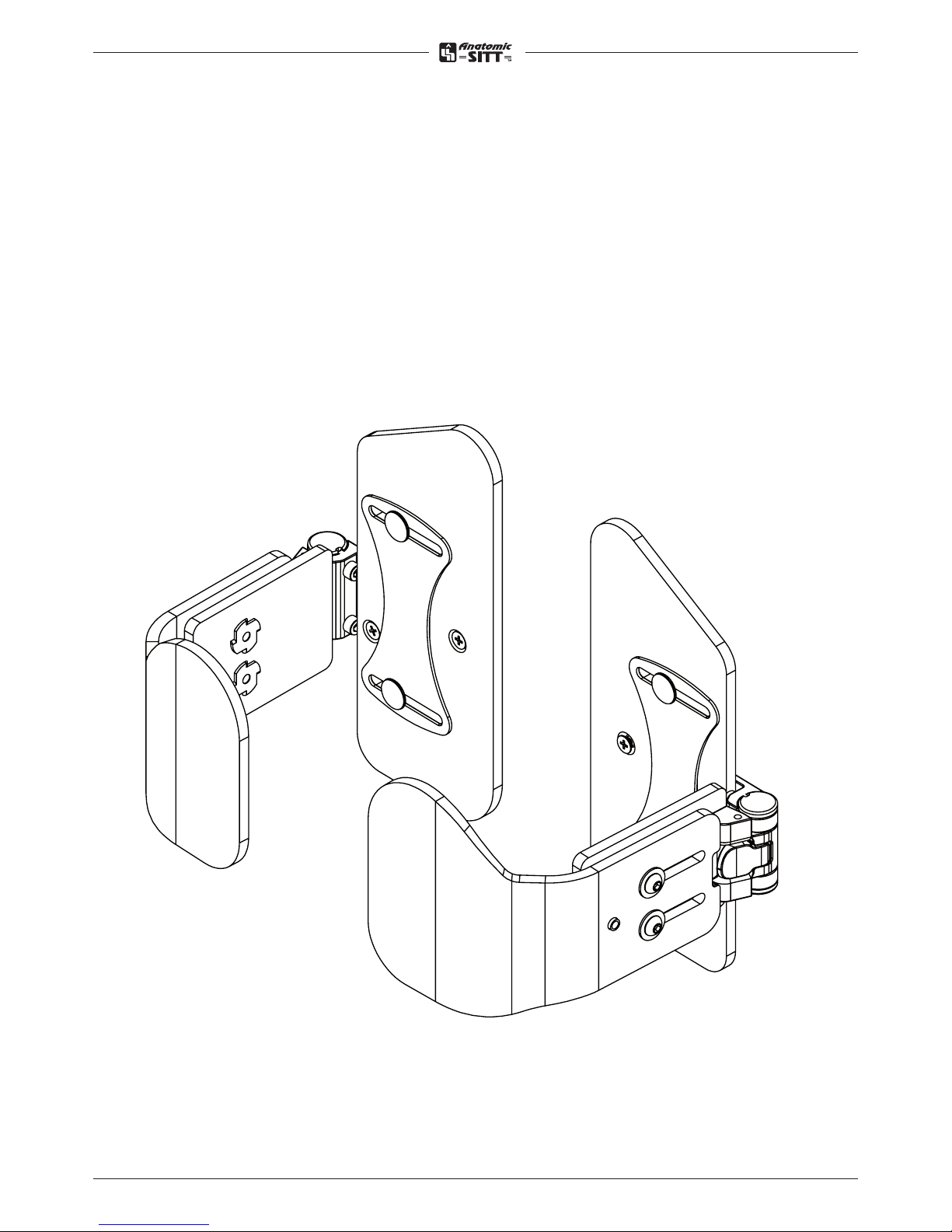

Foldable trunk support
Mounting of trunk support
Mount the support with the attached parts: carriage bolt, distance, washer and
knob (see picture). The distance should be placed between the trunk support and
the back to prevent squeezing the cover.

13
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
(A) Headrest bracket,
4 bolts with pins
C
A - Mounting of the headrest bracket
Begin with take away the integrated hexa
key that originally is placed in the top of
the back profile. Then push the headrest
bracket to desired position in the track of
the back profile. Tighten the bolts!
B - Mount the headrest in the headrest
bracket and adjust to desired position is
reached. Tighten the knob.
C - Adjusting the headrest
Loosen the adjustment bolts a bit so you
can easily adjust with just your hands.
When desired position is reached, tighten
the bolts (C).
If the headrest need to be higher, loosen
the knob (B) and then adjust the headrest
into to desired position. Tighten the knob
(B).
(B) Height adjustment
knob
Headrest
= Adjustment bolts

14
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
A - Mounting of the foldable headrest bracket
Begin with take away the integrated hexa key that originally is placed in the top of
the back profile. Then push the headrest bracket to desired position in the track of
the back profile. Tighten the bolts!
B - Mount the headrest in the headrest bracket and adjust to desired position is
reached. Tighten the knob.
C - Adjusting the headrest
Remove the pin to be able to fold away the head support. When locking the fold-
able headrest; make sure that the pin locks.
Foldable headrest bracket
A
C
B

15
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]

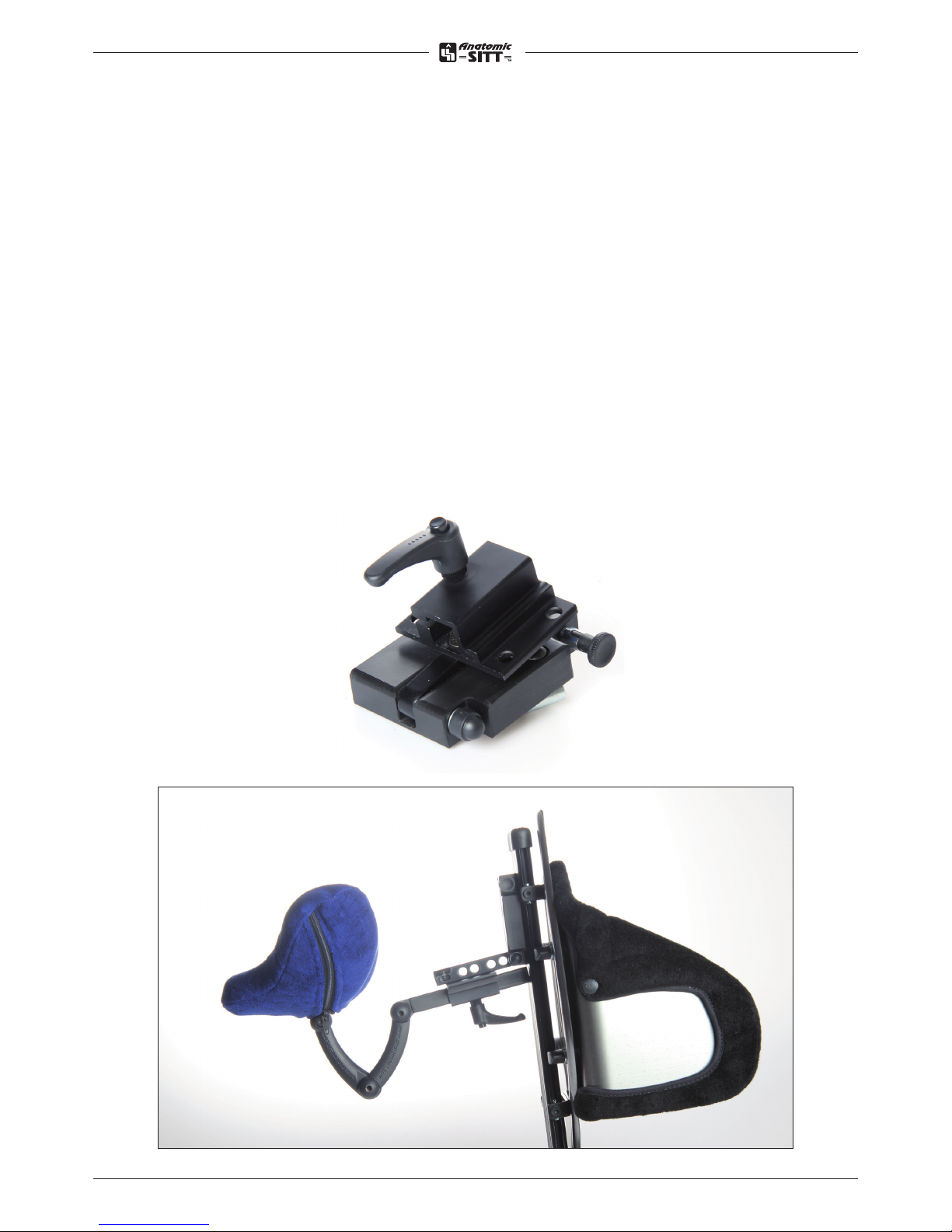

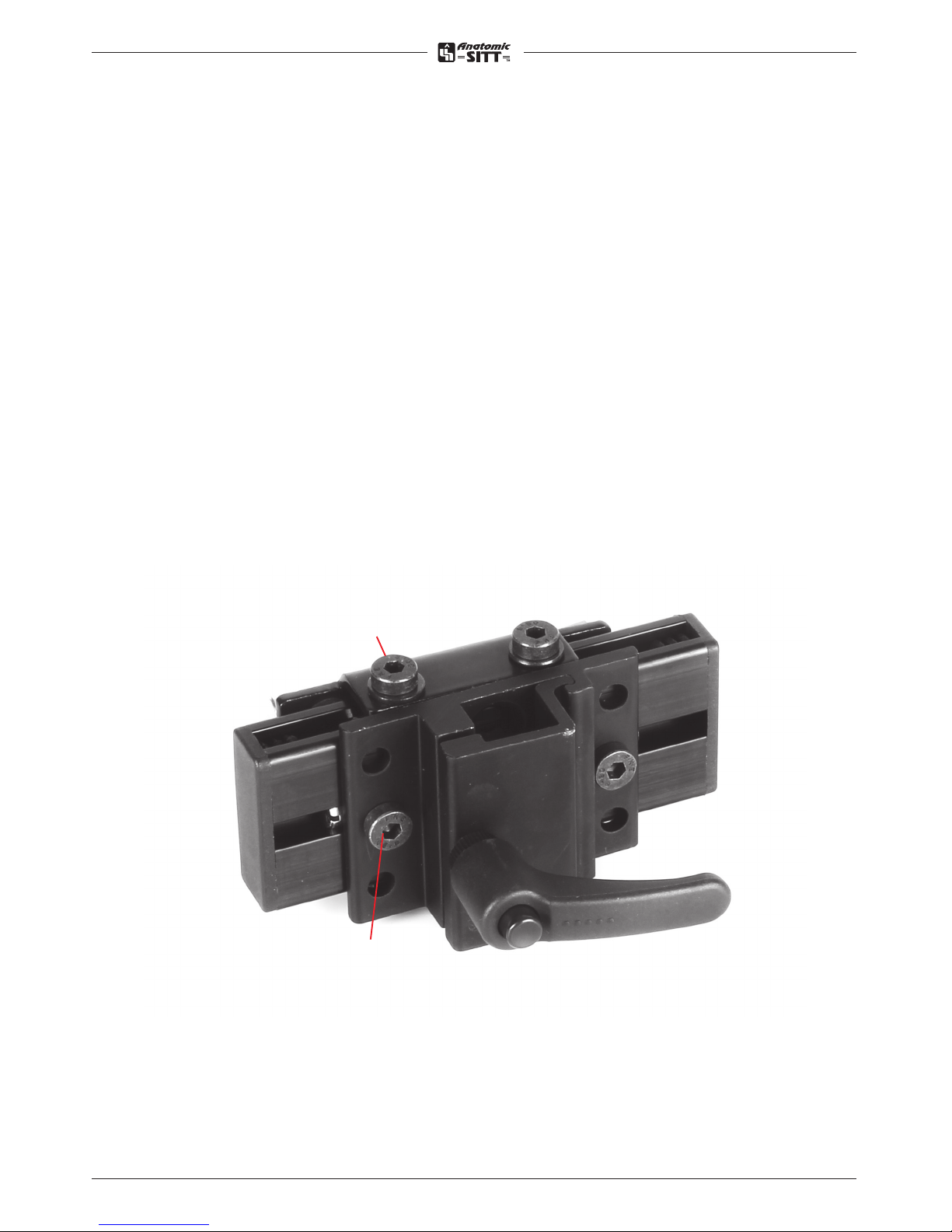

Side adjustable headrest bracket
Mounting of the side adjustable headrest bracket
Begin with take away the integrated hexa key that originally is placed in the top of
the back profile. Then push the side adjustable headrest bracket to desired position
in the track of the back profile. Tighten the bolts!
Mount the headrest in the headrest bracket and adjust to desired position is
reached. Tighten the knob.
Adjusting the headrest
To adjust the headrest sideways loosen bolt A (2 pc).
If you need further adjustment loosen bolt B (4 pc).
Tighten all bolts!
B
A

16
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
Headpod Bracket
HeadActive Bracket
Forehead strap Bracket
Loosen the screws (A) and remove the headrest from the headrest mount.
Attach the bracket with the screws (B) and tighten the screws. Then reinstall
the headrest on the headrest mount and tighten the screws (A).
AA
A
A
A
A
B
B
B
Mounting of other headrest brackets

17
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
A
B
E
C
D
B
A
B
E
C
D
B

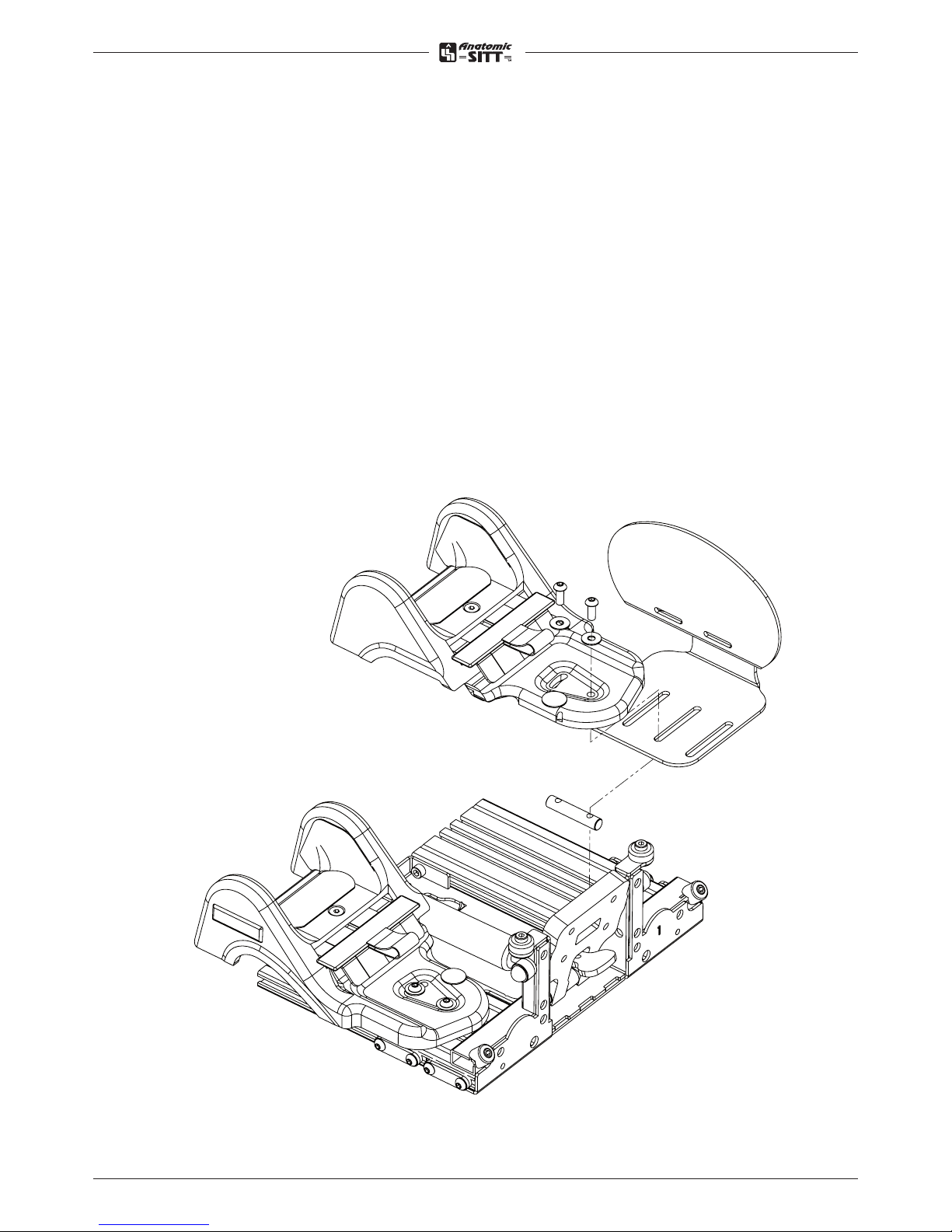

Mounting the pelvic support
Before you can attach the pelvic support, you must remove the protective cover
(A). Remove the screw (B) and then lift o the hood.
Mount the pelvic support where the protective cover (A) was and fix with the screw
(B).
Adjusting the pelvic support
To adjust the angle of the pelvic support, loosen the screw (B), (C) or (D),
depending on which setting you want to do. To adjust the height of the pelvic
support plate, unscrew the screws (E) and move the plate to the desired position.
Then tighten the screws (E) again.
Pelvic support

18
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
Hip support
Unscrew the two screws that attach the leg part to the base. Replace the screws to
a one step (5mm) longer from the supplied kit. When assembling the new screws,
put the hip support between the leg part and the base as shown in the illustration
(between the two black profiles for Sharky) so that the hip support rests against
the base.
Choose which traces in the hip support you use depending on how far forward
/ back you want to have the support Then adjust the support laterally before
tightening the screws properly.

19
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
A
To move the position of the hip belt, loosen the fastening screws (A) slightly and
adjust to desired position. Then tighten the screws (A).
Mounting the hip belt
When mounting the hip belt in the hip belt tracks, use a tri-glide buckle.
For assembly according to the tri-glide method, see picture.
The tri-glide
method
Hip belt
Ensure that the belt is not clamped between the abutment and fitting.

20
User manual Zitzi Delfi Pro www.anatomicsitt.com | [phone]
Mounting of the Support serie
Mounting, upper mounting bracket - A
Begin with take away the integrated hexa
key that originally is place in the top of the
back profile. Then push the upper mounting
brackets to desired position in the track of
the back profile.
Adjustments of the upper mounting
brackets
Loosen the bolts and make desired
adjustments. The height of the upper
mounting brackets should be place so that
the pull direction is a bit above the shoulder
area. Tighten the bolts.
Mounting of strap
Pull the strap through the track and into the
buckle. Use attached Triglide buckles E.
Adjusting the pull direction and width
Loosen the bolt of the upper mounting
bracket and adjust to desired height.
Tighten the upper bolt.
Adjust the angle to desired position and
tighten the bolt.
E
Upper mounting
bracket (A)
(B) Lower brackets included as standard
Alternative lower brackets (optional
285140)
Be sure that there is enough space for the
neck, that the cushions are in the right
place and that the pressure is correct!
!!
= Adjustment bolts
