Safety precautions
Introduction
To be able to use all advandtages of the Zitzi Starfish Pro, it is important that you
read through this manual thoroughly. This applies to all persons who are in the
vicinity of the user. The product is designed for users with seating problems and
fits many dierent types of diagnoses. Adjustment of the Zitzi Starfish Pro should
always be performed by medically qualified person.
If you need additional information, please contact Anatomic SITT AB.
Field of application
The product is intended to use as a seating system together with the chassis pro-
duced by Anatomic SITT AB. If the desire for another use exists, please contact
Anatomic SITT AB.
Correspondence
Zitzi Starfish Pro and its accessories are a CE marked product. A unique serial num-
ber is located on a label placed on the frame. This serial number should be aquoted
in any correspondence regarding the product.
Check the checkbox if the product
is CUSTOMIZED.
The CE Mark is no longer valid and
should be removed.
Place of label
This product is manufactured by Anatomic SITT AB
Postal address Anatomic SITT AB, Box 6137, SE-600 06 Norrköping
Street address Anatomic SITT AB, Terminalgatan 1, SE-603 61 Norrköping
Phone [phone]
Fax [phone]
Email [e-mail]
Webb anatomicsitt.com
Instructions movies youtube.com/anatomicsitt
Follow us on facebook.com/anatomicsitt

4
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Manual chassis
The seat unit can be adjusted to the desired height before the patient is in the seat.
Release the lever (A) on both sides (position (B) is not fully tightened, but helps
to control the cradle in the tracks). Lift the seat out of the tracks and slide the seat
to the desired height. Be sure to push down the seat firmly in the slots. Finish by
tightening the lever (A) firmly.
Height adjustable chassis
The seatpart is height adjustable to reach any desired height. You adjust the height
by stepping on the pump handle. Make shore that you step on the pump handle
with smooth movements so that the adjustment is comfortable for the user. To
lower the chassi place the foot underneath the pump handle and push it up.
Chassis
A
A
B
A
A
2 : 5
Manual chassis Height adjustable chassis

5
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
To lock the wheels
Push down the brake handle (A) with Your foot to lock the wheel. (See picture.)
Pull up the brake handle to release the brake.
Wheels
A

6
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Adjustment of the seatpart
Seat depth, leg length dierent and abduction/adduction of the legs is easy to
adjust. Take away the cover to access the screws.
Adjustment of the seat depth/ abduction
Release the screws (A) then the seat parts can be adjusted by hand.
Adjust the seat part. Lock the screws firmly when you are done with the
adjustment.
Seat part
Attention! Be careful not to adjust the screws all the way out!
A
A

7
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Abduction/Adduction support
Assembly
Release the screws (A) and mount the supports so that You see the holes through
the lines on the support. Mount the screws through the lines in to the holes.
Adjustment
Release a little bit on the screws (A) so that You are able to slide the support side-
ways. Adjust the support to desired location and then fix the screws firmly.
A

8
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Assembly
Mount the straps in each loop.
Adjustment
Pull the belt on both sides of the buckle to get the buckle centered.
Adjust the pads to give the best pressure release.
If the straps is too long, cut the straps you don’t need and burn the end.
Mounting pipe
Hipbelt

9
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
To adjust the back part (A), release the four screws (B) that attach the back part to
the profile. Adjust the back part to desired height and fix the screws (B) firmly.
Roughly adjust the height of the trunk support by releasing the four screws (C) that
attach into the profile. Attach to desired height and fix the screws firmly (C).
The trunk support can now be tweaked through releasing the lever knobs (D).
Adjust the trunk supports to your desired position and then fix the lever knobs
firmly (D).
Back
A
B
B
CD
D

10
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
When the hip angle shall be adjusted: Start with releasing the security knob (A).
Make shore to have a secure grip of the driving handle at the same time push the
trigger to the gas spring (B).
Adjust the back to the desired angle and release the trigger (B). Fix the security
knob firmly when you are finish (A).
Hip angle
A
B
Note! Make sure the wires for the trigger to the gas piston always
moves freely after adjustment! Remember to tighten the safety
lever!

11
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
When the angle of the seat shall be adjusted, make shore to have a secure grip of
the driving handle at the same time push the trigger for the gas spring (A). Adjust
the seat to desired angle and release the trigger (A). Make sure to have the patient
under supervision at all time when doing the adjustment so that the patient does
not squeeze or get hurt.
Tilt of the seat unit
A
A
Note! Make sure the wires for the trigger to the gas piston always
moves freely after adjustment!

12
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
The hip support is mounted in the bottom of the back profile. Insert rim pins (A)
and slide the hip support to the desired height. Tighten the screws (B). Adjust the
angle bracket to the desired position laterally. Tighten the knob (C). Adjust the hip
brackets to the desired depth, tighten the knob (D).
Hip support
A
B
C
D

13
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

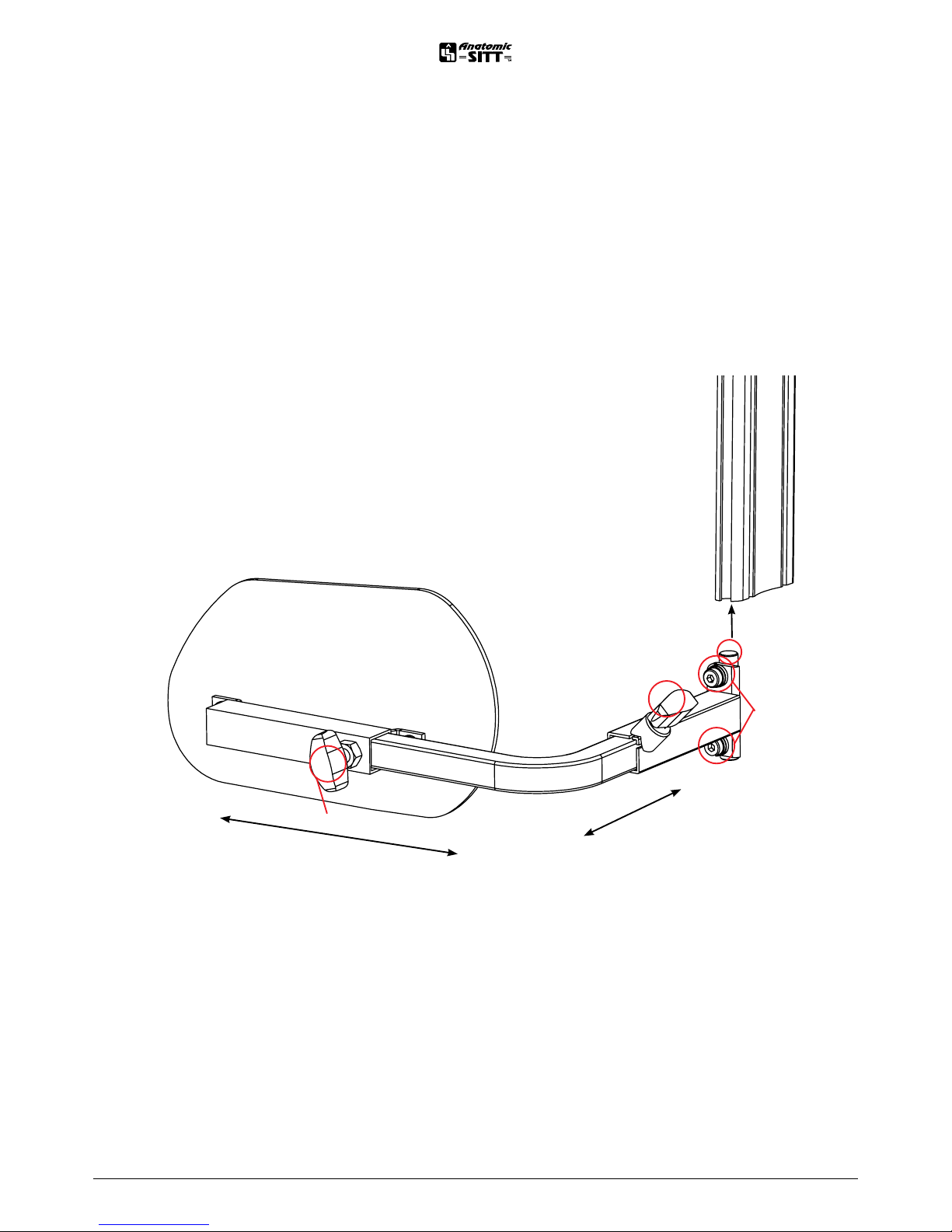

Armrest
Mounting the armrest
The armrest shall be mounted on the back in the profile. Mount the armrest
according to the picture. Adjust to desired height. Fix the screws firmly (A).
Adjustment of the width
Release the lever knob (B). adjust to desired width. Then fix the lever knob firmly.
Depth adjustment
Release the lever knob (C). Adjust to desired position, then fix the lever knob firmly.
A
C
C
B
B
A

14
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

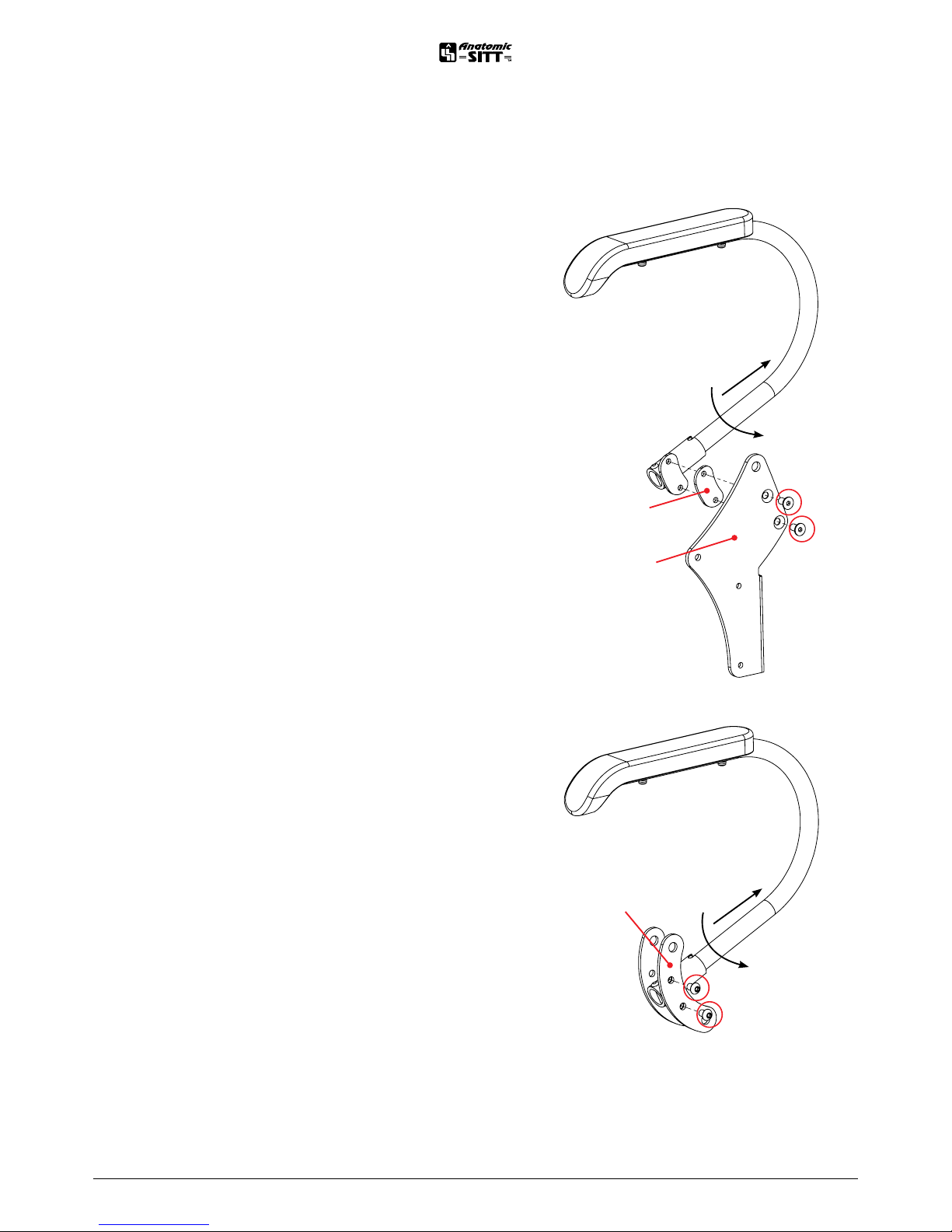

Armrest, chassi
Mounting on a manual chassis
The armrest shall be mounted on the side
plate (A). Mount the screws (B) through the
countersunk holes on the plate, through the
spacer plate (C) and in to the threaded holes on
the armrest.
Folding of the armrest
Pull the armrest to the side and up. Then twist the
support away from the chassis until the support
attach into the next hem.
Mounting on a hydraul/electric chassis
The armrest shall be mounted on the side plate
(A). Mount the screws (B) through the centered
holes on the plate and in to the threaded holes
on the armrest.
Folding of the armrest
Pull the armrest to the side and up. Then twist
the support away from the chassis until the sup-
port attach into the next hem.
A
B
A
B
C

15
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Release the screws (A) enough to be able to slide in the rim sprints (B) into the
profile (C). Adjust to desired height and fix the screws firmly (A).
Driving handle
C
AB
Note! Make sure the wires for the trigger to the gas piston always
moves freely after adjustment!

16
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Headrest
Mounting / Adjustment of the headrest
* Take away the protection cap on the profile.
* Mount the headrest mounting on the profile.
* Release the screws (B) enough to be able to
slide the mounting by hand.
* Put in the Patient adjust to desired position (A).
* Fix all of the screws and the lever knob firmly
and mount the protection cap back on the
profile.
The headrest is easy to release:
* Loosen the lever knob (C) to be able to take
away the headrest.
C
B
A

17
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Support mounting
Mounting / Adjustment of the harnesses (Sternum
support, H-strap)
Mounting:
Upper mounting: (Picture 1)
* Release the protection cap on the profile.
* Mount the upper mounting as described in the picture 1.
* Open the buckle (A), slide the straps through the hole
in the mounting and through the buckle and lock the
buckle.
Lower mounting to H-strap, Sternum support: (picture 2)
The lower mounting is included in the chair always. Lock the strap
with the help of the triglide buckle as the picture 3 shows.
Pic 2
Pic 1
Pic 3
Adjustment:
Seat the patient in the seat and release the socket head screw according to position
B & C (pic 1).
Adjust the arms so that the angle of force on the upper mounting points ends up in
the same height as the shoulders.
• Attach the screw according to position B (pic 1).
• Adjust to desired width by angling the hardware to the right or left. (make sure
that it is enough space for the neck).
• Lock the screws according to position C (pic 1) .
• Adjust the pads in height to give the best pressure relief.
Subsequent verification:
• Make sure that there is enough space by the neck.
• Pressure on the strap.
• Placement of the pads.
Note! Make sure that there is enough space for the neck.
A
B
C

18
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Footrest
Mounting of the footrest
• Mount the footrest as the picture.
• Fix the screw firmly (A)
Angle adjustment of the knee
• Loosen the lever knob (B).
• Adjust to desired angle.
• Fix the lever knob firmly.
AA
A
A
D
A
B
A
CA
B
1
2
4 4
B
C
E
B
DD
3
Fixed footrest mounting
To be able to height adjust the footrest loosen
the lever knob (A) enough to be able to slide
on the profile. Then adjust to desired height.
Fix the lever knob firmly
To be able to adjust the angle by the foot
loosen the screw (B). Adjust to desired angle
and fix the screw (B) firmly.
A
B
Tip! To avoid the risk of footrest colliding
with the chassis, the footrest should be
adjusted when the seat is:
• In the lowest possible position and tilted
forward for hydraulic/electric chassis.
• Tilted forward for manual chassis.

19
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Turn up footrest mounting
To adjust the footrest in height loosen the lever
knob (A) and then adjust to desired height. Fix
the lever knob firmly.
To use the turn up function lift the footrest plate
in the front.
To adjust the angle by the foot loosen the screw
(B). Adjust to desired angle and then fix the
screw firmly.
Flexible footrest adapter
To adjust the height of the footrest loosen the screw
(D) and then adjust to desired height.
Fix the screw firmly (D).
To Adjust the angle by the foot loosen the screw (C).
Adjust to desired angle and then fix the screw firmly.
Tip! The resistance of the spring can be adjusted by using
the screw (A). To get the flexible adapter to work best, the
profile shall be in a straight line down.
AA
A
A
D
A
B
A
CA
B
1
2
4 4
B
C
E
B
DD
3
AA
A
A
D
A
B
A
CA
B
1 2
4 4
B
C
E
B
DD
3
AA
A
A
D
A
B
A
CA
B
1 2
4 4
B
C
E
B
DD
3
Swivel adapter
To adjust the footrest in height loosen the
lever knob (A) and then adjust to desired
height. Fix the lever knob firmly.
To use the swivel function loosen the
screws (B) and (C) and adjust to desired
position. Fix the screws (B) firmly and the
security screw firmly (C).
To adjust the foot plate in depth loosen the
screws (D) the adjust to desired position,
then fix the screws firmly.
AA
A
A
D
A
B
A
CA
B
1 2
4 4
B
C
E
B
DD
3

20
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Calf support
F
E
E
A
E
E
A
D
D
C
Foot plate
Footrest
stay
Mounting of calf support
Before mounting the calf support take
away the footrest if this is mounted. Loos-
en the screw (F) that holds the footrest
on the profile then pull the footrest down
and o.
Mount the calf support through sliding
the rim sprint (C) in the profile, adjust to
desired height and fix the screws firmly
(E). Then mount the footrest back.
Height adjustment of calf sup-
port
To adjust the height of the calf
support loosen the screws (E)
then adjust to desired height. Fix
the screws firmly (E).
Width adjustment of calf support
To adjust the width of the calf
support loosen the screws (A)
and then adjust to desired width.
Fix the screws firmly (A).
