Anest Iwata DDP 90 D Specification sheet

Instruction Use and Maintenance Manual
DOUBLE DIAPHRA
DOUBLE DIAPHRAGM PUMP GM PUMP
GB
DDP 90 D
DDP 90 D
DPS 90 1 D
DPS 90 1 D
DPS 90 2 D
DPS 90 2 D
DPS 90 3 D
DPS 90 3 D
DPS 90 4 D
DPS 90 4 D
DPS 90 36 D
DPS 90 36 D
DDP 90 C WB
DDP 90 C WB
DPS 90 3 C WB
DPS 90 3 C WB
ME008ERev.03
ANEST IWATA Europe s.r.l.
46, Corso Vigevano
10155 Torino - Italy
Tel. [phone]
Fax [phone]
www.anest-iwataeu.com
e-mail: [email protected]

Dear Customer,
We thank you for the preference you gave us and we are glad to count you among our customers. We hope the use of
this equipment will satisfy you and your staff.
We have first of all designed our products by focusing not only on our experience, but also on the latest mecha-
nical innovations. The products have then been manufactured with first-rate materials and techniques and tested by con-
sidering your requirements.
We thank you once again and remember that all our technical services are at your disposal for any present and future
requirement.
The company ANEST IWATA EUROPE Srl mission is to supply all their product and spray painting equipment users
and distributors with the STATE-OF-THE-ART of technology and with continuous innovations, to obtain
the best finish at the lowest cost.
Our product range must offer the perfect balance between the energy use and its consequences, to
help to safeguard and improve the environment.
All Anest Iwata Europe Srl staff members use their knowledge and skills to provide their customers with
an excellent service to satisfy them with high quality and reliability and with continuous innovation.
Our activities, as those of many other companies, are in compliance with several European Directives
(Safety and Environment) and International Standards (ISO - Quality and Environment).
As to SAFETY, the standards our products refer to are the CE 89/382 Directive and subsequent; all our
items of this type have the CE marking, are supplied with a Technical File which can be consulted on
request and are accompanied by a use manual (standardized by the European standards EN 292) avai-
lable in different languages.
There are also some specific safety standards, that is EN 1953 standard as to spray guns, and
prEN 12621 as to pressure pumping circuits. These standards can be consulted or bought at UNI.
As to QUALITY standards (ISO 9000), ANEST IWATA EUROPE is provided with the ISO 9002 certifica-
tion. Our company philosophy gives all our partners, distributors and users any possible information,
which is very useful for our product use, for the environment safeguard and for the operators’ safety.
2
ANEST IWATA EUROPE
TORINO - ITALY

USE OF THE MANUAL …………………………………………………………………………………………4
SYMBOLS USED …………………………………………………………………………………………………4
INFORMATIVE LETTER …………………………………………………………………………………………5
WARRANTY ………………………………………………………………………………………………………7
1. TRANSPORT AND HANDLING …………………………………………………………………………8
1.1 Transport ……………………………………………………………………………………………………8
1.2 Transport with cardboard packaging ……………………………………………………………………8
1.3 Handling ……………………………………………………………………………………………………9
1.4 Temporary storage …………………………………………………………………………………………9
2. PRODUCT IDENTIFICATION …………………………………………………………………………10
2.1 Plate data …………………………………………………………………………………………………10
2.2 The different models………………………………………………………………………………………11
2.3 Technical specifications …………………………………………………………………………………12
2.4 Safety systems ……………………………………………………………………………………………17
2.5 Workable products ………………………………………………………………………………………18
3. OPERATION ………………………………………………………………………………………………19
3.1 Operation description ……………………………………………………………………………………19
4. INSTALLATION AND STARTING………………………………………………………………………20
4.1 Check on the purchased product ………………………………………………………………………20
4.2 Conditions for installation ………………………………………………………………………………20
4.3 Installation of DDP 90 D and DDP 90 CE WB base models…………………………………………20
4.4 Installation of DPS 90 1 D , DPS 90 2 D, DPS 90 3 D, DPS 90 4 D, DPS 90 36 D ………………21
5. USE ……………………………………………………………………………………………………27
5.1 Use ……………………………………………………………………………………………………27
5.2 Safety rules during use …………………………………………………………………………………27
5.3 Clothes ……………………………………………………………………………………………………27
5.4 Prewash……………………………………………………………………………………………………28
5.5 Starting ……………………………………………………………………………………………………28
5.6 Daily interruptions…………………………………………………………………………………………30
5.7 Wrong and dangerous uses ……………………………………………………………………………31
5.8 Pressure release process ………………………………………………………………………………32
6. MAINTENANCE AND INSPECTION …………………………………………………………………33
6.1 General notes ……………………………………………………………………………………………33
6.2 Safety rules during maintenance ………………………………………………………………………33
6.3 Recommended programmed operations ………………………………………………………………33
6.4 Diaphragm pump disassembly from its base support…………………………………………………33
6.5 Double pneumatic valve disassembly …………………………………………………………………34
6.6 Diaphragm disassembly …………………………………………………………………………………35
6.7 Diaphragm reassembly …………………………………………………………………………………36
6.8 Delivery and suction valve disassembly ………………………………………………………………36
6.9 Delivery and suction valve reassembly…………………………………………………………………36
6.10 PR 3E fluid pressure regulator disassembly and maintenance ……………………………………37
6.11 PR 3E fluid pressure regulator reassembly ……………………………………………………………38
6.12 PR 5 fluid pressure regulator disassembly and maintenance ………………………………………40
6.13 PR 5 fluid pressure regulator reassembly ……………………………………………………………42
6.14 Paint filter maintenance …………………………………………………………………………………43
7. TROUBLESHOOTING …………………………………………………………………………………44
7.1 DDP 90 CE double diaphragm pump …………………………………………………………………44
7.2 PR 3E paint pressure regulator …………………………………………………………………………48
7.3 PR 5 paint pressure regulator……………………………………………………………………………49
8. SECTIONS WITH SPARE PART LIST ………………………………………………………………50
8.1 DDP 90 D / DDP 90 CE WB double diaphragm pump ………………………………………………50
8.2 PR 3E / PR 3E WB paint pressure regulator …………………………………………………………52
8.3 PR 5 paint pressure regulator……………………………………………………………………………53
9. ACCESSORIES …………………………………………………………………………………………54
9.1 Air adjusting unit …………………………………………………………………………………………54
9.2 Dip tube with filter…………………………………………………………………………………………54
9.3 Supports……………………………………………………………………………………………………55
9.4 Hopper unit ………………………………………………………………………………………………55
9.5 Wye ……………………………………………………………………………………………………55
10. DISMANTLING……………………………………………………………………………………………56
CONTENTS
3

4
Use of The use and maintenance manual is the document accompanying the equipment from its manufactu-
the manual re till its dismantling. Therefore, it is an integral part of the equipment.
The manual must be read before starting ANY ACTIVITY involving the equipment including its hand-
ling.
For a better consultation the instruction manual is divided into the following sections:
SECTION 1
Transport, packaging, handling and check on the purchased product.
SECTION 2
Description of the equipment and of its field of application.
It also describes all the technical features of the equipment.
This information can be compared to that of an illustrative leaflet.
SECTION 3
Equipment installation.
SECTION 4
Description of the controls to use the equipment.
SECTION 5
Ordinary and extraordinary maintenance.
ENCLOSURES
Exploded view and list of components.
Symbols used
The operations which can be dangerous if they are not carried out correctly, are indicated with the
symbol:
The operations requiring a qualified or specialised staff, to avoid any danger, are indicated with the
symbol:
It is advisable to train the staff who have to use the equipment and to check if everything is under-
stood and carried out.

5
Other
symbols
Index of the use and maintenance manual
Transport
Description of the equipment
Installation
Ordinary use
Wiring and hydraulic diagrams
Dismantling
Informative This use and maintenance manual is an integral part of the equipment and it must be easily availa-
ble to the staff in charge of its use and maintenance.
The user and the maintenance man must know the content of this manual. All the descriptions and
pictures contained in this manual are not binding.
Although the main features of this equipment are not subject to change, the manufacturing Company
reserves itself the right to change those components, details and accessories it deems necessary to
improve the machine or to meet manufacturing or commercial requirements, at any time and without
updating this manual immediately.
WARNING
TO ENSURE THE GOOD WORKING OF THE EQUIPMENT AND OF ITS SAFETY DEVICES, THE
PUMP MUST BE INSTALLED BY A QUALIFIED STAFF.
WARNING
ALL RIGHTS ARE RESERVED. THE REPRODUCTION OF ANY PART OF THIS MANUAL, IN ANY
FORM, IS STRICTLY FORBIDDEN WITHOUT PRIOR WRITTEN AUTHORIZATION OF THE
MANUFACTURING COMPANY.
THE CONTENT OF THIS MANUAL CAN BE MODIFIED WITHOUT NOTICE. GREAT CARE HAS
BEEN TAKEN IN COLLECTING AND CHECKING THE DOCUMENTATION CONTAINED IN THIS
MANUAL TO MAKE IT AS COMPLETE AND COMPREHENSIBLE AS POSSIBLE.

6
WARNING
THIS USE AND MAINTENANCE MANUAL DOES NOT MAKE UP FOR ANY DESIGN INADEQUA-
CY.
In case of breakdown or malfunction, apply to the CUSTOMER CARE SERVICE.
WARNING
THE ORIGINAL CONFIGURATION OF THE EQUIPMENT MUST NOT BE CHANGED AT ALL.
On receiving the equipment check that:
The supply corresponds to the order specifications.
In case of non-compliance, inform immediately our Technical Services.
CUSTOMER SERVICE
ANEST IWATA EUROPE s.r.l.
C.so Vigevano, 46 - 10155 Torino
Telephone [phone]
Telefax +39 011.85.19.44
E-mail: [email protected]

7
Warranty All ANEST IWATA S.r.l. products have a one-year guarantee from the invoice date, unless otherwise
stated in writing. The warranty covers all manufacturing faults and material defects. Any spare part
replacement or repair operations are covered only if they are carried out by our technicians at our
servicing shops.
The faulty parts must be sent CARRIAGE PAID.
Once the components have been repaired, they will be sent CARRIAGE FORWARD to the custo-
mer.
The warranty covers no intervention of our technicians during installation or dismantling operations.
If for practical purposes one of our technicians is sent on site, a charge will be made for the time plus
extra for travelling and expenses.
Our warranty does not cover direct or indirect damage to people or property caused by our equip-
ment. It covers no repair operations carried out by the customer or by a third party, either.
THE WARRANTY DOES NOT COVER:
- Damage or breakdown caused by improper use or assembly.
- Damage or breakdown caused by the use of spare parts that are different from the original or
recommended ones.
- Damage or breakdown caused by a bad preservation.
- Components subject to wear (described in the spare part list).
WARRANTY FORFEITURE:
- In case of delayed payment or other contractual defaults.
- Whenever changes or repairs are carried out on our equipment without prior authorization.
- Whenever the serial number is damaged or removed.
- When the damage is caused by improper use or functioning, or if the equipment falls, is bumped or
by other causes not due to the normal working conditions.
- Whenever the unit is disassembled, tampered with or repaired without the authorization of
ANEST IWATA S.r.l.
All repair interventions carried out under warranty do not interrupt its duration.
All disputes will be settled in the court of justice of Turin.

8
1.1 Transport
To transport the equipment only the systems described below can be used. In any case make sure that
the transport and lifting device can bear the weight of the equipment with its packaging.
WARNING
ALWAYS KEEP THE PACKAGING IN VERTICAL POSITION.
WARNING
IT IS ADVISABLE THAT THE STAFF IN CHARGE OF HANDLING THE EQUIPMENT WEAR PROTEC-
TIVE GLOVES AND SAFETY SHOES.
WARNING
WHILE LIFTING OR HANDLING THE EQUIPMENT OR ANY OF ITS COMPONENTS CLEAR THE
WORKING AREA. LEAVE ALSO A SUFFICIENT SAFETY AREA AROUND THE EQUIPMENT TO
AVOID DAMAGING PEOPLE OR OBJECTS WHICH COULD BE THERE.
1.2 Transport with cardboard packaging
The equipment is put inside a cardboard packaging and wrapped with some shockproof material.
1. TRANSPORT AND HANDLING

9

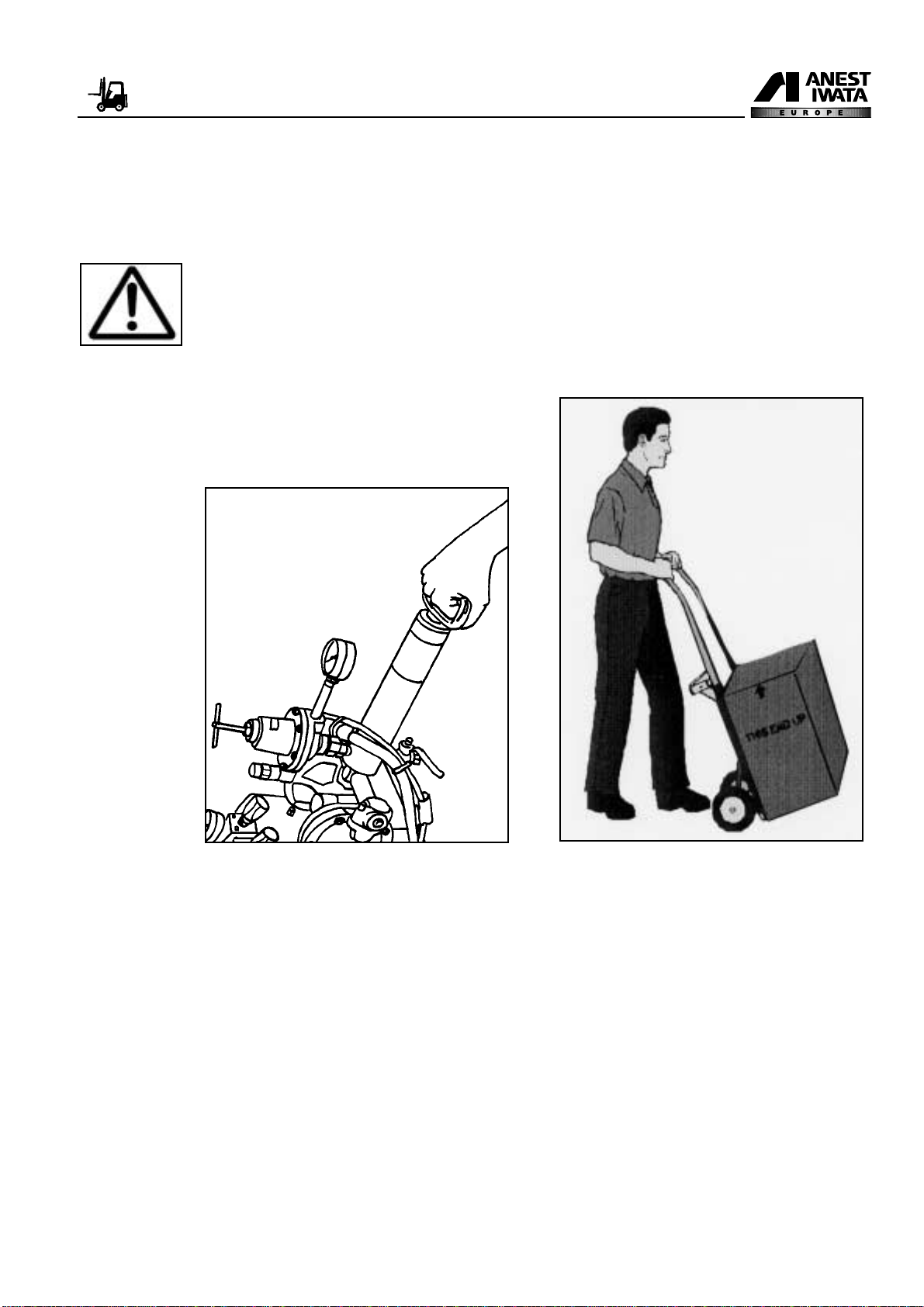

1.3 Handling
To handle the cardboard packaging use a trolley.
WARNING
FOLLOW THE INSTRUCTIONS ON THE PACKAGING BEFORE HANDLING AND OPENING IT.
HANDLING BY MEANS OF HANDLE HANDLING BY MEANS OF TROLLEY
1.4 Temporary storage
During transport and storage make sure the temperatures between 0 and 40° C are not exceeded.
In case of storage, make sure the equipment is not put in places with an excessive humidity.

2.1 Plate data
The manufacturer’s identification plate is applied on the diaphragm pump (see picture below).
It must not be removed at all, even if the equipment is resold. For any communication with the manu-
facturer always mention the serial number written on the plate itself.
10
2. PRODUCT IDENTIFICATION
ANEST IWATA DIAPHRAGM PUMP
DPS 90
MAX AIR W. P.R. MAX FLUID W. P.R. SERIAL NO.
6.8 bar 6.8 bar
ANEST IWATA EUROPE S.r.l.
C.so Vigevano,46
10155 Torino Italy
Model
Serial number
Max air working pressure
Max fluid working
pressure

11
2.2 The different models
The following pump models are available:
SOLVENT-BASED PAINT MODELS
Base Model: Pump casing type DDP 90 D
SIPHON MODELS:
DPS 90 1 D: Pump type DDP 90 D mounted on a stand with PR 3E (or PR5) paint pressure regulator, 2 air pressure
reducers (for pump and gun), dip tube with filter, paint filter unit, fluid recirculation, 2 safety devices
(1 overpressure valve, 1 three-way valve).
DPS 90 2 D: Pump type DDP 90 D mounted on a 20 l. tank with PR 3E (or PR5) paint pressure regulator, paint filter
unit, fluid recirculation, 2 safety devices (1 overpressure valve, 1 three-way valve), 2 air pressure reducers
(for pump and gun).
DPS 90 3 D: Trailer-mounted pump type DDP 90 D with PR 3E (or PR5) paint pressure regulator, air pressure reducing
filter (for gun), air pressure reducer (for pump), dip tube with filter, paint filter unit, fluid recirculation,
2 safety devices (1 overpressure valve, 1 three-way valve).
DPS 90 4 D: Pump type DDP 90 D on wall mounting bracket with PR 3E (or PR5) paint pressure regulator, air pressure
reducing filter (for gun), air pressure reducer (for pump), dip tube with filter, paint filter unit, fluid recircula-
tion, 2 safety devices (1 overpressure valve, 1 three-way valve).
GRAVITY MODELS:
DPS 90 36 D: Trailer-mounted pump type DDP 90 D with plastic hopper (6 litres with 50 mesh filter), PR 3E (or PR5)
paint pressure regulator, air pressure reducing filter (for gun), air pressure reducer (for pump), paint filter
unit, fluid recirculation, 2 safety devices (1 overpressure valve, 1 three-way valve).
WATER-BASED PAINT MODELS
Base Model: Pump casing type DDP 90 CE WB
SIPHON MODEL:
DPS 90 3 C WB: Trailer-mounted pump type DDP 90 CE WB with PR 3E WB paint pressure regulator, air pressure reducing
filter (for gun), air pressure reducer (for pump), dip tube with filter, paint filter unit, fluid recirculation,
2 safety devices (1 overpressure valve, 1 three-way valve).

12

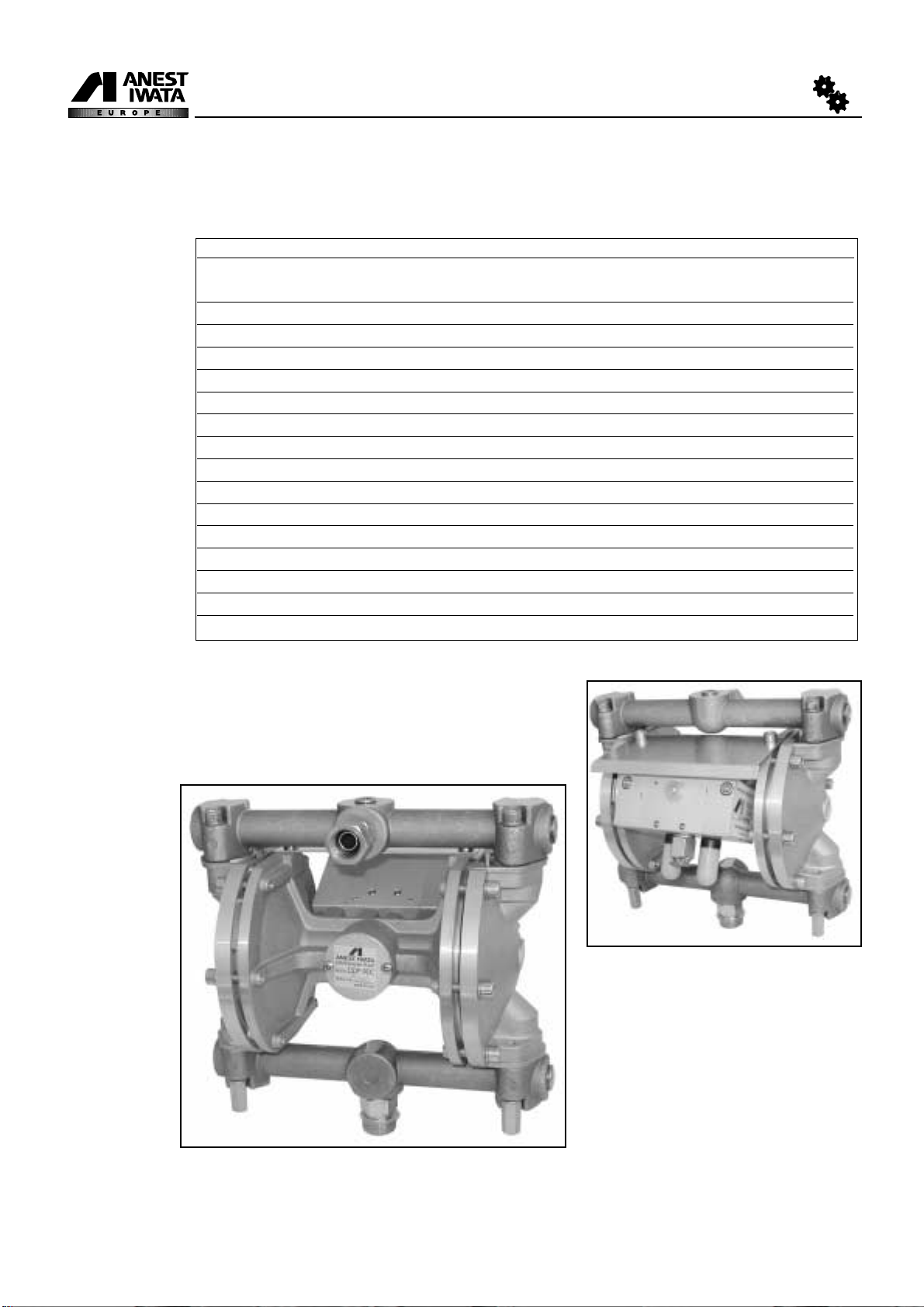

2.3 Technical specifications
DDP 90 D DIAPHRAGM PUMP MODEL DDP 90 D DDP 90 CE WB
Dimensions 235 x 155 x 210 mm
Weight 3,400 kg
Air inlet G 1/4”
Entrata materiale G 1/2”
Fluid inlet G 3/8”
Fluid delivery filter 100 mesh
Max air working pressure 7.0 bar
Min air working pressure 2.0 bar
Compression ratio 1:1
Max fluid working pressure 7.0 bar
Max fluid viscosity 85 sec/Ford #4 (100 sec./NK-2)
Delivery per cycle 50 cc/per cycle
Max No. of cycles per minute 200 cycles per min.
Max delivery 10 litres per min. (water)
Working temperature from 5 to 40 °C
Compressor (required power by each pump) from 0.4 to 0.75 kW

13
DPS 90 1 D
DPS 90 2 D MODELS DPS 90 1 D DPS 90 2 D
Dimensions 500x430x1015 mm 360x335x760 mm
Weight 11,900 Kg 11,120 Kg
Air inlet G 1/4”
Fluid outlet G 3/8”
Fluid suction filter 50 mesh
Fluid delivery filter 100 mesh
Max air working pressure 7.0 bar
Min air working pressure 2.0 bar
Max fluid working pressure (See PR 3E or PR5)
Max fluid viscosity 85 sec/Ford # 4 (100 sec/NK-2)
Max fluid delivery (See PR 3E or PR5)
Working temperature from 5 to 40 °C
Noise level 75.3 dB(A)*
Compressor (required power) from 0.4 to 0.75 kW (only for pump)
from 2.2 to 3.7 kW (for pump and gun)
Pressure regulator PR 3E (or PR5)
*This noise level has been measured in compliance with Machinery Directive 89/392 and with
ISO 3744 standards.

14
DPS 90 3 D
DPS 90 3 C WB MODELS DPS 90 3 D DPS 90 3 C WB
Dimensions 500x500x1055 mm 500x500x1055 mm
Weight 15,900 Kg 15,900 Kg
Air inlet G 1/4”
Fluid outlet G 3/8”
Fluid suction filter 50 mesh
Fluid delivery filter 100 mesh
Max air working pressure 7.0 bar
Min air working pressure 2.0 bar
Max fluid working pressure (See PR 3E or PR5)
Max fluid viscosity 85 sec/Ford # 4 (100 sec/NK-2)
Max fluid delivery (See PR 3E or PR5)
Working temperature from 5 to 40 °C
Noise level 75.3 dB(A)*
Compressor (required power) from 0.4 to 0.75 kW (only for pump)
from 2.2 to 3.7 kW (for pump and gun)
Pressure regulator PR 3E or PR5 PR 3E WB
*This noise level has been measured in compliance with Machinery Directive 89/392 and
with ISO 3744 standards.

15

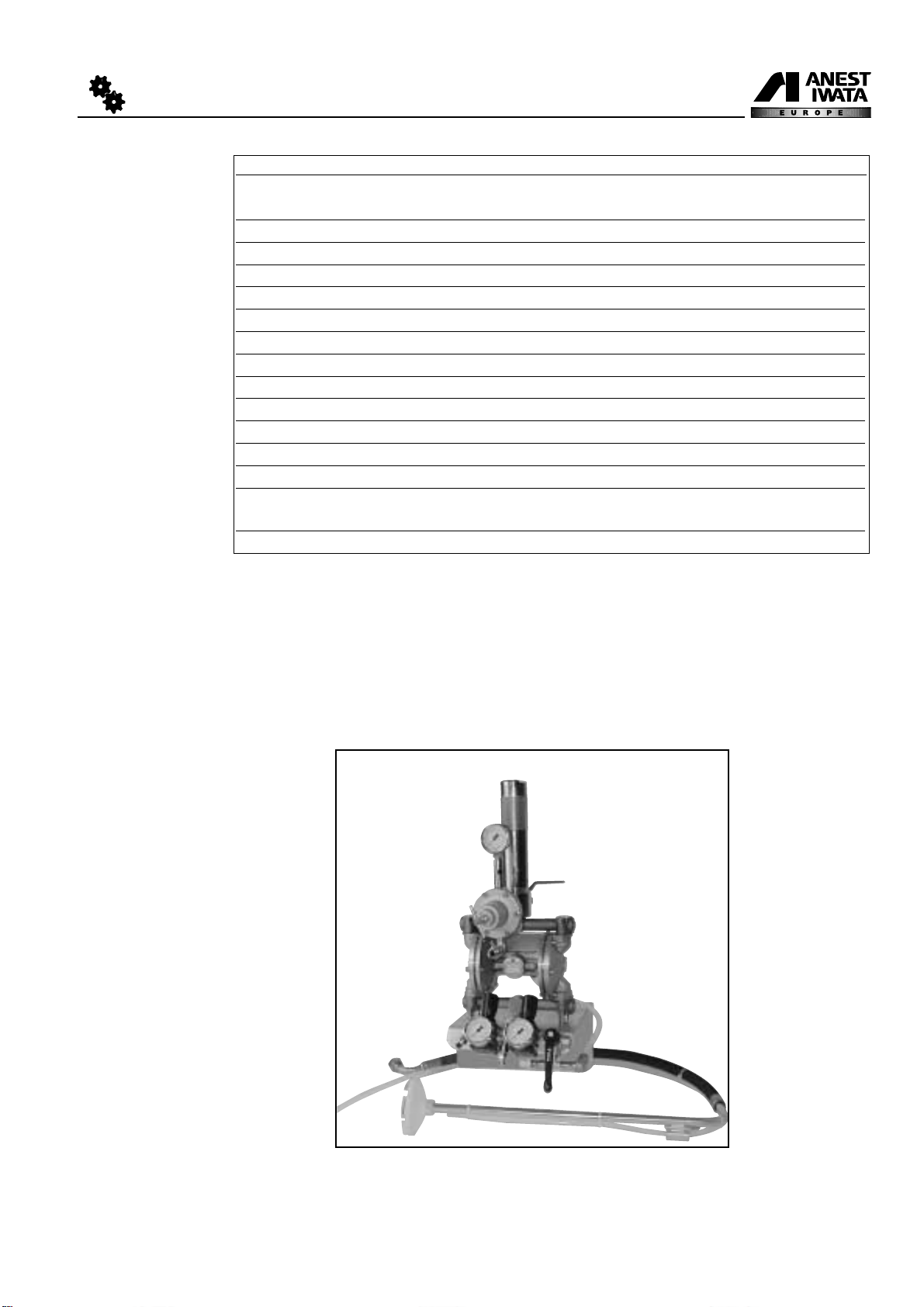

DPS 90 4 D
*This noise level has been measured in compliance with Machinery Directive 89/392 and
with ISO 3744 standards.
MODELS DPS 90 4 D
Dimensions 360x260x600 mm
Weight 11,400 Kg
Air inlet G 1/4”
Fluid outlet G 3/8”
Fluid suction filter 50 mesh
Fluid delivery filter 100 mesh
Max air working pressure 7.0 bar
Min air working pressure 2.0 bar
Max fluid working pressure (See PR 3E or PR5)
Max fluid viscosity 85 sec/Ford # 4 (100 sec/NK-2)
Max fluid delivery (See PR 3E or PR5)
Working temperature from 5 to 40 °C
Noise level 75.3 dB(A)*
Compressor (required power) from 0.4 to 0.75 kW (only for pump)
from 2.2 to 3.7 kW (for pump and gun)
Pressure regulator PR 3E or PR5

16
DPS 90 36 D MODELS DPS 90 36 D
Dimensions 535x500x1055 mm
Weight 16,600 Kg
Air inlet G 1/4”
Fluid outlet G 3/8”
Fluid suction filter 50 mesh
Fluid delivery filter 100 mesh
Max air working pressure 7.0 bar
Min air working pressure 2.0 bar
Max fluid working pressure (See PR 3E or PR5)
Max fluid viscosity 85 sec/Ford # 4 (100 sec/NK-2)
Max fluid delivery (See PR 3E or PR5)
Working temperature from 5 to 40 °C
Noise level 75.3 dB(A)*
Compressor (required power) from 0.4 to 0.75 kW (only for pump)
from 2.2 to 3.7 kW (for pump and gun)
Pressure regulator PR 3E or PR5
*This noise level has been measured in compliance with Machinery Directive 89/392 and with
ISO 3744 standards.

2.4 Safety systems
Several safety systems have been conceived during the diaphragm pump design and manufacture to
safeguard the operator, in compliance with pr EN 12621 Directive about paint.

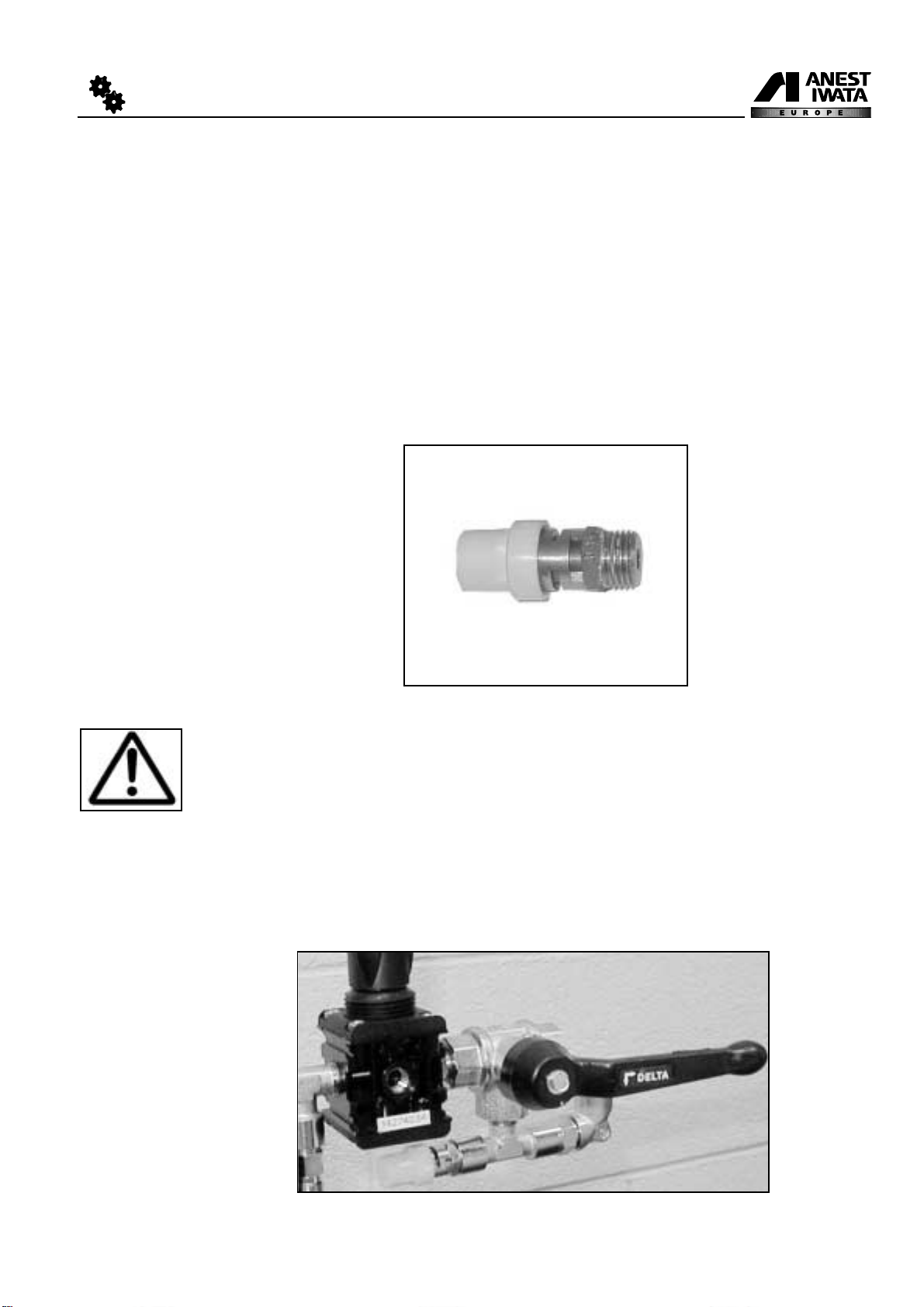

SAFETY VALVE
A 8 bar calibrated safety valve is installed to ensure the pump working pressure does not exceed the
limits inside the feeding circuit.
If the calibration pressure is exceeded, the valve opens by releasing the excess of air.
WARNING
DO NOT REMOVE THE VALVE PLASTIC PROTECTION. ANY TAMPERING WITH COULD BE
DANGEROUS FOR THE OPERATOR AND COMPROMISE THE EQUIPMENT GOOD WORKING.
THREE-WAY VALVE
In case of anomalies during working, turn 90° the three-way valve lever. In this way the air supply will
be interrupted and the residual pressure inside the pump will be released.
17

18
Safety Some pictograms can be found on the pump with the safety warnings to follow by anyone who is
pictograms going to use it.
WARNING
THE MANUFACTURING COMPANY IS NOT TO BE HELD RESPONSIBLE FOR DAMAGE OR
ACCIDENTS TO PEOPLE OR THINGS COMING FROM THE NON-COMPLIANCE WITH THE
PRESCRIBED RULES.THE RESPONSIBILITY RESTS ENTIRELY WITH THE OPERATOR HIM
SELF.
2.5 Workable products
All DPS 90 diaphragm pumps are conceived to paint ferrous material in general, wood and plastic.
The products that can be delivered are: water-based and solvent-based paints with a maximum
viscosity of 85 sec/Ford # 4 (100 sec/NK-2).
To use the pump with special products ask for the manufacturer’s approval. Moreover, the pump
technical features will have to be adapted to the special product working.
The Company ANEST IWATA is not to be held responsible for any accident due to the pump use by
an UNAUTHORIZED and non qualified staff using it for purposes that are different from the above
mentioned ones.
WARNING
DO NOT USE:
- ANY HALOGENATED HYDROCARBON SOLVENTS, SUCH AS TRICHLOROETHANE, METHY-
LENE CHLORIDE OR SOMETHING LIKE THAT;
- ANY INFLAMMABLE OR VERY TOXIC PRODUCTS SUCH AS PETROL, KEROSENE, INFLAM-
MABLE SOLVENTS OR COMBUSTIBLE GASES;
- ANY HERBICIDE OR PESTICIDE
- ANY RADIOACTIVE FLUID

3.1 Operation description
Based on a simple manufacture, the operation consists in two diaphragm movement, which are both
fixed at the end of a rod, pressurizing and sending the paint.
The compressed air enters the air chamber from side A in picture 1. The diaphragm is moved to the
left, by pushing the paint.
At the same time, the diaphragm on the opposite end (side B) moves to the left by sucking the paint.
When the rod is completely on the left, the double pneumatic valve reverses the operations.
The compressed air enters the air chamber from side B in picture 2. The diaphragm is moved to the
right, by pushing the paint.
At the same time, the diaphragm on side A end sucks the paint.
The pump repeats the above-mentioned suction and delivery movements. The result is a steady and
pulsation-free material flow.
The main feature is the action of two pneumatic valves: the first one is a power valve feeding the
pump, and the other one a control valve always ensuring the movement.
19
3. DDP 90 CE PUMP OPERATION
FIG.1
FIG.2
A
A B
Material outlet
Material outlet
Material suction
Material suction
Air inlet
Air outlet
Air inlet
Air outlet
B

20
4.1 Check on the purchased product
Before using the pump, make sure it has not been damaged during transport or storage.
Also check that all standard components are inside the packaging.
4.2 Conditions for installation
The equipment must be installed by a specialized and authorized staff.
In any case, follow the instructions below.
Painting must preferably take place inside a suitable spray booth equipped with suction devi-
ce.
Do not use the unit if the suction device is off.
WARNING
IF PAINTING IS CARRIED OUT OUTSIDE THE SPRAY BOOTH, ALWAYS OPERATE IN A PLACE
WITH A RIGHT VENTILATION TO AVOID CONCENTRATING INFLAMMABLE VAPOURS COMING
FROM SOLVENTS OR PAINTS.
4.3 Installation of DDP 90 D and DDP 90 CE WB base models:
- Place the pump on a stable support, to avoid movements during use.
- The distance between the pump and the fluid (height of suction) must be as short as possible.
However, it can vary according to viscosity and required delivery.
- Connect the air supply to the pump supply connection (see C on page 30).
- The suction pipe must have an inside diameter of at least 1/2” or slightly higher.
- To install the pump use two M8x12 screws by means of the special holes on the intake manifold.
Do not fasten the pump with any other system.
- Earth the free end of the ground cable directly.
WARNING
THE FLUIDS USED AND THE REQUIREMENTS MUST BE IN COMPLIANCE WITH SECTION 2.5
(WORKABLE PRODUCTS) AND WITH SECTION 5.0 (USE).
WARNING
- CONSULT THE LOCAL CODE FOR DETAILED INSTRUCTIONS RELATIVE TO GROUND CON-
NECTIONS IN THE WORK AREA AND TO THE TYPE OF SYSTEM USED.
- THE GROUND CABLE (INCLUDED IN THE SUPPLY) MUST HAVE A MINIMUM SECTION
EQUAL TO 1.5 mm
2
.
- ONE END OF THE CABLE MUST BE EARTHEN WHILE THE OTHER MUST BE CONNECTED
TO THE LATERAL LID OF THE DIAPHRAGM PUMP.
4. INSTALLATION AND STARTING
