USER’S INSTRUCTION MANUAL
iCon PUMPS
MIDDLE - HIGH Pressure Range
• Multi Spray Pumps
iCon-M433N | iCon-M333N
• Airless Pumps
iCon-A433N | iCon-A333N

3
Airless and Multi Spray iCon Pumps
EN
Dear Customer,
We thank you for the preference you gave us and we are glad to count you among our customers.
We hope the use of this equipment will satisfy you and your staff.
ALWAYS OBSERVE WARNINGS AND CAUTIONS IN THIS MANUAL
WARNING HAZARD LEVEL CONSEQUENCE
WARNING POTENTIALLY HAZARDOUS SITUATION DEATH OR SERIOUS INJURY
CAUTION POTENTIALLY HAZARDOUS SITUATION PROPERTY DAMAGE
WARNING IMPROPER USE OF THE EQUIPMENT
NEVER POINT SPRAY GUN TOWARDS PEOPLE OR ANIMALS.
NEVER PULL TRIGGER OF GUN WHEN HUMAN BODY OR FINGERS COME NEAR TIP OF NOZZLE TIP.
If done, it can cause inflammation of eyes and skin or bodily injury. If you feel any abnormality during
operation, consult a medical doctor immediately.
NEVER EXCEED MAXIMUM OPERATING PRESSURE AND MAXIMUM OPERATING TEMPERATURE.
Use at more than max. operating pressure can cause explosion of spray gun resulting in great danger.
BE SURE TO RELEASE AIR AND FLUID PRESSURE BEFORE CLEANING, DISASSEMBLING OR SERVICING.
If not, remaining pressure can cause bodily injury due to improper operation or scattering cleaning liquid.
In order to release pressure, first stop supply air to pump.
WARNING FIRE AND EXPLOSION HAZARDS
SPARKS AND OPEN FLAMES ARE STRICTLY PROHIBITED
Paints can be highly flammable and can cause fire.
Avoid any ignition sources such as smoking, open flames, electrical goods, etc.
SECURELY GROUND PUMP UNIT BY INCLUDED GROUND WIRE: 1.6m - Crimping Terminal ø 6.5
ELECTRICAL RESISTENCE: > 1MΩ. Check this value periodically.
Securely ground pump, pray gun, workpiece and containers containing paint or solvent.
Insufficient grounding can cause fire and explosion due to static electric sparking.
NEVER USE THE FOLLOWING HALGOGENATED HYDROCARBON SOLVENTS which can cause cracks or dissolu-
tion on gun body (aluminium) by chemical reaction.
UNSUITABLE SOLVENTS: methyl chloride, dichloromethane, 1.2-dichloroethane,carbon tetrachloride, tri-
chloroethylene, 1.1.1-trichloroethane.
BE SURE THAT ALL FLUIDS AND SOLVENTS ARE COMPATIBLE WITH EQUIPMENT'S PARTS.
We can supply a list of materials used to manufacture the product.
2. SAFETY WARNING
IMPORTANT
This manual is an integral part of the equipment and must to be read carefully before starting ANY ACTIVITY
involving the use, adjustment and maintenance of the unit, including its handling.
This manual must be stored in a safe place for any future reference.
Be sure to observe warnings and cautions in this instruction manual.
If not, it can cause paint ejection and serious bodily injury by drawing organic solvent.
ANEST IWATA ICON Pump Unit complies to ATEX regulations 2014/34/EU; Protection level: II 2G T6
• Protection level: II 2G T6
• Equipment group: II
• Category: Gas 2G
• Area: Gas 1
• Maximum superficial temperature: Temperature class T6
1. IMPORTANT INFORMATION

4
EN
Airless and Multi Spray iCon Pumps
WARNING PROTECTION OF HUMAN BODY
USE IN A WELL-VENTILATED SITE BY USING A SPRAY BOOTH.
If not, poor ventilation can cause organic solvent poisoning and catch fire. If you feel any abnormality
during operation, consult a medical doctor immediately.
ALWAYS WEAR PROTECTIVE GEAR (safety glasses, mask, gloves.)
If not, cleaning liquid, etc., can cause inflammation of eyes and skin.
If you feel something wrong with eyes or skin, immediately see a doctor.
WEAR EARPLUGS IF NECESSARY.
Noise level can exceed 100 dB(A), depending on operating conditions.
BE SURE TO STOP PUMP, REDUCE AIR AND FLUID PRESSURE DOWN TO 0 AND SECURELY APPLY SAFETY
LOCK OF SPRAY GUN BEFORE FIT OR REMOVE NOZZLE TIP.
Emission of paint or solvent during operation can cause great danger.
NEVER TRY TO STOP LEAKS BY HAND, WHEN PAINT LEAKS.
In case of leaks, stop pump immediately and reduce paint pressure down to 0 pressure.
High pressure paint emission, can cause severe injury to the body resulting in a great danger for health. If
you feel any abnormality or receive any injury, consult a medical doctor immediately.
Pulling trigger many times during operation, may cause carpal tunnel syndrome.
ALWAYS REST, IN CASE OF TIREDNESS.
WARNING OTHER PRECAUTIONS
NEVER ALTER THIS PUMP UNIT.
If done, it can cause insufficient performance and failure or in extreme cases, explosions.
DO NOT ENTER WORKING AREAS WHERE ROBOTS, RECIPROCATORS, ETC. ARE USED, UNTIL THEY HAVE
BEEN TURNED OFF.
Otherwise they could can cause injury.
NEVER USE THIS PUMP TO SPRAY FOODS OR CHEMICALS. Otherwise foreign substance, could cause corro-
sion of fluid passages which could adversely affect health.
IF SOMETHING GOES WRONG, IMMEDIATELY STOP OPERATION AND FIND THE CAUSE.
Do not use again until you have solved the problem.
NEVER USE SPARE PARTS THAT ARE NOT ANEST IWATA ORIGINALS.
WARNING BURST OF FLUID HOSE
NEVER USE CRACKED, DAMAGED, BENT OR CRUSHED FLUID HOSE.
High pressure paint emitted from small hole can pierce an iron plate and cause great danger.
NEVER BEND FLUID HOSE WITH A RADIUS OF LESS THAN PERMITTED BEND RADIUS.
Contact us, or the shop who sold the hose to you, about permitted bend radius. Never put heavy things on
it in order not to damage the hose. If done, hose can explode causing great danger.
Manual Code Model Description
W5IM0038 ICON-A**/ ICON-M** ICON assembly
W5MSGS MSGS-200 Multi manual spray gun
MJ T080-00 ALG-7 Airless manual spray gun
3. RELATED MANUAL

5
EN
Airless and Multi Spray iCon Pumps
VERSIONS
MULTI SPRAY PUMPS AIRL AIRLESS UNITS ESS UNITS
ICON - M333N ICON - M433N ICON - A333N ICON - A433N
PLATE DATA: The manufacturer’s identification plate is applied on Multi Spray and Airless Units (see picture below). It must not be
removed at all, even if the equipment is resold. For any communication with the manufacturer always mention the serial number writ-
ten on the plate itself.
A_ MODEL
B_ MAX. WORKING PRESSURE
C_ SERIAL NUMBER
D_ CE MARKING -
• Environmental limits (ambient temperature 5°C ~ 40°C).
• Maximum superficial temperature: Temperature class T6.
4. PRODUCT IDENTIFICATION
When receiving the Pump, make sure that it has not been damaged during tran-
sport or storage and also check that all the following contents are inside the box.
Refer to: Maintenance instruction manual
15 mesh
5. BOX CONTENTS
2 x Hook spanner
Packings protection
liquid
Instruction manual
Pump
50 mesh
Suction hose
MODEL
MAX. AIR PRESSURE
(bar/psi/MPa)
MAX. FLUID PRESSURE
(bar/psi/MPa)
FLUID FLOW PER CYCLE
PRESSURE RATIO
SERIAL NO.
MULTI PUMP UNIT
60ml/cyc
32:1
ICON-M333N
7bar - 100psi - 0.7MPa
224bar - 3200psi - 22.4MPa
II 2G T6 X XXXX - XX
A
B
C
D

6
EN
Airless and Multi Spray iCon Pumps
WARNING SAFETY PRECAUTION
TO ENSURE THE GOOD WORKING OF THE EQUIPMENT AND OF ITS SAFETY DEVICES, THE PUMP MUST
BE INSTALLED BY A QUALIFIED STAFF.
THE ORIGINAL CONFIGURATION OF THE EQUIPMENT MUST BE NOT CHANGED AT ALL.
SECURELY GROUND PUMP, SPRAY GUN BY USING CONDUCTIVE FLUID HOSE AND GROUND WIRE
SUPPLIED WITH EQUIPMENT.
CHECK THE PROPER TIGHTENING OF ALL FITTINGS, SINCE THEIR SUDDEN OPENING CAN
SERIOUSLY INJURE PEOPLE.
CAREFULLY READ AND OBSERVE SAFETY WARNING OF THE INSTRUCTIONL OF THE SPRAY GUNS
TO BE USED.
ICON-Mxxx: MSGS-200 / ICON-Axxx: ALG7 TE
BEFORE INSTALLATION SET THE AIR AND FLUID REGULATORS TO 0 bar.
7. INSTALLATION
VERSIONS ICON-M333N / ICON-A333N ICON-M433N / ICON-A433N
Plunger Pump: PP-3260N PP-3688N
Air Motor cylinder diameter: 125 mm 160 mm
Weight: 40 Kg 46.5 Kg
Dimensions (LxWxH): 496 x 627 x 1164 mm
Paint filter:
Paint delivery filter TF-8N (100 Mesh)
Fluid suction filter 50 mesh 15 mesh
Max. fluid working pressure: 224 bar (22.4 MPa) 252 bar (25.2 MPa)
Max. air inlet pressure: 7.0 bar (0.7 MPa)
Pressure ratio: 32:1 36:1
Working temperature: 5°~40° C
Noise level: 99.7 dB(A) 97.2 dB(A)
Compressor required power: > 1.5 Kw
Fluid output:
Max. fluid delivery 60 ml 88 ml
Max. volume/min. 3.6 l/min. 5.2 l/min.
Max. No. of cycles par minute 60 cyc
Wetted parts
material:
Paint filter set Body: AISI303 - Filter: AISI304/Polyamide
Suction hose set Hose: Rubber - Pipe, Filter and Connection: AISI304
Fluid pump Mainly: AISI303 - PE - PTFE
6. TECHNICAL SPECIFICATIONS

7
EN
Airless and Multi Spray iCon Pumps
7.1 INSTALLATION SCHEME OF ICON-M433N & ICON-M333N
1. Place the equipment, on a horizontal surface floor.
2. Secure it firmly to the floor surface by means of the cart's fastening bracket (N). (2 holes - ø 9)
3. Firmly connect the suction hose set (E) to the paint inlet joint and the recirculation pipe (F) to the drain valve (D).
4. Connect the twin hose for paint & air, to the paint supply of delivery paint filter (C) and to the air supply of air regulator
joint (P).
5. Properly connect to ground, the free end of the ground wire (R).
6. Connect the spray gun to the other end of the air/paint twin hose.
7. Connect the air supply hose (Q) to the system.
7.2 INSTALLATION SCHEME OF ICON-A433N & ICON-A333N
1. Place the equipment, on a horizontal surface floor.
2. Secure it firmly to the floor surface by means of the cart's fastening bracket (N). (2 holes - ø 9)
3. Firmly connect the suction hose set (E) to the paint inlet joint and the recirculation pipe (F) to the drain valve (D).
4. Connect the paint hose to the paint supply of delivery paint filter (C).
5. Properly connect to ground, the free end of the ground wire (R).
6. Connect the spray gun to the other end of the paint hose.
7. Connect the air supply hose (Q) to the system.
MAIN CONFIGURATION:
A Air motor PLUNGER PUMP
B Fluid pump
C Paint delivery filter _ TF-8N (100 mesh)
D Drain valve
ESuction
hose
50 Mesh ICON-M333N /-A333N: G1/2"
15 Mesh ICON-M433N /-A433N: G1"
F Drain hose 1.7m - ø 6 x 8
G Safety ball valve
H Pressure regulator (for spray gun)
I Pressure regulator (for pump)
L Tip tray
M Cart set
N Fastening bracket
O Plate
P Supply air nipple to spray gun
Q Supply air to pump
R Ground wire 1.6m (Crimping terminal ø 6.5)
OPTIONALS:
ICON-M333N /-M433N ICON-A333N /-A433N
Air supply hose to gun G1/4”B ---
Air supply hose to pump G1/4”B
Paint supply hose to gun G1/4"B
MSGS-200 Multi spray gun ALG-7 TE Airless spray gun
CONFIGURATION OF EQUIPMENT
H
I
L
M
B
N
O
P
G
A
C
D
F
E
Q
R

8
EN
Airless and Multi Spray iCon Pumps
WARNING SAFETY INFORMATIONS
In the case that the unit is operating in an area with potentially explosive atmosphere, the opera-
tors must disable the unit power supply immediately, via the "emergency stop lever".
It is important also to ensure that the unit can’t be restarted unintentionally.
Before to restart the unit, will be necessary to take all security measures to ensure the elimina-
tion of all potentially explosive substances in the environment.
Several safety systems have been conceived during the airless unit design and manufacture to safeguard the operator, in complian-
ce with EN 12621:2010 Directive about paint.
ANEST IWATA ICON PUMPS ARE CONCEIVED TO PAINT FERROUS MATERIAL IN GENERAL, WOOD AND PLASTIC.
WARNING
TO USE THE EQUIPMENT WITH SPECIAL PRODUCTS ASK FOR THE APPROVAL OF THE MANUFACTURER.
DO NOT USE:
- ANY HALOGENATED HYDROCARBON SOLVENTS, SUCH AS TRICHLOROETHANE, METHYLENE CHLORIDE
OR SOMETHING LIKE THAT;
- ANY TOXIC PRODUCTS SUCH AS PETROL, KEROSENE OR COMBUSTIBLE GASES;
- ANY HERBICIDE OR PESTICIDE;
- ANY RADIOACTIVE FLUID;
A 8 BAR CALIBRATED SAFETY VALVE IS INSTALLED TO ENSURE THE PUMP
WORKING PRESSURE DOES NOT EXCEED THE LIMITS INSIDE THE FEEDING CIRCUIT.
WARNING
DO NOT REMOVE THE VALVE PLASTIC PROTECTION.
ANY TAMPERING WITH COULD BE DANGEROUS FOR THE
OPERATOR AND COMPROMISE THE EQUIPMENT GOOD WORKING.
WARNING
IN CASE OF ANOMALIES DURING WORKING, TURN 90° THE
BALL VALVE LEVER FOR EMERGENCY STOP. IN THIS WAY
THE AIR SUPPLY WILL BE INTERRUPTED AND THE RESIDUAL
PRESSURE INSIDE THE PUMP WILL BE RELEASED.
STOP
WARNING
SECURELY GROUND PUMP, SPRAY GUN, WORKPIECE AND CONTAINERS CONTAINING CLENING LIQUID
USED DURING FLUSHING. USE ONLY CONDUCTIVE PAILS PLACED ON GROUNDED SITE.
Insufficient grounding can cause fire and explosion due to the static electric sparking.
10. OPERATION
9. WORKABLE PRODUCTS
8.2 BALL VALVE
8.1 SAFETY VALVE
8. SAFETY SYSTEMS

9
EN
Airless and Multi Spray iCon Pumps
ATTENTION
THE PUMP MUST BE CLEANED BEFORE USING IT FOR THE FIRST TIME, AFTER WORKING AND AFTER ANY COLOUR CHANGE.
WARNING
DURING OPERATION THE PUMP EXHAUST AIR
FROM SIDE PORT OF AIR MOTOR.
DO NOT TOUCH THE EXHAUST PORT, WHILE THE
PUMP IS OPERATING.

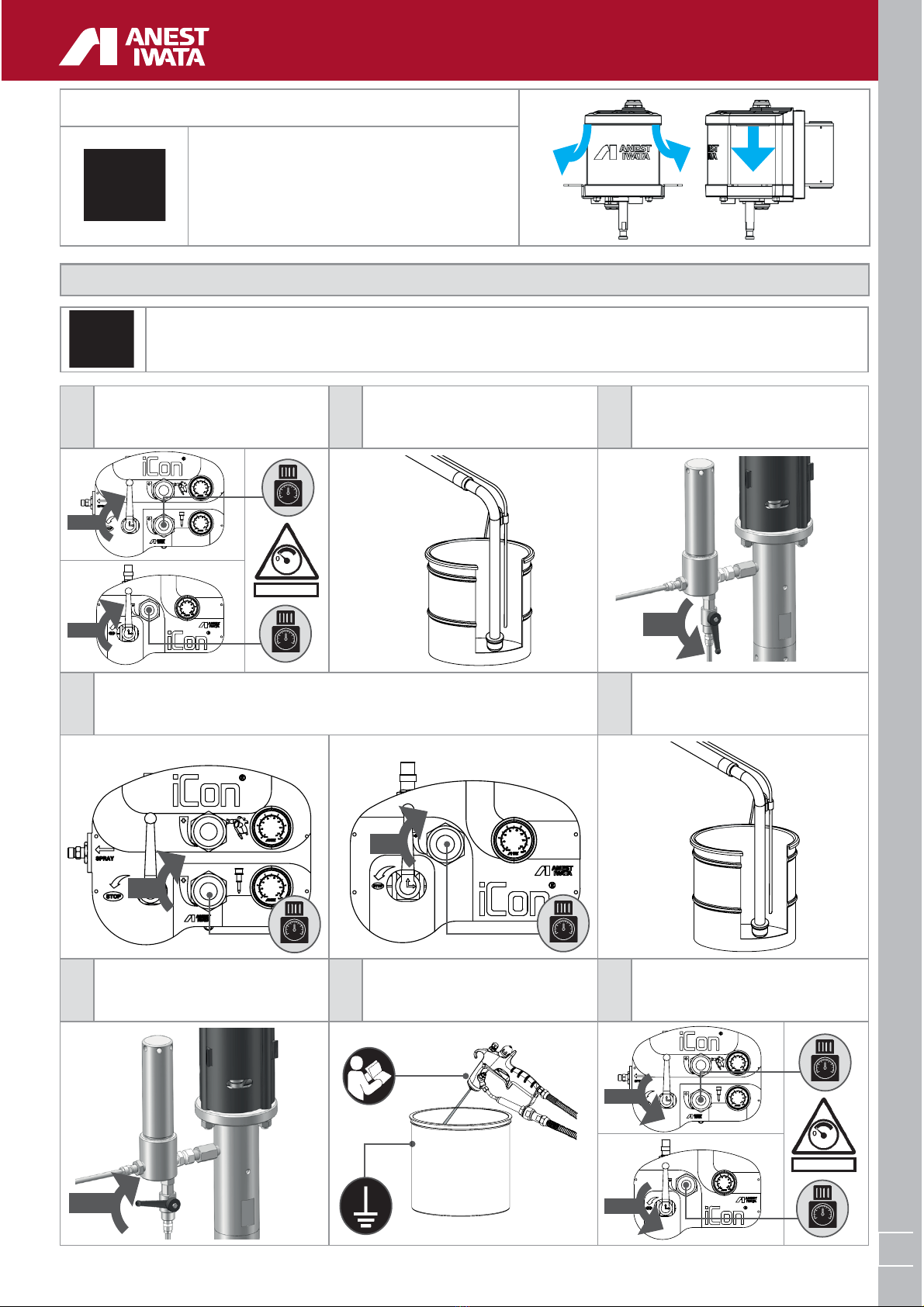

10.1 FLUSHING BEFORE USE
1
Before to supply air to the pump, con-
firm that the ball valve is open and
the air regulator is adjusted to 0 bar.
2Immerse the suction hose in the con-
tainer, containig cleaning liquid. 3Open the drain valve for recirculation of fluid.
4Set the pressure regulator up slowly, to the minimum pressure required for the
straight and alternate movement of the pump. 5After flushing, drain the dirty liquid by the drain hose.
6Close the drain valve. 7Flow out the cleaning liquid from
spray gun. 8Reset the air regulator to 0 bar.
ICON-M333N / ICON-M433N ICON-A333N / ICON-A433N
OPEN
CLOSE
UP
UP
O BAR
OPEN
OPEN
O BAR
CLOSE
CLOSE

10
EN
Airless and Multi Spray iCon Pumps
1
Before to supply air to the pump, con-
firm that the ball valve is open and
the air regulator is adjusted to 0 bar.
2Fill the thinner cup up to 80% of
packings protection liquid. 3Immerse the suction hose in the tank with the paint to be pumped. 4Open the drain valve for paint recir-
culation.
5Turn gradually the pressure regulator, adjust air pressure to a value slightly higher
than 2,0 bar, to enable the pump to release the air. 6
Ensure that the paint comes out from
recirculation hose , then close the
drain valve.
7Adjust the air pressure regulator, to the collect FLUID WORKING PRESSURE. 8Adjust the air pressure regulator, to
the collect ATOMIZING PRESSURE.
OPEN
CLOSE
IMPORTANT BEFORE USE OF THE PUMP IT IS IMPORTANT TO READ
CAREFULLY AND OBSERVE THE WARNINGS AND CAUTIONS
CONTAINED IN THE INSTRUCTION MANUAL OF THE GUN TO
BE USE.
ICON-Mxx : MSGS-200 (Multi Spray Gun)
ICON-Axx: ALG-7 TE (Airless Spray Gun)
10.2 USE
ICON-M333N / ICON-M433N ICON-A333N / ICON-A433N
UP
ICON-M333N / ICON-M433N ICON-A333N / ICON-A433N
ADJ.
UP
ADJ.
ICON-M333N / ICON-M433N
ADJ.
O BAR
OPEN
OPEN

11
EN
Airless and Multi Spray iCon Pumps
INCREMENTAL FLUID PRESSURE SCHEME
Type Ratio Air regulator setting Incremental fluid pressure
ICON-M333N
ICON-A333N 32:1
0.3MPa (3bar - 43.5psi) 9.6MPa (96bar - 1.392psi)
0.5MPa (5bar - 72.5psi) 16.0MPa (160bar - 2.320psi)
0.7MPa (7bar - 100psi) 22.4MPa (224bar - 3.248psi)
ICON-M433N
ICON-A433N 36:1
0.3MPa (3bar - 43.5psi) 10.8MPa (108bar - 1.566psi)
0.5MPa (5bar - 72.5psi) 18.0MPa (180bar - 2.610psi)
0.7MPa (7bar - 100psi) 25.2MPa (252bar - 3.654psi)

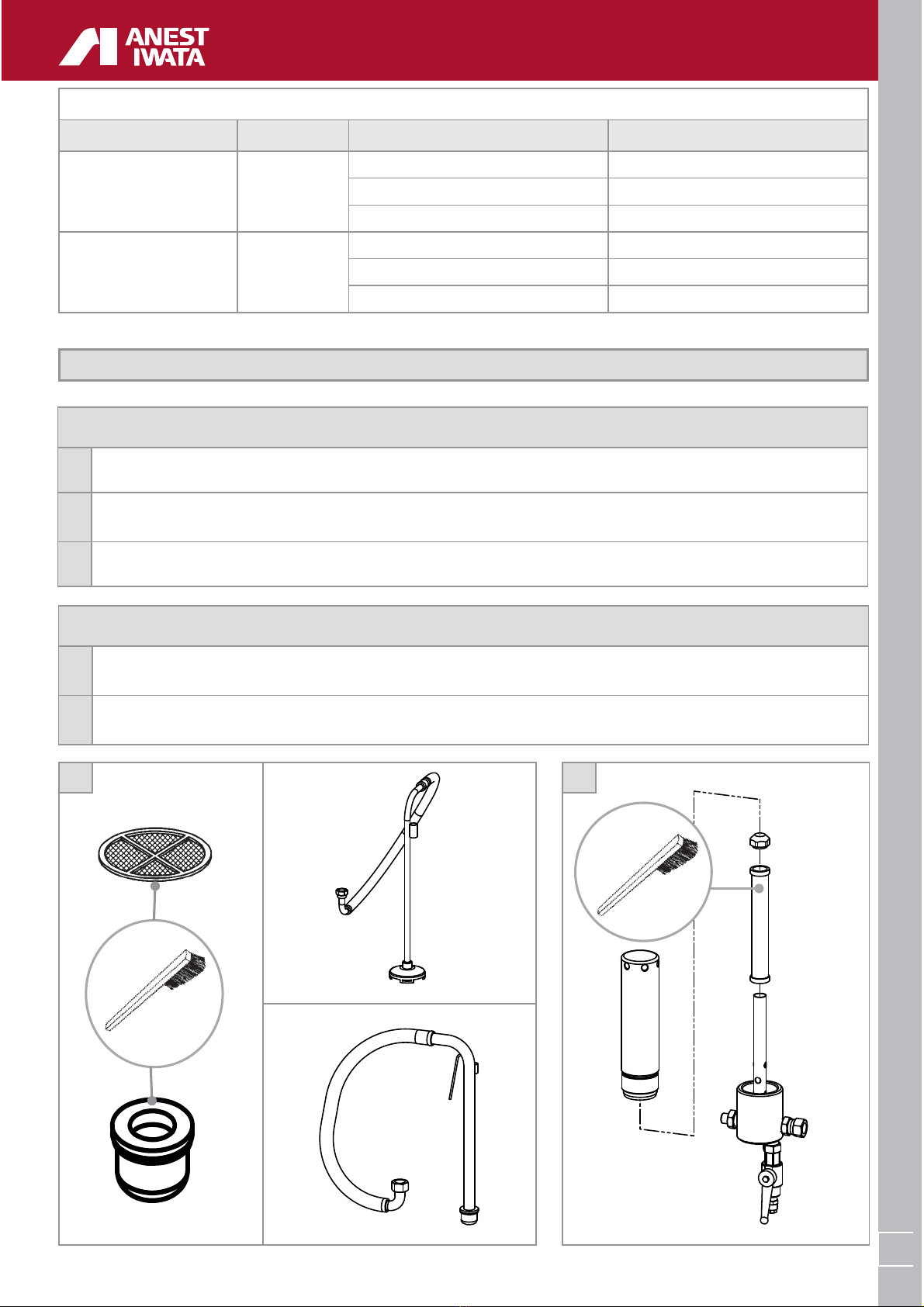

11.1 DAILY MAINTENANCE
1FLUSH THE PUMP: Clean the pump unit after working and after any color change.
2MAKE SURE THERE ARE NO PAINT OR AIR LEAKS: Check that the hoses are not damaged and that all threaded con-
nections are firmly tightened. Replace immediately if you find any anomalies.
3FILL THE THINNER CUP WITH PACKING PROTECTION LIQUID: Fill the thinner cup up to 80% of packings protection liquid.
11. ORDINARY MAINTENANCE
11.2 MONTHLY MAINTENANCE
1CHECK THE FILTER OF SUCTION HOSE: Check about clogging or damage of filter. Clean or replace, if it is necessary.
2CHECK THE PAINT FILTER (TF-8N): Check about clogging or damage. Clean or replace, if it is necessary.
21
50 MESH
15 MESH

12
EN
Airless and Multi Spray iCon Pumps
12.1 AIRLESS and MULTI SPRAY CONFIGURATION
5
6
10
4
12
13
1
15
3
11
14
11
14
7
8
2

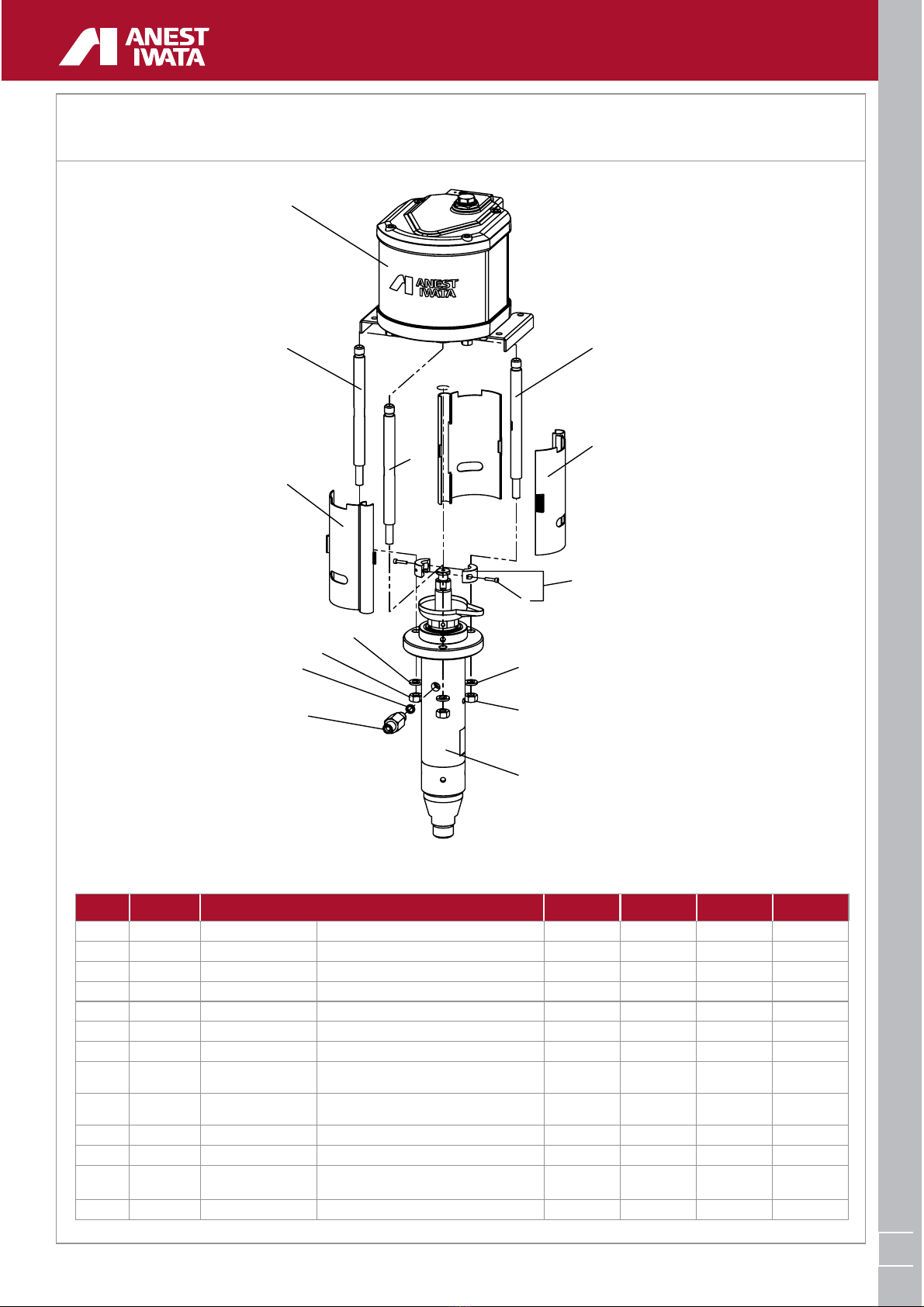

12. EXPLODED VIEWS AND SPARE PARTS LIST
17 16
REF. CODE DESCRIPTION M433N M333N A433N A333N
1 04445670 CART SET 1 1 -- --
104445810 CART SET -- -- 1 1
2 14050130 PLUNGER PUMP SET PP-3688N 1 -- 1 --
2 14050140 PLUNGER PUMP SET PP-3260N -- 1 -- 1
3 1457000000 PAINT DELIVERY FILTER SET TF-8N 1 1 1 1
4 04444920 ELBOW MALE ADAPTOR 1/2"x ø12 1 1 1 1
5 04444740 TIP STAY 1 1 1 1
6 94447890 BOLT and NUT SET for PUMP HEX. SOCKET BOLT (4 pcs.) + NUT (4 pcs.)
SPRING WASHER (4 pcs.) + WASHER (4 pcs.) 1111
7 04001270 FILTER STAY 1 1 1 1
8 06350612 BOLT WITH HEX. HOLE M6x10 1 1 1 1
10 04444690 AIR HOSE 1 1 1 1
11 04444760 SUCTION FILTER SET M28x1.5 15mesh 1 -- 1 --
11 UL10000701 SUCTION FILTER SET M15x50mesh -- 1 -- 1
12 ME100001 GROUND WIRE SET 1 1 1 1
13 06155024 SCREW M5x10 1 1 1 1
14 94444750 SUCTION HOSE SET 1 -- 1 --
14 0101010000 SUCTION HOSE SET -- 1 -- 1
15 00100030 DRAIN HOSE 8x6 1 1 1 1
16 94445770 PACKING PROTECTION LIQUID 1 1 1 1
17 04445760 HOOK SPANNER 1111

13
EN
Airless and Multi Spray iCon Pumps

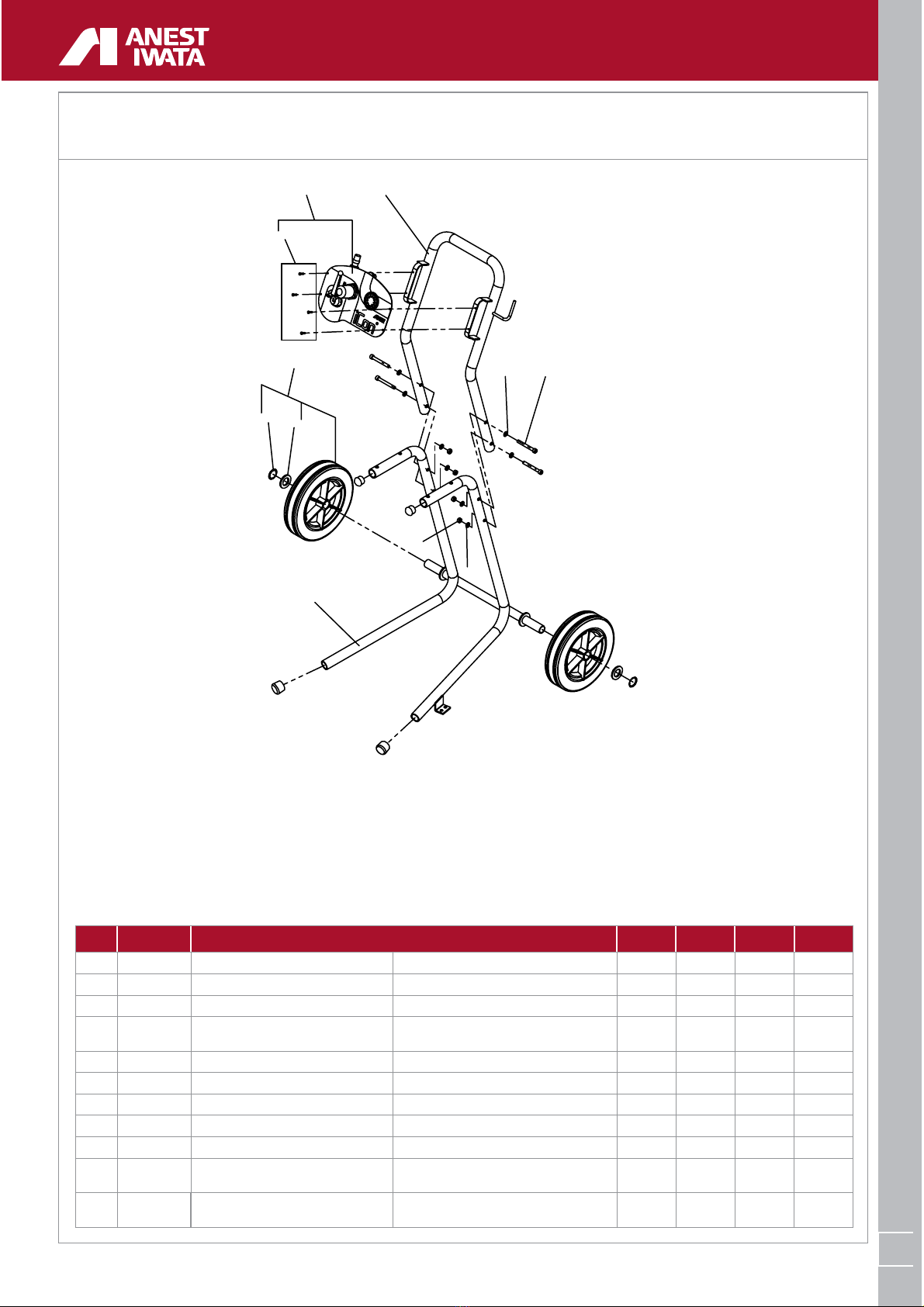

12.2 WHEEL CART SET
Code: 04445670 for ICON-M433N - ICON-M333N and Code: 04445810 for ICON-A433N - ICON-A333N
8
12 2
75
6
7
3
4
1
11
REF. CODE DESCRIPTION M433N M333N A433N A333N
1 94445680 CART FRAME 1111
2 04444730 HANDLE FRAME 1111
3 04445720 WHEEL WASHER 2222
4 94444960 WHEEL SET WHEELS (2 pcs.)+WASHERS (2 pcs.)
SELF LOCKING RINGS (2 pcs.) 1111
5 04447890 BOLT WITH HEX. HOLE M8 4444
6 06361081 HEX. NUT M8 4444
7 06363080 WASHER M8 8888
8 94444790 SOCKET BUTTON HEAD SCREW (4 pz.) 1111
11 04447900 SELF LOCKING RING 2222
12 94445740 AIR REGULATOR SET AIR REGULATOR SET (1 pc.)
SOCKET BUTTON HEAD SCREW (4 pcs.) 1 1 -- --
12 94445790 AIR REGULATOR SET AIR REGULATOR SET (1 pc.)
SOCKET BUTTON HEAD SCREW (4 pcs.) -- -- 1 1

14
EN
Airless and Multi Spray iCon Pumps

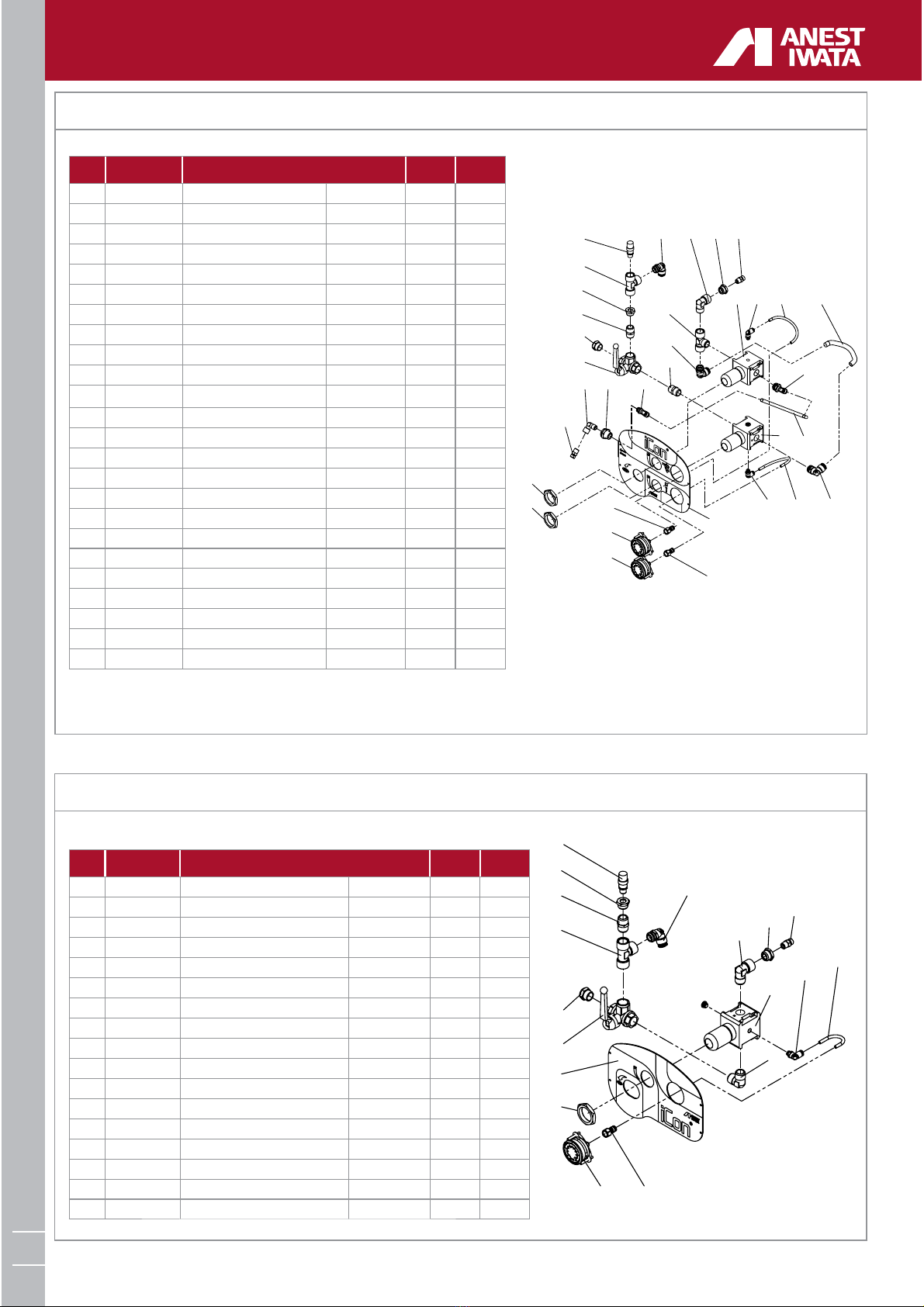

12.4 AIR REGULATOR SET Code: 94445790 for ICON-A433N | ICON-A333N
10
3
8
9
17
15
1
6
12
234
16 13 11
5
14 7
12.3 AIR REGULATOR SET Code: 94445740 for ICON-M433N | ICON-M333N
12
10
6
4
25
17
7
14 19
4
20
56 7
3
11
22
9
27
232
921 11
2
13
8
24
24
8
13
1
26
11
REF. CODE DESCRIPTION M433N M333N
1 04444640 PANEL 1 1
204444800 AIR REGULATOR 2 2
3 04445850 T ADAPTOR 1/2" FMF 1 1
4 04444910 NIPPLE 1/2" 2 2
5 04444930 ELBOW UNION 1/2" MF 1 1
6 04444860 REDUCER G1/2"- G1/4" 2 2
7 UL30010501 SPECIAL NIPPLE R1/4" - G1/4" 2 2
8 04444650 PRESSURE GAUGE 2 2
9 04444940 ELBOW UNION 1/8"- ø 6 2 2
10 04444850 T ADAPTOR 1/2" FFF 1 1
11 04444920 ELBOW MALE ADAPTOR 1/2"x ø12 3 3
12 UL30036000 SAFETY VALVE 1 1
13 04444950 FEMALE ADAPTOR 1/4"- ø6 2 2
14 04444870 BULKHEAD CONNECTOR 1/4" 1 1
17 04444840 3-WAY VALVE 1/2" 1 1
19 04447940 ELBOW UNION 1/8"- ø 8 1 1
20 04444670 AIR HOSE 1 ø 6 - 160mm 1 1
21 04447920 AIR HOSE 2 ø 6 - 200mm 1 1
22 04444680 AIR HOSE 3 ø 8 - 80mm 1 1
23 04447930 AIR HOSE 5 ø 12 1 1
24 04444830 TOP MOUNTING RING 2 2
25 04447820 EXHAUST FILTER 1 1
26 04001230 ELBOW JOINT 1/4" 1 1
27 04001130 ELBOW UNION 1/2" ø 8 1 1
REF. CODE DESCRIPTION A433N A333N
1 04445640 PANEL 1 1
204444930 ELBOW UNION 1/2" MF 1/2" MF 1 1
3 04444860 REDUCER G1/2"- G1/4" G1/2"-G1/4" 2 2
4 UL30010501 SPECIAL NIPPLE R1/4" - G1/4" R1/4" - G1/4" 1 1
5 04445650 ELBOW JOINT 1/2" 1/2" 1 1
6 04444830 TOP MOUNTING RING 1 1
7 04444950 FEMALE ADAPTOR 1/4"- ø 6 1/4"- ø 6 1 1
8 04444910 NIPPLE 1/2" 1/2" 1 1
9 04444850 "T" ADAPTOR 1/2" FFF 1/2" FFF 1 1
10 UL30036000 SAFETY VALVE 1 1
11 04444670 AIR HOSE ø 6 1 1
12 04444920
ELBOW MALE ADAPTOR 1/2" x ø 12 1/2" x ø 12 1 1
13 04444940
ELBOW MALE ADAPTOR 1/8" x ø 6 1/8" x ø 6 1 1
14 04444650 PRESSURE GAUGE 1 1
15 04444840 3-WAY VALVE 1/2" 1/2" 1 1
16 04444800 AIR REGULATOR 1 1
17 04447820 EXHAUST FILTER 1 1

15
EN
Airless and Multi Spray iCon Pumps
12.5 PLUNGER PUMP SET
Code: 14050130 (PP-3688N) for ICON-M433N | ICON-A433N and Code: 14050140 (PP-3260N) for ICON-M333N | ICON-A333N
1
2
8
4
5
9
10
6
7
4
5
2
2
8
3
REF. CODE DESCRIPTION ICON-M433N ICON-M333N ICON-A433N ICON-A333N
1 04946700 AIR MOTOR SET 1 -- 1 --
1 04946750 AIR MOTOR SET -- 1 -- 1
2 04938220 CONNECTING ROD 3 3 3 3
3 04946730 FLUID PUMP SET 1 -- 1 --
3 04946760 FLUID PUMP SET -- 1 -- 1
4 06362120 SPRING WASHER M12 3 3 3 3
5 06361121 HEXAGON NUT M12 3 3 3 3
6 94938230 COUPLING SET COUPLINGS (2 pcs.)
BOLT WITH HEXAGON HOLE (2 pcs.) 1--1--
6 94943870 COUPLING SET COUPLINGS (2 pcs.)
BOLT WITH HEXAGON HOLE (2 pcs.) -- 1 -- 1
7 94939540 BOLT WITH HEX. HOLE M4x20 (2 pcs.) 1 1 1 1
8 04938240 ROD COVER 3 3 3 3
9 04938260 FLUID OUTPUT
PACKING 1111
10 04938250 FLUID OUTPUT JOINT 1 1 1 1

16
EN
Airless and Multi Spray iCon Pumps
12.6 AIR MOTOR SET
Code: 04946700 for ICON-M433N | ICON-A433N and Code: 04946750 for ICON-M333N | ICON-A333N
16
15
12
28
11
29
10
9
ღ
6
9
7
12
ღ
26
229
ღ
13
22
21
24
20
251
27
23
19

17
EN
Airless and Multi Spray iCon Pumps
REF. CODE DESCRIPTION M433N M333N A433N A333N
1 94938600 BOTTOM MODULE 1 -- 1 --
194944860 BOTTOM MODULE -- 1 -- 1
2 94938620 METAL SET METAL ø 22 x ø 32 x L22 + SEEGER 1 -- 1 --
2 94944870 METAL SET METAL ø 18 x ø 25 x L25 + SEEGER -- 1 -- 1
4* 94943830 “U” PACKING SET “U” PACKING + SEEGER 1 -- 1 --
4* 94946600 “U” PACKING SET “U” PACKING + SEEGER -- 1 -- 1
6 94939290 AIR PISTON 1 -- 1 --
6 94944900 AIR PISTON -- 1 -- 1
7 94939300 PISTON ROD 1 -- 1 --
7 94944910 PISTON ROD -- 1 -- 1
8* 04943730 'O' RING ø 5.34 x ø 145.42 1 -- 1 --
8* 04944980 'O' RING ø 5.34 x ø 113.7 -- 1 -- 1
9 96471162 WASHER M16 (2 pcs.) 1 -- 1 --
9 96471142 WASHER M14 (2 pcs.) -- 1 -- 1
10 04939460 SELF LOCKING HEX. NUT M16 1 -- 1 --
10 04944960 SELF LOCKING HEX. NUT M14 -- 1 -- 1
11 94939270 CYLINDER 1 -- 1 --
11 94944880 CYLINDER -- 1 -- 1
12 94943740 'O' RING SET ø 3 x ø 154 (2 pcs.) 1 -- 1 --
12 94944990 'O' RING SET ø 3 x ø 119.5 (2 pcs.) -- 1 -- 1
13 94939320 PILOT AIR HOSE SET PILOT AIR HOSE (2 pcs.) + 'O' RING (4 pcs.) 1 1 1 1
14* 96637607 'O' RING SET 'O' RING ø 1.5 x ø 6.5 (4 pcs.) 1 1 1 1
15 94939310 HEAD MODULE 1 -- 1 --
15 94944920 HEAD MODULE -- 1 -- 1
16 94939480 BOLT NUT SET BOLT M10 x L180 (4 pcs.) + NUT M10 (4 pcs.)
SPRING WASHER M10 (4 pcs.) 1--1--
16 94944970 BOLT NUT SET BOLT M10 x L180 (4 pcs.) + NUT M10 (4 pcs.)
SPRING WASHER M10 (4 pcs.) --1--1
19 94939350 MODULE PACKING SET (2 pcs.) 1 1 1 1
20 94939520 BOLT WITH HEX. HOLE SET M5xL35 (2 pcs.) 1 1 1 1
21 04939340 SUB PLATE PACKING 1 1 1 1
22 94939330 SUB PLATE 1 1 1 1
23 94946720 AIR OPERATING VALVE SET
AIR OPERATING VALVE + SUB PLATE PACKING 1111
24 94939530 BOLT WITH HEX. HOLE SET M5x75 (4 pcs.) 1 1 1 1
25 04939450 PUMP STAY "L" 1 -- 1 --
25 04944950 PUMP STAY "L" -- 1 -- 1
26 04939440 PUMP STAY "R" 1 -- 1 --
26 04944940 PUMP STAY "R" -- 1 -- 1
27 94939490 BOLT WITH HEX. HOLE
+ SPRING WASHER
BOLT M8x16 (4 pcs.)
SPRING WASHER M8 (4 pcs.) 1111
28 94447750 CYLINDER COVER 1 -- 1 --
28 94447830 CYLINDER COVER -- 1 -- 1
29 94946710 DOUBLE ACTION PILOT VALVE 2 2 2 2
04001490 MAINTENANCE KIT
AIR MOTOR 1--1--
04002030 MAINTENANCE KIT
AIR MOTOR -- 1 -- 1
(*) Spare parts included in MAINTENANCE KIT

18
EN
Airless and Multi Spray iCon Pumps
12.7 FLUID PUMP SET Code: 04946730 for ICON-M433N and ICON-A433N
REF. CODE DESCRIPTION M433N A433N
1 04001520 SUCTION TUBE WITH FLANGE 1 1
204938380 SPRING HOLDER 1 1
3 04938370 UPPER SPRING 1 1
4* 04938320 UPPER "V" PACKING MALE ADAPTOR 1 1
5* 04001500 UPPER PACKINGS KIT
UPPER "V" PACKINGS PE (3 pcs.)
UPPER “V” PACKINGS PTFE (2 pcs.)
11
6* 04938350 UPPER "V" PACKING FEMALE ADAPTOR 1 1
7 94938480 PACKING NUT 1 1
8 04938490 THINNER CUP 1 1
9 04938360 LOWER SPRING 1 1
10* 04938470 LOWER "V" PACKING MALE ADAPTOR 1 1
11* 04001510 LOWER PACKINGS KIT
LOWER “V” PACKINGS PE (3 pcs.)
LOWER “V” PACKINGS PTFE (2 pcs.)
11
12 94938400 SUCTION ROD 1 1
13* 04938420 VALVE HOLDER PACKING 1 1
14* 06662045 BALL 9/16" 1 1
15* 04938430 VALVE HOLDER PIN 1 1
16 94938410 VALVE HOLDER 1 1
17* 04000210 SUCTION TUBE PACKING 1 1
18 94938300 SUCTION CONNECTOR 1 1
19 94938310 VALVE ADAPTOR 1 1
20* 04938390 LOWER PIN 1 1
21* 04000140 ADAPTOR PACKING 1 1
22* 06662100 BALL 1" 1 1
23* 04938440
LOWER "V" PACKING FEMALE ADAPTOR 11
04002020 FLUID PUMP MAINTENANCE KIT
(*) Spare parts included in MAINTENANCE KIT
12.8 FLUID PUMP SET Code: 04946760 for ICON-M333N and ICON-A333N
REF. CODE DESCRIPTION M333N A333N
1 04002100 SUCTION TUBE WITH FLANGE 1 1
294943910 SUCTION CONNECTOR 1 1
3 04944740 SPRING HOLDER 1 1
4 94944850 PACKING NUT 1 1
6 04944730 UPPER SPRING 1 1
7 04944720 LOWER SPRING 1 1
8 04938490 THINNER CUP 1 1
9* 04943990
UPPER "V" PACKING FEMALE ADAPTOR 11
10* 04943960
UPPER "V" PACKING MALE ADAPTOR 11
11* 04002040 UPPER PACKING KIT
UPPER “V” PACKINGS PE (3 pcs.)
UPPER “V” PACKINGS PTFE (2 pcs.)
11
13* 04944810
LOWER "V" PACKING FEMALE ADAPTOR 11
14* 04002060 LOWER PACKING KIT
LOWER “V” PACKINGS PE (3 pcs.)
LOWER “V” PACKINGS PTFE (2 pcs.)
11
16* 04944840
LOWER "V" PACKING MALE ADAPTOR 11
19 04000240 SUCTION TUBE PACKING 1 1
20 94944750 SUCTION ROD 1 1
21* 06662040 BALL 1/2" 1/2" 1 1
22* 04944780 VALVE SEAT 1 1
23* 04944770 VALVE HOLDER PACKING 1 1
24 04944790 BALL GUIDE 1 1
25 04944760 VALVE HOLDER 1 1
26* 04944800 O'RING ø 2 x ø 13 ø 2 x ø 13 1 1
27 04943920 VALVE ADAPTOR 1 1
28* 04943930 VALVE SEAT 1 1
29* 06662050 BALL 5/8" 5/8" 1 1
30 04943940 BALL GUIDE 1 1
31* 04943950 ADAPTOR PACKING 1 1
32* 04946590 O'RING ø 2.5 x ø 17 ø 2.5 x ø 17 1 1
04002120 FLUID PUMP MAINTENANCE KIT
(*) Spare parts included in MAINTENANCE KIT
20
Ⴘ
Ⴘ
24
Ⴘ
Ⴘ
25
19
2
Ⴘ
30
Ⴘ
Ⴘ
Ⴘ
27
8
4
Ⴘ
Ⴘ
Ⴘ
6
3
1
7
Ⴘ
Ⴘ
Ⴘ
8
7
Ⴗ
Ⴗ
Ⴗ
3
2
1
9
 Ⴗ
 Ⴗ
 Ⴗ
 Ⴗ
12
 Ⴗ
 Ⴗ
16
 Ⴗ
18
 Ⴗ
 Ⴗ
19
 Ⴗ

19
EN
Airless and Multi Spray iCon Pumps
12.9 AIR OPERATING VALVE SET
Code: 94946720 for All Versions
6
 ღ
71
2
7
9
8
 ღ
5
10
10
REF. CODE DESCRIPTION Qty.
1 94939360 CHANGEOVER MAIN BODY 1
204939410 SPOOL 1
3 94000440 O'RING
ø 4 x ø 28 (2 pcs.) 2
4 04939370 CHANGEOVER BLOCK 1
5 94939380 SEAT PLATE
Ref. 5 (1 pc.) + Ref. 6 (4 pcs.) 1
6 94943720
HEX SOCKET COUNTERSUNK
SCREW
(4 pcs.) 4
7 04939390 SIDE CAP 2
8 94943770 O'RING
ø 3 x ø 38 (2 pcs.) 2
9 94939400 DETENT PISTON
Ref. 9 (2 pcs.) + Ref. 10 (2 pcs.) 2
10 04943810 O'RING ø 1 x ø 3 2
12.10 DOUBLE ACTION PILOT VALVE SET
Code: 94946710 for All Versions
5
 ღ
 ღ
 ღ
8
6
 ღ
3
1
 ღ
 ღ
REF. CODE DESCRIPTION Qty.
1 94938610 VALVE HOUSING 1
2* -- 'O' RING ø 2 x ø 21.5 4
3 94939220 VALVE 1
4* -- 'O' RING ø 2 x ø 14 5
5 94939230 CAP 1
6 -- 'O' RING ø 1.5 x ø 22 1
7* 04939240 SPOOL SPRING 1
8 94939260 SPOOL 1
9* 04939250 VALVE SPRING 1
10* -- 'O' RING ø 1.5 x ø 9 4
04001390 PILOT VALVE 'O' RING KIT Ref. 2 + 4 + 7 + 9 + 10
12.11 TF-8N PAINT DELIVERY FILTER SET
Code: 1457000000 for All Versions
REF. CODE DESCRIPTION Qty.
D-1 0457000200 BODY 1
D-2 0457000100 CYLINDER 1
D-3 0457000300 SCREW 1
D-4 0457000400 NUT 1
D-5 06639045 O RING 1
D-6 VFM2503 FILTER 100 Mesh 1
D-7 UL300453 NIPPLE R 1/4” M- R 3/8” M 1
D-8 UL30090100 DRAIN VALVE G 1/4” FF 1
D-9 UL300302 HOSE JOINT R 1/4”M - M8X6 1
D-10 UL300402 UNION JOINT MF 3/8” 1
D-11 UL30046300 FLUID OUTPUT JOINT M 3/8” - G 1/4” M 1

20
EN
Airless and Multi Spray iCon Pumps
12.12 SUCTION HOSE SET WITH FILTER M15X50 MESH
Code: 0101010000 for ICON-M333N and ICON-A333N
CODE DESCRIPTION REF. Qty.
UL1000701 COMPLETE COVER SET 15x1 4 1
0040720100 FILTER 50 MESH 4-1 1
00407203 FILTER STOPPER 4-2 1
12.13 SUCTION HOSE SET WITH FILTER 15 MESH
Code: 0444750 for ICON-M433N and ICON-A433N
CODE DESCRIPTION Qty.
04444750 SUCTION HOSE SET with FILTER 50 MESH 1
04444760 FILTER 15 MESH 1
4

21
EN
Airless and Multi Spray iCon Pumps
13. TROUBLESHOOTING
Inconvenience Cause Check Solution
1. The air pressure does
not increase
a) The ball valve is not in the
proper position.
a) Make sure the ball valve
is in the proper position.
a) Adjust the ball valve in the proper
position.
b) The air regulator is not open. b) Check the proper functioning of
the regulator.
b) If it is closed, open it.
If it is damaged, replace it.
c) Insufficient air pressure. c) Check the proper functioning of
the manometer of pressure gauge.
c) If the compressor does not supply
enough air pressure, replace it with one of
greater capacity.
2. The paint does not
flow out of the gun
a) Clogged paint filter or paint
circuit.
a) Opening the drain valve, the
paint does not flow out.
a) The paint circuit is obstructed from the
pump inlet to the fluid pipe fitting.
a1) Opening the recirculation
valve the paint flows out regulaly,
but not when pulling the gun
trigger.
a1) The paint course, from fluid hose fitting
to the gun nozzle, is blocked. Check for the
obstructed point and remove the clogging;
this inconvenience is usually caused by the
obstruction of the gun filter.
*Refer to the instruction manual of spray
gun.
b) Clogged nozzle. b) Remove the nozzle and pull
the trigger of the gun.
b) If the paint flows out it means that
the nozzle is clogged.
*Refer to the instruction manual of spray
gun.
c) Jammed safety stop c) Unlock the safety valve.
3. The pump does not
work
a) The air does not supply the
pump.
a) Check the air supply hose. a) Replace it if spoilt or clogged.
b) The pump has a technical
problem.
b) Separate the air motor from the
pumping group and test it using a
different air supply hose.
b) If the motor is running properly, follow
the instructions provided in the solution
column, point 2 (a-b).
c) If the motor is not running properly,
disassemble the cylinder and inspect it.
*Refer to the instruction manual of air
motor.
In case of special anomalies, ship it
to our Customer Care Technical
Service.
4. The pump does not
stop.
a) Some air got inside the paint
ducts.
a) Make sure the dip tube is
properly connected
a) Tighten suction hose fitting.
b) Some air remains inside
the paint ducts.
b) Make sure the paint is in
good condition and that the
suction hose set is fully dip-
ped in the product to be pum-
ped.
b) If the paint is in standard condition
increase its level at least until it fully
covers the suction hose set. Then, carry
out the start-up operations relative to the
release of air from the paint ducts.
