Network Master Pro/Flex Release Notes
1 TAA-1ETNMX0054-20
2016-9-14
Anritsu Corporation
Network Master Pro/Flex Release Notes
Product Configuration
The following table shows the relationship between the changed application and modules described in the
Revision History.
Mainframe
Module
Changed Application
MT1100A/MT1000A
Common
―
[Framework][Remote]
MT1100A
MU110010A
MU110011A
MU110012A
MU100013A
[ETH][OTN][CPRI][FC][SDH/SONET][SDHPDH]
MT1000A
MU100010A
MU100090A
MU100020A
MU100021A
MU100022A
[OTDR][FTTA][OLTS]
MU100040A
[CPRI-RF]

Network Master Pro/Flex Release Notes
2 TAA-1ETNMX0054-20
Latest Installer File Name
MT1000A
MT1100A *1
7.00.MT1000A_SW
MX100001A-Setup-7.00-xxxxx.exe
MX100003A-1.0.0.76-xxxxx.exe
6.02.MT1100A_SW
MX100001A-Setup-6.02-xxxxx.exe *2
MX100003A-1.0.0.76-xxxxx.exe
*1) MT1100Ahas no change since the last release.
*2) When the versions of MT1000Aand MX100001A do not match, it does not work properly.
The following table shows the latest software and corresponding operation manuals.
Operation Manual
Doc. No.
MT1000A
MT1100A
MT1000A Network Master Pro
MT1100A Network Master Flex
Remote Scripting Operation Manual
M-W3736AE
11th
10th
MT1000A MU100010A Network Master Pro
Operation Manual
M-W3682AE
12th
10th
MT1000A MU100020A/MU100021A/MU100020A Network
Master Pro
Operation Manual
M-W3810AE
5rd
－
MX100003A MT1000A/MT1100A Scenario Edit
Environment Kit Operation Manual
M-W3858AE
3rd
2nd
MT1000A MU100040A Network Master Pro Operation
Manual
10580-00423
A
－

Network Master Pro/Flex Release Notes
3 TAA-1ETNMX0054-20
Installation Procedure
1. When using battery, make sure that there is 40% (or more) power in the battery of the instrument.
2. Remove the USB memory from the MT1000A/MT1100A.
3. Press the power button to shut down the MT1000A/MT1100A. Never force to power off by holding the
power button pressed for several seconds.
4. Remove the AC adapter or cable and see the power button turns to gray.
5. Copy installer (X.XX.MT1000_SW or X.XX.MT1100_SW) onto an empty USB memory stick.
6. Insert USB memory stick into MT1000A/MT1100A.
7. Boot MT1000A/MT1100Ato start installer.
The instrument will detect the USB stick, and start installing the software. After the installation has
finished the instrument will reboot and start with the new software.
8. Remove USB stick after installation is complete
You can check the installed version at System Information screen.

Network Master Pro/Flex Release Notes
4 TAA-1ETNMX0054-20
Installation Procedure via network.
1. When using battery, make sure that there is 40% (or more) power in the battery of the instrument.
2. Install the Control Software(MX100001A) on your PC.
(Please refer “3.5.1 Installation of Control Software” on MT1000A MU100010A Network Master Pro
Operation Manual or MT1100ANetwork Master Flex Operation Manual.)
3. Configure the Ethernet communication between the Control Software(MX100001A) and
MT1000A/MT1100A. (Please refer “3.5.2 Connection and Setup” on MT1000AMU100010A Network
Master Pro Operation Manual or MT1100ANetwork Master Flex Operation Manual.)Select the

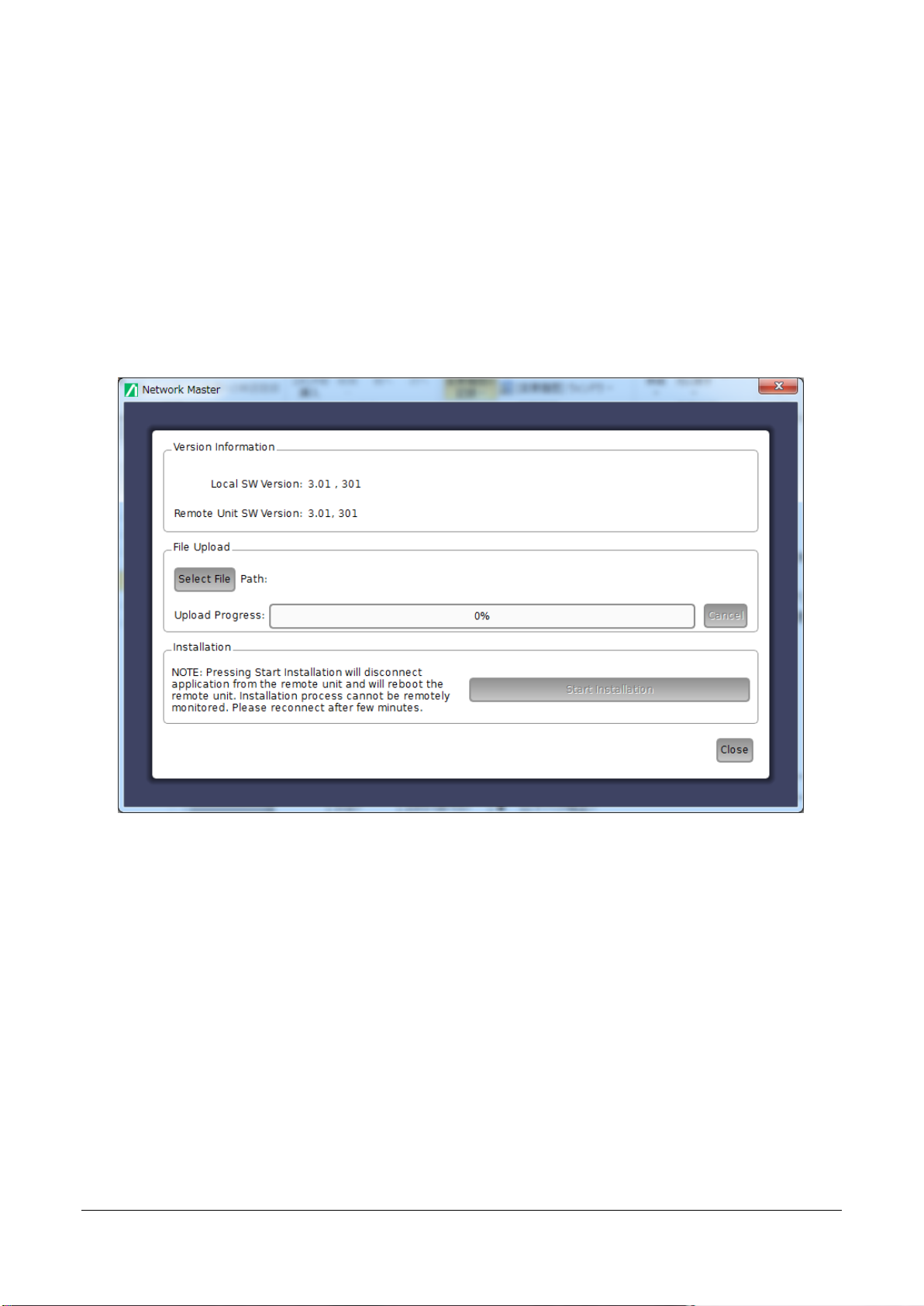

update tab on Control Software to show the upgrading box.
4. Touch Select File to launch the dialog box.
5. Select the software file. Progress bar shows Upload Progress. Touching Cancel aborts the file
uploading.
6. After file uploading finishes, touch Start Installation.
Touching Start Installation will reboot the Network Master. Installation process cannot be remotely
monitored. Please reconnect after few minutes.

Network Master Pro/Flex Release Notes
5 TAA-1ETNMX0054-20
Revision History
Version
Date
Description
7.00
2016-09-14
KeyAdded Features
[New HW] Added New OTDR Module (MU100022A: 3wl.
1310/1550/1625nm model).
[OTDR]Added Construction function.
[OTDR]Added Bi directional mode.
[New HW] Added CPRI RF Module.
[Framework] Supports simultaneous installation of three module
types.
Fixed bugs
[Framework] Fixed bug in GPS utility preventing monitoring of
GPS signal receive status.(9172)
[Framework] Fixed bug in File Explorer causing main frame to
restart when erasing file.(9099)
[Framework] Fixed bug preventing display by laser emitting
indicator during measurement when Standard OTDR
application started after VIP started.(9144)
[ETH] Fixed bug causing incorrect Frame Loss rate calculation
when Total Repeat Steps set to ON at RFC2544 test.(6445)
[ETH] Fixed bug in Sync Test application preventing input of
negative value as one-way Delay Threshold value.(9235)
[FC] Fixed bug causing incorrect display of Frame Loss
Seconds and Pattern Loss Seconds even when Frame Loss
Seconds set to Ignore at BERT application.(9173)
[OTDR] Fixed bug preventing execution of Standard OTDR
Mission Control Power Meter Offset Zero function. (9217)
[OTDR] Fixed bug causing main frame to restart when opening
OTDR results file with Result File Browser when no OTDR
module installed in main frame. (8836)
[OTDR] Fixed bug in OTDR application preventing display of
Fiber Visualizer screen waveform window when far end not
found. (8806)
[OTDR] Fixed bug causing VFL to light for several seconds
when application quit and then restarted while VFL in ON
status. (8968)
6.02
2016-08-15
KeyAdded Features
[ETH] Changed specification for PRBS Sync Alarm and PRBS

Network Master Pro/Flex Release Notes
6 TAA-1ETNMX0054-20
Version
Date
Description
Pattern Error detection immediately after measurement start at
BER measurement using Ethernet BER application Cross
PRBS pattern (9130)
[OTN][SDH] Added measurement ON/OFF setting for following
items: (9062)
OTN: PLM
SDH/SONE: HP=PLM, LP-PLM, Threshold Alarm
[SDH]Added Generic-AIS detection function (8555)
Fixed bugs
[OTDR] Fixed bug in v6.00 causing display of "Include
Performance Verification data" checkmark at report generation
screen for results not actually displayed (9141)
6.01
2016-07-14
Fixed bugs
[ETH][OTN] Fixed bug preventing correct CFP Module
Transceiver setting and causing error when using V6.00
software with MU110011A CFP Interface (9116)
[FC] Fixed bug causing periodic Frame Loss when sending
FC1200 Frame signal (7877)
[OTN] Fixed bug in V5.01 and later software causing doubling of
output clock frequency when selecting any one of OTU1f/2f/2e
bit rates when using Tx Reference Clock Output with
MU110010A (9084)
[FTTA] Fixed bug causing disabled software key when moving
to TRACE tab at TTA application after starting measurement
(9138)
6.00
2016-06-23
KeyAdded Features
[New HW] Added MU110013Amodule and dedicated option
[Framework] Added autosave function for MT1100A CFP/CPF2
Interface transceiver settings (8568)
[ETH]Added following settings to Traffic Tx function
・Burst Tx Setting
・Frame Length Increment Tx
・Tx Rate Inter-Frame Gap Specification
・Tx Rate Millisecond Unit Lamp Tx Setting
・Tx Rate over 100% stream Setting
[ETH] Added Cross PRBS pattern setting to Payload patterns
for BERTApplication

Network Master Pro/Flex Release Notes
7 TAA-1ETNMX0054-20
Version
Date
Description
[ETH] Added function for automatically allocating IPv6 Tx
source address using RS/RAfunction
[OTDR] Added function for SCPI Remote command control to
OTDR application
Fixed bugs
[Framework] Fixed bug causing restart of mainframe when
inputting "e" character while file load/save dialog displayed
(8873)
[Framework] Fixed bug causing license error display when
loading settings file saved by MT1000A+MU100010A
configuration at MT1000A+MU1000xxA+MU100010A
configuration and corrected notification to comment on
configuration difference (8633)
[ETH] Fixed bug causing non-stop sending at Pause Frame
receiving even when Auto Negotiation set to off for
10/100/1000M electrical interface and "Respond to Pause
Frame" set (8643)
[ETH] Fixed bug causing output of all selection items when
outputting test results to CSV or XML file using Channel
Statistics application (8523)
[ETH] Fixed bug causing inclusion of MPLS label value in
Address Filter Stream ID conditions using Mon/Gen application
(8543)
[ETH] Fixed bug causing Skew value to be displayed as
">0.000" and incorrect measurement when selecting any
Interval result at "Relative Skew" results display of Result
screen (8838)
[ETH] Fixed bug preventing correct display of result table
service details at measurement results for Y1564 (8527)
[FC] Fixed bug causing monitoring of Frame Loss seconds even
when "ignore Frame Loss seconds for BERT measurement
results" set at BERT application (8730)
[PTP] Fixed bug causing locking for only up to 4 hours when
executing continuous measurements for 5 or more hours in
locking state using GPS utility. Currently possible to lock for 24
hours by changing setting (8548)
[OTDR] Fixed bug sometimes causing error in Reflectance analysis

Network Master Pro/Flex Release Notes
8 TAA-1ETNMX0054-20
Version
Date
Description
results when Auto Mode Test set to Advanced (8933)
5.04
5.03
2016-05-23
KeyAdded Features
[Framework] Added the One-Button Test..
Fixed bugs
[Framework] Fixed bug causing the unavailable access to USB
stick after the specific procedure on V5.01.(8826)
[Framework] Fixed bug causing main unit to restart when USB
memory stick removed while File Manager focused on
sub-folder in inserted USB memory.(8733)
[ETH] Fixed bug causing the application crashes when outputting
report of Ethernet RFC 2544 ”End to end network test” results
(8614)
5.01
2016-03-25
KeyAdded Features
[Framework] Added to fiberscope with 60 degrees tip (7961)
[OTDR] Expanded maximum settable pulse width for each
distance range (8044)
[OTDR] Changed dummy fiber (launch spool) display color to
clearly show the start of the fiber under test. (8045)
[ETH]Added auto MAC address resolution function when a
generating IPv6 Stream (NDP NS/NA) (7712)
[ETH]Added possibility to ignore Frame loss seconds count in
Ethernet BERT application (8057)
[ETH] In SyncTest application, added calibration parameter for
GPS antenna cable length. (8026)
[ETH] In SyncTest application, added high-resolution frequency
counter function (7945)
[OTN]Added LOS insertion function (7366)
[OTN] Added following APS trigger items (7775)
OTU3x/4: FAS-OTL, LOF-OTL, OOF-OTL, LOR-OTL, OOR-OTL,
OTU1x/2x/3x/4: OTU-AIS, OOM
[SDH]Added possibility to disable the display of Pointer
Movement measurements (7905)
Fixed bugs
[Framework] Fixed bug when disabling WLAN sometimes
causing instrument to temporarily freeze (8272)
[Framework] Fixed bug causing the NWM Flex with battery
option MU11001A from fully shutting down.(8391)

Network Master Pro/Flex Release Notes
9 TAA-1ETNMX0054-20
Version
Date
Description
[Framework] Fixed the problem that MU100090Apower On/Off
status isn’t stored properly occasionally. (8273)
[OTDR] Fixed bug that "Restore Default" operation does not
work after creating OTDR report.(8448)
[ETH] Fixed bug for 10GbE sometimes causing transmitter to
insert wrong IFG (7673)
[ETH] Fixed bug in IEEE1588 function sometimes causing UDP
checksum errors in transmitted PTP frames (7835)
[OTN] Fixed problem when starting applications with +OTN
option sometimes causing invalid option warning message
(7683)
[OTN][ETH] Fixed bug in Ethernet transmitter causing BER
alarm when Ethernet mapped over OTN using GFP-F.
(7519)(8075)
[OTN][ETH] Fixed bug causing BER alarms for MPLS mapped over
OTN using 46 byte frame size. (7844)
5.00
2016-02-19
KeyAdded Features
Added MU100090A Module
[ETH] Added IEEE1588 Time error measurement function.
(7892)
[ETH] Added ITU-T8275.1 profile for IEEE1588 functions
(7992)
[CPRI] Added APS measurement function to BERT application
(7099)
[Framework] Expanded MDIO Analysis functions for
CFP/CFP2/CFP4. (7976)
[OTN] Added mappings for packet based client signal.
(7975,7977,7978)
[OTN][SDH] Added BERT/APS/RTD switch mode to BERT
application (7980)
[OTN][SDH] Added SDH Transparent mapping for SDH over
OTN start (7981)
[Remote] Added support for VNC control via HTTP with JAVA
1.8 (6353)
[Remote] Added support for simultaneous SCPI and Remote
GUI control (7681)
[Remote][ETH] Added remote command for specifying save

Network Master Pro/Flex Release Notes
10 TAA-1ETNMX0054-20
Version
Date
Description
destination for IEEE1588/SyncE Frame capture data (8198)
- ETH:PORT1:PTP:FCAP:DIR
[Remote][ETH] Added following remote commands for
performing IEEE1588 ARP analysis and querying analysis
results (8157)
- ETHernet:PORT<Pt>:PTP:MAC:ARP
- ETHernet:PORT<Pt>:PTP:MAC:ARP:RESult?
Fixed bugs
[OTDR] Upgraded Event (fault point) detection (search)
accuracy (8034)
[Framework] Fixed problem causing Chinese and Japanese
UTF-8 encoded CSV reports to display garbage characters
when opened in MS-Excel. (7750)
Japanese: UTF-8 to Shift JIS
Chinese: UTF-8 to GB2312
[Framework] Fixed bug preventing re-acquisition of IP address
when switching WLAN access point (7360)
[Framework] Simplified Password dialog and fixed problem
when initially enabling system password protection requiring
user to know old (default) password. (7551)
[Framework] Fixed bug causing sudden shutdown when starting
with remaining battery charge of ≤6% (7662)
[ETH] Fixed bug only permitting insertion of less than assumed
block errors when inserting errors while testing at Frame rates
of >2000 bytes when testing at interface of10/40/100 Gbps
(7020)
[ETH] Fixed bug causing Frame loss when receiving IPv4 +
UDP header Ethernet Frame when Frame length not multiple of
8 bytes at 40/100GbE (7836)
[ETH] Fixed bug ristricting the minimum payload size of 38-byte
when selecting custom header at BERT application stream
setting (7725)
[ETH] Fixed bug causing [Timing: Bit rate Difference] to remain
unchanged at 0 even when clearing History at Ethernet test
(6884)
[ETH] Fixed bug causing IEEE15888 status Wall Clock Current
time affects from local MT1000A time setting (7850)

Network Master Pro/Flex Release Notes
11 TAA-1ETNMX0054-20
Version
Date
Description
[ETH] Fixed bug causing sending of incorrect time data at
IEEE1588 communications (7715)
[ETH] Fixed bug causing display of NMX_WARNING message
when starting Ethernet application when 100GbE option
installed with MT1100A+MU110011A+MU110012A
configuration (7904)
[ETH] Fixed bug causing main unit to reboot when switching
BERT application custom header settings when loading settings
file saved with V2.xx when using V3.03 software (7894)
[ETH] Fixed bug causing display of NMX_WARNING message
when executing ARP on IEEE1588 function (8112)
[ETH] Fixed bug causing IP header protocol type field setting to
become UDP(0x11) or TCP(0x06) automatically after previous
setting when None set after setting Frame Format Layer 4 to
either TCP or UDP (7777)
[OTN] Fixed bug causing display of screen for making additions
when low-order ODU errors and alarms cannot be inserted at
OTN through-mode test (6950),(6643)
[Remote] Fixed bug preventing release of port resources even
when executing INST:TERM command (7369)
[Remote] Fixed bug preventing normal termination processing
of application when using multiple user control by SCPI
command (7816,7847,7029,7968)
[Remote] Fixed bugs causing MX100001A to crash at following
operations. (7933)
(1) At remote connection from MX100001A when measuring instrument
Remote PC connection set to OFF
(2) When changing measuring instrument Remote PC connection setting
from OFF to ON
(3) At remote connection from MX100001A
[Remote][ETH] Removed explanation of following unsupported
commands: (7537)
- ETHernet:CSTat:SETup:PORT<Pt>:PSELect
- ETHernet:CSTat:SETup:PORT<Pt>:PWIDth?
[Remote][OTN] Fixed bug preventing correct reading of PSI[0]
value using OH capture remote query command (7788)
[SDH/SONET] Fixed bug preventing reflection of measured

Network Master Pro/Flex Release Notes
12 TAA-1ETNMX0054-20
Version
Date
Description
error in test results during measurement with APS application
(6982)
[Wireshark] Fixed bug causing Wireshark restart when reading
file format not supported by Wireshark (7595)
4.00
2015-12-10
KeyAdded Features
[OTDR][FTTA][OLTS] Added New OTDR Module for
MT1000A
MU100020A OTDR Module 1310/1550 nm SMF
MU100021AOTDR Module 1310/1550/850/1300 nm SMF/MMF
Fixed bugs
[Framework] Fixed problem causing Chinese and Japanese
UTF-8 encoded CSV reports to display garbage characters
when opened in MS-Excel.
Japanese: UTF-8 to Shift JIS
Chinese: UTF-8 to GB2312
[Framework] Simplified Password dialog and fixed problem
when initially enabling system password protection requiring
user to know old (default) password.
[ETH] Fixed problem in RFC2544 application causing
instrument to restart when transmitting IPv6 formatted Learning
Frames. (7808)
[ETH] Fixed problem preventing saving of PTP message logs at
IEEE 1588v2 log. (7421)
[ETH] Fixed problem running 10G with frame sizes above 2000
bytes, sometimes preventing insertion of sufficient block errors
using error insertion function. (7020)
[OTN] Fixed problem reading PSI[0] OH byte (Payload type)
using SCPI command. (7788)
3.04
2015-11-06
Fixed bugs
[OTN] Fixed bug preventing normal detection at continuous
OLA alarm (7703)
[OTN] Fixed problem preventing PM-BIP and PM-BEI errors
being reported in Event Log. (7702)
[OTN] [ETH] Fixed problem causing Warning message while
re-loading settings file generated in an Ethernet over OTN
application. (7727)
[ETH] Fixed problem causing instrument to restart when using

Network Master Pro/Flex Release Notes
13 TAA-1ETNMX0054-20
Version
Date
Description
Layer 2 custom header and exceeding the setup frame length
by enabling either Jitter or Latency measurement. (7674)
[ETH] Fixed problem with Latency result sometimes being incorrect
when measuring between two ports on same module. (7691)
3.03
2015-10-02
KeyAdded Features
[Remote]Added Remote Commands andApplication Parts.
[ETH]Added Function for Custom Editing of Ethernet Header.
[ETH]Added Function for Validating PCS at 10 GbE.
[ETH]Added Function for continues Stream address Creation.
[OTN]Added Null to Client Signals for OTN Mappings.
[ETH] Enhanced RFC2544 GUI for Easier Access and Better
Overview.
[ETH] Enhanced RFC2544/Y.1564 Reporting Providing More
Information.
[ETH] Renamed 'CFI' bit in VLAG tag to 'DEI' according to 2015
version of IEEE802.1Q.
[Framework] Improved Report Layout: Better Look and Distinct
Header Styles.
[Framework] Added Function for Filtering Results Display at
Report Output.
Fixed Bugs
[Framework] Fixed problem with removing USB storage while
viewing PDF or XML file stored on device (7359)
[Framework] Fixed problem with garbage characters sometimes
occurring in Japanese PDF reports created using MX100001A
Control Software and read under Windows 7 64-bit OS
environment (7028)
[ETH] Fixed problem with IEEE 1588 Log sometimes repeating
old events. (7390)
[ETH] Fixed problem with PTP clock system when running high
rates of Sync/Announce/Delay Request packets for IEEE 1588
protocol data (7389)
[ETH] Fixed problem with 40/100G Reflector application
causing statistics engine to drop frames when swapping of
IP/MAC disabled (7376)
[ETH] Fixed problem initiating OAM 802.ah Remote Loopback
on Accedian NIDs (7365)

Network Master Pro/Flex Release Notes
14 TAA-1ETNMX0054-20
Version
Date
Description
[ETH] Fixed problem with Disruption errors sometimes reported
in Event Log while running RFC 2544 Latency Test (7361)
[ETH] Fixed problem with Pass-Through application running
GbE electrical causing dropped frames when changing clock
advertisement (master/slave) configuration (7284)
[ETH] Fixed problem with storing RFC 2544 result files when
test includes more than 148 steps (7136)
[ETH] Fixed problem with the Unicast/Multicast Tx frame
counters on "Ethernet - Transmit" statistics page not updating
when U/L bit of destination MAC address set (7108)
[ETH] When using GPS as Master Clock reference for
IEEE1588v2, fixed problem with current Wall Clock differing
from displayed UTC time (6996)
[ETH] For RFC 2544 and SAT (Y.1564) applications running
end-to-end network test, fixed problem with “Abort” window
remaining on slave after test finishes (6957)
[ETH] For SAT Y.1564 and Mon/Gen. applications, fixed
problem with automatically stored settings files potentially
causing applications to fail when re-launched (6956)(7529)
[ETH] Solved problem with disabling SyncE sometimes
leaving pending SSFAlarm History and Event Log entry (6912)
[ETH] Fixed problem with local port losing link when inserting
"No Link" alarm, although incoming signal OK (6877)
[ETH] Corrected table headings in RFC 2544 Latency report
when "Mesaure jitter by means of Latency test" enabled (7538)
[OTN] Fixed problem with not showing correct values for GMP
Justification Max/Min Cm. (7482)
[OTN] Fixed problem when using multistage mapping on OTN
where "false" LOFLOM alarms sometimes reported on
lower-order ODUs (7006)
[PDH] Fixed problem on E1 interface when Distant and No CAS
MFAS alarms sometimes also insert pattern errors (7019)
[SDH/SONET] Fixed problem with duplication of APS detailed
results when switching between ports (7382)
[Remote][NoFrame] Fixed problem setting Frequency Offset via
SCPI: NFRame:PORT<Pt>:STIMuli:TX:FOFFset <offset>
(7465)

Network Master Pro/Flex Release Notes
15 TAA-1ETNMX0054-20
Version
Date
Description
[Remote] Fixed problem with instrument potentially
freezing/restarting when SCPI session closed immediately after
starting or terminating application server (7012) (7347)
[Remote] Fixed problem copying multiple files simultaneously to
PC from MT1000A/MT1100A using MX100001A Remote
Control Software (6986)
[Remote][CPRI] Fixed problem using
MEASurement:SETup:EVALuation:RX:INTerface?
command in CPRI BERT application (6992)"
[Remote][CPRI] When running CPRI Pass-Through application,
fixed problem preventing use of SCPI commands for setting
evaluation of measurement results (7042)
MEASurement:SETup:EVALuation:RX<Pt>[:ENABle]
MEASurement:SETup:EVALuation:RX<Pt>:INTerface
MEASurement:SETup:EVALuation:CPRI:PORT<Pt>:ITEM
MEASurement:SETup:EVALuation:CPRI:PORT<Pt>:ITEM:ALARm
MEASurement:SETup:EVALuation:CPRI:PORT<Pt>:ITEM:ERRor
MEASurement:SETup:EVALuation:CPRI:PORT<Pt>:TYPE
MEASurement:SETup:EVALuation:CPRI:PORT<Pt>:CNT:FAIL
MEASurement:SETup:EVALuation:CPRI:PORT<Pt>:RATio:PASS
MEASurement:SETup:EVALuation:CPRI:PORT<Pt>:RATio:FAIL
MEASurement:SETup:EVALuation:TMBPs:RX<Pt>:ITEM"
[Remote][ETH] Fixed problem with SCPI command for setting
stimuli alarm state (ETHernet:POER<Pt>:STIMuli:ALARm)
unnecessarily resetting electrical PHY, causing link loss for
several seconds (6993)
[Remote][OTN] When configured via SCPI remote control, fixed
problem with Ethernet client not obtaining link when mapped to
OTU3/4 using GFP-T (6955)
[OTN] Fixed problem using SCPI MAX and DEF parameter
values for setting Error Bits for GMP JC1/JC2 Error Items
(6775)
OTN:STIM:TX1:GMP:AEIN:EBIT MAX
OTN:STIM:TX1:GMP:AEIN:EBIT DEF
3.02
2015-07-29
Fixed Bugs
[Framework] Fixed Problem of Incorrectly Loading
Configuration File made Using MT1000A/MT1100A with

Network Master Pro/Flex Release Notes
16 TAA-1ETNMX0054-20
Version
Date
Description
Different Options.(7110,7053,7038,7000)
[Framework] Using Remote GUI Software (MX100001A), Fixed
Problem Causing Inability to Start Editor and Viewer.(6990)
[ETH] Removed “Communication Port” for RFC 6349
End-to-End Test.(7172)
[ETH] Fixed Problem of Failing to Reflect “Expected preamble
length” Value at Loading Configuration File for Ethernet Pass
Through Application.(7156)
[ETH] Using Ethernet BERT Application, Fixed Problem of
Incorrect File Save/Read when Stream Setting for Port 2 and
Later Ports set to Unframed.(7041)
[ETH] Using Ethernet application, fixed problem causing
inability to reboot main frame when sending following query
commands and quitting application.(7022)
ETHernet:PORT<Pt>:OAM:DISCovery:CATalog?
[ETH] Fixed Problem of Disappearing Latency Results when
Saving and Loading Latency/Burst Result using RFC 2544
Application.(7010)
[ETH] Using Ethernet BERT Application, Fixed Problem
Causing Frame Loss when Reading V2.04 Settings File.(7004)
[ETH] After executing Ethernet Ping function, fixed problem
causing reboot when executing other Ethernet
application.(6999)
[ETH] Using Ethernet Application, Fixed Problem Causing
Screen Freeze when Sending/Receiving OAM 802.1ag/VLAN
CCM.(6980)
[ETH] Added following query parameters to SCPI
commands.(6975)
ETHernet:PORT<Pt>:IFETch?
TDL: Stream 1 Throughput Data Layer (bps). Response:
<Min>,<Max>,<Avg>
TNL: Stream 1 Throughput Network Layer (bps). Response:
<Min>,<Max>,<Avg>
TLL: Stream 1 Throughput Link Layer (bps). Response:
<Min>,<Max>,<Avg>
TPPL: Stream 1 Throughput Physical Layer without Preamble (bps).
Response: <Min>,<Max>,<Avg>

Network Master Pro/Flex Release Notes
17 TAA-1ETNMX0054-20
Version
Date
Description
TPL: Stream 1 Throughput Physical Layer (bps). Response:
<Min>,<Max>,<Avg>
TUL: Stream 1 Throughput Utilization Layer (bps). Response:
<Min>,<Max>,<Avg>
[ETH] Using Ethernet Application, at ARP Reply Sending, Fixed
Rare Problem Causing Sending of Excess Stream Data in 1
Frame.(6970)
[ETH] Using Ethernet Application, Fixed Problem Sometimes
Blocked Correct traffic with "Include addresses in frame filter on
receiver" Settings at Rx Operation.(6964)
[OTN] Fixed Problem of Wrongly Configuring FC800 at Loading
of FC400 Configuration File for FC BERT over OTN.(7169)
[OTN] Fixed Boot Failure Problem of FC BERT over OTN
Application.(7166)
[OTN] Fixed problem causing no response when sending
OTN:RX<Pt>:IFET ch? S0MSIM SCPI command.(7066)
[OTN] Using OTN Application, Fixed Problem of Wrongly
Displaying MSIM Results Without Masking even at Higher-Level
Alarm.(7066)
[OTN] Using OTN application, fixed problem of incorrectly
reading Performance measurement results using SCPI
command when reading V2.02 or earlier results file.(7066)
[OTN] Fixed Problem Causing Higher-Level Summary LEDs to
Light when cHEC and tHEC Errors Detected at GFP-F/T
Mapping of OTN Application.(6972)
[OTN] Fixed Problem of Failing to Count Justification when
LOFLOM Detected using OTN Application.(6962)
[SDHPDH] Changed mistakes in SCPI command parameter
names.(7140)
T1:RX<Pt>:IFETch? (NFRame) -> (OOF)
T1:APS:RX<Pt>:EVENt NFR -> OOF
T1:STATus:RX<Pt>:ALARm? Loss Of Frame -> OOF
TMBPs:APS:RX<Pt>:EVENt NFR -> NFRame
- similar GUI value "LOF"-> "No frame"
[SDHPDH] Using SDH/PDH application, fixed problem of
inability to reboot main frame when sending following query
commands and quitting application.(7031)

Network Master Pro/Flex Release Notes
18 TAA-1ETNMX0054-20
Version
Date
Description
E3:RX1:IFET? (PBBE)
[SDHPDH] Added E1 Balanced connector pin assignments to
manual.(6958)
[SDHPDH] Fix problem causing reboot when loading settings
file with set PDH rate at MU110011Amodule.(6915)
problem preventing use of threshold parameters set by
following SCPI commands at evaluation of actual measurement
results.(7042)
MEASurement:SETup:EVALuation:RX$<$Pt$>$[:ENABle]
MEASurement:SETup:EVALuation:RX$<$Pt$>$:INTerface
MEASurement:SETup:EVALuation:CPRI:PORT$<$Pt$>$:ITEM
MEASurement:SETup:EVALuation:CPRI:PORT$<$Pt$>$:ITEM:ALARm
MEASurement:SETup:EVALuation:CPRI:PORT$<$Pt$>$:ITEM:ERRor
MEASurement:SETup:EVALuation:CPRI:PORT$<$Pt$>$:TYPE
MEASurement:SETup:EVALuation:CPRI:PORT$<$Pt$>$:CNT:FAIL
MEASurement:SETup:EVALuation:CPRI:PORT$<$Pt$>$:RATio:PASS
MEASurement:SETup:EVALuation:CPRI:PORT$<$Pt$>$:RATio:FAIL
MEASurement:SETup:EVALuation:TMBPs:RX$<$Pt$>$:ITEM
[CPRI] Fixed Problem of Incorrect RTD Result Display at Each
Testing Interval of CPRI BERTApplication.(6875)
[FC] Fixed Problem of Missing CRC Error in Errors/Alarms List
of Fibre Channel BERTApplication.(6862)
3.01
2015-06-05
KeyAdded Features
[All] Added Error/Alarm indication summary.(6888)
[All] Added Performance Verification date in test report.(6890)
[All] Added Spanish Language support.(6891)
[Framework] Added the functionality of Storage
formatting.(6895)
[RemoteGUI] Added "Settings Editor" and "Result Viewer" on
MX100001A (Windows application).(6894, 6942)
[ETH] Added the functionality of “Answering ARP/PING
request” and reflector MAC/IP address settings on Reflector
application. (6897)
[OTN]Added the client signal frequency result.(6887, 6868)
[OTN] Added “Pattern Bit Error Trigger” and ”LOS Trigger” on
APS application. (6867)
[ETH] Added “LOS” as a Ethernet Service Disruption test type

Network Master Pro/Flex Release Notes
19 TAA-1ETNMX0054-20
Version
Date
Description
for optical interfaces
Fixed Bugs
[Framework] Fixed battery display information to show correctly
on MU110001A. (6902)
[RemoteGUI] Fixed the problem regarding sorting files on
windows application.(6878)
[ETH] Fixed the problem regarding SCPI command for stream
Line load. (6866)
[ETH] Fixed the problem regarding multi stream measurement
on Mon/Gen application. (6940)
[ETH] Fixed the problem regarding SDT(Service Disruption
Time) result. (6857)
[ETH] Fixed the problem regarding long term measurement on
PING application. (6834)
[ETH] Fixed the problem regarding the variable field of VLAN
ID. (6860)
[ETH] Fixed the problem regarding Remote Fault on Electrical
Interface.(6859)
[ETH] Fixed the problem regarding the maximum rate(CIR/EIR)
on 40/100G Y.1564 application. (6855, 4246)
[FC] Fixed the problem regarding SDT(Service Disruption Time)
result. (6863)
[FC] Fixed the problem regarding “Frame Loss Seconds” result.
(6864)
[OTN] Fixed application crash issue when starting a
measurement with threshold enabled. (6939)
[OTN] Improved regarding frequency offset.(6887)
3.00
2015-05-25
Added CPRI applications.(6465)
Added following functions to Ethernet applications:
Added RFC6349 application.(6366)
Added Layer 2 frame format support on Y.1564
application.(6398)
Added automatic service name on Y.1564 application.(6360)
Added “Include addresses in frame filter on receiver ON/OFF”
on RFC2544/Y.1564/MonGen applications.(6557)
Added following functions to OTN applications:

Network Master Pro/Flex Release Notes
20 TAA-1ETNMX0054-20
Version
Date
Description
Added 3stage mapping on OTU3/4.(6369)
Added BMP mapping of SDH client.(6372)
Added FTFL alarm insertion/detection.(6373)
Improved the setting order of OTN Client.(6374)
Supported GFP-F Client signal up to 100G.(6369)
Added Error/Alarm statistics on APS application.(6399)
Added following functions to SDH applications:
Added Pattern Error Trigger on APS application.(6419)
Added Error/Alarm statistics on APS application.(6399)
Added following functions to FC applications:
Added Frequency offset Insertion/Monitor.(6405)
Added Reflector application.
Added following common functions:
Added GUI remote functionality from PC.(6342,6341)
Added Event Log functionality.(6400)
Added VIP application on Utility.(6367)
Added MDIO analysis functionality for CFP module.(6351)
Added electrical extender module support.(6483)
Added external 10MHz clock support.(6464)
Added Emphasis and Equalizer functionality for
CFP/CFP2.(6352)
Added Swedish keyboard input support.(6345)
Added CSV format report support.(6340)
Improved Utility Icon visualization.(6365,6362,6361)
Fixed Bugs [All] Fixed the problem that CFP2 interface may not
work correctly when configuring the timing source,
"Received".(6667)
[All] Fixed the problem that MT1100 which mounts MU110010A
sometimes shutdown when launching with battery.(6880)
[SCPI] Fixed the problem of Measurement Stop just after
Measurement Start.(6726)
[SCPI] Improved the stability of long term SCPI running.(6707)
[ETH] Fixed the problem that MPLS-TP result does not count up
when MPLS-TP OAM frame received.(6762)
[ETH] Fixed the problem regarding E2E communication
between MT1000/MT1100 and CMA3K on RFC2544
