ELECTRIC HEIGHT-ADJUSTED SIT TO STAND DESK
Vortex Series 2-leg Desk Assembly Guide
For desk with underframe Model No. AL4628-XX
REV-1509A

Table of Contents
2|Page
IMPORTANT SAFETY INSTRUCTIONS........ .....................................3
CAUTION, USE & LIABILITY.............................................................4
PARTS & HARDWARE.....................................................................5
ASSEMBLY INSTRUCTIONS............................................................6
CARE INSTRUCTIONS.........................................................11
TECHNICAL SPECIFICATIONS.....................................................11
WARRANTY INFORMATION
CONTACT INFORMATION 2
.....................................................12
.....................................................1

IMPORTANT SAFETY INSTRUCTIONS
WARNING -When using electric appliances, basic precautions should always be
followed, including the following:
A) Read all the instructions before using the appliance.
B) To reduce the risk of injury, close supervision is necessary when an
appliance is used near children.
C) Do not contact moving parts.
D) Only use attachments recommended or sold by the manufacturer.
E) Do not use outdoors.
F) To disconnect, turn all controls to the off (“O”) position, then remove plug
from outlet.
G) Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Unplug from outlet when not in use and before servicing or cleaning
H) Do not operate any appliance with a damaged cord or plug, or after the
appliance malfunctions or is dropped or damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair, or
electrical or mechanical adjustment.
I) Connect to a properly grounded outlet only. See grounding Instructions
below.
GROUNDING
PIN COVER OF GROUNDED
OUTLET BOX
METAL SCREW
GROUNDED
MEANS
ADAPTER

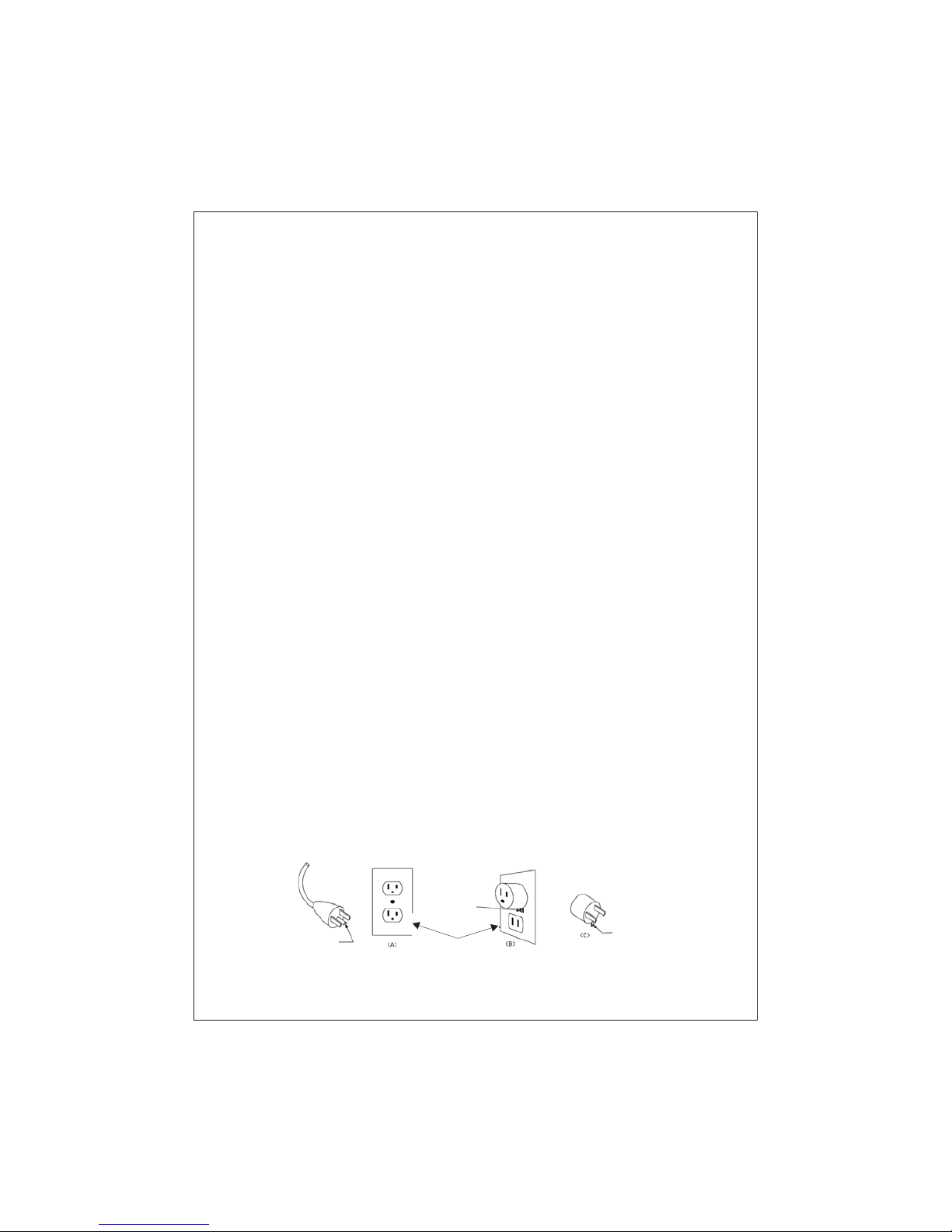

GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown,
grounding provides a path of least resistance for electric current to reduce the
risk of electric shock. This appliance is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.This appliance is for use on a
nominal 120 V circuit, and has a grounding plug that looks like the plug
illustrated in sketch A.
A temporary adaptor, which looks like the adaptor illustrated in sketches B and
C, may be used to connect this plug to a 2-pole receptacle as shown in sketch B
if a properly grounded outlet is not available. The temporary adaptor should be
used only until a properly grounded outlet can be installed by a qualified
electrician. The green colored rigid ear, lug, and the like, extending from the
adaptor must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adaptor is used, it must be held in
place by the metal screw.
3|Page

CAUTION USE & LIABILITY,
CAUTION
Make sure no obstacles are in the desk's path. Make sure the desk is not touching any walls. Make
sure all cords are of appropriate lengths to accommodate the change in desk height.
Keepchildrenawayfromelectricsittostanddesks,controlunitsandhandsets.
Keep all electrical components away from liquids.
Donotsitorstandondesk.Donotcrawlorlieunderdesk.
Do not place any objects taller than 20” underneath desk.
Do not open any of the components lifting columns, control box, or controller.
Thereisariskofelectricshock.
USE & LIABILITY
This sit to stand adjustable desk has electric motors and is designed for use in an indoor
environment and dry work areas only. The desk height is adjustable so that it can be
positioned at the most suitable height. Any other use is at user's risk. Under no circumstances
does the manufacturer accept warranty claims or liability claims for damages caused from
improper use or handling of the desk.
4|Page

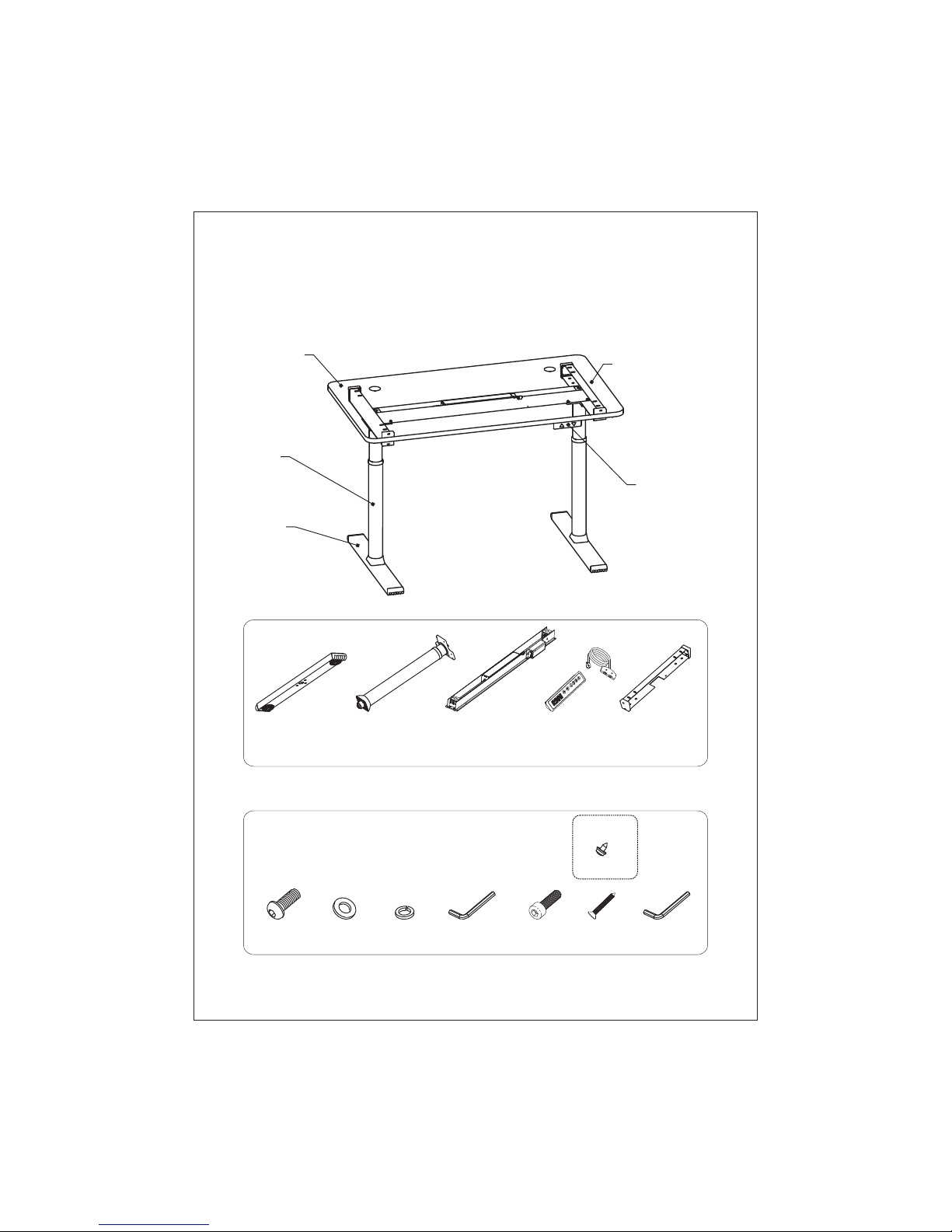

PARTS & HARDWARE
Tabletop
Leg
Foot
Upper Support
Controller
Foot 2() Leg 2() Beam 1() Controller 1() Upper Support 2()
M6x18Screw(22) Washer(32) TensionString(32) 4mmAllenWrench
PARTS LIST
HARDWARE LIST
PARTS DIAGRAM
ABCD
M6x20Screw(10)
E
M3x30(2) 5mmAllenWrench
F1 G
M3x12(2)
F2
(ForMemory
Controller)
5|Page

ASSEMBLY INSTRUCTIONS
BEFORE YOU BEGIN
1. Lay out all components and hardware to ensure that you have all the parts listed on the
partsonpage5.
2. Desk weighs close to 100 lbs. Two people are needed to turn or move desk and some of its
components. When turning or moving the assembled desk, grab it by UPPER SUPPORTS
(not desk top).
3.Assembleonsoftandnon-abrasivesurfacetoavoidscratchordamagetothedesktop.
SETP 1
Lay the lower support (foot) flat on the floor and secure it to the leg with Screw E as
illustrated below. Make sure to use longer socket-headed BLACK Screw E not shorter
dome-headed Screw A.
The foot is hollow. In an unlikely event that a screw or washer falls into the foot, you can
get it out by unscrewing the leveling stud and prying open the plastic ender with a flat
screwdriver. You may also choose not to do anything as extras are provided.
ECB
G
6|Page

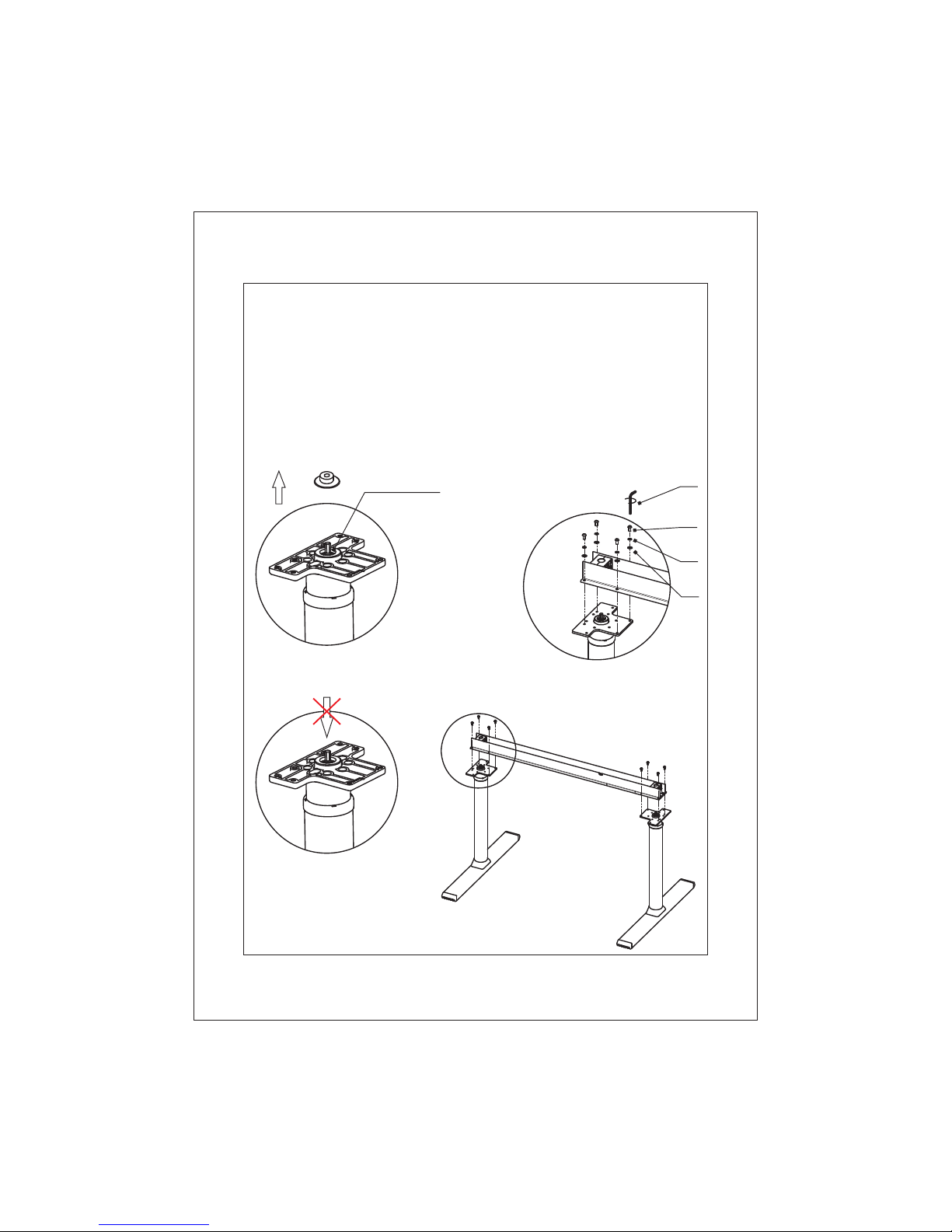

STEP 2
Remove the protective cap and insert the hexagon spindle into gear box on the beam.
Please note the marking R and L on the beam and legs. Right leg should connect to right
side of the beam, and left leg to left side of the beam.
Remove
protective cap
1
2
Don't put extra pressure on
spindle and lifting column
Don't force
hexagon
spindle into
gear box. If it
does not go all
way down,
adjust spindle
by turning it
slightly.
D
B
C
A
VERY IMPORTANT:
Minor adjustment may be needed to set the hexagon spindle properly into gear box. Put
the protective cap back on the hexagon spindle and turn the cap with a tool to make
necessary adjustment.
7|Page

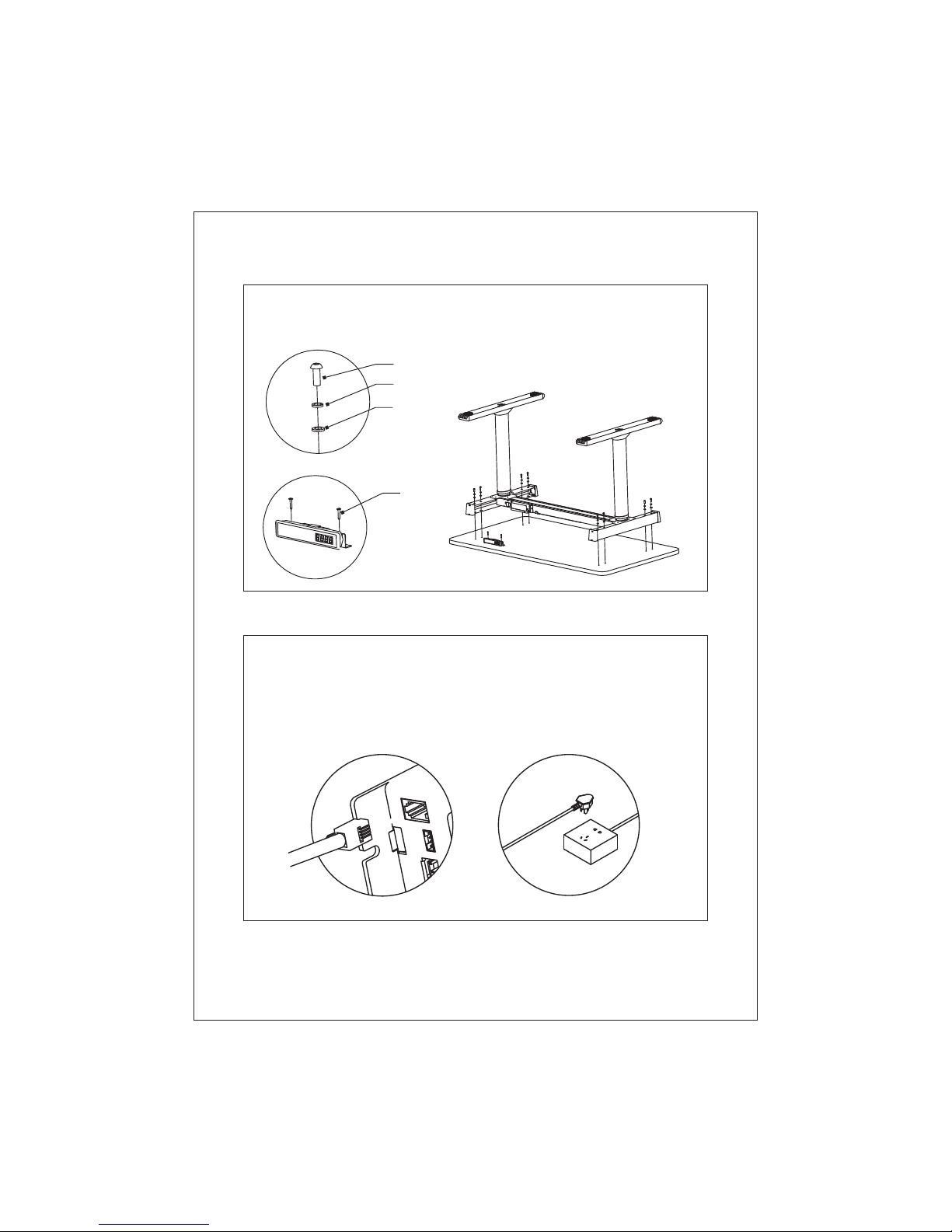

STEP 3
Use Screw A to secure two upper supports to the beam.
STEP 4
Lay the tabletop on a soft and non-abrasive surface. Carefully move the underframe
onto the top, align the holes on the upper supports to the pre-drilled anchors on the
top. Secure the top with Screw A. Don't over-tighten the screws.
Use Screw F1 to mount non-memory controller. Please note that pre-drilled holes are
only available on the right side. Non-memory controller looks identical on both sides.
The upper side of non-memory controller is labeled “Attach this side to tabletop”.
D
A
C
B
F1
A
C
B
8|Page

STEP 4-1 (Memory Controller Option)
Use Screw A to secure top and Screw F2 to secure controller.
STEP 5
F1
A
C
B
Connect controller to control box. Connect power to a wall plug. If the desk is unsteady,
check all screws and make sure they are all tight, and make adjustment to the leveling
studs. Please not that minor unsteadiness is common for all standing desks at
standing height especially when it is on a hard surface like hardwood floor.
9|Page

Memory Function Controller
for Desk Underframe Model# AL4628-2M
a. LED panel displays minimum height of 28.5” and maximum height of 46.6”
b. Factory default settings for four memory buttons are 32.1”, 35.7”, 39.3” and 42.9”
respectively.
c. To set your own height, press up or down button until the desk reaches the desired
height, press and hold memory button until you hear two beeps. Factory setting will be
erased once you set your own.
d. LED light turns off by itself if inactive for 5 seconds and turns back on when any button
is pressed.
Down Button
LED Display Up Button Preset 1 Preset 2 Preset 3 Preset 4
