ApexDesk REV-1507C User manual

ApexDesk Assembly Guide
REV-1507C
ELECTRIC HEIGHT-ADJUSTED SIT TO STAND DESK

ApexDesk Assembly Guide 2 |Page
Table of Contents
CAUTION, USE & LIABILITY........................................................................................................................................ 3
PARTS & HARDWARE LIST......................................................................................................................................... 4
PARTS / COMPONENT DIAGRAMS ............................................................................................................................ 5
ASSEMBLY INSTRUCTIONS ........................................................................................................................................ 6
MOTOR INITIALIZATION INSTRUCTIONS................................................................................................................. 12
TROUBLESHOOTING................................................................................................................................................ 13
CARE INSTRUCTIONS...............................................................................................................................................13
TECHNICAL SPECIFICATIONS ...................................................................................................................................13
WARRANTY INFORMATION.....................................................................................................................................14
CONTACT INFORMATION....................................................................................................................................... 14

ApexDesk Assembly Guide 3 |Page
CAUTION, USE & LIABILITY
CAUTION
Make sure no obstacles are in the desk’s path. Make sure the desktop is not touching any walls. Make sure all
cords are appropriate lengths to accommodate the change in desk height.
Keep children away from electric sit to stand desks, control units and handsets.
Keep all electrical components away from liquids.
Do not sit or stand on the desk frame. Do not crawl or lie under the desk frame.
Do not place any objects taller than 20” underneath the desk.
Do not open any of the components – the Lifting Columns, Control Box, or Controller. There is a
risk of electric shock.
The product is designed with a duty cycle of 10% (2 min on, 18 min off).
USE & LIABILITY
This sit to stand adjustable desk has electric motors and is designed for use in an indoor environment and dry
work areas only. The desk height is adjustable so that it can be positioned at the most suitable height. Any other
use is at user’s risk. Under no circumstances does the manufacturer accept warranty claims or liability claims for
damages caused from improper use or handling of the desk.

ApexDesk Assembly Guide 4 |Page
PARTS & HARDWARE LIST
TOOLS REQUIRED
Phillips Head Screwdriver (not included) Allen Wrench (included)
HARDWARE INCLUDED
No. HARDWARE LIST Qty
A M6x35mm Screws 8
B L-Shaped Lever 4
C M4x12mm Nuts/Bolts 3 Sets
D M3x14mm Screws 2
E M6x15 Screws 6
F M6x20 Screws 4

ApexDesk Assembly Guide 5 |Page
PARTS / COMPONENT DIAGRAMS
No. PARTS / COMPONENT LIST Qty
1 Desktop (1800x840x25mm) 1
2 Base Supports 2
3 Lifting Columns 2
4 Upper Supports 2
5 Beam 1
6 Control Box 1
7 Controller 1

ApexDesk Assembly Guide 6 |Page
ASSEMBLY INSTRUCTIONS
BEFORE YOU BEGIN
1. Lay out all components and hardware to ensure that you have all the parts listed on the parts page.
2. Desk weighs over 100 lbs. Two people are needed to turn or move desktop and some of its components.
When turning or moving the assembled desk, grab it by upper supports (not the desktop).
3. Assemble on soft surface or cushion to avoid scratch or damage to the desktop.
STEP 1
Use a Phillips screw driver and connect Base Supports (#2) to the Electric Lifting Columns (#3) with M6x35
Screws (A).
STEP 2
Use supplied Allen Wrench and connect Upper Supports (#4) to Beam (#5) with M6x20 Screws (F).
* Tips: Illustrated Beam placement allows the Up/Down Controller to be on the right side of the desk. If you
prefer the Controller to be on the left, turn the Beam (only) 180° so the two holes would fall on the right instead.
Continue with rest of the Tips and Instructions in each Step.

ApexDesk Assembly Guide 7 |Page
STEP 3
Insert assembled Lifting Columns from Step 1 into Beam (#5).
STEP 4 (VERY IMPORTANT. READ CAREFULLY)

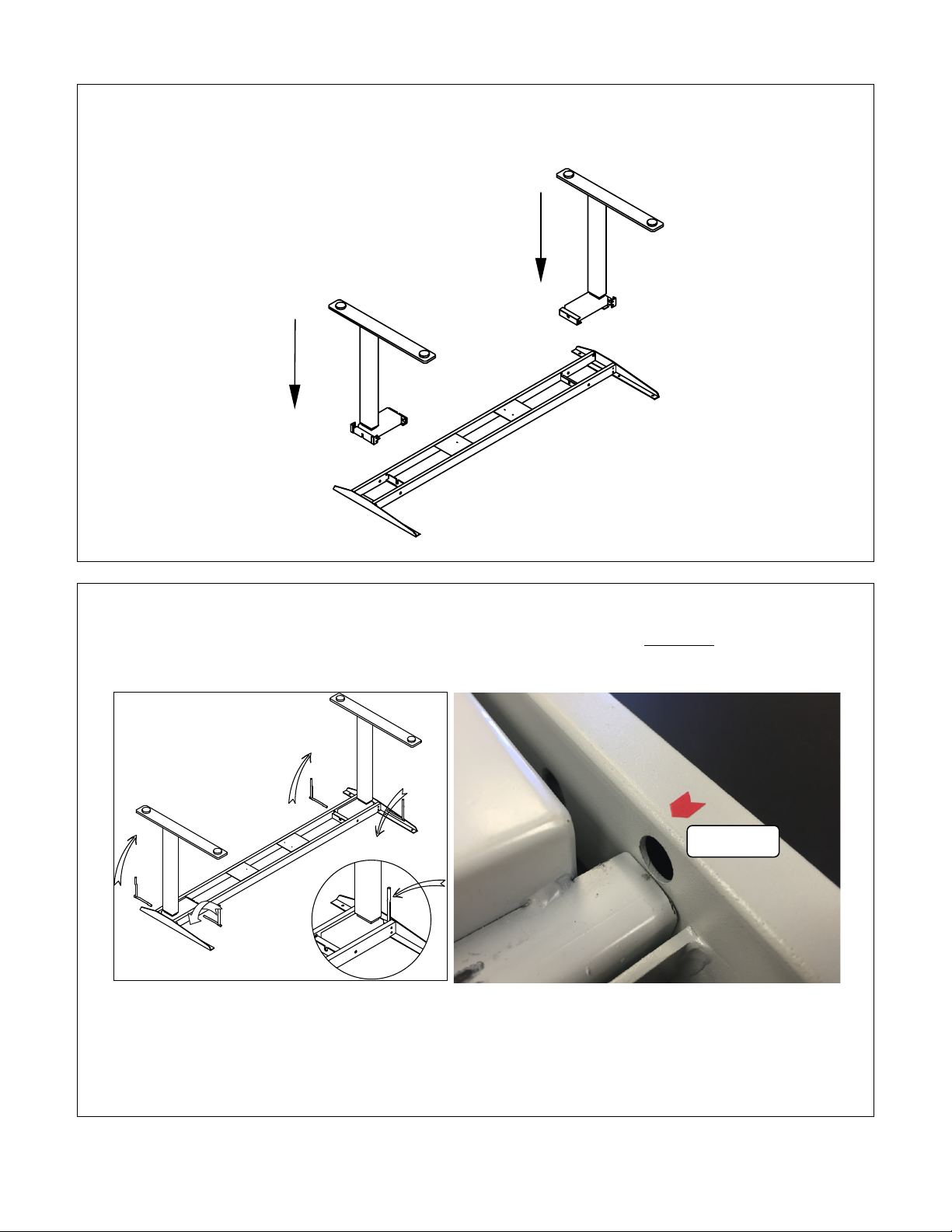

There are 4 holes marked with red arrows and 4 holes with green arrows on the inner side of the Beam (#5).
(See picture below).
Locate L-Shaped Lever (B) and insert the end marked with a RED arrow into the hole marked with a RED arrow.
On the opposite side, insert the end of lever marked with a GREEN arrow into the holes that is also marked with
a GREEN arrow. Slide the green-arrowed end all the way inside the hole until it touches the inner beam.
STEP 4 – CONT’D
Red Arrow

ApexDesk Assembly Guide 8 |Page
With the green-arrowed end all way into the hole, push lever toward the lifting column. You should feel some
pressure and tightness while pushing the lever down. Once the lever is flush with the beam, use a tool like a
flat-head screwdriver to push it all the way down until it touches the surface where the beam rests. If no
pressure is felt while pushing the lever down, then the lever is not properly inserted. Please go back and repeat
previous step.
Each lifting column requires two L-Shaped Levers to be properly secured. The two L-Shaped Levers, when
installed correctly, should form a tight lock and secure the Lifting Columns to the Beam. It is normal that you feel
more pressure on one lever than the other when pushing the levers down. Make sure the levers DO NOT
WIGGLE or DO NOT FEEL LOOSE. If they do, please repeat STEP 4 again.
STEP 5
Repeat STEP 4 on the other side of the Beam (#5).
STEP 6
Green Arrow
Red Arrow
Green Arrow
Green Arrow Red Arrow

ApexDesk Assembly Guide 9 |Page
1) With two people, grab the assembled frame by the Upper Support and turn the frame to an upright position.
Insert Control Box (#6) into Beam (#5) without securing the screws yet.

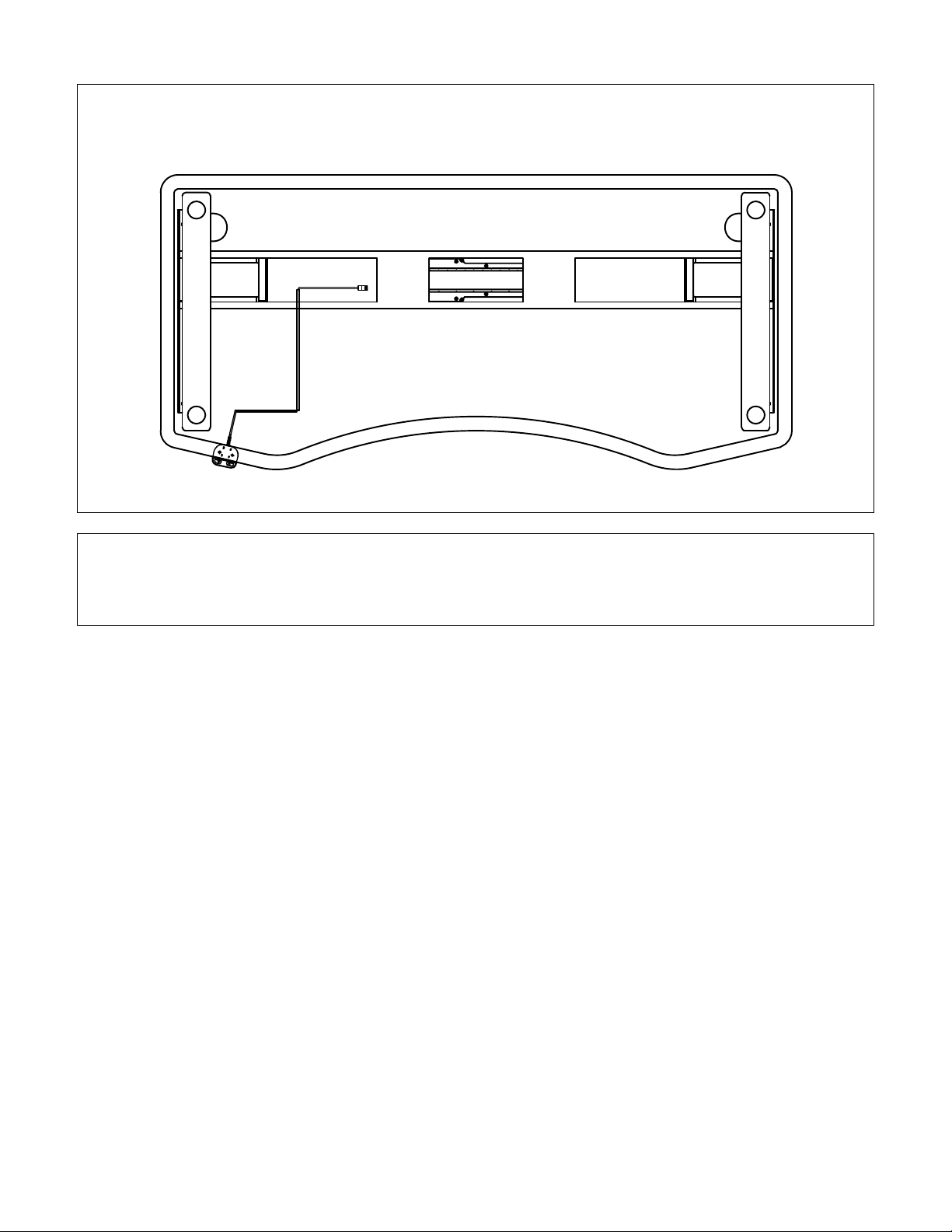

2) Connect Wire 1, 2, 3 and the Power Cord to the Control Box (#6) as shown in below picrure. Depending on
which side the connections are, you may hide Wire 1 or 2 by tucking it inside the built-in slot underneath the
Control Box. If you prefer the Up/Down Controller to be on the left side, make sure you place Beam according
to the Tips in Step 2. The 4 connection ports on the Control Box (#6) should face left instead to allow easier
access.
BOTTOM VIEW
RIGHT
LEG
LEFT
LEG

ApexDesk Assembly Guide 10 |Page
STEP 7

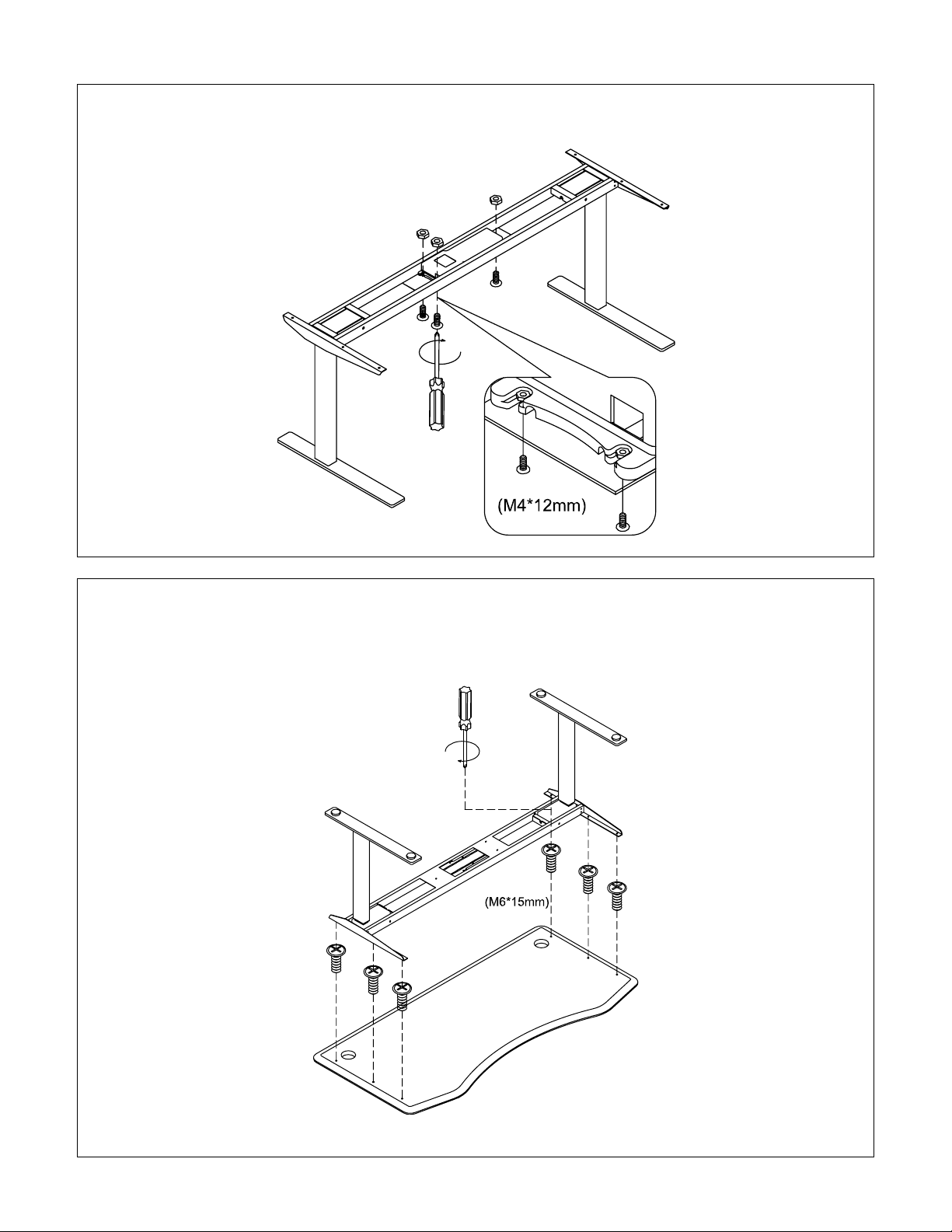

Secure Control Box to Beam with M4x12 Nuts/Bolts (C).
STEP 8
This step is a two-person job. Lay top down with the underside facing up and flip the assembled frame onto the
Desktop. Watch out for hanging cables and power cords. Secure with M6x15 Screws (E) x 3 pieces on each side.
STEP 9

ApexDesk Assembly Guide 11 |Page
Secure Up/Down Controller to pre-drilled holes on the right (or left) edge with supplied M3x14 Screws (D) x 2
pieces. With two people, grab the assembled desk by upper supports (not desktop) and turn the desk over to
upright position. Adjust leveling studs on the feet as needed.
BOTTOM VIEW
STEP 10
Plug the Power Cord into a 120V outlet and follow the motor initialization instructions in the next chapter.
Wire 3

ApexDesk Assembly Guide 12 |Page
MOTOR INITIALIZATION INSTRUCTIONS
The System needs to be initialized prior to use to ensure proper working condition. Attach all cables to the
motor as instructed in Step 7 of the Assembly Instructions. Do not put anything on the tabletop when
performing this step.
1 – MEMORIZE END/STOP POSITION
Press the down button and hold it until it runs into end stop. Once it stops moving, release the button, then
hold down button again for five (5) seconds to let motor stall and memorize end/stop position. During
memorization process the system will make minor adjustments automatically.
2 – MEMORIZE TOP/STOP POSITION
Press the up button until desk reaches maximum height and stops. Once desk comes to a stop the motor will
stall and memorize top position. Same with Step 1, the motor will make minor adjustments automatically – this
is normal and necessary.
3 – CONFIRM TOP POSITION
Press the down button for five (5) seconds to let it go down then press the up button to run the desk to the top
again to confirm top position. During memorization process the system will make adjustments automatically.
If initialization sequence is interrupted then whole process must start over again. We recommend reinitializing
motor whenever the power is interrupted (ie: power cord unplugged, power outage, etc).

ApexDesk Assembly Guide 13 |Page
TROUBLESHOOTING
Problem(s) Solution
Desk does not go up or down. Check all connections. Make sure power cord is plugged
into the Control Box and a power outlet. Make sure the
motor has been initialized properly. Please follow and
complete the “Motor Initialization Instructions.” If
symptom persists, contact ApexDesk Support.
Desk wobbles a lot.
Check if the floor is even and adjust leveling feet as
needed. Check all screws and make sure they are all tight.
Add a rug under desk if used on hardwood or concrete
floor.
CARE INSTRUCTIONS
Recommend checking the screws and bolts several times a year to ensure they stay tight.
For all surfaces: wipe clean with a damp cloth and a weak cleaning solution, then dry with a clean and dry cloth.
TECHNICAL SPECIFICATIONS
Height Range 24” – 50” (without top)
Lifting Speed 1.3” per second
Load Capacity 225 lbs
Input Power 120V, 2A, 60Hz
Duty Cycle 10%. Max 2 mins on, 18 mins off. Soft start/stop.

ApexDesk Assembly Guide 14 |Page
WARRANTY INFORMATION
SCOPE OF WARRANTY
Apex Furniture LLC (“ApexDesk”) warrants to the original purchaser its new desk (except for components not
warranted under “Exclusions”) manufactured by ApexDesk to be free from defects in material and
workmanship under normal use and service. ApexDesk’s obligation under this warranty is limited to the repair
or replacement, at ApexDesk’s sole option, of the parts or products the defect of which are reported to
ApexDesk within the applicable warranty period and which, upon examination by ApexDesk, prove to be
defective.
APPLICABLE WARRANTY PERIOD
The applicable warranty period, measured from the date of delivery to the original user, shall be two (2) years
on motor and moving parts, five (5) years on steel frame for all warranted desks.
EXCLUSIONS
This limited warranty does not cover and ApexDesk shall not be liable for the following: (1)repairs and
replacements because of misuse, abuse, negligence, alteration, accident, freight damage, or tampering; (2)
products which are not installed, used, stored and properly cleaned as required in the ApexDesk “Assembly
Guide” for this product; (3) products considered to be of a consumable nature; (4) Shipping to or from repair
center; (5) accessories or parts not manufactured by ApexDesk; (6) charges by anyone for adjustments, repairs,
replacement parts, installation, or other work performed upon or in connection with such products which is not
expressly authorized in writing in advance by ApexDesk.
EXCLUSIVE REMEDY
ApexDesk’s only obligation under this warranty is the repair or replacement of defective parts. ApexDesk shall
not be liable for any direct, special, indirect, incidental, exemplary, or consequential damages or delay,
including, but not limited to, damages for loss of profits or loss of use.
CONTACT INFORMATION
Apex Furniture LLC (“ApexDesk”)
18467 Railroad Street
City of Industry, CA 91748
Email: [e-mail]
(877) 516-DESK
www.apexdesk.com
For technical assistance, please call us or visit us at www.apexdesk.com/support.
