APPA 607 User manual

User
Manual
APPA 607


1
Warning
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . .
Safety sheet
. . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . .
. . . . . . . . .
 Read First
Safety Information
Understand and follow operating instructions carefully.
Use the meter only as specified in this manual; otherwise,
the protection provided by the meter may be impaired.

 WARNING
Identifies hazardous conditions and actions that could cause
BODILY HARM or DEATH

CAUTION
Identifies conditions and actions that could DAMAGE the meter
or equipment under test
 WARNING
˙When using test leads or probes, keep your fingers behind
the finger guards.
˙Remove test lead from Meter before opening the battery
door or Meter case.
˙Use the Meter only as specified in this manual or the protec-
tion by the Meter might be impaired.
˙Always use proper terminals, switch position, and range for
measurements.
˙Verify the Meter’s operation by measuring a known voltage.
If in doubt, have the Meter serviced.
˙Do not apply more than the rated voltage, as marked on
Meter, between terminals or between any terminal and
earth ground.
˙Only replace the blown fuse with the proper rating as speci-
fied in this manual.
˙Use caution with voltages above 30 Vac rms, 42 Vac peak,
or 60 Vdc. These voltages pose a shock hazard.
˙To avoid false readings that can lead to electric shock and
injury, replace battery as soon as low battery indicator.
˙Disconnect circuit power and discharge all high-voltage
capacitors before testing resistance, continuity, diodes, or
capacitance.
˙Do not use Meter around explosive gas or vapor.
˙To reduce the risk of fire or electric shock do not expose this
product to rain or moisture.
Warning Safety sheet

2
Risk of electric shock
See instruction manual
DC measurement
Equipment protected by double or reinforced
insulation
=Battery
Fuse
Earth
AC measurement
Conforms to EU directives
Do not discard this product or throw away.
CAUTION
˙Disconnect the test leads from the test points before chang-
ing the position of the function rotary switch.
˙Never connect a source of voltage with the function rotary
switch in Ω,,°C ,mA, INSULATION position.
˙Do not expose Meter to extremes in temperature or high
humidity.
˙ Never set the meter in Ω,,°C ,mA, INSULATION
function to measure the voltage of a power supply circuit
in equipment that could result in damage the meter and
the equipment under test.
Symbols as marked on the Meter and Instruction
manual
Unsafe Voltage
To alert you to the presence of a potentially hazardous voltage,
when the Tester detects a voltage ≧30 V or a voltage
overload (OL) in V, mV, insulation function. The ”“ symbol is
displayed and High voltage indicator is turned on.
Maintenance
Do not attempt to repair this Meter. It contains no userservice-
able parts. Repair or servicing should only be performed by
qualified personnel.
Cleaning
Periodically wipe the case with a dry cloth and detergent.
Do not use abrasives or solvents.

3
The Meter Description
Front Panel Illustration
1. LCD display : 10000 counts .
2. Push-buttons for features.
3. Rotary switch for turn the Power On / Off and select the
function.
4. Input Terminal for Insulation function.
5. Input Terminal for V,Ω, A, Hz, °C functions.
6. Common (Ground reference) Input Terminal for all functions
expect Insulation function.
7. Input Terminal for mA or Common Input Terminal for
Insulation function.

4
Making Basic Measurements
Preparation and Caution Before Measurement
: Observe the rules of Warnings and Cautions
When connecting the test leads to the DUT (Device Under
Test) connect the common (mA) test lead before
connecting the live lead ; when removing the test leads
removing the test live lead before removing the common
test lead.
The figures on the following pages show how to make basic
measurements.
Measuring AC / DC Voltage

5
Measuring Resistance / Continuity / Diode
Measuring Resistance / Continuity / Diode
Press the Blue button to select the measuring function.
Testing Diode

6
Testing Continuity
The buzzer allows you to quick continuity tests without having
to watch the display. The buzzer sounds when a short (< 30Ω)
is defected.
Measuring Capacitance

7
Measuring Temperature °C / °F
Measuring AC / DC Current

8
Measuring Insulation Resistance
Select test voltage
Press the Range button to select the test voltage
(50V / 100V / 250V / 500V / 1000V)
Lock test voltage
Press the Hold button to lock the test voltage. Press the button
again to cancel the lock mode.
Make the reading stably
Press the Blue button to make the reading stably, the “Smooth”
appears on the display. Press the Blue button again to cancel
this mode.

9
Measuring Insulation Resistance
=
Insulation tests should only be performed on dead circuits.
Check the fuse before testing. To measure insulation resis-
tance, follow the steps below.
1. Insert test probes in the “⊕“ and “ “ input terminals.
2. Turn the rotary switch to Insulation position.
3. Press the Range button to select the test voltage.
4. Connect the probes to the circuit.
5. Push and hold the Test button to start the test.
The “Test” and ””appear on the display. The secondary
display shows the test voltage applied to the circuit under
test. The primary display shows the resistance.
6. Keep the probes on the test points and release the Test
button. The resistance reading appears on the primary
display until a new test is started or a different function or
range is selected or > 30 V is detected.

10
Measuring Frequency for ACV, ACmV and ACmA
The meter measures the frequency of a voltage or current signal
by counting the number of times the signal crosses a threshold
level each second. To measure frequency, follow the steps
below.
1. Turn the rotary switch to V, mV or mA position.
2. Press the Hz button to measure the frequency.
3. Press the Hz button or change the rotary switch position
to exit this function.
Display Hold
In the Hold mode, the meter holds the reading. To use the Hold
mode, follow the steps below.
1. Press the Hold button to activate Hold mode. The “ Hold ”
appears on the display.
2. Press the Hold button, Blue button, Range button or change
the rotary switch position to exit this function.

11
The “MIN/MAX/AVG“ mode records minimum and maximum
input values. When the inputs go below the recorded minimum
value or above the recorded maximum value, the meter beeps
and records the new value. MIN/MAX/AVG mode can also
calculate an average of maximum and minimum.To use the
MIN/MAX/AVG mode, follow the steps below.
1. Press the “MIN/MAX“ button to activate MIN/MAX/AVG
mode. The “MIN MAX” blinks on the display.
2. Press the “MIN/MAX“ button to step through the present
readings, maximum, minimum and average (AVG).
3. Press the “MIN/MAX“ button for 2 seconds, Blue button,
Range button or change the rotary switch position to exit
Display MAX / MIN / AVG

12

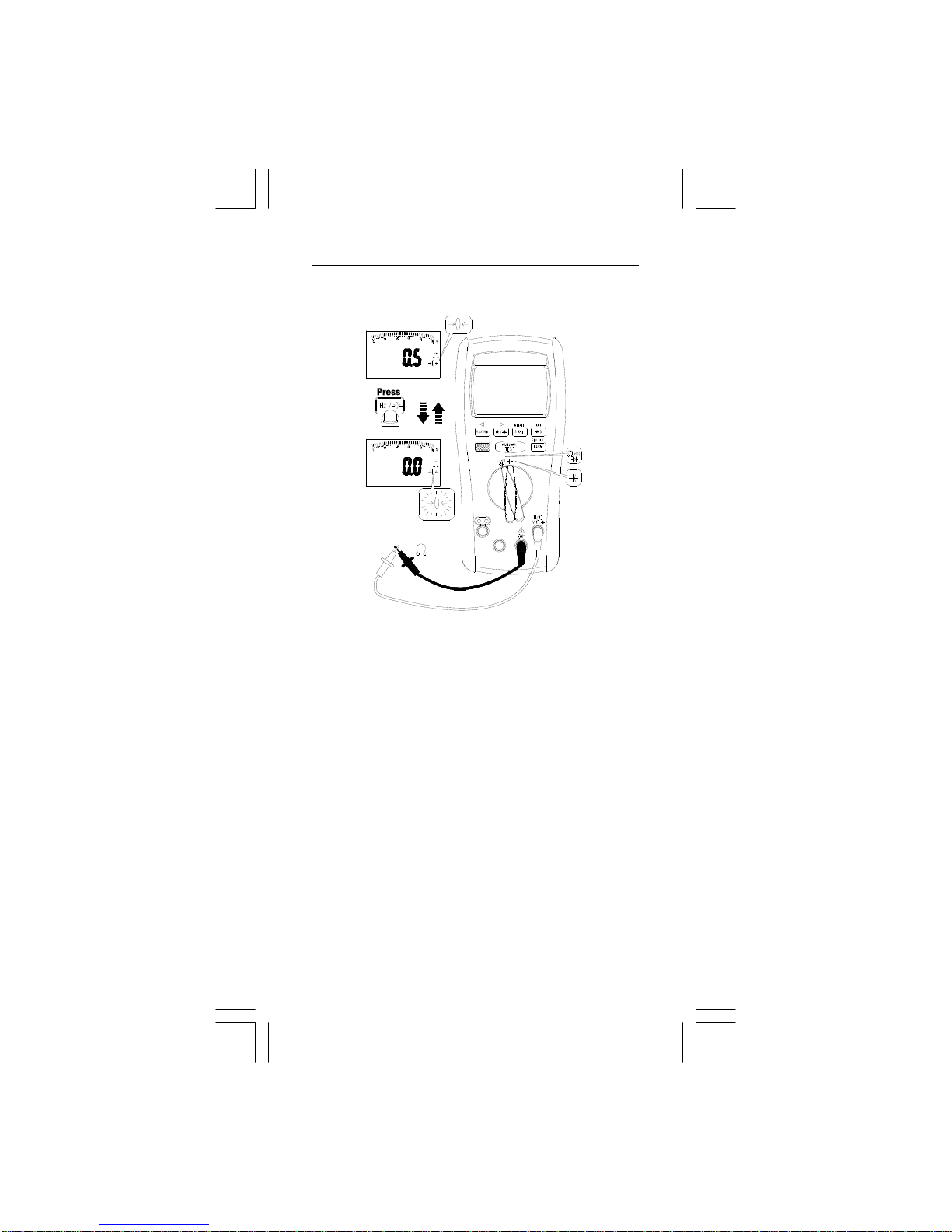

In the Relative mode, the meter records the present reading as
reference and the later reading will subtract it. To use the
Relative mode, follow the steps below.
1. Turn the rotary switch to Ωor position.
2. Press the Hz button to activate Relative mode. The “0“
blinks on the display.
3. Press the Hz button, Blue button, Range button or change
the rotary switch position to exit this function.
Relative mode for Ω/ 

13

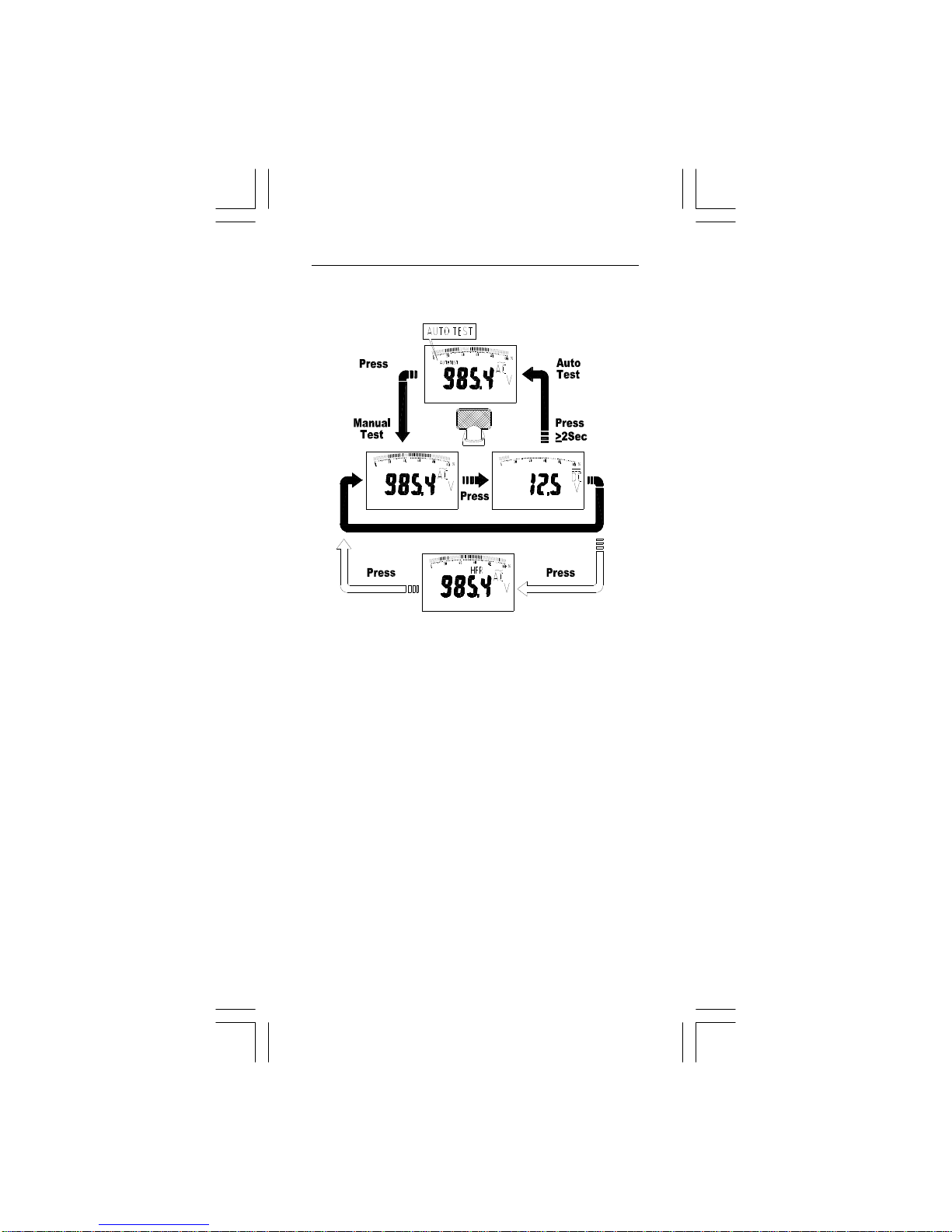

Auto Test and Manual Test
The meter has both “AutoTest “ mode and Manual Test mode.
˙In the Auto Test mode, the meter compares the reading of
AC and DC, and the bigger reading appears on the display.
The meter beeps when the AC/DC mode has change.
˙In the Manual Test mode, you override “AutoTest “ and select
the AC/DC mode yourself.
When you turn the rotary switch to V, mV or mA position, it
defaults to Auto Test mode and the “AutoTest ” appears on the
display.
1. To enter the Manual Test mode, press the Blue button.
2. In the Manual Test mode, press the Blue button to change
the AC/DC mode.
3. Press the Blue button for 2 seconds to activate Auto Test
mode.
High Frequency Reject mode
When the rotary switch in V position, the HFR mode can be
used. To use HFR mode, press the Blue button in the Manual
Test mode.

14

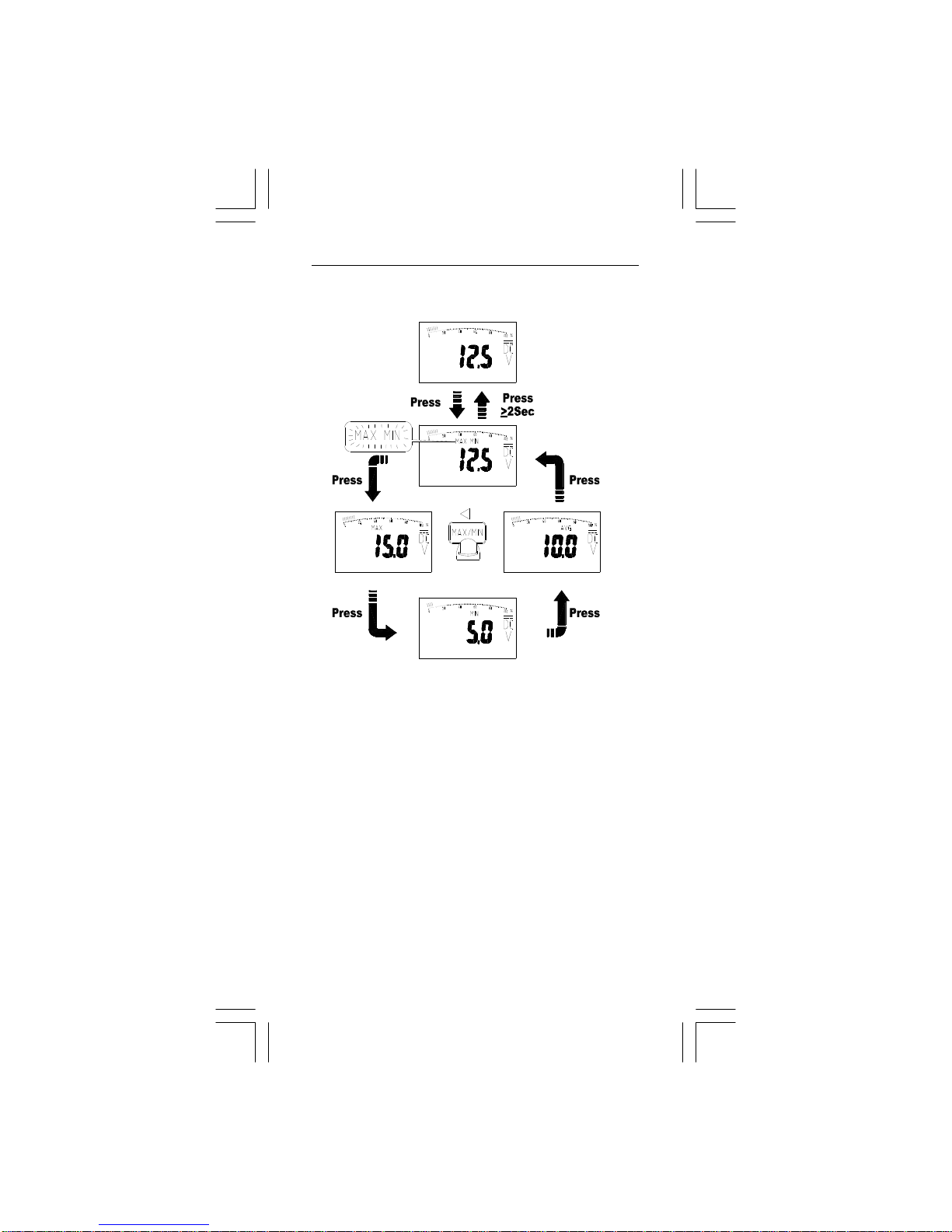

Auto Range and Manual Range
The meter has both Auto Range mode and Manual Range
mode.
˙In the Auto Range mode, the meter selects the range with
the best resolution.
˙In the Manual Range mode, you select the range yourself.
When you turn the meter on, it defaults to Auto Range mode
and the “Range” appears on the display.
1. To enter the Manual Range mode, press the Range button.
The “Range” disappears on the display.
2. In the Manual Range mode, press the Range button to
increment the range. After the highest range, the meter
returns to the lowest range.
3. Press the Range button for 2 seconds to activate Auto Range
mode.

15
Store and Recall
You can store the reading on the display, and recall the reading
on the display after.
˙To store the reading press the Store button.
The data amount and “MEM” blink on the secondary display.
˙Each function has a separate memory space. Each memory
space has the maximum 100 amounts.
To recall the reading on the display, press the Store button for 2
seconds to activate Recall mode. The data amount shows on
the secondary display. In the Recall mode, you can make the
following operation.
˙Press the ←button or →button to select the data amount.
˙Press the ←button or →button for 2 seconds to search data
quickly.
˙Press the Blue button to clear all stored data in this function.
˙Press the Store button for 2 seconds or change the rotary
switch position to exit this function.

16
Auto Power Off
Wake-up the meter by switching rotor or pressing any button.
Auto Backlight
The backlight is automatically turned on at dark environment.
BUZZER
The meter beeps once for every valid key-press, and beeps
twice for every invalid key-press.
Power On Options
Press button while turning the meter on from OFF position.
Blue button : Disable APO
MAX/MIN button : Disable auto backlight
Store button : Clear all stored data
Test button : Display LCD test frame
Range button : Default °C / °F reading

17
Battery and Fuse Replacement
Refer to the following figure to replace fuse and the batteries :
Caution
˙Use only a fuse with the amperage, interrupt, voltage, and
speed rating specified.
˙Fuse rating : 440mA,1000V fast blow fuse.
˙Replace the batteries as soon as the low batteries indicator
" " appears, to avoid false reading.
˙1.5V x 4 alkaline batteries.

18
Testing the fuse
Test the fuse as described below.
1. Insert a test probe in the V, Ω, <, Hz, °C input terminal.
2. Turn the rotary switch to Ωposition, and press the Blue
button to diode function.
3. Insert the probe in the mA input terminal. If the display
reading is 0L, the fuse is bad and should be replaced.

19
Specifications
General Specifications
Maximum voltage applied to any terminal :
1000 V ac rms or dc.
Display : 10000 counts.
Polarity Indication :
Automatic, positive implied, negative indicated.
Overrange Indication : OL
Batteries Life : ALKALINE 80 hours.
Insulation test : Tester can perform at least 600 insulation
tests with new alkaline batteries at room temperature.
These are standard tests of 1 MΩat 1000 V with a duty cycle
of 5 seconds on and 25 seconds off.
Low Batteries Indication : " " is displayed when the batteries
voltage drops below operating voltage.
Low battery voltage : Approx. 4.8V
Auto Power Off : Approx 20 minutes.
Operating Ambient : Non-condensing ≦10°C,
11°C ~ 30°C (≦80% RH),
30°C ~ 40°C (≦75% RH),
40°C ~ 50°C (≦45%RH)
Storage Temperature :
-20°C to 60°C , 0 to 80% R.H. (batteries not fitted)
Temperature Coefficient :
Add 0.15 x (Spec.Accy) / °C, < 18°C or > 28°C .
Measure : Samples 3 times per second normal.
Altitude : 6561.7 ft (2000m)
Safety : Complies with EN61010-1, UL61010-1,IEC 61010-1,
CAT.IV. 600V, CAT.Ⅲ. 1000V
CAT Application field
Compliance to EN 61557 : IEC61557-1, IEC61557-2,
IEC61557-4, IEC61557-10
Weight : (630g) including battery.
Dimensions (W x H x D) :
95mm x 207mm x 52mm with holster.
Accessories : Battery (installed), Test leads and user manual.
Power Requirements : 1.5V x 4 IEC LR6 or AA size.
Pollution degree : 2
ⅠThe circuits not connected to mains.
ⅡThe circuits directly connected to Low-voltage
installation.
ⅢThe building installation.
ⅣThe source of the Low-voltage installation.
